Whirlpool AWT-55S Quick start guide

This document is only intended for qualified technicians who are aware of the respective safety regulations.
First release Date 12th Mar, 2003 Subject to modification
Document No. WOI/WM/2003/009
Twin Tub Washing Machine
PARTS &
SERVICEManual
MODEL
Sap Model No
Description
6111
AWT-55S GREY (Philippines)
6301
AWT-55S ALMOND (Philippines)

This document is only intended for qualified technicians who are aware of the respective safety regulations.
First release Date 12th Mar, 2003 Subject to modification
Document No. WOI/WM/2003/009
TWIN TUB WASHING MACHINE
CONTENTS
S.NO DESCRIPTION PAGE NO
1. SPECIFICATIONS 5
2. SPECIAL FEATURES OF SUPER XL 6
3. CONTROL & FUNCTIONS 7
4. EXPLODED VIEW AND PARTS LIST 9

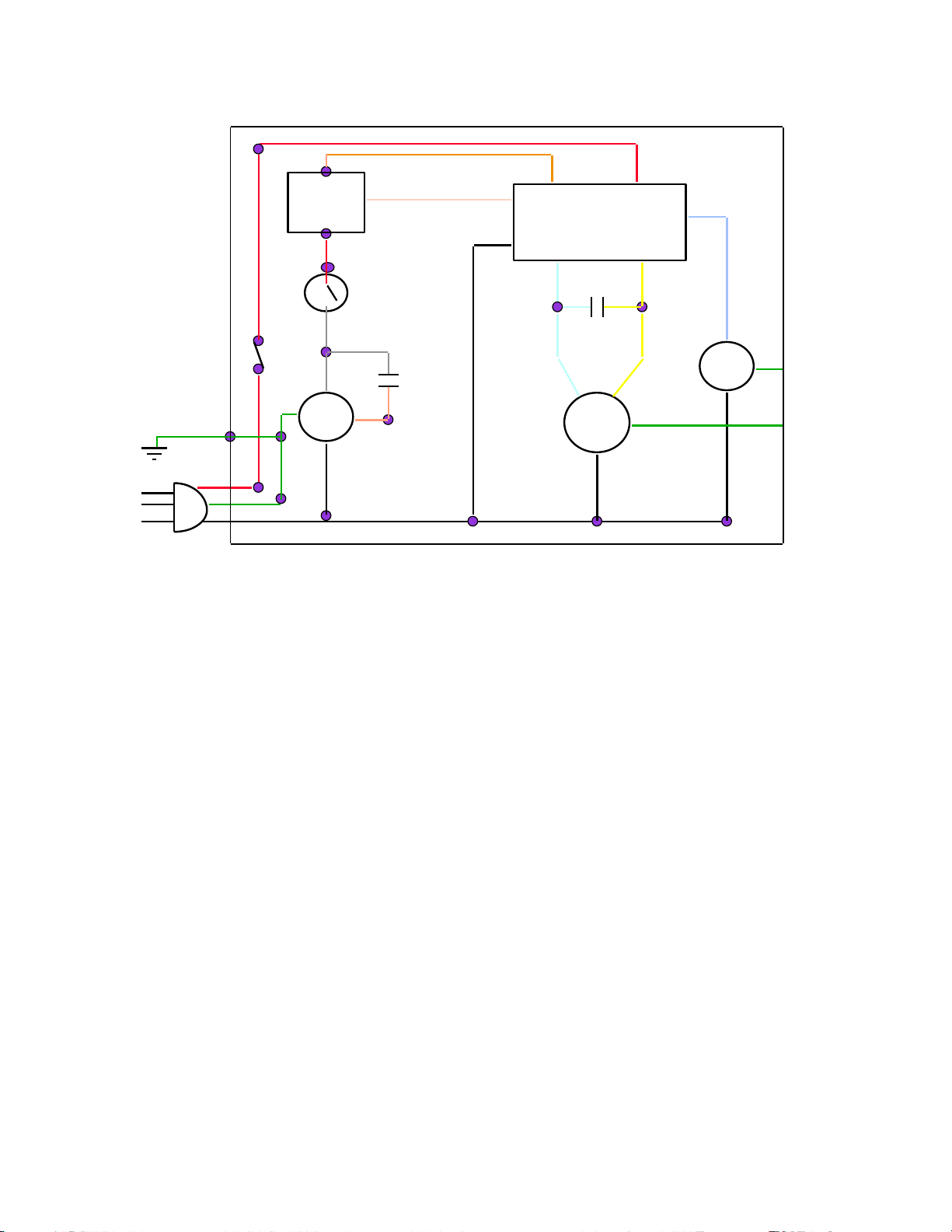

5. WIRING DIAGRAM 13
6. FAULT FINDING GUIDE 14
7. COMPONENT CHECK GUIDE 16

This document is only intended for qualified technicians who are aware of the respective safety regulations.
First release Date 12th Mar, 2003 Subject to modification
Document No. WOI/WM/2003/009

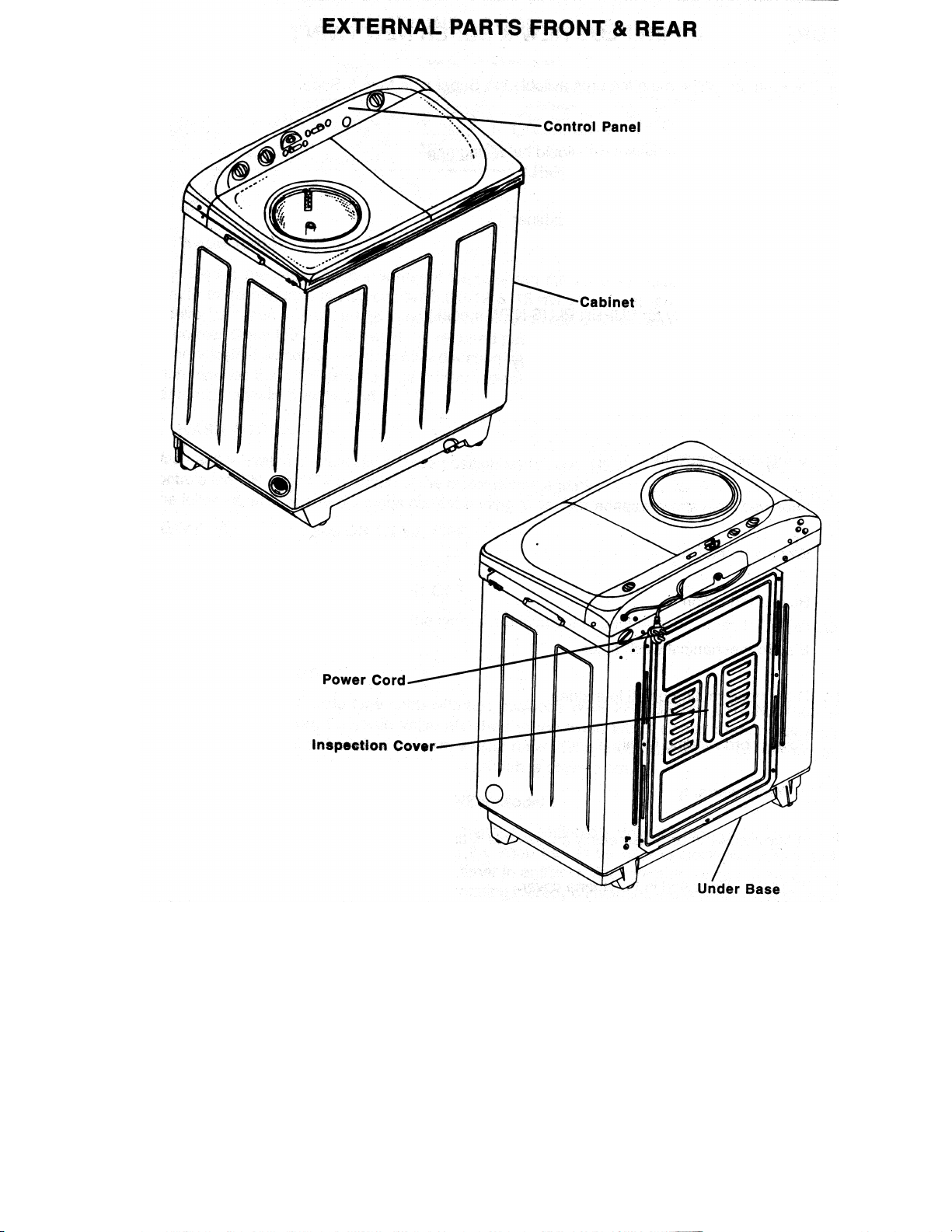

AWT 55S

This document is only intended for qualified technicians who are aware of the respective safety regulations.
First release Date 12th Mar, 2003 Subject to modification
Document No. WOI/WM/2003/009

This document is only intended for qualified technicians who are aware of the respective safety regulations.
First release Date 12th Mar, 2003 Subject to modification
Document No. WOI/WM/2003/009
SPECIFICATIONS
MODELS:
1. POWER SOURCE : 220V AC 60 HZ
2. CAPACITY WASH : 5.5 KG DRY WEIGHT
SPIN : 5.5 KG WET WEIGHT
3. OVERALL DIMENSIONS : W 750MM/D 490 MM/H-812MM
4. MACHINE WEIGHT PACKED : 37 KGS
UNPACKED : 30 KGS
5. MOTOR SPEED WASH : 1400 RPM+ 25 RPM
SPIN : 1400 RPM+ 25 RPM
6. MOTOR POWER WASH : 330 W
(INPUT) SPIN : 150 W
7. WASH SYSTEM : AGITATOR TYPE
8. SPIN SYSTEM : CENTRIFUGAL
9. WATER LEVEL SELECTION : 3
10. WATER CAPACITY HIGH : 55 L
MEDIUM : 43 L
LOW : 36 L
11. AGITATOR SPEED : 11 STROKES PER MINUTE
12. INDICATOR : No BUZZER
13. DRIVE SYSTEM WASH : BELT & PLANETARY GEAR
SPN : DIRECT
14. WASH TIMER SETTINGS : 1 TO 15 MINUTES
15. SPIN TIMER SETTINGS : 1 TO 5 MINUTES
16. TIMER WASH : ELCTRO MECHANICAL
SPIN : MECHANICAL

This document is only intended for qualified technicians who are aware of the respective safety regulations.
First release Date 12th Mar, 2003 Subject to modification
Document No. WOI/WM/2003/009
FEATURES
The following are of the main features available in –Super WASH New semi automatic
washing machine:
Stainless steel spin basket with liquid balancing ring.
Pre painted galvanized sheet for cabinet.
Unique agitator washing system
5.5-kg wash & matched spin capacity.
Rat mesh
Transparent wash lid
Improved Spin shower option
Wheels for mobility
Electro mechanical wash timer
Drain hose routing on all sides
Power card winding facility
Hinged wash lid and also easily accessible & can be hinged on the side
Fuse 3A –Enclosed in Polyphone cover

This document is only intended for qualified technicians who are aware of the respective safety regulations.
First release Date 12th Mar, 2003 Subject to modification
Document No. WOI/WM/2003/009

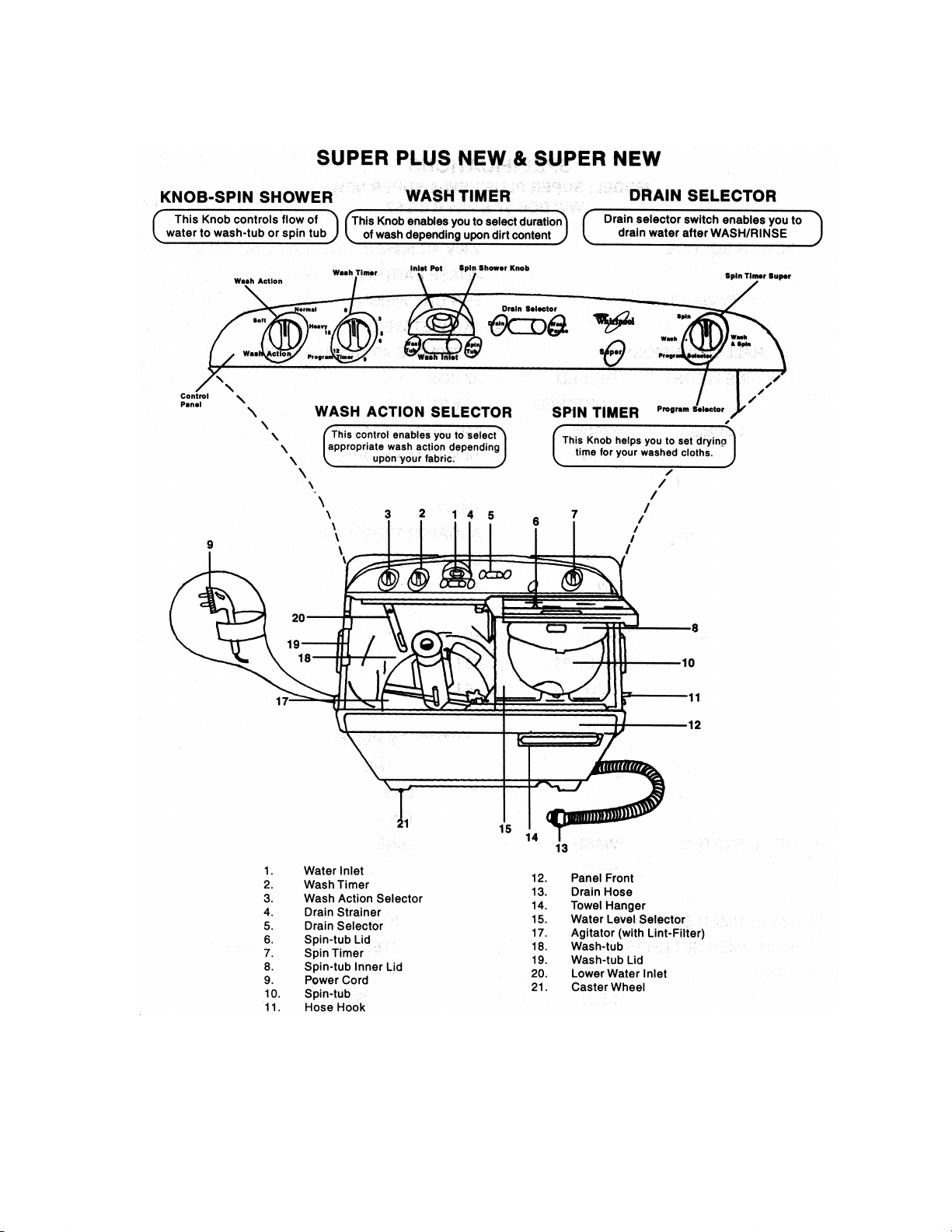

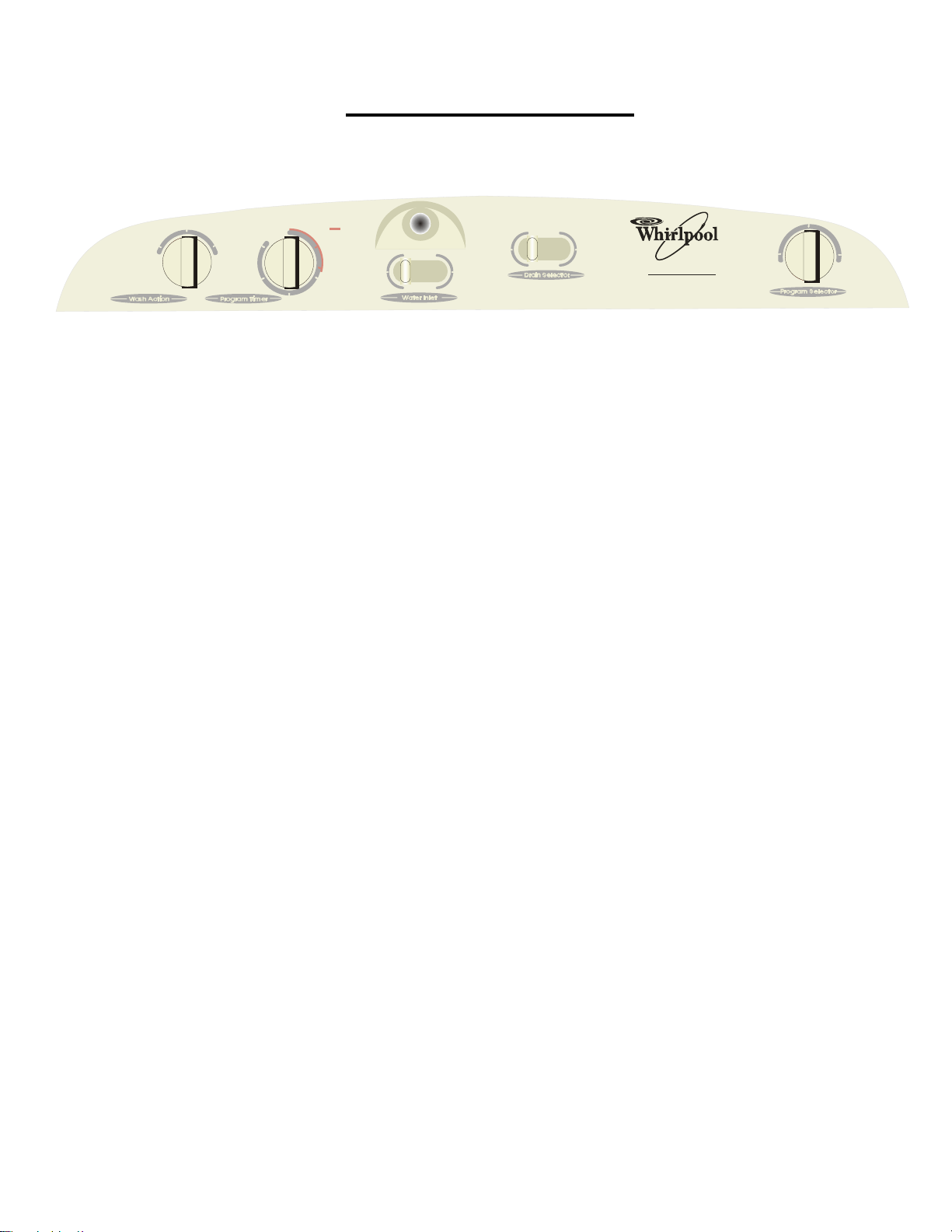

Controls and Functions
1.WASH TIMER
This Electro mechanical timer is meant for selecting the WASH / RINSE duration ranging
from 1 minute to 15 minutes. Indications for 3,6,9,12 & 15 minutes are given in the dial. For
setting the required duration, the knob has to be rotated in clockwise direction and set at
corresponding mark in the dial. Once the knob is set at the required position, the machine is
switched on and the timer automatically rewinds in anticlockwise direction while performing
WASH / RINSE. Once the timer knob reaches the 'OFF' position, the buzzer indicates the
completion of the cycle and the machine gets automatically switched off.
2 . WASH ACTION
Wash action switch is basically a three position switch viz., HEAVY, NORMAL, & SOFT.
This knob controls the ON and OFF duration of the motor during agitation thereby varying
the washing action. The following are the wash timing corresponding to various settings:
3. DRAIN SELECTOR
This is a mechanical, slide type knob with two positions WASH/RINSE and DRAIN. When
set at WASH/RINSE position, the drain valve attached to the wash tub is closed thereby
allowing the water to get retained in the tub to perform wash/rinse , If the knob Is pushed to
DRAIN mode , the drain and the water in the wash tub is drained out.
4. SPIN SHOWER
This is again a tow position knob viz. WASH TUB and SPIN SHOWER. When set at WASH
TUB position, it allows the water to be filled in the wash tub. When set at SPIN SHOWER
position, the water gets filled in the spin tub.
Spin shower option is generally used to aid the soap removal form the clothes. During this
process, the clothes are loaded in the spin tub and the knob is set at SPIN SHOWER mode.
Water is then filled into the machine. This water gets sprayed over the clothes in spin tub.
Wash
Tub
Spin
Tub
Drain
Wash/Rinse
0
9
3
6
12
15
5
max. spin
time
Soft
Normal
Heavy
Wash
Spin
Wash
&
Spin
AWT 55
S
5.5 KG
HOM
E
APPLIANC
ES

This document is only intended for qualified technicians who are aware of the respective safety regulations.
First release Date 12th Mar, 2003 Subject to modification
Document No. WOI/WM/2003/009
After 2 minutes of spraying, the water supply needs to be cut off and then spin timer is set
ON for few minutes of spinning. This removes the suds from the clothes effectively.
5. PROGRAM SELECTTOR
In super new models, the spin timer is replacing this three way switch. The three positions
available are WASH, SPIN and WASH & SPIN. This switch will work in conjunction with
the wash timer (Known as PROGRAM TIMER in SUPER NEW model) as detailed below:
AT WASH POSITION : The wash motor will be ON for the duration set at
PROGRAM TIMER
AT SPIN POSITON : The spin motor will be ON for the duration set at
PROGRAM TIMER
AT WASH & SPIN : BOTH THE WASH AND SPIN MOTORS will be ON for
the duration set at PROGRAM TIMER

This document is only intended for qualified technicians who are aware of the respective safety regulations.
First release Date 12th Mar, 2003 Subject to modification
Document No. WOI/WM/2003/009
Parts List
Loc No
Part Code
Description
6111
6301
1
P013260110I
LID WASH ASSY - PLWH
1
1
P0132601700
LID WASH ASSY - LIGHT GREY
1
2
P013200040B
WINDOW - LID WASH
1
1
3
P013200260E
COVER - SPLASH - APWH
1
1
4
P013200280C
BRACKET - LID WASH - APWH
1
1
5
P0156004900
FRONT PANEL - NT - PLWH
1
5
P0156005200
FRONT PANEL - NT - LIGHT GREY
1
6
P010600020C
INNER COVER-SPIN
1
1
7
P014200010B
SPIN CAP - PL/SS
1
1
10
P010690160A
OVERFLOW FILTER ASSY - APWH
1
1
12
P0156173300
ASSY.AGITATOR SHAFT-NT(2 Pins ALUM ASSY)
1
1
13
P0156120900
BELLOW SPIN ASSY - TT (NEW)
1
1
15
P0106182700
BRAKE FIX PLATE ASSY
1
1
16
P010618010H
UNDER BASE
1
1
17
P013240020A
DIVERTOR - Tango
1
1
18
P013200310B
SPRING LID
1
1
20
P010613130H
BALANCE RING ASSY (TT) - APWH
1
1
20
P010613140H
BALANCE RING - BOTTOM (TT) - APWH
1
1
20
P0106131500
BALANCE RING - TOP (TT) - APWH
1
1
21
P0135130400
SPIN BASKET - PLASTIC ASSY - APWH
1
1
22
P016613080A
SHAFT FIX PLATE ASSY-(INSERT MOU)CHANDNI
1
1
23
P010618040I
BRAKE WIRE ASSY
1
1
24
P013218020D
PULLEY FAN ASSY - SHEET METAL
1
1
25
P0160181200
MOTOR-WASH (30 M) - CGL EXPORT - 220 V
1
1
26
P010618150A
GROMMET
1
1
27
P0106181800
GROMMET SUPPORT PLATE
1
1
28
P010618280A
WHEEL CASTOR (S)
1
1
29
P0106181400
WHEEL-SHAFT
1
1
30
P013240400F
KNOB SLIDE SELECTOR - PLWH
1
31
P013240130A
RETAINER - SPIN SHOWER
1
1
32
P0150700200
FILL HOSE ASSY-SUPER DLX(1000MM) L.GREY
1
1
34
P013218010B
DAMPING RUBBER - TT
1
1
35
P015617370A
DRIVE ASSY (2 PIN) TT (PES)-ADC(PLASTIC)
1
1
36
P013212070C
PULLEY - DRIVEN
1
1
37
S011590010A
NUT NYLOC
1
1
41
P010618050A
BAND-BRAKE
1
1
42
P013218030A
CUSH MOTOR ASSY - TT
1
1
43
P015018020A
DUAL CAPACITOR (8 + 5 MFD) SUPER DLX
1
1
46
P013240390G
KNOB SLIDE DRAIN - PLWH
1
47
P013240040E
HOUSING - LEVER CONTROL
1
1
48
P0135401900
KNOB ROTARY - B - LIGHT GREY
1
49
P0138405900
CONTROL PANEL - AWT 55S- LIGHT GREY
1
49
P0138406000
CONTROL PANEL ASSY - AWT 55S-LIGHT GREY
1
49
P0138406100
CONTROL PANEL - AWT 55S- PEARL WHITE
1
49
P0138406200
CONTROL PANEL ASSY - AWT 55S-PEARL WHITE
1

This document is only intended for qualified technicians who are aware of the respective safety regulations.
First release Date 12th Mar, 2003 Subject to modification
Document No. WOI/WM/2003/009
Loc No
Part Code
Description
6111
6301
50
P0156408600
SWITCH WASH / SPIN - NT (RUBBER SEAL)
1
1
52
P0160403800
Wash Timer Assy - PBT - S.Arabia
1
1
52
P0160403900
WASH TIMER BASE ASSY - PBT - S.ARABIA
1
1
53
P010600060C
RETAINER-BRAKE WIRE
1
1
54
P0106125300
COUNTER FLOW PROTECTOR
1
1
55
P014212010A
TUB ASSY COMPLETE - TANGO++ - APWH
1
1
56
P010600530B
V-BELT(TWIN TUB)
1
1
57
S017100000A
PIG TAIL CONNECTOR-3 DIA
2
2
59
P013240480B
MICRO SWITCH - LEVER - K
1
1
61
P0132400700
DRAIN CONTROL ASSY
1
1
62
P010612390D
VALVE CAP
1
1
63
P010612460C
VALVE SPRING
1
1
64
P0106122000
VALVE ROD-ADJUSTABLE
1
1
65
P010612050A
BELLOWS-VALVE
1
1
66
P010612450D
HOSE-TUB TO DRAIN (D:36, L:275)
1
1
67
P010612040G
INLET JOINT
1
1
68
P0106120300
VALVE HOUSING ASSY
1
1
69
P0132004100
BASE WATER PASSAGE ASSY-White(Optimised)
1
1
70
P013200010I
BRACKET-BRAKE WIRE
1
1
71
P010612280D
COVER SLIDER - APWH
1
1
72
P014212020D
SLIDER - ADJ. OVERFLOW - APWH
1
1
73
P010612470G
HOSE-ADJUSTABLE OVERFLOW
1
1
74
P0156120600
STRAINER (SNAP TYPE) - APWH
1
1
76
P014200020D
INSPECTION COVER - HIPS -PLWH(1.0)W.FLAP
1
76
P014200230D
INSPECTION COVER-HIPS-L.GREY (1.0)W.FLAP
1
77
P0160405400
INNER EARTH ASSY-W&S.MOT.TO CAB-TT-EXPOR
1
1
78
P013240060E
FUSE ASSY (3A) - TT
1
1
79
P013840310A
POWER CORD - MEXICO (2 FLAT PIN)
1
1
80
P010612080B
DRAIN HOSE WITH HOOK-L.GREY(D:36,L:1145)
1
1
81
P0136210400
CABINET ASSY - PLWH
1
81
P014221090A
FILTER NET ASSY - ECO DLX
1
83
P010618130A
SPRING-BRAKE
1
1
84
P013212020A
TOP PLATE AND INNER COVER ASSY - APWH
1
1
85
P0160181100
MOTOR SPIN (20 mm) - CGL Export - 220 V
1
1
86
P0150403500
KNOB-ROTARY A - LIGHT GREY - SUPER DLX
1

This document is only intended for qualified technicians who are aware of the respective safety regulations.
First release Date 12th Mar, 2003 Subject to modification
Document No. WOI/WM/2003/009
Part Code
Description
6111
6301
P010142030C
CLIP - CONTROL KNOB
1
1
P010612260J
TUB - APWH
1
1
P010612340D
OVERFLOW FILTER - APWH
1
1
P010612520E
VALVE HOUSING
1
1
P010618020A
BRAKE DRUM - TT
1
1
P010618060B
BRAKE WIRE CAP
1
1
P0106180800
UNDER BASE WITH WHEELS ASSY
1
1
P0106180900
SLEEVE-BRAKE WIRE(PLASTIC)
1
1
P0106181700
WIRE STOPPER
1
1
P010618210B
STOPPER
1
1
P010618230C
BRAKE LEVER
1
1
P010618250A
BRAKE FIX PLATE
1
1
P0106182600
BRAKE WIRE
1
1
P0106182900
BRAKE DRUM ASSY - TT
1
1
P010620140A
GUARD DRAIN HOSE - LIGHT GREY
1
1
P010620150A
PLUG DRAIN HOLE - LIGHT GREY
1
1
P010690070C
CUSH-VIB.PREVENT SIDES
1
1
P010690130B
CUSHION - SPIN BASKET (SUPER PLUS)
1
1
P011590010D
CUSHION-UNDER(E)-OPTIMISED
1
1
P012600050A
STICKER-CONTROL PANEL BASE-IT (BLACK)
1
1
P012618250F
BUSH - BRAKE DRUM-IT
1
1
P012640490F
WIRE ASSY-M.SWITCH/3 POS SWITCH-RED IT
1
1
P0132002200
LID WASH - PLWH
1
P013200230F
LID SPIN - PLWH
1
P013200270D
TOP PLATE - APWH
1
1
P0132003900
LID WASH - LIGHT GREY
1
P0132004000
LID SPIN - LIGHT GREY
1
P0132004400
BASE WATER PASSAGE (OPTIMISED)- APWH
1
1
P0132120100
BUSH - BELLOW - TT
1
1
P0132120400
INSERT - PULLEY DRIVEN
1
1
P013218040B
PULLEY FAN - BOTTOM (BIG)
1
1
P013218050B
PULLEY FAN - TOP (SMALL)
1
1
P013240100A
MICRO SWITCH ASSY - TT
1
1
P013240340C
STRAP - DRAIN - WHITE
1
1
P013240470C
WIRE ASSEMBLY-P. CORD TO MOTORS-BLACK
1
1
P013240490B
BRACKET - ROTARY SWITCH
1
1
P013240500A
INSERT - CONTROL PANEL
1
1
P0132406500
KNOB-SLIDE DRAIN - LIGHT GREY
1
P0132406600
KNOB - SLIDE SELECTOR - LIGHT GREY
1
P0132601300
PE COVER - LID WASH
1
1
P0132601600
PE COVER - LID SPIN
1
1
P0132900400
TOP COVER - MIDDLE
1
1
P0135130500
SPIN BASKET - PLASTIC (INSERT MOULD)APWH
1
1
P013540160C
KNOB & CLIP ASSY - B - PLWH
1

This document is only intended for qualified technicians who are aware of the respective safety regulations.
First release Date 12th Mar, 2003 Subject to modification
Document No. WOI/WM/2003/009
Part Code
Description
6111
6301
P0135401800
KNOB & CLIP ASSY - B - LIGHT GREY
1
P0136000100
EARTH PLATE
1
1
P013621080G
CABINET - PLWH
1
P0138182700
UNDER BASE ASSY-AWT55S- Philippines
1
1
P0138210100
EARTH WIRE - EXTERNAL - PHILIPPINES
1
1
P0138801000
USER MANUAL - AWT 55S- Philippines
1
1
P0142211000
CABINET - LIGHT GREY
1
P0142400900
BRACKET - MICRO SWITCH
1
1
P0150002500
HOLDER LINT FILTER - S55 (WHITE)
1
1
P0150120300
PLUG HOLDER LINT FILTER - APWH
1
1
P0150403600
KNOB-ROTARY A - PEARL WHITE -SUPER DLX
1
P0156002300
PLASTIC SPONGE - BASE WATER PASSAGE
1
1
P0156006000
HOLDER LINT FILTER ASSY (APWH) NT
1
1
P015610010A
BASE- AGITATOR - TT DAA
1
1
P0156100700
LINT FILTER - TT DAA (GREY)
1
1
P0156101000
COVER - BRUSH - NT
1
1
P0156101300
TOP - AGITATOR - TT DAA
1
1
P0156101600
AUGER - TT DAA (APWH)
1
1
P0156101800
Brush - NT (Translucent blue)
1
1
P0156101900
HOLDER BRUSH - NT (APWH)
1
1
P0156102000
BRUSH ASSY - NT - (Translucent blue)
1
1
P0156120200
DRAIN ASSY -TANGO / NT
1
1
P015612070A
BELLOW - SPIN - TT (NEW)
1
1
P0156120800
RETAINER-BELLOWS - TT
1
1
P0156121000
RUBBER RING - TT ( NEW )
1
1
P0156170100
SPACER - AGI. SHAFT - NT
1
1
P0156212300
STIFFNER - PAD NT (ITW)
1
1
R0190190000
WIRE TIE
2
2
S0171000200
PIGTAIL CONNECTOR - DIA2.6
2
2
S0176002200
FUSE - 3.15A
1
1
P010618200D
SPRING-CUSHION
1
1
P013290010E
CUSHION - TOP
1
1
P013290030F
TOP COVER - EDGE
1
1
P013290050B
CUSHION - MIDDLE
1
1
P0142120500
HOOK - VALVE ROD
1
1
P0142400800
CONTROL LEVER DRAIN - TT(NATURAL)
1
1
P010690120C
FOLDABLE BOTTOM TRAY
1
1
P013260120H
LID SPIN ASSY - PLWH
1
P0132601800
LID SPIN ASSY - LIGHT GREY
1
P013540170C
KNOB ROTARY- B - PLWH
1
P013890080B
BOX PACKING - SRILANKA
1
1

This document is only intended for qualified technicians who are aware of the respective safety regulations.
First release Date 12th Mar, 2003 Subject to modification
Document No. WOI/WM/2003/009

This document is only intended for qualified technicians who are aware of the respective safety regulations.
First release Date 12th Mar, 2003 Subject to modification
Document No. WOI/WM/2003/009

This document is only intended for qualified technicians who are aware of the respective safety regulations.
First release Date 12th Mar, 2003 Subject to modification
Document No. WOI/WM/2003/009
Wiring Diagram
M M
BUZZER
PRPGRAMME
SELECT
SWITCH PROGRAMME TIMER
AND
WASH ACTION
SPIN MOTOR WASH MOTOR
5 MFD
LID SWITCH
R
R
R
Y-R
T
W
W
BR
B
BL
BL
Y
Y
LBL
B B
B
B
FUSE
3A
10 MFD
R=Red, W=White, B=Black, BL=Blue, T=Tan, BR=Brown,
LBL=LightBlue, G=Green Y-R=YellowRed

This document is only intended for qualified technicians who are aware of the respective safety regulations.
First release Date 12th Mar, 2003 Subject to modification
Document No. WOI/WM/2003/009
Trouble shooting chart
S.N
O
PROBLEM
POSSIBLE CAUSE
REMEDY
1
Shock/Current
Leak
Earth Not Proper
Connect Proper
Earthing
2
Machine Not
Functioning
No Supply At The Power
Point
Check Electrical
Supply At Socket
Plug Switch Is Not On
Switch On The Plug
Blown Up Fuse
Replace Fuse
Defective Power Cord
Refer CCG *
Defective Wash Timer
Refer CCG
Defective Capacitor
Refer CCG
Defective Drive Assy
Refer CCG
Defective Drive Belt
Replace
3
No Drain
Drain Hose Hooked On
Place The Drain Hose
Machine
At Ground Level
Kinked / Clogged Drain
Hose
Remove / Clean
Drain Valve Control Wire
Reconnect Drain
Dislodged
Wire
Control Cable Cut
Replace Cable
Clogged Drain Valve
Clean Drain Valve
4
No Agitation
Wash Timer Defective
Refer CCG
Wash Motor Defective
Refer CCG
Drive Belt Cut
Replace Drive Belt
Defective Drive Assy
Refer CCG
Defective Capacitor
Refer CCG
Wire Discontinuity
Rectify
5
One Side Agitation
Defective Wash Timer
Refer CCG
Defective Wash Motor
Refer CCG
Defective Drive Assy
Refer CCG
6
Noisy Agitation
Loose Drive Belt
Adjust
Defective Drive Assy
Refer CCG
Loose Agitator
Fix The Agitator

This document is only intended for qualified technicians who are aware of the respective safety regulations.
First release Date 12th Mar, 2003 Subject to modification
Document No. WOI/WM/2003/009
Proper ly
Defective Wash Motor
Refer CCG
7
Leak During
Drain
Defective Drain Valve
Refer CCG
Punctured Drain Hose
Replace
8
No Spin
Lid Open
Close Lid
Defective Lid Switch
Replace
Defective Capacitor
Refer CCG
Defective Spin Motor
Refer CCG
Improper Brake
Adjust
Defective Brake Cable
Replace
9
Noisy Spin
Defective Spin Basket
Replace
Loose Coupling Bolt
Tighten
Loose Basket Shaft
Tighten
Defective Spin Motor
Refer CCG
* CCG is the Component Check Guide table in the next page

This document is only intended for qualified technicians who are aware of the respective safety regulations.
First release Date 12th Mar, 2003 Subject to modification
Document No. WOI/WM/2003/009
COMPONENT CHECK GUIDE
S.NO
COMPONENT
NATURE OF
TESTING PROCEDURE
REMEDY
PROBLEM
1
Machine Gives
Check for proper earthing to
Inform customer
shock
which the machine is connected
to correct for
using multimeter.
proper earthing
Check voltage between
Phase & Neutral
Phase & Earth
both should be equal.
Check continuity between
Neutral & Earth
If found to be short Earthing is
defective
2
Fuse
Blown
Using multimeter check continuity
between both the ends.
Replace the fuse
3
Power cord
Discontinuity
Check for proper continuity
between plug side and machine
side also check for short circuit
between wires
Replace power
cord
4
capacitor
Not functioning
WARNING
DISCHARGE
BEFORE
HANDLING
Check the capacitor with the
multimeter in continuity mode.
The meter should first read ohms
and gradually the needle should
swing back to infinity Ohms. It
indicates a good capacitor and
any thing other than this is
defective.
Replace the
capacitor
5
Wash Motor
Does not run
Check the winding resistance
using a multimeter between wires
BLACK & BLUE 37.6 Ohms
approx. BLACK & YELLOW 42.6
Ohms. If the resistances are not
as per the given value it could be
short or open
Replace the wash
motor
6
Spin Motor
Does not run
Check the winding resistance
using a multimeter between wires
BLACK & BROWN 69 Ohms
approx. BLACK & WHITE 77.5
Ohms. If the resistances are not
as per the given value it could be
short or open
Replace the Spin
motor

This document is only intended for qualified technicians who are aware of the respective safety regulations.
First release Date 12th Mar, 2003 Subject to modification
Document No. WOI/WM/2003/009
COMPONENT CHECK GUIDE Cont’d
7
Wash / Spin
motor
Noisy Operation
Wash / Spin
Visually check the damages on
pulley and refer, also check for
free rotation of the rotor. If any
damages noticed or the rotor not
rotating freely indicates defective
motor (Wash & Spin).
Replace the
Wash / Spin
motor.
Electric current
leakage
Check the motors for short
between body and terminals
using a multimeter. If meter
shows continuity, it indicates
motor is defective.
Replace the
motor.
8
Timer
No spin
Check continuity between the
terminals of the spin timer using a
multimeter.
Replace the spin
timer
1. In OFF position the meter should read infinit
resistance.
2. In ON position the meter should read zero Ohms.
If the meter not showing as per above statements it
indicates defective spin timer
Not advancing
Set the Timer to one position and
check the knob whether coming
back to OFF position. If not
coming indicates defective spin
timer.
Replace the spin
timer.
9
Wash Timer
Not advancing /
No Wash
Set the timer to one position and
check the knob whether coming
back to OFF position after
switching On the machine. If not
coming indicates defective wash
timer
Replace the wash
timer.
11
Circuit breaker
No spin
Adjust / Replace the circuit
breaker and check for the
continuity using a multimeter. If
no continuity indicates circuit
breaker defective.
Make contact
between the two
leads to the
circuit breaker
assy.
12
Drive assy
Noisy agitation
Visually check for excessive play
in the shaft. If anything as above
noticed indicates defective drive
assy.
Replace the drive
assy
