Whirlpool Design 2000 LA5700XP User manual

AUTOMATIC
WASHER
Design 2000@
Large Capacity
Model
LA57ooXP
‘ave Ovens, Trash Compactors. Room Au Conditioners. Dehumidifws, Automatic Washers, Clothes Dryers. freezers, Relrigerator-Freezer

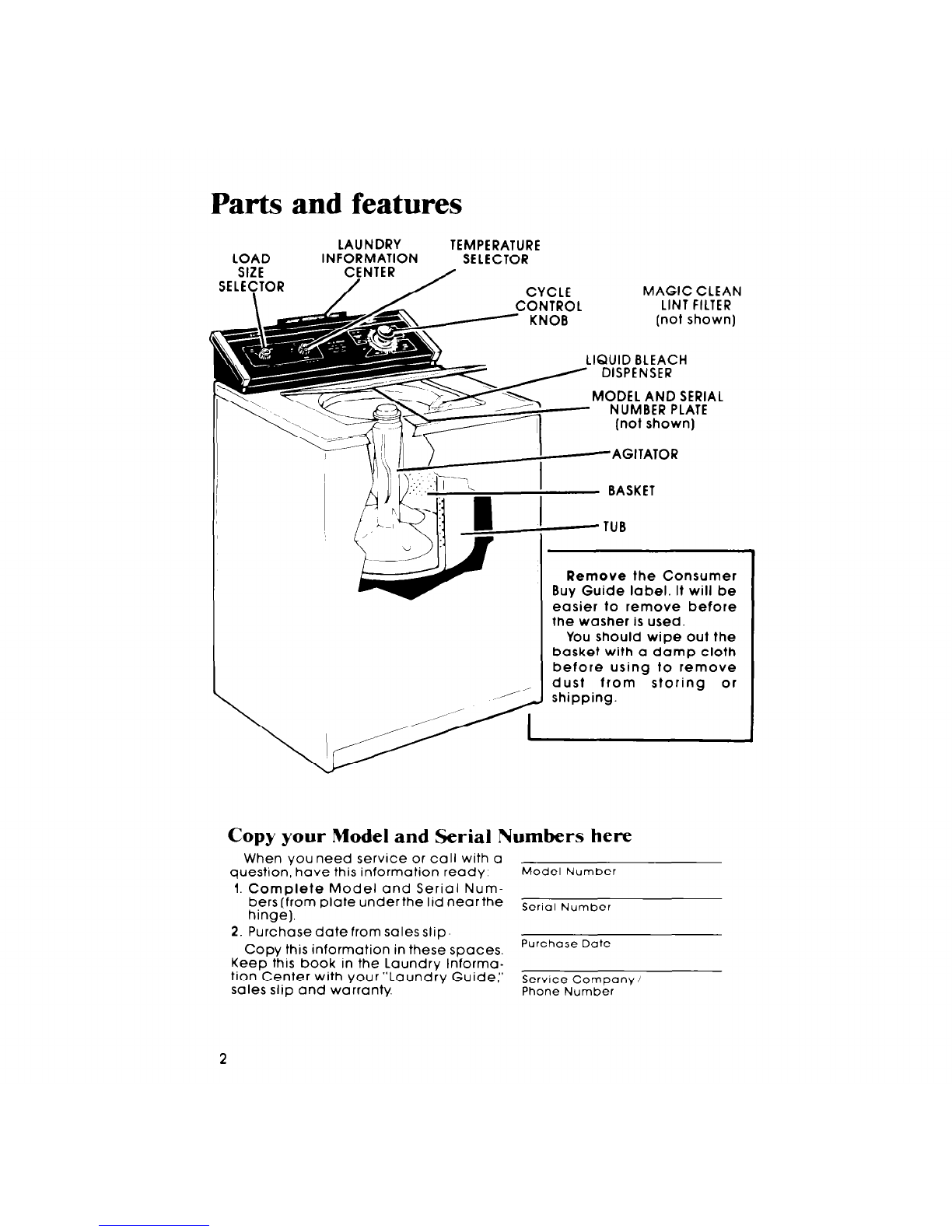

Parts and features
LAUNDRY TEMPERATURE
LOAD INFORMATION SELECTOR
SIZE CENTER
SELECTOR / / CYCLE
CONTROL
A/ KNOB
L
-
MAGIC CLEAN
LINT FILTER
[not shown)
QUID BLEACH
DISPENSER
MODEL AND SERIAL
NUMBER PLATE
(not shown)
-AGITATOR
- BASKET
-TUB
Remove the Consumer
Buy Guide label. It will be
easier to remove before
the washer is used.
You should wipe out the
basket with a damp cloth
before using to remove
dust from storing or
shipping.
Copy your Model and Serial Numbers here
When you need service or call with a
question, have this information ready:
Model Number
1. Complete Model and Serial Num-
bers [from plate under the lid near the
hinge).
Serial Number
2. Purchase date from sales slip.
Copy this information in these spaces. P”rchase Date
Keep this book in the Laundry Informa-
tion Center with your”Laundry Guide,”
sales slip and warranty.
Service Company /
Phone Number
2

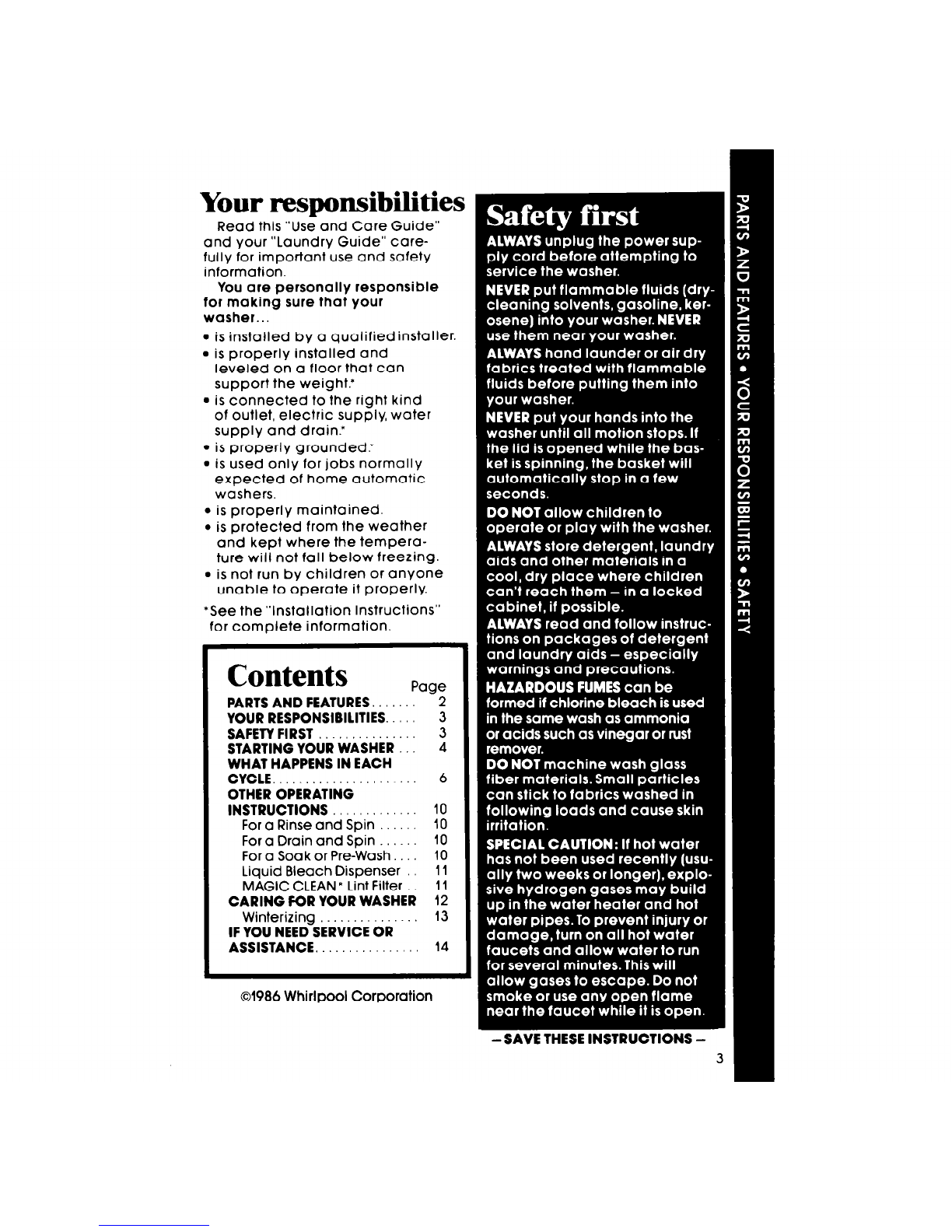

Your responsibilitie
Read this “Use and Care Guide”
and your “Laundry Guide” care-
fully for important use and safety
information.
You are personally responsible
for making sure that your
washer..
l is installed by a qualifiedinstaller
l is properly installed and
leveled on a floor that can
support the weight.*
. is connected to the right kind
of outlet, electric supply, water
supply and drain.*
l is properly grounded.-
. is used only for jobs normally
expected of home automatic
washers.
l is properly maintained.
l is protected from the weather
and kept where the tempera-
ture will not fall below freezing.
l is not run by children or anyone
unable to operate it properly.
*See the “Installation Instructions”
for complete information.
Contents
Page
PARTS AND FEATURES. 2
YOUR RESPONSIBILITIES. 3
SAFETY FIRST 3
STARTING YOUR WASHER 4
WHAT HAPPENS IN EACH
CYCLE. 6
OTHER OPERATING
INSTRUCTIONS IO
For a Rinse and Spin 10
For a Drain and Spin 10
For a Soak or Pre-Wash 10
Liquid Bleach Dispenser 11
MAGIC CLEAN ’ Lint Filter 11
CARING FOR YOUR WASHER 12
Winterizing 13
IF YOU NEED SERVICE OR
ASSISTANCE.. 14
01986 Whirlpool Corporation
-SAVE THESE INSTRUCTIONS - 3

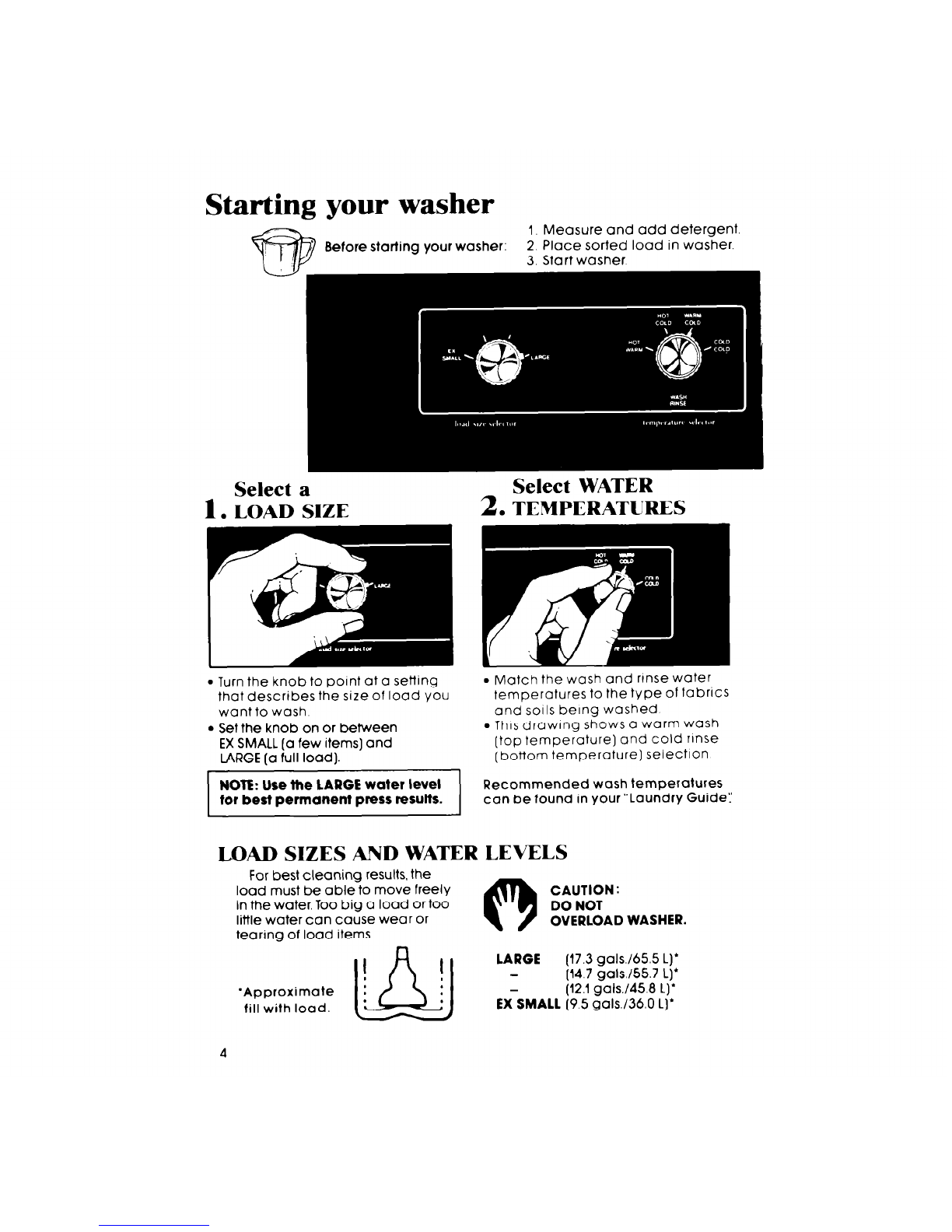

Starting your washer
I. Measure and add detergent
Before starting your washer: 2. Place sorted load in washer.
3. Start washer.
Select a
1. LOAD SIZE Select WATER
2. TEMPERATURES
l Turn the knob to point at a setting
that describes the size of load you
want to wash
l Set the knob on or between
EX SMALL [a few items] and
LARGE [a full load).
NOTE: Use the LARGE water level Recommended wash temperatures
for best permanent press results. can be found in your “Laundry Guide:’
. Match the wash and rinse Water
temperatures to the type of fabrics
and SOIIS being washed
. This drawing shows a warm wash
(top temperature) and cold rinse
[bottom temperature] selectlon
LOAD SIZES AND WATER LEVELS
For best cleaning results, the
load must be able to move freely
0
CAUTION :
in the water. Too big a load or too DO NOT
little water can cause wear or OVERLOAD WASHER.
tearing of load items.
*Approximate
fill with load.
(17.3 gals./65.5 L)’
(14.7 gals.155.7 L)’
(12.1gaM45.8 L)’
EiSMALL (9.5 galsJ36.0 L)’
4

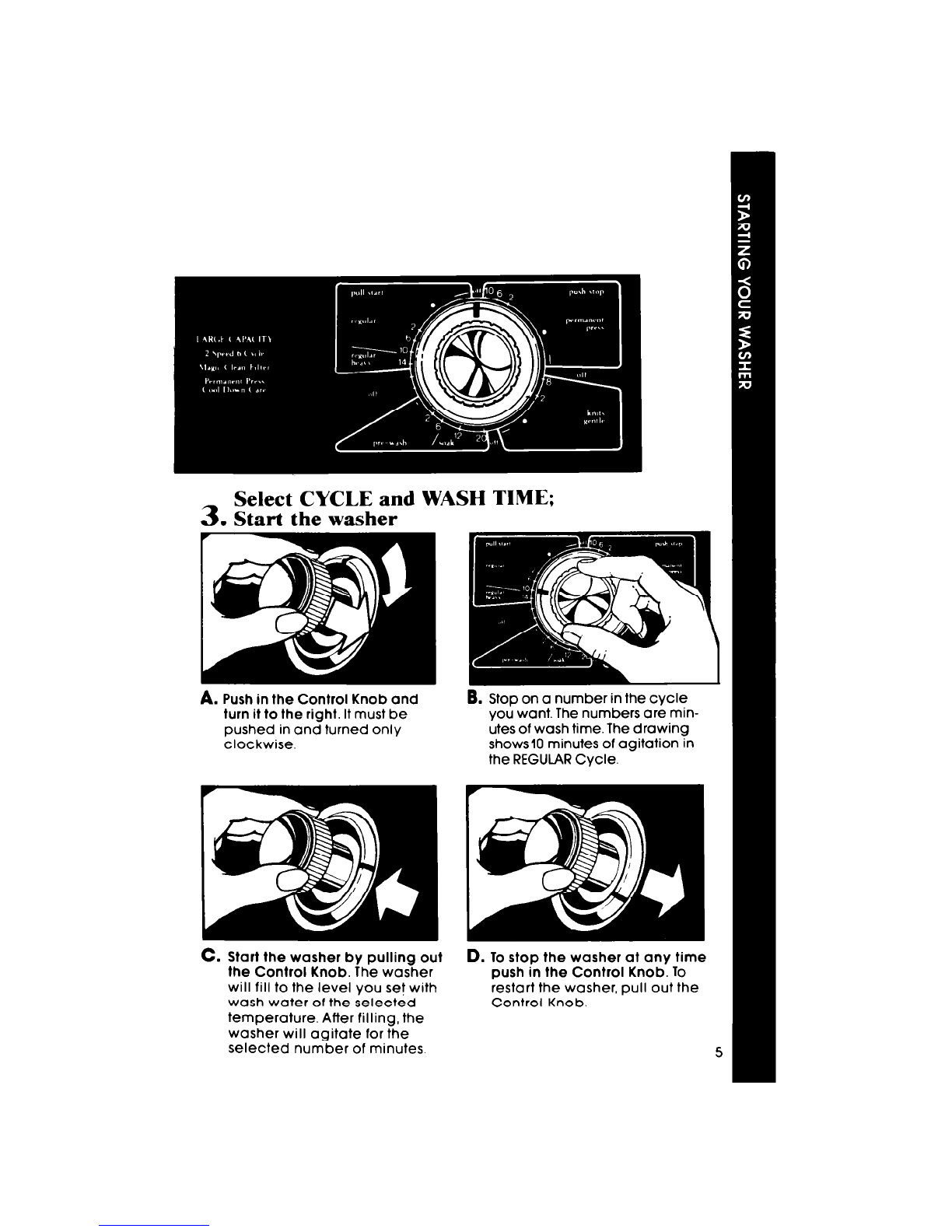

3. Start the washer
A. Push in the Control Knob and
turn it to the right. It must be
pushed in and turned only
clockwise.
C. Start the washer by pulling out
the Control Knob. The washer
will fill to the level you se! with
wash water of the selected
temperature. After filling, the
washer will agitate for the
selected number of minutes
utes of wash time. The drawing
shows10 minutes of agitation in
the REGULAR Cycle.
D. To stop the washer at any time
push in the Control Knob. To
restart the washer, pull out the
Control Knob.

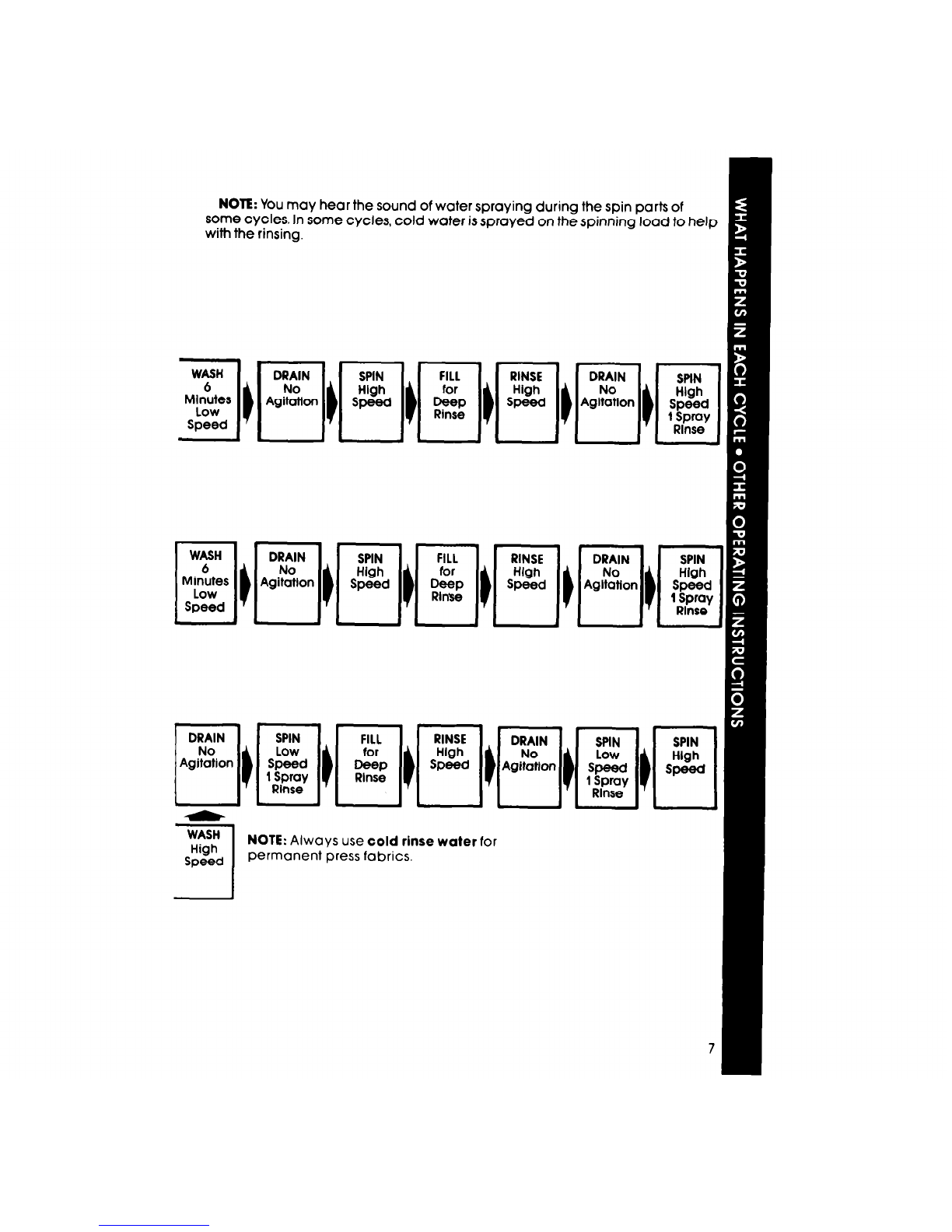

What happens in each cycle*
Each cycle has different agitation and spin speeds designed for different
kinds of fabrics. Numbers on the dial in each cycle are the minutes of WASH
agitation time.
When the Cycle Control Knob is set to a number and pulled out, the washer
fills before agitation and timing starts. After agitation starts, the knob turns clock-
wise until it points to OFF and the cycle ends
REGULAR HEAVY Cycle
REGULAR Cycle
A cycle for sturdily con-
structed fabrics that are
heavily soiled.
A cycle tor regular loads ot
fabrics that are moderately
soiled.
PERMANENT PRESS Cycle
A special cycle with the
necessary cool down rinse
which helps keep wrinkles
from setting into Permanent
Press and some synthetic
fabrics.

Minbvtes
Low
Speed
) Agi%on
U’L
Hlgh
Speed
Ir
1 r
1 WeH 1 1 DRAIN 1, 1 SPlN 1, 1 FILL l?!‘4SE I , I DRAIN 1, I SP
Minbutes
Low
Speed
High
W-d for
%z
DRAIN SPIN
Agi!%on ) f.2 )
nlyl
SPW
ui- 7
I
NOTE: Always use cold rinse water for
!d permanent press fabrics. I
I
NOTE: You may hear the sound of water spraying during the spin parts of
some cycles. In some cycles, cold water is sprayed on the spinning load to help
with the rinsing.

KNITS/GENTLE Cycle
A cycle that gently washes
and spins delicate Items
and washable knits

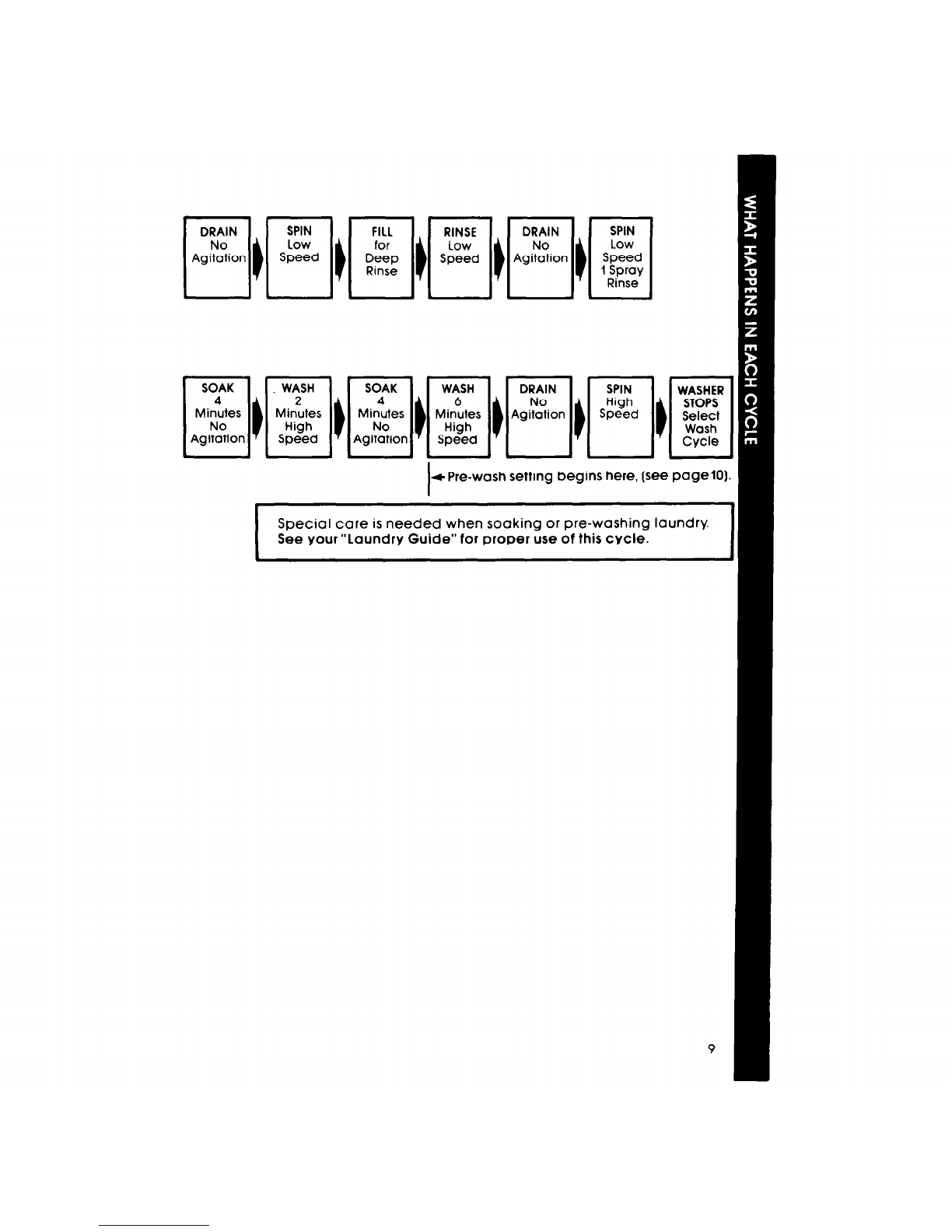

SOAK AND PRE-W:ASH Cycles
Brief periods of agitation
and soak time help remove
heavy soils and certain
stains that need extra
pretreatment Use recom-
mended amount of
detergent or pre-soak
additive. The SOAK Cycle
should always be tol-
lowed by a Wash Cycle.
8

I
+Pre-wash setting begins here, (see pagelo).
Special care is needed when soaking or pre-washing laundry.
See your”Laundry Guide” for proper use of this cycle.

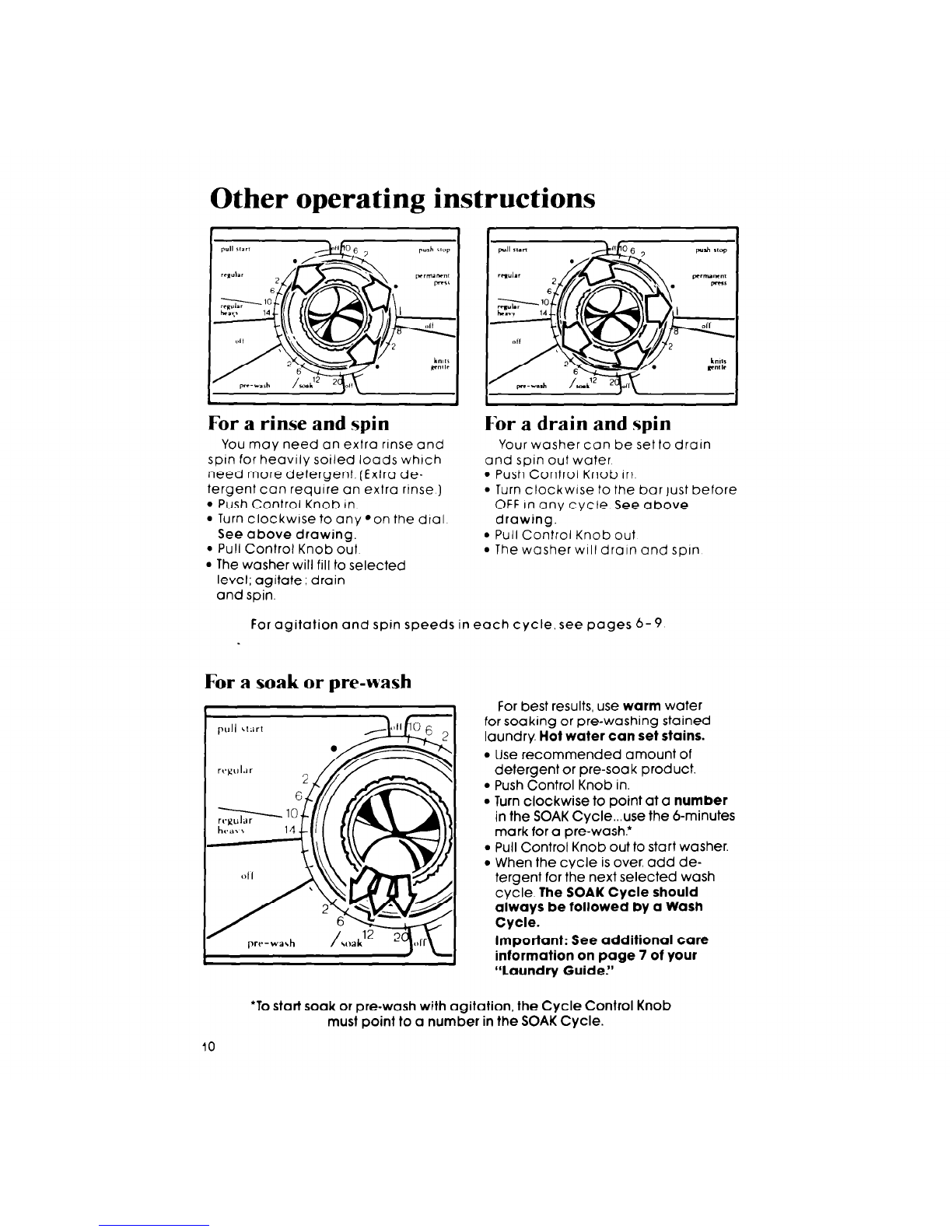

Other operating instructions
For a rinse and spin
You may need an extra rrnse and
sptn for heavily soiled loads whrch
need more detergent. (Extra de-
tergent can require an extra rrnse )
l Push Control Knob tn.
. Turn clockwrse to any*on the dral
See above drawing.
l Pull Control Knob out
. The washer will fill to selected
level; agitate; drain
and spin.
For a drain and spin
Your washer can be set to drain
and spin out water
l Push Control Knob In
l Turn clockwrse to the bar just before
OFF rn any cycle See above
drawing.
l Pull Control Knob out
l The washer will drain and spin
For agitation and spin speeds in each cycle. see pages 6- 9
For a soak or prewash For best results, use warm water
for soaking or pre-washing stained
laundry. Hot water can set stains.
l Use recommended amount of
detergent or pre-soak product.
l Push Control Knob in.
l Turn clockwise to point at a number
in the SOAK Cycle...use the &minutes
mark for a pre-wash.’
l Pull Control Knob out to start washer.
l When the cycle is over, add de-
tergent for the next selected wash
cycle. The SOAK Cycle should
always be followed by a Wash
Cycle.
Important: See additional care
information on page 7 of your
“Laundry Guide!’
‘To start soak or pre-wash with agitation, the Cycle Control Knob
must point to a number in the SOAK Cycle.

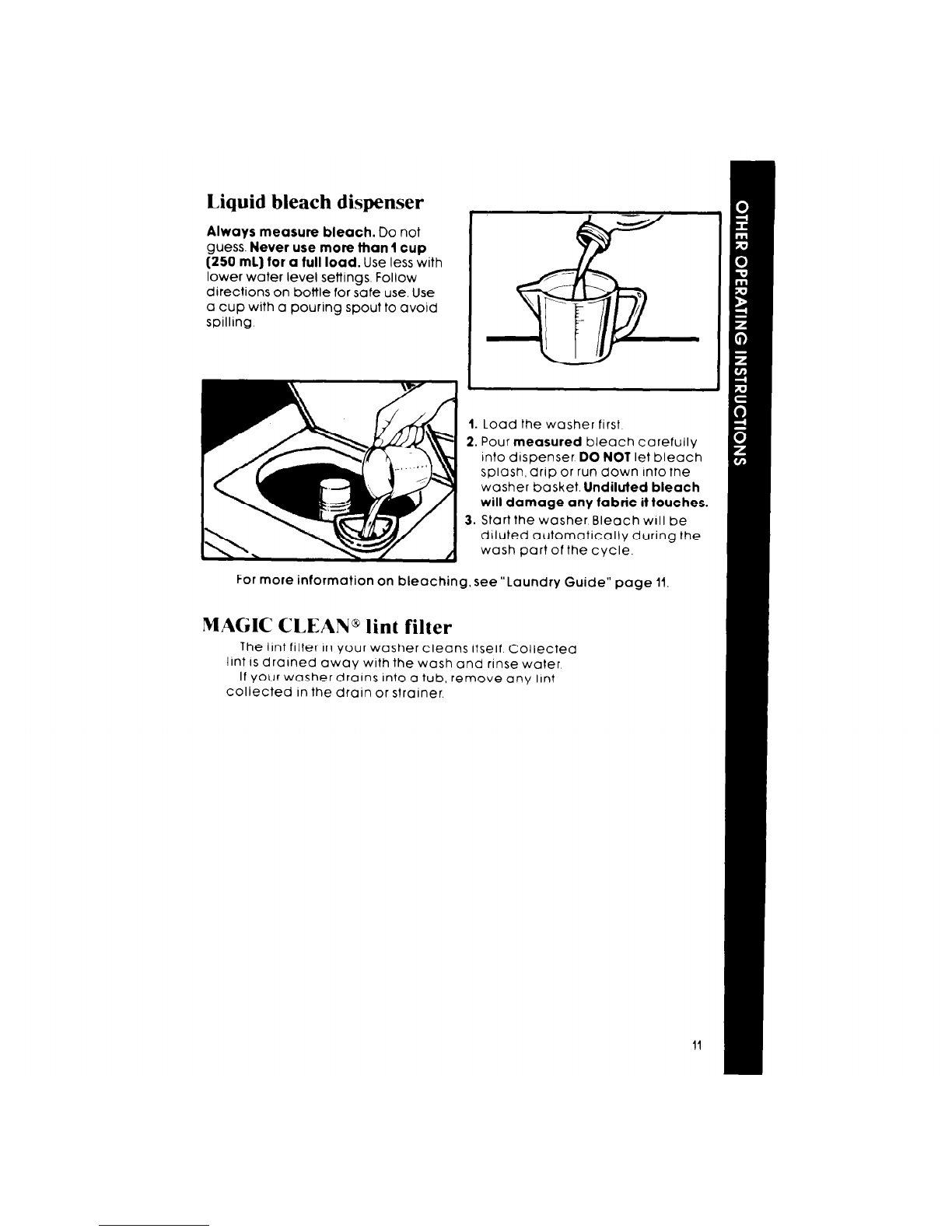

Liquid bleach dispenser
Always measure bleach. Do not
guess. Never use more than 1 cup
(250 ml) for a full load. Use less with
lower water level settings. Follow
directions on bottle for safe use. Use
a cup with a pouring spout to avoid
spilling.
Load the washer first
Pour measured bleach carefully
Into dispenser DO NOT let bleach
splash, drip or run down Into the
washer basket. Undiluted bleach
will damage any fabric it touches.
Start the washer Bleach will be
diluted automatically during the
wash part of the cycle.
For more information on bleaching, see”Laundry Guide” page 11.
MAGIC CLEAN@ lint filter
The lint filter In your washer cleans itself Collected
lint IS dratned away with the wash and rinse water
If your washer drams Into a tub, remove any lent
collected in the drain or strainer.

Caring for your washer
OF
WHEN NOT WASHING, keep both
water faucets turned off. This takes
the pressure off the water inlet valve
and hoses.
REMOVE SHARP OBJECTS such as pins,
buckles, etc., from clothes before
washing. Close metal zippers.
AFTER WASHING, use a soft dry cloth
to wipe the outside and inside dry.
Leave the lid up until the basket is dry.
Wipe up spills right away. Spills can
dull or damage the finish.
SHARP OR HEAVY OBJECTS should
never be put on or in the washer.
Check pockets for bolts, nuts,
tools. etc.
SOME PRETREATMENT PRODUCTS
can damage washer and dryer dials,
consoles and finishes. Do not use
these products on or near your
washer or dryer.
12

Winterizing
Because some water stays in the washer, freez-
ing can cause a lot of damaae. If your washer IS
stored or moved during the cold weather
1. Shut off both water 2. Put a quart of
faucets. Discon- automobile-type
nect and drain antifreeze in the
water inlet hoses basket
3. Set the washer for a
DRAIN and SPIN
[see page 10). Let it
run for about 30
seconds to mrx the
antifreeze and
water
ll---Kl
I’ ““” J
4. Run the washer
throuqh a com-
To use the washer again.. .
J
pletecycle with
one CUD of deter-
1. Flush water pipes and hose!
- -
2. Connect hoses to the washer the antifreeze
3. Turn on the water faucets

If you need service or assistance, we suggest
you follow these four steps:
I Before calling for
assistance...
Performance problems often result
from little things you can find and fix
yourself without tools of any kind.
If your washer does not fill:
l Is the power supply card plugged
into a live circuit with the proper
voltage?
l Have you checked your home’s
main fuses or circuit breaker box?
l Are the water supply hoses kinked?
l Is the Cycle Control Knob set and
pulled out?
If your washer does not spin:
l Is the lid closed?
l Is the power supply card plugged
into a live circuit with the proper
voltage?
l Have you checked your home’s
main fuses or circuit breaker box?
If your washer stops during a cycle:
l Remember, the washer pauses
briefly at different times in each cy-
cle. These pauses are normal.
If your washer fills and drains with-
out running:
l Make sure that the Cycle Control
Knob is painting to a number in the
cycle.
Make sure the drain hose is higher
than the water level in the washer. If
if isn’t...
l The washer may seem to be drain-
ing during wash and rinse cycles.
l Water can siphon out. [See “Installa-
tion Instructions:‘)
l Are bath water faucets open?
14

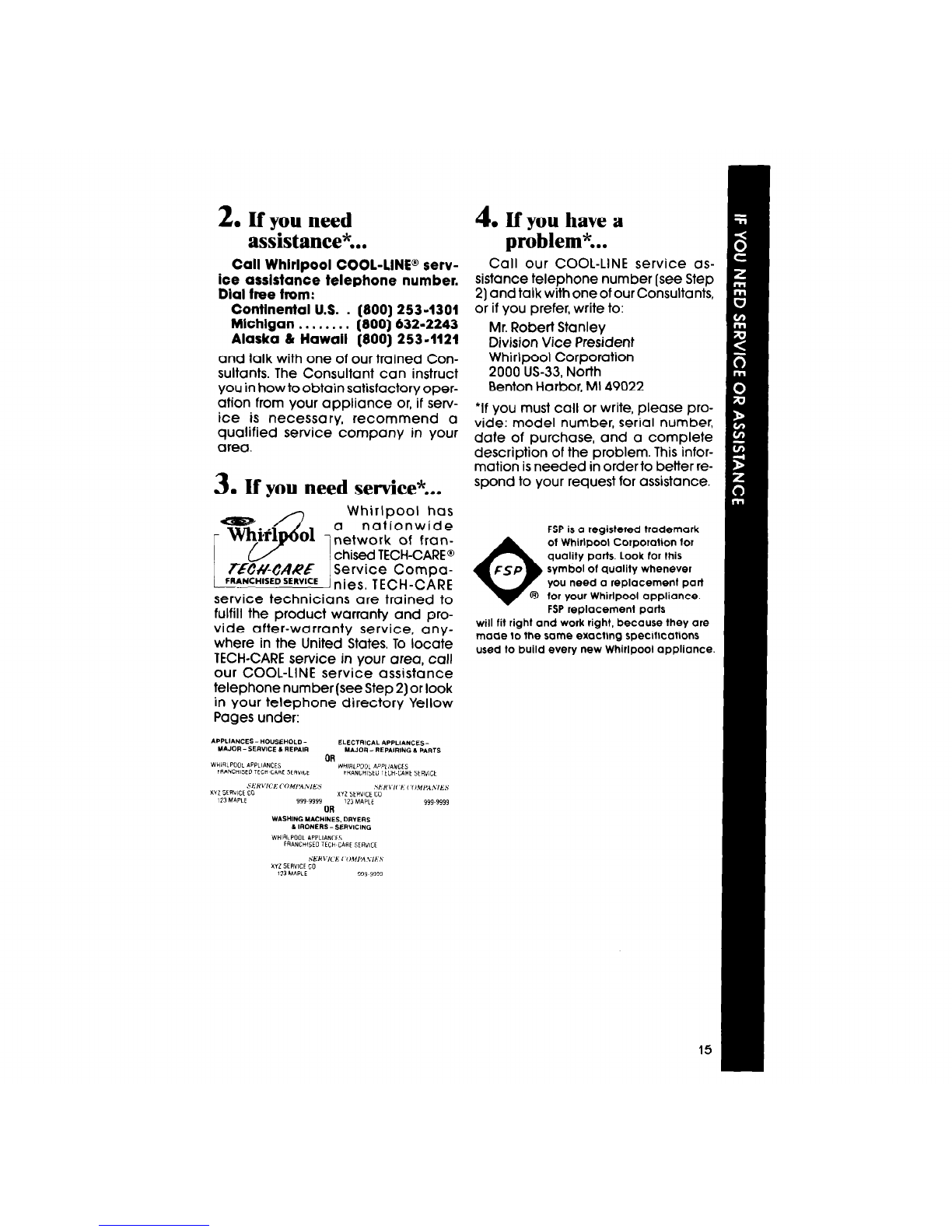

2. If
YOU need
as&stance*...
Call Whlrlpool COOL-LINE@ serv-
ice assistance telephone number.
Dial free from:
Contlnental U.S. . [phone]
Michigan . . . . . . . . [phone]
Alaska & Hawall [phone]
and talk with one of our trained Con-
sultants. The Consultant can instruct
you in how to obtain satisfactory oper-
ation from your appliance or, if serv-
ice is necessary, recommend a
qualified service company in your
area.
3. If you need service*...
4. If you havea
problem*...
Call our COOL-LINE service as-
sistance telephone number [see Step
2) and talk with one of our Consultants,
or if you prefer, write to:
Mr. Robert Stanley
Division Vice President
Whirlpool Corporation
2000 US-33,North
Benton Harbor, Ml 49022
*If you must call or write, please pro-
vide: model number, serial number,
date of purchase, and a complete
description of the problem. This infor-
mation isneeded in order to better re-
spond to your request for assistance.
Whirlpool has
a nationwide
7network of fran-
service technicians are trained to
fulfill the product warranty and pra-
vide after-warranty service, any-
where in the United States. To locate
TECH-CAREservice in your area, call
our COOL-LINE service assistance
telephone number (see Step 2)or look
in your telephone directory Yellow
Pages under:
FSP is a registered trademark
0
of Whirlpool Corporalion for
quality parts. Look for this
FSP
symtjol of quality whenever
you need a replacement part
8 for your Whirlpool appliance.
FSP replacement parts
will fit right and work right, because they are
made to the same exacting specifications
used to build every new Whirlpool appliance

Home 5 Appliances
Making your world a little easier
Part No. 388518
01986 Whirlpool Corporation Printed in U.S.A.
natlc Washers. Clolhes Dryers, Freezers. Retrlgerator-Freezers, Ice Makers, Dishwashers, Ewll-In Ovens and Surface Units, Ranges. MIC
