AUTOMATIC
WASHER
Design 2000”
fW&aPacity
LA63OOXP

Parts and features
LAUNDRY TEMPERATURE
LOAD INFORMATION / SELECTOR
SIZE CENTER
SELECTOR /
,DEL
iERlAL
“<
CYCLE
CONTROL
KNOB AN!?
\ CLOTHES NUMBER PLATE
\ ~E~~~show”’
<v DISPENSER
.\
,I’.
/
LIQUID FABRIC
- SOFTENER DISPENSER
-AGITATOR
- BASKET
-LINT FILTER
(Not Shown)
- TUB
J
Remove the Consumer
Buy Guide label. It will be
easier to remove before
the washer is used
You should wipe out the
basket with a damp cloth
before using to remove
dust from storing or
shipping.
Copy your Model and Serial Numbers here
When youneed service or call with a
question, have this Information ready
Model Number
1. Complete Model and Serial Num-
bers (from plate under the lid near the
hinge).
Serial Number
2. Purchase date from sales sltp
Copy this information in these spaces. Purchose Date
Keep this book in the Laundry Informa-
tion Center with your “Laundry Guide,”
sales slip and warranty.
Servlce Company I
Phone Number
There IS no warranty registration to return. Proof-of-purchase IS all
that IS required for In-warranty service.
2

mt
Your respond
Read this “Use and Care
and your “Laundry Guide’
fully for important use and
information
Jes
?”
?Gurdt
care-
safety
You are personally resp lonsibl e
for making sure that your
washer..
l is installed by a qualrfied installer.
l is properly installed and
leveled on a floor that can
support the weight?
l is connected to the right kind
of outlet, electric supply, water
supply and drain*
l is properly grounded*
l is used only for jobs normally
expected of home automatic
washers
9 is properly maintained
l is protected from the weather
and kept where the tempera-
ture will not fall below freezing.
l is not run by children or anyone
unable to operate it properly
*See the “Installation Instructions”
for complete information.
Contents
Page
PARTS AND FEATURES, 2
YOUR RESPONSIBILITIES. 3
SAFETY FIRST 3
STARTING YOUR WASHER 4
WHAT HAPPENS IN EACH
CYCLE. 6
OTHER OPERATING
INSTRUCTIONS 10
For a Rinse and Spin 10
For a Drain and Spin 10
For a Soak or Pre-Wash 10
Liquid Bleach Dispenser 11
Fabric Softener Dispenser. 1I
Cleaning the Lint Filter 1I
CARING FOR YOUR WASHER 12
Winterizing 13
IF YOU NEED SERVICE OR
ASSISTANCE. 14
1. Before Calling for
Assistance 14
2. If You Need Assistance 15
3. If You Need Service 15
4. If You Have a Problem 15
<kc1985 Whirlpool Corporation

Starting your washer
1 Measure and add detergent
2 Place sorted load In washer
3 Start washer
Select a Select WATER
1. LOAD SIZE
2. TEMPERATURES
l Turn the knob to point al a setting
that describes the size of load you
want to wash.
l Set the knob anywhere on or
between EX SMALL [a few items]
and LARGE (a full load).
l Match the wash water temperature
to the type of fabrics and soils being
washed
Recommended wash temperatures
can be found in vour “Laundrv Guide’:
DO NOT LOAD
ABOVE CLOTHES GUARD
NOTE: Use the LARGE water level
for best permanent press resutts.
For best cleaning results, the .f
:!
load must be able to move freely CAUTION : A
in the water. Too big a load or too DO NOT ,f
little water can cause wear or
tearing of load items. OVERLOAD WASHER. :
‘*
(17.3 galH65.5 L)’ $
‘Approximate , (14.7 gaW55.7 L)’
fill with load. (12.1galsI45.8 L)’
EX-SMALL (9.5 gals./36.0 L)’
4 .._. .4_l.

3. Start the washer
A. Push in the Control Knob and
turn it to the right. It must be
pushed in and turned only
clockwise.
B. Stop on a number in the cycle
you want. The numbers are min-
utes of wash time. The drawing
shows10 minutes of agitation in
the REGULAR Cycle.
C. Start the washer by pulling out
the Control Knob. The washer
will fill to the level you set with
wash water of the selected
temperature. After filling, the
washer will agitate for the
selected number of minutes.
D. To stop the washer at any time
push in the Control Knob. To
restart the washer, pull out the
Control Knob.
5

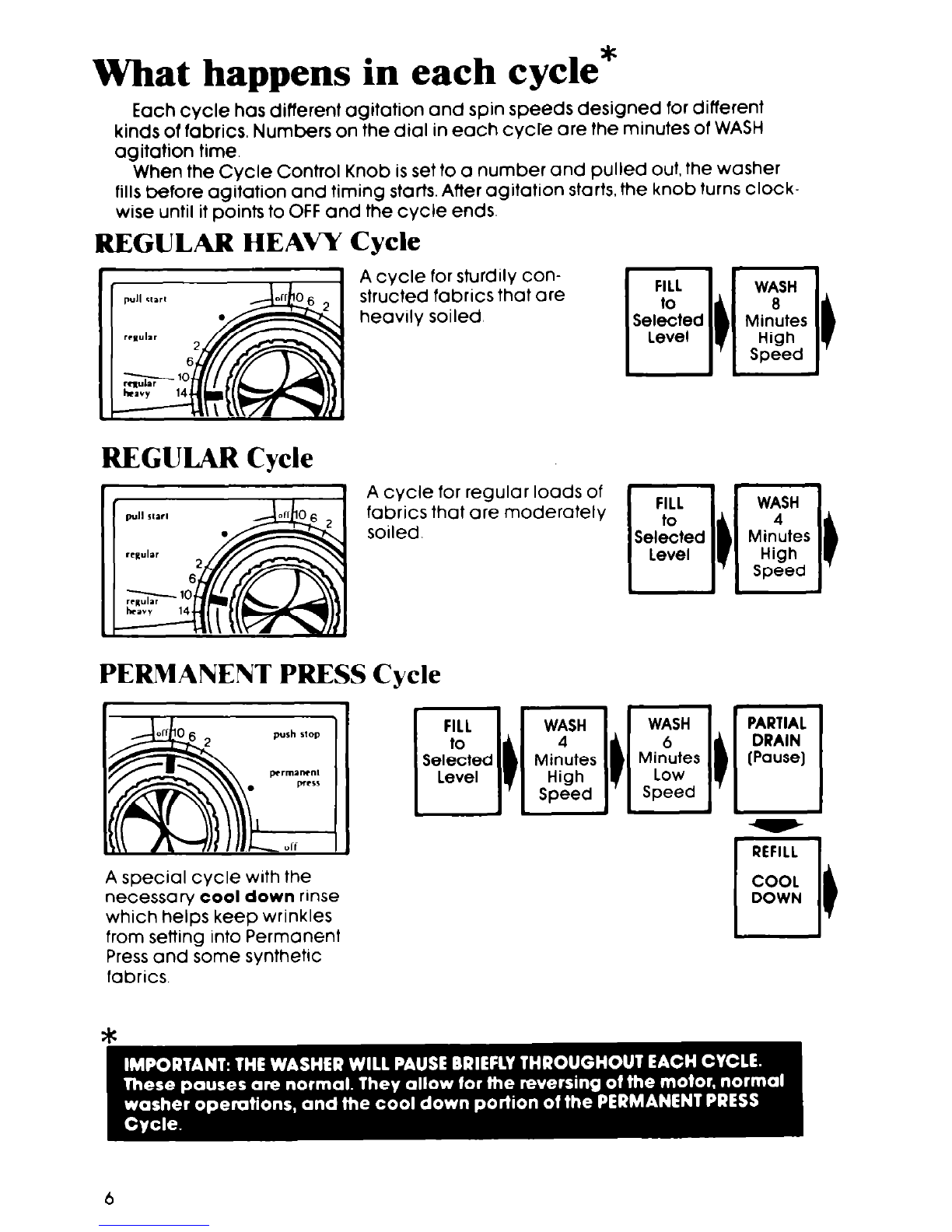

What happens in each cycle*
Each cycle has different agitation and spin speeds designed for different
kinds of fabrics, Numbers on the dial in each cycle are the minutes of WASH
agitation time.
When the Cycle Control Knob is set to a number and pulled out, the washer
fills before agitation and timing starts. After agitation starts, the knob turns clock-
wise until it points to OFF and the cycle ends.
REGULAR HEAVY Cycle
REGULAR Cycle
A cycle for sturdily con-
structed fabrics that ore
heavily soiled
A cycle for regular loads of
fabrics that are moderately
soiled.
PERMANENT PRESS Cycle
A special cycle with the
necessary cool down rinse
which helps keep wrinkles
from setting into Permanent
Press and some synthetic
fabrics.
6

NOTE: You may hear the sound of water spraying during the spin parts of
some cycles. In some cycles. cold water is sprayed on the spinning load to help
with the rinsing.
:::
1 Speed
rl
4 Spray
Rlnses
NOTE: Alwa
permanent ~ysuse cold rlnse water for
press fabrics.

KNITS/GENTLE Cycle
A cycle that gently washes
and spins delicate items
and washable knits.
SOAK AND PRE-WASH Cycles
Brief periods of agitation
and soak time help remove
heavy soils and certain
stains that need extra
pretreatment. Use recom-
mended amount of
detergent or pre-soa k
additive. The SOAK Cycle
should always be fol-
lowed by a Wash Cycle.
8

~~~,~~~l~~,~~~l
I
+Pre-wash setting begins here, (see pagelo).
Special care is needed when soaking or pre-washing laundry.
See your “Laundry Guide” for proper use of this cycle.
9

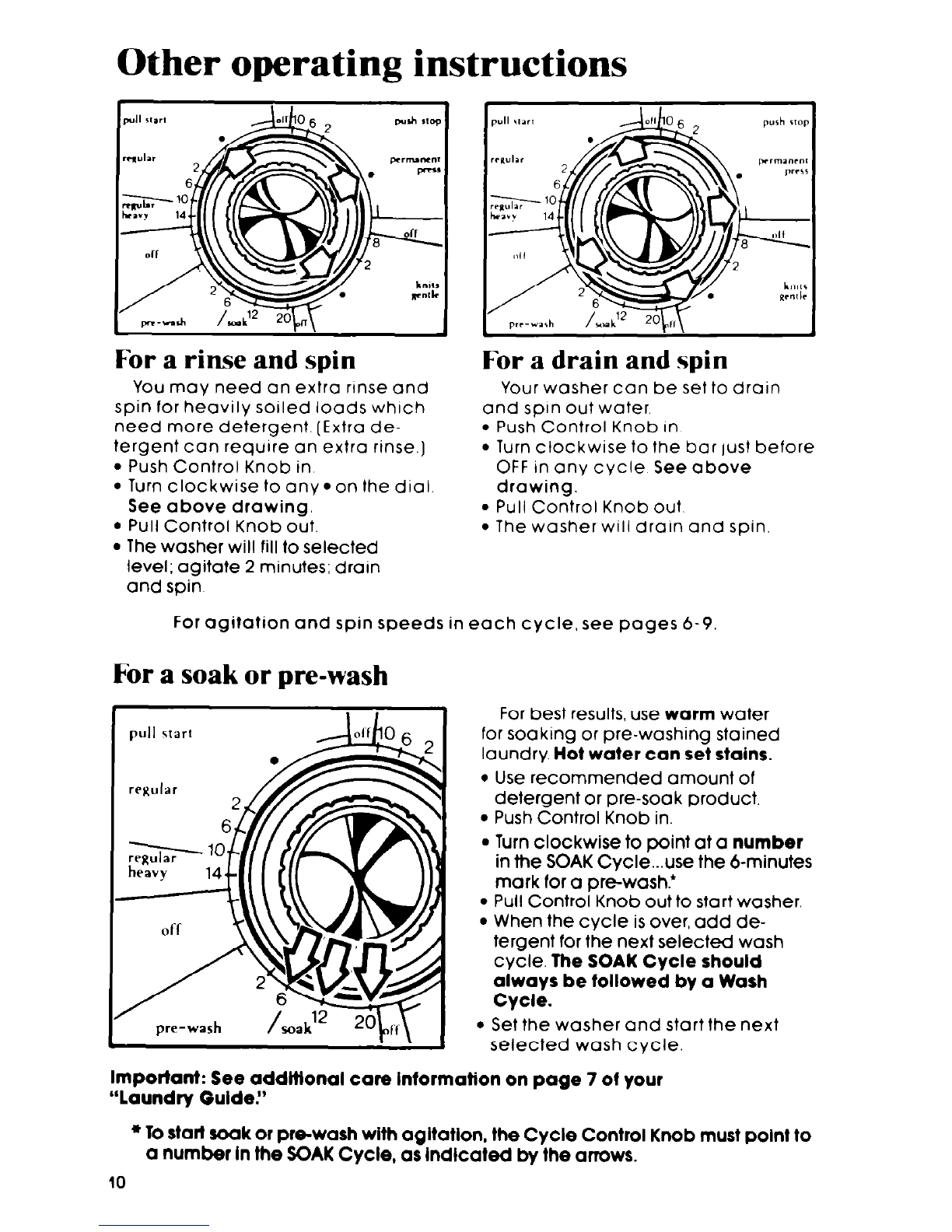

Other operating instructions
For a rinse and spin
You may need an extra rinse and
spin for heavily soiled loads which
need more detergent [Extra de-
tergent can require an extra rtnse ]
l Push Control Knob in
l Turn clockwise to any l on the dial
See above drawing.
l Pull Control Knob out
l The washer will fill to selected
level; agitate 2 minutes; drain
and spin
For a drain and spin
Your washer can be set to drain
and spin out water
l Push Control Knob In
l Turn clockwlse to the bar just before
OFF in any cycle See above
drawing.
l Pull Control Knob out
l The washer will drain and spin
For agitation and spin speeds in each cycle, see pages 6-9.
For a soak or pre-wash
pull star1 For best results, use warm water
for soaking or pre-washing stained
laundry. Hot water can set stains.
* Use recommended amount of
detergent or pre-soak product.
l Push Control Knob in.
l Turn clockwise to point at a number
in the SOAK Cycle...use the &minutes
mark for a prewash.*
l Pull Control Knob out to start washer.
l When the cycle is over, add de-
tergent for the next selected wash
cycle. The SOAK Cycle should
always be followed by a Wash
Cycle.
l Set the washer and start the next
selected wash cycle.
Important: See addfflonal care information on page 7 of your
“laundry Guide!’
l To start soak or prewash with agltatlon, the Cycle Control Knob must point to
a number In the SOAK Cycle, as lndlcated by the arrows.
10

Liquid bleach dispenser
Always measure bleach. Do not
guess Never use more than 1 cup
(250 ml) for a full load. Use less with
lower water level settings. Follow
directions on bottle for safe use. Use
a cup with a pouring spout to avoid
spilling.
1. Load the washer ftrsf
2. Pour measured bleach carefully
tnfo dispenser DO NOT let bleach I j
splash, drip or run down into the
washer basket Undiluted bleach
will damage any fabric it touches. c’
3. Start the washer. Bleach will be
diluted automatically during the
wash part of the cycle.
For more information on bleaching, see”Laundry Guide” page 11. I
nser
4. Dilute fabric softener with hot
water. Add enough hot water to fill
the dispenser up to the opening.
5. Stat-f the washer. Diluted liquid fab-
ric softener will be added to the
load during the deep rinse poftfon
of the cycle. I
NOTE: Do not stop the washer
durlng this time. If you do, the I
softener will mix with the remaining
soapy wash water. This will cause
1. Add detergent and load to the stains. Do not
put detergent In the
basket. liquid fabric softener dlspenser.
2. Add liquid fabric softener to 6. If dispenser needs cleaning, flush
the dispenser using the amount with hot water. NOTE: Do not wash
recommended on the bottle. clothes wlth dlspenser removed.
3. Avoid dripping or spilling any fab-
ric softener on the load.
Cleaning the lint filter .
LpqI’f= t /I IL!!&1\ 1
Clean filter after every load for best
filtering results. Note: The load type
will vary the amount of llnt build-up.
To clean:
l Litt off the agitator barrel. I
l Wash or wipe the filter clean in the
t”;
DnKmx7
bottom of the agitator barrel. The
c
/ A-
filter is not removable.
l Replace the agitator barrel and
snap into place. .

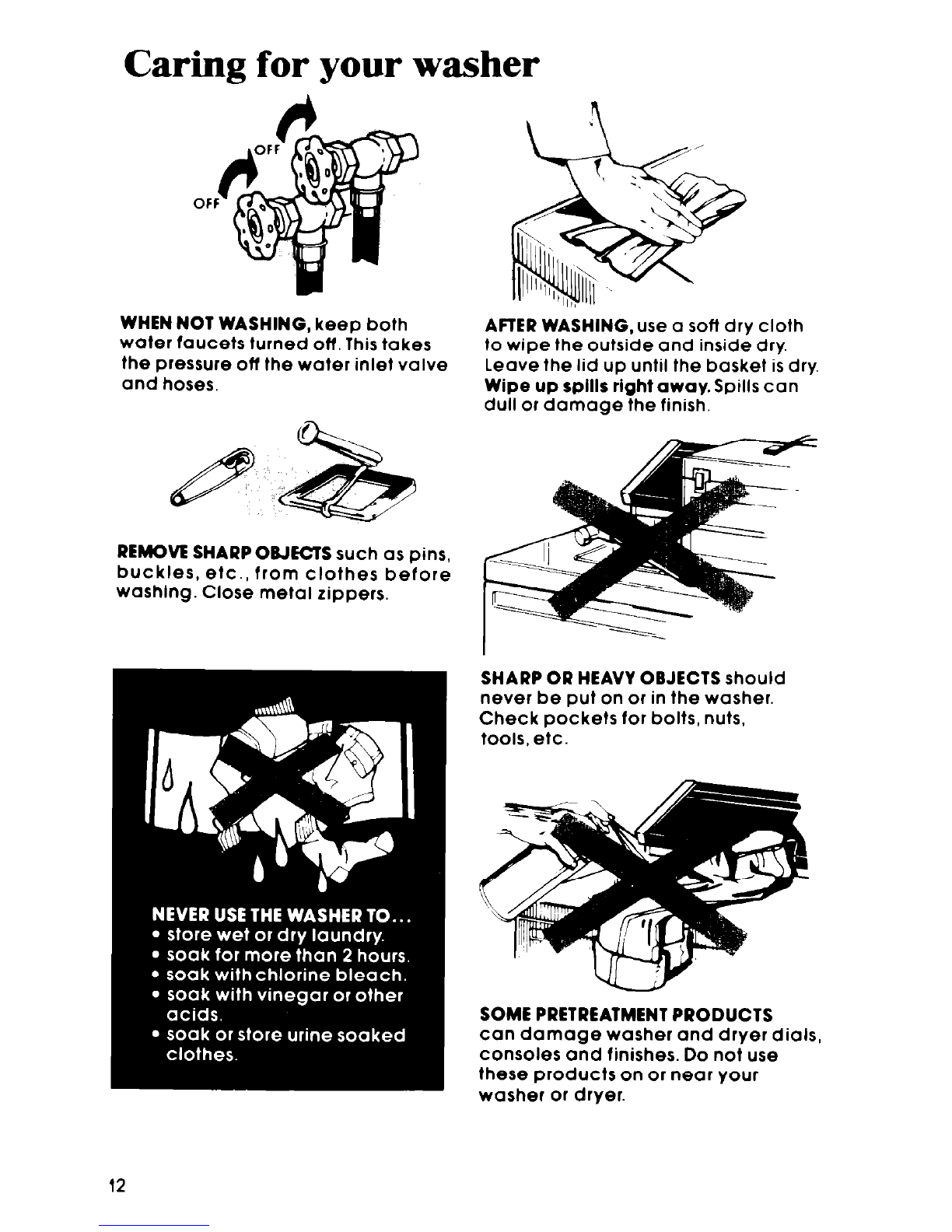

Caring for your washer
WHEN NOT WASHING, keep both
water faucets turned off. This takes
the pressure off the water inlet valve
and hoses.
AFTER WASHING, use a soft dry cloth
to wipe the outside and inside dry.
Leave the lid up until the basket is dry.
Wipe up spills right away. Spills can
dull or damage the finish.
REMOVE SHARP OBJECTS such as pins,
buckles, etc., from clothes before
washing. Close metal zippers.
SHARP OR HEAVY OBJECTS should
never be put on or in the washer.
Check pockets for bolts, nuts,
tools, etc.
SOME PRETREATMENT PRODUCTS
can damage washer and dryer dials,
consoles and finishes. Do not use
these products on or near your
washer or dryer.

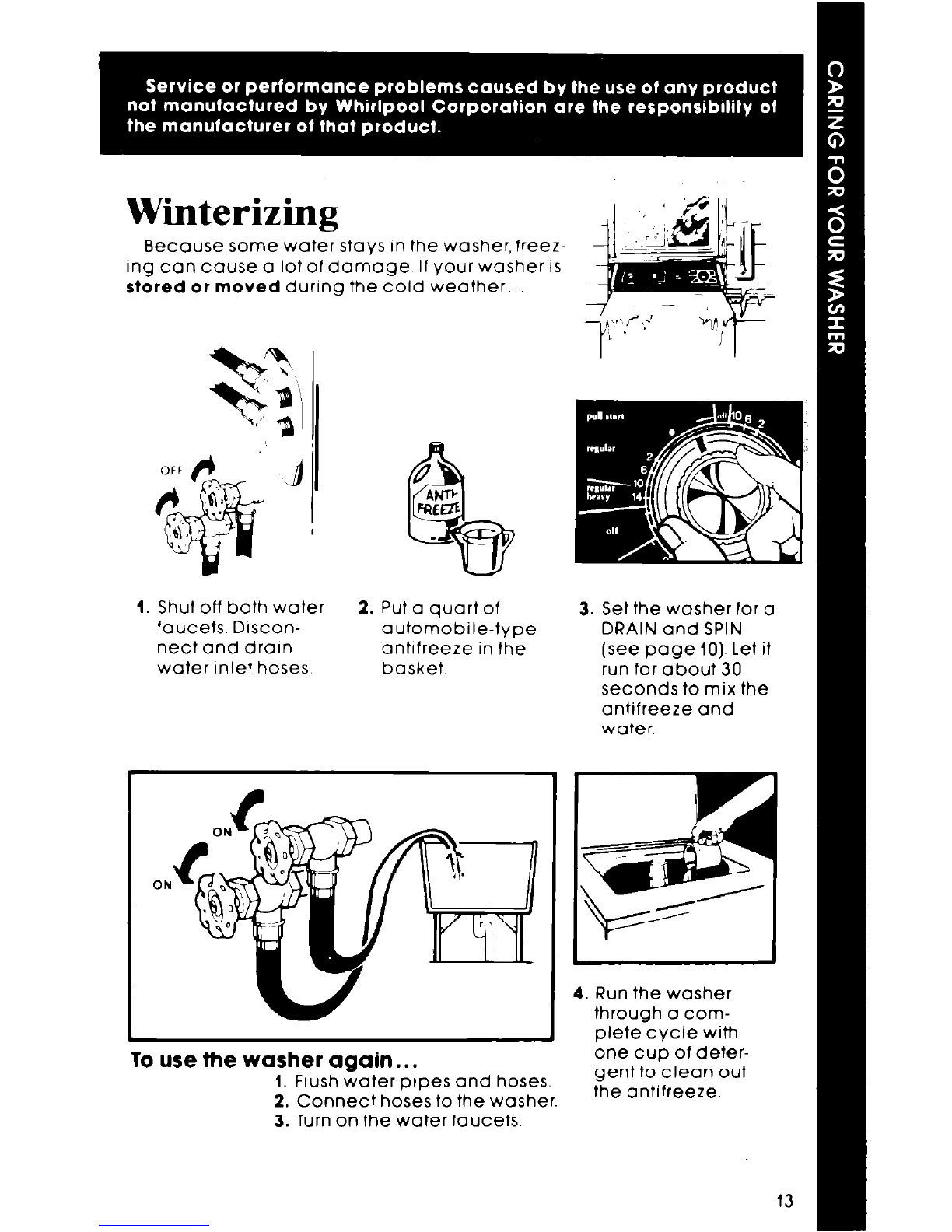

12

stored or moved during the cold weather
1. Shut off both water 2. Put a quart of
faucets Dlscon- automobile-type
nect and drain antifreeze in the
water Inlet hoses basket
ON
To use the washer again.. .
1. Flush water pipes and hoses.
2. Connect hoses to the washer.
3. Turn on the water faucets.
3. Set the washer for a
DRAIN and SPIN
(see page 10). Let it
run for about 30
seconds to mix the
antifreeze and
water
4. Run the washer
through a com-
plete cycle with
one cup of deter-
gent to clean out
the antifreeze.

If you need service or assistance, we suggest
you follow these four steps:
L Before calling for
assistance...
Performance problems oflen result
from little things you can find and fix
yourself without tools of any kind.
If your washer does not fill:
l Is the power supply cord plugged
into a live circuit with the proper
voltage?
l Have you checked your home’s
main fuses or circuit breaker box?
l Are the water supply hoses kinked?
l Is the Cycle Control Knob set and
pulled out?
If your washer does not spin:
l Is the lid closed?
l Is the power supply cord plugged
into a live circuit with the proper
voltage?
l Have you checked your home’s
main fuses or circuit breaker box?
If your washer stops during a cycle:
l Remember, the washer pauses
briefly at different times in each cy-
cle. These pauses are normal.
If your washer fills and drains with-
out running:
l Make sure that the Cycle Control
Knob is pointing to a number in the
cycle.
Make sure the drain hose is higher
than the water level in the washer. If
it isn’t...
l The washer may seem to be drain-
ing during wash and rinse cycles.
l Water can siphon out. (See “lnstalla-
tion Instructions!‘)
l Are both water faucets open?

2. If you need assistance*...
Call Whirlpool COOL-LINE\! serv-
ice assistance telephone number.
Dial free from:
Continental U.S. . (BOO) 253-1301
Michigan . . . . . . . (BOO) 632-2243
Alaska & Hawaii (BOO) 253-1121
and talk with one of ourtrained Con-
sultants. The Consultant can instruct
you in how to obtain satisfactory op-
eration from Your appliance or, if
service is necessary, recommend a
qualified service company in Your
area.
3. If you need service*...
2
Whirlpool has
Tkl 01 - a nationwide net-
r work of franchrsed
i TECH-CARE RServ-
T~CM-CAR~ 1 Ice Companres
~d!%‘CH~SERV!C~~ TECH-CARE serv.
Ice technrcrans are trarned to fulfill
the product warranty and provide
after-warranty servrce,anywhere In
the Unrted States To locate TECH-
CARE service in Your area, call our
COOL-LINE service assistance tele-
phone number [see Step 2) or look in
Your telephone directory Yellow
Pages under
4. If you ha\,e a problem*. . .
Call our COOL-LINE service as-
sistance telephone number (see
Step 2) and talk with one of our Con-
sultants, or if You prefer, write to.
Mr. Stephen E.Upton
Senior Vice President
Whirlpool Corporation
Administrative Center
2000 US-33 North
Benton Harbor, Ml 49022
.If you must call or write. please pro-
vide model number, serial number,
date of purchase, and a complete
description of the problem This in-
formation is needed in order to bet-
ter respond to Your request for
assistance.
0
FSP is a regrstered trademark
of Whirlpool Corporalron for
FSP quality ports. took for this
symbol of quality whenever
8 you need a replacement part
for your Whirlpool appliance.
FSP replacement parts
will fit right ond work right,, because they ore
mode to the same exacting specrficotions
used to build every new Whirlpool appliance

Making your world a little easier.
Part No. 388775
,%I985 Whirlpool Corporation Printed in U.S.A.
mallc Washers, Clothes Dryers, Freezers. Refrigerator-Freezers. Ice Makers. DIshwashers. Built-In Ovens and Surface Un~ls. Ranges, MICI
