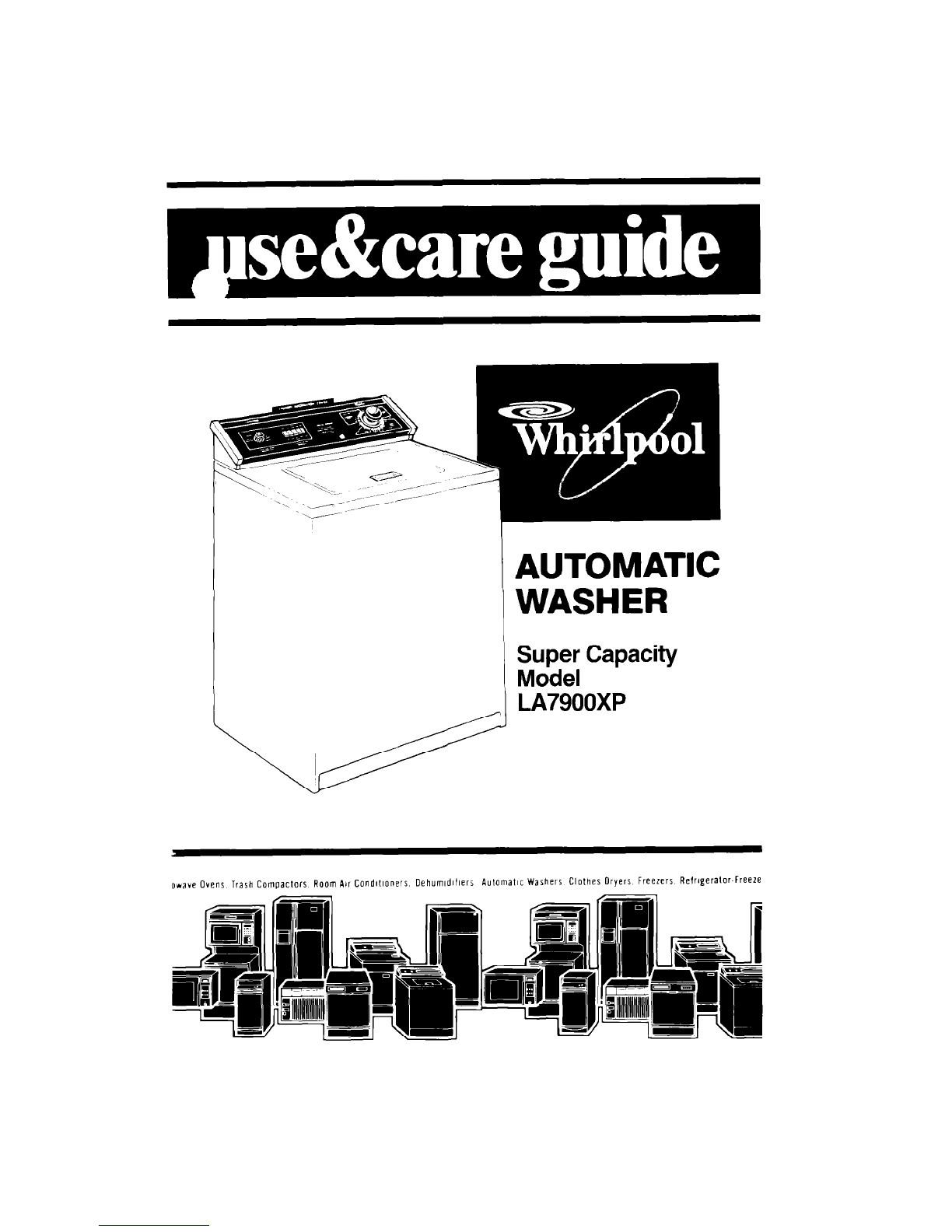

Whirlpool LA7900XP User manual

AUTOMATIC
WASHER
SuoSue;Capacity
LA7900XP
owave Ovens Trash Compactors Room Air Condllloners Oehumldlllers Aulomatlc Washers Clothes Oryers Freezers Refrlgeralor-Freeze

Parts and features
LAUNDRY TEMPERATURE
LOAD INFORMATION
SIZE , CENTER / SELECTOR
MAGIC CLE/
LINT FILTE.
(not shown)
MODEL AND SERIAL
NUMBER PLATE
(not shown)
- LIQUID BLEACH
DISPENSER
- AGITATOR
-BASKET
-TUB
Remove the Consumer
Buy Guide label. It will be
easier to remove before
the washer is used.
You should wipe out the
basket with a damp cloth
before using to remove
dust from storing 0’
shipping.
-.~~~-
Copy your Model and Serial Numbers here
When you need service or call with a _- __-- ~-
question, have this information ready
Model Number
1. Complete Model and Serial Num-
bers [from plate under the lid near the
hinge).
Sew31 Number
2 Purchase date from sales slip
Copy this information in these spaces. P’Jrchase Date
Keep this book in the Laundry Informa-
tion Center with your “Laundry Guide:’
Service Company
sales slip and warranty.
Phone Number
L- ~~~ ___~~~~~ !
2

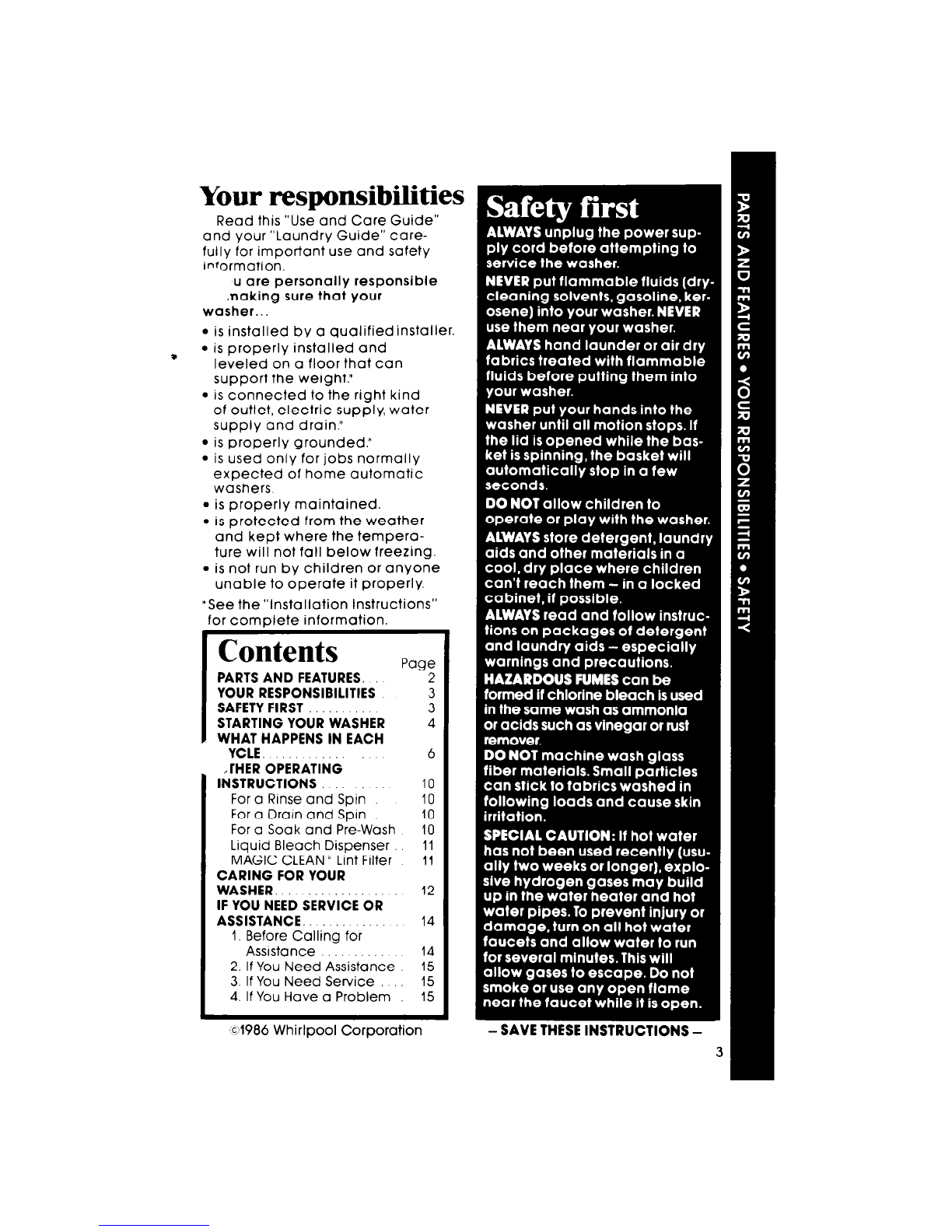

Your responsibilities
Read this “Use and Care Guide”
and your “Laundry Guide” care-
fully for important use and safety
information.
u are personally responsible
,naking sure that your
washer...
l is installed by a qualified installer.
z
l is properly installed and
leveled on a floor that can
support the weight?
. is connected to the right kind
of outlet, electric supply, water
supply and drain.*
l is properly grounded.*
l is used only for jobs normally
expected of home automatic
washers.
l is properly maintained.
l is protected from the weather
and kept where the tempera-
ture will not fall below freezing.
l is not run by children or anyone
unable to operate it properly
*See the”Installation Instructions”
for complete information.
Contents
Page
PARTS AND FEATURES. 2
YOUR RESPONSIBILITIES 3
SAFETY FIRST 3
STARTING YOUR WASHER 4
WHAT HAPPENS IN EACH
YCLE.
, rHER OPERATlk 6
INSTRUCTIONS 10
For a Rinse and Spin 10
For a Drain and Spin 10
For a Soak and Pre-Wash 10
Liquid Bleach Dispenser 11
MAGIC CLEAN ” Lint Filter 11
CARING FOR YOUR
WASHER. 12
IF YOU NEED SERVICE OR
ASSISTANCE.. 14
1. Before Calling for
Assrstance 14
2. If You Need Assistance 15
3. If You Need Service 15
4. If You Have a Problem 15
91986 Whirlpool Corporation

Starting your washer
1 Measure aFsd adU detergent
2 Place sorted load In washer
3 Start washer
Select a Select WATER
1. LOAD SIZE
2. TEMPERATURES
l To change the setting on the LOAD
SIZE SELECTOR, turn the knob to RESET
l Then turn the knob to point at a
setting that describes the srze of the
load you want to wash.
l Set the knob anywhere on or be-
tween HAND WASHABLE [a few smdrl
items) and EX LARGE (a full load)
See your “Laundry Guide” for details
on load sizes.
l Select wash and rinse water tem-
peratures by pushing a button.
* Thusdrawing shows a warm wash
(top temperature] and cold rinse
(bottom temperature) selection.
Recommended wash temperatures
can be found in your “Laundry Gu’
LOAD SIZES AND WATER LE\ELS
For best cleaning results, the
load must be able to move freely
in the water. Too big a load or toe
little water can cause wear or
tearing of load items 0
CAUTION:
DO NOT
OVERLOAD WASHER.
*Approximate
fill with load.
EX-LARGE (20.5 gals 77.6 L)’
MEDIUM (13 9 gals. 52.6 L)’
HAND WASHABLE (78 gals 295 L)’

3. Start the washer
A. Push in the Control Knob and
turn it to the right. It must be
pushed in and turned only
clockwlse
--
B. Stop on a number in the cycle
you want. The numbers are min-
utes of wash time. The drawing
shows10 minutes of agitation in
the REGULAR Cycle.
C. Start the washer by pulling out
the Control Knob. The washer
will fill to the level you set with
wash water of the selected
temperature. After filling, the
washer will agitate for the
selected number of minutes
D. To stop the washer at any time
push in the Control Knob. To
restart the washer, pull out the
Control Knob.
5

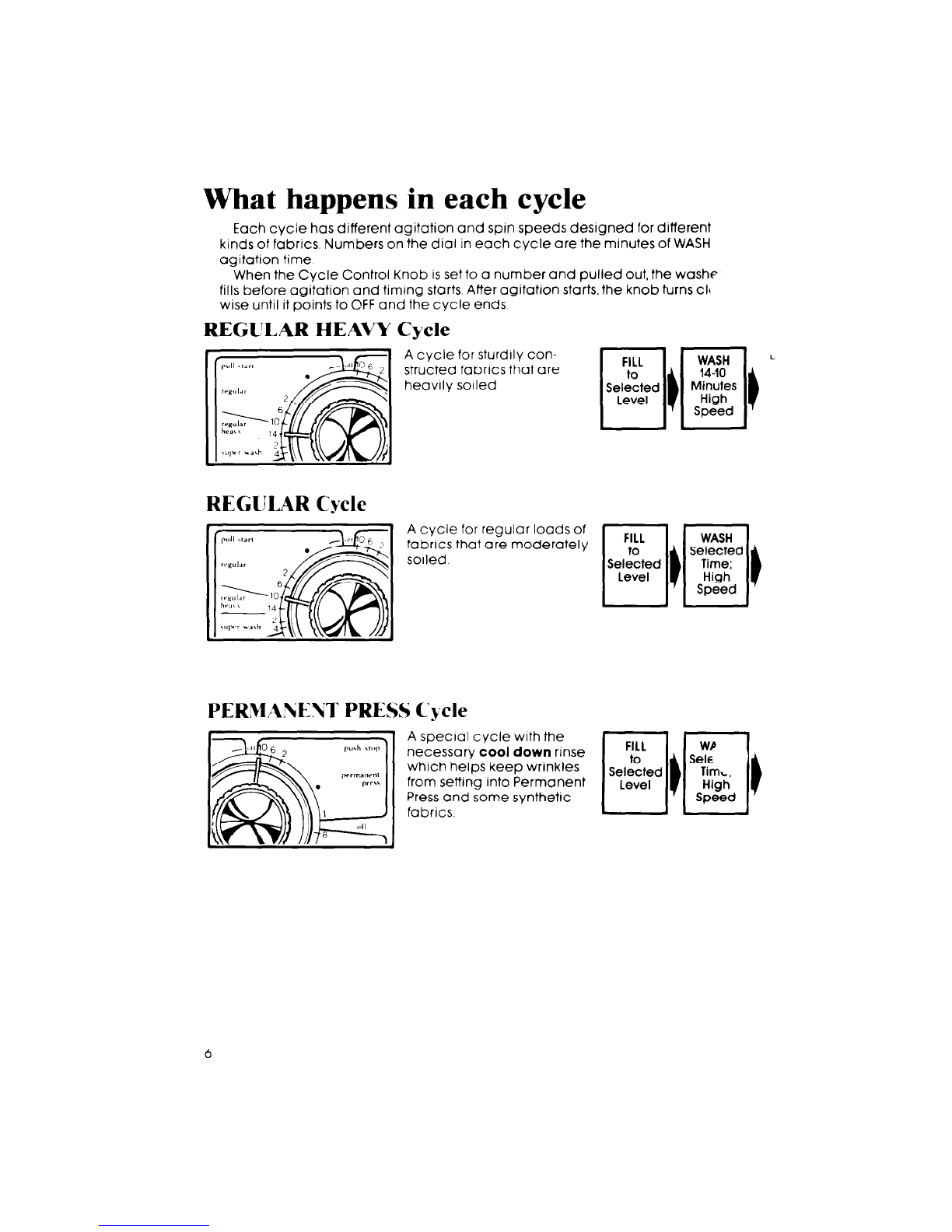

What happens in each cycle
Each cycle has different agitation and spin speeds designed for different
kinds of fabrics. Numbers on the dial in each cycle are the minutes of WASH
agitation time
When the Cycle Control Knob is set to a number and pulled out, the washe
fills before agitation and timing starts. After agitation starts, the knob turns cl\
wise until it points to OFF and the cycle ends
REGULAR HEAVY Cycle
A cycle for sturdily con-
structed fabrics that are
heavily solled
REGULAR Cycle
A cycle for regular loads of
fabrics that are moderately
soiled
PERMANENT PRESS CJxle
A special cycle with the
necessary cool down rinse
which helps keep wrinkles
from setting into Permanent
Press and some synthetic
fabrics.

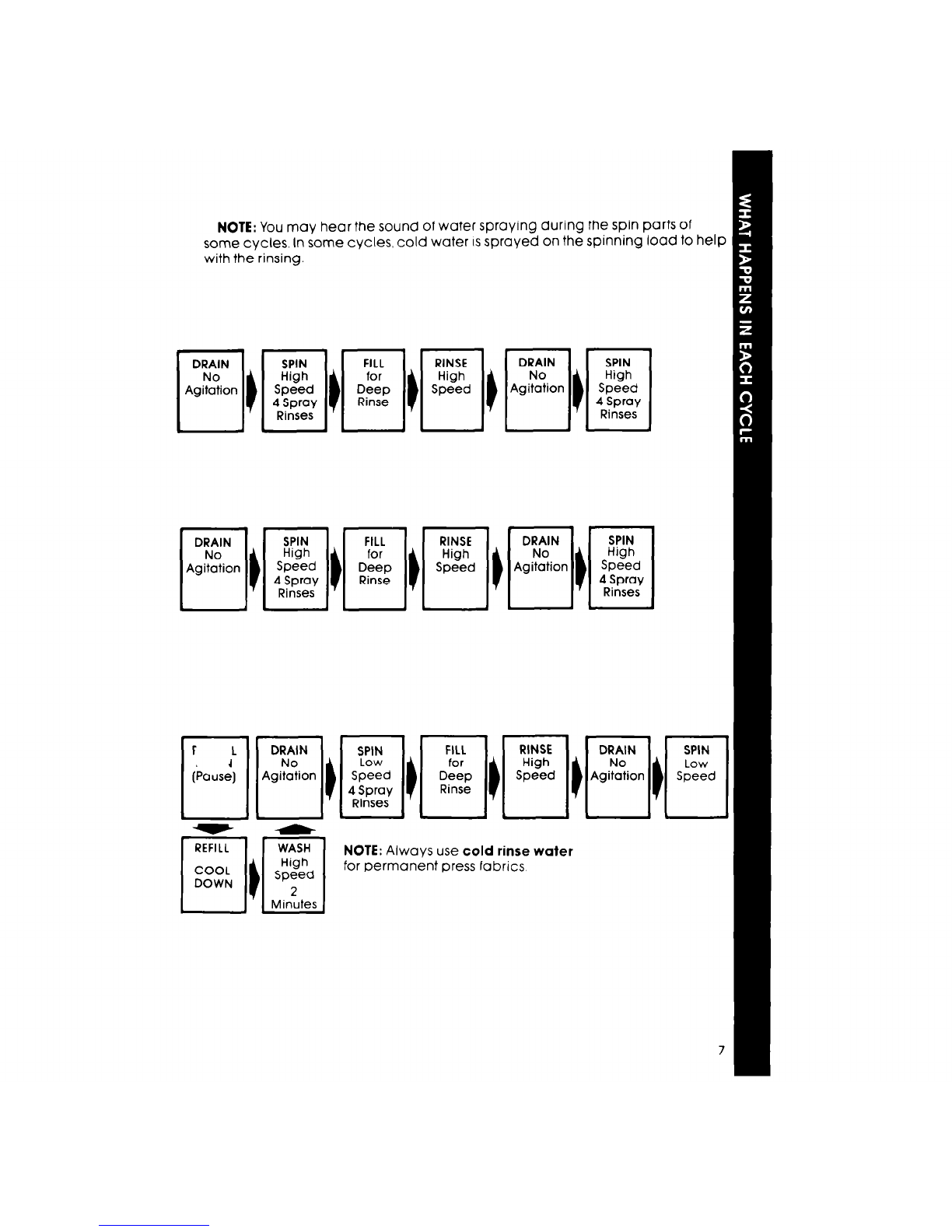

NOTE: You may hear the sound of water spraying during the spin parts of
some cycles. In some cycles, cold water ISsprayed on the spinning load to help
with the rinsing.
-- --
-- 9 F
I r L 1 1 DRAIN 1 I SPIN I I FILL I I RINSE I I DRAIN I I SPIN
1 (bousd] 1 IAgikon 11 Low Speed
4 Spray
Rinses
1’1
for
Deep
Rinse
High
Speed
NOTE: Always use cold rinse water
for permanent press fabrics
Low
SDeed

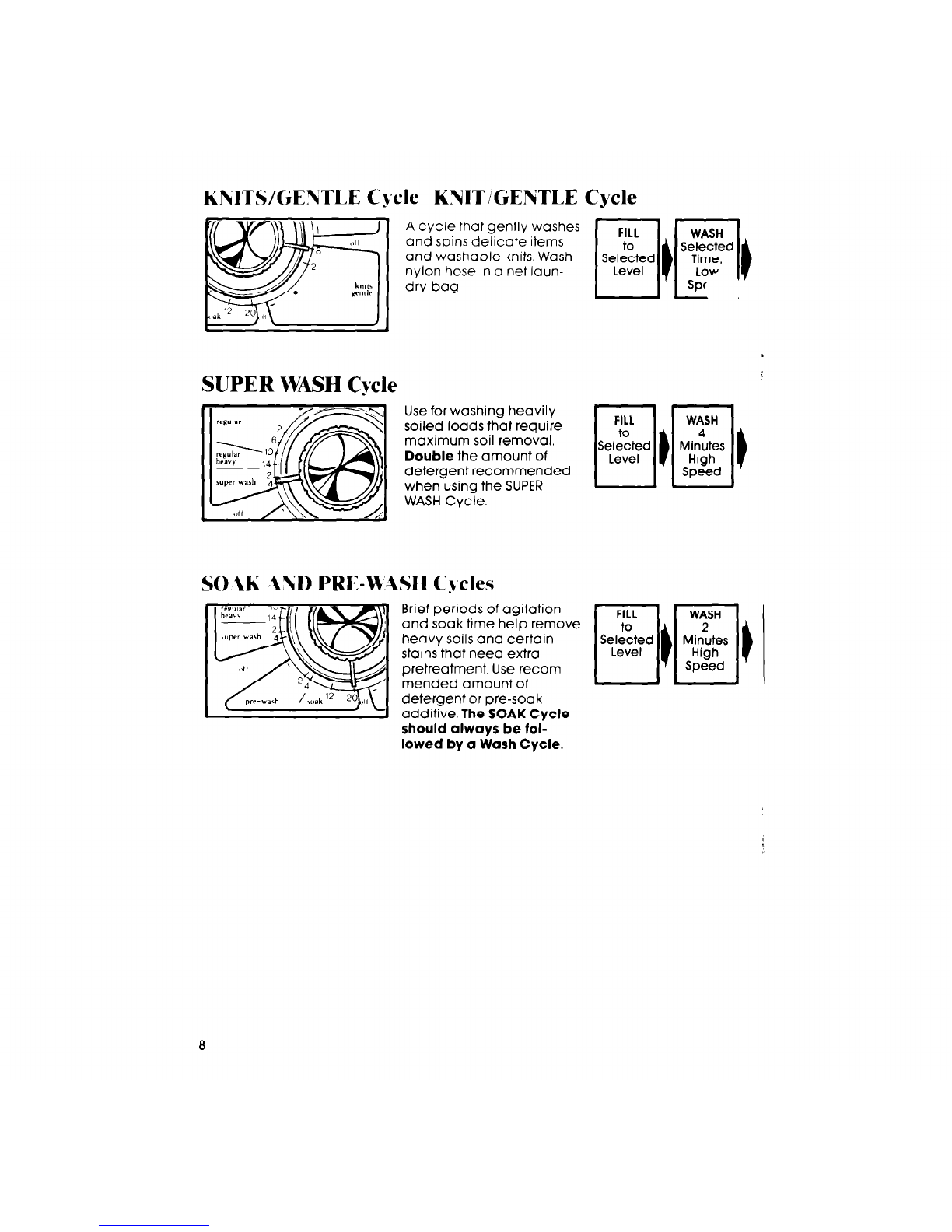

KIVITWGENTLE Cyde KNITiGEIVTLE Cycle
A cycle that gently washes
and spins delrcate items
and washable knits. Wash
nylon hose in a net laun-
dry bag
SUPER WASH Cycle
Use for washing heavily
soiled loads that require
maximum soil removal.
Double the amount of
detergent recommended
when using the SUPER
WASH Cycle.
SO.AK AND PRE-U:ASH Cy.cles
Brief periods of agitation
and soak time help remove
heavy soils and certain
stains that need extra
pretreatment. Use recom-
mended amount of
detergent or pre-soa k
additive. The SOAK Cycle
should always be fol-
lowed by a Wash Cycle.

The washer will proceed to
the Regular/Heavy Cycle. If
you want a different cycle
to follow Super Wash, push in
the cycle control knob, turn
to the cycle and time you
want, pull knob out to start.

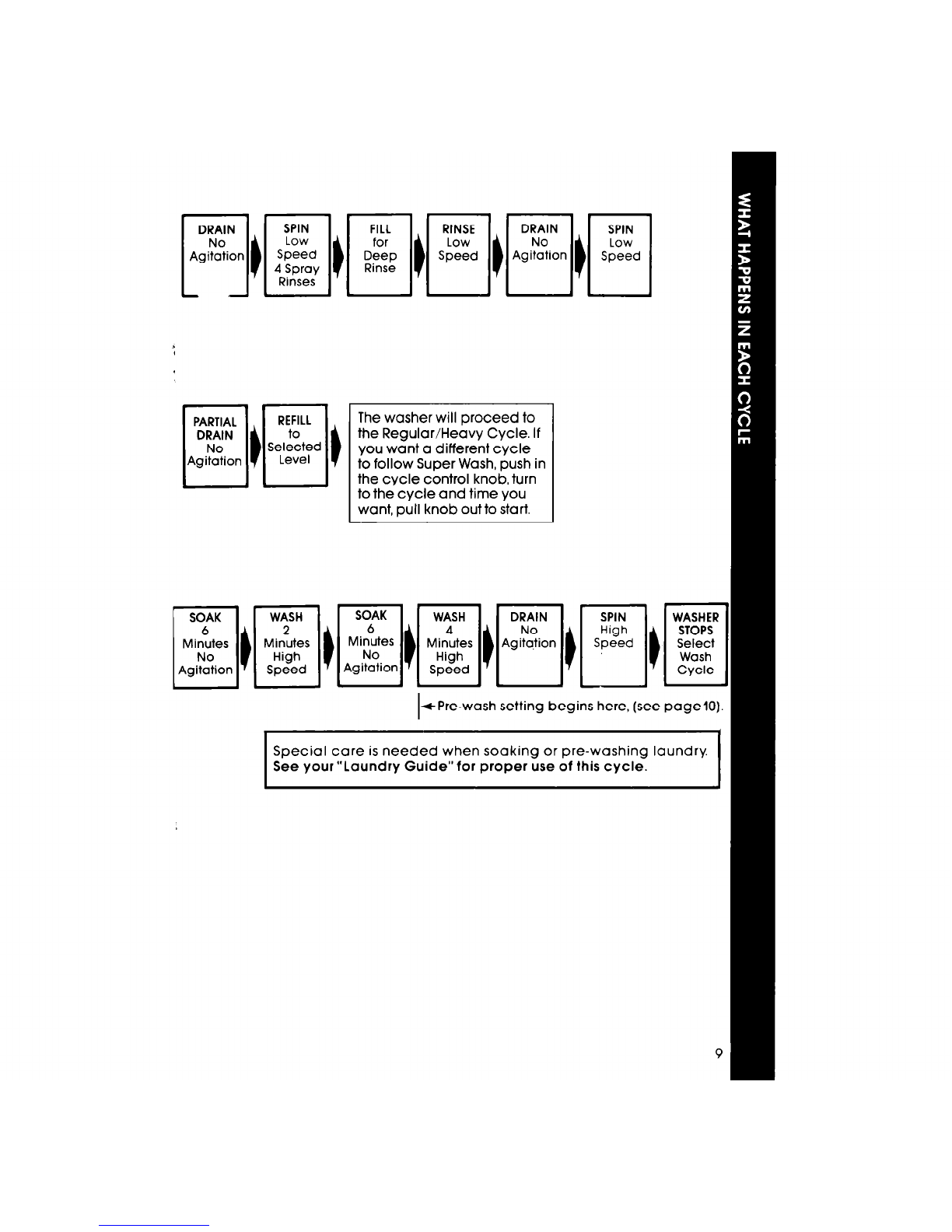

DRAIN
No
Agitqtion I Select II
+Pre-wash setting begins here, (see pagelO).
Special care is needed when soaking or pre-washing laundry.
See your”Laundry Guide”for proper use of this cycle.

Other operating instructions
For a rinse and spin
You may need an extra rinse and
spin for heavily soiled loads which
need more detergent. (Extra de-
tergent can require an extra rinse ]
l Push Control Knob in
l Turn clockwlse to any. on the dial
See above drawing.
l Pull Control Knob out.
l The washer will fill to selected
level; agitate 2 minutes; drain
and spin.
For a drain and spin
Your washer can be setto drain
and spin out water
l Push Control Knob in.
l Turn clockwise to the bar just before
OFF in any cycle. See above
drawing.
l Pull Control Knob out.
l The washer will drain and sprn.
For agitation and spin speeds In each cycle, see pages 6-9.
For a soak or pre-wash
For best results, use warm water
for soaking or pre-washing stained
laundry. Hot wafer can set stains.
l Use recommended amount of
detergent or pre-soak product.
l Push Control Knob in.
l Turn clockwise to point at a number
in the SOAK Cycle:
9 Pull Control Knob out to start washer.
l When the cycle is over, add de-
tergent for the next selected wash
cycle. The SOAK Cycle should
always be followed by a Wash
Cycle.
Important: See additional care
information on page 7 of your
“Laundry Guide!’
‘To start soak or pre-wash with agitation, the Cycle Control Knob
must point to a number in the SOAK Cycle.
10

Liquid bleach dispenser
Always measure bleach. Do not
guess. Never use more than 1 cup
(250 ml) for a full load. Use less with
‘-tyer water level settings. Follow
ctions on bottle for safe use. Use
-up with a pouring spout to avoid
spilling.
1. Load the washer first.
2. Pour measured bleach carefully
into dispenser. DO NOT let bleach
splash, drip or run down into the
washer basket. Undiluted bleach
will damage any fabric it touches.
3. Start the washer. Bleach will be
diluted automatically during the
wash part of the cycle.
For more information on bleaching, see”Laundry Guide” page 11.
MAGIC CLEAN@ lint filter
The lint filter in your washer cleans
itself. Collected lint is drained away
with the wash and rinse water.
If your washer drains into a tub,
remove any lint collected in the dram
or strainer.

Caring for your washer
WHEN NOT WASHING, keep both
water faucets turned off. This takes
the pressure off the water inlet valve
REMOVE SHARP OBJECTS such as pins,
buckles, etc., from clothes before
washing. Close metal zippers.
AFTER WASHING, use a soft dry cloth
to wipe the outside and inside dry.
Leave the lid up until the basket is dry.
Wipe up spills right away. Spills can
dull or damage the finish.
SHARP OR HEAVY OBJECTS should
never be put on or in the washer.
Check pockets for bolts, nuts,
tools, etc.
SOME PRETREATMENT PRODUCTS
can damage washer and dryer dials,
consoles and finishes. Do not use
these products on or near your
washer or dryer.
12

Winterizing
Because some water stavs IF the NC: ,ne!, treez
ing can cause a lot of damage If you’ Nasher is
stored or moved during the cold weo+her
1. Shut off both water 2. Put a quart of
faucets. Drscon- automoblle-type
nect and dram antifreeze In the
water inlet hoses basket
3. Set the washer for a
DRAIN and SPIN
(see page 10). Let it
run for about 30
seconds to mix the
antifreeze and
water.
ON
To use the washer again.. .
I. Flush water pipes and hoses
2. Connect hoses to the washer
3. Turn on the water faucets
4. Run the washer
through a com-
plete cycle with
one cup of deter-
gent to clean out
the antifreeze.

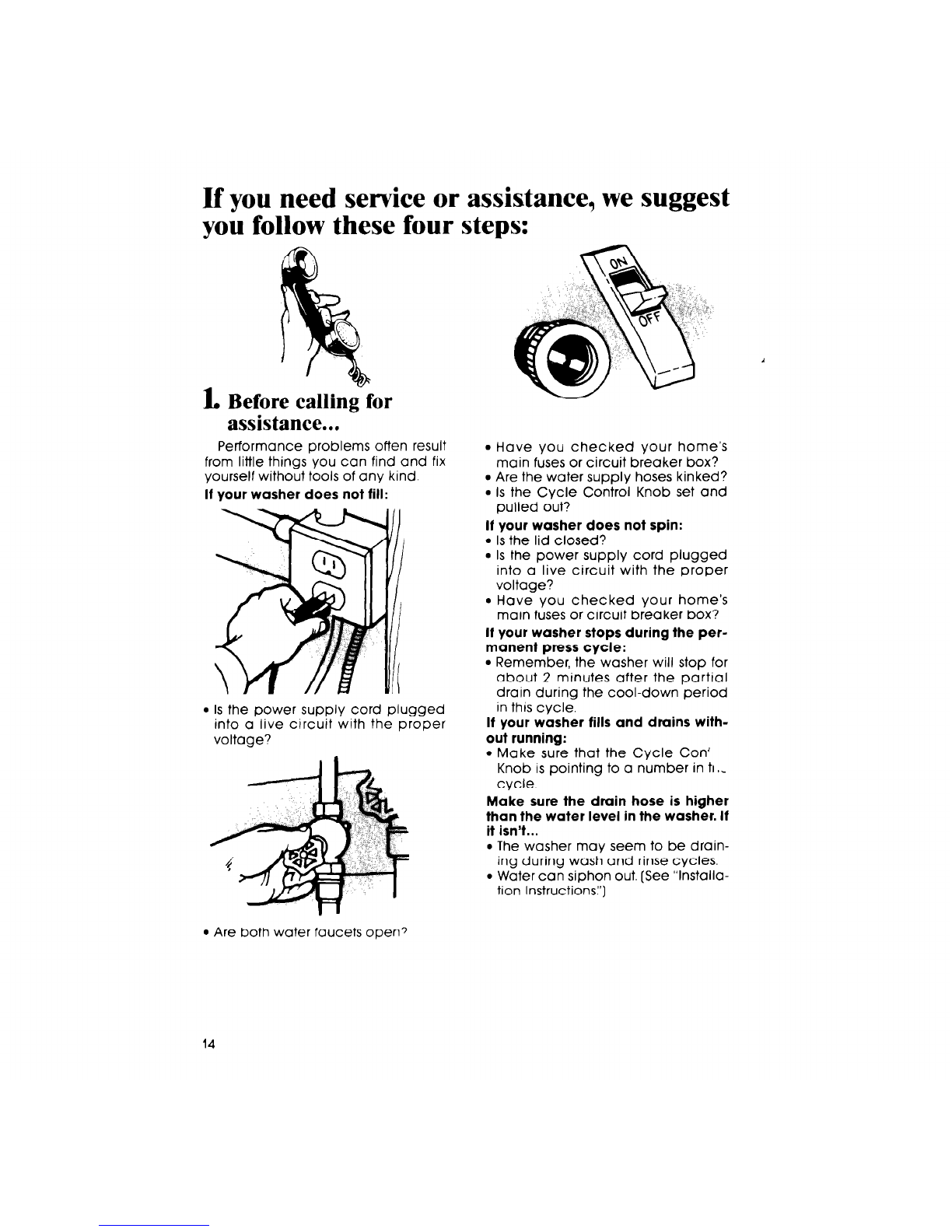

If you need service or assistance, we suggest
you follow these four steps:
1. Before calling for
assistance...
Performance problems often result
from little things you can find and fix
yourself without tools of any kind.
If your washer does not fill:
.
Is the power supply cord plugged
into a live circuit with the proper
voltage?
l Have you checked your home’s
main fuses or circuit breaker box?
l Are the water supply hoses kinked?
l Is the Cycle Control Knob set and
pulled out?
If your washer does not spin:
l Is the lid closed?
l Is the power supply cord plugged
into a live circuit with the proper
voltage?
l Have you checked your home’s
main fuses or circuit breaker box?
If your washer stops during the per-
manent press cycle:
l Remember, the washer will stop for
about 2 minutes after the partial
drain during the cool-down period
in this cycle.
If your washer fills and drains with-
out running:
l Make sure that the Cycle Con’
Knob is pointing to a number in tl._
cycle.
Make sure the drain hose is higher
than the water level in the washer. If
it isn’t...
l The washer may seem to be drain-
ing during wash and rinse cycles.
l Water can siphon out. [See “lnstalla-
tion Instructions:‘)
l Are both water faucets open?
14

2. If you need
assistance*...
Call Whirlpool COOL-LINE i serv-
ice assistance telephone number.
r ‘free from:
jntinental U.S. . [phone]
dichigan . . . . . . . . [phone]
Alaska & Hawaii [phone]
and talk with one of our trarned Con-
sultants. The Consultant can instruct
you in how to obtain satisfactory oper-
ation from your appliance or, if serv-
ice is necessary, recommend a
qualified service company in your
area
3. If you need service*.. .
Whirlpool has
-r ”
Whit1
01
/px - tet,no41: “07y;(-fnT
chisea TECH-CARE’
TEc*/-CARE Service Compa-
FRANCHISEDSERVICEnies, TECH-CARE
service technicians are trained to
fulfill the product warranty and pro-
vide after-warranty service, any-
where in the United States. To locate
TECH-CARE sewice in your area, call
our COOL-LINE service assistance
telephone number (see Step 2) or look
In your telephone directory Yellow
Pages under:
APPLIANCESHOUSEHOLDELECTRICALAPPLIANCES
Mb.JOR-SERVICELREPAIR MAJORREPAIRINGLPARTS
OR
. “I hb’i.,S~hill9,.I
Ii,, .. liCh,,.,i!,‘, , i- 2,
*rr “J \l 1:J- .F Ii, i t,,1..A_
ul;. , .L:
111...YII ‘IV”.’ .*1d”..
OR
4. If YOUhave a
prbblem*...
Call our COOL-LINE service as-
sistance telephone number (see Step
2) and talk with one of our Consultants,
or if you prefer, write to:
Mr. Robert Stanley
Division Vice President
Whirlpool Corporation
2000 US-33, North
Benton Harbor, MI 49022
*If you must call or write, please pro-
vide: model number, serial number,
date of purchase, and a complete
description of the problem. This infor-
mation is needed in orderto better re-
spond to your request for assistance.
FSP IS a reglstered trademark
0
of Whirlpool Corporation for
quality parts. Look for this
FSP symbol of quality whenever
you need a replacement part
@ for your Whirlpool appliance.
FSP replacement parts
WIII fit right and work right, because they are
made to the same exacting specifications
used to build every new Whirlpool appliance

Whirlpool
Home A /Appliances
Making your world a little caster.
Part No. 388533
c1986 Whirlpool Corporation Printed in U.S.A.
matlc Washers Clothes Dryers Freezers Relrlgerator-Freezers Ice Makers DIshwashers Eulltbln Ovens and Surface Units Ranges Mlcr
