Whispbar K454W User manual

K454W
Fitting Kit
EN Fitting Instructions for Basic Carrier
x 1 x 1 x 4 x 2
x 4 x 2 x 2 x 2
x 4 x 4 x 2
Revision No: 3C 1

Fitting Kit EN
K454W
First Time Installation
●Remove parts from inside the package and
check. Contact your dealer if any parts are
missing or damaged.
●This kit fits type C only.
Fitment
●Open or remove fixed-point covers.
●Front and centre covers only.
2

Fitting Kit EN
K454W

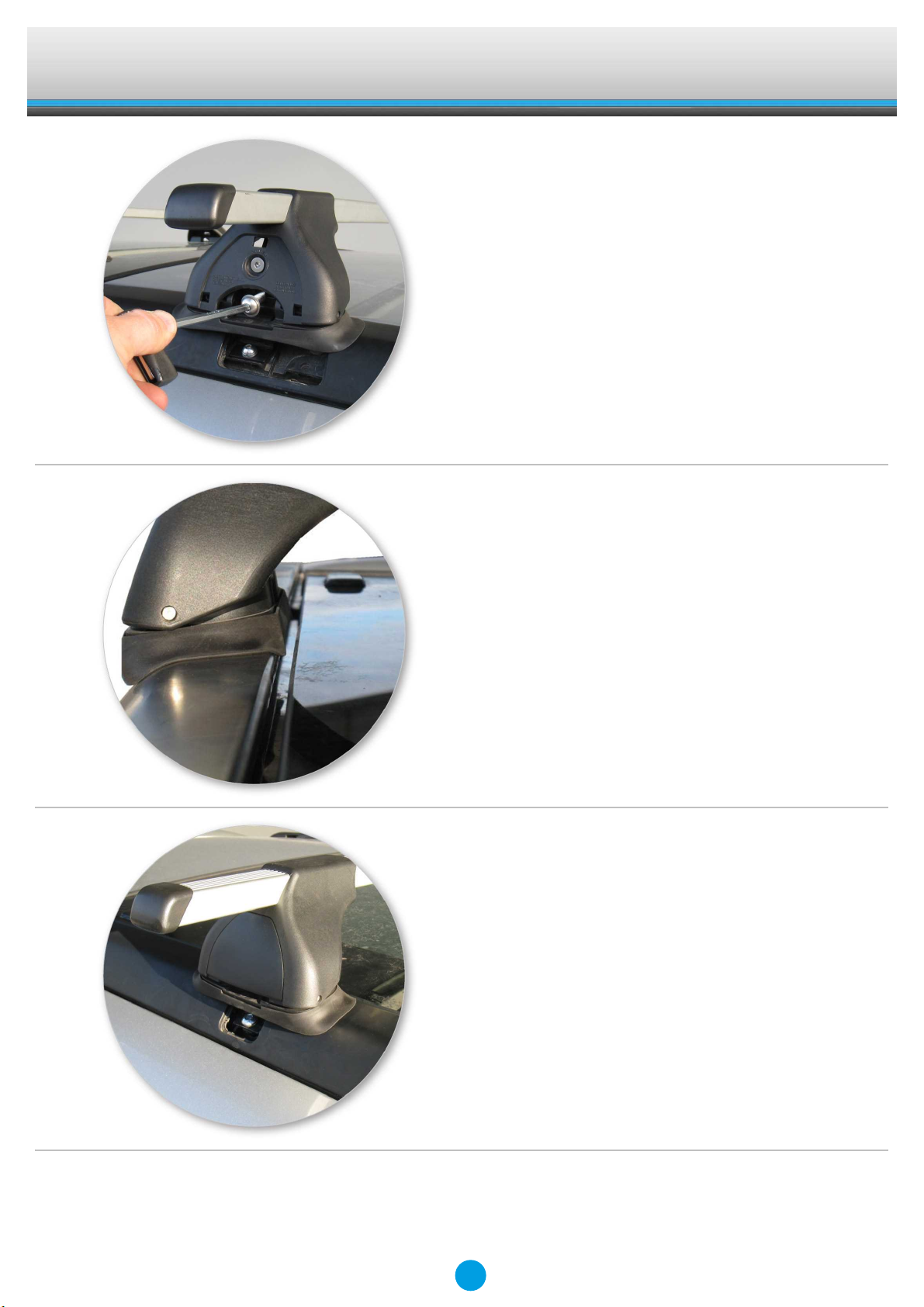

●Place clamp into position as pictured.
●Hold clamp using M6 capscrew, spring
washer and flat washer.
●Leave clamp loose.
●Remove crossbar leg cover.
●Use hex screwdriver to reverse adjusting
screw 10 turns.
3

Fitting Kit EN
K454W

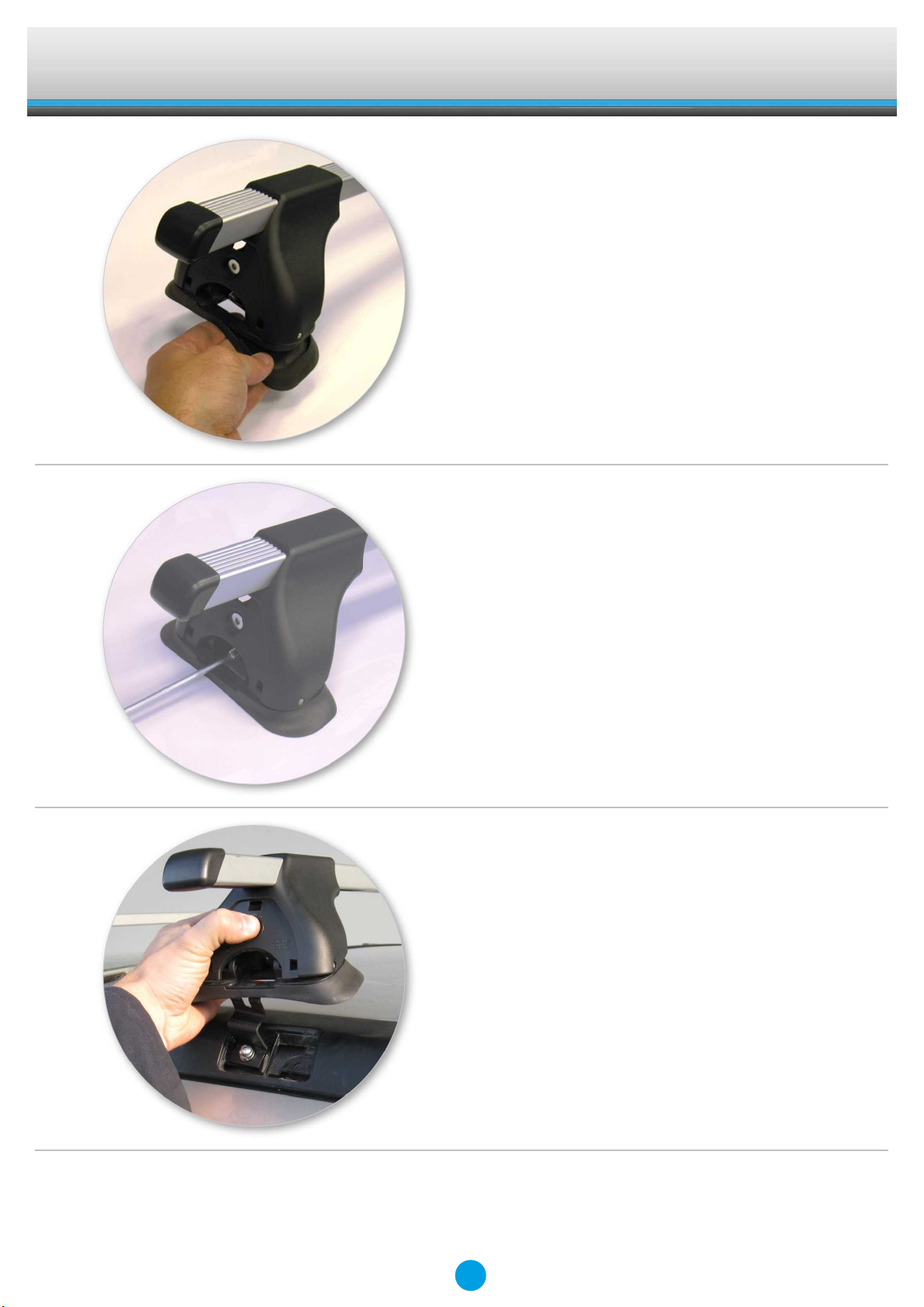

●Fit rubber pad (supplied with crossbar) to
foot.
●Make sure the pad fits into the holes
underneath the foot.
●Remove locking screw.
●Place crossbar foot over clamp.
●Place crossbar foot over clamp. Secure
clamp to foot using M8 bolt.
4

Fitting Kit EN
K454W
●Tighten clamp to roof.
●Set bars to length (revert to rear of these
instructions).
●Please check the rear of this manual for
information relating specifically to your
vehicle.
●Tighten adjusting screw.
5

Fitting Kit EN
K454W
●Place nylon then steel washers on
capscrew (supplied in kit).
●Install capscrew through slot in clamp and
into internal block.
●Do not over tighten.
●Check crossbar is securely attached to the
vehicle.
●Foot to sit in position shown.
●Refit crossbar leg covers.
●Repeat for all legs.
6

Fitting Kit EN
K454W
CAUTION: Recheck all fasteners immediately after
a load is applied to the crossbars.
Regularly check screws are tight.
7

Fitting Kit EN
K454W
Maintenance
●Clean the car roof and surfaces of the
product that will be in contact with the car
roof.
●Follow the fitting instructions for fitting the
product to your vehicle. Make sure all steps
are carried out in order.
●Set crossbars a minimum distance of
700mm (27 1/2") apart where no other
distance is specified in the fitting
instructions. This is especially important
when carrying long loads.
●Check unit is securely attached whenever
you refit it to the vehicle. If the unit feels
loose, refer to the fitting instructions and
readjust.
●Some glass/panoramic roofs and radio
antennae may not be able to be used when
the product is fitted.
●Do not modify this product.
●Refer to the maximum permitted load
capacity specified in the fitting instructions.
Do not exceed the vehicle manufacturers
roof load rating if it is lower than the
maximum load capacity specified in the
fitting instructions.
●Loads should not overhang the sides of the
product and be evenly distributed with the
lowest possible centre of gravity.
●Long loads should be secured with non-
elastic straps to the front and rear of the
vehicle.
●Objects with pointed ends (e.g. ski poles)
should be carried with the pointed ends to
the rear of the vehicle.
●Remove all loose or removable objects
from the load prior to loading.
●Make sure all loads are securely fastened
with non-elastic straps. Check regularly
during longer journeys.
●A loaded roof rack system can alter the
performance of your vehicle. Be especially
aware of the effects of side winds,
changing of direction, and braking
performance. Avoid rapid acceleration and
deceleration. Drive carefully.
●Note that the total height of the vehicle
increases when upright loads are carried.
●Products should be locked during transport
if they have locks fitted.
8

Fitting Kit EN
K454W
●Check and replace worn out or defective
parts.
●Keep the product clean and maintained.
●Never drive into a car wash with the roof
rack system fitted.
●Lubricate locks and adjusting screws at
regular intervals.
●Remove the products from the vehicle
when not in use. Make sure all loose parts
are stored safely.
●Yakima Australia Pty Ltd
17 Hinkler Court
Brendale QLD 4500
AUSTRALIA
www.whispbar.com
www.whispbar.com.au
www.whispbar.co.nz
www.whispbar.co.uk
www.whispbar.co.za
www.whispbar.eu
www.whispbar.ca
9

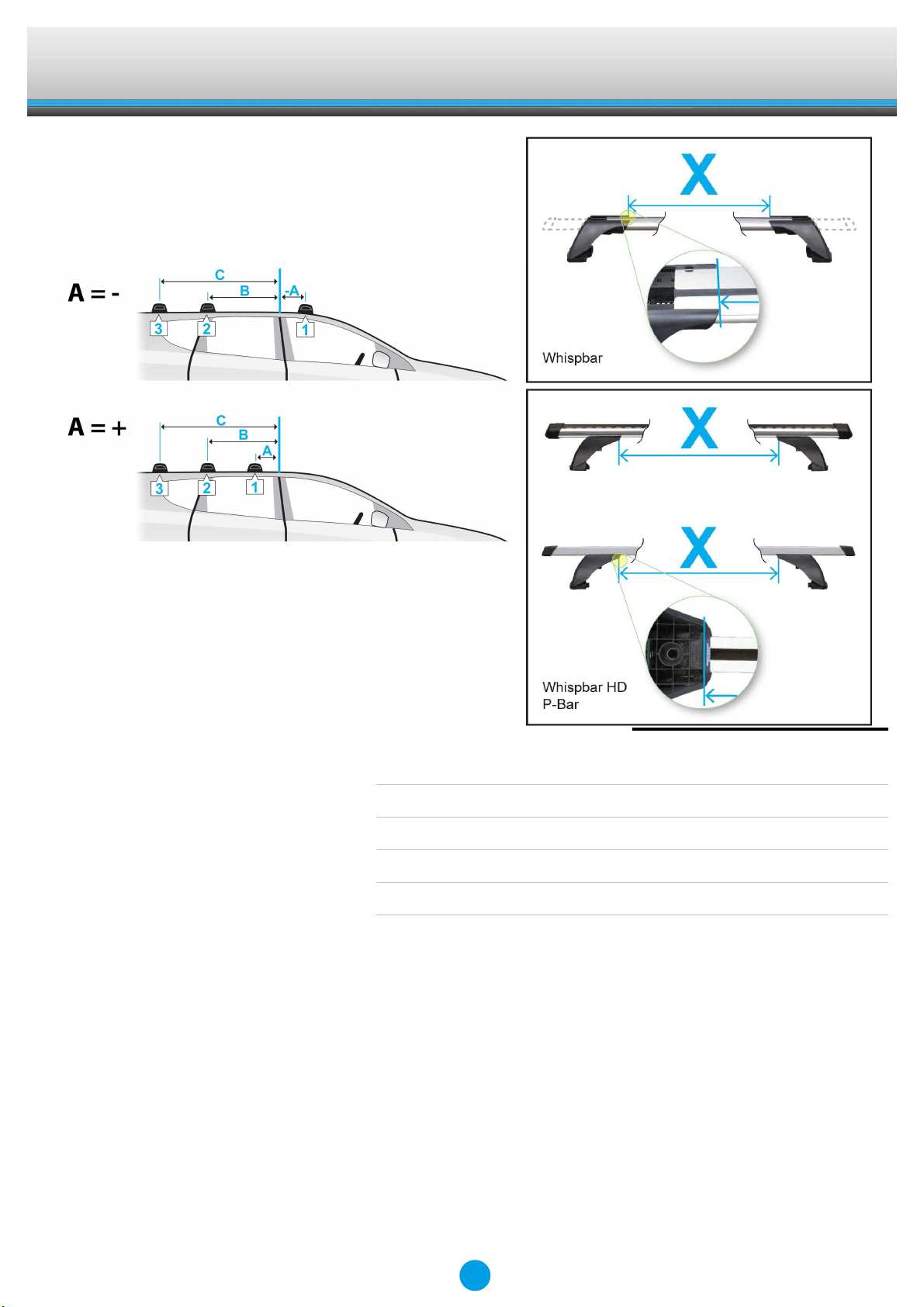

Fitting Kit K454W
X
A B C 1 2 3
Emina, 4dr MPV 92-99 (EU) 220mm 470mm - 840mm 815mm 815mm
8 11/16ths" 18 1/2ths" - 33 1/16ths" 32 1/16ths" 32 1/16ths"
Estima, 4dr MPV 90-00 (NZ) 220mm 470mm - 840mm 815mm 815mm
8 11/16ths" 18 1/2ths" - 33 1/16ths" 32 1/16ths" 32 1/16ths"
Estima, 4dr MPV 90-99 (AU) 220mm 470mm - 840mm 815mm 815mm
8 11/16ths" 18 1/2ths" - 33 1/16ths" 32 1/16ths" 32 1/16ths"
Previa, 4dr MPV 91-97 (US) 220mm 470mm - 840mm 815mm 815mm
8 11/16ths" 18 1/2ths" - 33 1/16ths" 32 1/16ths" 32 1/16ths"
Previa, 4dr MPV 91-98 (EU) 220mm 470mm - 840mm 815mm 815mm
8 11/16ths" 18 1/2ths" - 33 1/16ths" 32 1/16ths" 32 1/16ths"
10

1.
2.
3.
a.
b.
1.
2.
