Whitegoods P150L-LED User manual

installation instructions
100/150 linear LED plaster-in
100/150 linear LED Reduced Depth plaster-in:
150L cut out = 170 X (length) x 20mm
100L cut out = 120 X (length) x 20mm
P150L-LED
P150LRD-LED
P100L-LED
P100LRD-LED
Ensure all mains power is switched off at source.
Do not attempt installation or maintenance on
electrically live product.
Installation and maintenance to be carried out
only by a qualified electrician or electrical contractor.
Ensure correct polarity.
(Red/Brown/24Vdc is positive/LED+,
Black/Blue/GND is negative/LED-)
Please be advised that this install requires two people
!
!
!
!
!
Registration number is WEE/FG0362QY
whitegoods 7
8
10
plaster
plaster
Incorrect finish
plaster
Correct finish
plaster
unscrew
9
screw

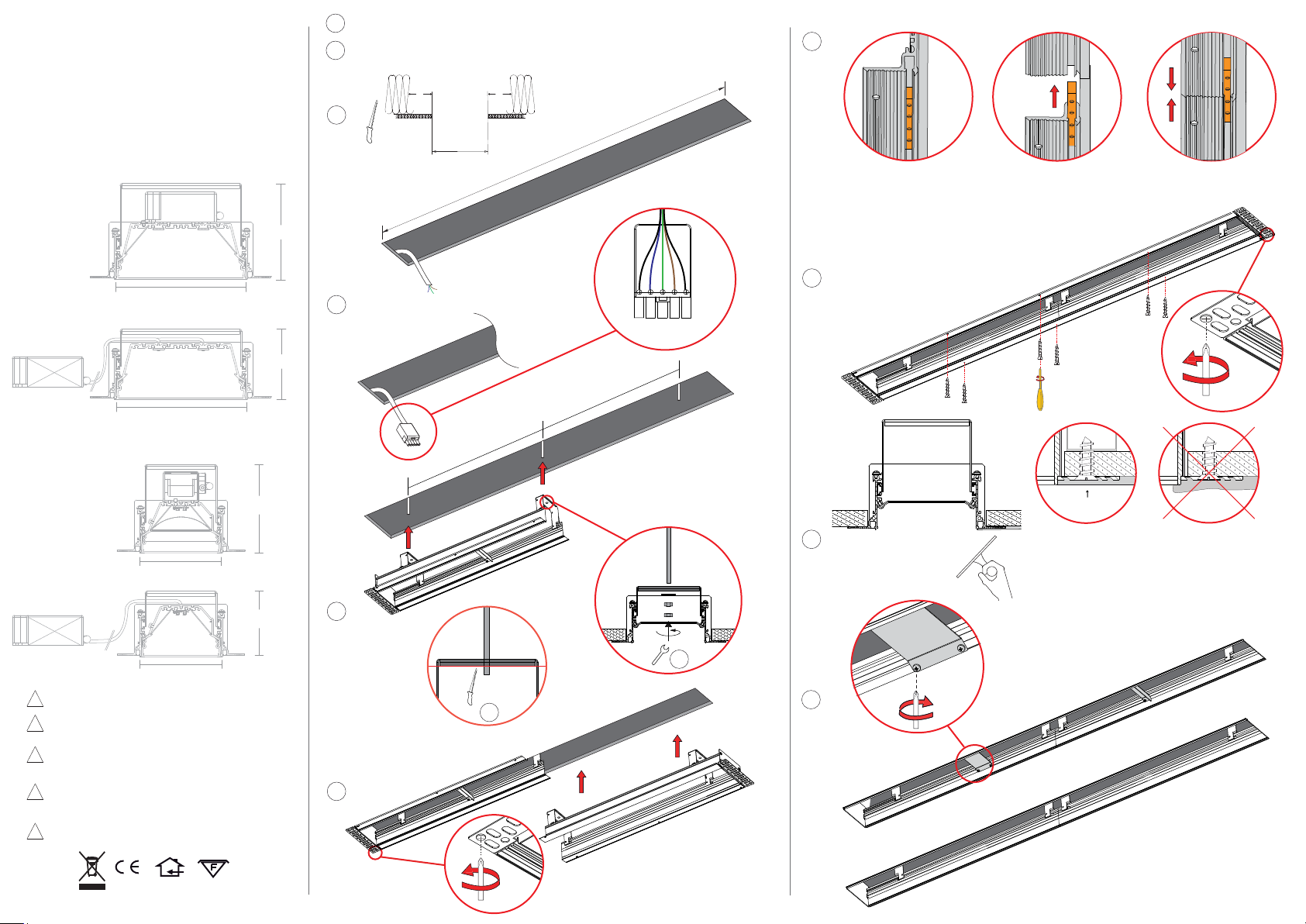

1Remove packaging of frame/s and diffuser/s.
5
Place diffusers away from construction areas to avoid damage.
2
4
cut off
3
1m (minimum)
screw
6
Grd+
_DALI
DALI
Maintain a 150mm space from ceiling insulation.
150mm 150mm
cut out
120/170mm
A
B
Cut M6 so it does
not protrude past
bracket edge.
Secure second frame length in place.
cut out
Wire mains voltage cable into spare socket provided.
Mark location of M6 ceiling rods to
coincide with U-shaped ceiling
brackets, minimum of 2 ceiling rods,
minimum of 1 rod per linear meter
for continuous applications. Prepare
ceiling rod (rod and nuts by others).
Join adjacent frames together using sliding join connectors,
loosen the grub screws and slide the join connectors half way
between the frames, ensure the frames are aligned before
securing join connectors by tightening grub screws.
Compress the frame to the ceiling with suitable screws.
Tighten the screws through the plaster-in holes.
Additional 7mm holes can be added if needed.
100mm
110mm
150mm
110mm
100mm
80mm
150mm
80mm
940-20026_R2

12
15
14
17
LED Insert installation and Connection.
Repeat Step 12 for second frame section installation.
‘click’
‘click’
16 The final 3-pole (5-pole if dimming) socket should have the provided black isolator cap attached for electrical safety.
Adjacent inserts must be butted against each other
and diffuser installed.
18
A
B
‘click’
Depending by the configuration connect the safety harness to
the driver box or to the anchor point.
11
A
B
Integrated driver
Remote driver
*if the driver sits right next to the insert: please make sure there is
a minimum of 95mm ceiling void (from front of plasterboard to face
off soffit) where the driver passes through the frame to allow to sit
next to the Insert.
13 Connect the 5-pole connectors as appropriate.
screw
Installation Complete
