WHYNTER ECO-FRIENDLY14,000 BTU PORTABLE AIR CONDITIONER
MODEL#: ARC-142BX
Instruction Manual
Congratulations on your new WHYNTER product. Please read this Instruction Manual carefully before using
this product to ensure proper operation. Keep this manual in a safe place for future reference.

2|P a g e
TABLE OF CONTENTS
INTRODUCTION 3
SAFETYPRECAUTIONS 4-5
IDENTIFICATION OF ACCESSORIES 6
IDENTIFICATION OFPARTS 7
OPERATINGYOUR AIR CONDITIONER 8
INSTALLATION INSTRUCTIONS 9-12
AIR FILTERSINSTALLATION 13
OPERATION INSTRUCTIONS 14-15
W ATERDRAINAGE 16
REMOTECONTROL 17
CARE AND MAINTENANCE 18
TECHNICALDATA 19
TROUBLESHOOTING 20-21
WARRANTY INFORMATION 22

3|P a g e
Thank you for choosing the Whynter portable air conditioner. Please follow the instructions
provided in this user guide to obtain the very best performance from your portable air conditioner
and take full advantage of the many features your portable air conditioner offers you. We trust that
your Whynter air conditioner will provide the performance and reliability that we stand for.
Please keep this user manual in a safe place for future reference.
DISPOSAL
This symbol on the product or its packaging indicates that the appliance cannot be treated as
normal domestic trash, but must be handed in at a collection point for recycling electric and
electronic appliances. Your contribution to the correct disposal of this product protects the
environment. Further information about the recycling of this product can be obtained from your
local municipal authority.

4|P a g e
Your safety and the safety of others are very important to us.
To reduce the risk of fire, electrical shock or injurywhen using your appliance,follow these basic
precautions.
SAFETYPRECAUTIONS
Before the applianceis used, it must be properlypositionedand installedas
detailed in this manual.
Do not under any circumstances cut or remove the third (ground) prong from the power cord
Make sure this unit is connected to a correctly grounded power supply outlet. Do not use an
extension cord or power strip
The power cord is UL listed. It has a built-in L.C.D.I. (leakage, current, detection, interruption)
circuit breaker for added safety. If the power supply is interrupted, press the reset button to
reconnect the unit to power source
It is recommended to use a separate circuit that its size should be 15 Amps for the air conditioner
Do not use an excessively wet cloth, industrial solvents, oil-based products to clean this portable
air conditioner
To avoid the risk of shock, the product should never be used in bathrooms, shower rooms, or in
any other steamy or wet areas
Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any
other appliances
Do not repair, disassemble and/or modify the unit by yourself
Always turn off the portable air conditioner when cleaning the air filter, and transporting
Do not turn this unit on and off by plugging and unplugging. Always use the ON/OFF switch
Transport the unit in an upright position only, or leave it in an upright position for at least 4 hours
before first use
Ensure curtains or other objects are not obstructing the air inlet filters
Do not bend or crush the exhaust hose while in use
Always allow at least 20” of clearance around the unit for ventilation. Do not use this unit inside
closets, cabinets and/or cramped spaces between furniture
This unit is optimized to operate in an ambient temperature of 64°F – 90°F
This unit must be installed in an area protected from the element, such as wind, rain, water spray
or drips
The unit should not be located next to ovens, grills or other sources of high heat
Always place the unit on even and hard and level surface
Do not sit or place objects on the unit

5|P a g e
Do not allow children to climb, stand or hang on the appliance. The air conditioner could tip
over and get damaged and/or seriously injure somebody
Keep fingers out of the air intakes and air outlets
The appliance is an electrical appliance. To avoid injury from electrical shock do not operate it
with wet hands, while standing on a wet surface or while standing in water. Do not use it in
outdoors or in wet conditions
When positioning or moving the appliance, ensure it is not turned upside down or greater
than 45° or more off level
This appliance is designed for household, non-commercial use only. Any other use will void
the warranty
Do not plug into the power outlet before set up is completed
Do not operate this unit without the air filter(s)
Do not use harsh chemicals to clean the filter(s). Dry thoroughly before inserting the filter(s) into
the unit
Do not add extra length to the exhaust hose by more than a total length of 9’. This will
reduce the cooling efficiency of the portable air conditioner
At the end of each season, all water must be drained from the unit and filter(s) must be
cleaned before storage
THE MANUFACTURER DISCLAIMS ANY RESPONSIBILITY IF THE ABOVE INSTRUCTIONS
ARE NOT FOLLOWED.
OPERATING CONDITION
MODE ROOM TEMPERATURE
COOL Higher than 62°F / 17°C
DRY Higher than 54°F / 13°C

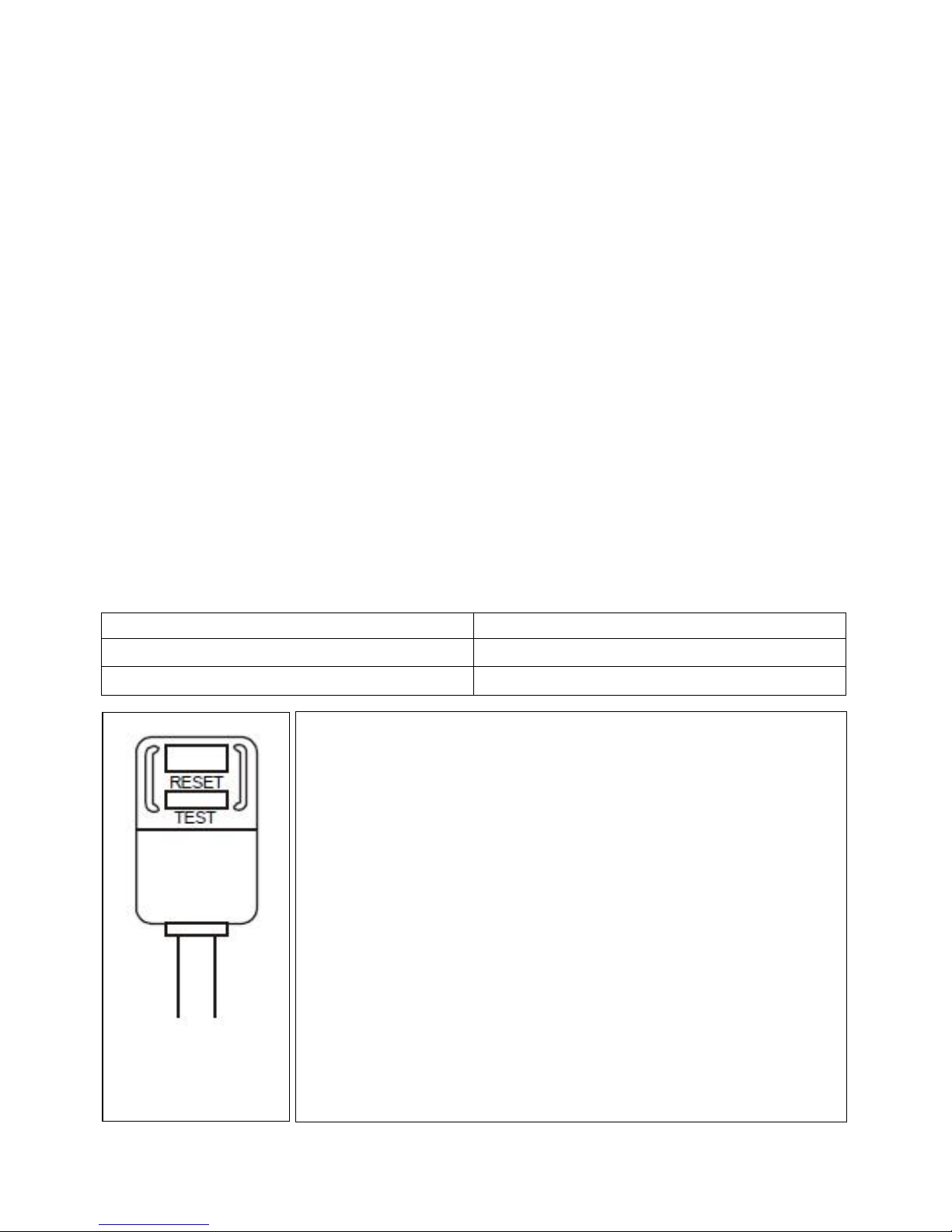

Your portable air conditioner is supplied with a Leakage-
Current Detection and Interruption (LCDI) plug. This plug
reduces the risk of fire due to arcing faults in the power
supply cord. Please follow the instructions below to ensure
that LCDI plug works properly.
1. Plug the power cord to a grounded wall outlet. Do not
plug to a power strip or extension cord.
2. Press the TEST button on the plug. This should trip the
plug and cut the power to the air conditioner. If the plug
does not trip and the unit comes on, please contact
technical support.
3. Press the RESET button to start the air conditioner.
4. Do NOT use the TEST and RESET buttons to turn the
air conditioner on and off.

6|P a g e
IDENTIFICATION OF ACCESSORIES
A
CCESSORY N
A
ME QU
A
NTITY
Exhaust hose
Flat Mouth Adaptor
Round Adaptor (pre-installed on unit) 1
set
Window sliders and Clear plastic plug
(plug is in the upper corner of the plastic
bag that holds the user manual)
1 set
Foam
seal 3 pcs
Remote control and Batteries 1 set
Drain hose 1 pc
Activated Carbon filter (pre-installed on
unit) 1 pc

7|P a g e
6
IDENTIFICATION OF PARTS
Front
1. Control Panel
2. Front Air Vent / Louvers
3. Caster (four)
4. Handle (both sides)
Rear
6. Upper air filter
7. Air outlet (hot air exhaust)
8. Power cord outlet
9. Upper air intake
10. Upper drain port
11. Lower air intake (Compressor)
12. Lower air filter
13. Lower drain port

8|P a g e
OPERATING YOUR AIR CONDITIONER
Before you begin, thoroughly familiarize yourself with the control panel, remote control and all of
the functions. Follow the symbol for the desired function. The unit can be controlled by the unit
control panel alone or with the remote control.
CONTROL PANEL
1. MODE
Controls the 4 function modes: COOL, AUTO, Fan
only and DRY.
6. UP and
DOW N
Adjusts set temperature (1 °C/ 2°F increments) or
timer hours (0 – 24 hours).
NOTE: This unit is capable of displayingset
temperature in Fahrenheit or in Celsius. To convert
from one to the other, press and hold the Up and
Down buttons for 3 seconds.
2. TIMER
Turns the timer function on and off. To cancelthe
timer, press the Power button or set the timer to 0.0.
7. LED DISPLAY
In Cool mode: shows set temperaturein °C or °F and
AUTO timer setting. In DRY and FAN only modes:
shows room temperature.
Error Codes:
E1, E2 and E4: Unplug unit and restart in 5 minutes.
P1: Bottom water tank is full; drain water from the
unit
3. POW ER
Tu
r
ns the unit on and of
f
.
4. SLEEP
Tu
r
ns the slee
p
f
unction on and of
f
.
5. FAN
Controls the 4 fan speeds: HI, MED, LOW and
AUTO. The fan speed indicator lights illuminatesto
show the set fan speed.
W hen the AUTO speed is
selected, none of the fan speed indicator
illuminates.
9. SW ING
Turns on the auto swing function.

9|P a g e
INSTALLATION INSTRUCTIONS
Location
The air conditioner should be placed on a hard and level surface strong enough to support the
unit. The unit has casters and it should only be rolled on smooth, flat surfaces. Use caution
when rolling on carpet surfaces. Do not attempt to roll the unit over objects.
Never place any obstacles around the air inlet or outlet and allow at least 20 inch of clearance
for efficient air-conditioning.
Exhaust hose Installation
When you use this air conditioner unit, hot air must be
exhausted out of the room to complete the air
exchange of the condenser. When the unit is operating
in DRY or FAN only mode, no exhaust is required.

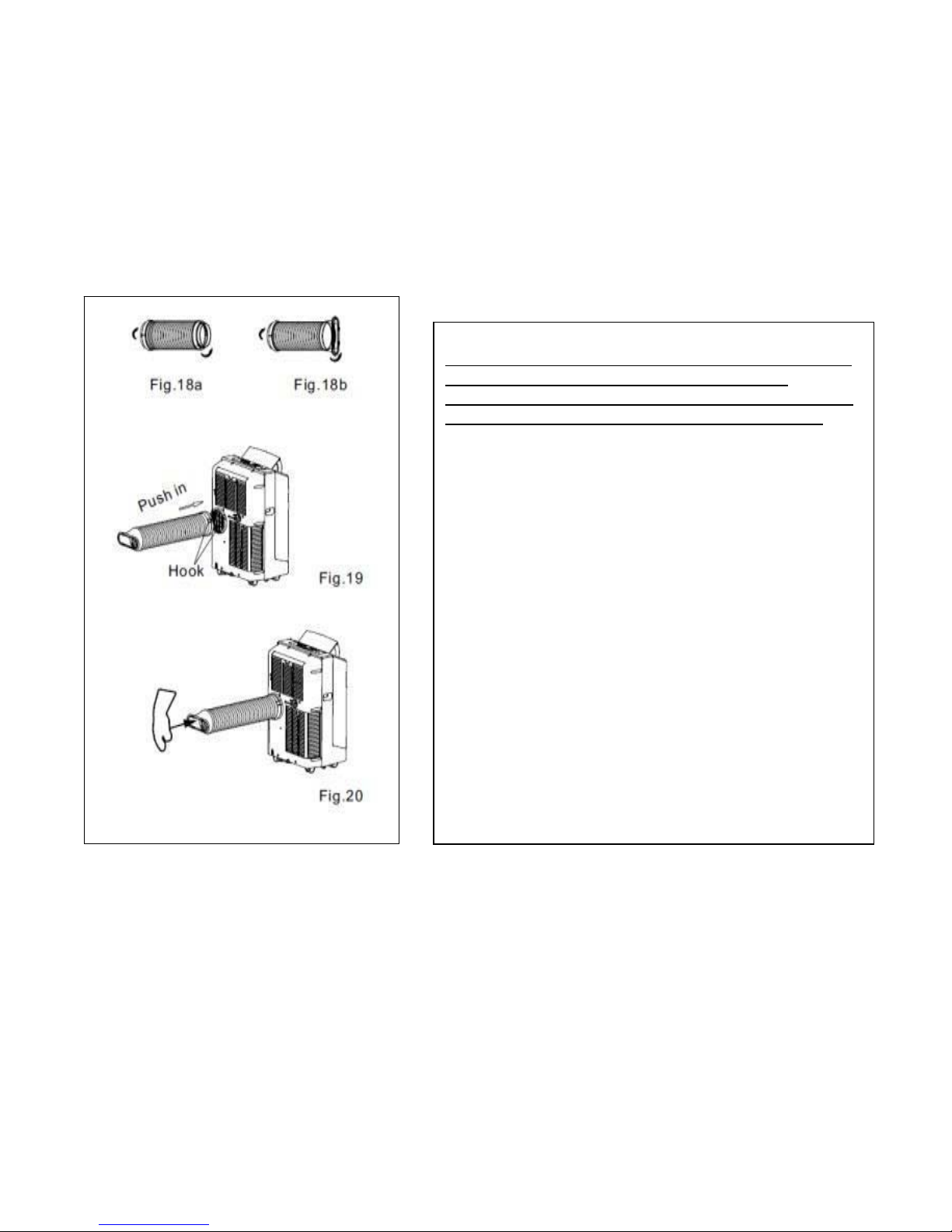

1. Pull out about 6” of one end of the exhaust
hose.
2. Install the flat mouth and round exhaust connector
on the exhaust hose by turning counter-clockwise.
See Fig. 18a and 18b
3. Push in the exhaust hose into the air outlet port at
the back of the unit. Fig. 19 and Fig. 20.
4. Only extend the exhaust hose to the necessary
length. We do not recommend extending the
exhaust hose more than 9' long. If you are interested
in purchasing an additional 5’ exhaust hose please
contact [email protected] for retail sales
information.

10 | P a g e
Window kit Installation
When you use this air conditioner unit, hot air must be exhausted out of the room to complete
the air exchange of the condenser. When the unit is operating in fan-only mode, no exhaust is
required. Your window kit has been designed to fit most
standard vertical and horizontal windows.
However, it may be necessary for you to modify the
installation procedures for your window. Please
refer to Fig. 8 and Fig.9 for minimum and
maximum window openings.
NOTE: If your window opening is less than the
mentioned minimum length of the window slider kit,
cut the slide bar with hole to fit window opening.
Never cut out the hole on the window slide bar.
NOTE: When using the window kit on a window or
sliding door it will cause the window or sliding door
not to be properly closed and locked. Additional
security measurements maybe needed.
The window slide bars can be fixed with the clear
plastic bolt. Fig. 9a

11 | P a g e
Window kit Installation in a double-hung window
1. Open window or sliding door for approximately
5”
2. Cut the foam seal (adhesive type) to the
proper length and attach it to the bottom
of the window. Fig.10.
3. Adjust the length of the window bars to the same
length and width of the opening of the window.
Cut the window piece if necessary to fit the
length of your window. Fig. 11.
4. Close the window on the window slide bars. For
long term installation, you may screw the
window kit into your window frame. Fig. 12.
5. Cut the foam seal to the length and seal
the open gap between the top window
sash and outer window sash. Shown in
Fig.13
.

12 | P a g e

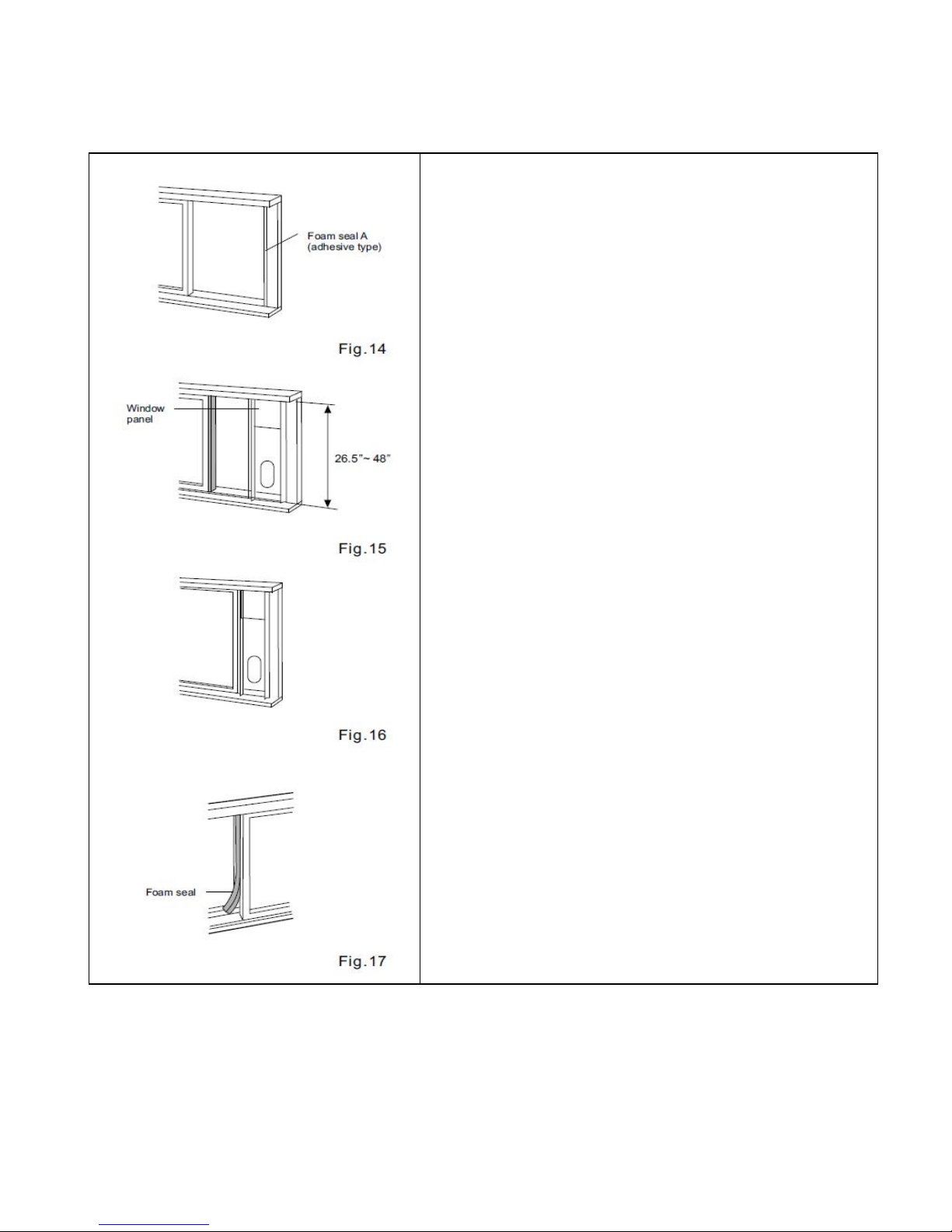

Window kit Installation in a sliding door/ window
1. Open window or sliding door for approximately 5”
2. Cut the foam seal (adhesive type) to the
proper length and attach it to the bottom
of the door / window. Fig.14.
3. Adjust the length of the window bars to the same
length and width of the opening of the window.
Cut the window piece if necessary to fit the length
of your window. Fig. 15.
4. Close the door/ window on the window slide bars.
For long term installation, you may screw the
window kit into your window frame. Fig. 16.
5. Cut the foam seal to the length and seal
the open gap between the top window
sash and outer window sash. Show in
Fig.17
.

13 | P a g e
AIR FILTER INSTALLATION
Your Whynter portable air conditioner is equipped with a 2 in 1 silver-ion coated washable pre-
filter and activated carbon filter. The washable pre-filter removes large particles such as dust,
pet hair and dander.
The Activated Carbon filter is designed to remove smoke and other odors. It is recommended
you replace the Activated Carbon filter every 2-3 months or as needed.
WARNING: NEVER OPERATE THE AIR CONDITIONER WITHOUT THE AIR FILTER
The pre-filter can be removed by pulling up the filter frame.
Pull up the pre-filter frame. This carbon filter can be removed out from the grille and replaced.


Activated Carbon filter

14 | P a g e
OPERATION INSTRUCTIONS
BEFORE USING YOUR APPLIANCE
Remove the exterior and interior packing
Before connecting the appliance to the power source, let it stand upright for approximately
4 hours. This will reduce the possibility of a malfunction in the cooling system from
handling during transportation
SWITCHING ON/OFF THE AIR CONDITIONER
The appliance can be switched ON or OFF by pressing the Power button on the control
panel or the Power button on the remote control
COOLING MODE
In this mode, the air conditioner cools and dehumidifies the room. To activate this function
mode, press the MODE button until the COOL indicator light comes on. When the cooling
mode is set, the compressor will start in approximately 3 minutes. In cooling mode, hot air is
exhausted from the outdoor exhaust port and the exhaust hose must be connected to
exhaust out the hot air
The temperature setting range of this air conditioner is from 62°F / 17°C to 88°F / 30°C. To
set the temperature, press the or buttons. This air conditioner has a 5°F temperature
cushion which if the set temperature is within 5°F of the ambient temperature, the unit runs
on fan only mode. This saves energy and prolongs the life of the compressor of the air
conditioner
To set the fan speed, press the FAN button. In cooling mode, the difference in noise level
between the 4 fan speeds is not very noticeable when the compressor is on. Try setting the
unit to Fan only mode, you should be able to hear the difference between high and low fan
speed settings
DRY (DEHUMIDIFYING) ONLY MODE
In this mode, the air conditioner only dehumidifies the room, the compressor will activate
intermittently depending on the ambient temperature and the fan speed is set to LOW.To
activate this function mode, press the MODE button until the DRY indicator light comes on.
Please note that when switching function mode, there will be an approximately 3 minute
transition time. In dehumidifying mode, do not connect the exhaust hose and let the warm
air return to the room
AUTOMATIC MODE
When you set the air conditioner in AUTO mode, it will automatically select cooling or fan
only operation depending on what temperature you have selected and the room temperature
is close to the unit. The fan speed is automatically selected and cannot be changed
To operate the unit in Auto mode when the unit is on, press the Mode button until the
indicator for “Auto” is lit
FAN ONLY MODE
In this mode, only the fan of the air conditioner runs and circulates the air in the room. To
activate this function mode, press the MODE button until the FAN indicator light comes on.
In this function mode, the temperature cannot be set. Subsequently, set the desired fan
speed by pressing the FAN button. Fan Only mode requires that the exhaust hose be
removed

15 | P a g e
TIMER (DELAYED SWITCH ON / OFF) FUNCTION
This function mode enables a delayed switch ON or delayed switch OFF of the
air conditioner. The time (hours) delay can be set, enabled and disabled
SETTING SWITCH OFF TIMER
With the air conditioner operating in any function mode, press the TIMER button. The TIMER
OFF light will come on. Then set the desired time delay OFF hours by pressing the UP and
DOWN buttons. The time increments are at 0.5 hour to up to 10 hours, followed by 1 hour
increment up to 24 hours. When the delay time set has elapsed, the air conditioner switches off.
To cancel the delayed switch off function, turn off the air conditioner or adjust the time setting to
0.0.
SETTING DELAYED SWITCH ON TIMER
With the air conditioner is off, press the TIMER button. The TIMER ON light will come on. Then
set the desired time delay ON hours by pressing the UP and DOWN buttons. The time
increments are at 0.5 hour to up to 10 hours, followed by 1 hour increment up to 24 hours.
When the delay time set has elapsed, the air conditioner switches on. To cancel the delayed
switch on function, turn on the air conditioner or adjust the time setting to 0.0.
SLEEP MODE
In this mode, the air conditioner gradually increases the set temperature in cooling mode,
decreases the noise level and conserves energy. In Sleep and cooling mode, the set
temperature is increased by 1°C/ 2°C in the first 30 minutes. The temperature will then increase
by another
1°C/ 2°C after an additional 30 minutes. This new temperature will remain the same for 7 hours.
To activate this function mode, press the SLEEP button until the sleep indicated light comes on.
AUTO RESTART
In the event of a power outage, the air conditioner restarts at the previously set function mode
and settings when power is restored.
CONTROLLING THE AIR FLOW DIRECTION
The louvers can be adjusted manually or automatically.
To adjust the air flow direction, manually move the louvers to the desired position. The
maximum setting angle is about 60°.
NOTE: Keep the louver fully opened during operation.
To adjust the air flow direction automatically, press the SWING button to set the louvers at the
desired angle. The louvers move up to an angle of 6° when the SWING button is pressed once.
By pressing the SWING button for more than 2 seconds, the auto swing feature is activated.
NOISE LEVEL
Portable air conditioners may make sounds that are not familiar to you. The sounds listed below
are normal. Noise reflecting off hard surfaces such as a floor or wall can make the sounds seem
louder than they actually are.
The compressor may make a pulsating or high-pitched sound
Water running from the evaporator to the water tank may make a splashing sound
Refrigerant flowing may make a gurgling sound
Fan sound may come from front and back air vents

16 | P a g e
WATERDRAINAGE
When the water level of the bottom tray reaches
maximum level, the unit will beep 8 times and the
digital display will show P1 symbol. Also, the
cooling or dehumidifying function will stop and
the fan only function will start.
Manual drainage
To drain the water from the bottom try, carefully
move the unit to a drain location, remove the
bottom drain plug and let the water drain
(Fig.25). The P1 symbol will disappear and the
cooling or dehumidifying function can be started.
Continuous drainage
In COOL or DRY modes, remove the upper drain
plug from the back of the unit and install the drain
water hose (5/8 universal female mender) with
¾” hose. Place the open end of the hose to a
drain area. (Fig.23 and 24).

17 | P a g e

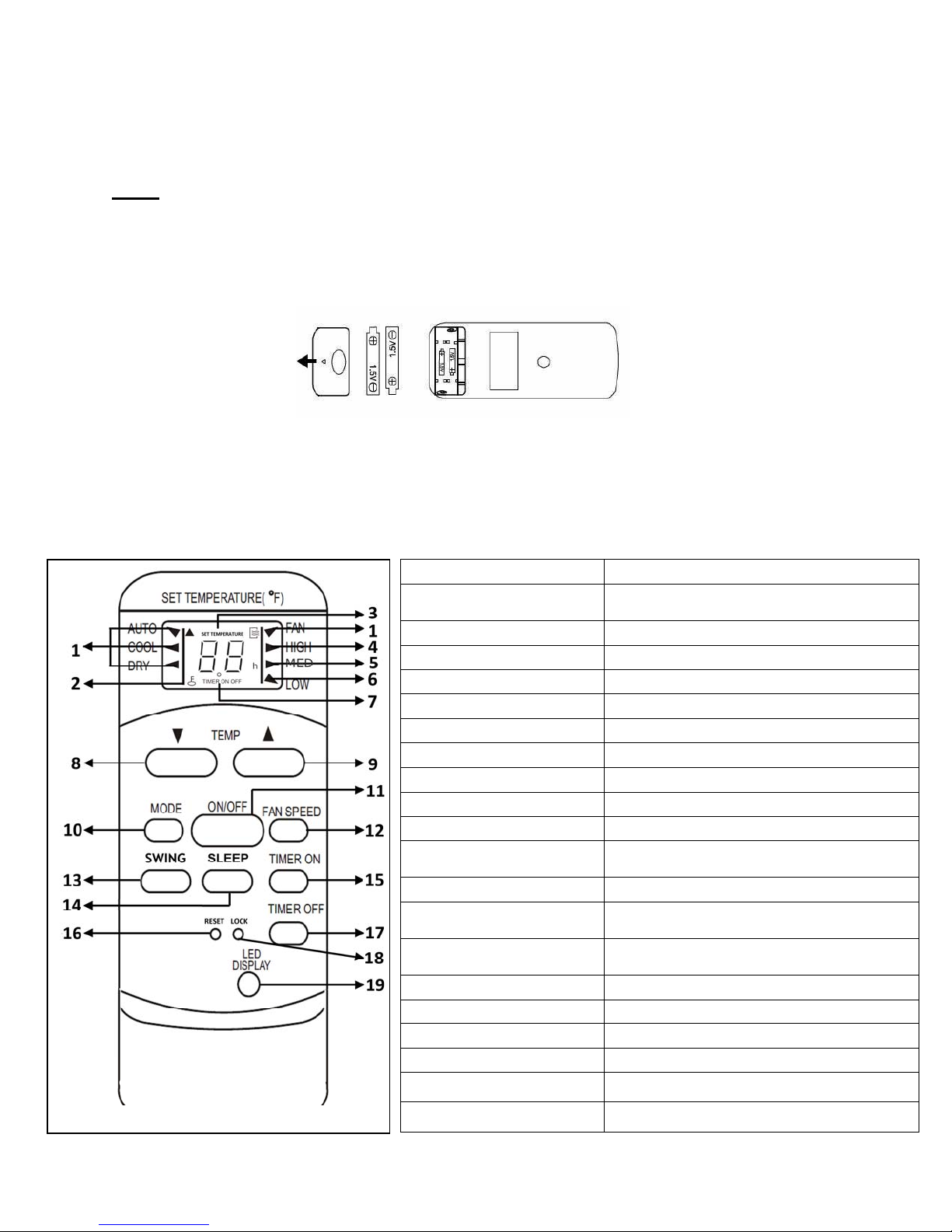

REMOTECONTROL
The portable air conditioner can be switched on by the remote control. To transmit signals from
the remote control to the air conditioner, point the front part of the remote handset towards the
control panel on the air conditioner. Reception of the signal is confirmed by a beep. The
maximum signal transmission distance is approximately 8 meters / 26 feet.
NOTE:
Other appliances in the same room controlled by a remote control (TV, radio, stereo, etc.),
may cause interferences
Electronic and fluorescent lamps may interfere with the signal transmissions between the
remote control and the air conditioner
Remove the batteries if the remote control is not used for long periods
INSTALLING BATTERIES
Only use two dry LR03 AAA 1.5V Batteries (included) in the remote control
Always change both batteries at the same time
To insert the batteries, open the flap on the back of the remote control by sliding if
off. Strictly adhere to the polarity signs on the bottom of the battery housing, close
the flap once the batteries have been inserted.
INDICATOR FUNCTION
1 – Mode Indicator Displays the current selected mode
(Auto, Cool, Dry or Fan)
2 – Lock Indicator Indicates unit is on Lock mode
3 – Temp./Timer Display Displays temperature or timer setting
4 – Fan (High) Displays the selected high fan speed
5 – Fan (Medium) Displays the selected medium fan speed
6 – Fan (Low) Displays the selected low fan speed
7 – Timer Indicator Indicates Timer mode activated
BUTTONS FUNCTION
8 – Up Button Increases set temperature/time
9 – Down Button Decreases set temperature/time
10 – Mode Button Controls the 4 function modes:
Auto, Cool, Dry & Fan
11 – On/Off Button Turns the unit On and Off
12 – Fan Speed Button Controls the 3 fan speeds: High & Low or
Auto
13 – Swing Button Starts or stops louver movement and set
louver angle.
14 – Sleep Button Enables Sleep mode
15 – Timer On Button Enables the On timer & set timer hours
16 – Reset Button Cancels all settings
17 – Timer Off Button Enables the Off timer & set timer hours
18 – Lock Button Locks all settings
19 – LED Display Button Turns on and off the display light

18 | P a g e
CARE AND MAINTENANCE
IMPORTANT:
Switch off the air conditioner and disconnect the plug
from the power outlet
Drain water by removing the drain plug
Always transport the air conditioner in an upright position
only

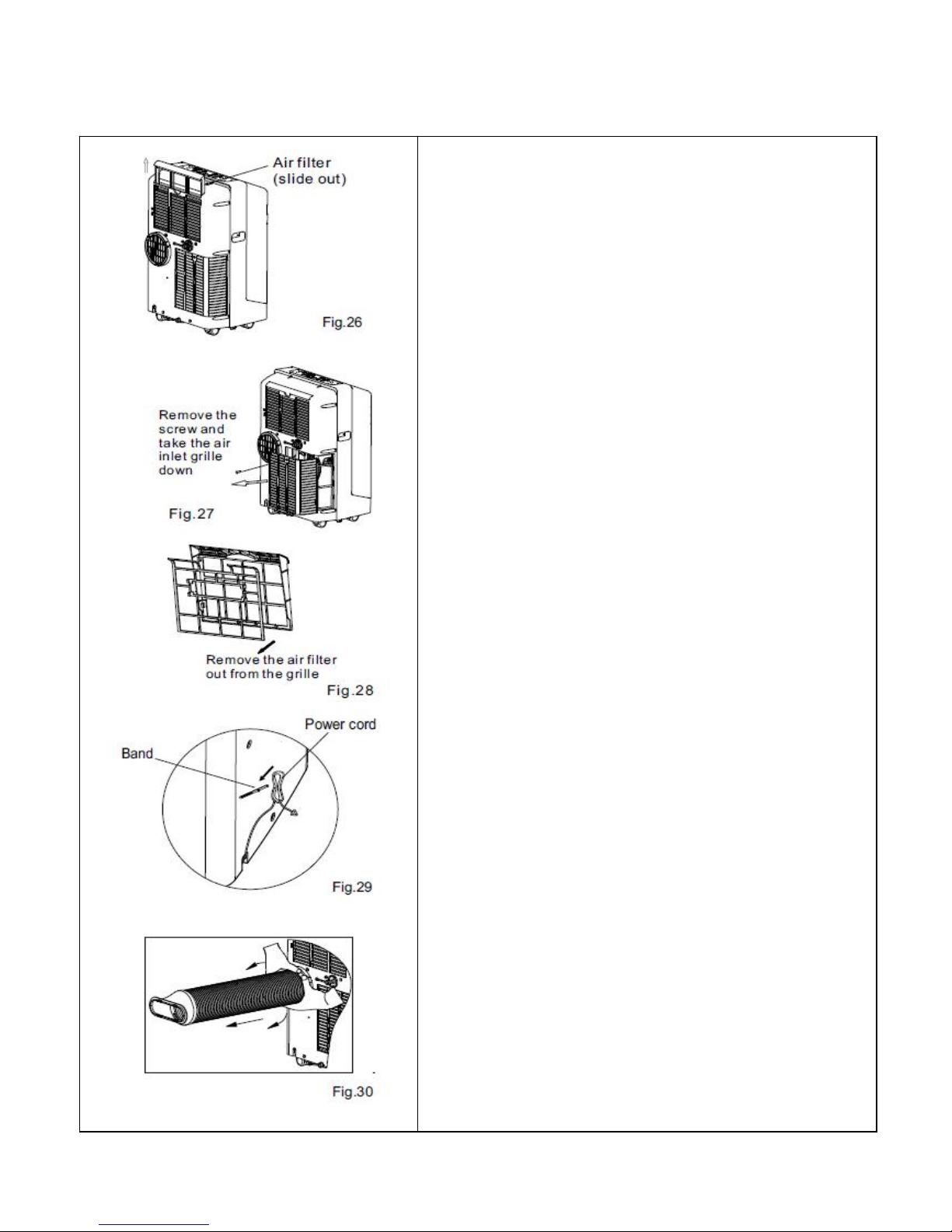

CLEANING THE AIR FILTERS
To ensure the air intake is filtered properly and to assure
that your air conditioner runs efficiently, it is
recommended to clean the air filters at least once every
two weeks
This unit has two air filters; the upper and the lower filters
Switch off the air conditioner and pull out the upper air
filter from the unit (Fig 26)
Remove the lower filter by loosening the screw and
taking down the air inlet grille. (Fig.27 and 28)
Use a vacuum cleaner or tap lightly to remove loose dust
and dirt from the filters. Then rinse them thoroughly
under warm or cold running water (no hotter than 100F.)
Dry thoroughly before re-inserting the filters
WARNING! Never operate the air conditioner without the
filter in place
CLEANING THE AIR CONDITIONER
Always switch off the air conditioner and disconnect the
plug from the power supply outlet before cleaning the air
conditioner
Use a soft damp cloth to wipe the body of the unit.
Never use harsh chemicals, oil-based products,
detergents, chemically treated cloths or other cleaning
solutions. These could possibly damage the body of the
air conditioner
END OF SEASON STORAGE
Switch off the air conditioner and disconnect the power
plug from the power supply outlet before cleaning the air
conditioner
Clean the air filters
Drain the condensed water COMPLETELY
On a warm day, turn on the Fan only mode for half a day
so that the inside can dry out completely
Wrapped the power cord and bundle it with the tape
(Fig.29)
Remove the batteries from the remote controller
Disconnect the exhaust hose and cover the window with
the adaptor cap. (Fig.30)
It is recommended that the air conditioner be put back
into its original carton for storage

19 | P a g e
TECHNICALDATA
Cooling capacity 14,000 BTU
Power supply 115v/ 60Hz
Maximum power input 1480 Watts
Maximum input 12 Amps
Dehumidifying capacity 71 Pts / Day
Thermostat 62°F / 17°C to 88°F / 30°C
Refrigerant R410A/14.8oz
Air flow (max.) 540 m3/ Hour
Fan speeds 4 (Auto, H, M, L)
Exhaust hose length 59” / 5’
Unit Dimensions 19.25” W x 15.75” D x 32” H
Unit Weight 76 lbs

20 | P a g e
TROUBLESHOOTING
Problem Possible Causes Solutions
The portable air
conditioner does not
turn on
Power failure / outage.
The automatic switch, line
fuse, or breaker has been
tripped
The power supply voltage is
too low
The power cord is damaged
The L.C.D.I. power plug for
the unit is tripped
The internal water reservoir is
full and ‘P1” appears on
display

Restore the power supply
Flip the switch / change the fuse / turn the
breaker back on. Also note that you may
have too many appliances drawing power on
one circuit, you may need to move the other
appliances to another circuit
Move the unit onto another circuit with the
correct voltage
Call for service. Only authorized personnel
should replace damaged power cord or
power plug
Press the Reset button on the L.C.D.I. power
plug
Drain water from the air conditioner
Possible loose internal connection. Please
contact Whynter for service
The unit turns on but
the compressor does
not turn on (the fan runs
but the unit is not
cooling)
The room temperature is
outside of the operational
tolerances of the unit
The Cooling mode is not on
The compressor has not
turned on yet because of its
time delay
The set temperature is too
high
The internal water reservoir is
full and ‘P1” appears on
display

This unit is designed to work in ambient
temperatures of 63°F to 90°F
Press the MODE button until the COOL light
is shown on the display
Give the compressor 3 minutes to turn on
after the Cooling mode has been selected
Set the air conditioner to a lower
temperature. It is recommended to set the
temperature to at least 5°F of the ambient
temperature
Either manually drain the water by removing
the drain plug or allow the unit to exhaust the
water itself by running the fan only mode.
Then cooling will resume
Possible loose internal connection. Please
contact Whynter for service
The air coming out of
the unit is not very cold,
or the airflow volume is
weak
The filters are dirty or
obstructed
The air intake or exhaust is
obstructed
The unit is set in DRY or FAN
mode
The unit is set to low fan
speed

Clean the air filters
Make sure there is at least 20" of clearance
from the air intake. Make the length of the
exhaust hose is as short as possible
Set the unit to the cooling mode
Set the unit to a higher fan speed
