WI AUDIOSTREAM JM-WAL45 User manual

QUICK INSTALLATION GUIDE
Wi AudioStreamTM
www.jangusmusic.com
STEREO
DIGITAL WIRELES
TM

Charging
1. Plug the AC Charger into a power socket.
2. Connect the USB Y-Split power cable to
the USB port on the AC charger.
3. Connect one of the two mini USB connectors
into the transmitter USB port.
4. Connect the second mini USB connector to
the receiver USB port.
5. The Power/Status LED will turn to solid
Red ON.
6. When charging is complete the Red LED
will turn OFF.
7. Remove the charging cable and adapter
and store in the carrying case. The battery
will last 4 to 6 hours of continuous
operation.
POWER
LINK
Mini USB
Connector
USB Port
AC Charger
USB Port
USB Connector

Pairing
1. First turn ON the transmitter (Tx) and the
receiver (Rx) units by pressing and
holding the POWER button , on each
of the units for 2 seconds.
2. Press and hold the LINK button on the
transmitter (Tx) for 3 seconds. The Power/
Status LED on the transmitter will start
ashing. The transmitter is now in a Pairing
mode and ready to search for receivers.
3. Press and hold the LINK button on the
receiver (Rx) for 3 seconds. The Power/
Status LED on the receiver will start ashing.
The receiver is now in a Pairing mode and
ready to be found by the transmitter.
4. Once the transmitter pairs with the receiver
the Power/Status LED on both devices will
turn to solid Green.
p
k
z
v
pk
zv
(Tx)(Rx)
r

Transmitter Connection
1. Connect the 1/8” stereo male end of the MIC
cable into the “Audio Input” jack on the
transmitter.
2. Route the audio cable beneath the belt clip
as shown to prevent accidental disconnection
of the cable.
3. Place your Ear/Head-worn microphone on
your ear or attach the Mono/Stereo miniature/
lavalier microphones to your shirt, electric
acoustic guitar, stringed, woodwind, brass or
other acoustic instruments.
4. Power up the transmitter by pressing and
holding the POWER button for 2 seconds.
5. Press and hold the Mode button for 2 sec
The Blue LED will display slow ashes.
6. Please refer to the “Transmitter Button Function Matrix”
section of this Quick Guide for Mono MIC-in and Stereo
Line -in settings.
7. Attach the Wi AudioStream transmitter to
your belt.
Belt Clip
Audio Cable
Audio Input Jack
Optional Stereo Microphones
v
r

Receiver Connection
PLEASE PROTECT YOUR EARS! Prolonged use of
headphones or In-Ear personal monitors at high
volumes may affect your hearing capacity or may
result in noise induced hearing loss (NHL).
1. Connect the 1/8” stereo end of the cable into
the “Audio Input” jack on the receiver.
2. Route the audio cable beneath the belt clip
as shown to prevent accidental disconnection
of the cable.
3. Connect the 1/4” male end of the cable to the
inputs of your amplier, powered monitor,
sound system, mixer or foot pedal. Use the
L/MONO and R jacks on your gear when
using the system in stereo.
4. Power up the receiver by pressing and
holding the POWER button for 2 seconds.
5. Attach the receiver to your belt. Alternatively
the receiver can be placed next to the mixer,
amp, foot pedal or stomp box.
POWER
LINK/VoIP
Audio Output
Jack
1/4” Y-Split to 1/8” Stereo Cable
v
(Rx)
v

www.jangusmusic.com
QUICK USER GUIDE
Wi AudioStreamTM
TM
©2010 JangusMusic, Inc. All rights reserved. Wi and Jangus Musiclogos are
registered trademarksofJangus Music,Inc. in the United States and may be
registered trademark ortrademarksin other countries.TheWi AudioStream is
a trademark of Jangus Music, Inc. All other trademarks included herein are the
property of their respective owners. US and Foreign Patents Pending.
(Design and specifications are subject to change without notice).

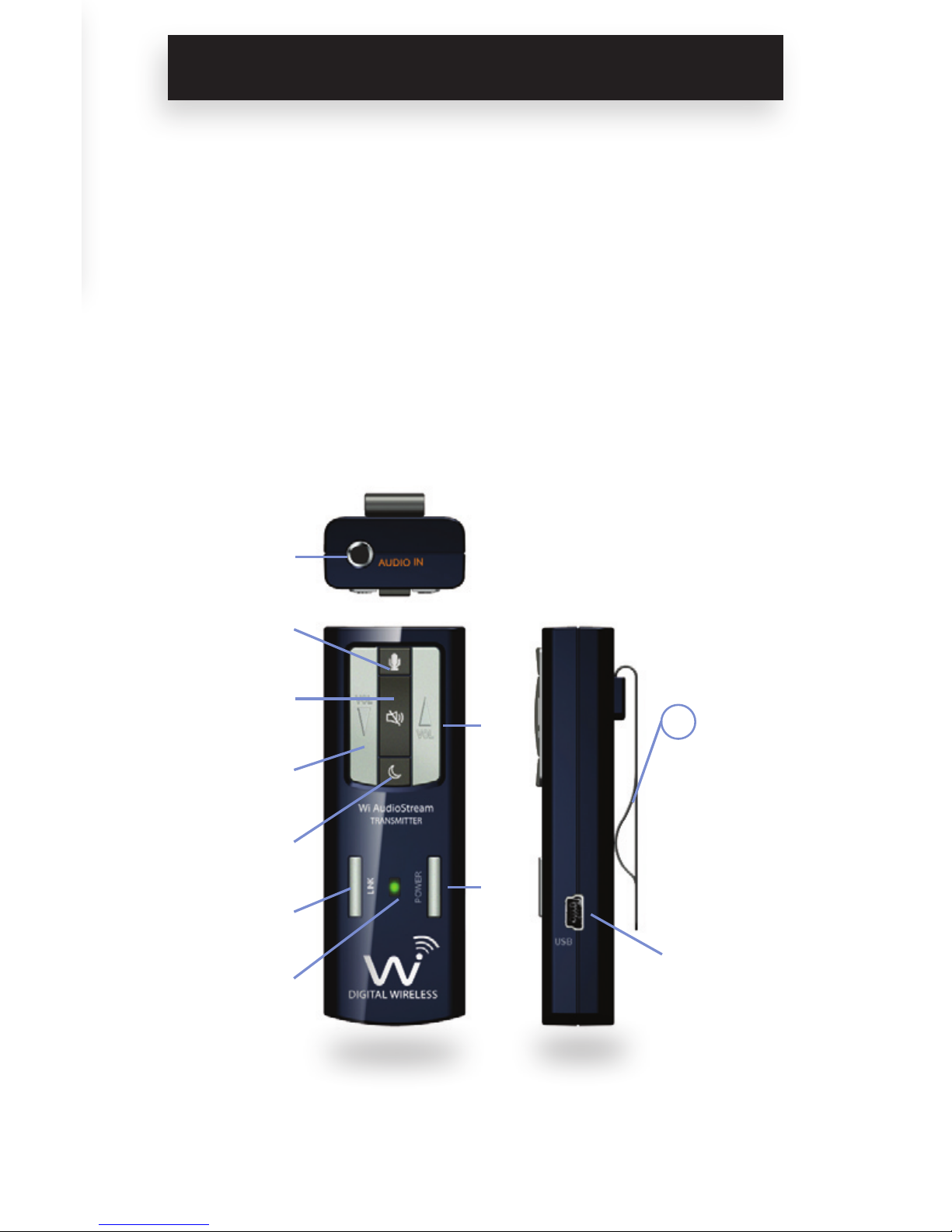

Wi Transmitter
1. Audio IN Jack
2. Power ON/OFF
3. Power/Status LED
4. Volume UP
5. Volume Down
6. Mute
7. Link/Pairing
8. Sleep
9. Operation Mode
10. USB Charging Port
11. Belt Clip
s
11
j
r
o
n
q
p
l
m
k

Transmitter Button Function
Function Button Hold LED Status
Power ON/OFF POWER 2 sec Solid Green
Pairing Mode LINK 3 sec Fast Green Flashes
Signal Routing LINK Click
Volume UP Click
Volume Down
Mute ON/OFF 1.5sec Solid Green & Blue
Sleep 2 sec Two Green Flashes
Wake up Click
MIC-in Stereo 2 sec Solid Green & Slow
Blue LED Flashes
MIC-in Mono 2 sec Solid Green & Fast
Blue LED Flashes
Line-in Stereo 2 sec Solid Green & Two
Blue LED Flashes
Transmitter LED Indicator
Function LED Status
Searching For Receiver Flashing Green
Linked to Receiver Solid Green
Sleep Mode Two Green Flashes
Low Battery Solid Green &
Flashing Red
Charging With Power OFF Solid Red
Charging With Power ON Solid Red & Green
Charging Complete Red OFF
l
l
l
l
l
l
l

u
|
}
y
{
z
w
x
v
11
12
~

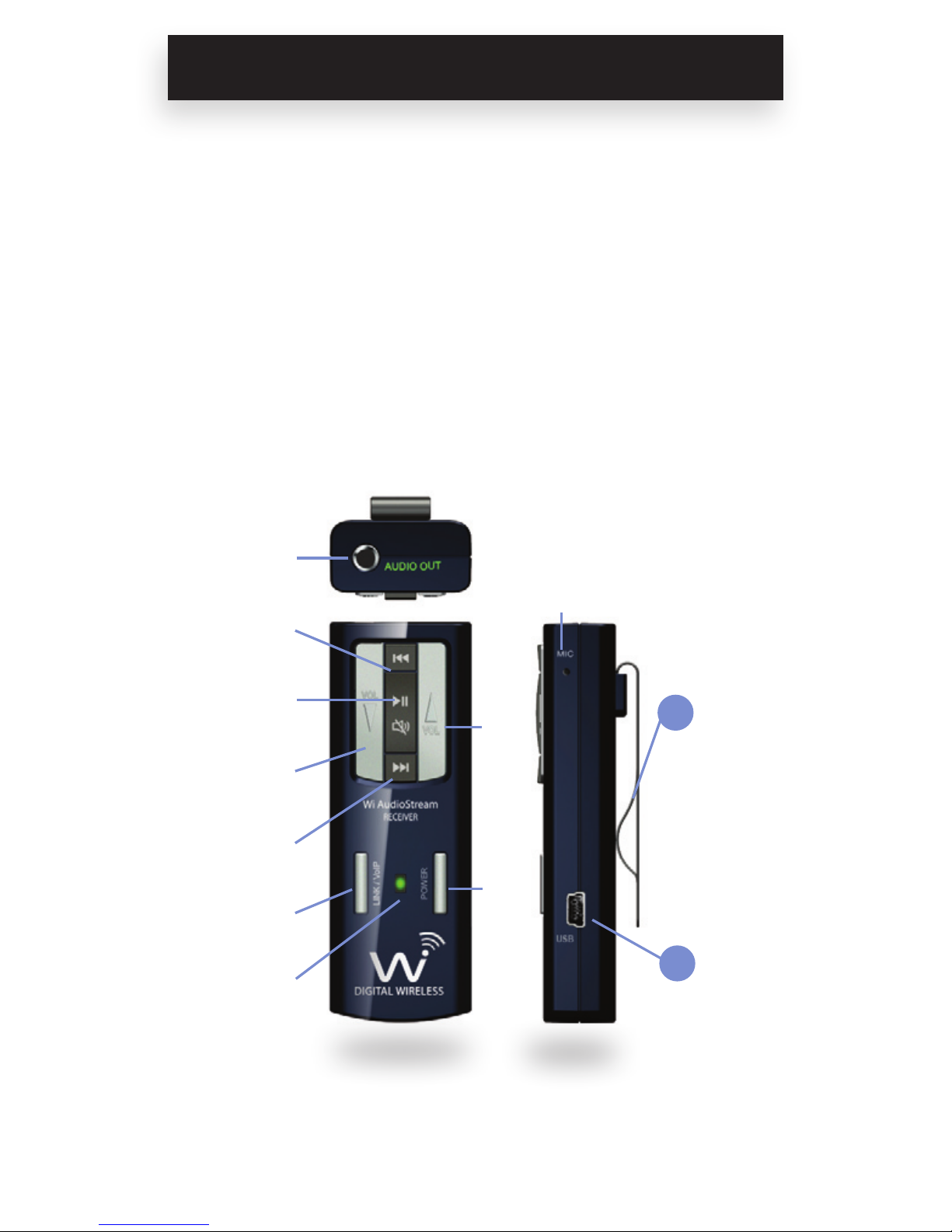

Wi Receiver
1. Audio OUT Jack
2. Power ON/OFF
3. Power/Status LED
4. Volume UP
5. Volume Down
6. Link/VoIP
7. Next Track
8. Previous Track
9. Mute/ Play/Pause
10. VoIP Microphone*
11.USB Charging Port
12. Belt Clip
* Function works with the optional Wi USB PC/MAC Adapter

Function LED Status
Searching For Transmitter Flashing Green
Linked to Transmitter Solid Green
Sleep (Activated By Tx) Two Green Flashes
Low Battery Solid Green &
Flashing Red
Charging With Power OFF Solid Red
Charging With Power ON Solid Red & Green
Charging Complete Red OFF
w
w
w
w
w
w
w
Function Button Hold LED Status
Power ON/OFF POWER 2 sec Solid Green
Pairing Mode LINK 3 sec Fast Green Flashes
VoIP MIC VoIP ClickSolid Green LED &
2 Blue LED Flashes
Volume UP Click
Volume Down
Mute ON/OFF 1.5 sec Solid Green & Blue
Play/Pause * Click
Next Track * Click
Prev Track * Click
Receiver Button Function
Receiver LED Indicator
