Wickes CGA18GW.3 User manual

CGA18GW.3
223736
CORDLESS ANGLE GRINDER
18V LITHIUM

2
CONTENTS
GENERAL POWER TOOL SAFETY WARNINGS 3
8
9
9
10
11
11
13
17
18
18
18
19
COMPONENT LIST
GENERAL SAFETY WARNINGS FOR BATTERY CHARGER
ACCESSORIES
TECHNICAL DATA

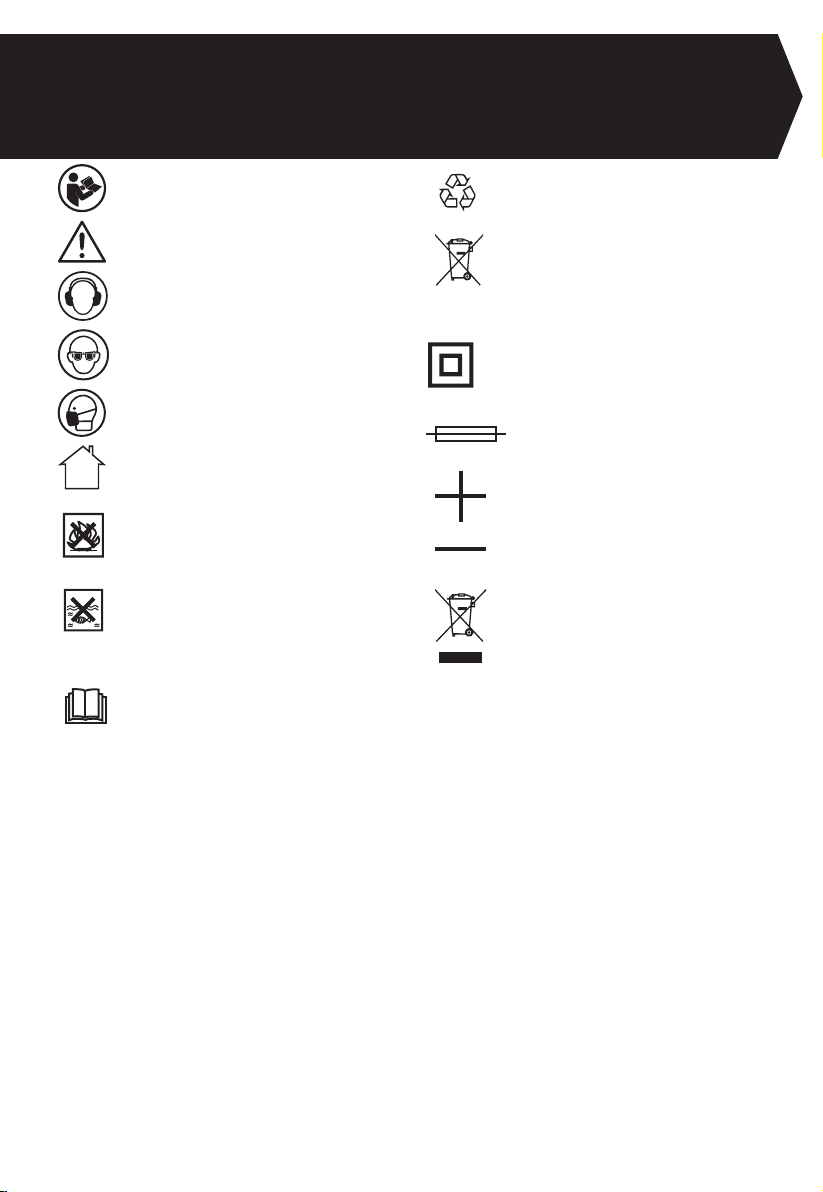

SYMBOLS
NOISE INFORMATION
OPERATING INSTRUCTIONS
WORKING HINTS FOR YOUR ANGLE GRINDER
MAINTENANCE
TROUBLESHOOTING
ENVIRONMENTAL PROTECTION
DECLARATION OF CONFORMITY

3
ORIGINAL INSTRUCTION
GENERAL POWER TOOL SAFETY WARNINGS
WARNING! Read all safety warnings and all
instructions. Failure to follow the warnings and
instructions may result in electric shock, re and/or serious
injury.
SAVE ALL WARNINGS AND INSTRUCTIONS FOR FUTURE
REFERENCE.
The term “power tool” in the warnings refers to your mains-
operated (corded) power tool or battery-operated (cordless)
power tool.
1. WORK AREA SAFETY
a) Keep work area clean and well lit. Cluttered or dark
areas invite accidents.
b) Do not operate power tools in explosive
atmospheres, such as in the presence of
ammable liquids, gases or dust. Power tools create
sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while
operating a power tool. Distractions can cause you to
lose control.
2. ELECTRICAL SAFETY
a) Power tool plugs must match the outlet. Never
modify the plug in any way. Do not use any adapter
plugs with earthed (grounded) power tools.
Unmodied plugs and matching outlets will reduce risk of
electric shock.
b) Avoid body contact with earthed or grounded
surfaces, such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric shock
if your body is earthed or grounded.
c) Do not expose power tools to rain or wet
conditions. Water entering a power tool will increase the
risk of electric shock.
d) Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges or
moving parts. Damaged or entangled cords increase the
risk of electric shock.
e) When operating a power tool outdoors, use an
extension cord suitable for outdoor use. Use of a
cord suitable for outdoor use reduces the risk of electric
shock.
f) If operating a power tool in a damp location is
unavoidable, use a residual current device (RCD)
protected supply. Use of an RCD reduces the risk of
electric shock.
3. PERSONAL SAFETY
a) Stay alert, watch what you are doing and use
common sense when operating a power tool. Do
not use a power tool while you are tired or under
the inuence of drugs, alcohol or medication. A
moment of inattention while operating power tools may
result in serious personal injury.
b) Use personal protective equipment. Always wear
eye protection. Protective equipment such as dust mask,
non-skid safety shoes, hard hat, or hearing protection used
for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch
is in the off-position before connecting to power
source and/or battery pack, picking up or carrying
the tool. Carrying power tools with your nger on the
switch or energising power tools that have the switch on
invites accidents.
d) Remove any adjusting key or wrench before
turning the power tool on. A wrench or a key left
attached to a rotating part of the power tool may result in
personal injury.
e) Do not overreach. Keep proper footing and balance
at all times. This enables better control of the power tool
in unexpected situations.
f) Dress properly. Do not wear loose clothing or
jewellery. Keep your hair, clothing and gloves away
from moving parts. Loose clothes, jewellery or long hair
can be caught in moving parts.
g) If devices are provided for the connection of dust
extraction and collection facilities, ensure these
are connected and properly used. Use of dust
collection can reduce dust-related hazards.
4. POWER TOOL USE AND CARE
a) Do not force the power tool. Use the correct power
tool for your application. The correct power tool will
do the job better and safer at the rate for which it was
designed.
b) Do not use the power tool if the switch does not
turn it on and off. Any power tool that cannot be
controlled with the switch is dangerous and must be
repaired.
c) Disconnect the plug from the power source and/
or the battery pack from the power tool before
making any adjustments, changing accessories, or
storing power tools. Such preventive safety measures
reduce the risk of starting the power tool accidentally.

4
GENERAL POWER TOOL SAFETY WARNINGS
d) Store idle power tools out of the reach of children
and do not allow persons unfamiliar with the
power tool or these instructions to operate the
power tool. Power tools are dangerous in the hands of
untrained users.
e) Maintain power tools. Check for misalignment or
binding of moving parts, breakage of parts and
any other condition that may affect the power
tool’s operation. If damaged, have the power tool
repaired before use. Many accidents are caused by
poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting edges are less
likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc.
in accordance with these instructions, taking into
account the working conditions and the work to be
performed. Use of the power tool for operations different
from those intended could result in a hazardous situation.
5. BATTERY TOOL USE AND CARE
a) Recharge only with the charger specied by the
manufacturer. A charger that is suitable for one type
of battery pack may create a risk of re when used with
another battery pack.
b) Use power tools only with specically designated
battery packs. Use of any other battery packs may
create a risk of injury and re.
c) When battery pack is not in use, keep it away from
other metal objects, like paper clips, coins, keys,
nails, screws or other small metal objects, that can
make a connection from one terminal to another.
Shorting the battery terminals together may cause burns
or a re.
d) Under abusive conditions, liquid may be ejected
from the battery; avoid contact. If contact
accidentally occurs, ush with water. If liquid
contacts eyes, additionally seek medical help.
Liquid ejected from the battery may cause irritation or
burns.
6. SERVICE
a) Have your power tool serviced by a qualied repair
person using only identical replacement parts. This
will ensure that the safety of the power tool is maintained.
SAFETY INSTRUCTIONS FOR ALL OPERATIONS
Safety Warnings Common for Grinding, Sanding, Wire Brushing, Polishing or Abrasive Cutting-Off Operations:
a) This power tool is intended to function as a grinder, or cut-off tool. Read all safety warnings, instructions,
illustrations and specications provided with this power tool. Failure to follow all instructions listed below may
result in electric shock, re and/or serious injury.
b) Operations such as sanding, wire brushing, polishing are not recommended to be performed with this
power tool. Operations for which the power tool was not designed may create a hazard and cause personal injury.
c) Do not use accessories which are not specically designed and recommended by the tool manufacturer.
Just because the accessory can be attached to your power tool, it does not assure safe operation.
d) The rated speed of the accessory must be at least equal to the maximum speed marked on the power
tool. Accessories running faster than their rated speed can break and y apart.
e) The outside diameter and the thickness of your accessory must be within the capacity rating of your
power tool. Incorrectly sized accessories cannot be adequately guarded or controlled.
f) Threaded mounting of accessories must match the grinder spindle thread. For accessories mounted by
anges, the arbour hole of the accessory must t the locating diameter of the ange. Accessories that do
not match the mounting hardware of the power tool will run out of balance, vibrate excessively and may cause loss of control.
g) Do not use a damaged accessory. Before each use inspect the accessory such as abrasive discs for chips
and cracks, backing pad for cracks, tear or excess wear, wire brush for loose or cracked wires. If power
tool or accessory is dropped, inspect for damage or install an undamaged accessory. After inspecting
and installing an accessory, position yourself and bystanders away from the plane of the rotating
accessory and run the power tool at maximum no-load speed for one minute. Damaged accessories will
normally break apart during this test time.

5
h) Wear personal protective equipment. Depending on application, use face shield, safety goggles or safety
glasses. As appropriate, wear dust mask, hearing protectors, gloves and workshop apron capable of
stopping small abrasive or workpiece fragments. The eye protection must be capable of stopping ying debris
generated by various operations . The dust mask or respirator must be capable of ltrating particles generated by your
operation. Prolonged exposure to high intensity noise may cause hearing loss.
i) Keep bystanders a safe distance away from work area. Anyone entering the work area must wear
personal protective equipment. Fragments of workpiece or of a broken accessory may y away and cause injury beyond
immediate area of operation.
j) Hold the power tool by insulated gripping surfaces only, when performing an operation where the cutting
tool may contact hidden wiring. Contact with a “live” wire will also make exposed metal parts of the power tool “live” and
could give the operator an electric shock.
k) Never lay the power tool down until the accessory has come to a complete stop. The spinning accessory may
grab the surface and pull the power tool out of your control.
l) Do not run the power tool while carrying it at your side. Accidental contact with the spinning accessory could snag
your clothing, pulling the accessory into your body.
m) Regularly clean the power tool’s air vents. The motor’s fan will draw the dust inside the housing and excessive
accumulation of powdered metal may cause electrical hazards.
n) Do not operate the power tool near ammable materials. Sparks could ignite these materials.
o) Do not use accessories that require liquid coolants. Using water or other liquid coolants may result in electrocution
or shock.
p) Your hand must hold on the handle when you are working. Always use the auxiliary handles supplied with the tool.
Loss of control can cause personal injury.
FURTHER SAFETY INSTRUCTIONS FOR ALL OPERATIONS
Kickback and Related Warnings
Kickback is a sudden reaction to a pinched or snagged rotating disc, backing pad, brush or any other accessory.
Pinching or snagging causes rapid stalling of the rotating accessory which in turn causes the uncontrolled power
tool to be forced in the direction opposite of the accessory’s rotation at the point of the binding.
For example, if an abrasive disc is snagged or pinched by the workpiece, the edge of the disc that is entering into
the pinch point can dig into the surface of the material causing the disc to climb out or kick out. The disc may either
jump toward or away from the operator, depending on direction of the disc movement at the point of pinching.
Abrasive discs may also break under these conditions.
Kickback is the result of power tool misuse and/or incorrect operating procedures or conditions and can be avoided
by taking proper precautions as given below.
a) Maintain a rm grip on the power tool and position your body and arm to allow you to resist kickback
forces. Always use auxiliary handle, if provided, for maximum control over kickback or torque reaction
during start-up. The operator can control torque reactions or kickback forces, if proper precautions are taken.
b) Never place your hand near the rotating accessory. Accessory may kickback over your hand.
c) Do not position your body in the area where power tool will move if kickback occurs. Kickback will propel the
tool in direction opposite to the disc movement at the point of snagging.
d) Use special care when working corners, sharp edges etc. Avoid bouncing and snagging the accessory.
Corners, sharp edges or bouncing have a tendency to snag the rotating accessory and cause loss of control or kickback.
e) Do not attach a saw chain woodcarving blade or toothed saw blade. Such blades create frequent kickback and
loss of control.

6
Safety Warnings Specic for Grinding and Abrasive Cutting-Off Operations:
a) Use only disc types that are recommended for your power tool and the specic guard designed for the
selected disc. Discs for which the power tool was not designed cannot be adequately guarded and are unsafe.
b) The grinding surface of centre depressed discs must be mounted below the plane of the guard lip. An
improperly mounted disc that projects through the plane of the guard lip cannot be adequately protected.
c) The guard must be securely attached to the power tool and positioned for maximum safety, so the least
amount of disc is exposed towards the operator. The guard helps to protect the operator from broken disc fragments,
accidental contact with disc and sparks that could ignite clothing.
d) Discs must be used only for recommended applications. For example: do not grind with the side of
cut-off disc. Abrasive cut-off discs are intended for peripheral grinding, side forces applied to these discs may cause them to
shatter.
e) Always use undamaged disc anges that are of correct size and shape for your selected disc. Proper disc
anges support the disc thus reducing the possibility of disc breakage. Flanges for cut-off discs may be different from grinding
disc anges.
f) Do not use worn down discs from larger power tools. Disc intended for larger power tool is not suitable for the
higher speed of a smaller tool and may burst.
Additional Safety Warnings Specic for Abrasive Cutting-Off Operations:
a) Do not “jam” the cut-off disc or apply excessive pressure. Do not attempt to make an excessive depth
of cut. Overstressing the disc increases the loading and susceptibility to twisting or binding of the disc in the cut and the
possibility of kickback or disc breakage.
b) Do not position your body in line with and behind the rotating disc. When the disc, at the point of operation, is
moving away from your body, the possible kickback may propel the spinning disc and the power tool directly at you.
c) When disc is binding or when interrupting a cut for any reason, switch off the power tool and hold the
power tool motionless until the disc comes to a complete stop. Never attempt to remove the cut-off disc
from the cut while the disc is in motion otherwise kickback may occur. Investigate and take corrective action to
eliminate the cause of disc binding.
d) Do not restart the cutting operation in the workpiece. Let the disc reach full speed and carefully re-enter
the cut. The disc may bind, walk up or kickback if the power tool is restarted in the workpiece.
e) Support panels or any oversized workpiece to minimize the risk of disc pinching and kickback. Large
workpieces tend to sag under their own weight. Supports must be placed under the workpiece near the line of cut and near the
edge of the workpiece on both sides of the disc.
f) Use extra caution when making a “pocket cut” into existing walls or other blind areas. The protruding disc
may cut gas or water pipes, electrical wiring or objects that can cause kickback.
g) Check ‘use-by’ date on disc. Do not use out of date accessories.
ADDITIONAL SAFETY INSTRUCTIONS FOR GRINDING AND CUTTING-OFF OPERATIONS

7
SAFETY WARNINGS FOR BATTERY PACK
a) Do not dismantle, open or shred cells or battery pack.
b) Do not short-circuit a battery pack. Do not store battery packs haphazardly in a box or drawer where
they may short-circuit each other or be short-circuited by conductive materials. When battery pack is not in
use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that
can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a re.
c) Do not expose battery pack to heat or re. Avoid storage in direct sunlight.
d) Do not subject battery pack to mechanical shock.
e) In the event of battery leaking, do not allow the liquid to come into contact with the skin or eyes. If
contact has been made, wash the affected area with copious amounts of water and seek medical advice.
f) Seek medical advice immediately if a cell or battery pack has been swallowed.
g) Keep battery pack clean and dry.
h) Wipe the battery pack terminals with a clean dry cloth if they become dirty.
i) Battery pack needs to be charged before use. Always refer to this instruction and use the correct
charging procedure.
j) Do not maintain battery pack on charge when not in use.
k) After extended periods of storage, it may be necessary to charge and discharge the battery pack several
times to obtain maximum performance.
l) Battery pack gives its best performance when it is operated at normal room temperature (20 °C ± 5 °C).
m) When disposing of battery packs, keep battery packs of different electrochemical systems separate from
each other.
n) Recharge only with the charger specied by manufacturer. Do not use any charger other than that
specically provided for use with the equipment. A charger that is suitable for one type of battery pack may
create a risk of re when used with another battery pack.
o) Do not use any battery pack which is not designed for use with the equipment.
p) Keep battery pack out of the reach of children.
q) Retain the original product literature for future reference.
r) Remove the battery from the equipment when not in use.
s) Dispose of properly.
t) Do not mix cells of different manufacture, capacity, size or type within a device.
u) Do not remove battery pack from its original packaging until required for use.
v) Observe the plus (+) and minus (–) marks on the battery and ensure correct use.

8
GENERAL SAFETY WARNINGS FOR BATTERY CHARGER
WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in
electric shock, re and/or serious injury.
Save all warnings and instructions for future reference.
This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.
Additional safety instructions for your Battery Charger
1. Before charging, read the instructions.
2. Do not charge a leaking battery.
3. Do not use chargers for works other than those for which they are designed.
4. Before charging, ensure your charger is matching the local AC supply.
5. For indoor use only.
6. The charging device must be protected from moisture.
7. Do not short out the contacts of battery or charger.
8. Respect the polarity “+/-“ when charging.
9. Do not open the unit and keep out of the reach of children.
10. Do not charge the batteries of other manufactures or ill-suited models.
11. Ensure that the connection between the battery charger and battery is correctly positioned and is not obstructed by foreign bodies.
12. Keep battery charger’s slots are free of foreign objects and protect against dirt and humidity. Store in a dry and frost-free place.
13. Whenchargingbatteries,ensurethatthebatterychargerisinawell-ventilatedareaandawayfrominammablematerials.Batteriescanget
hot during charging. Do not overcharge any batteries. Ensure that batteries and chargers are not left unsupervised during charging.
14. Do not recharge non-rechargeable batteries, as they can overheat and break.
15. Longer life and better performance can be obtained if the battery pack is charged when the air temperature is between 18
oC
and 24
oC
. Do not
charge the battery pack in air temperatures below 0
oC
, or above 40
oC
. This is important as it can prevent serious damage to the battery pack.
16. Charge only battery pack of the same model provided by manufacturer and of models recommended by manufacturer.

9

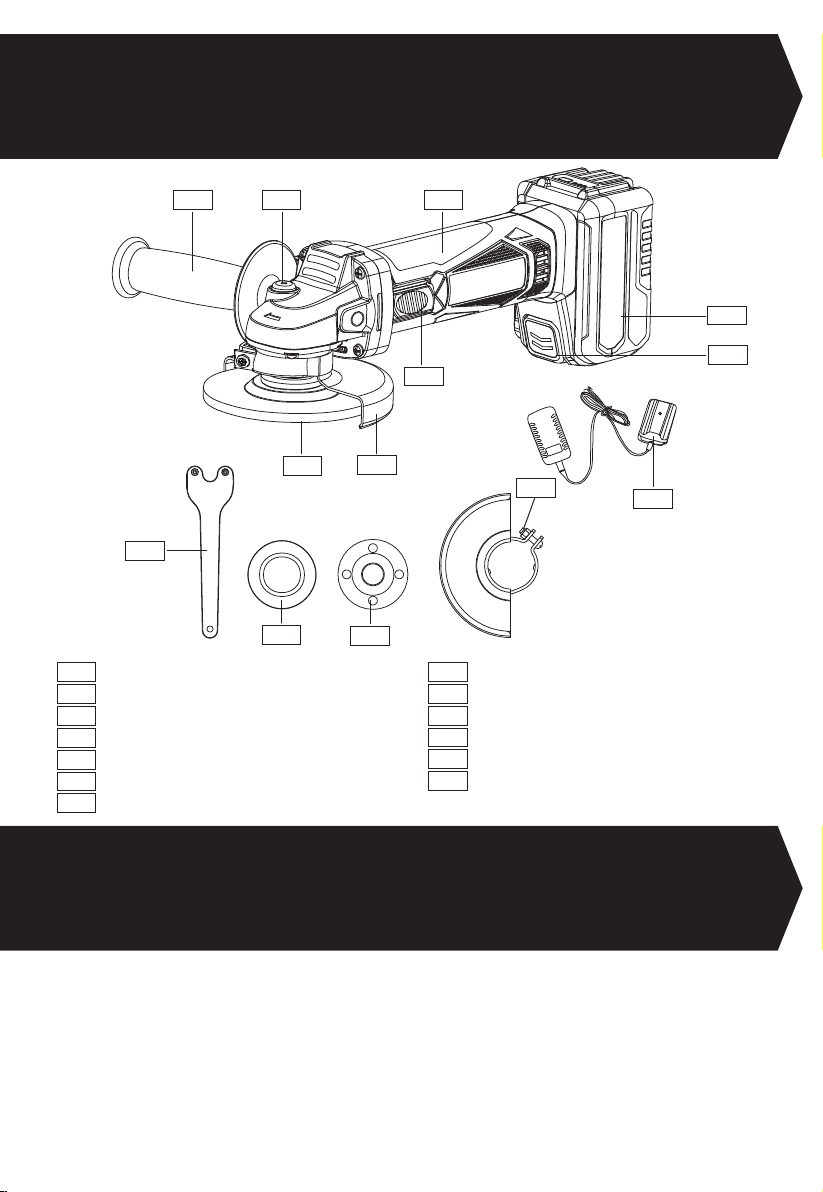

COMPONENT LIST
Auxiliary handle
Spindle lock button
Hand grip area
Battery pack
Battery pack release button
On/Off switch
Disc guard for grinding
Charger (ACG118W3) 1
4.0Ah Li-ion battery pack (ABP1840HW) 1
Auxiliary handle 1
Spanner 1
Disc guard for grinding 1
We recommend that you purchase your accessories from the same store that sold you the tool. Use good quality
accessories marked with a well-known brand name. Choose the type according to the work you intend to undertake.
Refer to the accessory packaging for further details. Store personnel can assist you and offer advice.
Disc (not included)
Spanner
Innerange
Outerange
Clamp adjustment nut
Charger
1 2 3
4
5
6
7
1
3
2
4
5
6
8
7
9
10
12
11
13
8
9
10
ACCESSORIES
11
13
12

10
SYMBOLS
To reduce the risk of injury, read all of this
instruction manual
Warning
Wear ear protection
Wear eye protection
Wear dust mask
Indoor use only
Do not burn
Batteries may enter water cycle if disposed
improperly, which can be hazardous for
ecosystem. Do not dispose of waste batteries
as unsorted municipal waste.
Read the operator’s manual.
Li-ion battery. This product has been marked
with a symbol relating to ‘separate collection’
for all battery packs and battery pack. It
will then be recycled or dismantled in order
to reduce the impact on the environment.
Battery packs can be hazardous for the
environment and for human health since they
contain hazardous substances.
Double insulated
Fuse
Positive terminal
Negative terminal
Waste electrical products must not be
disposed of with household waste. Please
recycle where facilities exist. Check with
your local authorities or retailer for recycling
advice.
T 2A
Li-Ion

11
TECHNICAL DATA
Voltage
Rated speed
Disc size
Disc bore
Spindle thread
Machine weight (With battery pack)
Charger Protection class
Charging time
Charger Input
Charger Output
Battery capacity
Battery Model
Charger Model
18V
8800/min
115 mm
22.2 mm
M14
1.83 kg
/II
2 hrs
100-240V~50/60Hz,55W
20VDC 2.0A
4.0Ah Li-ion battery
ABP1840HW
ACG118W3
For additional battery technical data, refer to the rating plate on the battery pack.
*Voltage measured without workload. Initial battery voltage reaches maximum of 20 volts. Nominal voltage is 18 volts.
NOISE INFORMATION
A weighted sound pressure LpA:77dB(A)
A weighted sound power LwA: 88dB(A)
KpA & KwA 3.0dB(A)
Wear ear protection.

12
Vibration total values (triax vector sum) determined according to EN 60745:
Surface grinding or abrasive cutting off Vibration emission value ah.AG = 4.381m/s²
Uncertainty K = 1.5 m/s²
The declared vibration total value may be used for comparing one tool with another, and may also be used in a
preliminary assessment of exposure.
WARNING! The vibration emission value during actual use of the power tool can differ from the declared value
depending on the ways in which the tool is used dependant on the following examples and other variations on
how the tool is used:
How the tool is used and the materials being cut or drilled.
The tool being in good condition and well maintained
The use the correct accessory for the tool and ensuring it is sharp and in good condition.
The tightness of the grip on the handles and if any anti vibration accessories are used.
And the tool is being used as intended by its design and these instructions.
This tool may cause hand-arm vibration syndrome if its use is not adequately managed
WARNING! To be accurate, an estimation of exposure level in the actual conditions of use should also take
account of all parts of the operating cycle such as the times when the tool is switched off and when it is running
idlebutnotactuallydoingthejob.Thismaysignicantlyreducetheexposureleveloverthetotalworkingperiod.Helping
to minimise your vibration exposure risk.
ALWAYS use sharp chisels, drills and blades
Maintain this tool in accordance with these instructions and keep well lubricated (where appropriate)
If the tool is to be used regularly then invest in anti vibration accessories.
Plan your work schedule to spread any high vibration tool use across a number of days.
VIBRATION INFORMATION

13
OPERATING INSTRUCTIONS
NOTE: Before using the tool, read the instruction book carefully.
Intended Use
The machine is intended for cutting, roughing and brushing metal and stone materials without using water. For cutting
metal, a special protection guard for cutting (accessory) must be used.
BEFORE PUTTING INTO OPERATION
The battery supplied is partially charged. To ensure full capacity of the battery, completely charge the battery in the
batterychargerbeforeusingyourpowertoolforthersttime.
The battery charger supplied is matched to the Li-ion battery installed in the machine. Do not use another battery charger.
The Li-ion battery is protected against deep discharging. When the battery is empty, the machine is switched off by
means of a protective circuit: The chuck no longer rotates.
NOTE: If the battery pack is very hot you must remove your battery pack from the charger and allow your battery pack to
coolrsttoambienttemperatureandthenrechargingcanbestarted.
The battery must be fully charged before storage. If the tool is not used for long periods, recharge the battery at least
every 3-6 months.

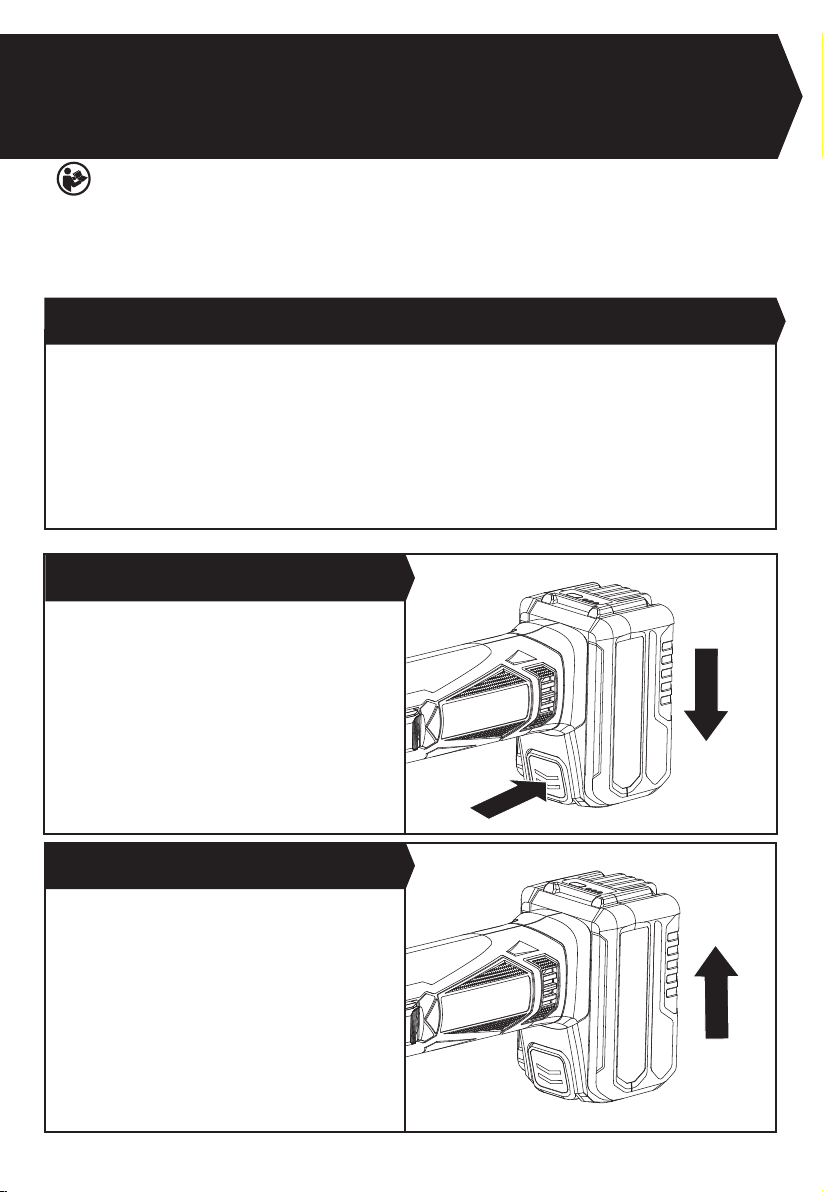

DepresstheBatteryPackReleaseButton(5)rmlyrst
and then slide the Battery Pack (4) out from your tool.
Slide the fully charged Battery Pack (4) onto the tool with
sufcientforceuntilitclicksintoposition.
B) TO REMOVE THE BATTERY PACK (See Fig. A1)
A) CHARGING THE BATTERY
C) TO INSTALL THE BATTERY PACK (See Fig. A2)
Fig. A1
Fig. A2

14

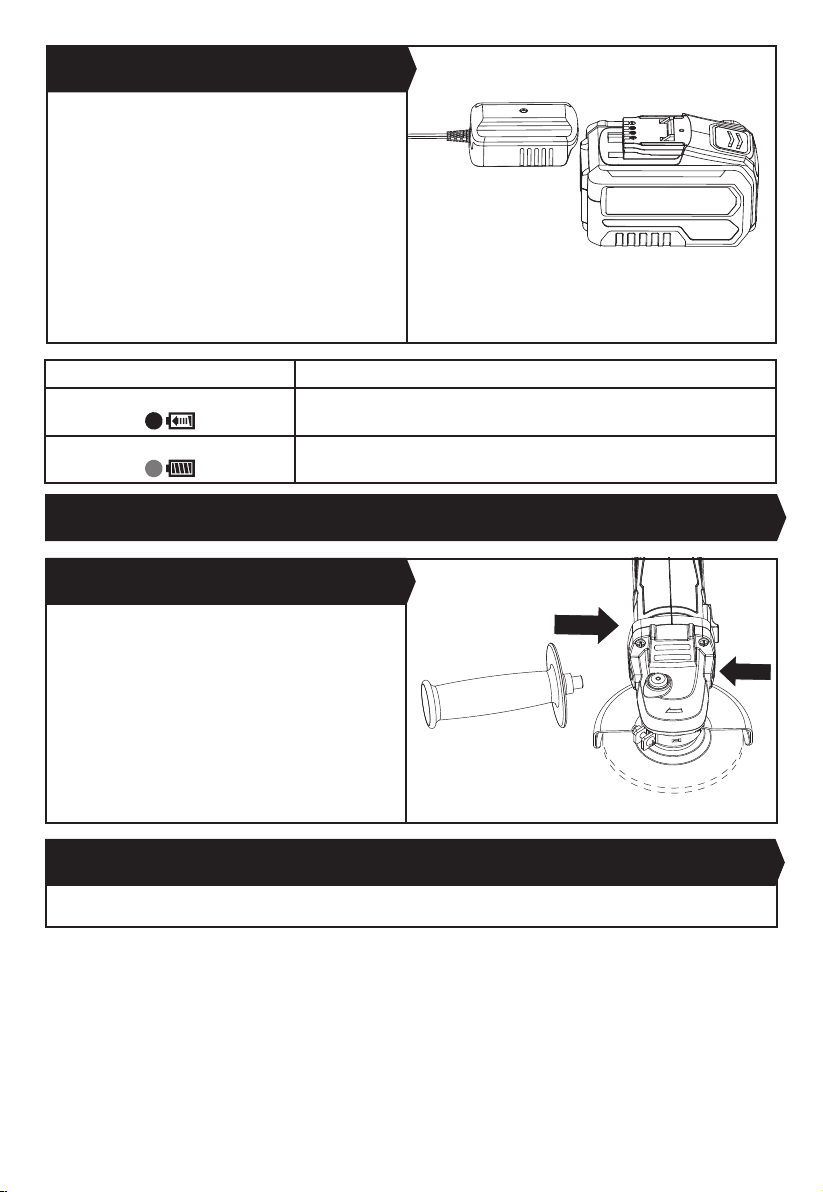

CHARGING PROCEDURE
1) Plug the charger into an appropriate outlet. The light
will be green.
2) Slide the battery pack into the charger, the light will
turn to red to indicate the charging process has started.
3) When charging is completed, the light will turn to
green. The pack is now fully charged, unplug the charger
and remove the battery pack.
WARNING: If the battery pack is warm e.g. after
continuous use or after exposure to direct sunlight or
heat, allow time to cool down before re-charging to
achieve the full charge.
D) HOW TO CHARGE YOUR BATTERY PACK ( See Fig. A3)
Light Status
Red on Charging
Green on Fully Charged
You have the option of two working positions to provide
the safest and most comfortable control of your angle
grinder. The handle is screwed clockwise into either hole
on the sides of the gear case.
NOTE: This handle (1) should be used at all times to
maintain complete control of the tool.
1. INSTALLING AND ADJUSTING AUXILIARY HANDLE
(See Fig. B)
OPERATION
Fig. B
Fig. A3
Alwaysholdyouranglegrinderrmlywithbothhandswhenoperating.
2. HAND GRIP AREAS

15
For work with grinding or cutting discs, the disc guard
must be mounted.
Disc Guard for Grinding (7)
The coded projection on the disc guard (7) ensures that
onlyaguardthattsthemachinetypecanbemounted.
Loosen the clamp adjustment nut (12), if necessary. Place
the disc guard with coded projection into the coded
groove on the spindle of the machine head and rotate to
the required position (working position).
Tighten the disc guard (7). The closed side of the disc
guard must always point to the operator.
Disc Guard for Cutting (not supplied)
WARNING! For cutting metal, always work with
the disc guard for cutting. The disc guard for
cutting is mounted in the same manner as the disc guard
for grinding.
Puttheinnerange(10)ontothetoolspindle.Ensureitis
locatedonthetwoatsofspindle(SeeFig.D1).
Placethedisconthetoolspindleandinnerange(10).
Ensure it is correctly located. Fit the threaded outer
ange(11)makingsureitisfacinginthecorrectdirection
forthetypeofdisctted.Forgrindingdiscs,theangeis
ttedwiththeraisedportionfacingtowardsthedisc.For
cuttingdiscs,theangeisttedwiththeraisedportion
facing away from the disc (See Fig. D2).

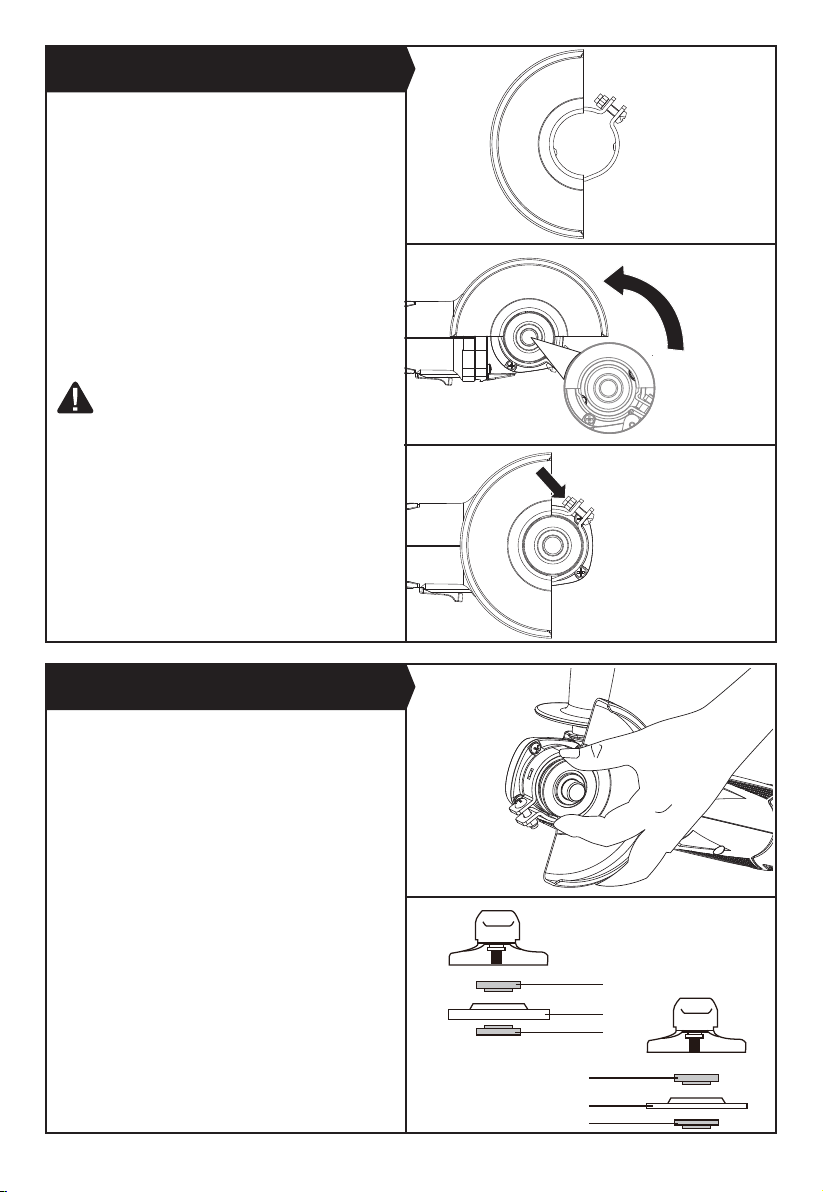

3. INSTALLING AND ADJUSTING THE DISC GUARD
(See Fig. C1, C2, C3)
4. FITTING THE DISCS (See Fig. D1, D2, D3)
Fig. C1
Fig. C2
Fig. C3
Fig. D1
Fig. D2
10
11
b
10
11
a
Grinding disc
(not supplied)
Cutting disc
(not supplied)

16

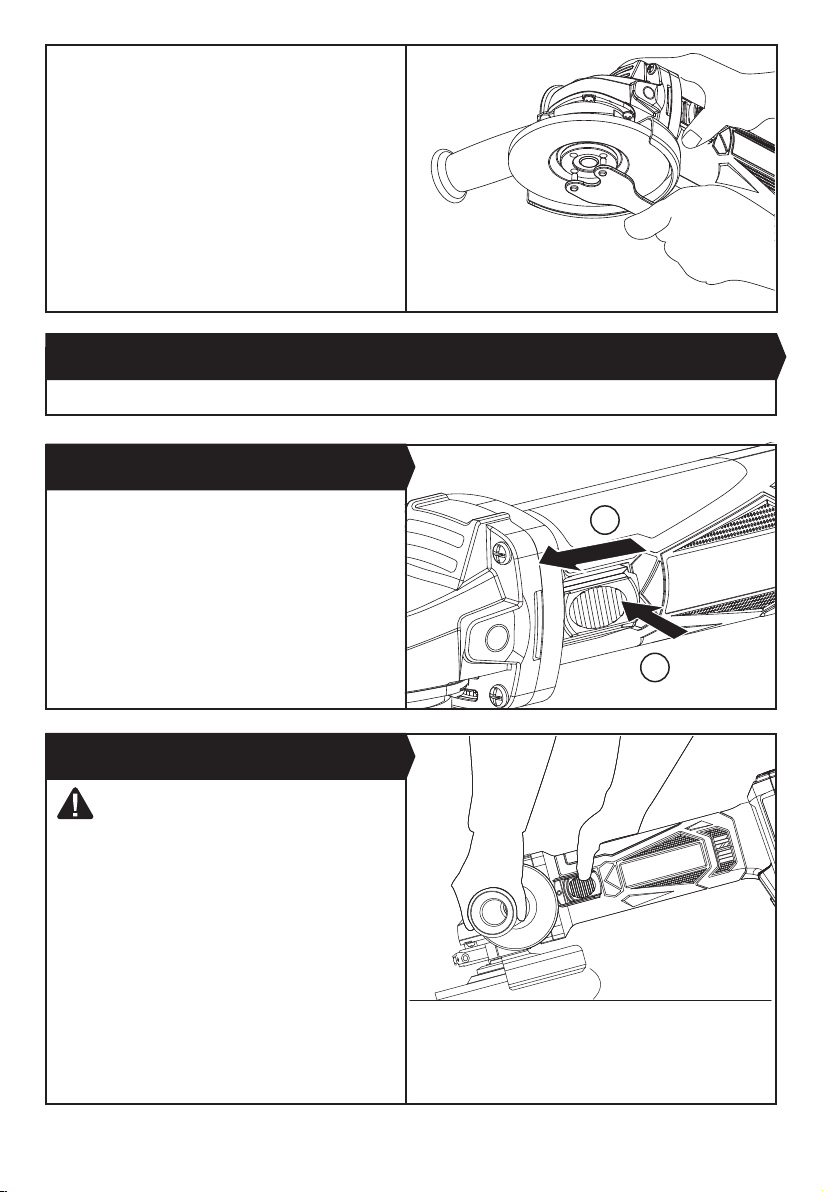

5. SPINDLE LOCK BUTTON
Must only be used when changing a disc. Never press when the disc is rotating!
Press in the spindle lock button (2) and rotate the spindle
by hand until it is locked. Keeping the lock button
pressedin,tightentheouterange(11)withthespanner
(9) provided. (See Fig. D3)
NOTE: After mounting the grinder tool and before switch
on, check that the grinding tool is correctly mounted and
that it can be turn freely, make sure that the grinding tool
does not graze against the protecting guard or other
parts.
Fig. D3
Tostartthepowertool,rstpressthebackofon/off
switch (6), then push the on/off switch (6) forward.
To lock the on/off switch (6), press the on/off switch (6)
down at the front until it engages.
Toswitchoffthepowertool,brieypressdowntheback
of the on/off switch (6) and then release it.
ATTENTION: Do not switch the grinder on whilst
the disc is in contact with the workpiece. Allow
the disc to reach full speed before starting to grind.
Hold your angle grinder with one hand on the main handle
andotherhandrmlyaroundtheauxiliaryhandle(1).
Always position the guard (7) so that as much of the exposed
disc as possible is pointing away from you.
Be prepared for a stream of sparks when the disc touches
the metal.
For best tool control, material removal and minimum
overloading, maintain an angle between the disc and work
surface of approximately 15
0
-30
0
when grinding.
Use caution when working into corners as contact with the
intersecting surface may cause the grinder to jump or twist.
When grinding is complete allow the workpiece to cool. Do
not touch the hot surface.
6. ON/OFF SWITCH (See Fig. E)
7. TO USE THE GRINDER (See Fig. F)
Fig. E
Fig. F
15o-30o
1
2

17
9. OVERLOAD
Overloading will cause damage to the motor of your angle grinder. This can happen if your angle grinder is subjected to
heavy use for prolonged periods of time. Never attempt to exert too much pressure on your angle grinder to speed up
your work.
Theabrasivediscsoperatemoreefcientlywhenlightpressureisexerted,thusavoidingadropinthespeedofyour
angle grinder.
If your angle grinder becomes too hot, run it no load for 2-3 minutes until it has cooled to normal operation temperature.
1. Always start at no load to achieve maximum speed then start working.
2. Do not force the disc to work faster, reducing the Disc’s moving speed means longer working time.
3. Always work with a 15-30 angle between disc and workpiece. Larger angles will cut ridges into the workpiece and
affectthesurfacenish.Movetheanglegrinderacrossandbackandforthovertheworkpiece.
4. When using a cutting disc never change the cutting angle otherwise you will stall the disc and angle grinder motor or
break the disc. When cutting, only cut in the opposite direction to the disc rotation. If you cut in the same direction as the
disc rotation the disc may push itself out of the cut slot.
5. When cutting very hard material best results can be achieved with a diamond disc.
6. When using a diamond disc it will become very hot. If this happens you will see a full ring of sparks around the
rotating disc. Stop cutting and allow to cool at no load speed for 2-3 minutes.
7.Alwaysensuretheworkpieceisrmlyheldorclampedtopreventmovement.
WARNING! For cutting metal, always work with
the disc guard for cutting (not supplied).
When cutting, do not press, tilt or oscillate the tool.
Work with moderate feed, adapted to the material being cut.
Do not reduce the speed of running down cutting discs
by applying sideward pressure.
The direction in which the cutting is performed is
important. The tool must always work in an up-grinding
motion. Therefore, never move the tool in the other
direction! Otherwise, the danger exists of it being pushed
uncontrolled out of the cut.
8. CUTTING (See Fig. G)
Fig. G
WORKING HINTS FOR YOUR ANGLE GRINDER
10. DISPOSAL OF AN EXHAUSTED BATTERY PACK
To preserve natural resources, please recycle or dispose of the battery pack properly. This battery pack contains
Lithium batteries. Consult your local waste authority for information regarding available recycling and/or disposal
options. Discharge your battery pack by operating your drill, then remove the battery pack from the drill housing
and cover the battery pack connections with heavy-duty adhesive tape to prevent short circuit and energy discharge. Do
not attempt to open or remove any of the components.

18
Your tool requires no additional lubrication or maintenance.
There are no user serviceable parts in your power tool. Never use water or chemical cleaners to clean your power tool.
Wipe clean with a dry cloth. Always store your power tool in a dry place. Keep the motor ventilation slots clean. Keep all
working controls free of dust. Occasionally you may see sparks through the ventilation slots. This is normal and will not
damage your power tool.
For Battery tools
The ambient temperature range for the use and storage of tool and battery is 0°C-45°C.
The recommended ambient temperature range for the charging system during charging is 0°C-40°C.
Although your new angle grinder is really very simple to operate, if you do experience problems, please check the
following:
1.Ifyourgrinderdiscwobblesorvibrates,checkthatouterangeistight;checkthatthedisciscorrectlylocatedonthe
angeplate.
2. If there is any evidence that the grinding disc is damaged, do not use as the damaged disc may disintegrate. Remove
it and replace with a new disc. Dispose of old discs responsibly.
3. If working on aluminum or a similar soft alloy, the disc will soon become clogged and will not grind effectively.
Waste electrical products must not be disposed of with household waste. Please recycle where facilities exist.
Check with your local authorities or retailer for recycling advice.
MAINTENANCE
TROUBLESHOOTING
ENVIRONMENTAL PROTECTION

19
DECLARATION OF CONFORMITY
We,
Wickes Building Supplies Limited
Declare that this product: CORDLESS ANGLE GRINDER
Description and SKU code: 223736
Complies with the following Directives and Regulations:
2006/42/EC, Machinery Directive
2014/30/EU, Electromagnetic Compatibility Directive
2011/65/EU & (EU)2015/863 (RoHS),Restriction of Hazardous Substances Directive
2014/35/EU, Low Voltage Directive
and conforms to the following standards:
Standards specic to this product:
EN 60745-1
EN 60745-2-3
EN 55014-1
EN 55014-2
EN 61000-3-2
EN 61000-3-3
EN 60335-1
EN 60335-2-29
EN 62233
28th January, 2021
Philip Ansell
Category Technical Manager
Wickes
Vision House
19 Colonial Way
Watford
WD24 4JL”

Customer Helpline 0345 2005409
