Widearea AER800-4P User manual

Widearea Telecommunication Technology Co., Ltd
Chengdu, Sichuan, China
Tel: [phone] Fax: [phone]
Web Site: http://www.widearea.com.cn
4 Ports ADSL Loop Extender (AER800-4P)
and
ADSL Loop Extender Power
Supply(AEC-B1PH)
Installation Manual
Please read this
document carefully
before installation!

ADSL Loop Extender Installation Manual Page 1
This publication may not be reproduced in whole or in part without the express written permission of Widearea.
Tel:[phone] [phone]
Version: 1.0
Preface
This manual provides information on how to use this product. To make the best
use of the product, read this manual thoroughly before use. Please keep this
manual handy for ease of reference.
The contents of this document may be changed in the future, without prior
notice.
This booklet was created with thorough attention to the content. If,
however, you have a question, spot an error, or find a description lacking,
please contact us according to the information in the bottom of the booklet.
All brand names and trademarks are the property of their respective
owners.

ADSL Loop Extender Installation Manual Page 2
This publication may not be reproduced in whole or in part without the express written permission of Widearea.
Tel:[phone] [phone]
Contents
1.Unpack .................................................................................................... 3
2.Technical Features................................................................................... 3
3.Installation Environment......................................................................... 4
4.Installation Steps .....................................................................................6
5.Troubleshooting....................................................................................... 9
Abbreviations
CO Center Office
CPE Customer Point Equipment
DSLAM Digital subscriber line access multiplexer

ADSL Loop Extender Installation Manual Page 3
This publication may not be reproduced in whole or in part without the express written permission of Widearea.
Tel:[phone] [phone]
1.Unpack
Unpack equipment carefully; check for completeness against the purchase order. Notify
supplier if items are missing.
Note: Save packing material. All equipment returned must be packed in the original
packing material.
Inspect equipment for shipping damage, including bent or loose hardware, and broken
connectors.
If equipment was damaged in transit, contact supplier.
Product list
AER800-4P, one
AEC-B1PH, one (option)
Power Line(along with the power supply), one
Installation manual, one
2.Technical Features
Table 1 –Technical Specifications of AER800-4P
Size
195 mm×180 mm×45mm
Input Voltage
Powered by Power Supply of ADSL Loop Extender
Power Consumption
5W
Operating Environment
Temperature
-35℃～+50℃
Relative Humidity
5%～95% (Non-condensing)
Number of supported users
4 ADSL subscriber
Table 2 - Technical Specifications of AEC-B1PH
Operating Environment
Temperature
-35℃～+50℃
Relative Humidity
5%～95% (Non-condensing)
Input Voltage
AC85V～AC265V
or DC -48V(-36V～-72V)
Size
112 mm×52 mm×33mm

ADSL Loop Extender Installation Manual Page 4
This publication may not be reproduced in whole or in part without the express written permission of Widearea.
Tel:[phone] [phone]
Output Voltage
DC 155V
Output Current
Less than 50mA
Fuse Rating
0.5A
3.Installation Environment

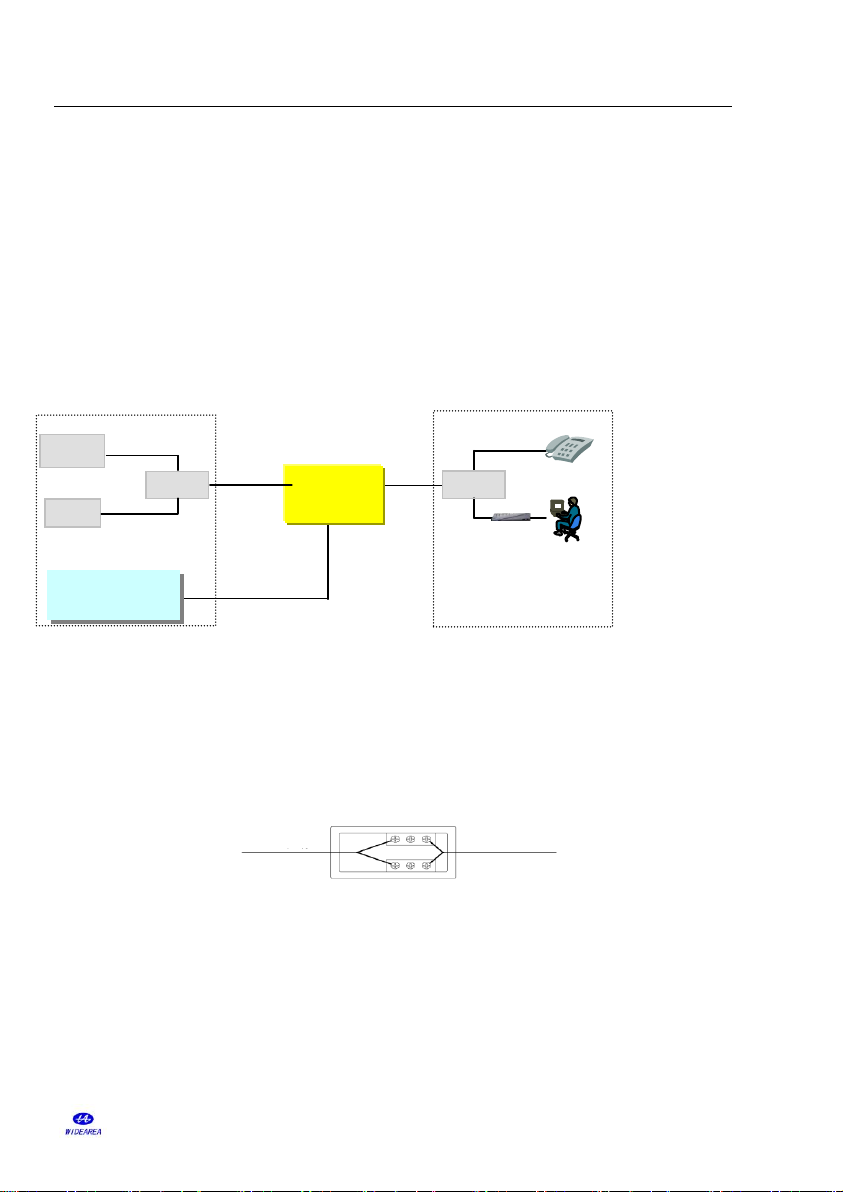

1) the actual lines connecting of equipment
Figure 1 actual lines connecting
L1: The signal twist pair connecting ADSL Loop Extender to DSLAM.
L2: The signal twist pair connecting ADSL Loop Extender to Modem.
L3: The power twist pair connecting ADSL Loop Extender to power supply.
2) Ensure the upstream/downstream rate is no less than 128kbps/512kbps.
3) resistance and distance demand
Figure 2 lines connecting sketch map
The recommended installation conditions are as follows.
①26 AWG twist pair
The demand about resistance and distance is as follows:
Modem
CPE
L2
ADS
L
L
3
Power supply
L1
ADSL Loop Extender
Power Supply
DSL
AM
switch
splitter
POTS
ADS
L
CO
ADSL
Loop Extender
splitter
POTS
CO
CPE
ADSL Loop Extender
L

ADSL Loop Extender Installation Manual Page 5
This publication may not be reproduced in whole or in part without the express written permission of Widearea.
Tel:[phone] [phone]
Route
Loop resistance
demand Ohms
(Min.-Max.)
distance demand
(Min.-Max.)
kfeet
km
L1(CO-Extender)
450-1260
5.0-13.0
1.5-4.0
L2(Extender-CPE)
200-900
2.0-9.5
0.5-3.0
L(CO-Extender-CP
E)
800-2000
6.5-22.5
2.0-7.0
②24 AWG twist pair
The demand about resistance and distance is as follows:
Route
Loop resistance
demand Ohms
(Min.-Max.)
distance demand
(Min.-Max.)
kfeet
km
L1(CO-Extender)
270-1050
5.0-20.0
1.5-6.0
L2(Extender-CPE)
170-1050
3.0-20.0
0.9-6.0
L(CO-Extender-CP
E)
550-1550
10.0-29.0
3.0-8.5
If the loop resistance between Extender and Modem is lower than the demand value, the
LA800 which you could choose and buy from our company can be added to increase loop
resistance. The option LA800 is to be installed between splitter and Modem when used on a
line with analog voice. Here is the application of LA800 below:
Modem
copper line
ADSL+POTS
ADSL
copper line
power supply
copper line
ADSL+POTS
DSLAM
switch
splitter
ADSL
splitter
POTS
ADSL
Loop Extender
ADSL Loop Extender
Power Supply
POTS
LA800

ADSL Loop Extender Installation Manual Page 6
This publication may not be reproduced in whole or in part without the express written permission of Widearea.
Tel:[phone] [phone]
Figure 3 the application of LA800
4.Installation Steps
The AER800-4P is deployed with AEC-B1PH. Commonly, the ADSL Loop Extender is
installed in the junction cabinet, or on the pole at the middle locality. The Power Supply is
installed at CO with remote supply. The details about ADSL Loop Extender and Power
Supply installation are as follows:
4.1 Install the Power Supply (AEC-B1PH) for ADSL Loop Extender
1) the actual lines connecting of equipment
Figure 4 A or B way of ADSL Loop Extender with remote power
supply
Generally , the Power Supply can be installed at CO or at CPE with remote supply, just as
the follow Fig5. In the way of A or B, AC110V,AC220V or DC48V can be selected, and one
Spare copper pair are needed for deliver the output voltage to ADSL Loop Extender.
Connect tails
Three-core power cord without plug: used for DC48V power input, no polarity.
Three-core power cord with plug: used for AC110-240V power input.
Power output: 155V power output cable which is already connected to the terminal in wiring
box by factory.
Modem
CPE
L2
ADS
L
L
3
Power Supply
L1
ADSL Loop Extender
Power Supply
DSL
AM
switch
splitter
POTS
ADS
L
CO
ADSL
Loop Extender
splitter
DC155V Output Cable
Power Supply Cable
Figure .5 AEC-B1PH Connector Wiring Diagram
POTS

ADSL Loop Extender Installation Manual Page 7
This publication may not be reproduced in whole or in part without the express written permission of Widearea.
Tel:[phone] [phone]
Protection ground: Black protection ground wire should be connected to the protection
ground terminals.
○
1Connect the power supply tail(L3)
There is an additional copper pair which powering the ADSL Loop Extender. Now, the
supply voltage from wiring box will go through an additional copper pair and into the
ADSL Loop Extender directly. The detail way is as follows:
The Power Supply is installed in the cabinet, and the power supply cable connect with an
separate copper twist pair, at the placement of ADSL Loop Extender, the ADSL Loop
Extender’blue/white lines connect with the same copper wire pair. For one thing, the cable
pair must be free of DC type faults. All shorts, grounds, cross, battery-crosses, and open
cable pairs must be identified and repaired.
②Ground
Connect the Power Supply equipment’s ground to CO’s grounding terminal directly.
③Connect power cord
The supplied accessories include power cord for AC 110V、AC220V or DC 48V. Connect
it to the AC 110V、AC220V or DC 48V power source with good connection. To easy the
installation, DC power source connection is no polarized.
After power supply is connected, the power indicator should be solid on. Flashing indicator
indicates short circuits or over-current alarm condition.
Attention: ADSL Loop Extender’s Power Supply should NOT be turned on until the
ADSL Loop Extender installation is finished.
4.2 Place the ADSL Loop Extender
①ADSL Loop Extender can be placed in the junction cabinet if there is inner room
available. Or ADSL Loop Extender can be mounted in the box through supplied

ADSL Loop Extender Installation Manual Page 8
This publication may not be reproduced in whole or in part without the express written permission of Widearea.
Tel:[phone] [phone]
mounting brackets.
Attention: Copper-core wire with no less than 2.5mm2 section area is required as
ground wire. One end of the wire should connect to ADSL Loop Extender’s ground
terminal. The other end of the wire should connect to a good grounding point.
Figure 6 AER800-4P installing Outdoors
②Connect the cable
Figure 7 AER800-4P Panel
Wiring sockets on front panel for DSLAM and Modem side signal wiring and power supply
wiring. Metal bolt on front panel for ground connection.
Table 4 - Twist-wires Connection Description of AER800-4P
Envisage view
side-glance
图
AER800-4P
ADSL Loop Extender
wire rope

ADSL Loop Extender Installation Manual Page 9
This publication may not be reproduced in whole or in part without the express written permission of Widearea.
Tel:[phone] [phone]
Cable
Circuit
Connect to DSLAM
（L1）
Connect to Modem
（L2）
Connect to span
power
（L3）
1
Blue/White (A/B)
Blue/White (A/B)
Blue/White (A/B)
2
Orange/White (A/B)
Orange/White (A/B)
3
Green/White (A/B)
Green/White (A/B)
4
Brown/White (A/B)
Brown/White (A/B)
Note：A/B represents both tip and ring of the pair
After power on, the “STATUS”LED should be lightened in a few seconds and remain on
during normal system operation.
③Power up
After confirming that all the twist-pair cables are connected correctly and enclosure is
securely installed, power up the system. The ADSL Loop Extender will work in 20
seconds after power is supplied stead.
Attention:
a) “A” and “B” represent A and B wire of the twist pair. No polarity.
b) Before power up the system, please make sure all the connections are correct.
c) When the power supply wire is active, do not operate the A and B wire of the
supply pair simultaneously. The A wire and B wire should be isolated.
5.Troubleshooting
If the ADSL Loop Extender can’t work well, please follow the Table5 and Table6 to
find out the problems.
Table 5 - AEC-B1PH Troubleshooting
Problem Description
Possible Reason
Suggested Resolution
Equipment does not work after
power-up. Status LED is OFF.
Power supply cable is
not correctly
connected.
Check power supply cable connection.

ADSL Loop Extender Installation Manual Page 10
This publication may not be reproduced in whole or in part without the express written permission of Widearea.
Tel:[phone] [phone]
Power indicator flashes.
Power output
circuitry fails.
Check whether the connection is shorted. Or
check whether the connection between
Extender and Modem is OK.
Output is OK but the Extender
does not work.
Power output cable
connection is error or
short.
Correct the power output connection or check
cable. Or check whether the distance between
DSLAM, Extender, Modem is proper.
Table 6 –AER800-4P Troubleshooting
Problem Description
Possible Reason
Suggested Resolution
Extender does not work after
power-up. Status LED is
OFF.
Power supply cable is not connected
properly.
Check power supply and
power cable.
No
connection
Status LED
is always on.
Cables at DSLAM side or Modem side
are not connected properly.
Correct the cable connection.
Line quality is worse between CO and
CPE side.
Change good quality cable.
There is telephone before the splitter on
CPE side.
Discard the telephone before
the splitter on CPE side.
Status LED
flashes.
Cables linked ADSL Loop Extender are
not connected properly.
Correct the cable connection.
Or check whether the distance
between DSLAM, Extender,
Modem is proper.

ADSL Loop Extender Installation Manual Page 11
This publication may not be reproduced in whole or in part without the express written permission of Widearea.
Tel:[phone] [phone]
There is noise in user’s
telephone
Cable is connected to ground or the
insulation is not good caused by men
during the construction process.
Check the cables.
Cable is too near to some electric
equipments with strong magnetic field,
such as high power sounder, selenium
rectifier and high power motor.
Make cable far from the
strong magnetic field.
Internet is slow, frequent
off-line problem
Affection of computer hardware
failures, system failures and virus.
Check computer or take with
PC, testers and so on to deal
with.
The parallel cable at CPE side is too
long or the connector is oxidation.
It is better to change the
parallel cable to copper twist
cable.
The cable to CPE side is connected with
too many connectors.
Avoid exposed connectors,
use good quality cable instead
scattered connectors.
