Wieland gesis CPO User manual

User manual
Doc. No. BA001287
Last Update: 06/2022 (Rev. A)
gesis®
CPO
Distribution box
– Consolidation Points
Decentralized Power, Data and Signal Distribution

Table of contents
Wieland Electric
GmbH | BA001287 | 06/2022 (Rev. A)
2
INFO
This work is copyrighted material. The resulting rights remain with Wieland Electric GmbH. Any du-
plication of this document or parts thereof is permitted only within the limits of the statutory provi-
sions of the Copyright Act. Alteration or abridgement of this document without the express written
consent of Wieland Electric GmbH is prohibited.
gesis® is a trademark of Wieland Electric. Other names may in this assembly manual mentioned
product and brand trademarks or registered trademarks of their respective owners could be used,
whose use by third parties for their own purposes could violate the rights of the owners.

Table of contents
Wieland Electric
GmbH | BA001287 | 06/2022 (Rev. A)
3
TABLE OF CONTENTS
1About this manual 5
1.1 Scope of application 5
1.2 Function of this document 5
1.3 Target group 5
1.4 Function and structure of this manual 5
1.5 Symbols and notations 6
2Safety 7
2.1 Intended use 7
2.2 CE declaration 7
3General product information 8
3.1 Product description 8
3.2 Symbols on the product 8
4Product designs 9
4.1 Power distributors 9
4.1.1 Power distributors without protection/switching devices 9
4.1.2 Power distributors with protection/switching devices 9
4.2 Data distributors 10
4.3 Power and data distributors 10
4.4 Distributors for signal transmission 11
5Application areas 12
6Specifications 13
7Dimensions 14
8Mounting 15
8.1 Preparation 15
8.2 Mounting the distribution box 15
8.3 Connecting the leads 16
8.3.1 Connections pluggable with cable assemblies 16
8.3.2 Pluggable connections with ready-made connectors 16
8.3.3 Connectors with non-pluggable input 16
8.3.4 Fitting the flat cable adapter to the flat cable 17
8.3.5 Data line 17
8.3.6 Connecting the earthing point 17

Table of contents
Wieland Electric
GmbH | BA001287 | 06/2022 (Rev. A)
4
9Commissioning 18
10 Operation 19
11 Maintenance 20
12 Disassembly 21
12.1 Disassembly steps 21
12.2 Storage 21
12.3 Recommissioning 21
13 Accessories 22
14 Disposal 23
15 Service and support 24

About this manual
Wieland Electric
GmbH | BA001287 | 06/2022 (Rev. A)
5
1ABOUT THIS MANUAL
Please read this chapter carefully before using the user manual or the products.
1.1 Scope of application
This manual is valid for the following product family: Distribution box - gesis® CPO.
1.2 Function of this document
This manual supports you in the project planning electrical systems and the assembly, installation,
commissioning, maintenance and disposal of the distribution boxes. You will find notes on how the
devices can be implemented.
This document contains the information required for the intended use of the device as well as tech-
nical data. It describes the technical characteristics and how to use the system components.
Hand over the documentation to the owner after successful installation and/or initial commission-
ing.
1.3 Target group
The assembly and commissioning of the components is the exclusive responsibility of qualified elec-
tricians. The legally binding and valid regulations for electrical installations must be observed.
This manual is intended for:
•Those who can prove that they have the corresponding training and already have correspond-
ing basic knowledge of project planning and commissioning electrical installations.
•System integrators
•Electricians
•Operator of the electrical system
1.4 Function and structure of this manual
This user manual provides technical staff with information about the configuration, operation and
functionality of the gesis® CPO distribution box.
You can find further information on our website www.wieland-electric.de or via the QR code.
NOTE

About this manual
Wieland Electric
GmbH | BA001287 | 06/2022 (Rev. A)
6
1.5 Symbols and notations
The symbol "DANGER" indicates an immediate danger. Failure to observe this symbol may result in
serious injury or death.
"DANGER" is used to warn of dangers which are, at the time of the warning, already existing (e.g.,
hot surfaces, sharp edges, crush points, etc.).
It is used exclusively in danger of personal injury!
The "WARNING" symbol indicates a possible danger. Failure to observe this symbol may result in se-
rious injury.
The "CAUTION" symbol indicates a possible danger. Failure to observe this symbol may result in mi-
nor injuries.
Notes concerning the special functions of the device.
Instructions also advise you of a potentially dangerous situation. If the symbol is not observed, it
can lead to damage to the system or the system environment.
DANGER
WARNING
CAUTION
NOTE

Safety
Wieland Electric
GmbH | BA001287 | 06/2022 (Rev. A)
7
2SAFETY
To avoid personal injury and/or material damage, please read the following safety instructions and
follow them at all times:
•This manual is part of the product. It must be read and followed.
•As the operator of the electrical system, keep the manual accessible at all times or, as the in-
staller, hand over the document to the operator of the electrical system after successful installa-
tion and commissioning.
•Damaged products must neither be installed nor put into operation.
•Protective measures and mechanisms must correspond to applicable regulations.
•All international, national and regional guidelines, standards, safety instructions and safety reg-
ulations must be observed throughout the entire life cycle of the product.
•Never use components from third-party manufacturers. No guarantee shall be offered for dam-
age resulting from a combination with third-party components.
•The name plate must not be removed and must be permanently attached to the distribution
box.
•This distribution box has been designed, produced and tested in accordance with the applica-
ble safety requirements. Despite the greatest care, it can pose a safety risk - as can all electro-
technical/ electronic components and products.
2.1 Intended use
Observe the technical data of your distribution box for information on the intended use. Refer to
chapter 6 "Specifications", page 13.
2.2 CE declaration
You can find the relevant CE declaration at: https://eshop.wieland-electric.com or via the QR code
below. Navigate to the download area of your product. You will then find the CE declaration under
the item "EC Declaration of Conformity".

General product information
Wieland Electric
GmbH | BA001287 | 06/2022 (Rev. A)
8
3GENERAL PRODUCT INFORMATION
3.1 Product description
The product is a pre-wired distribution box for pluggable electrical installation. The distributors are
manufactured according to IEC 61439. The Wieland gesis® CPO distribution box is a simple solution
for addressing the needs of a flexible, decentralized installation, such as a flexible office. A range of
suitable distribution boxes are available for the decentralized distribution of power, signals or data.
Thanks to the gesis® and RST® Plug&Play installation connector systems approved in accordance
with IEC 61535, gesis® CPO distributors can be plugged in directly on the construction site after as-
sembly.

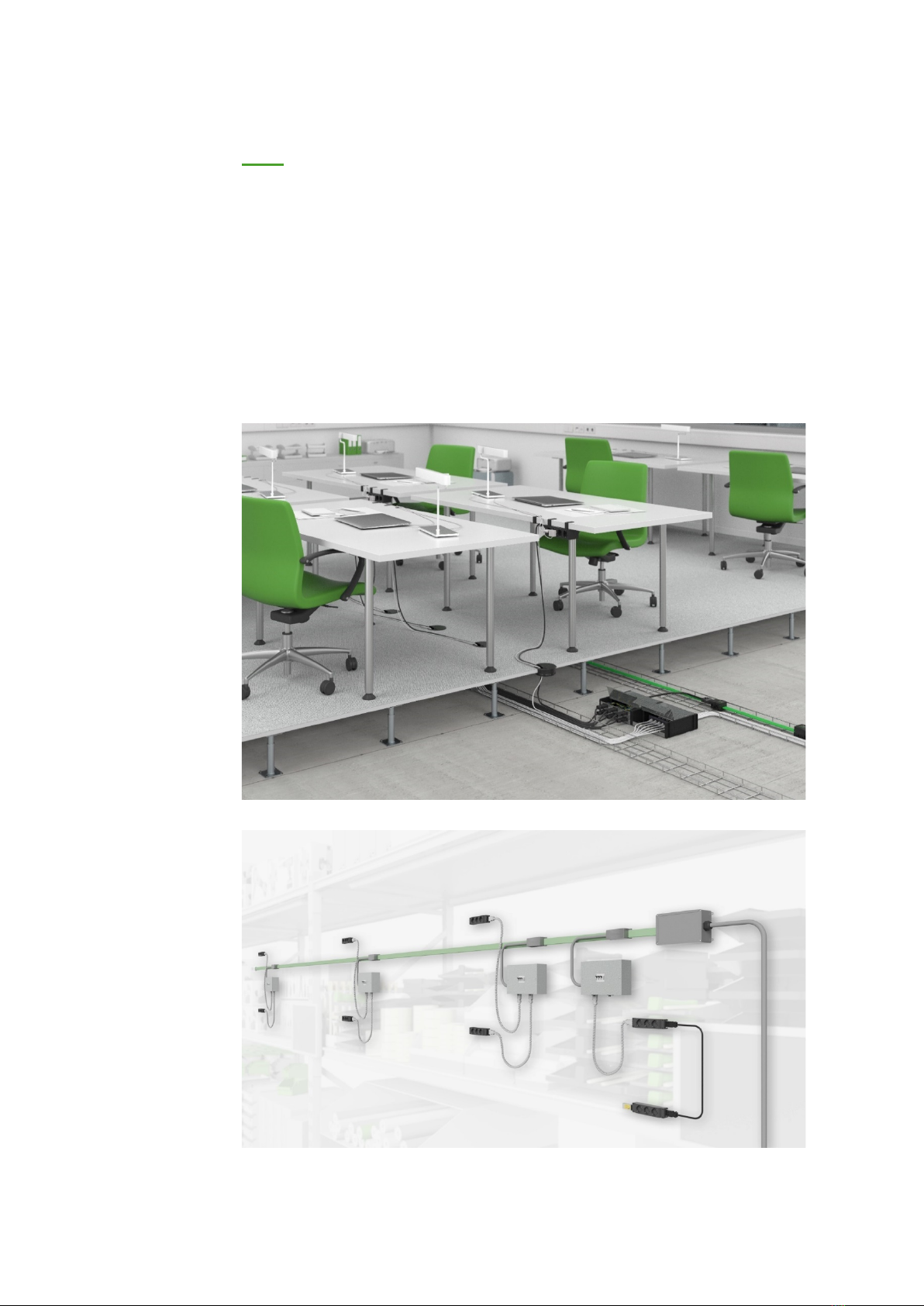

Figure 1: Decentralized data and power distribution with consolidation point (sample view)
3.2 Symbols on the product
The following symbols can be found on the product.
Conductor identification yellow/green conductor earth
CE marking
For disposal, this product should be treated as electrical and electronic equip-
ment waste and should not be disposed of as household waste.
EAK: 16 02 16

Product designs
Wieland Electric
GmbH | BA001287 | 06/2022 (Rev. A)
9
4PRODUCT DESIGNS
gesis® CPO distribution boxes are available in the following models:
•Power distributors
•Data distributors
•Power and data distributors
•Distributors for signal transmission
4.1 Power distributors
gesis® CPO distribution boxes for power distribution are available with or without protection/switch-
ing devices.
4.1.1 Power distributors without protection/switching devices
Distribution boxes for power distribution without internal protection/switching devices are used for
decentralized power distribution and must be operated according to specifications. Multiple con-
nections can be plugged into the single-phase or 3-phase feed, depending on the variant.
For more details on using the gesis® CPO, visit https://eshop.wieland-electric.com.
4.1.2 Power distributors with protection/switching devices
Distribution boxes for power distribution with internal protection/switching devices are used for de-
centralized power distribution and must be operated according to specifications. Multiple connec-
tions can be plugged into the single-phase or 3-phase feed, depending on the variant.
One of the following protection/switching devices may be installed, depending on the variant:
•Circuit breaker, 1-pole, 2-poles, 3-poles or 4-poles
•Residual current device, 1-phase or 3-phase
•FI/LS combinations, single-phase or 3-phase
•Any type of switching device in the form factor of the classic rail-mounted device for small in-
stallation distributors
For details on using the gesis® CPO, visit https://eshop.wieland-electric.com.
For additional technical data on the protection/switching devices, please contact the protec-
tion/switching device manufacturer.

Product designs
Wieland Electric
GmbH | BA001287 | 06/2022 (Rev. A)
10
4.2 Data distributors
gesis® CPO distribution boxes for power distribution must be operated according to specifications.
They are used for decentralized data distribution, e.g. ensuring the supply of data to workstations
operating according to the flexible office principle. The different variants are distinguished by the
number of outputs.
For details on using the gesis® CPO, visit https://eshop.wieland-electric.com.
Contact the respective manufacturer for technical data relating to the interface elements.
Article number
98.530.0102.0
98.530.0103.0
98.503.0201.0
98.503.0202.0
Name
gesis® CPO
DATA 3 KS-A
gesis® CPO
DATA 6 KS-A
gesis® CPO
DATA 9 KS-A
gesis® CPO
DATA 12 KS-A
Input type
T-head rail
T-head rail
T-head rail
T-head rail
Sections for
Keystone element
Keystone element
Keystone element
Keystone element
Number of cut-outs
3
6
9
12
Output type
T-head rail
T-head rail
T-head rail
T-head rail
Dimensions (height × width ×
depth)
125 × 125 × 45 mm
125 × 125 × 45 mm
125 × 250 × 45 mm
125 × 250 × 45 mm
IP Degree
IP20
IP20
IP20
IP20
4.3 Power and data distributors
In addition to power or data distributors, distribution boxes that combine both functions in one
housing are also available.
For details on using the gesis® CPO, visit https://eshop.wieland-electric.com.
Article number
98.530.1206.0
98.530.1207.0
98.530.1300.0
98.530.1301.0
Name
gesis® CPO
MIX 3/3
gesis® CPO
MIX 6/6
gesis® CPO
MIX 9/9
gesis® CPO
MIX 12/12
Input type: Data
T-head rail
T-head rail
T-head rail
T-head rail
Data cut-outs for
Keystone ele-
ment
Keystone ele-
ment
Keystone ele-
ment
Keystone ele-
ment
Number of cut-outs
3
6
9
12
Output type: Data
T-head rail
T-head rail
T-head rail
T-head rail
Input type: Power
gesis® CLASSIC
gesis® CLASSIC
gesis® CLASSIC
gesis® CLASSIC
Installation connector type In-
put: Power
GST18®i5 sw
GST18®i5 sw
GST18®i5 sw
GST18®i5 sw
Output type: Power
gesis® CLASSIC
gesis® CLASSIC
gesis® CLASSIC
gesis® CLASSIC
Number of outputs: Power
3
6
9
12
Number of phase pickups per
phase
1
2
3
4
Installation connector type out-
put: Power
GST18®i5 sw
GST18®i5 sw
GST18®i5 sw
GST18®i5 sw
Dimensions (height × width ×
depth)
250 × 250 ×
45 mm
250 × 250 ×
80 mm
250 × 375 ×
45 mm
250 × 375 ×
80 mm
IP rating*
IP20/IP40
IP20/IP40
IP20/IP40
IP20/IP40
* For power inputs/outputs: Mating connector not inserted / inserted

Product designs
Wieland Electric
GmbH | BA001287 | 06/2022 (Rev. A)
11
4.4 Distributors for signal transmission
Signal transmission distributors are a decentralized distribution solution for signals, e.g. for DALI,
SMI and other applications. For details on using the gesis® CPO, visit https://eshop.wieland-elec-
tric.com.
Article number
98.530.1203.3
98.530.1104.0
98.530.1204.0
Name
gesis® CPO DALI
Ver/6xGST18i5
gesis® CPO DALI
GST/5xGST15i5
gesis® CPO DALI GW
3xGST18
Signal type
DALI
DALI
DALI
Input type
Cable screw gland
gesis® CLASSIC
gesis® CLASSIC
Installation connector type in-
put
-
GST15i5 pb
GST18®i5 sw, GST18®i5
pb
Number of inputs
1
1
2
Output type
gesis® CLASSIC
gesis® CLASSIC
gesis® CLASSIC
Number of outputs
6
5
4
Installation connector type out-
put
GST18®i5 pb
GST15i5 pb
1× GST18®i3 sw,
3× GST18®i5 pb
Signal and power distribution
Yes
Yes
Yes
Dimensions (height × width ×
depth)
150 × 150 × 45 mm
75 × 200 × 50 mm
250 × 375 × 45 mm
IP rating*
IP20 / IP40
IP20 / IP40
IP20 / IP40
*Mating connector not inserted / inserted
Article number
98.530.1204.1
98.530.1205.0
98.530.1205.1
Name
gesis® CPO DALI GW
6xGST18
gesis® CPO DALI GW
Adp/3xGST18
gesis® CPO DALI GW
Adp/6xGST18
Signal type
DALI
DALI
DALI
Input type
gesis® CLASSIC
gesis® Mini / gesis®
CLASSIC
gesis® Mini / gesis®
CLASSIC
Installation connector type In-
put
GST18®i5 sw, GST18®i5
pb
GST18®i5 sw, GST15i2
pb
GST18®i5 sw, GST15i2
pb
Number of inputs
2
2
2
Output type
gesis® CLASSIC
gesis® CLASSIC
gesis® CLASSIC
Number of outputs
7
4
7
Installation connector type out-
put
1× GST18®i3 sw,
6× GST18®i5 pb
1× GST18®i3 sw,
3× GST18®i5 pb
1× GST18®i3 sw,
6× GST18®i5 pb
Signal and power distribution
Yes
Yes
Yes
Dimensions (height × width ×
depth)
250 × 375 × 75 mm
250 × 375 × 45 mm
250 × 375 × 75 mm
IP rating*
IP20 / IP40
IP20 / IP40
IP20 / IP40
*Mating connector not inserted / inserted

Application areas
Wieland Electric
GmbH | BA001287 | 06/2022 (Rev. A)
12
5APPLICATION AREAS
gesis® CPO distribution boxes form an essential part of the decentralized electrical installation, and
ensure the sustainable, eco-friendly, and future-proof distribution of power, data and signals in
buildings. Together with the pluggable electrical installation and the gesis® and RST® installation
connector systems, these distributors offer the perfect solution system.
gesis® CPO distribution boxes are used in the following applications:
•Power and data supply at the workplace
•Underfloor distribution
•Power distribution
•Power distribution with decentralized protection
•Lighting applications with DALI
•Sun protection applications with SMI
Figure 2: Decentralized workplace supply with consolidation points
Figure 3: Decentralized power supply in the shop

Specifications
Wieland Electric
GmbH | BA001287 | 06/2022 (Rev. A)
13
6SPECIFICATIONS
For technical data relating to gesis® CPO distribution boxes, visit https://eshop.wieland-electric.com
or scan the following QR code. Navigate to the "Technical Data" area of your product. All the neces-
sary information is displayed there. You can also generate and download a product data sheet in
PDF format in the "Data sheet" area.

Dimensions
Wieland Electric
GmbH | BA001287 | 06/2022 (Rev. A)
14
7DIMENSIONS
For information on the dimensions of gesis® CPO distribution boxes, visit https://eshop.wieland-
electric.com or scan the following QR code. Navigate to the "Technical Data" area of your product.
All the necessary information is displayed under "Dimensions". Dimensional drawings can be down-
loaded from the download area.

Mounting
Wieland Electric
GmbH | BA001287 | 06/2022 (Rev. A)
15
8MOUNTING
8.1 Preparation
Check that the distribution boxes are undamaged before starting installation. Do not use and install
any damaged distributors and components.
Observe all necessary safety precautions and carry out all work preparations before proceeding with
mounting.
Read all the included data sheets and manuals before mounting the distributor.
8.2 Mounting the distribution box
In the first step, the distribution boxes must be mounted, if necessary using the existing mounting
options or on a suitable base provided for this purpose.
Make sure that:
•all necessary protective conductor connections have been made at the end of the installation.
•the distribution box is always mounted on the designated mounting surface.
•the distributor is installed on a non-flammable surface.
•all mounting points on the housing are used.
•suitable mounting material is used.
•there is adequate clearance on all sides of the distribution box.
•the distribution box can be accessed at all times for visual inspections.
•the distribution box is not exposed to direct sunlight.
For information relating to the dimensions and bore hole sizes, read chapter 7 "Dimensions",
page 14.

Mounting
Wieland Electric
GmbH | BA001287 | 06/2022 (Rev. A)
16
8.3 Connecting the leads
The plugging in of the connectors or the connection of the cables must only be carried out after the
distribution box has been installed.
8.3.1 Connections pluggable with cable assemblies
All connectors can be plugged in without requiring any tools. Always make sure that the mechanical
and color coding are the same, and that the connector is in the right direction.
Disconnecting connectors
Notes on removing the connectors can be found in the respective product catalog or in the assembly
instructions for the connector in question.
Connector / measures gesis®
CLASSIC
gesis®
MINI
gesis®
MICRO
RST®
CLASSIC
RST®
MINI
RST®
MICRO
gesis®
NV
RJ 45
Create load relief
X
X
X
X
X
X
X
X
Release interlock
X
X
X
X
X
X
X
X
To disconnect the connector, it is not necessary to open the distribution box. The internal wiring on
the connector is done at the factory.
8.3.2 Pluggable connections with ready-made connectors
For technical data and mounting instructions relating to connectors, visit https://eshop.wieland-
electric.com or scan the QR code below. Navigate to the "Technical Data" or "Downloads" area of
your product.
All connectors can be plugged into the consolidation point without using tools. Always make sure
that the mechanical coding, color coding and orientation of the connector match.
Disconnecting connectors
Notes on removing the connectors can be found in the respective product catalog or in the assembly
instructions for the connector in question.
Connector / measures gesis®
CLASSIC
gesis®
MINI
gesis®
MICRO
RST®
CLASSIC
RST®
MINI
RST®
MICRO
gesis®
NV
RJ 45
Create load relief
X
X
X
X
X
X
X
X
Release interlock
X
X
X
X
X
X
X
X
It is not necessary to open the distribution box in order to remove the connector.
8.3.3 Connectors with non-pluggable input
Some gesis® CPO distribution boxes do not have a pluggable input. In this case, a cable gland or a T-
head rail can be used as an input. The connections must be wired directly to the installed connec-
tion points. Variants with a flat cable adapter are already wired internally and just have to be con-
nected to the flat cable.
NOTE
NOTE
NOTE

Mounting
Wieland Electric
GmbH | BA001287 | 06/2022 (Rev. A)
17
8.3.4 Fitting the flat cable adapter to the flat cable
For more information on installing the gesis® CPO distribution box with flat cable adapter, please
visit https://eshop.wieland-electric.com/download/92.050.9153.0/IM0176372.PDF or scan the fol-
lowing QR code.
8.3.5 Data line
If your gesis® CPO distribution box is designed for decentralized data distribution, the distribution
box will feature recesses for keystone elements. The relevant elements, see chapter 13 "Accesso-
ries", page 22, must be installed on site in accordance with standards.
8.3.6 Connecting the earthing point
In order to ground the gesis® CPO distribution box, connect the protective conductor connections to
the ground connections on the housing and, if applicable, the cover in accordance with standards.

Commissioning
Wieland Electric
GmbH | BA001287 | 06/2022 (Rev. A)
18
9COMMISSIONING
All international, national and regional guidelines, standards, safety instructions and safety regula-
tions must be observed throughout the entire life cycle of the product.
Once the system has been mounted and installed correctly, a qualified electrician must test and ap-
prove the system for operation.
Distribution boxes with electronic components may require commissioning and configuration. The
necessary manuals are enclosed with the distribution box and can be found on the manufacturer's
homepage.
During installation and commissioning, you must make sure that the necessary EMC directives are
complied with.
For further details on the mechanical or electrical data, see the enclosed documentation in the
scope of delivery or at https://eshop.wieland-electric.com.

Operation
Wieland Electric
GmbH | BA001287 | 06/2022 (Rev. A)
19
10 OPERATION
Normally, there is no need to operate the distribution box.
If protection/switching devices have tripped or other defects are identified, the relevant qualified
electrician must be informed. Do not switch on the devices independently.

Maintenance
Wieland Electric
GmbH | BA001287 | 06/2022 (Rev. A)
20
11 MAINTENANCE
All international, national and regional guidelines, standards, safety instructions and safety regula-
tions must be observed throughout the entire life cycle of the product.
The distribution box must be installed so that it is accessible for the necessary maintenance.
Danger to life due to electric shock when using tools
After opening the housing, the distribution box is only finger and back-of-hand safe.
Always follow the safety regulations.
In general, all national and international specifications, standards and guidelines must be observed
and applied. This also applies to the use of aids such as lifting platforms or ladders.
Always use a dry cloth to clean the distribution box. Do not use cleaning agents.
Any maintenance work may only be carried out by qualified electricians.
Tampering with the distribution box
The CE declaration only refers to the original model of the distribution box. If components are re-
placed, identical components according to the parts list must be used, otherwise the warranty will
be void.
•Replacing components with similar or other components voids the warranty as well as the CE dec-
laration and therefore the operating license for the distribution box. The qualified electrician who
carried out the modification is responsible for issuing a new CE declaration in accordance with the
standards and directives applicable at that time.
•Changes to the distribution box render this manual invalid. The qualified electrician who made
the change is responsible for updating or creating a new manual.
DANGER
WARNING
NOTE
