Wilbar Optimum Pool Round 95-0770 Instruction manual

09/2021

.
CONGRATULATIONS on becoming the owner of a new above
ground swimming pool! This is the instruction packet for installation
of your pool. The following are some helpful hints to keep in mind
before installing.
•Read through the entire instruction booklet prior to
installation so that you can familiarize yourself with
everything involved with installing your swimming pool before
you begin.
•DO NOT ATTEMPT INSTALLATION IN WINDY OR GUSTY
WEATHER. This will make installation more difficult and
could damage your pool before it’s even completely installed.
•You will find that steps 1 and 2 will be the most labor
intensive and time-consuming steps, although the installation
is broken down into many simple steps. Once you have
completed the first three steps, you should find that the rest
of the installation process moves along much more quickly.
•Please review all safety material and local code guidelines
before beginning your installation. There is a yellow safety
envelope packed with your pool. This envelope contains
safety material and warning stickers to be placed on your
pool. If any of these items are missing, please contact your
dealer or the factory to obtain them. The warranty is void if all
safety precautions are not followed.
•In the event that you need to make a warranty claim, it is
important to know the size and model of your swimming
pool in order to expedite the handling of your claim.
Please fill in the information below and keep for your
records. All this information can be found on the labels
attached to the cartons in which your pool is packed.
1
INTRODUCTION

POOL SAFETY
PLEASE READ PRIOR TO INSTALLATION
Section 1 Section 2
Failure to observe these warnings may result in permanent injury, paralysis from a broken neck, and death due to electrocution
or drowning. This pool is NOT designed for diving or jumping. Serious injuries can result from jumping or diving into shallow
water! Carefully read, understand and follow all information in this user manual before installing and enjoying your swimming
pool. These warnings, instructions and safety guidelines address common risks of water recreation, but they cannot cover all
possible risks and dangers in all cases. Always use caution and employ common sense and good judgment when enjoying any
water activity.
WARNING!
Your pool contains a large quantity of water, and any amount of water, even shallow water, can present serious dangers to life and health unless these safety rules are strictly
observed. First-time users run the highest risk of injury. Ensure all bathers understand these safety rules, and encourage all bathers, especially children, to learn how to swim.
Learn basic life support (CPR) and refresh this knowledge regularly. Instruct all bathers, including children, what to do in case of emergency. Keep a working phone and a list of
emergency phone numbers near the pool. This can save a life. To ensure your pool is used safely, you MUST observe and enforce the following safety precautions:
1. NO JUMPING OR DIVING
The top rail of your pool is not a walkway and must not be used for jumpingor diving.Do not permit jumping
or divinginto the pool from a pool deck, the top rail of the pool, or from any structure outside the pool.
Diving or jumpinginto the pool can result in serious injury.
2. NEVER USE THE POOL ALONE
Never permit the pool to be used unless it is attended by at least one person other than the bather.
Someone should always be available to lend assistance in an emergency. Designate a competent adult to
supervisethe pool when in use. Vigilant supervision of weak swimmers and non-swimmers by a competent
adult is required at all times. Children under five are at the highest risk of drowning.
3. NEVER LEAVE CHILDREN UNATTENDED
Never leave a child alone and unsupervised in or near the pool —not even for a second. There is no
substitute for constant adult supervision.
4. NO ROUGH PLAY
Do not permit rough playing or roughhousing in and around your pool. Surfaces can become slippery and
hazardous when wet.
5. LIGHT THE POOL AT NIGHT
If the pool is used after dusk, adequate lightingmust be provided. Illuminationin the pool area must be
sufficient to allow swimmers to clearly judge pool depth and all features in and around the pool. For lighting
recommendations, consult your local licensed electrical contractor.
6. RESTRICT ACCESS TO THE POOL
Do not leave chairs or other furniture beside the pool that couldbe used by a child to access the pool.
Ladders must be removed whenever the pool is unattended. A fence with a lockable gate aroundthe pool
or yard is strongly recommended and may be required by law in some areas. Secure doors and windows,
where applicable,to prevent unauthorized accessto the swimming pool. Remove all toys from the
swimming pool and surrounding area when not in use to avoid attracting children to the pool. Barriers, pool
covers, pool alarms or similar safety devices are helpful aids, but they are not substitutes for continuous
adult supervision.
7. NO ALCOHOL OR DRUGS
Never drink alcoholic beverages or use any intoxicants which could hinder your judgment and reflexes in an
emergency.
8. KEEP YOUR POOL CLEAN AND SANITARY
Your filter system will remove suspended particles from the water and the surface skimmer will remove
insects, leaves and other debris from the water surface. Use the correct pool chemicals as directed to
destroy harmful bacteria and prevent formation of algae. Remember, unsanitary water is a serious health
hazard.
8. KEEP OFF THE TOP LEDGES
Do not walk or stand on the top ledges. They can becomeslippery and result in serious injury.
9. POOL COVER SAFETY
The pool cover (sold separately) must have a tamper-proof locking retainer cable that positions the
cover around the pool wall and keeps it securely in place. Never allow anyone, especially small children
on the cover. Asphyxiation or drowning couldresult. Be sure to remove pool cover completely from the
water surface before entering the pool. When purchasing any pool cover, please consult a pool
professional.
11. ELECTRICAL HAZARD
Never touch or attempt to service electrical equipment, including the filter, when your body and/or the
ground is wet. Electrocution or permanent injury due to high voltage (120V AC) could result. The pool
should be bonded in accordance with Section 680-26 of the National Electrical Code. For further
assistance contact your dealer or a local licensed electrician. Do not use pool during electrical or
rainstorms.
12. SAFETY ROPE AND POLE
Keep a safety rope measuring at least 50 feet long (15.24 meters) by ¼” thick( .635cm) securely
attached to a flotation buoy with an outside diameter of 15” (38.1cm) in a prominent, easily accessible
area by your pool. Keep a pole not less that 16 feet (4,88m) long with a blunt or hook end available at
poolside in case of emergencies. Weak swimmers and non-swimmers should wear personal protection
equipment when using the pool.
13. POOL CHEMICALS
Store pool chemicals out of the reach of children. Do not place chlorine, chlorine tablets or sticks
directly into skimmer, or winterize your pool with liquid chlorine. Damage to the skimmer, pool liner and
filter will result. Failure to observe this instruction will void all component warranties. Always follow
chemical manufacturer’s instructions when storing, handling and dispensing pool chemicals.
14. CHECK FOR DAMAGE
Periodically inspect your pool and ladder components for damage and wear. Be sure all screws are in
place and tightened according to manufacturer’s instructions. Replace all damaged or worn
componentsand tighten all screws before you use the pool, deck or ladders. At first sign of rust,
remove and touch up immediately.
15. POOL PARTS
Never modify the pool, its components or its accessories, remove hardware, or drill holes in the pool,
deck or ladder components unless instructedto do so by the manufacturer. Your pool wall is made of
thin, but strong metal, so please use work gloves to protect your hands during installation. Always
utilize original manufactured parts for replacement. Failure to do so may void your warranty.
2

.
.
.
.
.
The safety stickers must be installed as per the following
instructions. Failure to properly install warning labels will void
warranty. Failure to mount these safety labels may subject you to
substantial liability in case of injury. These warnings are not to be
removed under any circumstances. If they become discolored or
fall off, please request replacements from the manufacturer,
which will be provided free of charge.
3
POOL SAFETY
PLEASE READ PRIOR TO INSTALLATION

Section 2
Select a Pool Location
4
DO NOT locate the pool:
•over underground lines (electrical, sewage, plumbing, gas).
•over septic tanks.
•under overhead electrical lines.
•near hazardous structures.
•out of compliance with local code restrictions.
DO NOT locate the pool on a site:
•that is hilly - avoid areas with sudden slopes within 6’ of pool
•that has poor drainage or tends to flood.
•in areas with sharp objects.
•on ground that has been treated with weed killer, pesticides or
other chemicals.
•that has nut grass, Bermuda grass or bamboo grass growing
nearby, as they can grow through your liner and puncture it.
DO NOT assemble you pool:
•on asphalt, tar or oil-based surfaces.
•with components such as filters, pumps, and heaters placed
where they can be used to access the pool by young children.
DO ensure:
•the area selected has a level and firm base.
•surface is flat 2' beyond pool diameter.
•access is available to electrical and water supplies.
•the pool is installed far from structures which could encourage
dangerous activities, like jumping from a roof or playset.
•you are aware of your local codes and restrictions.
POOL SAFETY
PLEASE READ PRIOR TO INSTALLATION

TABLE OF CONTENTS
Pool Components……………………………………...….....6
Parts Per Pool Size…………............................................ 9
Tools You May Need ..................................................... 10
Create a Foundation .......................................................11
Patio Blocks……………...................................................12
Wall Panel Installation.....................................................13
Anchor Plates……………………………………….……….14
Sand Cove and Base.......................................................15
Pour Concrete Collar ......................................................16
Section 1
Section 2
ROUND ABOVE GROUND / IN-GROUND
Pool Components............................................................17
Parts Per Pool Size .........................................................20
5
ROUND FULLY IN-GROUND WITH POLYMER STEP
Section 3
FINISHING THE POOL
OPTIMUM ROUND POOL
ABOVE GROUND / IN-GROUND
FULLY IN-GROUND STEP
Tools You May Need .....................................................21
Create a Foundation ..................................................... 22
Patio Blocks...……....……….......................................... 23
Wall Installation…........................................................... 24
Anchor Plates………………………………....………….…26
Step Installation…………………………...………………..28
Sand Cove and Base.......................................................32
Pour Concrete Collar………………………….....………...33
Skimmer Installation. ......................................................34
Return Fitting Installation ...............................................35
Install Top Coping ..........................................................36
Pool Liner …………………………...…..……........……….39
Top Coping Clips ………………………...…………..…….39
Filling Pool with Water ………….……….…..……..……. 40
Installing Face Plates ....................................................40
Adding Backfill …............................................................41
POOL FOOTPRINTS………………….….......……………42
NOTE: Start on Page 17 for installations utilizing
the fully in-ground polymer step.

Pool
1 Panels See Page 9
2 Anchor Plate #77004
3PVC Coping Standard Clay 2” See Page 9
4Pan Head Screw Clay #8 x 1/2” #99-0138
5 Coping Clip Standard Clay 2-1/4” #77310
6 Spline - 52" #77002
7 Bolt, Hex Head Aluminum 2-1/2”” #99-0137
8 Nut, Aluminum 3/8" #99-0134
Section 1
Section 2
6
ABOVE GROUND / IN-GROUND
OPTIMUM ROUND ABOVE / IN-GROUND POOL
Pool Components Check List:

Pool
1. Skimmer Plate SP1091 Exterior, White #77516
2. Skimmer Plate SP1091 Interior, Gray #77517
3. Return Plate Interior / Exterior, White #77064
4. Bolt, Countersunk SS 3/8” x 2-1/4” #99-0131
5. Nut, Flat Head Rivet SS 3/8” #99-0132
6. Extended Return Fitting Assembly #77092
Skimmer Kit –(NOT INCLUDED)
- For Illustration Purposes Only -
A. Skimmer
B. Double Layer Gasket
C. Skimmer Face Plate
D. Screws, Flat Head
Section 1
Pool Components Check List: Above Ground / Semi–Above Ground Skimmer Panel
7
1
2
3
4
5
6
A
B
C
D
OPTIMUM ROUND ABOVE / IN-GROUND POOL
ABOVE GROUND / IN-GROUND

Section 1
Pool Components Check List: Fully In-Ground Skimmer Panel
8
Pool
1. Skimmer Plate SP1084 Exterior, White #77518
2. Skimmer Plate SP1084 Interior, Gray #77519
3. Return Plate Interior / Exterior, White #77064
4. Bolt, Countersunk SS 3/8” x 2-1/4” #99-0131
5. Nut, Flat Head Rivet SS 3/8” #99-0132
6. Extended Return Fitting Assembly #77092
Skimmer Kit –(NOT INCLUDED) –
- For Illustration Purposes Only -
A. Skimmer
B. Synthetic Gasket
C. Skimmer Face Plate
D. Screws, Flat Head
D
C
B
A
6
5
4
3
2
1
B
OPTIMUM ROUND ABOVE / IN-GROUND POOL
ABOVE GROUND / IN-GROUND

Section 1
Section 2
Parts Per Pool Size
9
PANELS Part No 12' 14' 16' 18' 21' 24' 27' 30'
OPTIMUM12FT PANEL, STANDARD 72-1/4" 77319 5
OPTIMUM12FT PANEL, IG SKIMMER 72-1/4" 77499
OPTIMUM12FT PANEL, AG SKIMMER 72-1/4" 77456
OPTIMUM14FT PANEL, STANDARD 84-1/4" 77334 5
OPTIMUM14FT PANEL, IG SKIMMER 84-1/4" 77500
OPTIMUM14FT PANEL, AG SKIMMER 84-1/4" 77457
OPTIMUM16FT PANEL, STANDARD 73-7/16" 77055 7
OPTIMUM16FT PANEL, IG SKIMMER 73-7/16" 77501
OPTIMUM16FT PANEL, AG SKIMMER 73-7/16" 77458
OPTIMUM18FT PANEL, STANDARD 82-3/4" 77056 7
OPTIMUM18FT PANEL, IG SKIMMER 82-3/4" 77502
OPTIMUM18FT PANEL, AG SKIMMER 82-3/4" 77459
OPTIMUM21FT PANEL, STANDARD 78" 77129 9
OPTIMUM21FT PANEL, IG SKIMMER 78" 77503
OPTIMUM21FT PANEL, AG SKIMMER 78" 77460
OPTIMUM24FT PANEL, STANDARD 89-1/16" 77057 9
OPTIMUM24FT PANEL, IG SKIMMER 89-1/16" 77504
OPTIMUM24FT PANEL, AG SKIMMER 89-1/16" 77461
OPTIMUM27FT PANEL, STANDARD 100-1/4" 77058 9
OPTIMUM27FT PANEL, IG SKIMMER 100-1/4" 77505
OPTIMUM27FT PANEL, AG SKIMMER 100-1/4" 77462
OPTIMUM30FT PANEL, STANDARD 93-1/16" 77131 11
OPTIMUM30FT PANEL, IG SKIMMER 93-1/16" 77506
OPTIMUM30FT PANEL, AG SKIMMER 93-1/16" 77463
TOTAL PANEL COUNT - 6 6 8 8 10 10 10 12
1
1
1
1
1
1
1
1
Part Part No 12' 14' 16' 18' 21' 24' 27' 30'
2BOTTOMPLATE 77004 6 6 8 8 10 10 10 12
3PVC TOP COPING 2"
PVC COPING STANDARD CLAY12FT77-1/8" 77309 6
PVC COPING STANDARD CLAY14FT77-1/8" 77325 6
PVC COPING STANDARD CLAY16FT77-1/8" 77006 8
PVC COPING STANDARD CLAY18FT86-5/8" 77007 8
PVC COPING STANDARD CLAY21FT80-5/16" 77158 10
PVC COPING STANDARD CLAY24FT91-3/4" 77008 10
PVC COPING STANDARD CLAY27FT103-1/4" 77009 10
PVC COPING STANDARD CLAY30FT94-7/8" 77159 12
4 PAN HEAD SCREW CLAY- #8 x 1/2” 99-0138 70 70 70 70 70 70 85 85
5
COPING CLIP STANDARD CLAY(REV)
77310 6 6 8 8 10 10 10 12
6SPLINE - 52" 77002 12 12 16 16 20 20 20 24
7BOLT, HEX HEAD ALUM. 3/8" x 2-1/2” 99-0137 12 12 16 16 20 20 20 24
8NUT, ALUMINUM 3/8" 99-0134 12 12 16 16 20 20 20 24
9SKIMMER REDUCTION INSERT 77070 1 1 1 1 1 1 1 1
10 SKIMMER PLATE SP1091 EXTERIOR, WHITE 77063 1 1 1 1 1 1 1 1
11 SKIMMER PLATE SP1091 INTERIOR, GRAY 77061 1 1 1 1 1 1 1 1
12 RETURN PLATE EXTERIOR / INTERIOR, WHITE 77064 2 2 2 2 2 2 2 2
13 BOLT, COUNTERSUNK SS 3/8" x2-1/4" 99-0131 5 5 5 5 5 5 5 5
14 NUT, FLAT HEAD RIVET SS 3/8" 99-0132 5 5 5 5 5 5 5 5
15 REBAR - 3/8 X15" 77001 6 6 8 8 10 10 10 12
16 EXTENDED RETURN FITTING ASSEMBLY 77092 1 1 1 1 1 1 1 1
17 HEXALLEN KEY7/32" (TOOL) 99-0140 1 1 1 1 1 1 1 1
OPTIMUM ROUND ABOVE / IN-GROUND POOL
ABOVE GROUND / IN-GROUND

OPTIMUM ROUND ABOVE / IN-GROUND POOL
Section 1
Tools You May Need:
10
Tape measure - 100'
Marking spray paint or powder
String - 25’ length
Stake or peg –12”
Transit, laser level or 3’ level
Rubber mallet
Hacksaw
Spade
Square shovel
Pick
Rake
Tamper square 10” or 12”
2x4, straight - 12’
Square
Power drill
7/16" and 1/8 drill bits
1/4" hex nut driver bit
Socket set
Duct tape
Pliers - channel lock
9/16" open end wrench
Screwdrivers, flat & Phillips
Metal file
Utility knife
PVC pipe cutter
Pool trowel
Cloth rag
Cooking spray
Shop vacuum
Soft bristle broom
Extension cord
Hose with spray nozzle
Wheelbarrow
Additional Items Needed:
•Patio Blocks - 2” x 12” x 12” (reference chart below)
In-ground installations:
•Concrete (when installed more than 24” below grade)
•Backfill (crushed stone or gravel 3/8” – 3/4” diameter)
•Perforated Drainpipe (for drainage if site floods easily)
Pool
Size
Masonry Sand
Cubic Yards
Patio
Blocks
Concrete Cubic Yards
(If Installing +24" Below Grade)
12' 0.8 6 1
14' 1.1 6 1-1/4
16' 1.5 8 1-1/2
18' 1.9 8 1-3/4
21' 2.5 10 2
24' 3.2 10 2-1/4
27' 4.1 10 2-1/2
30' 5.0 12 2-3/4
ABOVE GROUND / IN-GROUND

OPTIMUM ROUND ABOVE / IN-GROUND POOL
Section 1
Section 2
Step 1 –Create a Foundation
11
Establish the pool circumference by driving a stake into the
ground at the center of the site.
Attach one end of a string to the center stake, measure the string
out to equal the pool radius, plus an additional 12 inches for
clearance. Holding the string taut, walk the outer perimeter of
your pool site while marking the circle with either spray paint, a
lawn edger or white powder.
Remove all sod, weeds and other growth from within the circle.
Dig to the depth the pool will be installed for below-grade
installations. Find the lowest spot within the pool area and level
the surrounding ground to that lowest spot. Dig higher areas
down to this level. DO NOT add dirt to raise the low areas, as the
weight of the filled pool will cause uneven settling.
NOTE: The pool floor may be dug deeper, sloping to the center
of the pool for use with an expandable liner.
Remove protruding roots, stones and other sharp objects that
could damage the pool. Tamp down ground with square tamper.
IN-GROUND INSTALLATIONS: It is recommended that the
top of the pool be 2” -6” above the surrounding area.
Confirm the site is level and flat using a long straight board or
2x4 and a carpenter’s level or transit. Continue to remove high
areas of ground if needed.
1.1
1.2
1.1
1.2
ABOVE GROUND / IN-GROUND

OPTIMUM ROUND ABOVE / IN-GROUND POOL
Section 1
Section 2
Step 2 –Install Patio Blocks
12
2.1 Mark exact pool radius using the center stake.
Using the chart below, mark the locations of each patio
block. Sink the patio blocks flush with the ground at each
marked location. All patio blocks must be flush and level
with each other in all directions. Confirm with a straight
2x4 and level placed between blocks or by using a transit.
IN-GROUND INSTALLATIONS: Split the patio block
into two halves to allow rebar to be installed later as
seen in figure 2.3.
Panel joints will be located over each patio block. Place
an Anchor Plate (#77004) on top of each patio block.
Pool Size 12' 14’ 16’ 18' 21' 24' 27' 30'
Patio Block
Spacing
72
-
1/16"
84”
73
-
1/2”
82
-
5/8"
77
-
7/8"
89"
100
-
1/8"
93
-
3/16"
Reference Angle
Between
Markings
60 Deg
60 Deg
45 Deg
45 Deg
36 Deg
36 Deg
36 Deg 30 Deg
2.1
2.2
Above-ground
2.3
In-ground
ABOVE GROUND / IN-GROUND

OPTIMUM ROUND ABOVE / IN-GROUND POOL
Section 1
Section 2
Step 3 –Wall Installation
13

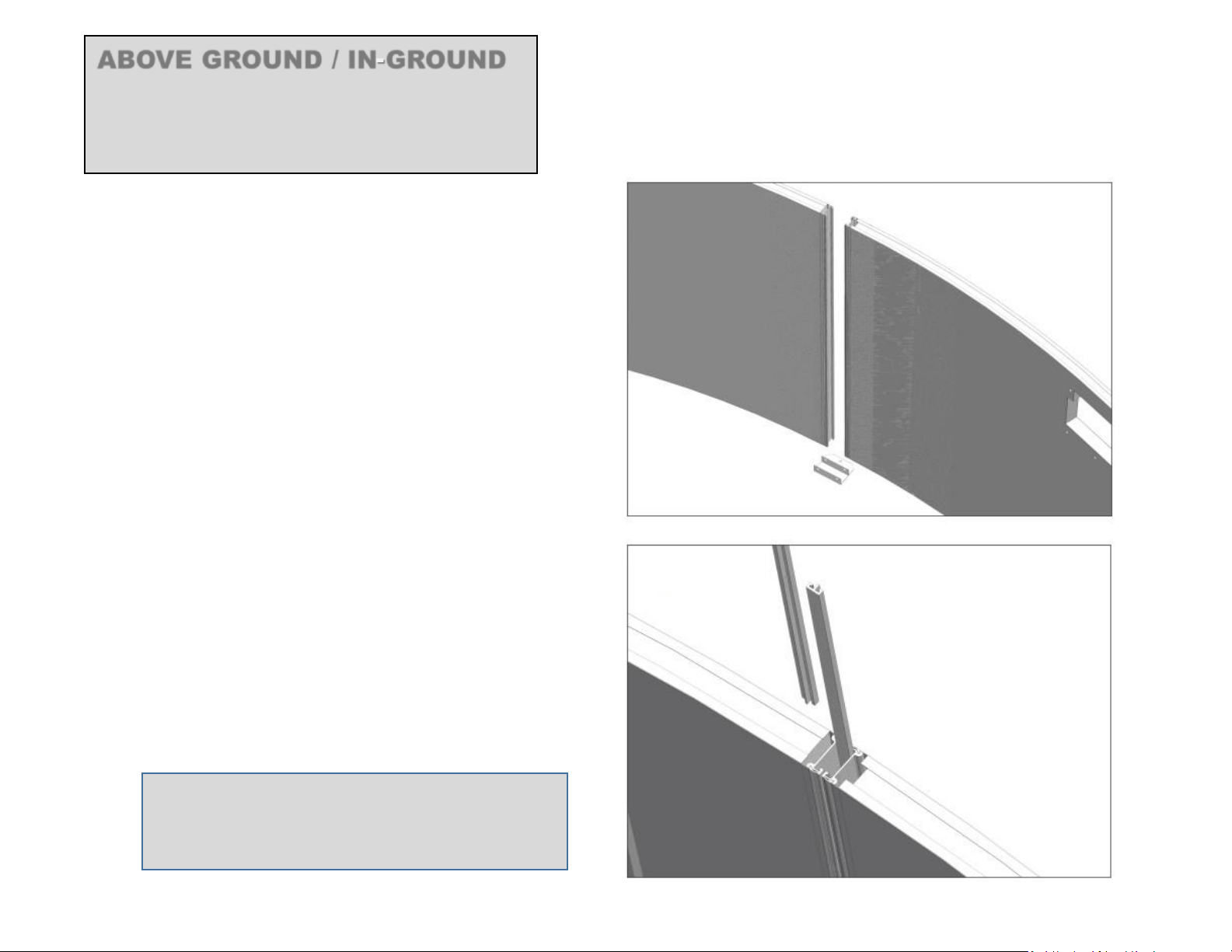

3.1 Decide where the Skimmer Panel and plumbing will be
located and place the Skimmer Panel accordingly. The
Anchor Plates must be centered on each end of the panel.
Place the next panel, leaving a 1/8” gap between both
panels, ensuring the Anchor Plates are centered at each
panel joint.
3.2 Slide two 52” Splines (#77002) into compression seams to
lock both panels together.
If inserting the Splines is difficult:
•Apply cooking oil to lubricate and ease installation.
• Ensure a 1/8” gap between both panels is uniform top to
bottom.
•Check Splines and seams are free of any sand or debris.
Repeat this step with all remaining panels.
Note –Before final panel is attached, bring sand for the
floor base and cove into the interior of the pool.
(See Page 9 for proper quantities)
3.2
3.1
ABOVE GROUND / IN-GROUND

OPTIMUM ROUND ABOVE / IN-GROUND POOL
Section 1
Section 2
Step 4 –Anchor Plate Installation
14
4.1 Ensure panels are centered and fully inserted into the
Anchor Plates.
Drill two 7/16" holes through the pool panels at each Anchor Plate
locations using the Anchor Plate holes as a drill guide. Secure
panels with 3/8” x 2-1/2” bolts (#99-0137) and nuts (#99-0134).
4.2 IMPORTANT!
Confirm roundness of the pool by measuring the diameter
across the pool at each panel joint. All diameters should be
identical. Adjust, as necessary. If this step is not completed,
the pool may not be perfectly round, which could lead to
problems later, and may void your warranty.
4.3 IN-GROUND ONLY: If the pool installation is greater than
24” below grade, the included rebar must be used with an 8” high
x 12” wide concrete collar around the perimeter of the pool. Insert
the rebar halfway into the ground through the Anchor Plate holes
before pouring the concrete collar.
If the pool is installed less than 24” below grade, skip this step.
4.3
4.1
ABOVE GROUND / IN-GROUND

OPTIMUM ROUND ABOVE / IN-GROUND POOL
Section 1
Section 2
Step 5 –Create Pool Cove and Base
15
5.1 Using neutral alkalinity sifted earth, or fine sand without
pebbles, create a pool cove 4”-6” high along entire inside
circumference of pool –NOT OPTIONAL! The cove will
prevent the liner from sliding beneath the pool wall once
filled with water. See Figure 5.1.
DO NOT USE ANY SUBSTANCE WITH HIGH
ALKALINE OR ACID CONTENT, ESPECIALLY PEAT
MOSS, AS IT WILL CORRODE METAL PARTS.
Since chemicals that may be naturally occurring in the
ground can cause discoloration or corrosion, we suggest
laying polyethylene plastic sheeting under the cove around
the perimeter of the wall, ensuring that no earth contacts
the metal pool wall. Since the presence of such chemicals
is beyond the control of the manufacturer, this damage is
not covered by the warranty.
Use remaining sand to create 2” deep sand base over the
entire pool area to protect the liner.
Rake and tamp whole area until it is level and smooth. Any
bumps or ridges will be perceptible under the liner.
2” SAND BASE
SAND COVE
4”– 6” COVE
5.1
5.2
ABOVE GROUND / IN-GROUND

OPTIMUM ROUND ABOVE / IN-GROUND POOL
Section 1
Section 2
16
Step 6 - Install Concrete Collar
6.1 IN-GROUND ONLY: All pools that are buried more
than 24” below grade require a concrete collar, 12” wide
by 8” high, around the entire perimeter of the pool. If extra
supports are required for patio or other pool features,
consider installing them before pouring the concrete.
If the pool is installed into a hill, as illustrated in image
6.2, the pool still requires a concrete collar 12” wide by 8”
high at any location where the pool is buried more than
24” below grade. Taper the ends of the concrete collar
once the depth below grade becomes less than 24”.
Step 7 - Continue to Page 34
7.1 Continue Section 3 –Finishing The Pool
6.2
Concrete Collar
8” high x 12” wide
6.1
ABOVE GROUND / IN-GROUND

FULLY IN-GROUND WITH POLYMER STEP
Section 2
Section 2
17
FULLY IN-GROUND STEP
Pool
1 Panels See Page 20
2 Anchor Plate #77004
3PVC Coping Standard Clay 2” See Page 20
4Pan Head Screw Clay #8 x 1/2” #99-0138
5 Coping Clip Standard Clay 2-1/4” #77310
6 Spline - 52" #77002
7 Bolt, Hex Head Aluminum 2-1/2”” #99-0137
8 Nut, Aluminum 3/8" #99-0134
Pool Components Check List:

Pool Components Check List: Fully In-Ground Skimmer Panel
18
Pool
1. Skimmer Plate SP1084 Exterior, White #77518
2. Skimmer Plate SP1084 Interior, Gray #77519
3. Return Plate Interior / Exterior, White #77064
4. Bolt, Countersunk SS 3/8” x 2-1/4” #99-0131
5. Nut, Flat Head Rivet SS 3/8” #99-0132
6. Extended Return Fitting Assembly #77092
Skimmer Kit –(NOT INCLUDED) –
- For Illustration Purposes Only -
A. Skimmer
B. Synthetic Gasket
C. Skimmer Face Plate
D. Screws, Flat Head
D
C
B
A
6
5
4
3
2
1
B
Section 2
FULLY IN-GROUND WITH POLYMER STEP
FULLY IN-GROUND STEP
