Wildfire LONG-THROW WF-252F1 User manual

WF-252(F)(WS)(S)1
WF-252(F)(WS)(S)2

Table of Contents
Introduction 3
Safety Statements 3
Specifications 4
Setup & Operation 5
Unpacking 5
Installation 5
Operation 5
LampTimer 5
DMXControl 6
Maintenance & Troubleshooting 6
Lamp Replacement 6
Cleaning 6
Troubleshooting 6
Diagrams 7
LineView 7
Exploded View 8
PartList 9
Schematic 10

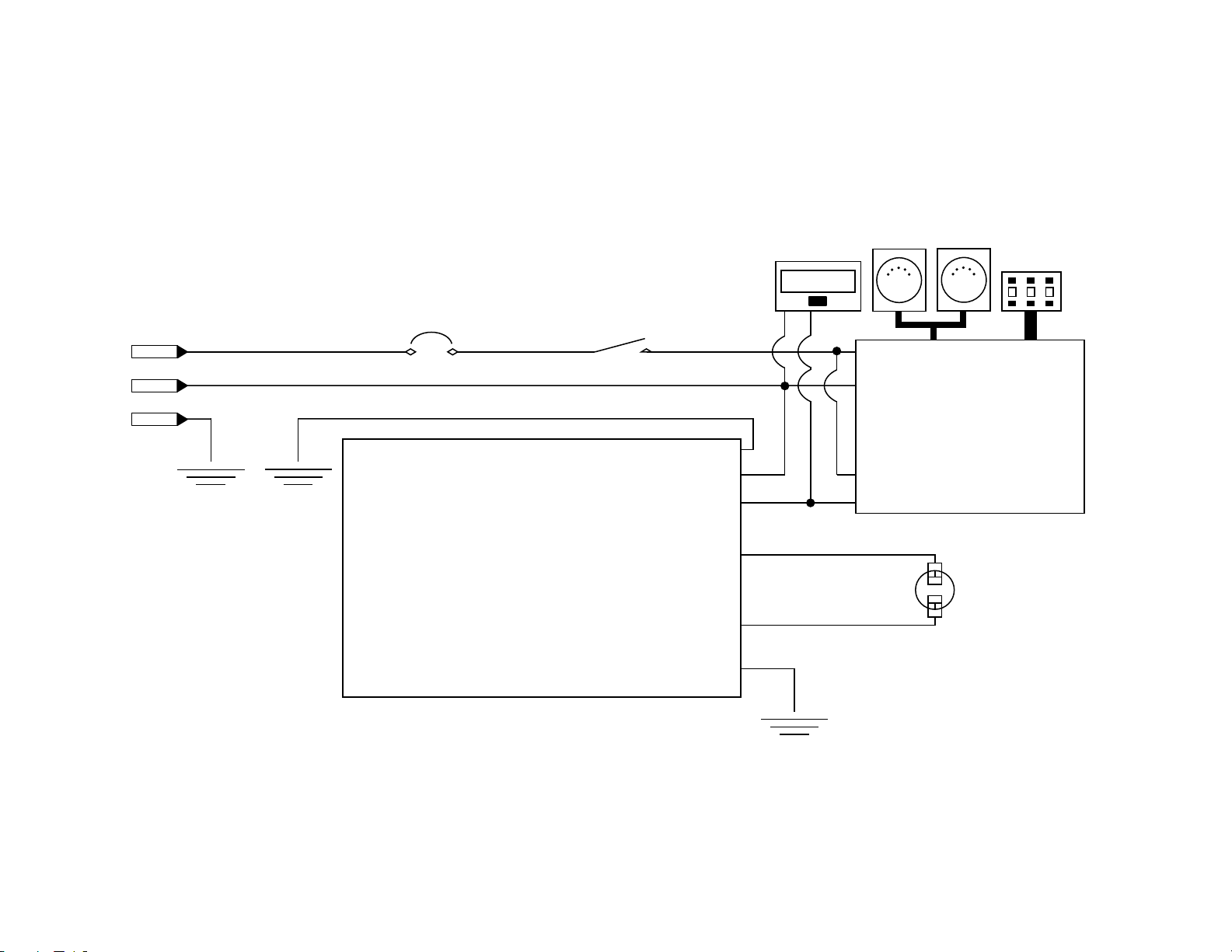

Schematic (DMX Option) 11
Spectral Transmission Graph 12
Photometrics Chart 12
2

Introduction
Congratulations on your purchase of a Wildfire 252 Long-Throw UV-A Lighting Fixture. This 250-watt series is a
family of three highly advanced fixtures providing just the right format for a wide variety of UV effect applications.
The extraordinary balance of power, throw, energy-efficiency, and value defines a new standard of excellence.
Please take a moment to read this manual thoroughly before attempting to operate this fixture. Improper set-up,
use or servicing may cause damage to the fixture and/or lamp and void the unit’s warranty.
Safety Statements
CAUTION – RISK OF EXPOSURE TO ULTRAVIOLET (UV) RADIATION DO NOT OPERATE WITHOUT
COMPLETE LAMP ENCLOSURE IN PLACE, OR IF FILTER GLASS LENS IS DAMAGED
DANGER – INTENSE HEAT AVOID CONTACT BY PERSONS AND MATERIAL.
CAUTION – RISK OF ELECTRICAL SHOCK AND FIRE DISCONNECT FIXTURE BEFORE RELAMPING. USE
WITH MAX 250W LAMP TYPE M58 (WILDFIRE IRONARC MODEL LMP-250D). DRY LOCATIONS ONLY.
NOT FOR RESIDENTIAL USE.
WARNING – THIS FIXTURE CONTAINS A HIGH INTENSITY UV METAL HALIDE LAMP, WHICH IS SAFELY
CONTAINED WITHIN AN INTERLOCKING HOUSING. WHEN THIS FIXTURE IS USED IN ACCORDANCE
WITH THE MANUFACTURERS OPERATING INSTRUCTIONS, NO HAZARDS EXIST TO MOST PEOPLE
STANDING WITHIN THE BEAM OF THE FIXTURE. HOWEVER INDIVIDUALS SUFFERING FROM A RANGE
OF SUNLIGHT EXPOSURE DISORDERS, APHAKIC AND PSEUDOAPHIKIC, OR THOSE INDIVIDUALS
RECEIVING PHOTOSENSITIVE MEDICATION MAY RECEIVE DISCOMFORT IF EXPOSED TO
ULTRAVIOLET LIGHT.
3

Specifications
Ballast:
Electronic, Power Factor > 92%
Rating:100-120VAC / 50-60Hz. / 2.5 Amps Max / 250W
220 VAC / 50-60Hz. / 1.5 Amps Max / 250W
Ballast Features:
Flicker & Noise Free
Automatic Lamp Failure Shutdown
Automatic High Temperature Shut Down
Automatic Hot Re-strike Prevention
Circuit Protection:
5 Amp Magnetic Over-current Breaker Switch (100-120VAC)
3 Amp Magnetic Over-current Breaker Switch (220VAC)
Lamp: Wildfire IronArc™ 250 Watt Metal Halide Model LMP-250D (1000 Hr. Rated)
Beam: WF-252F 90°
WF-252WS 50°
WF-252S 20°
Reflector:
Spun Aluminum, Alzak Coated
Lens: 6” UV-A Transmission Filter Glass
6” Clear Boro Float Front Glass (Optional)
Peak Spectral Transmission:
350-365nm
Optimum Operating Temperature:
+50°F to +120°F
Weight:
WF-252(WS)(F) 19.4Lbs. / 8.82kg.
WF-252S 21.9lbs / 9.95kg
Dimensions:
WF-252(WS)(F) 7.90”/20.06cm High x 8.63”/21.92cm Wide x 18.16”/46.12cm Long
WF-252S 7.90”/20.06cm High x 8.63”/21.92cm Wide x 21.90”/55.62cm Long
Accessory Bracket:
7.5” / 19.05cm
Standard Equipment:
Lamp (LMP-250D)
Pipe Mounting Clamp (ACC-0026)
Safety Cable (ACC-0027)
Specifications subject to change without notice
4

Setup & Operation
Unpacking
Unpack the fixture and carefully inspect for any signs of physical damage. Report any damage to Wildfire or
your local distributor immediately. Included with each unit should be the following items:
1. Pipe mounting clamp, designed to attach the fixture to a 11/2” to 2” pipe truss
2. Safety Cable, Provided to secure the fixture when mounted on a pipe truss
3. Wildfire IronArc™ Lamp, Model LMP-250D
Before mounting the fixture you will need to install the lamp refer to Lamp Replacement on page 6 for correct
installation.
Installation
After installing the lamp place the fixture in desired location the fixture is equipped with a yoke assembly for
mounting. The yoke may be fitted with either a pipe clamp (included) for mounting on a pipe truss or a baby bail
block or junior pin for mounting on a light stand.
If the fixture is mounted on a pipe truss be sure to use the included safety cable looping it through the yoke
assembly and around the pipe truss this will prevent the fixture from falling and possibly causing injury in the
event that the pipe clamp was not securely tightened.
To adjust the angle of the fixture loosen the knobs on either side of the unit slightly, rotate to desired angle and
tighten. Care should be taken to support the front of the fixture while loosening the knobs to prevent the fixture
from rotating forward and possibly causing injury.
The fixture comes standard with a 7.5” Bracket assembly for attaching dowsers and scrollers such as Wybron’s
Eclipse or Coloram Series as well as barndoors and other accessories. When using accessories with this fixture
be sure to attach the safety cable provided by the accessory manufacturer to the fixtures yoke assembly.
Plug the fixture into the appropriate power source. If you are controlling the unit with a lighting control board you
will need to make sure it is plugged into a non-dim circuit if the fixture is plugged into a dimmable circuit it will
not operate.
Operation
To strike the fixture push the power/breaker switch to the on position Allow at least 2 minutes for the lamp to get
to full brightness. Once the fixture has been powered up and the lamp has ignited if you shut it off and try to turn
it back on the hot re-strike prevention circuitry in the ballast will prevent the lamp from striking until it is
completely cooled (approximately 5 minutes). If the power/breaker switch is left in the on position during this
cool down period the lamp will strike automatically once it has cooled sufficiently. The ballast is also equipped
with automatic lamp failure protection circuitry that shuts the fixture down if the lamp should fail for any reason,
preventing any damage to the fixture. In addition the ballast is equipped with high temperature protection
circuitry that shuts the fixture down if the ballast case temperature exceeds 85 C when the fixture cools it will
strike again automatically.
Lamp Timer
The fixture is equipped with a lamp timer that counts the number of hours the fixture is on. The timer will only
operate when the fixtures power switch is turned on. This is used to determine when the lamp needs replacing.
Wildfire recommends replacing the lamp every 1000 hours for maximum effect. The timer will automatically
reset to zero upon reaching 9999:59:59. If you need to reset it manually depress the small button on the timer.
5

DMX Control
If your fixture is equipped with DMX control you can switch the fixture on or off via a DMX 512 signal by setting
the DMX address switch on the back of the fixture to the desired address (001 to 512). Once the fixture receives
a DMX 512 data signal above 60% (153-255) the lamp will ignite. If the data signal falls below 40% (0-101) the
lamp will extinguish. Setting the DMX address on the fixture to 601 bypasses the DMX control and allows you to
switch the fixture on or off manually. The DMX input connector pin configuration is: Common Pin 1, Data Minus
Pin 2, and Data Plus Pin 3. Pins 4 and 5 are not used at this time.
Maintenance and Troubleshooting
Lamp Replacement
Unplug the fixture. Remove any accessories from the front. Make sure the fixture is cool to the touch before
opening the front lens assembly cover. Unhook the clasps on either side of the fixture allowing the front lens
assembly cover to swing down. Grasp the lamp in the center remove it by pushing it gently to one side sliding
the other end forward. Reverse this procedure to install the new lamp. After installing gently rock the new lamp
back and forth to insure the depressions on the ends of the lamp are firmly seated on the posts of the sockets. If
the lamp is not firmly seated arcing could occur melting both the socket and lamp. Care should be taken not to
touch the new lamp directly use a cloth or glove when handling if you have touched the lamp it must be cleaned
with alcohol to remove any oils and fingerprints prior to striking. For maximum UV-A output always use Wildfire
IronArc™ lamps, and change the lamp in your fixture every 1000 hours.
Cleaning
For best performance, the reflector, lamp and filter lens should be kept free of dirt and dust. At no time should
any cleaning chemicals or abrasives be used to clean any part of the fixture. Do not spray or apply any liquid
directly to any part of the fixture. Always unplug the unit. before cleaning. For normal cleaning, a dry soft cloth
should be used to wipe any surface free from dust and light dirt. Cleaning the reflector will require that the lamp
be removed. Remove the lamp by following the instructions listed under lamp replacement above. Once the
lamp has been removed, gently wipe off the reflector using a soft dry cloth. In the event the reflector is heavily
soiled, lightly dampen the cloth with a mild window cleaning agent and wipe clean. The filter lens can be cleaned
in the same manner. The lamp should be cleaned with alcohol only.
Troubleshooting
Other than the lamp, there are no user serviceable parts in the fixture.
The fixture will not strike – Check to make sure there is power to the fixture. Make sure the power/breaker
switch on the back of the fixture has not been tripped. Unplug the unit. Check to see if it has a lamp installed
and that it is seated properly in the sockets (see lamp replacement above). Check to see if the safety cutoff
switch is making contact by closing the lens cover and listening for a clicking sound. If the fixture still is not
striking try replacing the lamp. If you have checked all of the above and the fixture still won’t strike contact
Wildfire technical support at [phone] or your local distributor.
The effect is not working anymore – Try changing the lamp. The lamp in your Wildfire fixture is rated at 1000
hours. This does not necessarily mean that the lamp will “burn out” or not light after 1000 hours it may continue
to burn for much longer period of time however the amount of UV it produces will be reduced considerably
causing the effect to appear as though it isn’t working. Wildfire recommends for maximum effect to change the
lamp every 1000 hours.
6

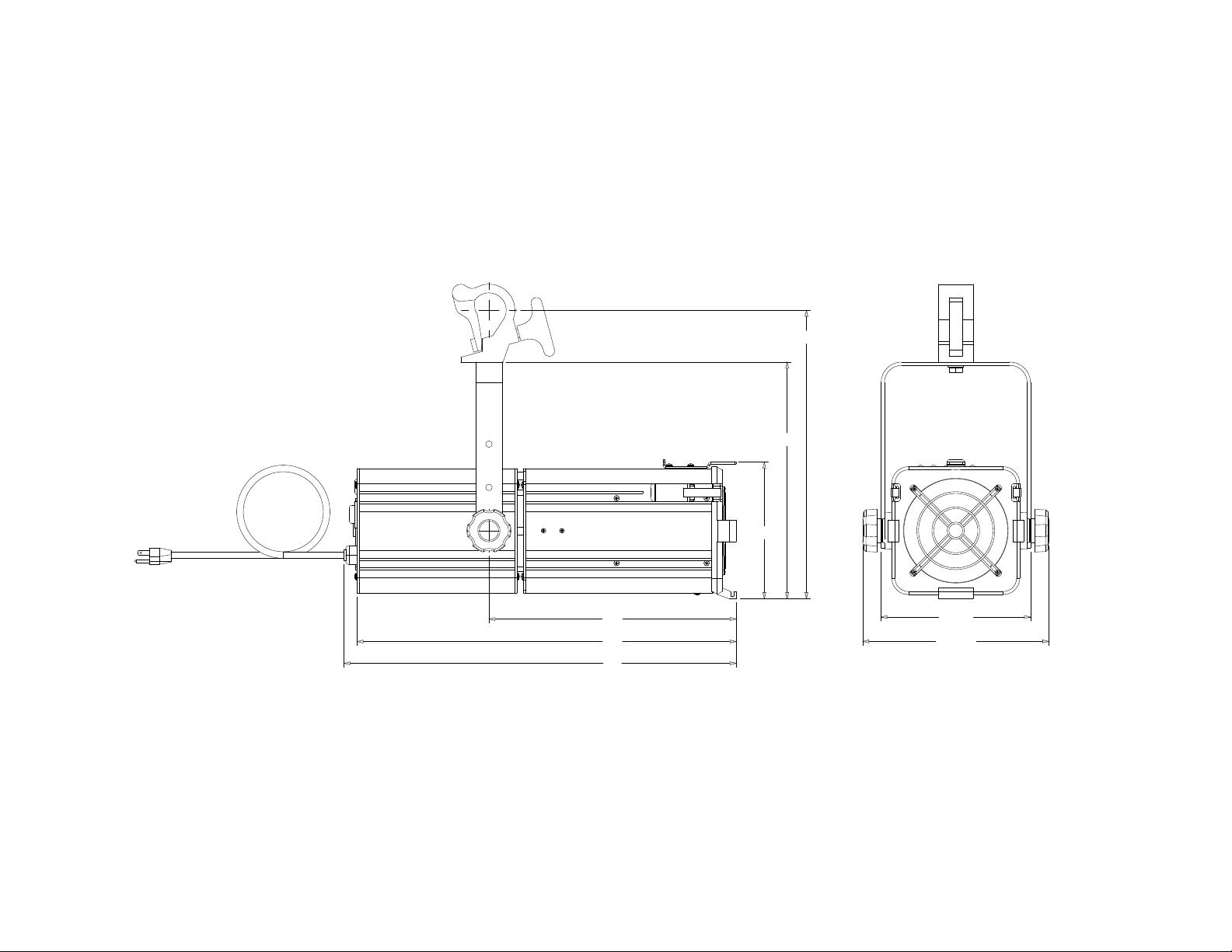

Line View
7
10.76
8.63
7.90
13.67
16.67
X
Y
Z
Diagrams
WF-252 (F) (WS)  10.54" 18.16" 19.50"
WF-252 (S)   14.30" 21.90" 23.0"

Exploded View
8
316
2
5
12
42
48
10
20
53 17
6
37
6
17
44
44
44
44
28
27
24
36
55
45
23
45
47
47
43
15
40
49
52
55
57
35
5714
13
29 45
47
56
9
43
39
39
25
51
57
11
4
5450
46
7
7
7
8
12
31
42
3222
21
53
41
11
47
1
26
30
28
38
47
18 19
32 33 34
60 61 62
47
58 59

Part List
9
# QTY. PART # PART NAME
1 1 ELE-0005 APM Hexseal, Breaker Switch
2 1 ELE-0009 Breaker, Switch, Carling, 5 amp
3 1 ELE-0015 Timer, Lamp
4 1 ELE-0016 Switch, C&K, TL Series
5 1 ELE-0021 Strain Relief, Power Cord
6 2 ELE-0024 Socket, Lamp, B&W 976, (252)(402)(402S/F)
7 1 ELE-0029 DMX Board, Socket, & Switch
8 1 ELE-0038 Power Cord, 120V
9 1 FAB-0002-A Bracket, Hinge, Soss
10 1 FAB-0003-E Yoke, 250
11 3 FAB-0006-A Bushing, Wire & Switch Routing
12 2 FAB-0008-C Component Plate, 9", 250
13 1 FAB-0010-F Lens Door, 6" Round
14 1 FAB-0012-A Safety Screen, 250
15 1 FAB-0016-A Slide Lock, Accessory
16 1 FAB-0020-C Cover Plate, DMX
17 2 FAB-0021-A Bracket, Socket, B&W 946, 250
18 1 FAB-0024-A Rod, Switch, 250, (F) (WS)
19 1 FAB-0025-A Rod, Switch, 250, (S)
20 1 FAB-0150-C Back Plate, 250
21 1 FAB-0151-B Divider Plate, Ballast, 250
22 1 FAB-0152-B Divider Plate, Lamp, 250
23 1 FAB-0154-B Iris, 250, (S)
24 4 GKT-0001 Gasket, Lens Door, 250
25 1 HAR-0017 Hinge, Soss, #101, Chrome
26 1 HAR-0019 Pipe Clamp, Mega Claw
27 2 HAR-0020-A Spacer, Casting, Yoke
28 2 HAR-0050 Knob, Yoke Adjustment
29 2 HAR-0076 Latch, Draw
30 1 HAR-2000 Cable, Safety, 1/8"
31 1 HSG-250B-A Housing, Ballast, 250
# QTY. PART # PART NAME
32 1 HSG-250LS-C Housing, Lamp, 250, (S)
33 1 HSG-250LF-C Housing, Lamp, 250, (F)
34 1 HSG-250LWS-C Housing, Lamp, 250, (WS)
35 1 LEN-0013 Lens, 6" Round, Mug 2
36 1 LEN-0014 Lens, 6" Round, Boro Float
37 1 LMP-250D Lamp, Wildfire, Iron Arc, UV, 250W
38 2 MFG-0001 Nut, Blind Rivet
39 4 MFG-0006 MS, FH, PHL, 5-40, .375", 18-8 SS
40 2 MFG-0015 Spring, Belleville Disc
41 4 MFG-0022 Standoff, 5/16 OD, 8-32, M-F
42 4 MFG-0028 MS, FH, PHL, M3, 8mm, 18-8 SS
43 4 MFG-0031 MS, PH, PHL, 8-32, .500", 18-8 SS
44 8 MFG-0034 MS, PH, PHL, 6-32, .375", 18-8 SS
45 16 MFG-0035 MS, PH, PHL, 8-32, .375", 18-8 SS
46 4 MFG-0040 Nut, 6-32, 18-8 SS, w/ Tooth Washer
47 22 MFG-0041 Nut, 8-32, 18-8 SS, w/ Tooth Washer
48 4 MFG-0043 MS, FH, PHL, 8-32, .500", 18-8 SS
49 2 MFG-0049 Washer, 3/8 OD, 11/64 ID, .032 Thk, 18-8 SS
50 4 MFG-0052 Standoff, 1/4 OD, 1/4 Tall, 6-32, M-F
51 1 MFG-0053 Bracket, Keystone
52 2 MFG-0054 Standoff, 1/4 OD, 1/8 Tall, #8, Alum
53 12 MFG-0055 SS, PH, PHL, #10, 1", 18-8 SS
54 4 MFG-0060 MS, FH, PHL, 6-32, .250", 18-8 SS
55 8 MFG-0067 Clip, Lens Retaining
56 2 MFG-0076 Nut, 8-32, Hex, Small Pattern
57 10 MFG-0078 MS, PH, PHL, 6-32, .250", 18-8 SS
58 1 PS-MH-250L1 Ballast, Electronic, 120V, 50-60HZ, 250W
59 1 PS-MH-250L2 Ballast, Electronic, 220V, 50-60HZ, 250W
60 1 RFL-001-A Reflector, 250, (S)
61 1 RFL-002-B Reflector, 250, (WS)
62 1 RFL-003-B Reflector, 250, (F)

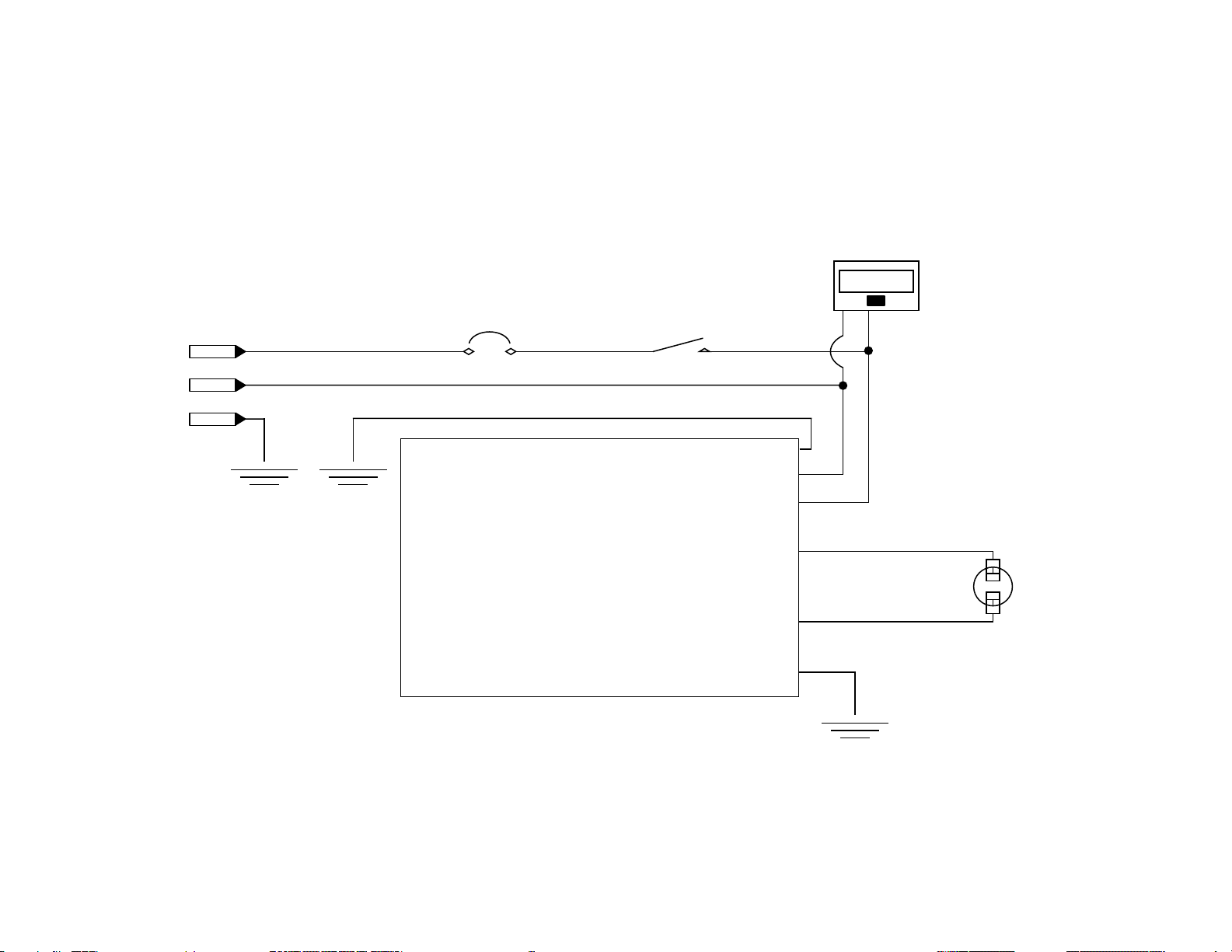

Schematic
10
SAFETY SWITCH
POWER SWITCH / CIRCUIT BREAKER
LAMP
250W
220V
COM
GRND
250W ELECTRONIC BALLAST
G
N
L
LAMP TIMER
9999:59:59
LAMPGROUND

Schematic (DMX Option)
11
SAFETY SWITCH
POWER SWITCH / CIRCUIT BREAKER
LAMP
250W
220V
COM
GRND
250W ELECTRONIC BALLAST
G
N
L
LAMP TIMER
L
N
NO
COM
DMX CONTROL BOARD
DMX IN DMX OUT
601
DMX ADDRESS
9999:59:59
LAMP
GROUND

Spectral Transmission Graph
12
Photometrics Chart
UV-B UV-A VISIBLE LIGHT IR-A IR-B
0
10%
20%
PERCENTAGE OF TRANSMISSION
WAVELENGTH /NM
30%
40%
100%
90%
80%
70%
60%
50%
280 300 320 340 360 380
400
420 440 460
480
500 520 540 560 580 600 620 640 660 680 700 720 740 760 780 800
820
840 860 880
900
920
940
960 980
1000
1100
1200
WF-252S Photometrics Chart
20°Spot
Distance in Feet /Meters
10/3.05 20/6.10
30/9.14 40/12.19
50/15.24
60/18.29 70/21.33 80/24.38
90/27.43
10 0/30.48
110/33.53
120/36.57 130/39.42
3.53
1.07
653.3
7.05
2.15
136.3
10.58
3.22
58.7
14.10
4.30
32.9
17.63
5.37
23.5
21.16
6.45
16.4
24.68
7.52
14.1
28.21
8.60
11
31.73
9.67
8.9
35.26
10.75
5.8
38.79
11.82
4.7
42.31
12.90
3.5
45.84
13.97
2.3
Beam Diameter Feet
Beam Diameter Meters
Peak UV-A Intensity W/cm2
WF-252WS Photometrics Chart
50°Wide Spot
Distance in Feet /Meters
10/3.05
20/6.10 30/9.14 40/12.19 50/15.24
60/18.29 70/21.33
80/24.38
90/27.43 10 0/30.48 110/33.53
9.33
2.84
352.5
18.65
5.68
90.4
27.98
8.53
41.1
37.30
11.37
23.5
46.63
14.21
14.8
55.96
17.05
10.5
65.28
19.90
7.5
74.61
22.74
5.6.
83.93
25.58
4.7
93.26
28.42
3.5
102.59
31.27
2.3
Beam Diameter Feet
Beam Diameter Meters
Peak UV-A Intensity W/cm2
WF-252F Photometrics Chart
90°Flood
Distance in Feet /Meters
10/3.05 20/6.10 30/9.14
40/12.19
50/15.24 60/18.29 70/21.33
20.00
6.10
188
40.00
12.19
42.3
60.00
18.29
21.1
80.00
24.38
11.7
100.00
30.48
7
120.00
36.57
3.5
140.00
42.67
2.3
Beam Diameter Feet
Beam Diameter Meters
Peak UV-A Intensity W/cm2

5200 West 83rd Street, Los Angeles, CA 90045
310-645-7787 800-937-8065 Fax: [phone]
www.wildfirefx.com [email protected]
Wildfire and its symbol are registered trademarks of Wildfire, Inc. Los Angeles, CA
IronArc and its symbol are registered trademarks of Wildfire, Inc. Los Angeles, CA
The Professional Choice and Long-Throw are trademarks of Wildfire, Inc. Los Angeles, CA
2000, 2001, 2002, 2003, 2004 Wildfire, Inc.
c
