Williams AV Digi-Wave Connect DWD 401 User manual

Digi-Wave Connect
DWD 401
USER GUIDE
Digi-Wave Connect is an analog audio cable converter box
that sends audio to and from an existing Digi-Wave 400
system. By connecting your Digi-Wave Connect to your
local audio system, you can transmit sound from your audio
equipment to your Digi-Wave group, or output the audio
from your Digi-Wave group to your local sound system.
The USB cable connects the audio in, audio out from the
Digi-Wave DLT Transceiver and provides it to the Digi-Wave
Connect.
Powering On and Charging
Connect the power cable to the power port on the Digi-
Wave connect.
Once USB cable is connected to the DLT Transceiver from
the Digi-Wave Connect, the LED on the top of the DLT
transceiver will light up. The device will charge and stay
charged while connected.
Connecting a DLT
A USB 3.1 type C cable is included with the Digi-Wave
Connect and is used to connect a DLT transceiver to the
Digi-Wave Connect.
NOTE: A Standard USB 2 type C will not work. Make sure
you are using the cable included with the system or
another USB 3.1 type C cable.
Insert one end of the USB 3.1 type C cable into the bottom
of the Digi-Wave DLT transceiver, and insert the other end
into the DLT port on the Digi-Wave Connect.
No special settings for the DLT transceiver are required for
the Digi-Wave connect to work, although settings such as
line in/out gain can be adjusted as desired.
The DLT transceiver will constantly transmit sound once
connected to the Digi-Wave Connect, even without the
use of the TALK button. To stop the transmission of audio,
disconnect the DLT transceiver from the Digi-Wave Connect.
Connecting a DLR
A DLR receiver will not provide the same functionality as
connecting a DLT transceiver. A DLR receiver does not
have a talk feature and cannot transmit sound to the Digi-
Wave group.
The DLR receiver can be used only for sending sound from
a Digi-Wave group to a local sound system. If sound does
not need to be sent to other Digi-Wave devices, this setup
may be suitable.

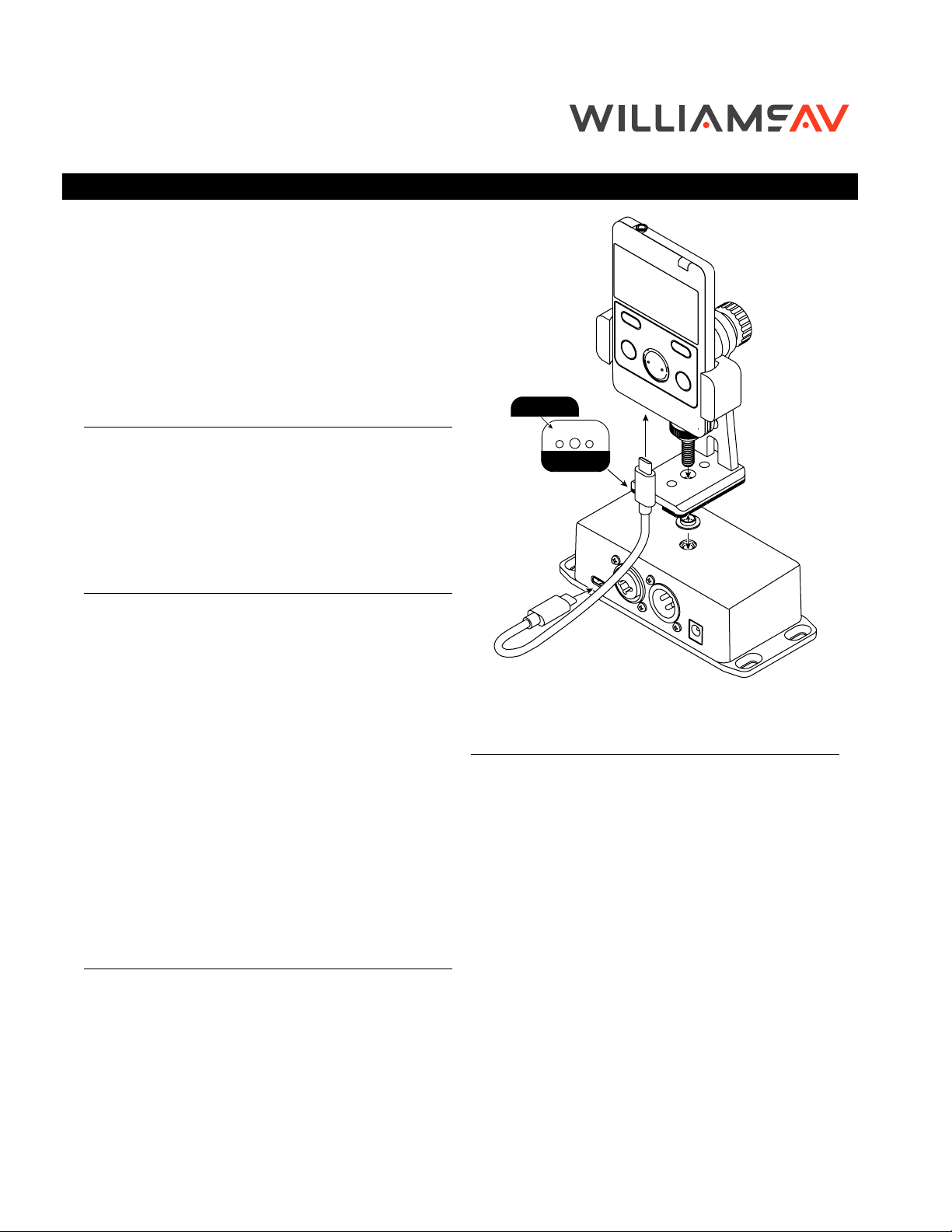

Connecting the Bracket to the Digi-Wave Connect
Attaching the Bracket
A bracket (BKT 040) is included with the DWD 401. This
bracket can be used to mount the Digi-Wave device to the
top of the Digi-Wave Connect.
To prevent scratching, remove the lining from the two
pieces of cork and attach the each piece of cork to the long
edges on bottom of the bracket.
Place the provided shoulder washer into the bottom of the
center hole on the base of the bracket. Insert the provided
large screw with the round black head from the top of the
base of the bracket through the center hole at the bottom
of the bracket and into the shoulder washer.
There is another hole in the top of the Digi-Wave Connect
that the bracket can be screwed into. Twist the large black
screw into this hole until the bracket is secured to the top of
the Digi-Wave Connect.
Place your Digi-Wave device in the upper part of the
bracket. Ensure that the USB 3.1 type cable is properly
connected.

Connecting Audio Devices
Audio devices can be connected through the Line In
XLR on the device. The Line In audio can be balanced or
unbalanced.
BALANCED LINE IN AUDIO
12
3
IN+
IN-
GND/shield
XLR3, MALE REAR VIEW
GND/shield
XLR3, MALE REAR VIEW
UNBALANCED LINE IN AUDIO
12
3
IN+
BALANCED LINE IN AUDIO
12
3
IN+
IN-
GND/shield
XLR3, MALE REAR VIEW
GND/shield
XLR3, MALE REAR VIEW
UNBALANCED LINE IN AUDIO
12
3
IN+
Connecting Audio Output
Audio output is connected via the Audio Out XLR on the
device.
UNBALANCED AUDIO OUT
1 2
3
OUT+
GND/shield
XLR3, FEMALE REAR VIEW
Playing Audio
Once the audio device and a DLT transceiver is connected,
to the Digi-Wave Connect, your audio from the DLT
transceiver is ready to be transmit sound.
Add the DLT transceiver hard-wired to the Digi-Wave
Connect to an active Digi-Wave group like you would a
normal individual user. For more information on creating
groups or channels, please see the full Digi-Wave manual.
The hard-wired DLT transceiver will transmit the audio for
that group or channel over the Audio Out of the Digi-Wave
Connect. It will also broadcast any audio from the Audio In
source over the Digi-Wave channel or group.
For Additional Information
The Digi-Wave Connect is a supplement to a Digi-Wave
system. For more information on setting up and configuring
a Digi-Wave system, please see the full user manual on the
Williams AV website.
[e-mail] / www.williamsav.com
800-843-3544 / INTL: [phone]
© 2021, Williams AV, LLC MAN 277E
'21276&$/('5$:,1*
6+((72)
5(9
'5$:,1*
180%(5
$6,=(
7,7/(
1$0(
'$7(
0)*$335
(1*$335
&+(&.('
'5$:1
',0(16,216$5(,1,1&+(6
72/(5$1&(6
)5$&7,21$/
$1*8/$50$&+ %(1'
7:23/$&('(&,0$/ 
7+5((3/$&('(&,0$/

&RQILGHQWLDO,QIRUPDWLRQ1RW7R%H
'LVWULEXWHG:LWKRXW:ULWWHQ3HUPLVVLRQ
:,//,$066281'//&
('(135$,5,(01
DLT 400 LINE IN AUDIO OUT
5VDC 1.2A
DWD 401
RoHS
CONNECT
Made in USA
Digi-Wave Connect Ports and Connections
