Williams-Sonoma LIVINGSTON User manual

12-Oct-2020 1/5
A-Lvt-24
Williams-Sonoma Inc.
Assembly Instructions
Instructions d’assemblage
Instrucciones de Ensamblaje
Pottery Barn –Pottery Barn Teen –Pottery Barn Kids –Williams Sonoma Home –West Elm –Rejuvenation –Mark and Graham
LIVINGSTON

12-Oct-2020 2/5
A-Lvt-24
Williams-Sonoma Inc.
Assembly Instructions
Instructions d’assemblage
Instrucciones de Ensamblaje
Pottery Barn –Pottery Barn Teen –Pottery Barn Kids –Williams Sonoma Home –West Elm –Rejuvenation –Mark and Graham
ENGLISH

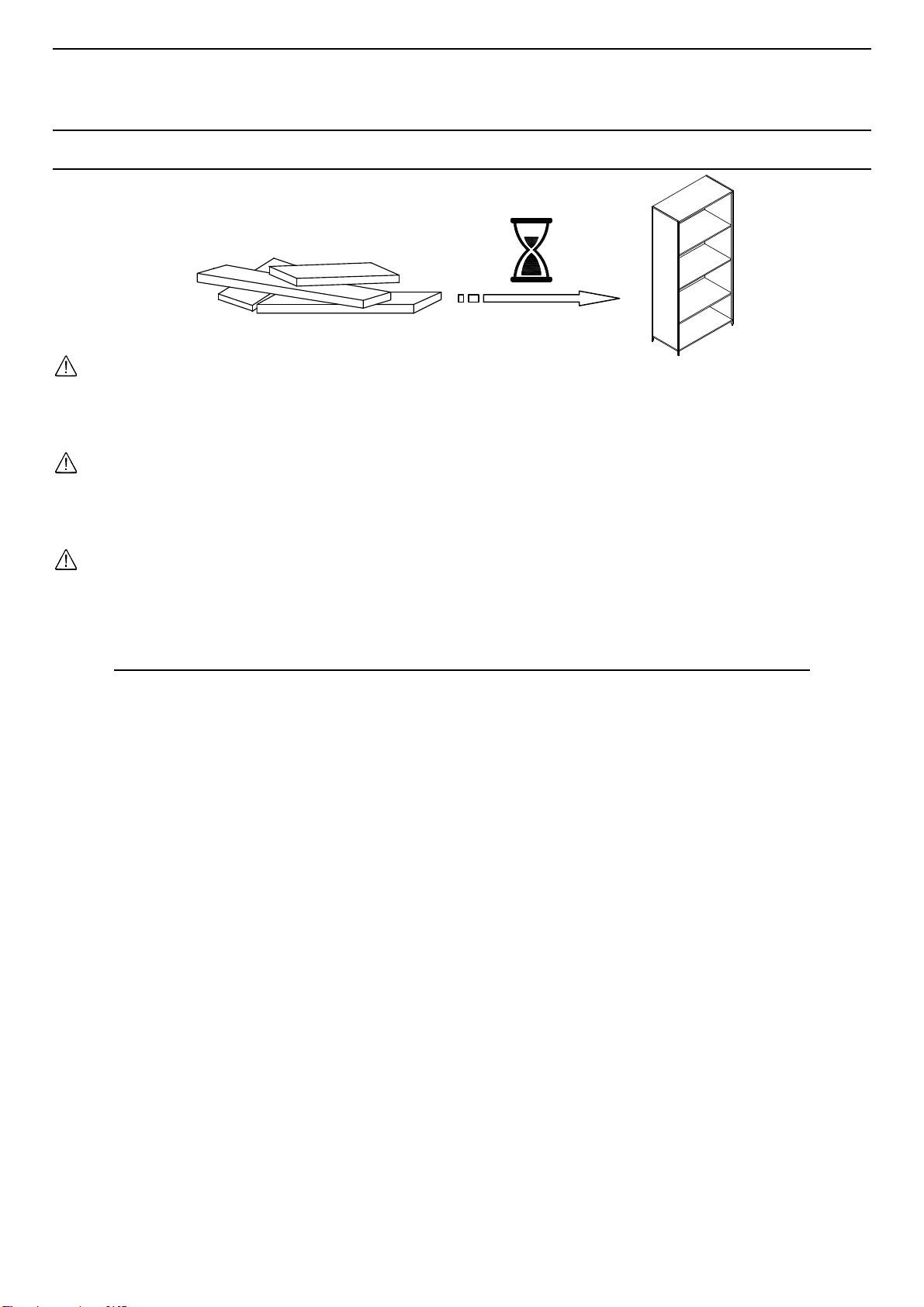

Do not dispose of any packaging or contents of the shipping carton until assembly is completed to avoid accidentally discarding
small parts or hardware.
FRANÇAIS
Ne jetez rien des produits d’emballage et du contenu de la boîte jusqu’à ce que l’assemblage soit terminé, afin d’éviter de jeter
par mégarde de petites pièces ou des morceaux.
ESPAÑOL
Para evitar desechar accidentalmente las partes pequeñas o las piezas de ferretería, no tirar el embalaje o contenido de la caja
hasta que el ensamblaje esté completo.
Care Instructions:
Dust often using a clean, soft, dry and lint-free cloth.
Blot spills and wipe with a clean, damp cloth immediately.
We do not recommend the use of chemical cleansers, abrasives or furniture polish on our lacquered finish.
Hardware may loosen over time. Periodically check to make sure all connections are tight. Re-tighten if necessary.
Instructions d’entretien :
Épousseter régulièrement avec un chiffon propre, doux et non pelucheux.
Éponger immédiatement les liquides renversés et essuyer à l’aide d’un chiffon propre et humide.
L’utilisation de produits nettoyants chimiques, d’abrasifs ou d’encaustiques sur nos finitions laquées n’est pas
recommandée.
Le matériel de fixation peut se desserrer avec le temps. Vérifiez régulièrement afin de vous assurer que tous les raccords
sont bien serrés. Resserrez-les au besoin.
Instrucciones de cuidado:
Limpiar el polvo con un trapo limpio, suave, seco y libre de pelusas.
Secar los derrames de inmediato y limpiar con un trapo limpio y húmedo.
Recomendamos no usar limpiadores químicos, abrasivos o lustramuebles sobre el acabado barnizado.
Las piezas de ferretería pueden aflojarse con el tiempo. Controlar periódicamente que estén bien ajustadas.Si es necesario,
volver a ajustarlas.
30’

12-Oct-2020 3/5
A-Lvt-24
Williams-Sonoma Inc.
Assembly Instructions
Instructions d’assemblage
Instrucciones de Ensamblaje
Pottery Barn –Pottery Barn Teen –Pottery Barn Kids –Williams Sonoma Home –West Elm –Rejuvenation –Mark and Graham
X2
NOT INCLUDED / NON INCLUS / NO INCLUIDAS
NOT INCLUDED / NON INCLUS / NO INCLUIDAS

12-Oct-2020 4/5
A-Lvt-24
Williams-Sonoma Inc.
Assembly Instructions
Instructions d’assemblage
Instrucciones de Ensamblaje
Pottery Barn –Pottery Barn Teen –Pottery Barn Kids –Williams Sonoma Home –West Elm –Rejuvenation –Mark and Graham
A
B
C
100%
A
B
C


C8X
1.
D
Allen Bolts 1/4" x 1-1/2" (8x)
E
Allen Key M4 (1x)
F
G
H
Board (1x)
2.
Drill Bit (1x)
Bolt Connector (4sets)

12-Oct-2020 5/5
© 2019 Williams-Sonoma, Inc. A-Lvt-24
Williams-Sonoma Inc.
Assembly Instructions
Instructions d’assemblage
Instrucciones de Ensamblaje
Pottery Barn –Pottery Barn Teen –Pottery Barn Kids –Williams Sonoma Home –West Elm –Rejuvenation –Mark and Graham
4X
F
F
100%
H
4X
G
100%
3.
4.
5.

Page 1of 5
LIVINGSTON SINGLE BOOKCASE HUTCH
Date : 30-March-16
Rev : -www.potterybarn.com

Page 2of 5
Important Safety Instructions:
Please read all instructions carefully before assembling.
For your safety, assembly by two or more adults is strongly recommended.
Keep instructions for future use.
Use only vendor supplied hardware to assemble. Using unauthorized hardware could jeopardize the structural
integrity of the item.
The Livingston Single Bookcase Hutch is designed for use with Livingston Single Drawer Pedestal or Single
Glass Door.
Pre-assembly:
Remove all parts and hardware from the box and lay out on a clear carpeted or scratch-free work surface, as
this will avoid damaging parts during assembly. The shipping box provides an ideal work surface.
Do not dispose of any packaging or contents of the shipping carton until assembly is completed to avoid
accidentally discarding small parts or hardware.
Use the parts and hardware lists below to identify and separate each of the pieces included.
The illustrations provided allow for easier assembly when used in conjunction with the assembly instructions.
The use of power tools to aid in assembly is not recommended. Power tools can damage hardware and split
wood.
Parts Enclosed:
Livingston Single Bookcase Hutch
(A) Top Panel –1x
(B) Side Panel –2x
(C) Bottom Rail –1x
(D) Back Panel –1x
(E) Fixed Shelf –1x
(F) Adjustable Shelf –1x

I. Allen Bolts ¼” x 1 ¼” –8x
J. Allen Bolts ¼” x 2” –6x
K. Halfmoon Washers –6x
L. Spring Washers –6x
M. Bolts Connector –3 Set
N. Allen Key M4 –1x
O. Mending Plate –2x
P. Bolt JF 5/32” x ½” – 4x
Q. Shelf Pins –4x
R. Screw 6 x ¾” –24x
S. Drill –1x
Bases Options (sold separately:
Livingston Single Drawer Pedestal and Single
Top (G)
Livingston Single Glass Door and Single Top (H)
Hardware Enclosed:
Tool Required:
A
B
D
F
E
C
G
H

Page 3of 5

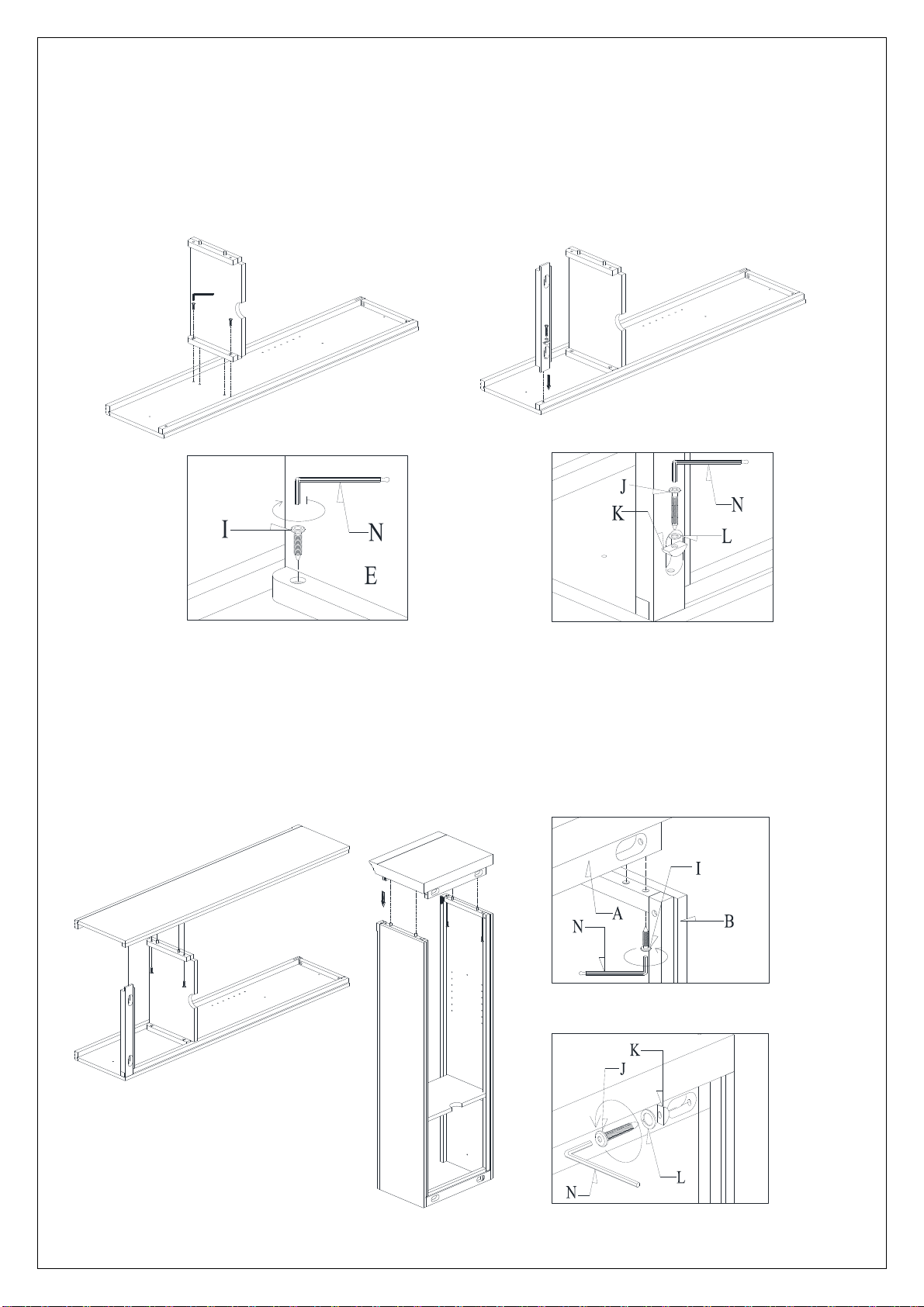

1. Carefully lay the one Side Panel (B) on a flat, scratch-free or carpeted surface. Attach the Fixed Shelf (E) by
inserting dowels on the fixed shelf into the holes on the Side Panel (B) shown in fig. 1.
2. Insert the Allen Bolts (I) through the holes on the cleat of the Fixed Shelf (E) into the inserts on the Side Panel
(B), tighten with theAllen Key (N) as shown in fig. 1, illustration. 1.
3. Attach the Bottom Rail (C) to the Side Panel (B). Place Spring Washers (L), halfmoon washers (K) onto the Allen
Bolts (J) through the holes on the cutout of the Bottom Rail (C) into the inserts on the Side Panel (B) as shown in
fig. 2 illustration. 2.
Fig.1 Fig. 2
Illustration. 1 IIllustration. 2
4. Attach the other Side Panel (B) and repeat step 2 & 3 as shown in fig. 3.
5. Attach the Top Panel (A) by inserting dowels on the Side Panels (B) into the holes on the Top Panel (A). Insert
the Allen Bolts (I) through the holes on the cleat of the Side Panels (B) into the inserts on the Top Panel (A),
tighten with theAllen Key (N) as shown in fig. 4, illustration. 3.
6. Place Spring Washers (L), Halfmoon Washers (K) onto the Allen Bolts (J) through the holes on the cutout of the
front and back rails of the Top Panel (A) into the inserts on the Side Panels (B) as shown in fig. 4 illustration. 4.
IIllustration. 3
Fig. 3 Fig. 4
IIllustration. 4
A
B
E
C
B
E
B
B
E
E
B
C

Page 4of 5

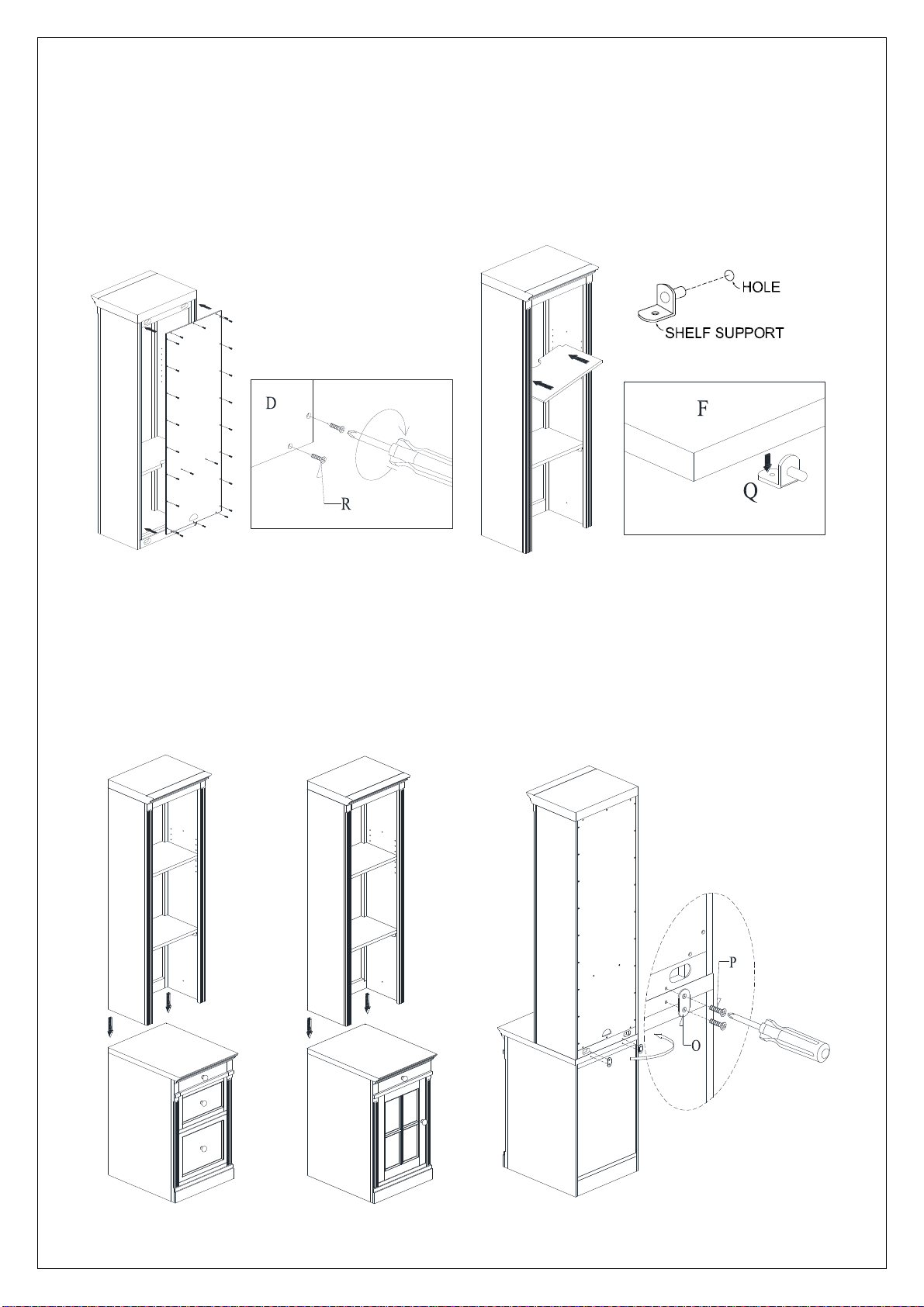

7. Attach the Back Panel (D) to the cabinet, insert Screws (R) into the pre-drilled holes on the back panel. Tighten
with a Screwdriver (not included) as shown in fig. 5, illustration. 5.
8. Attaching Adjustable Shelves as shown in fig. 6, illustration. 6 & 7:
Determine desired height for Shelf (F), insert the Shelf Pins (Q) in the pre-drilled holes located on the side
panels of the cabinet until they are fully secure.
Put the Shelf (F) into the cabinet by inserting the shelf “diagonally”. Place adjustable Shelf (F) onto the
Shelf pins (Q). Make sure the shelves are stable.
Fig. 5 Fig. 6 IIllustration. 6
IIllustration. 5 IIllustration. 7
Assembly Instructions:
Livingston Single Hutch with Livingston Single Drawer Pedestal and Single Top (G) or Livingston Single
Glass Door and Single Top (H) :
1. Lay Single Hutch on the Single Drawer Pedestal (G) or Single Glass Door (H) as shown in fig. 7.
2. Align the holes on the back of the Single Hutch with the holes on the back of the Single Drawer Pedestal (G) or
Single Glass Door (H). Attach Mending Plates (O) by Inserting the flat head Bolts (P) through the holes on the
Mending Plate (O) as shown in fig. 7, illustration. 8. Tighten with a screwdriver (not included).
Fig. 7 Fig. 8
IIllustration. 8
D
F

Page 5of 5

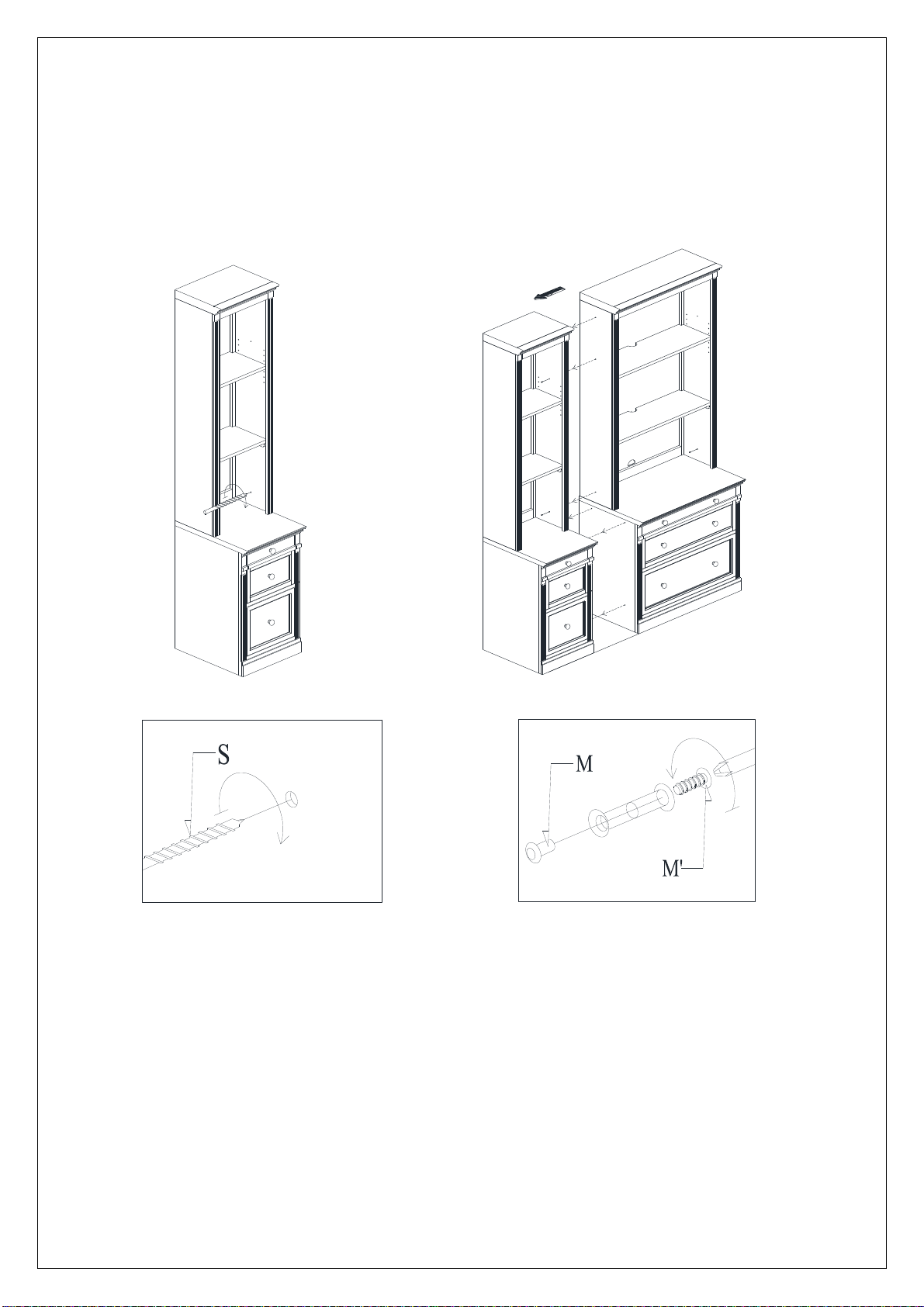

Livingston Single Hutch, Single Drawer Pedestal and Single Top with Livingston Double Hutch, Double
Lateral File and Double Top.
1. Position Livingston Modular items at the desired location.
2. Use Drill Bit (S) to penetrate the pre-drilled holes on the side panels of the furniture that will be connected
together as shown in fig. 9, illustration. 9.
3. Align the holes of each item with other and insert the connector bolts (M & M’) then tighten with a screwdriver
(Not Included) as shown in fig. 10, illustration. 10.
Fig. 9 Fig. 10
Illustration. 9 Illustration. 10
Care Instructions:
Dust often using a clean, soft, dry and lint-free cloth.
Blot spills immediately and wipe with a clean, damp, cloth.
We do not recommend the use of chemical cleansers, abrasives or furniture polish on our lacquered finish.
Thank you for your purchase
Stores | catalog | www.potterybarn.com

Page 1of 4
LIVINGSTON SINGLE TOP
Date : 25-March-16
Rev : -www.potterybarn.com

Page 2of 4
Important Safety Instructions:
Please read all instructions carefully before assembling.
For your safety, assembly by two or more adults is strongly recommended.
Keep instructions for future use.
Use only vendor supplied hardware to assemble. Using unauthorized hardware could jeopardize the structural
integrity of the item.
The Livingston Single Top is designed for use with Livingston Single Drawer Pedestal & Single Glass Door.
Pre-assembly:
Remove all parts and hardware from the box and lay out on a clear carpeted or scratch-free work surface, as
this will avoid damaging parts during assembly. The shipping box provides an ideal work surface.
Do not dispose of any packaging or contents of the shipping carton until assembly is completed to avoid
accidentally discarding small parts or hardware.
Use the parts and hardware lists below to identify and separate each of the pieces included.
The illustrations provided allow for easier assembly when used in conjunction with the assembly instructions.
The use of power tools to aid in assembly is not recommended. Power tools can damage hardware and split
wood.

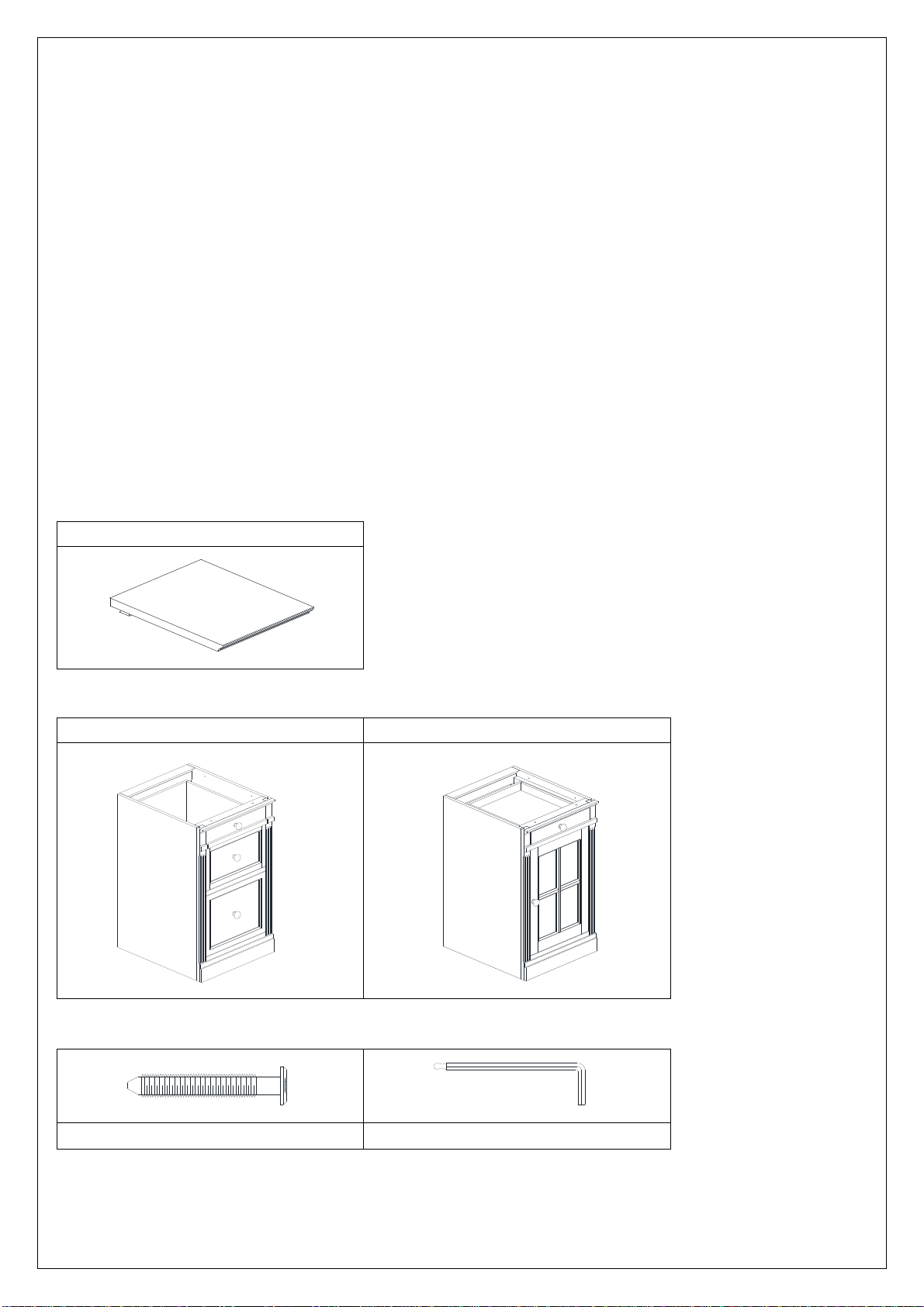

Parts Enclosed:
(A) Livingston Single Top –1x
Bases Options (sold separately):
(B) Livingston Single Drawer Pedestal File
(C) Livingston Single Glass Door
Hardware Enclosed:
D. Allen Bolts ¼” x 1 ½” –2x
E. Allen Key M4 –1x

Page 3of 4

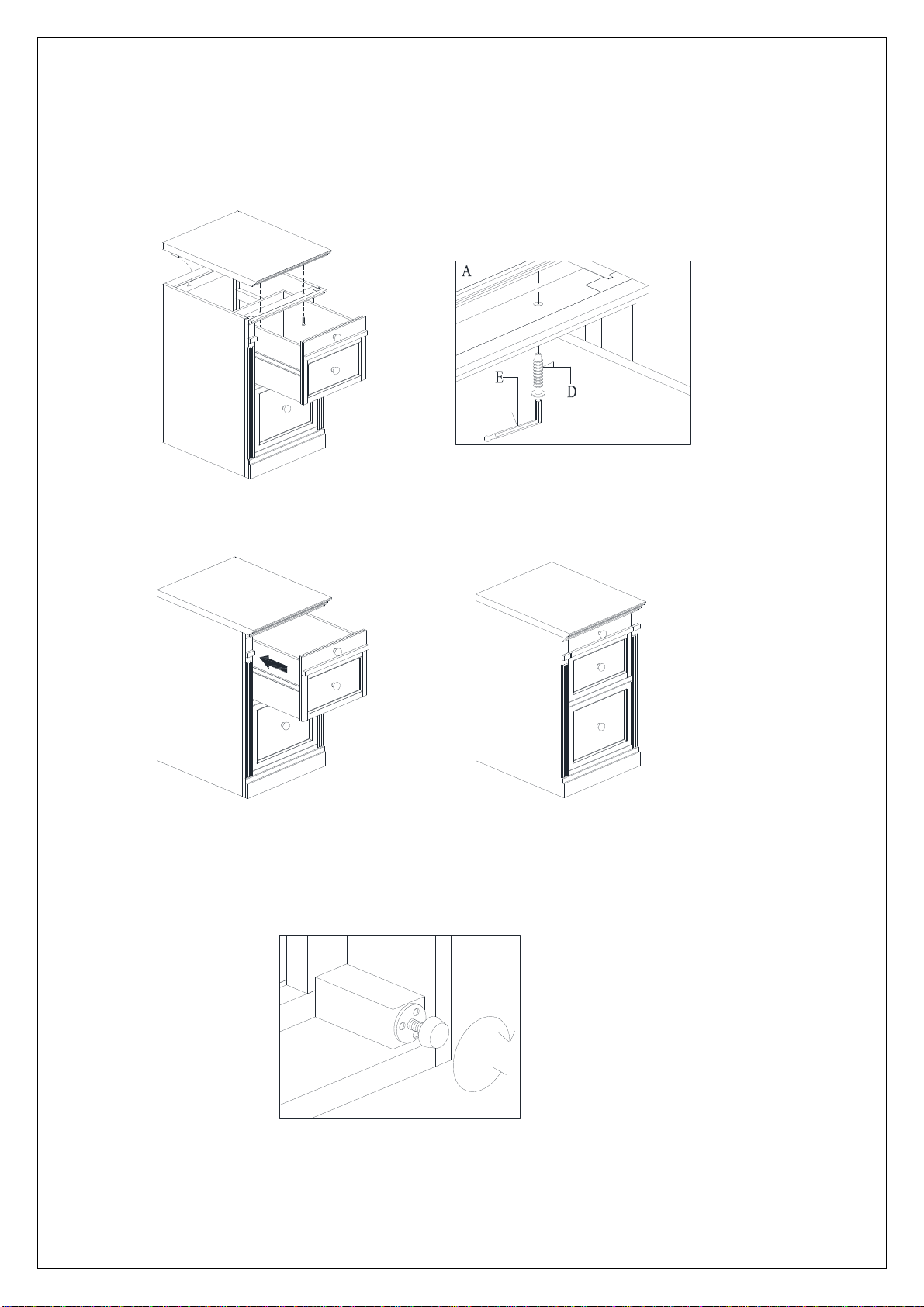

Assembly Instructions:
Livingston Single Top (A) and Livingston Single Drawer Pedestal File (B)
1. Open upper drawer of Livingston Single Drawer Pedestal File (B). Attach the Single Top (A) on the top of the
Pedestal File (B). Insert the Allen Bolts (D) through the holes on top frame of the Pedestal File (B) into the
inserts on the Single Top (A). Tighten with the Allen Key (E) as shown in fig. 1 illustration. 1.
Fig. 1
Illustration. 1.
2. Close the drawer of Livingston Single Drawer Pedestal File (B) back to the previous position as shown in fig. 2.
Fig. 2
3. If the floor is uneven adjust the recessed levelers found on the bottom of the furniture as shown in illustration.
3.
Carefully grasp one side of the furniture and elevate it slightly to provide access to levelers. Turn the leveler
until adequate contact will be made with the floor. Carefully set the furniture down. Repeat until the furniture sits
level and stable. Illustration. 3
Care Instructions:
Dust often using a clean, soft, dry and lint-free cloth.
Blot spills immediately and wipe with a clean, damp, cloth.
We do not recommend the use of chemical cleansers, abrasives or furniture polish on our lacquered finish.
A
B

Page 4of 4
Livingston Single Top (A) and Livingston Single Glass Door (C)
1. Release upper drawer from the cabinet by fully extend the drawer case. Locate the release tabs on the right
and left-hand slides as shown on fig. 1. Simultaneously press the release tabs up and down while pulling out
the drawer as shown in fig. 1, illustration. 1.
Fig. 1 Illustration. 1
To release upper drawer of Glass Door Cabinet
2. Insert the Allen Bolts (D) through the holes on top frame of the Pedestal File (B) into the inserts on the Single
Top (A). Tighten with theAllen Key (E) as shown in fig. 2 illustration. 2.
3. Put the drawer back to the previous positions. Slide the drawer into the cabinet. Align the drawer rails together
as shown in fig. 3, illustration. 3. Avoid pushing the drawer forcefully into the cabinet, as this may damage the
drawer rails. The ball bearing drawer rail should slide easily into the cabinet.
Illustration. 2 Illustration. 3
4. If the floor is uneven adjust the recessed levelers found on the bottom of the furniture as shown in illustration.
4.
Carefully grasp one side of the furniture and elevate it slightly to provide access to levelers. Turn the leveler
until adequate contact will be made with the floor. Carefully set the furniture down. Repeat until the furniture sits
level and stable.
Illustration. 4
Care Instructions:
Dust often using a clean, soft, dry and lint-free cloth.
Blot spills immediately and wipe with a clean, damp, cloth.
We do not recommend the use of chemical cleansers, abrasives or furniture polish on our lacquered finish.
Thank you for your purchase
Stores | catalog | www.potterybarn.com
C
A
C
A
Fig. 2
Fig. 3

Page 1of 4
LIVINGSTON SINGLE DRAWER PEDESTAL
LIVINGSTON DOUBLE LATERAL FILE
Date : 30-March-16
Rev : -www.potterybarn.com

Page 2of 4
Important Safety Instructions:
Please read all instructions carefully before assembling.
For your safety, assembly by two or more adults is strongly recommended.
Keep instructions for future use.
Use only vendor supplied hardware to assemble. Using unauthorized hardware could jeopardize the structural
integrity of the item.
The Livingston Single Drawer Pedestal, Double Lateral File is designed for use with Livingston Single Top,
Single Glass Door and Double Glass Door Cabinet.
Pre-assembly:
Remove all parts and hardware from the box and lay out on a clear carpeted or scratch-free work surface, as
this will avoid damaging parts during assembly. The shipping box provides an ideal work surface.
Do not dispose of any packaging or contents of the shipping carton until assembly is completed to avoid
accidentally discarding small parts or hardware.
Use the parts and hardware lists below to identify and separate each of the pieces included.
The illustrations provided allow for easier assembly when used in conjunction with the assembly instructions.
The use of power tools to aid in assembly is not recommended. Power tools can damage hardware and split
wood.
Parts Enclosed:
(A) Livingston Single Drawer Pedestal –1x
(B) Livingston Double Lateral File –1x
Needed for Assembly (sold separately):
(C) Livingston Single Top –1x
(D) Livingston Double Top –1x
Hardware Enclosed:
G. Bolts Connector –4 Set
H. Drilling –1x
Note: To connect the Cabinet with other modular items, Top need to be detach from the case.

Page 3of 4
Assembly Instructions:
Configuration #1: Livingston Single Drawer Pedestal (A) or Double Lateral File (B) and Livingston Single
Top (C) or Double Top (D).
To install the Livingston Drawer Pedestal (A) or Double Lateral File (B) with the Tops (C and D), please follow the
assembly instruction which is come with the Livingston Single or Double Top (C and D).
Configuration #2: Livingston Single Drawer Pedestal with Single Top (C) and Livingston Double Lateral File
with Double Top (D)
1. Open the upper drawer of the cabinet, push the fin of the Anti-Tip Interlock pre-attached on the cabinet as
shown in fig. 1, illustration. 1, then open the lower drawer as shown in fig. 2.
2. Use Drill Bit (H) to penetrate the pre-drilled holes on the side panels of the cabinet for inserting Bolts
Connector (G) as shown in fig. 2, illustration 2.
3. Insure all items which will be set up together have the same level. If not please adjust the levelers found on
the bottom of the furniture as shown in illustration. 3. Carefully grasp one side of the furniture and elevate it
slightly to provide access to levelers. Turn the leveler until adequate contact will be made with the floor.
Carefully set the furniture down. Repeat until the furniture sits level and stable.
Fig. 1 Illustration. 1
Fig. 2 Illustration. 2 Illustration. 3

Page 4of 4
4. Align the holes and insert the connector bolts (G & G’) then tighten with a screwdriver (Not Included) as
shown in fig. 4, illustration. 4.
Illustration. 4
Fig. 4
5. Attach top panel onto the cabinets (Single Drawer Pedestal/Double Lateral File) following the assembly
instruction of the Livingston Single Top / Livingston Double Top as shown in fig. 5.
6. The file bars in the drawer-file have been installed for legal sized files.
7. If use the letter sized files, release screws pre-attached on the sides of drawer box to remove the metal
holders. Position the metal holders to other pre-drilled holes provided on the sides of drawer box and insert
the screws into the pre-drilled holes, tighten with screwdriver as shown in fig. 6, illustration 4 & 5.
Fig. 5 Fig. 6
Illustration. 4 Illustration. 5
Care Instructions:
Dust often using a clean, soft, dry and lint-free cloth.
Blot spills immediately and wipe with a clean, damp, cloth.
We do not recommend the use of chemical cleansers, abrasives or furniture polish on our lacquered finish.
Thank you for your purchase
stores | catalog
