Williams Sound SORIN User manual

With SORIN, your voice will never get tired.
User’s Manual
MAN 141B

www.williamssound.com • 1-800-843-3544 • 952-943-2252
2
SORIN Personal Voice Assistant
Installation Guide & User Manual
Contents Page
System Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
System Features & Benefits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Operating Instructions
Battery Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Turning power on/off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Charging the speaker . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Checking the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Using the Microphone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Connecting External Device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Using the Stand . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Using the Waist Band / Belt Clip . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Using the Shoulder Strap . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Using the Ear Microphone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Recycling Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
System Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

1-800-843-3544 • 952-943-2252 • www.williamssound.com
3
System Components
(1) SORIN amplified speaker (SPK 025)
(1) Handheld microphone (MIC 040)
(1) Headset/earclip with mini USB connector (MIC 041)
(1) Li-ion Battery pack (BAT 040)
(1) Power supply, switcher US plug (TFP 040)
(1) Auxiliary input cable, 3.5mm-3.5mm, 120 cm (WCA 042)
(1) Speaker stand, black (STD 006)
(1) Belt Clip, black (CLP 024)
(1) System carry case (CCS 040)
(1) Speaker pouch, black (BAG 030)
(1) Shoulder strap/lanyard, 150 cm (RCS 006)
(1) Belt strap, 120 cm (RCS 007)
(2) Lanyard connectors (LCC 001)
(1) Mini USB jack extension cable, 350cm (WCA 043)
(1) Manual

www.williamssound.com • 1-800-843-3544 • 952-943-2252
4
System Features & Benefits
• Powerful digital amplifier with 12V, 20W DC/DC converter technology
• Main speaker has an output of 5W (max 10W) and mini woofer of 1W (Max 2W)
• Connects to external devices such as an MP3 player through the AUX input
• Durable, unique design with high gloss finish
• Convenient one-touch on/off button
• Easy to read display provides important battery
information and on/off indicator
• Includes stand for placing on a table or desk and
belt clip for handsfree operation
• Lightweight design (270g)
• Siren/alert button on top of unit. Makes distinctive
“beep”sound to alert a party in the event of an
emergency.
• Ideal for school teachers, tour groups, churches,
workshops, public speaking, speech therapy,
sports events, gatherings and much more.

1-800-843-3544 • 952-943-2252 • www.williamssound.com
5
Important Safety Information
• Keep out of reach of children and pets
• If the product becomes wet:
do not use . Call
Williams Sound customer service: 800-843-3544
or 1-952-943-2252
• Do not handle charging cable with wet hands
• Prior to using, set the volume on the micro-
phone to the lowest level. Once on, adjust the
volume only to the minimum level needed
• Do not position the speaker too close to the
ears
• Do not attempt to disassemble or repair the
product
• Do not drop, shake, or expose to impacts
• Do not set heavy objects on top of the unit
• Do not use the system in high humidity envi-
ronments
• Do not expose the product to dirt and grime
• Avoid using the product in direct sunlight or
high temperatures
• Do not clean the product with chemicals
• Do not push multiple buttons at one time
• If the product is not used for a long period,
disconnect the battery from the speaker.
Charge the battery every three months to
maintain normal operation.
• Store battery at room temperature only
(between 40° to 80° F).
• Do not expose battery to temperatures above
140° F for any extended period
• Do not charge the battery for extended periods
of time.This may overheat and damage the unit
•
Do not use a charger or auxiliary input cord
not included with this system or it may dam-
age the unit
• If you experience feedback (a squealing or
howling sound), reduce the volume setting
and move the microphone away from the
earphone or headphone
• This product is designed for domestic use.
Therefore, if using overseas, a charger
adapter will be required

www.williamssound.com • 1-800-843-3544 • 952-943-2252
6

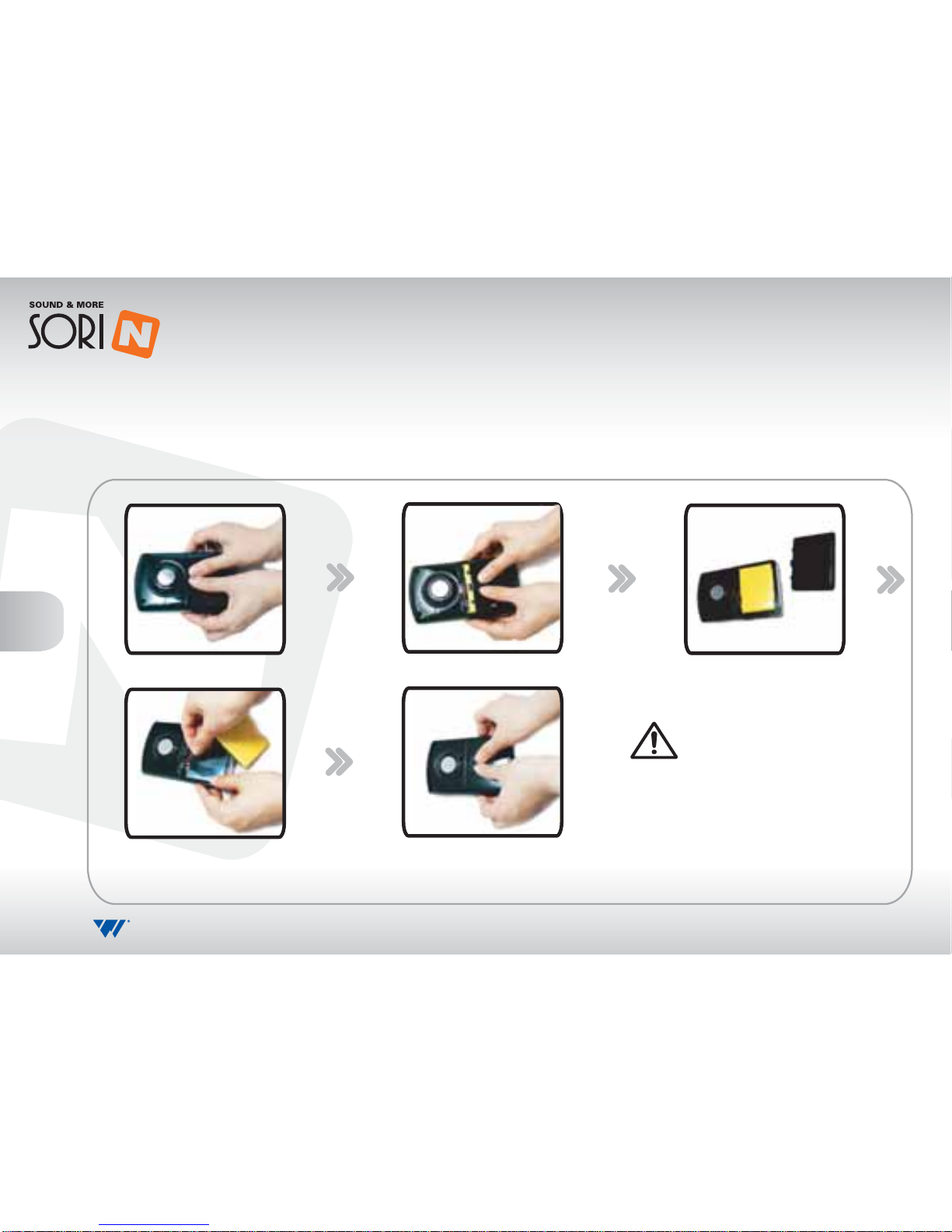

Instructions: Battery Installation
IMPORTANT: The battery shipped with this unit was disconnected at the factory.
Prior to using the Sorin product, connect the battery as shown:
1. Pull down the cover while pressing the upper part of the
company’s logo with thumbs. 2. The battery will be visible
after opening the cover.
3. Connect the battery to the product. 4. Close the case.
WARNING: Use only the
battery pack sold with this
unit. Never charge the battery
with a substitute battery charger.
Do not allow the battery to
become short circuited.

1-800-843-3544 • 952-943-2252 • www.williamssound.com
7

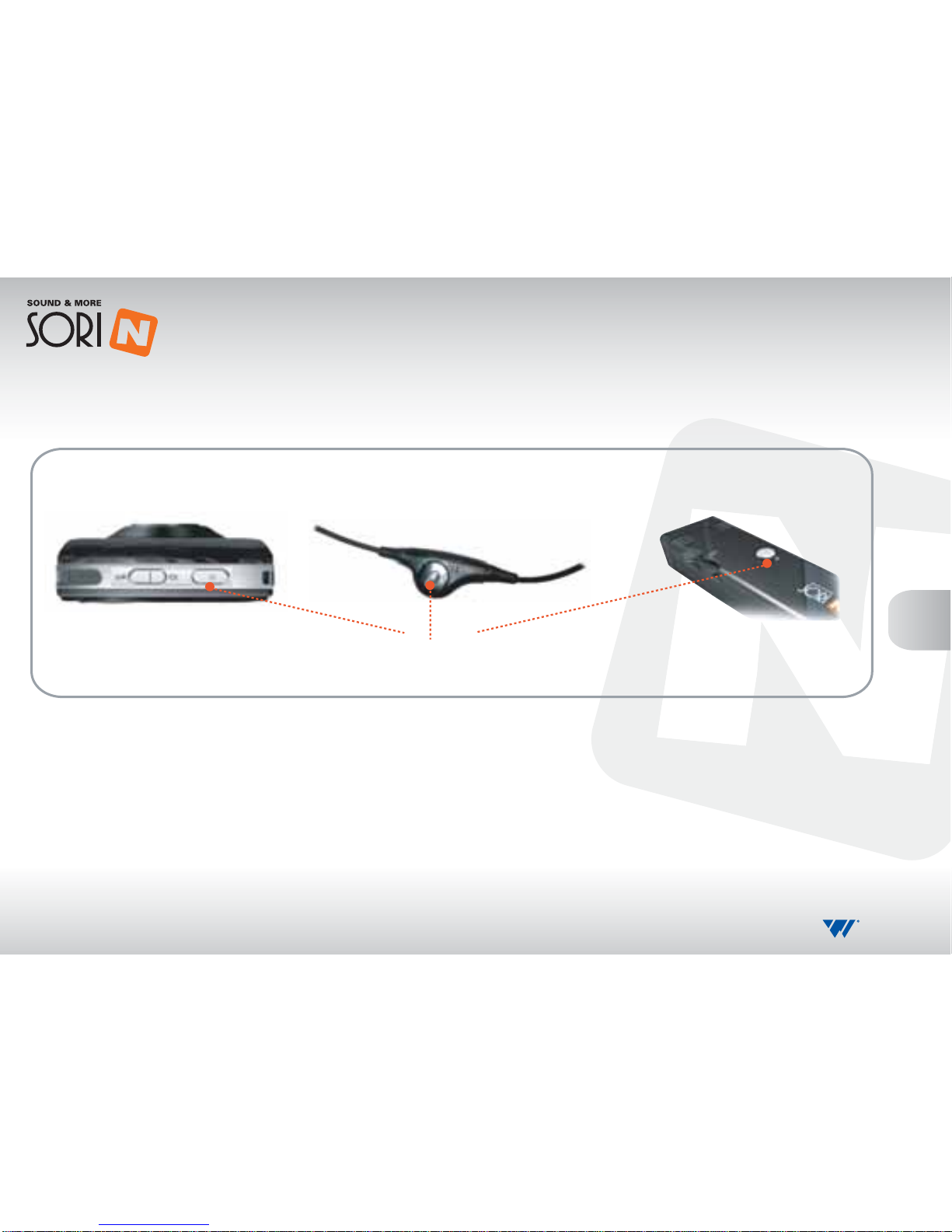

Turning power on/off
• Individual power buttons located on speaker, ear mic and compact mic
• Speaker turns ON after pushing the button for 1 second
• Speaker turns OFF after pushing the button for 1 second
Power button
Speaker Ear mic Compact mic

www.williamssound.com • 1-800-843-3544 • 952-943-2252
8
Charging the Speaker
Charge the speaker as follows:

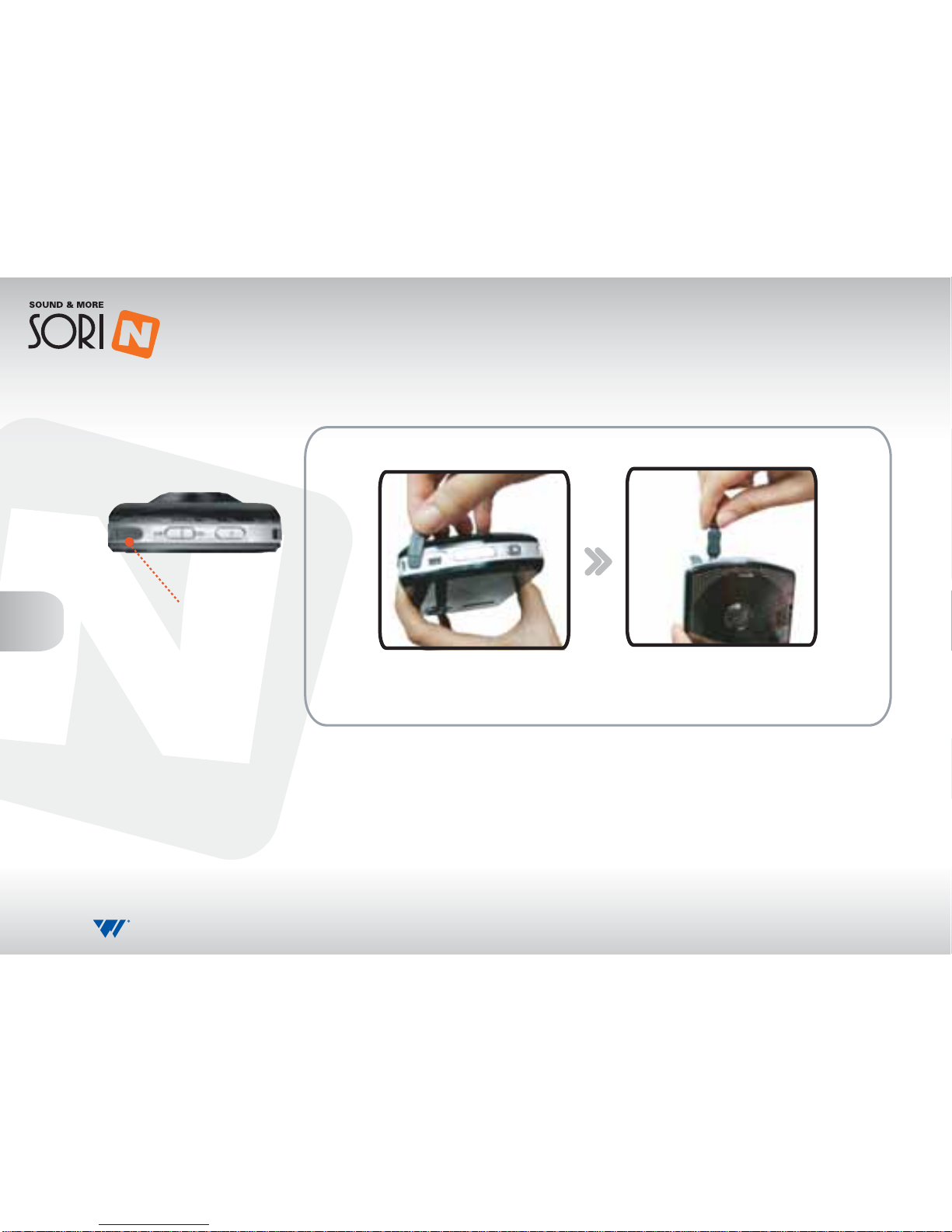

1. Open the rubber cap on the
left side of the speaker
Charging terminal
• Prior to use, charge the unit for at least 3 hours. Note: Charger can be used to
power the speaker provided the battery is fully charged.
• If the product is not used frequently, disconnect the battery in the battery com-
partment. Charge the battery every 3 months to maintain proper function
IMPORTANT: Only charge the battery at temperatures between 32° to 110° F.
2. Connect charging cable to
the lower slot

1-800-843-3544 • 952-943-2252 • www.williamssound.com
9
Checking the Battery
Battery indicator
Power (red)
Charging (yellow) Charged (green)
Battery indicator chart
80% 60% 40% 20%
Green Green Green Red (FULL)
Green Green Red
Green Red
Red (LOW)
• Users can verify if the battery is charged, charging, and if the power is on/off.
• If the indicator shows “GGGR,” the battery is full charged and ready for use.
• If the indicator shows “R,” the unit needs charged.

www.williamssound.com • 1-800-843-3544 • 952-943-2252
10
Using the Microphone
Mic connection terminal
1. Open the rubber cap
on top-left side of the
speaker
1. Connect microphone
cable to the speaker
• Connect microphone cable to the microphone terminal.
• Turn the power on by pressing the power button for 1 second
• Adjust the volume control on the microphone
If you experience feedback, lower the speaker volume and/or move the
microphone away from the speaker.

1-800-843-3544 • 952-943-2252 • www.williamssound.com
11
Connecting External Devices
• Users may connect external audio devices such as an MP3 or CD player
to the AUX input on the speaker.
MP3 Player
CD Player
Computer
1. Connect MP3 player or CD
player with AUX cable and to
the AUX input on the left side
of the speaker
AUX Input

www.williamssound.com • 1-800-843-3544 • 952-943-2252
12
Using the Stand
Set the Sorin on a flat surface such as a table or desk.
1. Set the stand on the three o’clock position on the back side of the
speaker and turn 90 degrees to lock into place

1-800-843-3544 • 952-943-2252 • www.williamssound.com
13
Using the Waist Band & Belt Clip
1. Place the belt clip at a three o’clock position on
top of the metal plate on the back of the speaker.
Turn the belt clip 90 degrees to lock into place.

www.williamssound.com • 1-800-843-3544 • 952-943-2252
14
Using the Shoulder Strap

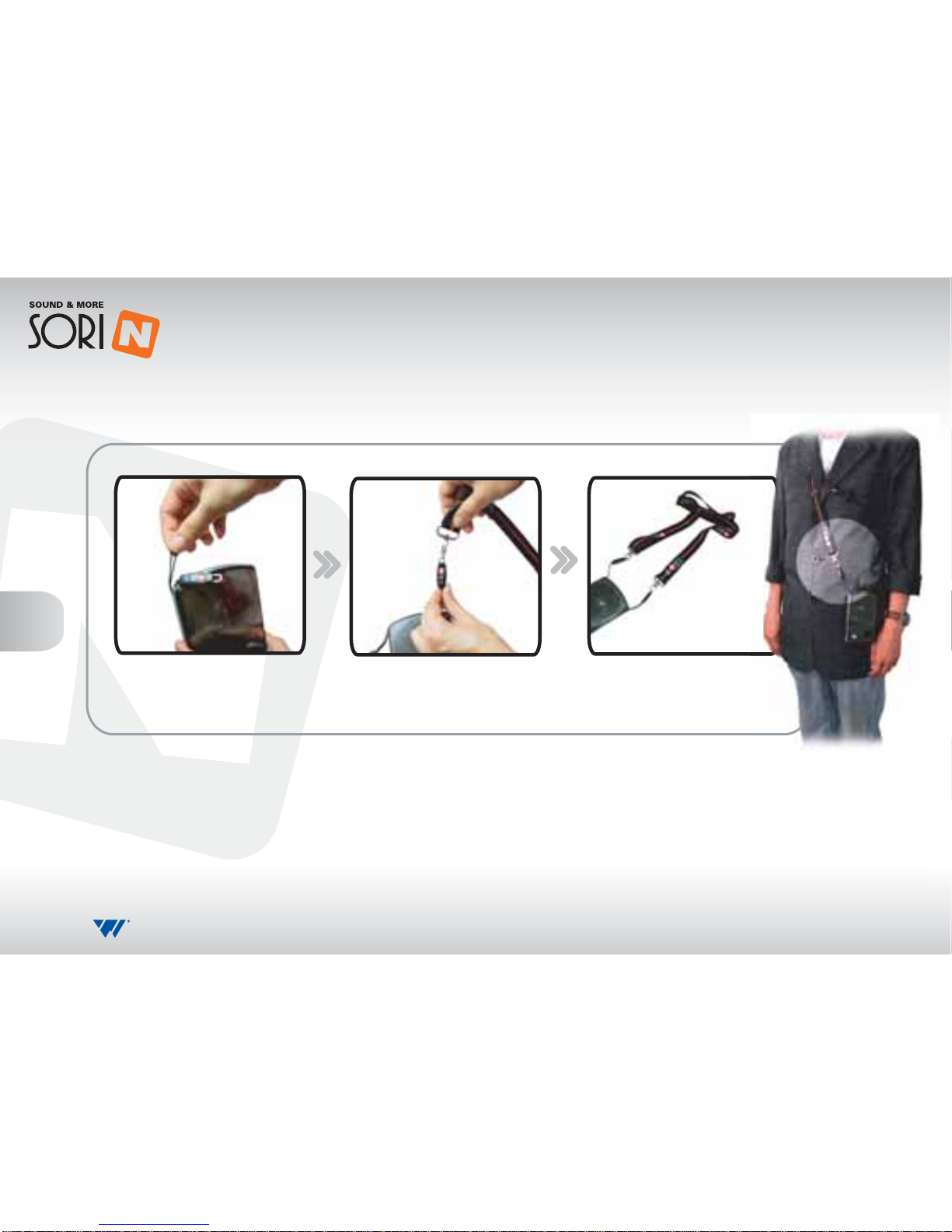

1. Install strap clips on
both sides of the
speaker
2. Connect the shoulder
strap to the strap clip
The shoulder strap can also be used with the carry case.

1-800-843-3544 • 952-943-2252 • www.williamssound.com
15
Using the Ear Microphone
• Place the microphone over ear and adjust for size and comfort
• Bend the boom on the microphone so it is positioned close to the mouth

www.williamssound.com • 1-800-843-3544 • 952-943-2252
16
Troubleshooting
Q: The power indicator light is not on.
A: The rechargeable battery may be depleted. Charge the battery for at
least 3 hours.
Q: The product is not working properly, or does not work at all.
A: Disconnect the battery, reinstall and turn on the power. If the product still
isn’t working, contact Williams Sound customer service: 800-843-3544 or
1-952-943-2252.
Q: There is no sound from microphone.
A: Remove the microphone from the speaker. Blow out any visible dust or
material from the microphone element.
Q: The battery runs for only a short time, despite charging it completely.
A: Disconnect the battery, then reinstall and charge again.
If you have used the battery for more than a year, the battery may need to be
replaced. Call Williams Sound customer service to order a replacement battery
(part no.: BAT 040): 800-843-3544 or 1-952-943-2252.

1-800-843-3544 • 952-943-2252 • www.williamssound.com
17
Recycling Instructions
Battery Safety and Disposal
Help Williams Sound protect the environment! Please take the time to dis-
pose of your equipment properly.
Product Recycling for Customers in the European Union:
Please do NOT dispose of your Williams Sound equipment in the
household trash. Please take the equipment to a electronics
recycling center; OR return the product to the factory for proper
disposal.
Battery Recycling for Customers in the European Union:
Please do NOT dispose of used batteries in the household trash.
Please take the batteries to a retail or community collection
point for recycling.
05/08/2007

www.williamssound.com • 1-800-843-3544 • 952-943-2252
18
Limited Warranty
Williams Sound products are engineered, designed, and manufactured under carefully con-
trolled conditions to provide you with many years of reliable service. Williams Sound warrants the
Sorin system against defects in materials and workmanship for TWO (2) years. During the first two
years from the purchase date, we will promptly repair or replace the Sorin.
Microphones, earphones, headphones, batteries, cables, carry cases, and all other accessory
products carry a 90-day warranty.
If you experience difficulty with your system, call Toll-Free for U.S. customer Assistance: 1-800-843-
3544 (U.S.A.) or [phone] (Outside the U.S.A.). If it is necessary to return the system for serv-
ice, your Customer Service Representative will give you a Return Authorization Number (RA) and
shipping instructions. Pack the system carefully and send it to:
Williams Sound Corp.
Attn: Repair Dept.
10321 West 70th Street
Eden Prairie, MN 55344 USA
Your warranty becomes effective the date you purchase your system.Your returned warranty
card is our way of knowing when your warranty begins. Please take a moment to fill it out and
mail the enclosed card.You may also register your product online:
www.williamssound.com/registration.aspx. This information will help us serve you better in the
future.Thank you!

1-800-843-3544 • 952-943-2252 • www.williamssound.com
19
Specifications
Dimensions: 3.25" W x 5.4" H x 1.02" D.
Weight: 9.7 oz (with battery)
Color: Black with silver sides
Battery Power: Type: 7.4 V, rechargeable, 1800 mAHr (custom) Lithium ion
Life: Up to 30 hours (contingent upon speaker output level)
Current drain: 1.5 amps (at nominal listen level), 2.5 amps maximum
Battery Charger: Type: Switcher, input 110 to 220 VAC at 50 to 60 Hz., output 9 VDC at 1.5 amps with a 2.5 mm DC plug
Charge time: 2 hours (typical)
Acoustic Performance: Gain: (HF Ave full on gain, 60 dB SPL in): Handheld microphone: 15.0 dB
Head worn microphone: 21.0 dB
Frequency response: 200 to 10 kHz
Hum and Noise: less than 62 dB SPL
Distortion: less than 2.8% total harmonic distortion
SPL Output (Max SSPL90): Handheld microphone: 110.9 dB SPL = 20.9 dB gain
Head worn microphone: 119.6 dB SPL = 29.6 dB gain
(Volume at maximum at 3” from speaker)
Alert SPL Output: (maximum) 124 dB SPL
Controls/ Indicators: ON/OFF pushbutton switch on top bezel
Alert/ Siren: two push buttons on top bezel activates different siren tones
LEDs on front of unit indicate, ON/OFF and low battery
Power Output: 5W
Accessories (included): Handheld microphone (cardioid) with built a in ON/OFF switch and rotary volume control. Cable is
38" long with a mini USB plug
Head worn microphone (noise canceling) with inline ON/OFF switch and rotary volume control.
Cable is 40" long with a mini USB plug.
Auxiliary input cable, 48" long, with a 3.5 mm plug on each end
Zippered carry case, belt clip, stand clip, carry pouch, belt strap, shoulder strap
Microphone extension cable
Approvals: CE, RoHS, WEEE
Warranty: 2 years parts and labor (90 days on accessories)

With SORIN, your voice will never get tired.
©2008, Williams Sound Corp. MAN 141B
