Wilo PW BOOST INITIAL 250EA User manual
9 210 570-Ed.01 / 2022-04-Wilo
Wilo-PW BOOST INITIAL
PW BOOST INITIAL 250EA
PW BOOST INITIAL 330EA
PW BOOST INITIAL 600EA
Pioneering for You
en Installation and operating instructions
fr Notice de montage et de mise en service
zh
ru
ar
- 3 -
1. WARNING…………………………………………………………………………………………………………………… 4
2. APPLICATION …………………………………………………………………………………………………………… 5
3. SAFETY ……………………………………………………………………………………………………………………… 5
…………………………………………………………………………………… 5
3.2 Danger in the event of non-observance of the safety instructions ………………… 5
3.3 Safety consciousness on the job ……………………………………………………………………… 6
3.4 Safety instructions for the operator ………………………………………………………………… 6
3.5 Safety instructions for installation and maintenance work ……………………………… 6
…………………………… 7
3.7 Improper use ……………………………………………………………………………………………………… 7
4. STORAGE AND TRANSPORTATION …………………………………………………………………………… 7
5. WORKING CONDITIONS …………………………………………………………………………………………… 7
6. OVERALL DIMENSIONS ……………………………………………………………………………………………… 8
7. EXPLODED VIEW DRAWING ……………………………………………………………………………………… 9
8. TECHNICAL DATA ………………………………………………………………………………………………………10
9. CHARACTERISTIC CURVE …………………………………………………………………………………………10
10. FEATURES AND FUNCTIONS………………………………………………………………………………………11
11. PIPE ASSEMBLY AND CAUTION …………………………………………………………………………………12
12. INSTALLATION AND NOTES ………………………………………………………………………………………13
13. PREPARATION BEFORE COMMISSIONING …………………………………………………………………13
14. COMMISSIONING ………………………………………………………………………………………………………14
15. MAINTENANCE …………………………………………………………………………………………………………15
16. FAULTS, CAUSES AND REMEDIES ………………………………………………………………………………15
17. DISPOSAL …………………………………………………………………………………………………………………16
Table of contents
- 4 -

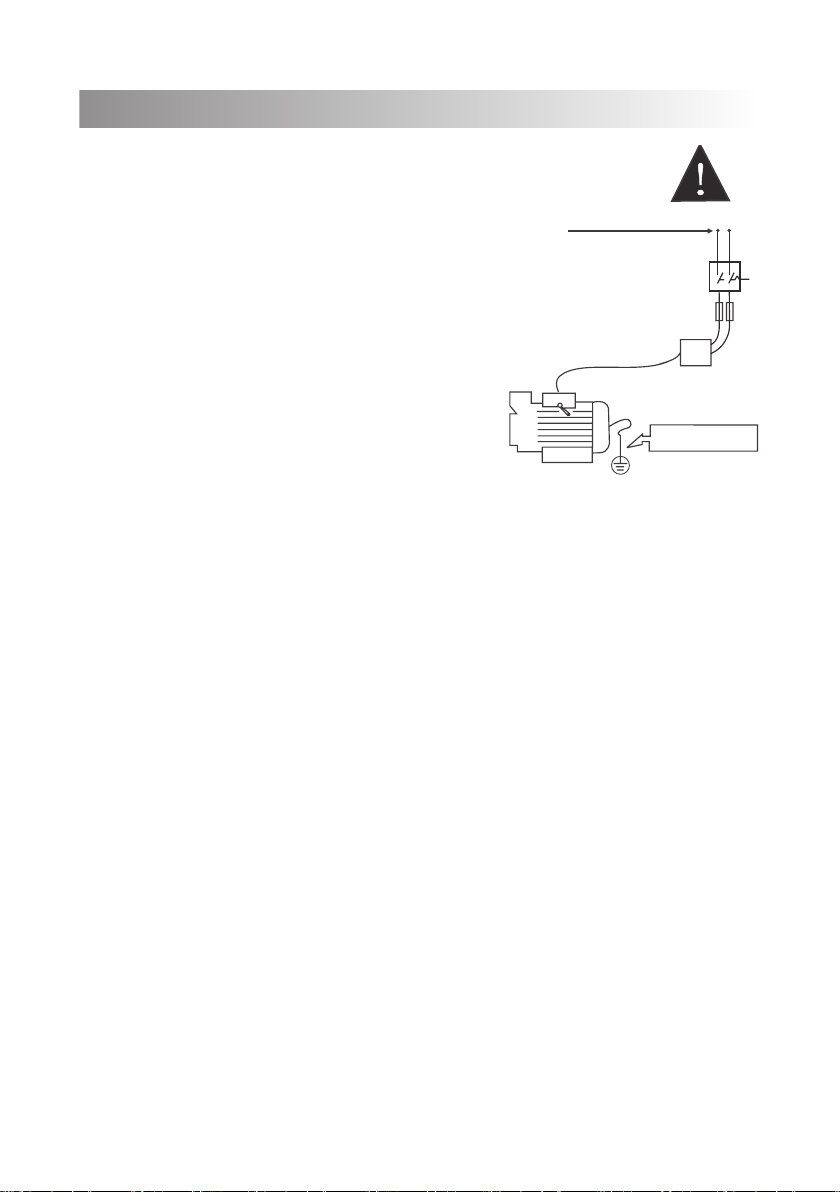

RCD
External power line diameter must be larger
than the controls power line.
SPA controls must be
grounded reliably
Residual current device
Fuse
Circuit breaker
1. WARNING
When installing and using this product, you must pay
attention to the following security issues.
1) The instructions must be read carefully and adhered
to during handling.
2) The pump is to be supplied by an isolating trans-
former or through a residual current device (RCD)
with a rated residual operating current not exceeding
3) A proper fuse must be installed in the electri-
should be selected according to the fuse, twice
on the rating plate.
4) All lead wires must be connected by a licensed electrician, according to local standards. The
motor must be grounded.
5) In order to prevent electric shock, children are not allowed to use the product without
adult supervision.
6) The power cable of the pump must not be buried in the ground. Position the cable so that
it cannot be destroyed, e.g. by lawnmowers.
7) In order to prevent electric shock, the damaged power cable must be replaced
immediately.
8) In order to prevent electric shock, do not use the extension wire to connect the power
source.
10) To shut down the pump, an all-pole switch that provides complete shutdown must be
CAUTION: The pump has a non-self-resetting thermal cut-out which, if tripped, must
be reset by disconnecting the power supply.
- 5 -
2. APPLICATION
The PW series is an automatic cold and hot water self-priming pump. It is an intelligent
induction switch. The intelligent controller can start or shut down the power supply in a
it from switching on/off frequently, blocking and overheating etc. It is suitable for use in
apartment buildings, automatic water-supply units for pressure boosting, as well as for
etc.
3. SAFETY
These operating instructions contain basic information which must be adhered to during
installation, operation and maintenance. For this reason, these operating instructions must,
without fail, be read by the service technician and the responsible specialist/operator before
installation and commissioning. It is not only the general safety instructions listed under the
main point “Safety” that must be adhered to, but also the special safety instructions with
danger symbols included under the following main points.
3.1
-
cations for this work. The area of responsibility, terms of reference and monitoring of the
personnel are to be ensured by the operator. If the personnel are not in possession of the
necessary knowledge, they are to be trained and instructed. This can be accomplished, if
necessary, by the manufacturer of the product at the operator's request.
3.2
Non-observance of the safety instructions can result in risk of injury to persons and damage
to the environment and the product/unit. Non-observance of the safety instructions results
in the loss of any claims for damages. In detail, non-observance can, for example, result in
the following risks:
• Damage to the environment due to leakage of hazardous materials
• Property damage
• Failure of important product/unit functions
• Failure of required maintenance and repair procedures
- 6 -
3.3
The safety instructions included in these installation and operating instructions and the
existing national regulations for accident prevention together with any internal working,
operating and safety regulations of the operator are to be complied with.
3.4
This appliance can be used by children aged from 8 years and above and persons with
reduced physical, sensory or mental capabilities or lack of experience and knowledge if they
have been given supervision or instructions concerning the use of the appliance in a safe
way and understand the hazards involved.
Children shall not play with the appliance. Cleaning and maintenance shall not be carried
out by children without supervision.
• If hot or cold components on the product/unit lead to hazards, local measures must be
taken to guard the components against touching.
• Guards protecting against touching moving components (such as the coupling) must not
be removed whilst the product is in operation.
must be led away so that no danger to persons or to the environment arises. National
statutory provisions are to be complied with.
• Danger from electrical current must be eliminated. Local directives or general directives
[e.g. IEC etc.] and instructions from local power supply companies must be adhered to.
3.5
The operator must ensure that all installation and maintenance work is carried out by
study of the operating instructions. Work on the product/unit must only be carried out
when it is at a standstill. It is mandatory that the procedure described in the installation and
operating instructions for shutting down the product/unit be complied with. Immediately
on conclusion of the work, all safety and protective devices must be put back in position
and/or recommissioned.
- 7 -
3.6
product/personnel and will make void the manufacturer’s declarations regarding safety.
Original spare parts and accessories authorised by the manufacturer ensure safety. The use
of other parts will absolve us of liability for consequential events.
3.7
The operating safety of the supplied product is only guaranteed for conventional use
in accordance with Section 5 of the operating instructions. The limit values must on no
4. STORAGE AND TRANSPORTATION
1) Ambient temperature: -10 °C up to +50 °C,
Relative humidity: 85 %
2) When receiving the product, check that it has not been damaged during transport.
In the event of demage during transport take all necessary actions with the carrier within
the respective time limits.
3) If the product to be installed later, store it in a dry place and protect it against impacts
and external stresses (humidity, frost, etc.).
4) Handle the product with care so as not to damage the product before installation.
5) The product can also be used after 1.5 years storage if it remains in the packaging.
CAUTION: storage environment may cause damages.
5. WORKING CONDITIONS
The pump can be used continuously under the conditions below:
1) Fluid temperature not under 0 and not over +60 °C
2) Liquid pH rate between 6.5 and 8.5
3) Solid content not higher than 0.1%, granule not larger than 0.2 mm
4) Ambient temperature between 0 °C and 40 °C
5) Altitude less than 1000 m
6) Relative humidity less than 90%
- 8 -

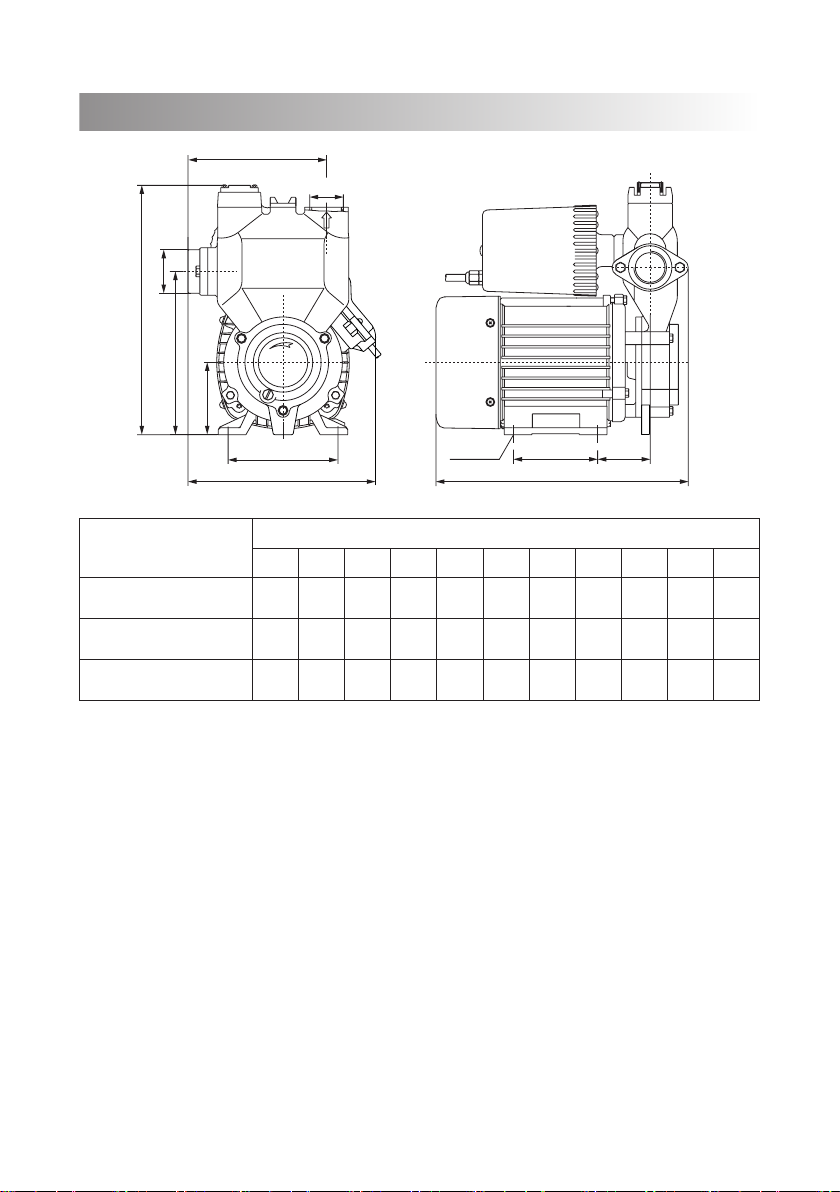

6. OVERALL DIMENSIONS
TYPE
L LI L2 W Wl W2 H Hl H2 DNA DNM
PW BOOST INITIAL
250EA 247 85 54 187 98 132 235 65 147 G1 G1
PW BOOST INITIAL
330EA 247 85 54 187 98 132 235 65 147 G1 G1
PW BOOST INITIAL
600EA 253 85 53 201 111 140 255 73 163 G1 G1
:
+
+
:
/
/ /
+
'10
'1$
:
- 9 -

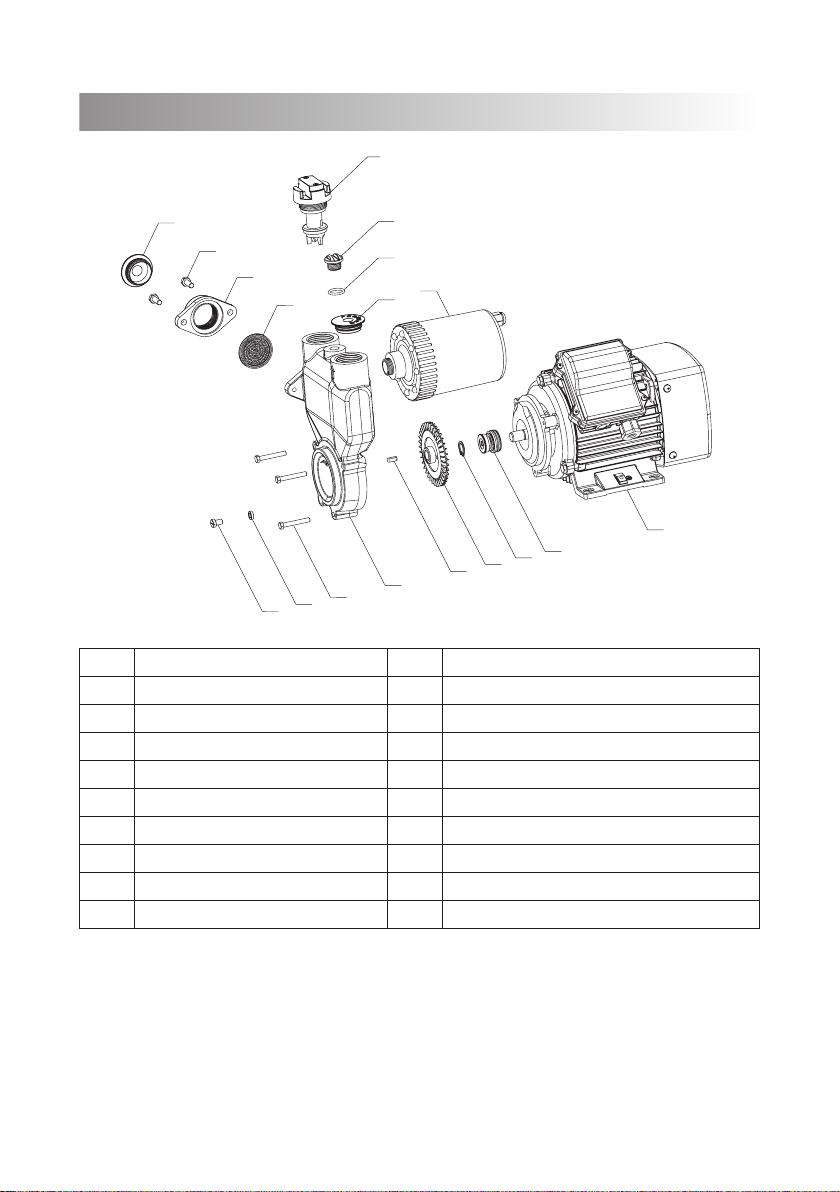

7. EXPLODED VIEW DRAWING
No. No.
1 Drainage plug 10 Pressure switch
2 Washer 11 Dust cap
3 Hexagon bolt 12 O-ring
4 Pump housing 13 Water injection plug
5 Ordinary flat key 14 Flow switch
6 Impeller 15 Flange plastic padding
7 External circlips 16 Inlet flange
8 Mechanical seal 17 Hexagon bolt
9 Motor
17
15
16
56
8
4
3
2
1
9
10
13
14
11
7
12
11
- 10 -
8. TECHNICAL DATA
PW BOOST INITIAL
250EA
PW BOOST INITIAL
330EA
PW BOOST INITIAL
600EA
Max. pressure (bar) 8 8 8
Max. suction head (m) 7 7 7
Pipe connection (mm) DN25 DN25 DN25
Rated head (m) * 12 16 25
Rated flow (m³/h) * 1 1 1.5
Noise (dB) 70 70 70
Power (W) 250 330 600
Frequency 50 Hz
Protection class IP44
Insulation class F
Voltage 220 - 230 V ( ± 6%)
*
9. CHARACTERISTIC CURVE
The characteristic curves are based on the following:
1.
The performance is based on the current speed of the standard motor.
2.
Carrying out the
test by 20 ° C water without air.
3.
The curves are suitable for pumping liquids (= 1 mm2/s, = 1 g/cm3).
4. The pump operation shall refer to the performance region described by the thickened
+P
4P
K
3:%2267,1,7,$/($
3:%2267,1,7,$/($
3:%2267,1,7,$/($
- 11 -
10. FEATURES AND FUNCTIONS
1) There is an indicator light at the end of pressure switch. The meanings of the indicator
lights are as follows:
1 Light on Pump is working
2 In the status of dry-running protection
3 Light off Pump is off

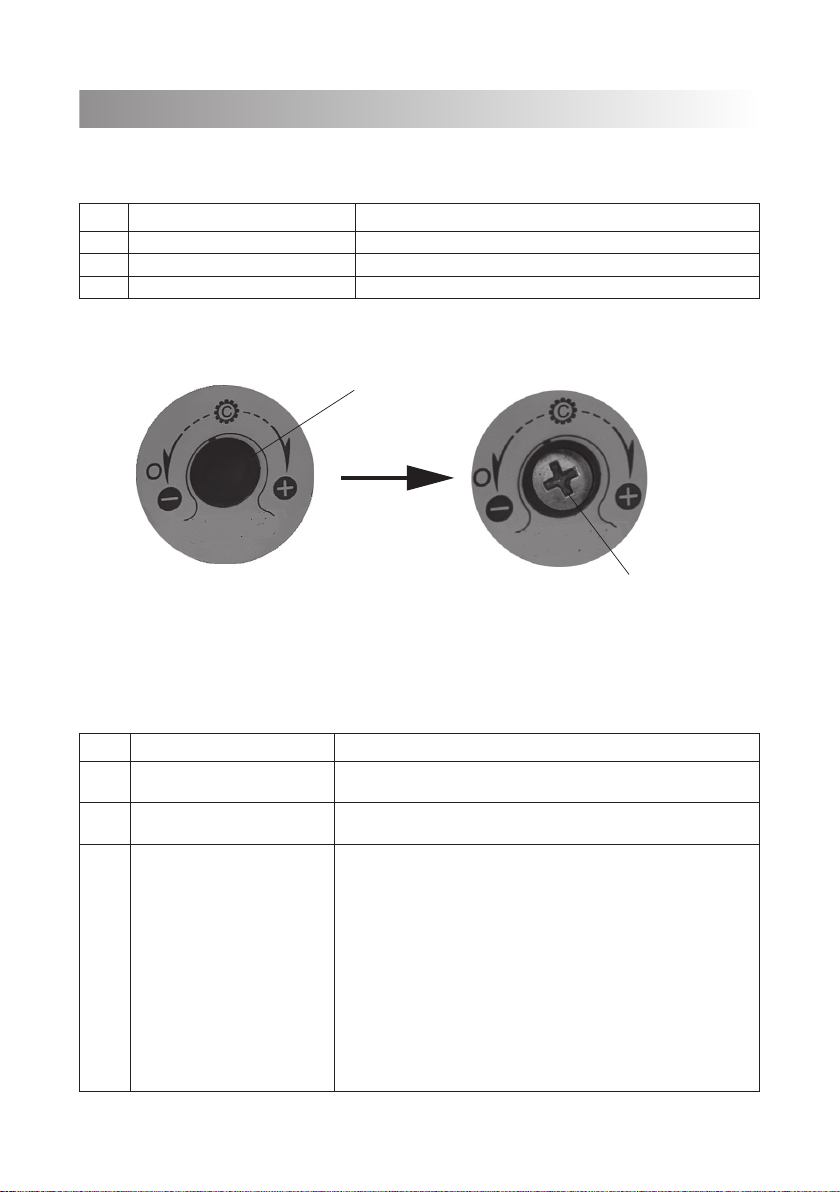

2) Pressure adjustment
The pressure screw can be rotated in order to change the set value of the pressure switch.
5HPRYHWKHFDS
SUHVVXUHVFUHZ
• The pump cannot stop after closing the tap. The set pressure can be decreased by counter-
clockwise rotation of the pressure screw until the pump is able to stop.
• The pump cannot start after opening the tap. The pressure can be increased by clockwise
rotation of the pressure screw until the pump is able to start.
3) Function
1 Automatic start -
cally work.
2 Automatic stop 6 to 8 seconds after the tap has been closed, the pump will
stop.
3 Dry-running protection Close the water inlet when the pump is working. The pump
will have the following performance: the pump runs for 8
minutes and then stops for 30 minutes; it runs for 8 minutes
and then stops for 30 minutes; it runs for 8 minutes and then
stops for 30 minutes. After 8 minutes of running time, the
pump is permanently in the shutdown state, at that time, the
pump is in the dry-running protection status. By opening the
water inlet, there are two ways to terminate the dry-running
protection:
1. Switch the pump off and on again.
2.
dry-running protection.
- 12 -
4 Power off, automatic restart The pump could quickly restart and return to the working
condition when power is switched on (after it has been
switched off).
5 Anti-blocking function The pump runs automatically for 2-3 minutes if it has not
run in the last 24 hours to make sure that the pump does not
block.

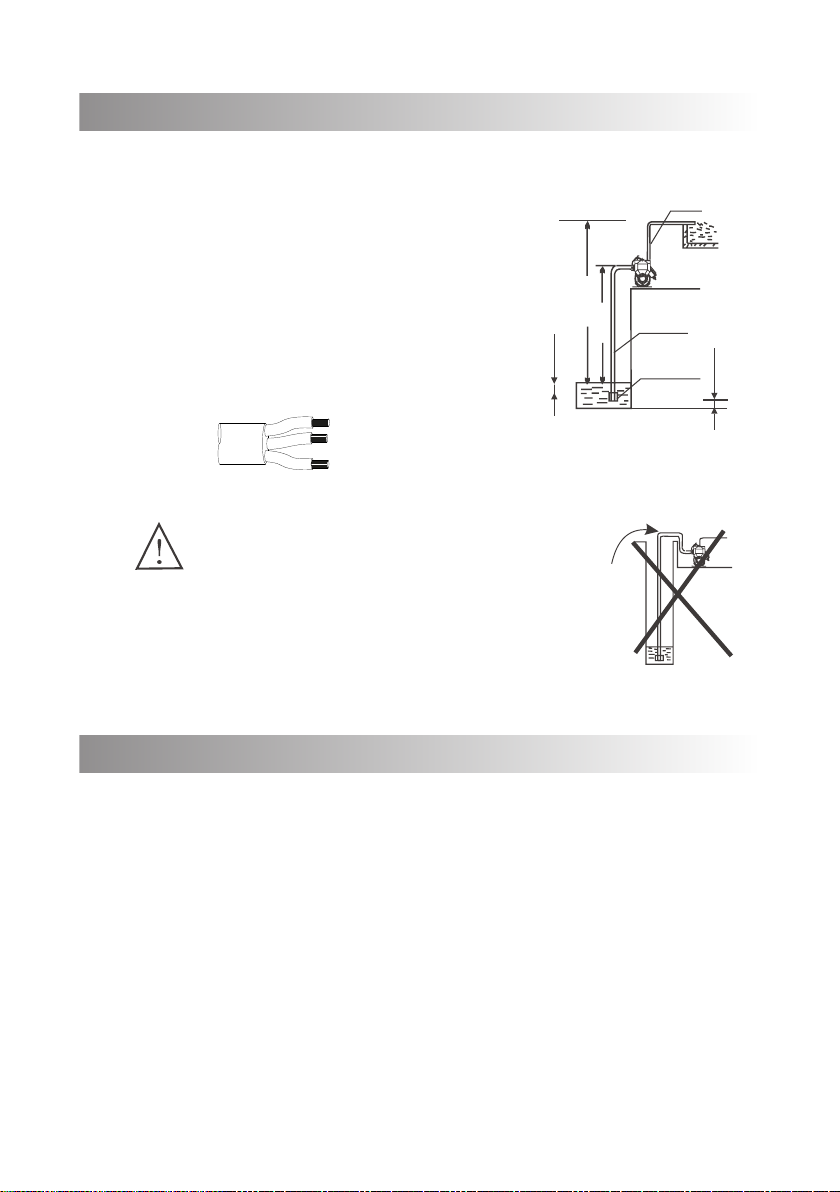

11. PIPE ASSEMBLY AND CAUTION
1) The pump must be installed according to the installation drawing (Fig. 2).
2)
The pump must be installed as close as possible to the nearest water source so that the suction
line is as short as possible to reduce suction loss.
3) The electric pump is to be installed in a dry and well-ventilated place and must not be
exposed to the sun or rain.
4)
The inlet pipe of the pump must not be higher than the inlet (Fig. 3).
5)
The pump suction pipe must be immersed 30 cm below the water level to prevent air from enter-
ing the pipe due to the vortex formation. It must be 30 cm higher than the water bottom so that
no soil or other objects enter the pump.
6) If the pump does not have a self-priming function, a non-return valve must be installed.
To prevent water return, it is recommended to install a non-return valve.
7) The pipe connection must be well sealed and made with on-site raw materials and sealants.
If the inlet pipe is not well sealed, the suction will be directly affected, or the water cannot
rise; some problems may occur, for example, abnormal operation, and the water cannot rise.
8) Try to reduce the bend in the pipe circuit as much as possible. The gradient should be less
than 2%.
9) The pipes should be supported separately at all times. They must not be supported by
the pump.
10) It is recommended to install a suction strainer on the inlet to prevent sand and sundries
entering the pump which can damage the pump.
- 13 -
12. INSTALLATION AND NOTES
1) The pump must be installed by a professional institution and licensed electrician.
2) The voltage and frequency must be in accordance with
3) The pump should be reliably earthed, and a leakage
protection switch must be installed.
4)
The wire must meet the requirements of the current. Due
to wire line losses, the voltage is too low to perform normal
pump work.
A larger wire diameter must be used, or the
length of the wire reduced, which will result in reduction of
wire line loss.
5)
Wiring diagram
brown
blue
green/yellow
L
N
PE
;
Cable
Figure 3
Inlet pipe mustn‘t
be posioned higher
than the pump inlet
WARNING
23
5 - 8
minutes
Figure 4
1
Injection hole
-Check if the pump is grounded and the leakage
switch is in good condition before starting the
pump.
-Avoid touching the pump when the pump operates.
-Make sure to switch off the power before opening
the terminal box or dismantling components.
-Pumping of flammable and explosive fluids is
strictly prohibited.
Figure 3
Inlet pipe mustn‘t
be posioned higher
than the pump inlet
WARNING
23
5 - 8
minutes
Figure 4
1
Injection hole
13. PREPARATION BEFORE COMMISSIONING
the rating plate.
-
The pump
should rotate freely from the fan cover by using a screwdriver.
-
Fill the pump with water from the discharge valve (Fig. 4).
- Switch on the pump. It should rotate clockwise from the perspective of the fan cover end.
-
Never let the pump run dry in order to avoid bursting of the mechanical seal.
Figure 2
(head include sucon)
Head (H)
Sucon
>30 cm
Installaon diagram
Outlet pipe
Inlet pipe
>30 cm
Non-return
valve
- 14 -
14. COMMISSIONING
- Open all the valves in the pipe.
This will last 5-8 minutes. If the non-return valve has been installed, the pump should
- If the pump could not start or prime water, please refer to Section 16 “Faults, causes and
remedies”.
Figure 3
Inlet pipe mustn‘t
be posioned higher
than the pump inlet
WARNING
23
5 - 8
minutes
Figure 4
1
Injection hole
- 15 -
15. MAINTENANCE
The pump does not require any special maintenance. However, after using the pump in
low-temperature areas, water in the pump body must be drained in order to prevent freez-
ing of the water, which may result in bursting of the pump body. If the pump is not used for
a long time, it should be cleaned and kept in a dry place.
16. FAULTS, CAUSES AND REMEDIES
Cause
Pump does not start
Rust and clogging of impeller and pump
body
Remove pump body and start without load
after rust removal
Rotary shaft and bearing stuck Replace bearings
Break in the mains and secondary windings Check motor
Motor does not start, no
power supply
Main and auxiliary windings burned or
currentless Check motor
Damage of controller Rewiring without controller to check if the
motor is working properly
No water pumped
Pump is not rotating in the correct direction
of rotation Check motor control
Pump is not full of water Refill the pump
Pump joint screw unlocked Tighten screw
Leakage of the whole pump
Determine whether it is a leak in the
product or not and which part of the
product is leaking through a gas or water
test etc.
Flow switch float jammed Remove the water switch and clean up the
debris
Self-priming performance is
insufficient
High self-priming height
Check whether the self-priming height
is too high and whether the self-priming
pipeline is too long
Leakage of intake pipe or bottom valve Check whether the pipeline and bottom
valve are properly installed
Loose screw for water intake joint Tighten screw
Leakage of the whole pump
Determine whether it is a leak in the
product or not and which part of the
product is leaking through a gas or water
test etc.
Pump shutdown
The pump delivery head is too low, lower
than the pressure switch.
Constant starting pressure
1. Check whether the parts are correct
2. Check whether the impeller is damaged
3. Check if the pump is leaking
4. Leakage in pump body
Pressure switch abnormal Replace the pressure switch
The flow switch is still under voltage when the
outlet valve is closed (normally, it should be
disconnected)
1. Remove water flow switch to clean up
debris
2. Replace flow switch
Leakage of outlet pipeline Detection of leakage in outlet pipe
- 16 -
Cause
Pump shuts down, but does
not restart after opening the
valve
Pressure switch abnormal Check pressure switch
Pressure switch adjustment nut too loose Use tools to adjust in place
Pump will not stop after
idling for 8 minutes Flow switch is not under voltage
1. Check if the flow switch line is
connected properly
2. Replace flow switch or remove the
debris from the water flow switch
Figure 3
Inlet pipe mustn‘t
be posioned higher
than the pump inlet
WARNING
23
5 - 8
minutes
Figure 4
1
Injection hole
THIS APPLIANCE IS NOT INTENDED FOR USE BY PERSONS (INCLUDING CHILDREN) WITH REDUCED PHYSICAL,
SENSORY OR MENTAL CAPABILITIES OR LACK OF EXPERIENCE AND KNOWLEDGE UNLESS THEY HAVE BEEN
GIVEN SUPERVISION OR INSTRUCTIONS CONCERNING THE USE OF THE APPLIANCE BY A PERSON RESPONSIBLE FOR
THEIR SAFETY. CHILDREN SHOULD BE SUPERVISED TO ENSURE THAT THEY DO NOT PLAY WITH THE APPLIANCE.
DAMAGED CONNECTING CABLES MUST BE REPLACED BY THE MANUFACTURER, CUSTOMER SERVICE OR A SIMILARLY
QUALIFIED PERSON IN ORDER TO AVOID HAZARDS.
17. DISPOSAL
Proper disposal and appropriate recycling of this product prevents damage to the environ-
ment and dangers to your personal health.
To ensure proper handling, recycling and disposal of the used products in question, please
note the following points:
- Observe the locally applicable regulations!
Please consult your local municipality, the nearest waste disposal site, or the dealer who
sold the product to you for information on proper disposal.
- The product must not be disposed of with household waste!
- 17 -
1. AVERTISSEMENT ………………………………………………………………………………………………………18
2. UTILISATION ………………………………………………………………………………………………………………19
3. SÉCURITÉ ……………………………………………………………………………………………………………………19
…………………………………………………………………………………19
3.2 Dangers encourus en cas de non-observation des consignes …………………………19
3.3 Travaux dans le respect de la sécurité ………………………………………………………………20
3.4 Consignes de sécurité pour l'utilisateur ……………………………………………………………20
3.5 Consignes de sécurité pour les travaux de montage et d'entretien …………………20
………21
3.7 Modes d'utilisation non autorisés………………………………………………………………………21
4. STOCKAGE ET TRANSPORT ………………………………………………………………………………………21
5. CONDITIONS DE TRAVAIL …………………………………………………………………………………………21
6. DIMENSIONS GÉNÉRALES …………………………………………………………………………………………22
7. VUE ÉCLATÉE ……………………………………………………………………………………………………………23
8. CARACTÉRISTIQUES TECHNIQUES ……………………………………………………………………………24
9. COURBE DE POMPE …………………………………………………………………………………………………24
10. CARACTÉRISTIQUES ET FONCTIONS …………………………………………………………………………25
11. PLACEMENT DU COMPOSANT TUYAU ET PRÉCAUTIONS…………………………………………26
12. INSTALLATION ET REMARQUES…………………………………………………………………………………27
13. CONDITIONNEMENT AVANT MISE EN SERVICE …………………………………………………………27
14. MISE EN SERVICE ………………………………………………………………………………………………………28
15. ENTRETIEN…………………………………………………………………………………………………………………28
16. PANNES, CAUSES ET REMÈDES …………………………………………………………………………………29
17. ÉLIMINATION ……………………………………………………………………………………………………………30
- 18 -
''5
/HGLDPqWUHGHODOLJQHGDOLPHQWDWLRQH[WHUQHGRLWrWUH
SOXVODUJHTXHOHVFRPPDQGHVGHODOLJQHGDOLPHQWDWLRQ
/HVFRPPDQGHV63$GRLYHQW
rWUHJDUDQWLHVjODWHUUH
'LVSRVLWLIGLIIpUHQWLHOUpVLGXHO
)XVLEOH
'LVMRQFWHXU
1. AVERTISSEMENT
Lors de l'installation et de l'utilisation de ce produit,
suivants.
1) Les instructions doivent être lues attentivement et
respectées pendant la manipulation.
2)Le circulateur doit être alimenté par un transfor-
mateur d'isolement ou par un dispositif différentiel
résiduel (DDR) dont le courant résiduel nominal de
3) Une protection par fusible appropriée doit être
installée dans le montage électrique du circu-
lateur. Le cahier des charges doit être établi en
fonction du fusible, équivalent à deux fois le courant
signalétique.
4) Tous les câbles conducteurs doivent être connectés par un électricien agréé, conformé-
ment aux normes locales. Le moteur doit être mis à la terre.
sans la surveillance d'un adulte.
6) Le câble d'alimentation du circulateur ne doit pas être enterré dans le sol. Positionnez
exemple).
immédiatement.
d'alimentation.
10) Pour arrêter la pompe, un interrupteur multipolaire qui assure un arrêt complet doit être
de câblage.
en cas de déclenchement, doit être réinitialisé en débranchant l'alimentation électrique.
- 19 -
2. UTILISATION
La gamme PW est un circulateur automatique autoamorçant pour eau froide et chaude. Il
pompe à eau, un régulateur intelligent et un interrupteur de débit à induction. Le régulateur
intelligent peut démarrer ou arrêter l'alimentation électrique en temps voulu en fonction
des changements de pression et de débit dans la canalisation et éviter les mises sous ten-
sion/hors tension fréquentes, les blocages et les surchauffes, etc. Il convient aux immeubles
d'habitation, aux surpresseurs de distribution d'eau automatiques pour la surpression
collective, ainsi qu'aux bâtiments publics tels que les hôtels, les cantines, les supermarchés,
les salons de beauté, les immeubles de bureaux, etc.
3. SÉCURITÉ
La présente notice de mise en service contient des informations essentielles qui doivent
être respectées lors du montage, du fonctionnement et de l'entretien. Ainsi, il est indis-
pensable que l'installateur et le personnel spécialisé/l'opérateur du produit en prennent
connaissance avant de procéder au montage et à la mise en service. Il convient de respecter
-
suivants.
3.1
Le personnel chargé de l'installation, de la mise en service et de l'entretien doit posséder
référence et le suivi du personnel sont de la responsabilité de l'opérateur. Les personnes
ne disposant pas des connaissances requises doivent être formées en conséquence. Le cas
échéant, cette formation peut être dispensée par le fabricant du produit, sur demande de
l'opérateur.
3.2
La non-observation des consignes de sécurité peut entraîner un risque de blessures cor-
porelles, nuire à l'environnement ou endommager le produit/l'installation. Le non-respect
des consignes de sécurité entraîne également la suspension de tout recours en garantie.
Plus précisément, le non-respect des consignes de sécurité peut, par exemple, entraîner les
• Danger d'ordre électrique, mécanique et bactériologique pour les personnes
• Dégradation de l'environnement due à des fuites de substances dangereuses
- 20 -
• Dommages matériels
• Défaillance de fonctions importantes du produit ou de l'installation
• Échec des interventions de maintenance
3.3
Il est impératif de respecter les consignes de sécurité incluses dans la présente notice de
-
rité de l'opérateur.
3.4
physiques, sensorielles ou mentales réduites, ou n'ayant pas l'expérience et les connais-
sances nécessaires, s'ils sont supervisés ou formés quant à l'utilisation de l'appareil en toute
sécurité et s'ils comprennent les risques encourus.
Les enfants ne doivent pas jouer avec l'appareil. Le nettoyage et l'entretien ne doivent pas
être effectués par des enfants sans surveillance.
• Si le produit/l’installation présente des composants chauds ou froids pouvant entraîner
des risques, il convient de mettre en place des mesures locales pour éviter tout risque de
contact avec les composants en question.
• Les éléments de protection mis en place pour éviter tout contact avec les composants
mobiles (notamment l'accouplement) ne doivent pas être retirés lorsque que le produit est
en cours de fonctionnement.
et pour l'environnement. Il est impératif de se conformer aux dispositions réglementaires
nationales.
• Tout danger d'ordre électrique doit être éliminé. Il est impératif de respecter les directives
d’électricité locaux.
3.5
L'opérateur est tenu de s'assurer que tous les travaux d'installation et d'entretien sont réa-
Les interventions sur le produit/l'installation ne doivent être effectuées que lorsque l'appareil
est à l'arrêt. Il est obligatoire de respecter la procédure décrite dans la notice de montage et
This manual suits for next models
2
Table of contents
Languages:
Other Wilo Water Pump manuals
Wilo
Wilo Rexa CUT User manual
Wilo
Wilo Stratos ECO Series User manual
Wilo
Wilo VT User manual
Wilo
Wilo Yonos PICO User manual
Wilo
Wilo Atmos PICO User manual
Wilo
Wilo MultiPress-MP3 Series User manual
Wilo
Wilo Drain LP 40 User manual
Wilo
Wilo Wilo-Para 15-130/7-50/SC-12/I User manual
Wilo
Wilo Atmos GIGA-D User manual
Wilo
Wilo BF Series User manual
Wilo
Wilo COF-2 BL User manual
Wilo
Wilo DrainLift XS-F User manual
Wilo
Wilo PLAVIS 015-C-2G User manual
Wilo
Wilo FKT 50.1 User manual
Wilo
Wilo Drain TS 50 Series User manual
Wilo
Wilo VeroLine-IPL Series User manual
Wilo
Wilo TOP-Z 20/4 EM User manual
Wilo
Wilo Cronoline User manual
Wilo
Wilo VeroLine IP-E Series User manual
Wilo
Wilo COF-2 Helix User manual
Popular Water Pump manuals by other brands
Giant
Giant GP8055 manual
Franklin Electric
Franklin Electric Turf Boss FTB3CI owner's manual
CTS
CTS MultiPump CTS2024 Instructions and precautions
Neilsen
Neilsen CT3793 instructions
Graco
Graco Hydra-Clean 206-515 Instructions-parts list
Schrader International
Schrader International 7.5 & 10 HP Electric Operation & maintenance manual
Grundfos
Grundfos Unilift AP12 Installation and operating instructions
EINHELL
EINHELL 41.714.50 Original operating instructions
Flux
Flux VISCOFLUX mobile S Quick reference guide
GÜDE
GÜDE MP 120/5A/GJ Original instructions
Enerpac
Enerpac HUSH PUMP 2000 Series instruction sheet
GORMAN-RUPP
GORMAN-RUPP PAH SERIES Installation, operation, and maintenance manual with parts list
