WilsonPro A1000 CELL PHONE SIGNAL BOOSTER
1
________

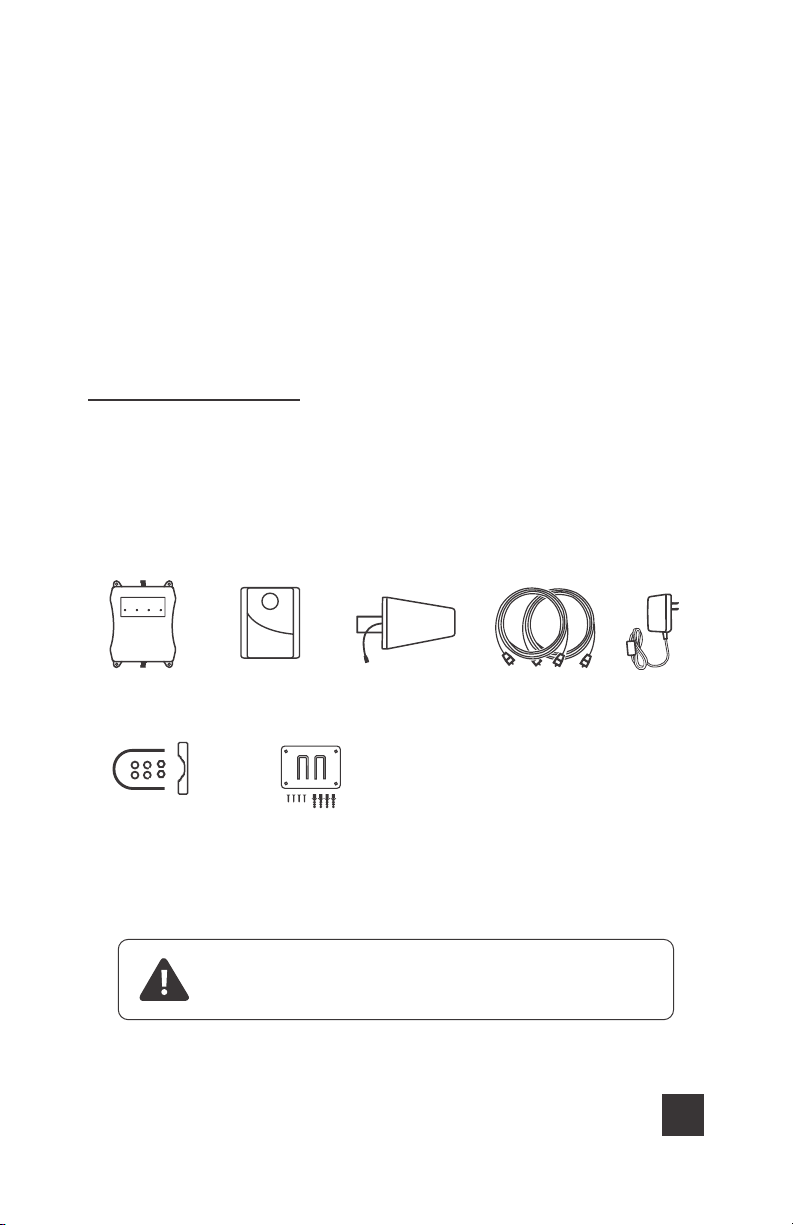

Package
Contents
WilsonPro
A1000
2x Pole Mount
Bracket
Wall Mount
Bracket
Inside
Antenna
Outside
Antenna
10m & 15m
Cables
Power
Supply
This device may be operated ONLY in a fi ed location for in-building
use. The signal booster unit is designed for use in an indoor,
temperature controlled environment (37 degrees Celsius)

2
CELL PHONE SIGNAL BOOSTER WilsonPro A1000
______
Step 1: Preparation
NOTE: These instructions will walk you through a “soft” install process to find th
optimal locations for the inside and outside antennas, then through the process of the
permanent installation.
You Will Need (tools not included)
Make sure the following materials are prepared and ready for your installation.
oLadder
oPhillips-head screwdriver
o10mm open-end wrench or adjustable wrench
oDrill (if routing cable through wall)
o Mounting Option A10” diameter pole (#BT512631) or an existing pole
oRecommended: Power Strip with surge protection
2 to 3 hours
2 people (a person to help with antenna calibration)

WilsonPro A1000 CELL PHONE SIGNAL BOOSTER
3
______
Step 2: Find The dBm
Reading On Your Phone
Dial *3001#12345#* then press Call.
1 Hold down power button until you see 'Slide to Power Off'.
2 Then release the power button.
3 Hold the Home button until your main screen appears.
iPhone®
Android™
If you want to check 3G/1x but your iPhone is picking up 4G/
LTE signal, go to Settings>Cellular>Cellular Data Options>En-
able LTE>Select O .
After you system is set up, you can go back to the dots signal
by once again dialing *3001#12345#* then pressing call.
When the menu comes back up, tap “phone” in the top left
corner of your phone.
iOS 11 no longer displays the decibel (dBm) reading in ‘Field
Test Mode’. Tip: Using the bar indicator on your cell phone can
assist you in finding the strongest signal direction as well a
placing calls in different locations. For changes/updates on
this issue, periodically go to weboost.com/signalstrength.
Settings > About Phone > Status or Network > Signal Strength
or Network Type and Strength (exact options/wording
depends on phone model)
iPhone®
iOS 11 - current
Visit: www.weboost.com/blog/how-to-test-signal-
strength-on-your-phone
Apps to Measure Signal Strength:
iPhones
•OpenSignal is a free app that allows you to run a test of your iPhone’s true speed
•Speedtest by Ookla is another free app
Android users: do a signal strength test and network speed test.
•Network Cell Info Lite, available for free on the Google Play store, provides nearly
real-time monitoring of cellular and WiFi signals

4
CELL PHONE SIGNAL BOOSTER WilsonPro A1000
______
Step 3: Measure Signal
Strength For Inside
Antenna Placement

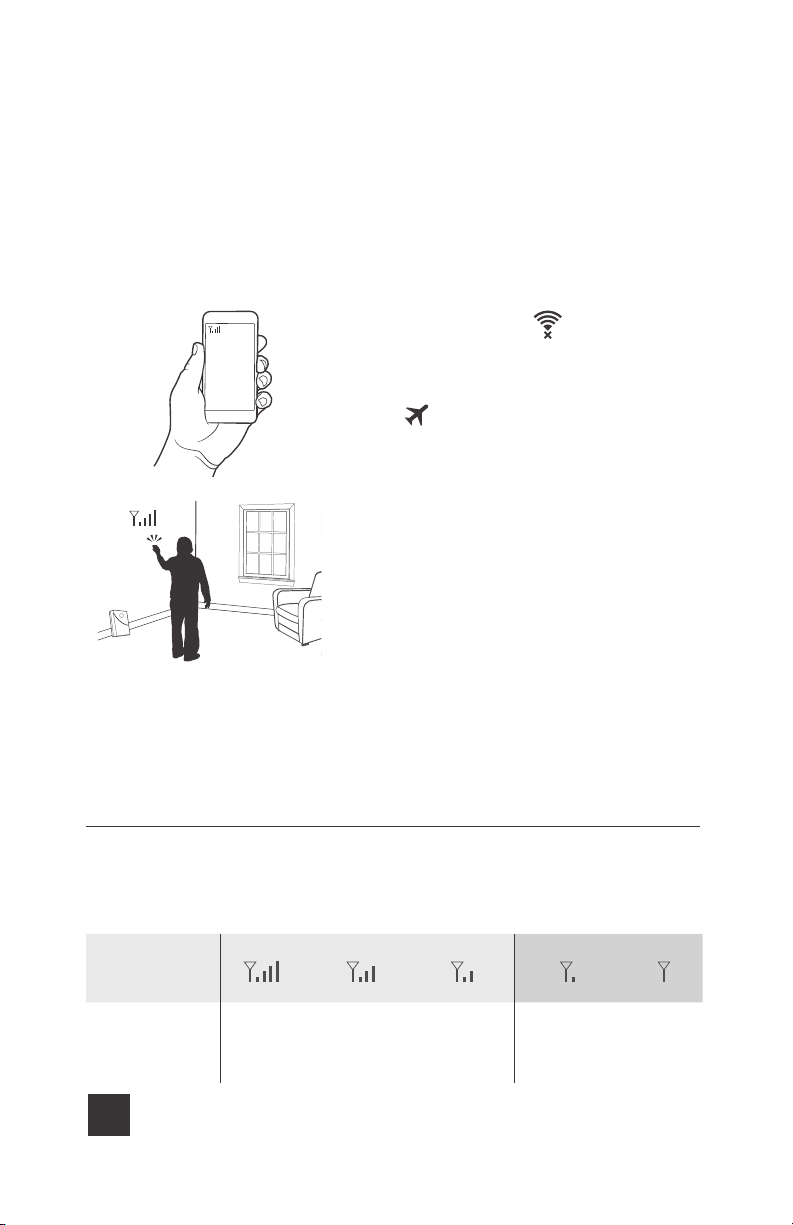

Having an accurate measurement of signal strength in decibels (dBm) is crucial
when installing your system. Decibels accurately measure the signal strength you
are receiving. Test both 3G and 4G signal for best results by turning the LTE off i
the carrier settings of your device.
SIGNAL STRENGTH EXCELLENT GOOD FAIR POOR DEAD ZONE
3G/1x
(typically voice) -70dBm -71 to -85dBm -86 to -100dBm -101 to -109dBm -110dBm
4G/LTE
(typically data) -90dBm -91 to -105dBm -106 to -110dBm -111 to -119dBm -120dBm
Turn off your cell phon ’s WiFi to ensure you
are checking the cellular connection. The dBm
reading will be refreshed every 30-60 seconds.
Want faster results? Once you have a reading,
turn on airplane mode. Wait 15 seconds.
Turn off airplane mod . The signal strength
reading is refreshed.
Walk around your home/office taking sign
strength readings until you find the area that ha
the weakest reception, or number farthest away
from zero. For example -100 is a weaker signal
than -80.
Users on iOS 11 and above will need to use an
alternative method using the bar indicator on
your cell phone and/or placing calls in differen
locations.
Weakest Signal Number:___________
Weakest Signal Location: ___________
Place your Inside Antenna in this poor signal area.
For best results, keep the inside antenna more
than 18 inches away from the booster.

WilsonPro A1000 CELL PHONE SIGNAL BOOSTER
5
______
Step 4: Measure Signal
Strength For Outside
Antenna Placement

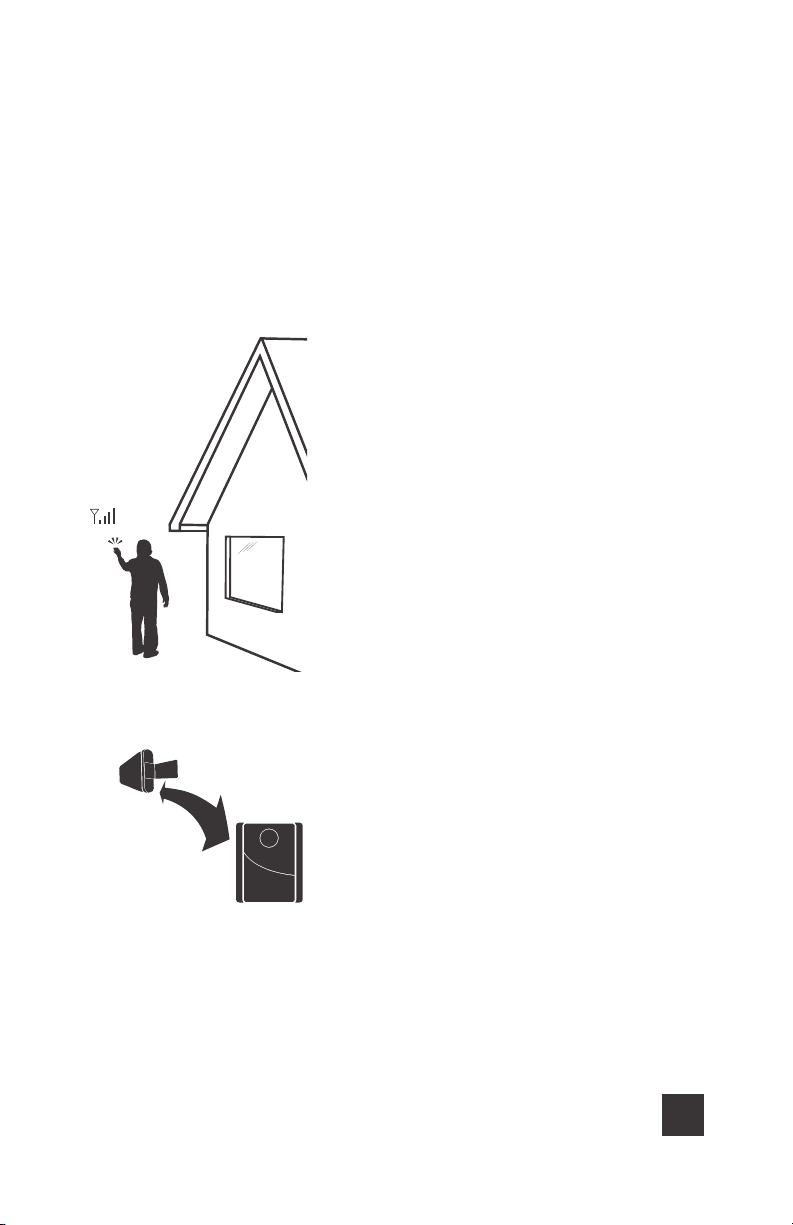

This is the most critical step of the installation
process because it will determine the overall
performance of the booster system. Using the
same method as Step 3, find the place with th
strongest signal (number closest to zero) on the
outside of your home.
Users on iOS 11 and above will need to use an
alternative method using the bar indicator on
your cell phone and/or placing calls in differen
locations.
The further apart the Inside Antenna is located
from the Outside Antenna, the better. To
determine the best location for your Outside
Antenna, note the dBm reading in a variety of
locations.
Note: The Outside Antenna must be at least 6
meters vertical or 15 meters horizontal from
the Inside Antenna for best performance. Make
sure the Inside Antenna and outside Antennas
are facing away from each other.

6
CELL PHONE SIGNAL BOOSTER WilsonPro A1000
______
Step 5: Temporarily Mount
The Outside Antenna

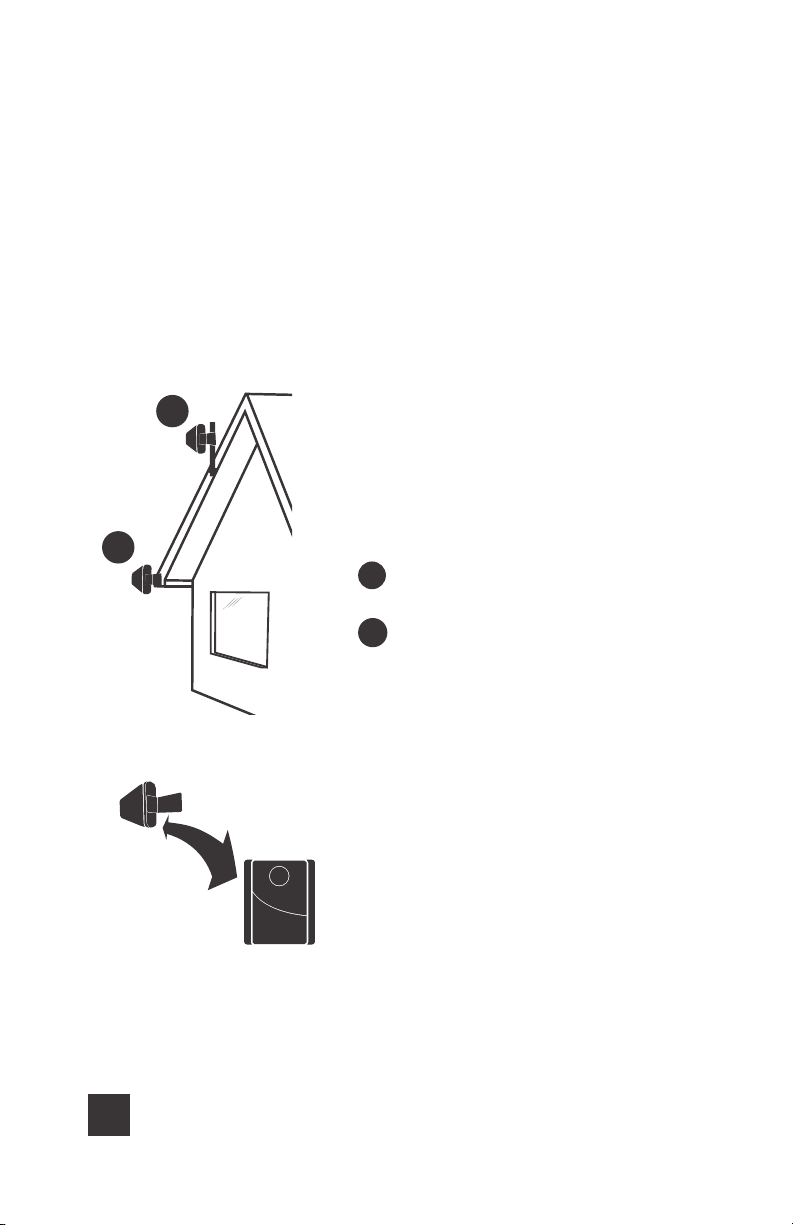

Use one of the two options to mount the
outside antenna on the side of the house with
the strongest signal.
Note: Using an app like 'Open Signal' will help
you point the outside antenna in the direction of
the nearest cell phone tower.
A Option (Best)
B Option (Good)
Note: The Outside Antenna must be at least
6 meters vertical or 15 meters horizontal from
the Inside Antenna for best performance. Make
sure the Inside Antenna and outside Antennas
are facing away from each other.
A
B

WilsonPro A1000 CELL PHONE SIGNAL BOOSTER
7
Band 3Band 1 Band 8
Band 5 Band 4 Band 12/13/17
Connect 4G-X ®
Band 2
______
Step 6: Connect The System
2
Connect the supplied Coax Cable to end of
booster labeled Inside Antenna.
3
Power up the Booster by connecting it to a
power source.
To protect Booster from power surges, connect
to a power strip.
1
Connect the supplied Coax Cable to end of
booster labeled Outside Antenna.
Outside
Antenna
Inside
Antenna
Band 5 Band 4 Band 12/13/17 Band 2

8
CELL PHONE SIGNAL BOOSTER WilsonPro A1000
______
Step 7: Compare Results
Using the field test mode described in step 3, measure the new signa
strength and write it down here ___________.
Compare this number with the original reading you took in the same part of the house.
If the number is higher (closer to zero) than the original reading without booster, your
booster is working. If it is not, look at the lights on the booster and the section at the
end of this manual “Test System: Lights”.
Users on iOS 11 and above will need to use an alternative method using the bar
indicator on your cell phone and/or placing calls in different locations
Did you know a signal increase in just
3dB is 2 times the power and signal amplification!

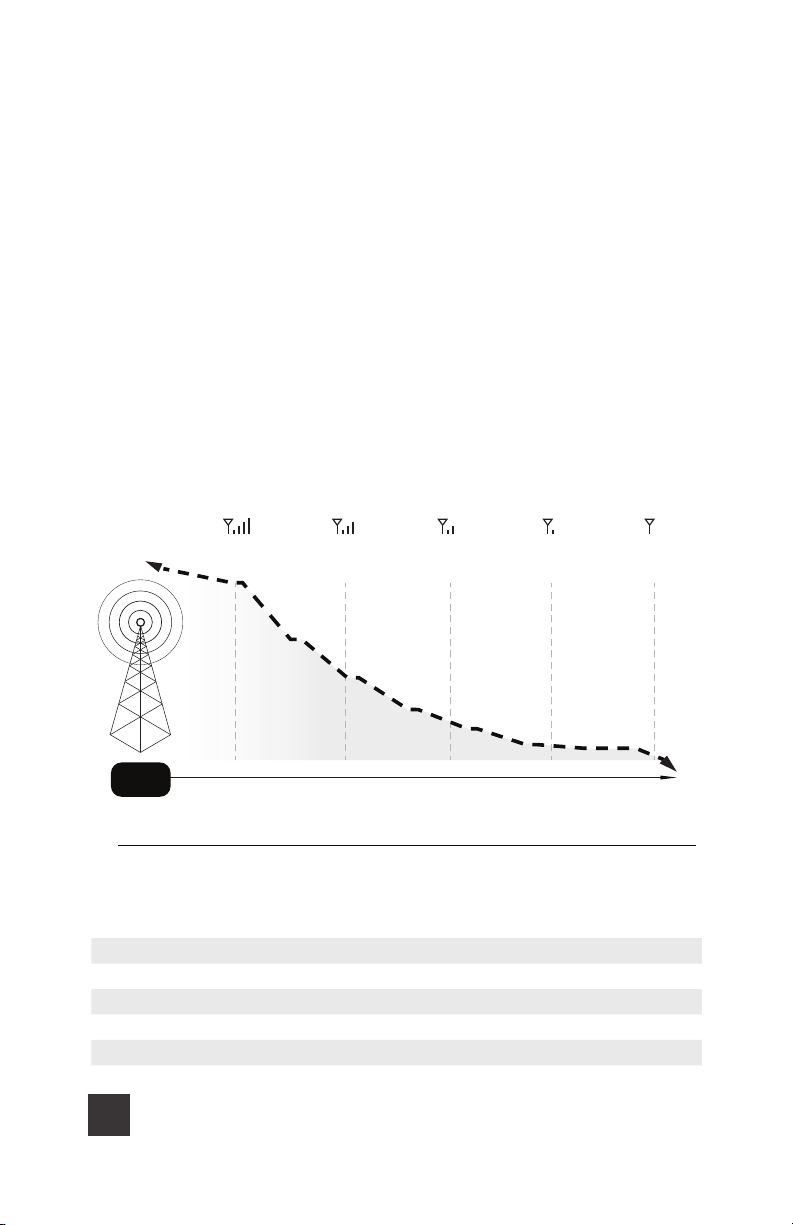

Distance from Cell Tower
CELL
TOWER
Signal Strength
GOOD
Signal Strength
POOR
Signal Strength
DEAD ZONE
Signal Strength
EXCELLENT
Signal Strength
FAIR
3G/1x
4G/LTE
-70dBm
-90dBm
-75dBm
-100dBm
-90dBm
-108dBm
-105dBm
-115dBm
-110dBm
-120dBm

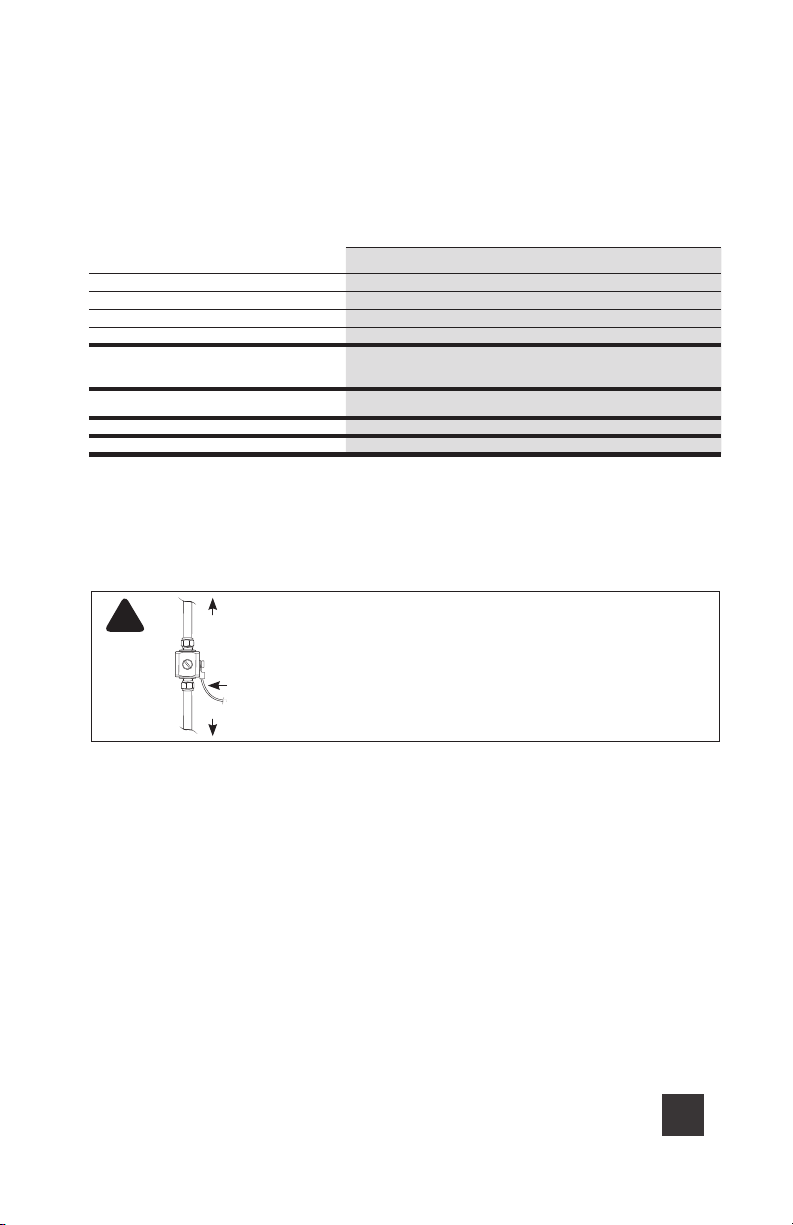

DECIBEL GAIN POWER INCREASE
3dB 2 times the power and signal amplificatio
6dB 4 times the power and signal amplificatio
10dB 10 times the power and signal amplificatio
12dB 16 times the power and signal amplificatio
20dB 100 times the power and signal amplificatio

WilsonPro A1000 CELL PHONE SIGNAL BOOSTER
9
______
Step 8: Permanently Mount
The Outside Antenna
Option A: Outside Roof/Pole Mount (Best Option)
Mount, or use an existing pipe in an optimal signal location. Watch out for power lines.
Mounting on existing roof exhaust pipe would be
a good time-saver option.
Drip Holes
need to face down
Drip Holes need to
face down
Outside Antenna
(pole mount)
WilsonPro A1000
Inside Antenna
6 meters vertical or
15 meters horizontal for best performance

10
CELL PHONE SIGNAL BOOSTER WilsonPro A1000
Option B: Mounting on side of roof (Good Option)
______
(STEP 8 cont.)
WilsonPro A1000
Inside Antenna
Outside Antenna
(flush mount
Drip Holes
need to face down If needed, cable clips can be
purchased at most hardware stores
6 meters vertical or
15 meters horizontal for best performance

11
______
Step 9: Permanently Mount
The Inside Antenna
Position bracket on wall and use a pencil to mark the holes. Drill holes using 3/16 inch
bit. Use anchors, washers and screws to attach Wall Bracket.
Slip Inside Antenna onto the Wall Mount Bracket to secure.
slide into
mount
anchor &
screw
anchor &
screw
Wall Mount
& hardware
drywall

12
CELL PHONE SIGNAL BOOSTER WilsonPro A1000
______
Step 10: Route & Secure
The Cable
Secure cable on outside home/offi . Some homes have eaves you can tuck the cable
between the soffit and the xterior wall. If needed, cable clips can be purchased at
most hardware stores.
cable running to
Outside Antenna
most eaves you can tuck the cable
between the soffit and the xterior wall
If needed, cable clips can be
purchased at most hardware stores

13
______

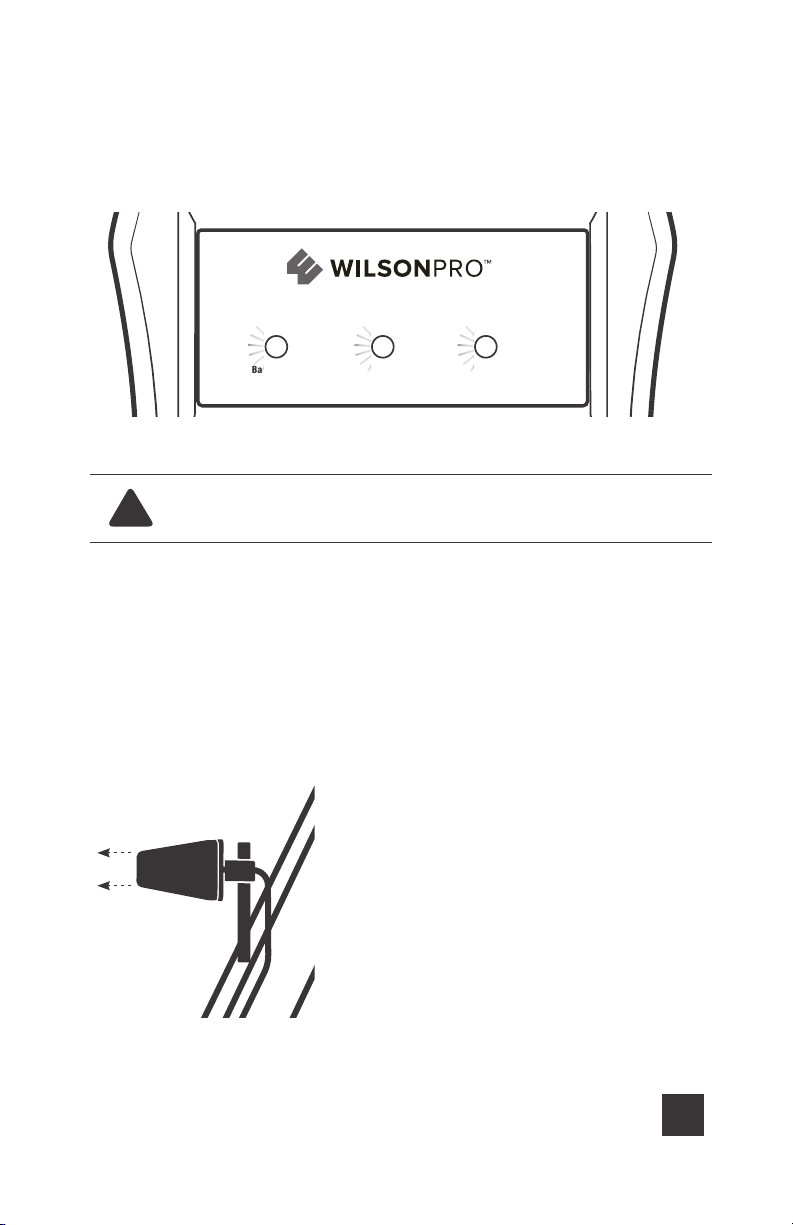

Test System: Lights
Fix Any Red Light Problems (red indicates oscillation)
• If you are happy with coverage, red lights don’t have to be resolved.
•Solid Red = Band has shut o
•Blinking Green/Red = Band has reduced gain
Each light corresponds to a frequency band.
No Lights
Booster does not have power. Un-plug and securely re-plug in power supply.
IMPORTANT: To get an accurate reading of the lights, unplug and re-plug
the power supply from the Booster.
skinny side
facing Cell Tower
!
1 Verify Outside Antenna faces away from the
Inside Antenna. Un-plug and re-plug in power
supply.
2 Verify the Inside Antenna is at least 18” from the
Booster and pointed away from the Booster. Un-
plug and re-plug in power supply.
3 Tighten all cable connections. You may want to
undo and redo the connection completely. Un-
plug and re-plug in power supply.
4 BEST: Increase the distance (horizontally or
vertically) between the Outside and Inside
antenna. Add cable if needed. Un-plug and re-
plug in power supply.
Band 3
Band 1
Connect 4G-X
Band 8

14
CELL PHONE SIGNAL BOOSTER WilsonPro A1000
Fix Any Orange Light Problems (orange indicates a cell
tower is close by)
If you are happy with coverage, orange lights don’t have to be resolved
•Solid Orange = Band has shut o
•Blinking Green/Orange = Band has reduced gain.
1 If the light is solid orange, the Outside Antenna must be adjusted (see below). Wait
10 seconds between adjustments for the lights to reset.
• For Roof/Pole Mount Option = Rotate the Outside Antenna away from the
strongest cellular signal in small increments (45°) until the light turns green. Un-
plug and re-plug power supply.
• For All Other Mount Options = Change mount location. For example, if the
Outside Antenna is a window mount, move the Outside Antenna to a wall
outside the building to see if the lights turn green. Un-plug and re-plug power
supply.
2 If the light is blinking green/orange, re-locate the Outside Antenna. Un-plug and
re-plug power supply.
All Green Lights? = Band is set up optimally. Verify you
have good coverage.
If you have green lights, but poor coverage:
•Rotate the Outside Antenna in small increments (roof/pole mount only). Un-plug
and re-plug power supply.
•Move the Outside Antenna to a different location. Un-plug and re-plug powe
supply.
•Change the method of mounting the Outside Antenna. Un-plug and re-plug power
supply.
______
(TEST SYSTEM: LIGHTS cont.)

15
______
Specifications
Signal Booster Specifications
WilsonPro A1000-3G/4G
Model Number 520002
Connectors N-Female
Antenna Impedance 50 Ohms
Frequency Band 1 (2100) Band 3 (1800) Band 8 (900)
3Power output for single cell phone (dBm)
Uplink
Downlink
B1
30
25
B3
30
25
B8
30
25
Passband Gain (nominal) B1
74
B3
74
B8
66
Noise Figure (typical downlink/uplink) 5 dB nominal
Power Requirements 5.5V DC, 1.5A
Lightning
Surge Protector
To Outside
Antenna
To Signal Booster
Ground Wire
(not included)
!RECOMMENDED: INSTALLING THE LIGHTNING SURGE PROTECTOR
INSTALL THE LIGHTNING SURGE PROTECTOR (LSP) CLOSE TO THE
SIGNAL BOOSTER. ATTACH THE CABLE FROM THE OUTSIDE ANTENNA TO
THE SURGE PROTECTOR. ENSURE THE LSP IS PROPERLY GROUNDED.

16
CELL PHONE SIGNAL BOOSTER WilsonPro A1000
______
Safety Guidelines
Warnings
To uphold compliance with network protection standards, all active cellular devices
must maintain at least six feet of separation distance from Inside Panel and Dome
antennas and at least four feet of separation distance from desktop Antenna.
Use only the power supply provided in this package. Use of a non-weBoost product
may damage your equipment.
The Signal Booster unit is designed for use in an indoor, temperature-controlled
environment (less than 37 degrees Celsius). It is not intended for use in attics or
similar locations subject to temperatures in excess of that range.
RF Safety Warning: Any antenna used with this device must be located at least 20
centimeters from all persons.
This is a CONSUMER device.
The A1000 is an ICASA Approved and Registered Device. Most wireless providers
consent to the use of signal boosters. Some providers may not consent to the use of
this device on their network. If you are unsure, contact your provider.
You MUST cease operating this device immediately if requested by ICASA or licensed
wireless service provider.

17
______
Antenna Kit Options
The following accessories are to be used with the WilsonPro A!000 Booster.
INSIDE ANTENNA EXPANSION KITS
BT512952 – 1 Extra PANEL antenna expansion kit:
1 x Wall mount panel antenna
1 x 2-way splitter
1 x 15m and 1x 0.5m cable lengths ended with connectors
BT512969– 1 Extra DOME antenna expansion kit:
1 x Ceiling mount dome antenna
1 x 2-way splitter;
1 x 15m and 1x 0.5m cable lengths ended with connectors
BT512976 – 2 Extra PANEL antenna expansion kit:
2 x Wall mount panel antenna
1 x 3-way splitter
2 x 15m and 1 x 0.5m cable lengths ended with connectors
BT512969– 2 Extra DOME antenna expansion kit:
2 x Ceiling mount dome antenna
1 x 3-way splitter
2 x 15m and 1x 0.5m cable lengths ended with connectors
BT512976 – 3 Extra PANEL antenna expansion kit:
3 x Wall mount panel antenna
1 x 4-way splitter
3 x 15m and 1 x 0.5m cable lengths ended with connectors
BT512969– 3 Extra DOME antenna expansion kit:
3 x Ceiling mount dome antenna
1 x 4-way splitter
3 x 15m and 1x 0.5m cable lengths ended with
A500 CELL PHONE SIGNAL BOOSTER

1 YEAR WARRANTY
weBoost Signal Boosters are warranted for one (1) years against defects in
workmanship and/or materials. Warranty cases may be resolved by returning
the product directly to the reseller with a dated proof of purchase.
Signal Boosters may also be returned directly to the manufacturer at the
consumer’s expense, with a dated proof of purchase and a Returned Material
Authorization (RMA) number supplied by weBoost. weBoost shall, at its option,
either repair or replace the product.
This warranty does not apply to any Signal Boosters determined by weBoost
to have been subjected to misuse, abuse, neglect, or mishandling that alters
or damages physical or electronic properties.
Replacement products may include refurbished weBoost products that have
been recertified to conform with product specifications.
RMA numbers may be obtained by contacting Customer Support
DISCLAIMER: The information provided by weBoost is believed to be complete and
accurate. However, no responsibility is assumed by weBoost for any business or
personal losses arising from its use, or for any infringements of patents or other rights
of third parties that may result from its use.
______
Warranty
Represented by Bolton Technical: Sole Distributors in Soutth Africa
Copyright © 2016 weBoost. All rights reserved.
weBoost products covered by U.S. patent(s) and pending application(s).For patents
go to: weboost.com/us/patents
