Introduction
Thank you for choosing to purchase this quality product. To minimise the risk of injury, we ask you to
always take some basic safety precautions when using this product. Please read this operating manual
carefully and make sure that you understand it.
Keep these operation instructions in a safe place.
The inner parts of the device do not contain components requiring maintenance by the user. Leave all
maintenance, control, and repair works to a qualified person. In case of unqualified intervention, the 2-
year warranty will expire. Keep these operation instructions in a safe place.
Important safety information
•Do not exceed the maximum load of 300 kg.
•Do not permit children to use the trolley without supervision. The trolley is not a toy.
•Distribute the load evenly on the loading area.
•Do not load objects on the grate. Lower the grate before charging the trolley.
•Do not use the trolley with pieces being damaged, broken, or badly mounted. The trolley should
only be used after all problems have been resolved (e.g., by installing spare parts).
•Do not use to trolley with or on objects that could damage the pneumatic tyres. The pneumatic
tyres should not be filled with more than 2,06 bar (30 psi).
•Keep this manual in a safe place.
Assembly
You will need the following tools for assembly:
•slotted screwdriver,
•8- and 12-mm open-end wrench, and/or
•two medium-sized adjustable spanners.
During assembly, refer to the exploded view and parts list.
•Step 1: First turn the rack of the trolley and place it on parts of the carboard to avoid damages
to the surface.
•Step 2: Fix the back support assembly to the rack with the help of the 8 × 23 mm supporting
bolt (25) and 8 mm nut (21). Fix the rear axle support to the rear part of the trolley, then fix then
right and left support bar. Firmly tighten all nuts.
•Step 3: There are four shoulder screws –three short ones and a long one. Make sure to use
the long shoulder screw (8 × 25 mm) in the front centre of the steering mechanism. Assembly
the front support assembly completely before fixing it to the rack.
a) Connect the steering plug to both axle guides by using the 8 × 23 mm supporting bolts (short
ones) (25), 8 mm washers (20), and 8 mm nuts (21).
Note: Place the steering plug above both axle guides.
b) Now place the yoke onto the front axle support and secure the steering plug by using the 8
× 23 mm supporting bolt (short one) (25), 8 mm washer (20), and 8 mm nut (21).
c) Connect the central front axle support to the assembly as showed. Therefore, use the 8 ×
25 mm support bolt (long one) (27), 8 mm washer (20), and 8 mm nut (21).
d) Mount the complete front support assembly to the trolley rack by using the 4 supporting
bolts, nuts, and washers.

© by WilTec Wildanger Technik GmbH Item 51182 Page 4
http://www.WilTec.de
http://www.aoyue.eu 09 2021-1
http://www.teichtip.de
•Step 4: Then mount the wheels in the following order:
a) Place one wheel on the axle with the valve stem pointing outwards.
b) To fix the wheel, use the 12 mm washer and then the 12 mm nut (22). Tighten them firmly.
•Step 5: Place the trolley on its wheels. Fix the pull handle, yoke washer, and plastic coupling
by using the 8 × 60 mm pull handle bolts (26), 8 mm washers (20), and nuts (21).
•Step 6: Fix the locking handles to the grate with the help of the 8 mm washers (20) and
nuts (21).
Note: Do not tighten yet the nuts completely for they need to be adapted after mounting the
grate.
•Step 7: Fix the front, rear, left, and right grate with the help of R pins. With the help of the locking
handle, bring the grates to an upright position and tighten the nuts of the locking handle. Make
sure that the nuts are not tightened too firmly to ensure smooth operation. Place the small grate
case on the trolley.
Technical specifications
Max. load (㎏)
300
Weight (㎏)
20
Size (㎜)
965 × 510 × 550
Wheels (㎜)
⌀270 × 77
Max. pressure (bar)
2.06 (30 psi)

© by WilTec Wildanger Technik GmbH Item 51182 Page 5
http://www.WilTec.de
http://www.aoyue.eu 09 2021-1
http://www.teichtip.de
Exploded view
№
Name
Qty.
№
Name
Qty.
Pieces of main frame
Front support assembly
1
Trolley rack
1
9
Front axle support
1
2
Lateral parts
2
10
Central front axle bar
1
3
Front piece
1
11
Yoke
1
4
Back part
1
12
Steering plug
1
6
25.4 × 8.89 cm wheels
4
13
Plastic coupling
1
Back support assembly
14
Handle
1
5
Rear axle support
1
15
Pull handle
1
7
Left rear axle bar
1
8
Right rear axle bar
1

© by WilTec Wildanger Technik GmbH Item 51182 Page 6
http://www.WilTec.de
http://www.aoyue.eu 09 2021-1
http://www.teichtip.de

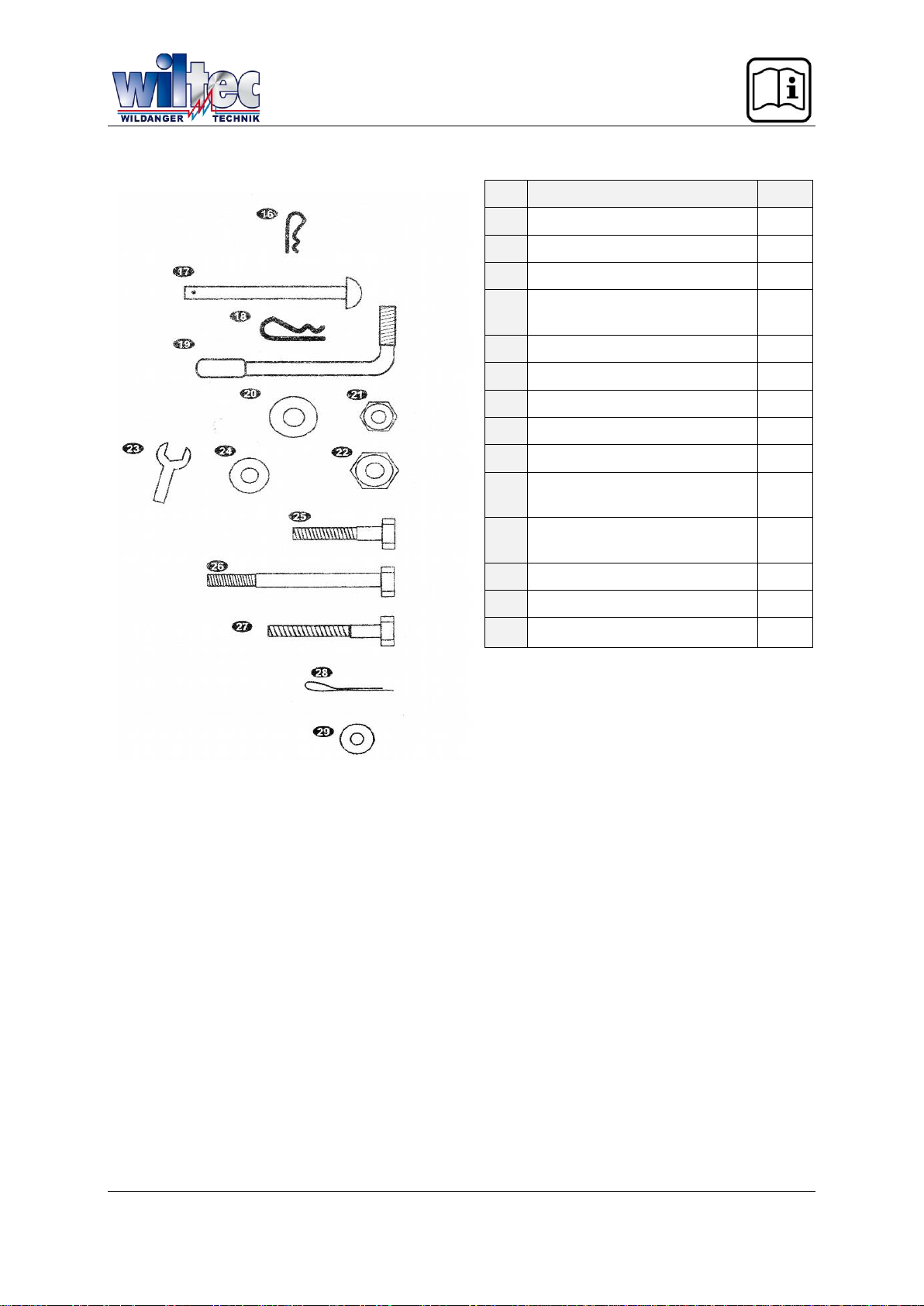

Tools and fixation pieces for assembly
№
Name
Qty.
16
R pin
8
17
Handle safety pin
1
18
R pin
1
19
8 mm locking handles, use with
20 and 21
4
20
8 mm washer
19
21
8 mm nut with locking insert
19
22
12 mm wheel nut
4
23
Small spanner
1
24
12 mm washer
4
25
8×23-mm supporting bolt, use
with 21
13
26
8×60-mm handle bolt, use with
21
1
27
8×25-mm supporting bolt
1
28
R pin
1
29
12 mm washer
1
