WilTec 61214 User manual

Instruction manual

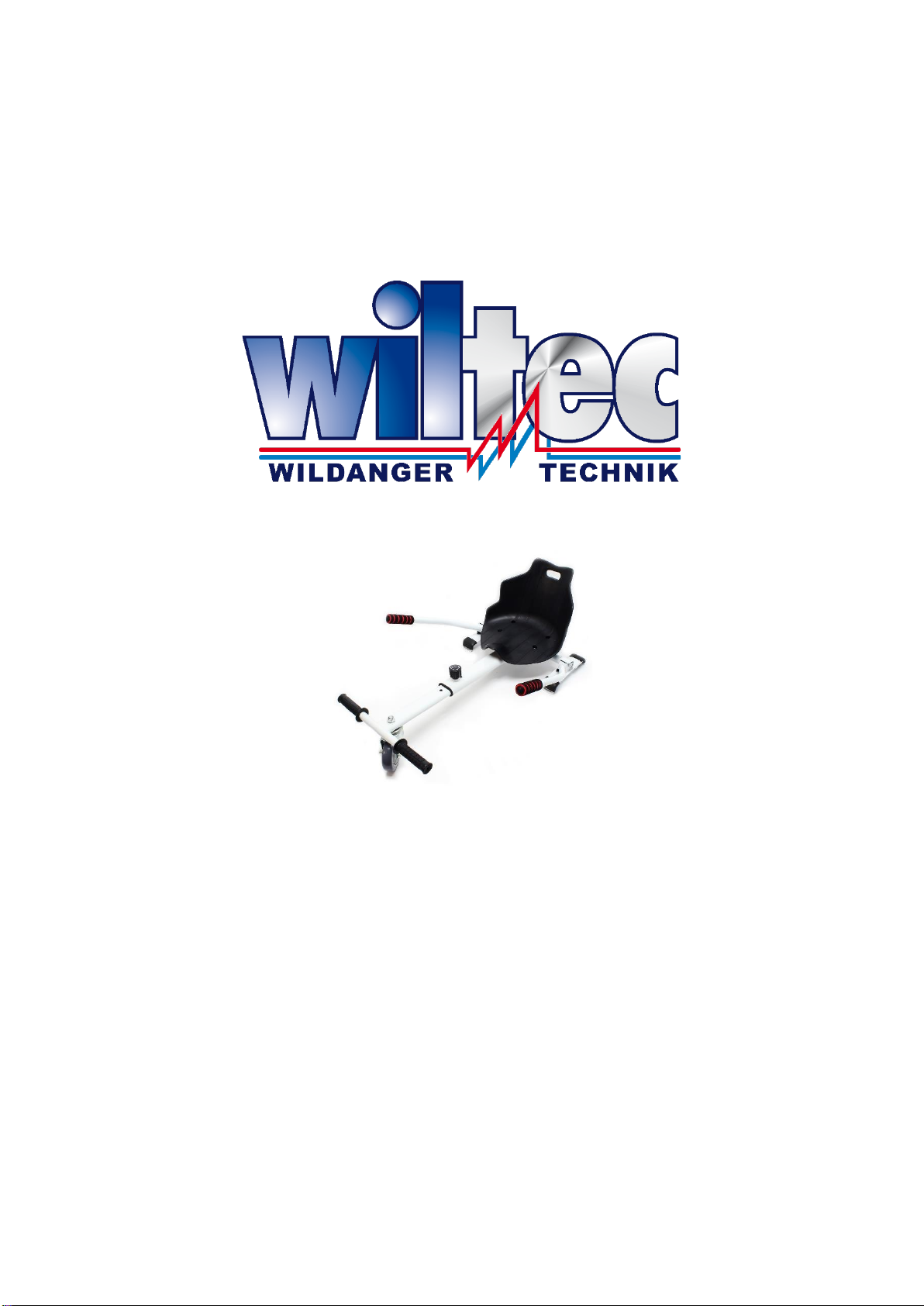

Go-kart for Hoverboard
61214–61217
Illustration similar, may vary depending on model
Please read and follow the operating instructions and safety information prior to initial operation.
Technical changes reserved!
Illustrations, functional steps and technical data may deviate insignificantly due to continuous further
developments.

© by WilTec Wildanger Technik GmbH Item 61214–61217 Page 2
http://www.WilTec.de
http://www.aoyue.eu 06 2021-1
http://www.teichtip.de
The information contained in this document may alter at any time without prior notice. No part of this
document may be copied or otherwise duplicated without prior written consent. All rights reserved.
WilTec Wildanger Technik GmbH cannot be held liable for any possible mistakes in this operating man-
ual, nor in the diagrams and illustrations shown.
Although WilTec Wildanger Technik GmbH has made every possible effort to ensure that this operating
manual is complete, accurate and up-to-date, errors cannot be ruled out entirely.
If you have found an error or wish to suggest an improvement, we look forward to hearing from you.
Send us an e-mail to:
[email protected]
or use our contact form:
https://www.wiltec.de/contacts/
The most recent version of this manual in several languages can be found in our online shop:
https://www.wiltec.de/docsearch
Our postal address is:
WilTec Wildanger Technik GmbH
Königsbenden 12
52249 Eschweiler Germany
Do you wish to collect your goods? Our address for collection is:
WilTec Wildanger Technik GmbH
Königsbenden 28
52249 Eschweiler Germany
In order to shorten the waiting time and to allow for an easy on-site processing, we kindly ask you to
contact us briefly beforehand or to place your order via the webshop.
E-mail: [e-mail]
Phone: [phone]
Fax: [phone]
To return your goods for exchange, repair or other purposes, please use the following address. Atten-
tion! To allow for a trouble-free complaint or return, it is important to contact our customer service team
before returning your goods.
Retourenabteilung
WilTec Wildanger Technik GmbH
Königsbenden 28
52249 Eschweiler Germany
E-mail: [email protected]o
Phone: [phone]
Fax: [phone])

© by WilTec Wildanger Technik GmbH Item 61214–61217 Page 3
http://www.WilTec.de
http://www.aoyue.eu 06 2021-1
http://www.teichtip.de
Introduction
Thank you for choosing to purchase this quality product. To minimise the risk of injury, we ask you to
always take some basic safety precautions when using this product. Please read this operating manual
carefully and make sure that you understand it.
Keep these operation instructions in a safe place.
General safety instructions
•Please read the instructions carefully before first use and keep them.
•Keep children and animals away from the packaging materials. Danger of suffocation!
•Make sure that all components, screws, and nuts are well fixed and that they are not
loose.
•Check the wheels and bearings of the seat scooter (not included in the scope of delivery) for
any damage. If necessary, replace them immediately.
•Be aware of the speed limit and comply with it.
•Misuse of the go-kart can endanger users and bystanders and result in serious injury or even
death.
•Do not use the go-kart on steep slopes or uneven surfaces.
•Under no circumstances should adjustments or changes be made, as these may endanger the
user’s safety.
•The seat scooter may only be used in accordance with the operating instructions.
•Regularly check the go-kart for damage and wear. All parts worn or damaged should be re-
placed immediately.
•Do not use the seat scooter if it is damaged.
•Before using the device, it is recommended that you learn how to use the go-kart correctly; if
unsure, contact an experienced person or obtain information on the Internet.
•ATTENTION! The go-kart must not be used on traffic routes, pavements, or other public places.
Make sure that you do not violate any local regulations concerning the use of this type of ac-
cessory in public spaces. If you are not sure, contact the local authorities.
•The go-kart may only be used by one person at a time.
•Never use the go-kart in the dark or under poor visibility conditions.
•It is recommended to wear protective clothing (knee pads, elbow pads,
and wrist pads) and a helmet, preferably with a neck guard.
•Use a hair net for long hair.
•The go-kart is only intended for private use and not for commercial use.
•Never allow small children to play with the go-kart. Use is recommended for
children 6 years and older under supervision.
•The go-kart is not to be used by older people or pregnant women.
•Do not use the scooter under the influence of alcohol or medicine.
•Do not transport any loads with the go-kart.
•In a group of go-karts, keep a safe distance from other users to avoid collisions.
•Under no circumstances should you telephone or listen to music while riding the go-kart, as you
could be distracted and have an accident.
•Make sure that you do not use the go-kart on slippery or wet surfaces. It should not be used on
snowy or icy surfaces either.

© by WilTec Wildanger Technik GmbH Item 61214–61217 Page 4
http://www.WilTec.de
http://www.aoyue.eu 06 2021-1
http://www.teichtip.de
IMPORTANT
Please always observe the Road Traffic Licensing Regulations of your country and all other valid legal
regulations and requirements. A self-balancing, electric seat scooter does NOT have a
General Operating Permit (ABE in Germany). This means that it must not be used on
public roads.
Use is recommended for children from 6 years up to a weight of
120 kg. Never leave the child unattended and only use the go kart on
a locked private property.
Respect the maximum recommended speed of 10 km/h.
Parts list
№
Name
№
Name
1
Washers (4×)
6
Quick clamp/knob (1×)
2
Screw M8×20 mm (4×)
7
Spanner (1×)
3
Flange nut M8 (4×)
8
Allen key (1×)
4
Locking screw (2×)
Without illustration: lashing straps (2×)
5
Spanner (1×)

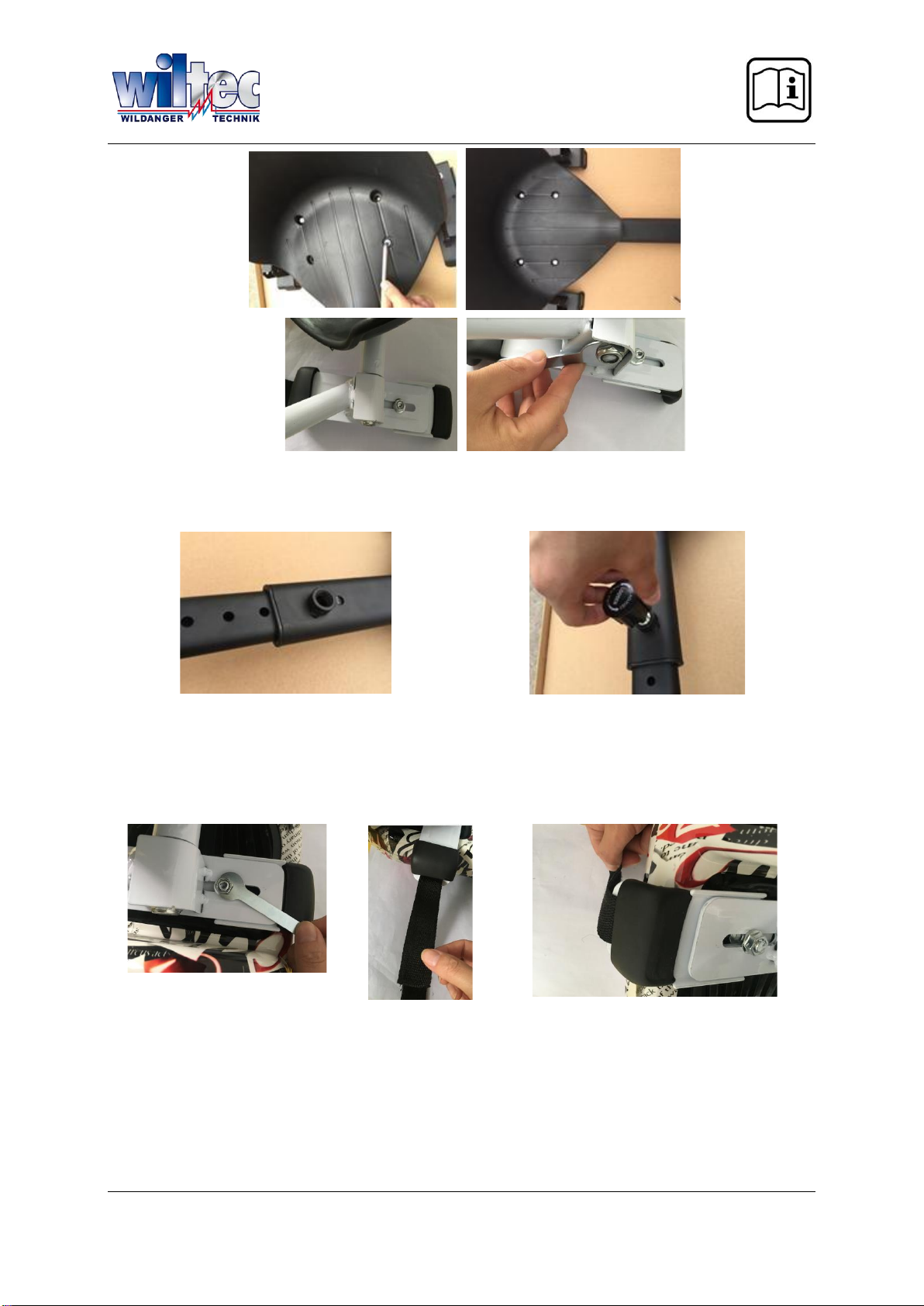

Assembly
To assemble the go-kart correctly, please proceed as follows:
1. Open the packaging, remove all parts and check for completeness.
2. Place the seat on the frame and fix it with the four M8×20 mm screws (2) and the matching M8
flange nuts (3). Use the Allen key (8) to tighten the bolts and the spanner (5) for the nuts.
3. To fix the control levers, please use the locking screws (4) and the spanner (7).

© by WilTec Wildanger Technik GmbH Item 61214–61217 Page 5
http://www.WilTec.de
http://www.aoyue.eu 06 2021-1
http://www.teichtip.de
4. Adjust to the desired length (comfortable and safe sitting position) and secure the tube with the
spanner/knob (6).
5. Adjust the seat scooter mount to the size of your board and secure the setting with the screws.
Use the spanner (5) for this. Now fix the board with the supplied fabric straps with Velcro. Make
sure that the go-kart is held firmly in place. Only use the kart with your board if it can be mounted
appropriately.

© by WilTec Wildanger Technik GmbH Item 61214–61217 Page 6
http://www.WilTec.de
http://www.aoyue.eu 06 2021-1
http://www.teichtip.de
Main components
№
Designation
№
Designation
1
Handlebar grip
5
Quick clamp/knob
2
Seat shell (the kart may only be used if
the seat shell is in perfect condition)
6
Steering base rod
3
Universal holder for go-kart
7
Front frame with foot holder
4
Rear frame with seat support
8
Front wheel
Make sure that all brackets and attachments are in perfect condition. Do not use the scooter if it is
defective. Only use suitable spare parts. Contact the manufacturer or your salesperson for the appro-
priate information.

© by WilTec Wildanger Technik GmbH Item 61214–61217 Page 7
http://www.WilTec.de
http://www.aoyue.eu 06 2021-1
http://www.teichtip.de
Drive off
Before each ride, please check that all screws are tight and that there is no damage to the cart.
Do not switch on the board until you are safely seated on the cart.
Brake:
Keep both levers in a horizontal position.
Reverse:
Pull both levers up to move backwards. Pay attention to your surround-
ings.
Forwards:
Press the levers down evenly to move forward.
Turn left:
Push the left lever down and pull the right lever up.
Turn right:
Push the right lever down and pull the left lever up.
•Always pay attention to your surroundings while driving and drive at an appropriate speed.
Never exceed the recommended maximum speed of 10 km/h. Avoid any sudden steering move-
ments. Always try to operate the steering smoothly and evenly. Be ready to brake at all times.
•Please do not ride continuously at the maximum speed of the hoverboard. Do not ride on slip-
pery, wet, or frozen surfaces. Avoid steeply sloping terrain and slopes. Always ride carefully and
smoothly on curves. You could lose your balance and injure yourself on sharp bends.
•Only use the scooter on flat surfaces, avoid holes, grooves, and kerbs. Do not drive over loose
materials, e.g., branches, stones, grass or sand.
•Only use the go-kart with a suitable hoverboard. Before use, make sure you have understood
the instructions for the scooter. Check that the go-kart meets the general safety requirements
before assembling it.
Cleaning and storing
•Only clean the go-kart with a damp cloth and, if necessary, with a mild cleaning agent.
•Store the go kart in a dry place.
Important Note:
Reproduction and any commercial use (of parts) of this operating manual, requires a written permission
of WilTec Wildanger Technik GmbH.
