Wind Chaser MDHTi-W User manual

Innvative Products for Living
INSTRUCTION
MANUAL
PLEASE READ BEFORE USE AND SAVE

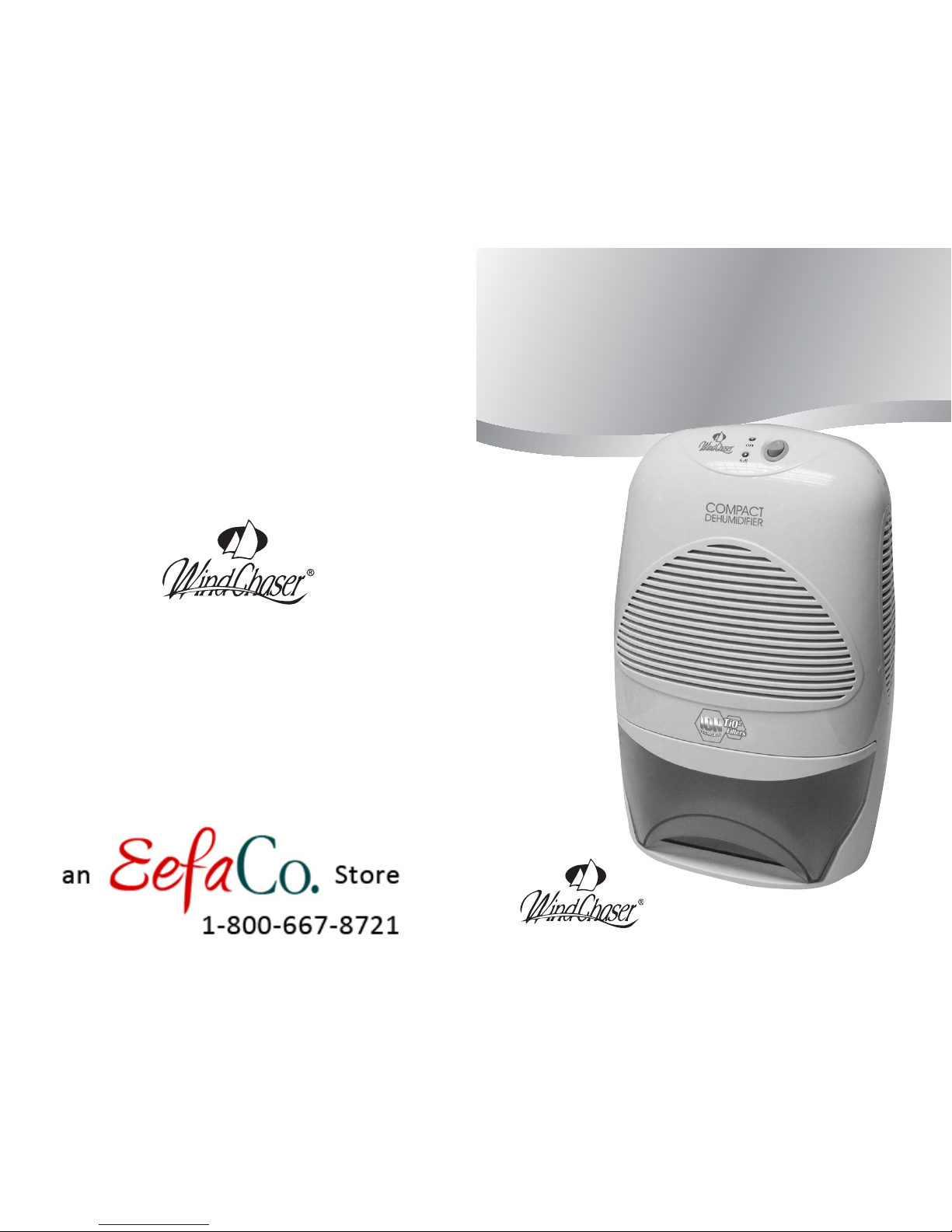

COMPACT
Dehumidifier
Dehumidifier
WITH TI02 FILTERS, UV LIGHTS, AND
CONTINUOUS DRAIN OPTION

CONTENTS
Before Initial Use 2
For Your Safety 3
Parts 4
Operating Instructions 5
Maintenance 6
Cleaning and Storage 6
Specifications 7
Limited Warranty 8
MODEL
MDHTi-W
LIMITED WARRANTY
One (1) Year Limited Warranty
This 1 year warranty applies to repair or replacement if a product is
found to be defective in material or workmanship. This warranty does
not apply to any damage resulting from commercial, abusive and/or
unreasonable use or supplemental damage. Defects as a result of
normal wear and tear will not be considered manufacturing defects
under this warranty. Read the instruction manual before attempting to
use this product. WindChaser Products, Inc. is not liable for incidental
or consequential damages of any nature. Any implied warranty of
merchantability or fitness for a particular purpose on this product is
limited in duration to the duration of this warranty. Some states do not
allow the exclusion or limitation of incidental or consequential damages
or limitations on how long an implied warranty lasts, so the above
limitations or exclusions may not apply to you. This warranty gives you
specific legal rights, and you also may have other rights which vary from
state to state. This warranty applies only to the original purchaser of this
product. WindChaser Products, Inc. will repair or replace this product
if it is found to be defective in material and/or workmanship. Defective
product should be returned to the place of purchase in accordance with
store policy. Thereafter, while within the warranty period, any defective
product should be returned to WindChaser Products, Inc. This warranty
does not cover damage resulting from unauthorized attempts to repair
or from any use not in accordance with its manual.
COMPACT
Dehumidifier
WITH TI02 FILTERS, UV LIGHTS, AND
CONTINUOUS DRAIN OPTION

SPECIFICATIONS
Cooling Element
Moisture Removal
Water Reservoir Capacity
Power Consumption
Power Adapter Supply
Working Environment
Applicable Room Size
Fan
Thermo-Electric Peltier Module
500ML (1.06pts) +/- 5% per day at 86°F
(30°C) 80% Relative Humidity
4.2 Pints. (2 Liter)
72 Watts
12V DC 6Amps
Over 59°F (15°C), over 40% RH
110 ft2(10m2)
Height: 8ft (2.5m) or less
3.5in x 3.5in (90 x 90mm) high speed
DC Brushless Motor with Turbo Blades
Read this entire instruction manual before use
For your reference:
Serial No. Date of Purchase
Name and Address of Dealer
BEFORE INITIAL USE
Attach your purchase receipt here
PLEASE KEEP YOUR RECEIPT.
YOUR RECEIPT IS YOUR PROOF OF
PURCHASE AND IS NECESSARY FOR
WARRANTY SERVICE

FOR YOUR SAFETY
IMPORTANT INSTRUCTIONS
Read and save these important safety instructions before using this unit. When
using electrical appliances, basic safety precautions should always be followed
including the following:
1) Use this unit only as described in this manual. Other uses not recommended
may cause fire or electric shock.
2) This product is intended for household use ONLY and not for commercial,
industrial or outside use.
3) To protect against electrical shock, do not place unit in window, immerse unit,
plug or cord in water, or spray with liquids.
4) Close supervision is necessary when any appliance is used near children.
5) Unplug the unit from the outlet when not in use, when moving from one
location to another, and before cleaning.
6) Do not operate the unit in the presence of explosive and/or flammable fumes.
7) Do not place the unit or any parts near an open flame, cooking or other
heating appliance.
8) Do not operate the unit with a damaged cord, plug, after a malfunction, or
if dropped or damaged in any manner.
9) Avoid contact with moving parts.
10) To disconnect, grip the plug and pull it from the wall outlet. Never yank
the cord.
11) The use of attachments is not recommended and may cause hazards.
12) Always use on a dry level surface.
13) Do not operate if the unit housing is removed or damaged.
15) WARNING: Do not use this unit with any AC/DC adapter that is not
approved by Windchaser. This may damage the unit or cause a hazard.
16) FOR INDOOR USE ONLY
SAVE THESE INSTRUCTIONS
1. Turn the control to “OFF” and unplug the unit before cleaning.
2. Use only a soft, damp cloth (not dripping wet) to clean the exterior.
A vacuum or can of compressed air can be used to clean the interior.
DO NOT OPEN THE HEATER HOUSING. Spray air through the back
and front grills with the can of compressed air to loosen dust, then vaccum
inside and around the unit.
NOTE: Can of compressed air can be purchased at a local computer store or
any store that sells computer accessories.
3. Do not immerse the unit in water and never allow water to drip into
the housing.
4. Do not use gasoline, paint thinner or other chemicals to clean the unit.
5. Store the unit in it’s original box in a cool, dry place.
NOTE: If a problem is experienced, please return the unit to the place
of the original purchase or see the warranty. To avoid electric shock,
do not open the unit housing. There are no user-serviceable parts inside.
Any repair work must be done by a qualified technician appointed by
WindChaser Products. Opening the unit housing will void the
warranty and may cause damage to the unit or personal injury.
CLEANING AND STORAGE
1. Always turn the unit to the “OFF” position when not in use.
2. Avoid using the AC/DC power adapter in wet or damp places.
Position it in areas where the air ventilation is good.
3. Keep the front inlet and the top outlet grills free from air blocking
materials such as clothing, plastic bags or papers.
4. If the unit has been properly connected and no power is flowing,
contact WindChaser Products Customer Service (see warranty).
5. Always keep the unit at an upright position to avoid water leakage.
6. The thumb should be placed at the top center of the unit while lifting
by the carry handle (7), to avoid tilting. At the same time, the other
hand should hold the base to secure the unit.
MAINTENANCE

PARTS OPERATING INSTRUCTIONS
1. ON/OFF Button
2. “ON” Indicator Light
3. “FULL” Reservoir Indicator Light
4. Air Inlet
5. Removable Water Reservoir
6. Dry/Clean Air Outlets
7. Carry Handle
8. DC Power Socket
9. Continuous drain port
10. Water Drainage Hole
11. Float Switch
12. Condensate Drip Hole
13. DC Power Jack
14. AC/DC Power Adapter
15. AC Plug with Power Cord
16. Rubber Feet
17. Continuous drain hose
11
10
9
14
15
1
2
3
4
5
12
13
8
7
6
16
17

1. Plug the DC power jack (12) of the AC/DC power adapter to the DC power
socket (8) on the back of the unit, then connect the AC plug (15) of the power
adapter to an available outlet.
2. Press the “ON/OFF” button (Fig. 1) up to the “ON” position and the Compact
Dehumidifier will begin to operate. The green indicator light will be illuminat-
ed. Listen and feel for the air blowing from the dry air outlet (6).
3. To switch off the unit, press the “ON/OFF” button (Fig. 2) down to
the “OFF” position.
NOTE: Ionizer, UV lights and Ti02 filters activate once the unit is turned
on. When facing the unit, the UV and Ti02 are on the right while the ioniz-
er is on the left. It is normal for the user to notice some violet light from
the right air outlet. You may notice a mild scent coming from the left air
outlet which indicates that negative ions are being produced.
4. When the water reservoir (5) is full, the float switch (11) will shut the unit off
automatically and the red indicator light (3) will be illuminated. Press the
“ON/OFF” button (1) to the “OFF” position. Pull the water reservoir out of the
unit and drain the water through the water drainage hole (10). Then place
the reservoir back into the unit. Another option is to pull out the rubber
stopper from the continuous drain port (9) and drain the water from there.
To continue dehumidifying, press the “ON/OFF” button to the “ON” position.
NOTE: The continuous drain port gives you
the option to connect the drain hose (17) to
the continuous drain port and continuously
drain the unit without having to pull out the
water resevoir. Place the other end of the
hose near a proper water drain.
NOTE: The Peltier System works by making one side of the Peltier
element ice cold, venting the subsequent heat out of the top of the unit.
The fan inside of the dehumidifier draws the moisture in the humid air
across the cold side of the Peltier element, causing the humid air to con-
dense and drip down into the water reservoir.
OPERATING INSTRUCTIONS
Fig. 1 Fig. 2
