Windhager InfoWINplus User manual

Quick guide
FireWIN pellet flue-connected boiler
InfoWINplus
The lighting/display is initially switched on for 10 min. by briefly pressing a button. The corresponding function
is then started by pressing the button again.

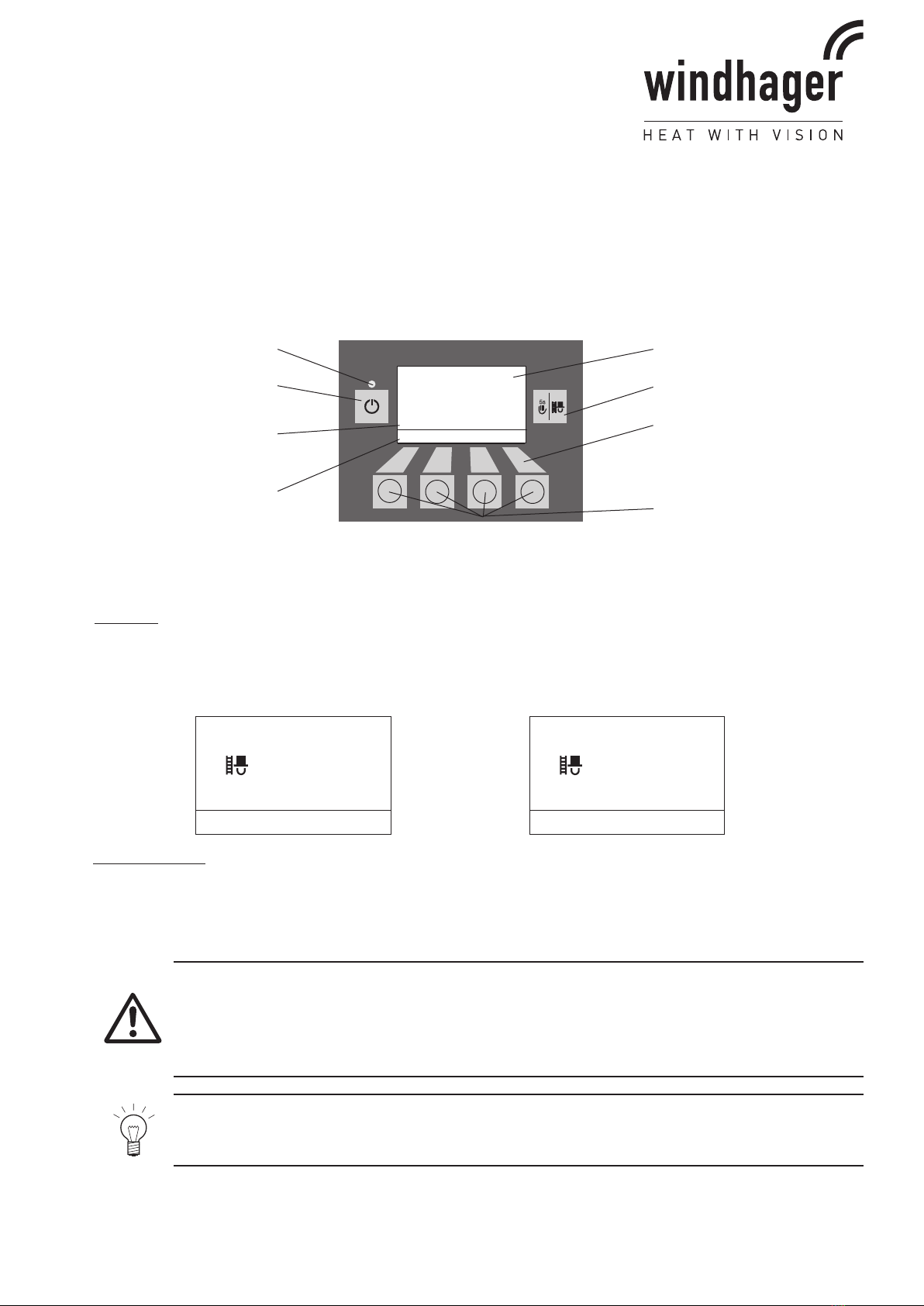

A brief explanation of the most important functions of the operating unit:
Operating phases are displayed
here, including standby, modula-
tion mode, etc.
Menu line
Signal lamp (LED)
“Operation” – green
Full-text display
(illuminated display)
Assignment of buttons to
their specific function
Manual operation / flue cleaning
function
ON/OFF button
Menu buttons
5s
RESET
Boiler temperature
Standby
Info Menu
38°C
07/2012 092129/03
Ending function: Press the Cancel button or automatically after about 45 minutes.
Chimney sweeper func.
Power 100% 45 min
(Operating phases)
30% Cancel 100%
42°C
(Symbol flashes)
Chimney sweeper func.
Power 30% 45 min
(Operating phases)
30% Cancel 100%
42°C
(Symbol flashes)
Pressing the corresponding menu button enables the boiler to be operated with 30 % (= part load) or 100 % output.
The operating time is reset to 45 min. when the Manual operation / chimney sweeper function button is pressed
again.
Chimney sweeper function
Starting: Briefly press the Manual operation / chimney sweeper funktion button (the lighting/display is switched
on), press the button again briefly, the boiler temperature is set to about 60 °C for 45 min.
Removing ash and cleaning boiler and burner
Note!
The ash may be loaded with heavy metals. Heavy metals may affect soil fertility. Ash is not therefore
suitable as a fertiliser and should be disposed of with residual waste.
Attention!
Do not open the combustion chamber door during operation. Always switch the boiler off first with
the ON/OFF button and wait until burnout mode has finished.
Risk of fire if ash hasn‘t cooled! Store ash in lockable and non-combustible container on non-
combustible base for at least 48 hours.

The “Clean boiler and burner” cleaning request is displayed
Display on InfoWINplus IN 590 or FE 390
The FireWIN is equipped with a cleaning interval display. The cleaning request for the combustion chamber and
burner pot is displayed on the InfoWINplus and must be reset after cleaning has finished.
Cleaning:
a) Take out the baffle plate and remove the ash.
b) Clean fly ash off the temperature sensor with a cleaning brush.
c) Cleaning the down chute.
d) Clean burner pot.
e) Empty the ash pan(s) or remove the ash from the heating surface duct.
f) Check that there is not too much dust in the FireWIN reserve supply container and that there is no bridge for-
mation – remove the dust.
Cleaning the baffle plate
Temperature sensor Down chute
Technische Änderungen vorbehalten. AWP-vor-übersetut aus 023745/05
Removing ash
FireWIN Klassik and Premium approx. every 400 kg pellets or FireWIN Exklusiv approx. every 1200 kg pellets
a) Connect the heating surface cleaning lever (FireWIN Klassik/Premium only) and move it backwards and for-
wards several times.
b) Empty the ash pan(s) or remove the ash from the heating surface duct.
Connect the lever and operate it several times Empty the ash pan(s) or remove the ash
from the heating surface duct
Ash pan for
heating surfaces
(accessories)
Ash pan for
combustion
chamber
Detail
1...........Cleaning tool or cone removal too
2...........Guide groove for the lock the Cone in the burner pot
3...........Cone
4...........Primary air pin
5...........Grate plate
6...........Secondary air holes
7...........Lock for cone
8...........Burner pot
Cleaning the thermocontrol sensor and down chute
Resetting the cleaning request
After the combustion chamber and burner pot have been cleaned, the operating hours counter for boiler cleaning
must be reset.
Boiler cleaning
Time
Feed operating mode
Time profile feed
Probe switching
Choose Back
Selecting “Boiler cleaning”
Has boiler and burner cleaning
been performed?
Confirm
Yes Back
Confirming with the Yes button
At least once per heating season
see operating manual.
Press the Reset button or switch on the boiler at
the InfoWINplus. Wait for the self-test to finish,
press the Menu button and change to operator le-
vel. Select the „Boiler cleaning“ sub-menu in the
operator level and confirm by pressing Yes. The
counter is reset.
