Wingsland Minivet HR1258 User manual

快 速 使 用 手 册
Quick Start Guide
Height Changes Your Aesthetic View
www.szsungreen.com
2015 WINGSLAND. All Rights Reserved.
©

Quick Start Guide

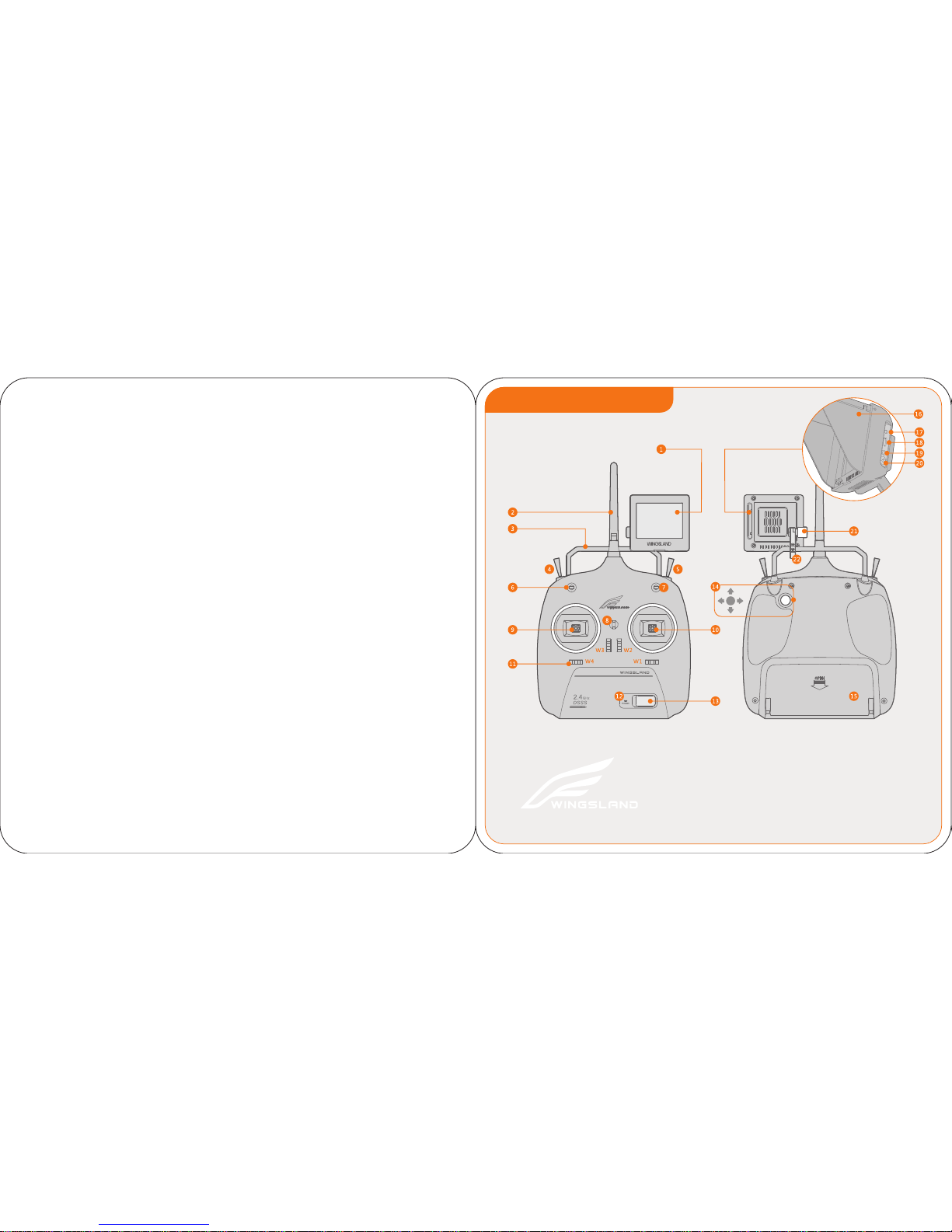

12. Power Indicator
13. Power Switch
14. Gimbal Joystick Control
15. Battery Compartment Cover
16. Sunscreen Shading
17. Display Screen Indicator
18. Charging Port
19. Video Output
20. Display Screen Power Button
21. Screen Lock-Screw
22. Screen Bracket
1. Display Screen
2. Antenna
3. Handle
4. Switch L2
5. Switch R2
6. Switch L1
7. Switch R1
8. Neck Strap Attachment
9. Left Stick
10. Right Stick
11. Trimming Button W1-W4

Battery Level high
low
Figure 1
Figure 2
1. Aircraft
2. Orange LED Indicator
3. Landing Gear
4. Integrated Camera
5. Vibration absorber sponge
6. Propeller Lock Screw
7. Propeller
8. Motor
Quick Start Guide
Battery should only be charged with the charger supplied by Wingsland.
Connect battery to wall socket (100-240V), using the plug set if necessary. Connect battery to the
battery joint (Figure 1). Battery Level Indicators display current capacity level during the battery
charging. The Battery Level Indicators LED turns off after the battery is fully charged.
9. GPS Status Indicator
10. Power Button
11.Battery Level Indicator
12. Image Transmitter
13. 3-Axis Gimbal
14. Green LED Indicator
15. Intelligent Flight Battery
16. Gimbal Assistant Port
The Display Screen built-in Battery can be charged with Computer or Smart Phone, connect to
the charging port (Figure 2), the Display Screen Indicator LED displays RED to tell the charging
status, the battery is fully charged after LED turns Green.
Usage of the Flight Battery
1

Attaching Propellers according
to the Arrow Direction
Install Propellers and Power on/off Smart Battery
3
Battery level indicating with press once any button on the battery indicator board. Ensure the battery fully
charged.
Insert the Battery before the aircraft powering on, make sure insert into the bottom correctly and fasten
the bayonet.
Ensure the aircraft fly from a flat smooth ground and under an open area without any obstacles, passengers,
high-voltage lines and other possible electromagnetic interference.
Press two triangular buttons simultaneously with holding for 3 seconds (Figure 3) till battery powering
on and the Green/Red LED indicator lightening (Figure 4).
L2-0
Middle Position
L2-1
NOTICE
L1-0
Middle Position
L1-1
Switch On
Preparing Controller
Figure 1 Figure 3
Figure 2
Figure 4
2
Display Screen
Power Button
Install Display Screen onto the Controller handle, press Display Screen Power Button for 3 seconds
to powering on Display Screen. (Figure 1)
Set switch L1 (Figure 2) and switch L2 (Figure 3) to the middle position.
Install 6s AA Alkaline Battery into the battery compartment on the back of the Remote Controller.
Pay attention to positive and negative.
Reconfirm about every switch position.
Toggle the switch L1 to the middle position:
St abilize d smo oth G PS Mo de. To ggl e the
switch L1 to L1-0 position: Manual Operation
Mode (It is not suitable for beginner, or under
non emergency condition.)
Toggle the switch L1 to L1-1 position: Automatic Return-to-Home Mode (Aircraft would be flying higher
to 20M before return to the home point if the flight height is below 20M. Aircraft would be Return-to-Home
with maintaining the same flight height when the flight height is beyond 20M. The home point is the point
located during the GPS initialization. Make sure no obstacles along the way home before activating
Return-to-Home function.)
Toggle the switch L2 to the middle position: Standard Ready to Fly Mode. Toggle the switch L2 to L2-1
position: Forward Direction Lock Mode (The forward direction is a nose direction recorded after aircraft
powering on with the complete of GPS initialization). Toggle the switch L2 to L2-0 position:POI Mode
( Record a Point of Interest, the aircraft can be controlled to circle around the POI, and the nose direction
always points to the POI. )
Spin Propellers and Screw Nuts in the direction with consistence of arrow direction marked on the aircraft
arms (Figure 2). Spin and Fasten Screw Nuts with Screw Nut Wrench (Figure 1).
Red LED 1 Green LED 2-5
Screw Nut
Screw Nut Wrench
Figure 1
Press with holding for 3 seconds
Figure 3
Figure 2
Figure 4

5
Left Stick
Nose
Direction Nose Direction
Right Stick
Figure 1
Figure 2
Figure 3
Figure 4
Nose
Direction
Nose
Direction
NOTICE
The Remote Controller is set to Mode 2 by Default (Mode 1 and Mode 2 refer to different channel
mappings. Mode 2: the left Stick controls throttle.)
Basic Flight Operations see below: (Figure 1), (Figure 2), (Figure 3), (Figure 4).
Toggle switch L2 to L2-1 position when flying far from distinguishing nose direction of aircraft, to
activate Forward Direction Lock Mode to make flight direction control easily.
Toggle switch L1 to L1-1 position to activate the Return-To-Home Mode for aircraft return safely,
when you fail operate or under other difficulties.
The Mode 2 or Mode 1 of the Remote Controller can be set with Fine-Tuning/Trimming Button and need to
be adjusted in the Minivet RC Assistant Software ( See Minivet User Manual for details.).
The aircraft would not be controlled by the pilot after activating the Return-To-Home Mode, so ensure no
obstacles or passengers along the way home. The aircraft can be controlled by the pilot when you toggle
switch L1 to the middle position.
When hovering, the aircraft is deviated from the hovering point, the Remote Controller Neutral point
recalibration is needed.
How to Operate Remote Controller
4
Flip for 5 times
or more
Indicators Flashing
Holding the aircraft horizontally, rotate the aircraft
Calibrate the Compass
Calibrate the compass is needed when you fly for the first time at a new location.
After Powering on the controller and aircraft, rapidly flip the L1 switch from the 'fully up' to the 'fully
down' positions for at least 5 times until the 4 LED indicators beneath the arms of aircraft turns
slowly flashing for the compass calibration mode being initiated.
Holding the aircraft horizontally, rotate aircraft 360ºon its center axis for 7 times or more, until the
4 LED indicators beneath the arms of aircraft stop flashing for the complete of compass calibration.

7
Landing ( Outdoor)
Left Stick/Descend (Slowly)
Figure 1
NOTICE
Gently pull the Left Throttle Stick Mode 2 down to lower the aircraft. (Figure 1 ( ) )
When the aircraft is touching the ground, pull the Left Throttle Stick Mode 2 down to the lowest ( )
position rapidly. ( )After the aircraft touching the ground, to maintain the Left Throttle Stick Mode 2
on the lowest position for 3seconds or more until the propellers stop rotation.
Press the two triangular buttons on the battery compartment board simultaneously for 3 seconds
or more until all the indicators on the battery compartment board turn out.
Press the Display Screen power button for 3 seconds or more to power off the Display Screen.
Power off the controller.
Make sure the Remote Controller Powering Off after Aircraft Powering Off.
When the aircraft topple and fall anytime, don't be close to at once, you need to maintain the Left
Throttle locked, then move stick on the lowest position for 3 seconds or more until the aircraft motors
to Power off the aircraft.
6
Left Stick/Ascend(Slowly)
GPS Status Indicator
Motors Power On/Off
Power On
Figure 1
Figure 2
Figure 5
Figure 3
Figure 4
Nose Direction
Take off (In an open area and Strong GPS Signal)
Place the aircraft on flat ground in an open area, with Rear Battery LED indicators facing you (Figure 1).
Make sure no obstacles or passengers.
Adjust Display Screen channel(Press Display Screen Power Button rapidly once to switch Display
Screen channels), ensure the image displayed quality on the Display Screen screen is in high quality
(if image transmission interfered,
Display Screen channels.)
please switch onto aircraft transmit Channel firstly, then match the
Waiting for 1 minutes or more when flying in a new place at first time, till the upper side of aircraft GPS
Status Indicator Blue LED (Figure 2) stop flashing.
Toggle left stick and right stick simultaneously to powering on/off motors(Figure 3 or Figure 4).
Restore the sticks to the middle position after powering on.
Drive left throttle stick (Figure 5) up slowly for aircraft ascending (For beginner, the flight height
controlled within 5-10M is recommended.).
When the aircraft hovering, please ensure the battery level indicator facing operator always.

Disclaimer & Warning
This product is not designed or suitable for people under age of 18.
Please make you sure of that you are responsible for your any flight conduct and
content, or any consequence caused by your flight while using this product.
The product built-in autopilot system cause danger even if we have made its operation
as safe as possible. Good practice before your flight with removing all propellers
is recommended. Please fly in an open area/outdoor and far away from any obstacles
and passengers. You agree to use this product in accordance with local regulations,
terms and any applicable polices and guidelines.Ensure using this product only for
the purposes that are proper.
Any part of this disclaimer is subject to change without notice, please visit www.
szsungreen.com for the latest version for your reference.
This disclaimer is made in various language versions. In the event of divergence
among different versions, the Chinese version shall prevail in China domestic
area, the English version shall prevail in other countries and areas.
Attention please read this disclaimer carefully before starting your pilot
experience. Thank you for your using Wingsland product, you hereby agree
with and accept the terms of this disclaimer and it is believed that you have
read it seriously.
Disclaimer & Warning INSTRUCTIONS & CAUTIONS
1.Ensure using with genuine Wingsland accessories to get most efficiently flight
experience.
2.Please uninstall all propellers before your calibration or parameters setting.
3.Ensure that you are familiar with your local laws, administrative rules and social
habits and agree that you are solely responsible for your own conduct and content
while you flying.
4.Ensure to check all connections (check the propellers and the motors are installed
properly and firmly) and every part of product is in normal condition before each
flight.
5.Stay away from obstacles, passengers, crowds, high-voltage lines, other possible
sources of electromagnetic interference and fragile goods.
6.Check that the position of switches of Remote Controller is correctly set. Ensure
the installation of propellers is correct.
7.Check that the Remote Controller Battery, Intelligent Flight Battery, Display Screen
Battery is fully charged.
8.Do not fly near the areas existed magnetic or radio interference. For example, radio
and TV tower, high-voltage lines, communication base station, radar instruments, etc.
9.Do not allow the product to contact with or immersed in water or any liquid. Do not
store the product in humid, high-temperature, direct sunlight or dusty areas.
10.Never use parts of this product damaged in any way or in abnormal conditions,
please contact your Wingsland authorized dealer or Wingsland Customer Service.
11.Do not fly in severe weather condition, such as rainy, windy, snowy, lighting day,
etc. Do not use in a dusty environment.
Please be clear the international and domestic airspace regulations and rules
before your flight. This product is a flying camera offers your flight outdoor
easily when you abide with the normal and correct operating order.
Disclaimer & Warning

1.Please keep the battery storage in out of the reach of children.
2.Do not put the battery into the fire or store in high-temperature environment.
3.Battery charging uses the genuine Charger supplied by Wingsland is demanded.
Never charge batteries unattended. Check the battery condition during your charging.
4.Attention please to the battery positive and negative. To avoid that the battery
storage in contact with any conductor.
5.Do not drop or strike battery. Do not use a swollen, leaky or damaged battery.
6.If found the battery leakage, do not contact with skin and eyes, if you do contact,
immediately rinse with plenty of water and seek medical help.
7.The battery level will be affected when using in a low temperature or a high
temperature.
8.Please do not arbitrarily discard battery, to dispose of the battery in accordance
with the local regulations when the battery is no longer in use. Discarding battery
arbitrarily would cause a fire hazard, and may pollute the environment.
9.Ensure that the usage of the battery strictly abide by Wingsland User Manual.
Battery Usage Notes
WINGSLAND accepts no liability for damage(s), injuries or any legal responsibilities
incurred directly or indirectly from the use of this product in the following conditions,
and this limitation of liability applies to WINGSLAND suppliers, dealers and service
providers:
1.Any more you paid in amount for this product than the actual purchase price.
2.Any costs and expenses with access to alternative goods, services or rights.
3.Costs, expenses increased, loss caused by the data loss, dada corruption or data
interruption.
4.Any loss caused by the violation of the provisions of local laws and regulations or
the civil aviation administration laws.
5.Any loss caused by the usage of product without abiding by the User Manual.
6.Any loss caused by the age, physical and mental condition of the Operator who is
not in the proper condition.
7.Damage(s), injuries or any legal responsibilities cause by using the third part alteration
products or fake Wingsland products.
8.Any loss caused by improper use in a strong magnetic field or in the bad environmental
conditions (such as in the temperature higher than 40 degrees or below 0 degrees
Celsius, and in the wind over force 4, etc.).
9.Any loss caused by Force Majeure.
LIMITATION OF LIABILITY
Disclaimer & Warning Disclaimer & Warning
