WINIA DTE74 Series User manual

Dryer
DTE74***, DTG74***
USER MANUAL
DTE74@@@ DTG74@@@_WINIA폼(가스+전기건조기).indd 1 2022-02-22 오후 3:38:42

2
TABLE OF CONTENTS
IMPORTANT SAFETY INSTRUCTIONS ...........................................................................................................................................3-6
Grounding requirements .................................................................................................................................................................... 4
FEATURES AND BENEFITS
Key Parts and Components............................................................................................................................................................... 7
INSTALLATION INSTRUCTIONS
 KeyDimensionsandSpecications................................................................................................................................................... 8
Location Requirements...................................................................................................................................................................... 8
Choose the Proper Location ........................................................................................................................................................ 8
Clearances......................................................................................................................................................................................... 8
Electric Dryers.................................................................................................................................................................................. 10
Electrical Requirements ............................................................................................................................................................. 10
Connecting Electric Dryers......................................................................................................................................................... 11
Gas Dryers....................................................................................................................................................................................... 12
Gas Requirements ..................................................................................................................................................................... 12
Electrical Requirements ............................................................................................................................................................. 12
Connecting the Gas Supply ....................................................................................................................................................... 13
Venting the Dryer ............................................................................................................................................................................. 14
Leveling the Dryer............................................................................................................................................................................ 16
Reversing the Door Swing ............................................................................................................................................................... 16
Final Installation Check.................................................................................................................................................................... 18
 RestrictedorBlockedAirow ........................................................................................................................................................... 19
HOW TO USE

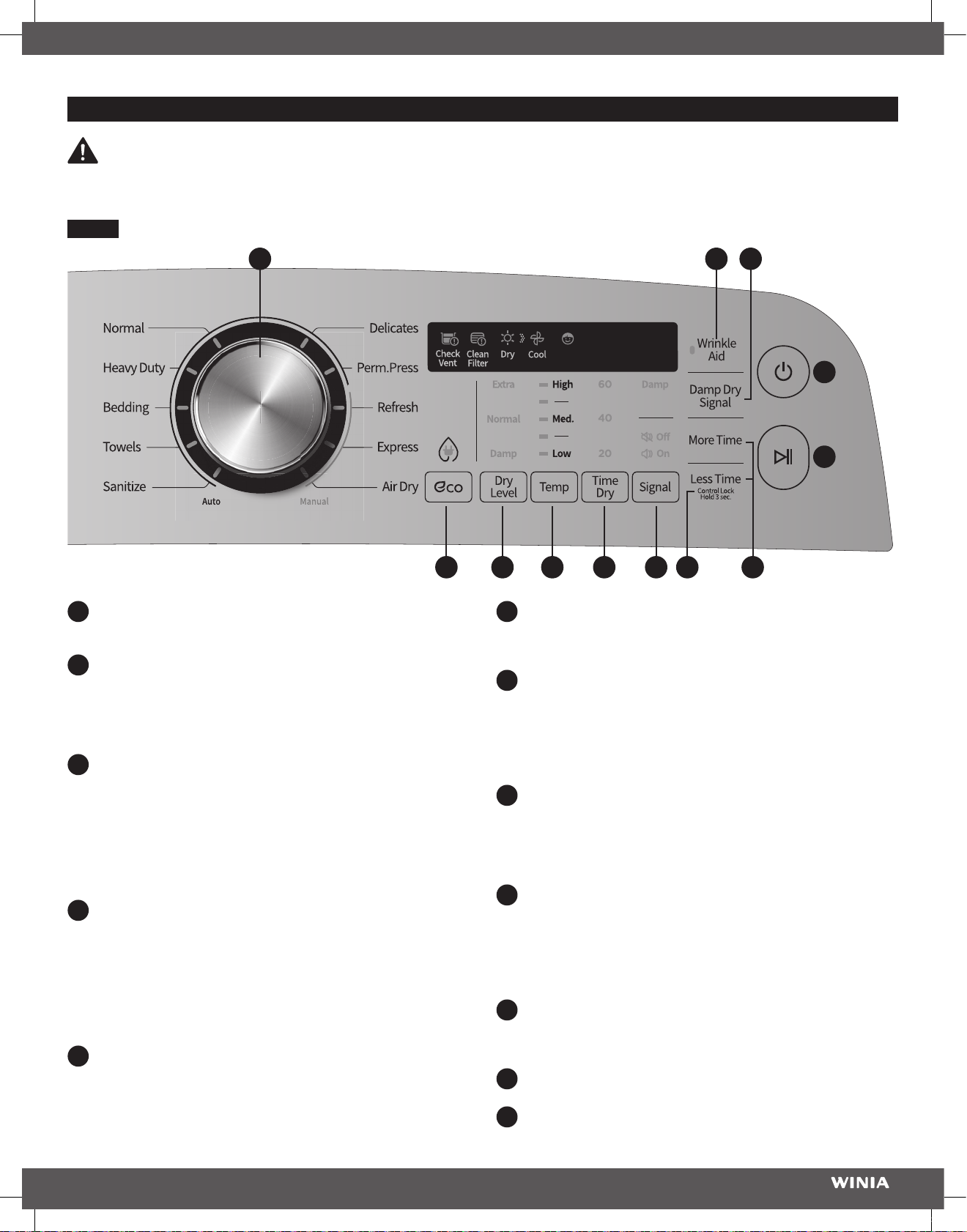

Control Panel Features.................................................................................................................................................................... 20
Simple steps to start ........................................................................................................................................................................ 21
To Change the Cycle During Operation........................................................................................................................................... 21
Special Features .............................................................................................................................................................................. 22
Cycle Guide ..................................................................................................................................................................................... 23
Cycle Chart ...................................................................................................................................................................................... 24
Sorting Loads................................................................................................................................................................................... 26
Loading the Dryer ............................................................................................................................................................................ 26
USER MAINTENANCE INSTRUCTIONS
Regular Cleaning ............................................................................................................................................................................. 27
Maintaining the Exhaust System ..................................................................................................................................................... 28
TROUBLESHOOTING GUIDE
Before Calling for Service ................................................................................................................................................................ 29
Information Codes............................................................................................................................................................................ 31
 SpecicationSheet .......................................................................................................................................................................... 31
WARRANTY ........................................................................................................................................................................................ 32
SERVICE ............................................................................................................................................................................................. 33
DTE74@@@ DTG74@@@_WINIA폼(가스+전기건조기).indd 2 2022-02-22 오후 3:38:42

3
IMPORTANT SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USE
WARNING:
For your safety, the information in this manual must be followed to minimize the risk of re, explosion,
or electric shock, or to prevent property damage, personal injury, or loss of life.
WARNING:
FIRE HAZARD
Failure to follow safety hazards exactly could result in serious injury, death or property damage.
• Do not install a booster fan in the exhaust duct.
• Install all clothes dryers in accordance with the installation instructions of the manufacturer of the dryer.
WARNING:
FIRE OR EXPLOSION HAZARD
Failure to follow safety hazards exactly could result in serious injury, death or property damage.
•
Do not store or use gasoline or other ammable vapors and liquids in the vicinity of this appliance or any other appliance.
• Installation and service must be performed by a qualied installer, service agency, or the gas supplier.
WHAT TO DO IF YOU SMELL GAS:
1. Do not try to light a match or cigarette, or turn on any gas or electrical appliance.
2. Do not touch any electrical switches. Do not use any phones in your building.
3. Clear the room, building, or area of all occupants.
4. Immediately call your gas supplier from a neighbor’s phone. Carefully follow the gas supplier’s instructions.
5. If you cannot reach your gas supplier, call the re department.
6. It is the responsibility of the owner of the appliance to perform gas leakage tests where the gas line connects to the
dryer at least once every three months.
• Do not install a clothes dryer with exible plastic venting materials. If a exible metal (foil type) duct is installed, it must
be of a specic type identied by the appliance manufacturer as suitable for use with clothes dryers. Flexible venting
materials are known to collapse, be easily crushed, and trap lint. These conditions will obstruct clothes dryer airow
and increase the risk of re.
SAVE THESE INSTRUCTIONS
Your safety and the safety of others is very important.
We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety
messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word WARNING or CAUTION.
These words mean:
WARNING:
Indicates a hazardous situation which, if not avoided, could result in death or serious injury.
CAUTION:
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and
tell you what can happen if the instructions are not followed.
Indicates a hazardous situation which, if not avoided, could result in minor or
moderate injury.
DTE74@@@ DTG74@@@_WINIA폼(가스+전기건조기).indd 3 2022-02-22 오후 3:38:42

4
BASIC SAFETY PRECAUTIONS
WARNING:
To reduce the risk of re, electric shock, or injury to persons when using this appliance, follow basic precautions,
including the following:

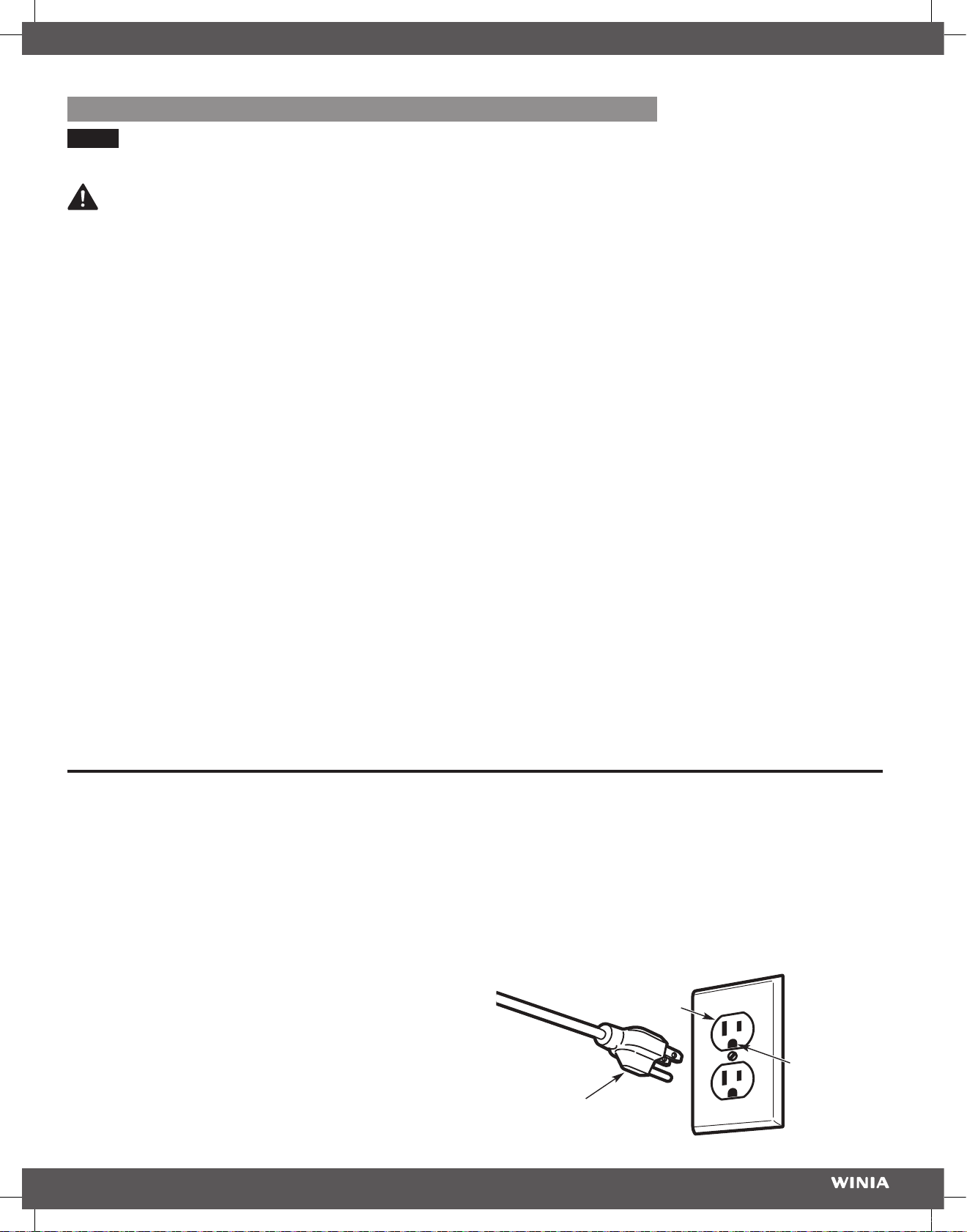

GROUNDING REQUIREMENTS
This appliance must be grounded. In the event of malfunction or breakdown, grounding will reduce the risk of electric shock by
providing a path of least resistance for electric current. This appliance must be equipped with a cord having an equipment-grounding
conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in
accordance with all local codes and ordinances.
WARNING:
Improper connection of the equipment-grounding conductor can result in a risk of electric shock.Checkwithaqualied
electrician or service person if you are in doubt as to whether the appliance is properly grounded. Do not modify the plug
providedwiththeappliance.Ifitwillnotttheoutlet,haveaproperoutletinstalledbyaqualiedelectrician.Thisappliancemust
be connected to a grounded metal, permanent wiring system or an equipment grounding conductor must be run with the circuit
conductors and connected to the equipment grounding terminal or lead on the appliance. Electrical shock can result if the dryer
is not properly grounded.
IMPORTANT: The gas installation must conform with local codes, or in the absence of local codes, with the National Fuel Gas Code,
ANSI Z223.1/NFPA 54, or the Natural Gas and Propane Installation Code, CSA B149.1.
The dryer must be electrically grounded in accordance with local codes, or in the absence of local codes, with the National Electrical
Code, ANSI/NFPA 70, or the Canadian Electrical Code, Part 1, CSA C22.1.
• Read all instructions before using the dryer.
• Before use, the dryer must be properly installed, as described in
this manual.
• Do not place items exposed to cooking oils in your dryer. Items
contaminated with cooking oils may contribute to a chemical
reactionthatcouldcausealoadtocatchre.Toreducetherisk
ofreduetocontaminatedloads,thenalpartofatumbledryer
cycle occurs without heat (cool down period). Avoid stopping
a tumble dryer before the end of the drying cycle unless all
items are quickly removed and spread out so that the heat is
dissipated.
• Do not dry articles that have been previously cleaned in, washed
in, soaked in, or spotted with gasoline,
dry-cleaningsolvents,orotherammableorexplosive
substances,astheygiveo󰀨vaporsthatcouldignite
or explode.
• Do not reach into the dryer if the drum or any other part is
moving.
• Do not place any part of your body, such as hands or feet, or
metal objects under the dryer.
• Do not let your hand get pinched when opening or closing the
dryer door.
• Do not repair or replace any part of the dryer or attempt any
servicingunlessspecicallyrecommendedinthisUseand
Care Guide or in published user-repair instructions that you
understand and have the skills to carry out.
• Do not tamper with controls.
• Before the dryer is removed from service or discarded, remove
the door to the drying compartment.
• Do not allow children to play on or in the dryer. Close
supervision of children is necessary when the dryer is used near
children.
• Do not allow living animals such as pets to be inside the dryer
drum.
• Do not use fabric softeners or products to eliminate static unless
recommended by the manufacturer of the fabric softener or
product.
• Do not use heat to dry articles containing foam rubber or
similarly textured rubber-like materials.
• Keep area around the exhaust opening and adjacent
surrounding areas free from the accumulation of lint, dust, and
dirt.
• The interior of the dryer and exhaust vent should be cleaned
periodicallybyqualiedservicepersonnel.
• Do not install or store the dryer where it will be exposed to the
weather.
• Always check the inside of the dryer for foreign objects.
•Cleanthelintlterbeforeoraftereachload.
• Gas appliances can cause minor exposure to four potentially
harmful substances, namely benzene, carbon monoxide,
formaldehyde, and soot, caused primarily by the incomplete
combustion of natural gas or LP fuels. Properly adjusted
dryers will minimize incomplete combustion. Exposure to these
substances can be minimized further by properly venting the
dryer to the outdoors.
IMPORTANT SAFETY INSTRUCTIONS
DTE74@@@ DTG74@@@_WINIA폼(가스+전기건조기).indd 4 2022-02-22 오후 3:38:42

5
IMPORTANT SAFETY INSTRUCTIONS
SAFETY INSTRUCTIONS FOR INSTALLATION
WARNING:
To reduce the risk of re, electric shock, or injury to persons when using this appliance, follow basic precautions,
including the following:
• Properly ground dryer to conform with all governing codes
and ordinances. Follow details in the installation instructions.
Electrical shock can result if the dryer is not properly grounded.
• Before use, the dryer must be properly installed as
described in this manual. Electrical shock can result if the
dryer is not properly grounded.
• Install and store the dryer where it will not be exposed to
temperatures below freezing or exposed to the weather.
• All repairs and servicing must be performed by an
authorized service technician unless specically
recommended in this Owner’s Guide. Use only
authorized factory parts. Failure to follow this warning
cancauseseriousinjury,re,electricalshock,ordeath.
• To reduce the risk of electrical shock, do not install the
dryer in humid spaces. Failure to follow this warning can
causeseriousinjury,re,electricalshock,ordeath.
• Connect to a properly rated, protected, and sized power
circuit to avoid electrical overload. Improper power circuits
canmelt,creatingriskofelectricalshockand/orrehazard.
• Remove all packing items and dispose of all shipping
materials properly. Failuretodosocanresultinre,explosion,
burns, or death.
• Place dryer at least 18 inches above the oor for a garage
installation. Failuretodosocanresultinre,explosion,burns,
or death.
• Keep all packaging from children. Packaging material can be
dangerousforchildren.Thereisariskofsu󰀨ocation.
• Do not install near items that produce heat or open
ame such as stoves or cooking ovens. Failure to follow this
warningcancauseproductdeformation,smokeandre.
• Do not place candles, smoking materials, or other
ammables on top of the product. Dripping wax, smoke, or
recanresult.
• Remove all protective vinyl lm from the product. Failure to
dosocancauseproductdamage,smokeorre.
• The dryer must be used only for water washed fabrics.

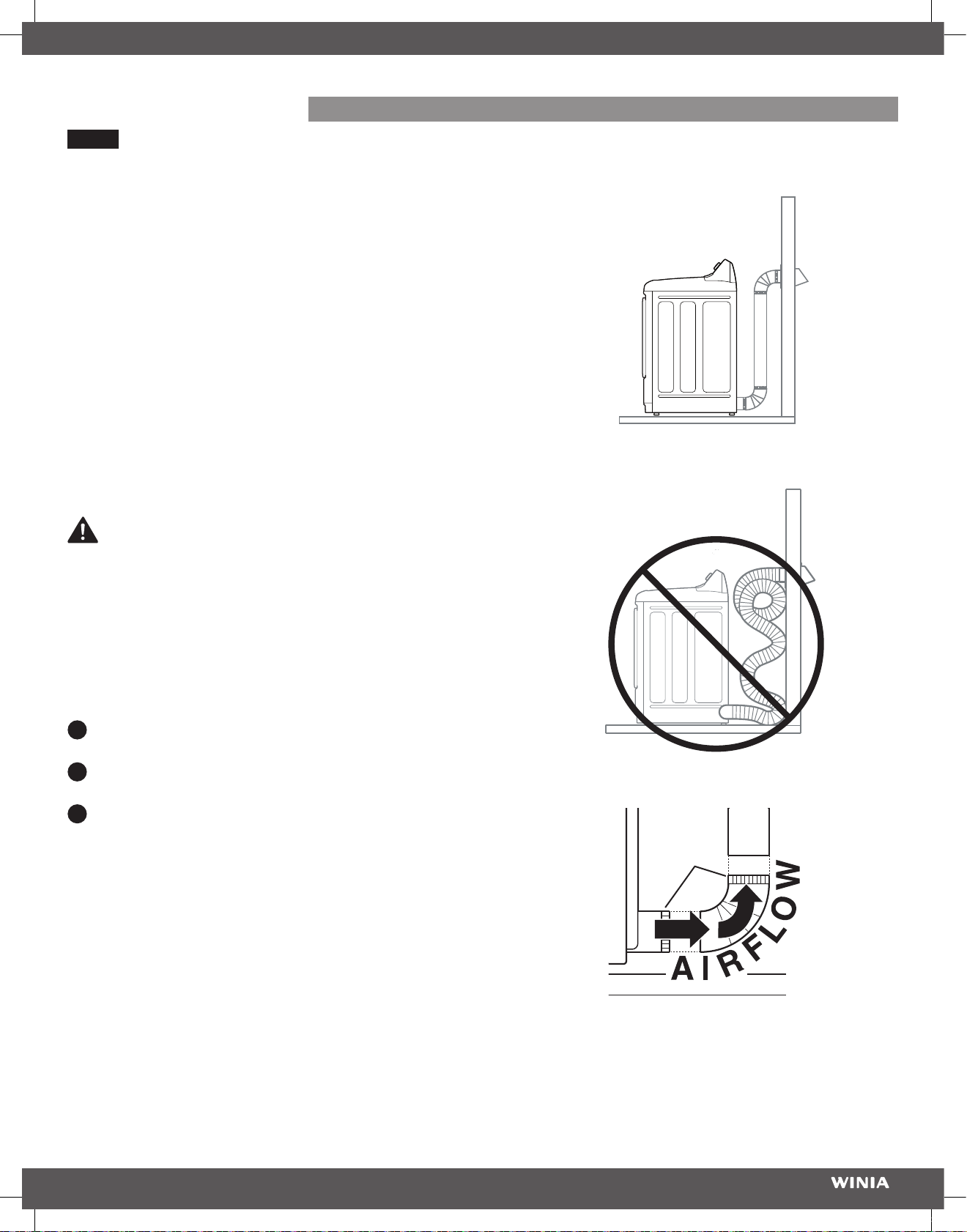

Exhaust/Ducting:
• Gas dryers MUST be exhausted to the outside. Failure
tofollowtheseinstructionscanresultinreordeath.
• The dryer exhaust system must be exhausted to the
outside of the dwelling. If the dryer is not exhausted
outdoors, some ne lint and large amounts of
moisture will be expelled into the laundry area. An
accumulation of lint in any area of the home can
createahealthandrehazard.
• Use only rigid metal or exible metal 4 inch diameter
duct inside the dryer cabinet or for exhausting to the
outside. Use of plastic or other combustible ductwork
can cause a re. Punctured ductwork can cause a re
if it collapses or becomes otherwise restricted in use or
during installation.
• Ductwork is not provided with the dryer, and you
should obtain the necessary ductwork locally. The end
cap should have hinged dampers to prevent backdraft
when the dryer is not in use. Failure to follow these
instructionscanresultinreordeath.
• The exhaust duct should be kept as short as possible.
Make sure to clean any old ducts before installing your new
dryer. Failuretofollowtheseinstructionscanresultinreor
death.
• Rigid or semi rigid metal ducting is recommended
for use between the dryer and the wall. In special
installations when it is impossible to make a connection
with the above recommendations, a UL listed exible
metal transition duct may be used between the dryer
and wall connection only. The use of this ducting will
a󰀨ect drying time. Failure to follow these instructions
canresultinreordeath.
• DO NOT use sheet metal screws or other fasteners
which extend into the duct that could catch lint and
reduce the e󰀩ciency of the exhaust system. Secure all
joints with duct tape. For complete details, follow the
Installation Instructions. Failure to follow these instructions
canresultinreordeath.
DTE74@@@ DTG74@@@_WINIA폼(가스+전기건조기).indd 5 2022-02-22 오후 3:38:42

6
SAFETY INSTRUCTIONS FOR CONNECTING ELECTRICITY
WARNING:
To reduce the risk of re, electric shock, or injury to persons when using this appliance, follow basic precautions,
including the following:
WARNING: ELECTRIC SHOCK HAZARD
Failure to follow safety warnings could result in serious injury or death.
This dryer is equipped with a three-prong grounding plug for protection against shock hazard and should be plugged directly into a
properly grounded three-prong receptacle. Do not cut or remove the grounding prong from this plug.
• Do not, under any circumstances, cut or remove the
ground prong from the power cord. To prevent personal
injury or damage to the dryer, the electrical power cord must be
plugged into a properly grounded outlet.
• For personal safety, this dryer must be properly grounded.
Failure to do so can result in electrical shock or injury.
• Refer to the installation instructions in this manual for
specic electrical requirements for your model. Failure to
follow these instructions can create an electrical shock hazard
and/orarehazard.
• This dryer must be plugged into a properly grounded
outlet. Electrical shock can result if the dryer is not
properly grounded. Have the wall outlet and circuit checked
by a qualied electrician to make sure the outlet is properly
grounded. Failure to follow these instructions can create an
electricalshockhazardand/orarehazard.
• The dryer should always be plugged into its own individual
electrical outlet which has a voltage rating that matches
the rating plate. This provides the best performance and also
prevents overloading house wiring circuits which could cause a
rehazardfromoverheatedwires.
• Never unplug your dryer by pulling on the power cord.
Always grip the plug rmly and pull straight out from the
outlet. The power cord can be damaged, resulting in a risk of
reandelectricalshock.
• Repair or replace immediately all power cords that have
become frayed or otherwise damaged. Do not use a cord
that shows cracks or abrasion damage along its length
or at either end. The power cord can melt, creating electrical
shockand/orrehazard.
• When installing or moving the dryer, be careful not to
pinch, crush, or damage the power cord. This will prevent
injuryandpreventdamagetothedryerfromreandelectrical
shock.
• Installation must be performed by a qualied installer.
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS
DTE74@@@ DTG74@@@_WINIA폼(가스+전기건조기).indd 6 2022-02-22 오후 3:38:42

7
FEATURES AND BENEFITS
C
A
E
D
B
Gas inlet location
Power cord
location
Exhaust duct outlet
Gas modelsElectric models
Side exhaust
knockout plate
Terminal block
Exhaust duct outlet
Side exhaust
knockout plate
KEY PARTS AND COMPONENTS
There are several important components that are referenced
in this manual.
AEASY-TO-USE CONTROL PANEL
Select the desired dry cycle, add cycle options or
adjust settings with the touch of a button.
BTIME AND STATUS DISPLAY
The easy-to-read LED display shows cycle status and
estimated time remaining.
CLARGE CAPACITY ALLUMINIZED ALLOY DRUM WITH
DRUM LIGHT
 Thelarge,rust-resistant,coatedsteeldrumo󰀨erssuperior
durability. When the door is opened a light comes on to
illuminate the drum interior.
DEASY-ACCESS REVERSIBLE DOOR
The swing direction of the wide-opening door can be
reversed for installation location.
EFRONT-MOUNT LINT FILTER
 Thefront-mountlintlterallowsforeasyaccessand
cleaning between loads.
DTE74@@@ DTG74@@@_WINIA폼(가스+전기건조기).indd 7 2022-02-22 오후 3:38:43

8
KEY DIMENSIONS AND SPECIFICATIONS
Description Dryer (Electric DTE74*** and Gas DTG74***)
Electrical Requirements Refer to the rating label
Dimensions 27 in. W x 30 in. D x 45.6 in. H (50.5 in. D with door open)
68.6 cm W x 76.3 cm D x 115.8 cm H (128.3 cm D with door open)
Net Weight Electric : 119 Ib(54kg) Gas : 121lb(56kg)
Drying Capacity (IEC rating) 7.4 cu. ft. (.21 cubic meters) / 17.6 lb. (8 kg)
CLEARANCES
• Most installations require a minimum 5 ½ inch (14 cm)
clearance behind the dryer for the exhaust ducting.
• Allow minimum clearances of at least 1 inch (2.5 cm) on the
sides and back to minimize vibration and noise.
• Allowing additional clearance for installation and servicing is
recommended.
•Besuretoallowforwall,door,oroormoldingsthatmay
increase the required clearances.
• Allow at least 21 inches (53.3 cm) in front of the dryer to open
the door.
LOCATION REQUIREMENTS
IMPORTANT: Read all installation instructions completely before installing and operating your dryer.
It is important that you review this entire manual before installing and using your dryer. It contains detailed instructions concerning
electrical connections, gas connections and exhaust requirements.
CHOOSE THE PROPER LOCATION
• A location that allows for proper exhaust installation.
A gas dryer must be exhausted to the outdoors. See Venting
the Dryer.
• A grounded electrical outlet located within 2 ft. (61 cm) of either
side of the dryer. See Connecting Electric Dryers.
•Asturdyoortosupportthetotaldryerweightof200lbs
(90.7 kg). The combined weight of a companion appliance
should also be considered.
• No other fuel-burning appliance can be installed in the same
closet as a dryer.
• Store and install the dryer where it will not be exposed to
temperatures below freezing or exposed to outdoor weather
conditions.
•Choosealocationwithasolid,leveloorwithamaximum
slope of 1 inch (2.5 cm) under the entire dryer. If the slope is
greater than 1 inch (2.5 cm), install the Extended Dryer Feet
Kit. Clothes may not tumble properly, and automatic sensor
cycles may not operate correctly if the dryer is not level.
• If the dryer is being installed in a residental garage, place the
dryeratleast18inches(46cm)abovetheoor.
• To reduce the risk of electric shock, do not install the dryer in
damp or wet locations.
Do not operate your dryer at temperatures below 45°F (7°C).
Atlowertemperatures,thedryermightnotshuto󰀨attheendof
an automatic cycle. This can result in longer drying times. The
dryer must not be installed or stored in an area where it will be
exposed to water and/or weather. Check code requirements.
Some codes limit, or do not permit, installation of the dryer in
garages, closets, mobile homes or sleeping quarters. Contact
your local building inspector.
NOTE: Installing the dryer in a humid space, or installing or
storing the dryer where it will be exposed to the weather or
freezing temperatures, may result in rust or other damage that is
not covered by the product warranty.
IMPORTANT: If you are installing your dryer in a manufactured
or mobile home, please refer to the Special Electrical
Requirements for Mobile or Manufactured Homes section.
INSTALLATION INSTRUCTIONS
DTE74@@@ DTG74@@@_WINIA폼(가스+전기건조기).indd 8 2022-02-22 오후 3:38:44

9
CLEARANCES (continued)
INSTALLATION INSTRUCTIONS
Closet Door Vent Requirements
1"
(2.54 cm)
1"
(2.54 cm)
21"
(53.3cm) 48 in.²
(310 cm²)
24 in.²
(155 cm²)
3"
(7.6 cm)
3"
(7.6 cm)
27"
(68.6 cm)
21.7"
(55.1cm)
14" max *
(35.6 cm)
30"
(76.3cm)
50.5"
(128.3cm)
5" **
(12.7 cm)
45.6"
(115.8cm)
*Required spacing
DTE74@@@ DTG74@@@_WINIA폼(가스+전기건조기).indd 9 2022-02-22 오후 3:38:44

10
Special Electrical Requirements for Mobile or
Manufactured Homes
WARNING:
To reduce the risk of re, electric shock, or injury
to persons when using this appliance, follow basic
precautions, including the following:
• Any installation in a manufactured or mobile home must
c o m p l y w i t h t h e M a n u f a c t u r e d H o m e C o n s t r u c t i o n a n d
Safety Standards Title 24 CFR, Part 32-80 or Standard
CAN/CSA0Z240 MH and local codes and ordinances.
• A 4-wire connection is required for all mobile and
manufactured home installations, as well as all new
construction after January 1, 1996. Failure to do so can
resultinre,explosion,ordeath.
•Agasdryermustbepermanentlyattachedtotheoor.
•Toreducetheriskofcombustionandre,thedryermustbe
vented to the outside.
• DO NOT vent the dryer under a manufactured home or mobile
home.
• Electric dryers may be vented to the outside using the back,
left, right, or bottom panel.
• Gas dryers may be vented to the outside using the back, left,
or bottom panel. Gas dryers may not be vented to the outside
using the right side panel because of the burner housing.
•Thedryerexhaustductmustbea󰀩xedsecurelytothe
manufactured or mobile home structure, and the exhaust duct
mustbemadeofamaterialthatwillresistreandcombustion.
Itisrecommendedthatyouusearigidorexiblemetalduct.
• DO NOT connect the dryer exhaust duct to any other duct,
vent, chimney, or other exhaust duct.
• Make sure the dryer has adequate access to outside fresh air
to ensure proper operation. The opening for outside fresh air
must be at least 25 in2(163 cm2).
• It is important that the clearance of the duct from any
combustible construction be at least 2 inches (5 cm), and when
venting the dryer to the outdoors, the dryer can be installed
with a clearance of 1 inch (2.5 cm) at the sides and back of the
dr yer.
• Please be aware that venting materials are not supplied with
the dryer. You should obtain the venting materials necessary
for proper installation.
Electrical Requirements for Electric Models Only
WARNING:
To reduce the risk of re, electric shock, or injury
to persons when using this appliance, follow basic
precautions, including the following:
• This dryer must be connected to a grounded metal,
permanent wiring system, or an equipment grounding
conductor must be run with the circuit conductors and
connected to the equipment grounding terminal or
lead on the dryer. Failuretodosocanresultinre,explosion,
or death.
• The dryer has its own terminal block that must be
connected to a separate 240 VAC, 60-Hertz, single phase
circuit, fused at 30 amperes (the circuit must be fused on
both sides of the line). ELECTRICAL SERVICE FOR THE
DRYER SHOULD BE OF THE MAXIMUM RATE VOLTAGE
LISTED ON THE NAMEPLATE. DO NOT CONNECT DRYER
TO 110-, 115-, OR 120-VOLT CIRCUIT. Failure to follow these
instructionscanresultinre,explosion,ordeath.
• If branch circuit to dryer is 15 ft. (4.5 m) or less in length,
use UL (Underwriters Laboratories) listed No.-10 AWG wire
(copper wire only), or as required by local codes. If over
15 ft. (4.50 m), use UL-listed No.-8 AWG wire (copper wire
only), or as required by local codes. Allow su󰀩cient slack
in wiring so dryer can be moved from its normal location
when necessary. Failuretodosocanresultinre,explosion,
or death.
• The power cord (pigtail) connection between wall
receptacle and dryer terminal block IS NOT supplied with
the dryer. Type of pigtail and gauge of wire must conform
to local codes and with instructions on the following
pages.Failuretofollowtheseinstructionscanresultinre,
explosion, or death.
• A 4-wire connection is required for all new construction
after January 1, 1996. A 4-wire connection must be used
where local codes do not permit grounding through the
neutral wire. Failuretodosocanresultinre,explosion,or
death.
INSTALLATION INSTRUCTIONS
ELECTRIC DRYERS
ELECTRICAL REQUIREMENTS
WARNING:
Tohelppreventre,electricalshock,seriousinjury,ordeath,thewiringandgroundingmustconformtothelatesteditionofthe
NationalElectricalCode,ANSI/NFPA70andallapplicablelocalregulations.Pleasecontactaqualiedelectriciantocheckyour
home’s wiring and fuses to ensure that your home has adequate electrical power to operate the dryer.
DTE74@@@ DTG74@@@_WINIA폼(가스+전기건조기).indd 10 2022-02-22 오후 3:38:44

11
ELECTRIC DRYERS (continued)
CONNECTING ELECTRIC DRYERS
WARNING:
Connect the power cord to the terminal block. Each colored wire should be connected to the terminal block screw with the
same color wire around it. For example, connect the black power cord wire to the terminal block screw with the black wire
around it. Failure to follow these instructions may result in a short or overload.
Grounding through the neutral conductor is prohibited for: (1) new branch-circuit installations, (2) mobile homes,
(3) recreational vehicles, and (4) areas where local codes prohibit grounding through the neutral conductor.
Four-Wire Power Cord
• A 4-wire connection is required for all mobile and
manufactured home installations, as well as all
new construction after January 1, 1996.
• A UL-listed strain relief is required.
• Use a 30-amp, 240-volt, 4-wire, UL-listed power cord with
#10 AWG-minimum copper conductor and closed loop or
forked terminals with upturned ends.
1Remove the terminal block access cover on the upper back
of the dryer.
2Install a UL-listed strain relief into the power cord through-
hole.
3Thread a 30-amp, 240-volt, 4-wire, UL-listed power cord
with #10 AWG-minimum copper conductor through the strain
relief.
4Transfer the dryer’s ground wire from behind the green
ground screw to the center screw of the terminal block.
5Attach the L1 (black) and L2 (red) wires of the power cord to
the outer terminal block screws as shown.
6Attach the white neutral wire to the center screw of the
terminal block.
7Attach the power cord ground wire to the green ground
screw.
8Tighten all screws securely.
9Reinstall the terminal block access cover.
Three-Wire Power Cord
• A 3-wire connection is NOT permitted on
new construction after January 1, 1996.
• A UL-listed strain relief is required.
• Use a 30-amp, 240-volt, 3-wire, UL-listed power cord with #10
AWG-minimum copper conductor and closed loop or forked
terminals with upturned ends.
1Remove the terminal block access cover on the upper back
of the dryer.
2Install a UL-listed strain relief into the power cord through-
hole.
3Thread a 30-amp, 240-volt, 3-wire, UL-listed power cord
with #10 AWG-minimum copper conductor through the strain
relief.
4Attach the L1 (black) and L2 (red) wires of the power cord to
the outer terminal block screws as shown.
5Attach the neutral (white) wire to the center terminal block
screw.
6Connect the external ground (if required by local
codes) to the green ground screw.
7Tighten all screws securely.
8Reinstall the terminal block access cover.
INSTALLATION INSTRUCTIONS
UL-Listed 4-Wire
Power Cord
COVER
Terminal
Block
UL-Listed
Strain Relief
UL-Listed 3-Wire
Power Cord
COVER
Terminal
Block
UL-Listed
Strain Relief
DTE74@@@ DTG74@@@_WINIA폼(가스+전기건조기).indd 11 2022-02-22 오후 3:38:45

12
GAS DRYERS
GAS REQUIREMENTS (GAS MODELS ONLY)
WARNING:
To reduce the risk of re, electric shock, or injury to persons when using this appliance, follow basic precautions,
including the following:
INSTALLATION INSTRUCTIONS
• Gas supply requirements: As shipped from the factory,
this dryer is congured for use with natural gas (NG).
It can be converted for use with propane (LP) gas.
Gas pressure must not exceed 8 inches water column for
(NG), or 13 inches water column for (LP).
• A qualied service or gas company technician must
connect the dryer to the gas service. Failure to follow these
instructionscanresultinre,explosion,ordeath.
• Isolate the dryer from the gas supply system by closing
its individual manual shuto󰀨 valve during any pressure
testing of the gas supply. Failuretodosocanresultinre,
explosion, or death.
• Supply line requirements: Your laundry room must have a
rigid gas supply line to your dryer. In the United States, an
individual manual shuto󰀨 valve MUST be installed within
at least 6 ft. (1.8 m) of the dryer, in accordance with the
National Fuel Gas Code
ANSI Z223.1 / NFPA 54 or Canadian gas installation code
CSA B149.1. A ⅛ inch NPT pipe plug must be installed.
Failuretodosocanresultinre,explosion,ordeath.
• If using a rigid pipe, the rigid pipe should be ½ inch IPS.
If acceptable under local codes and ordinances and when
acceptable to your gas supplier, ⅜ inch approved tubing
may be used where lengths are less than 20 ft. (6.1 m).
Larger tubing should be used for lengths in excess of
20 ft. (6.1 m).Failuretodosocanresultinre,explosion,or
death.
• Connect the dryer to the type of gas shown on the
nameplate. Failuretodosocanresultinre,explosion,or
death.
• To prevent contamination of the gas valve, purge the gas
supply of air and sediment before connecting the gas
supply to the dryer. Before tightening the connection
between the gas supply and the dryer, purge remaining air
until the odor of gas is detected. Failure to do so can result
inre,explosion,ordeath.
• DO NOT use an open ame to inspect for gas leaks. Use a
noncorrosive leak detection uid. Failure to do so can result
inre,explosion,ordeath.
• Use only a new AGA- or CSA-certied gas supply line with
exible stainless steel connectors. Failure to do so can
resultinre,explosion,ordeath.
• Securely tighten all gas connections. Failure to do so can
resultinre,explosion,ordeath.
• Use Teon tape or a pipe-joint compound that is insoluble
in propane (LP) gas on all pipe threads. Failure to do so can
resultinre,explosion,ordeath.
• DO NOT attempt any disassembly of the dryer;
disassembly requires the attention and tools of an
authorized and qualied service technician or company.
Failuretofollowthiswarningcanresultinre,explosion,or
death.
• Do not, under any circumstances, cut or remove the third
(ground) prong from the power cord. Failure to follow this
warningcanresultinre,explosion,ordeath.
• For personal safety, this dryer must be properly grounded.
Failuretofollowthiswarningcanresultinre,explosion,or
death.
• The power cord of this dryer is equipped with a
3-prong (grounding) plug which mates with a standard
3-prong (grounding) wall outlet to minimize the possibility
of electric shock hazard from this appliance. Failure to
followthiswarningcanresultinre,explosion,ordeath.
• The dryer, when installed, must be electrically grounded
in accordance with local codes, or in the absence of local
codes, with the National Electrical Code, ANSI/NFPA 70, or
the Canadian Electrical Code, Part I, CSA C22.1
•Anindividualmanualshut-o󰀨valvemustbeinstalledwithin
6 ft (1.83cm) of the dryer in accordance with the National Fuel
Gas Code, ANSI Z223.1/NFPA 54.
• This dryer must be plugged into a 120-VAC, 60-Hz.
grounded outlet protected by a 15-ampere fuse or circuit
breaker. Failuretofollowthiswarningcanresultinre,
explosion, or death.
• Where a standard 2-prong wall outlet is encountered, it
is your personal responsibility and obligation to have it
replaced with a properly grounded 3-prong wall outlet.
Failuretofollowthiswarningcanresultinre,explosion,or
death.
3-prong
grounding
plug
3-prong
grounding
type wall
receptacle
Ensure proper
ground exists
before use.
ELECTRICAL REQUIREMENTS (GAS MODELS ONLY)
DTE74@@@ DTG74@@@_WINIA폼(가스+전기건조기).indd 12 2022-02-22 오후 3:38:45

13
GAS DRYERS (continued)
WARNING:
To reduce the risk of re, electric shock, or injury to persons when using this appliance, follow basic precautions, including
the following:
INSTALLATION INSTRUCTIONS
• Installation and service must be performed by a qualied
installer, service agency, or the gas supplier. Failure to do
socanresultinre,explosion,ordeath.
• Use only a new stainless steel exible connector and a
new AGA-certied connector. Failure to do so can result in
re,explosion,ordeath.
• A gas shuto󰀨 valve must be installed within 6 ft. (1.8 m)
of the dryer.Failuretodosocanresultinre,explosion,or
death.
• The dryer is congured for natural gas when shipped from
the factory. Make sure that the dryer is equipped with
thecorrect burner nozzle for the type of gas being used
(natural gas or propane gas). Failure to do so can result in
re,explosion,ordeath.
CONNECTING THE GAS SUPPLY
NOTE:Thisdryerisconguredfromthefactorysetfornatural
gas (NG). If dryer is to be used with propane (LP) gas, it must be
convertedbyaqualiedservicetechnician.
1Make sure that the gas supply to the laundry room is turned
OFFandthedryerisunplugged.Conrmthatthetypeofgas
available in your laundry room is appropriate for the dryer.
2Removetheshippingcapfromthegasttingatthebackof
the dryer. Be careful not to damage the threads of the gas
connector when removing the shipping cap.
3Connect the dryer to your laundry room’s gas supply using
anewexiblestainlesssteelconnectorwitha⅜-inchNPT
tting.
NOTE: DO NOT use old connectors.
4Securely tighten all connections between the dryer and your
laundry room’s gas supply.
5Turn on your laundry room’s gas supply.
6Check all pipe connections (both internal and external) for
gasleakswithanoncorrosiveleak-detectionuid.
7Proceed to Venting the Dryer (refer to pages 14-15).
• If necessary, the correct nozzle (for the LP nozzle kit,
order part number 17025) should be installed by a qualied
technician and the change should be noted
on the dryer.Failuretodosocanresultinre,explosion,or
death.
•All connections must be in accordance with local
codes and regulations.Failuretodosocanresultinre,
explosion, or death.
• This dryer must be connected to the gas supply line with a
listedexiblegasconnectorthatcomplieswiththestandardfor
connectors for gas appliances, ANSI Z21.24 or CSA 6.10.
ALTERNATE METHOD
Approved aluminum or copper tubing:
• An 1/8-inch NPT minimum plugged tapping, accessible for test
gauge connection, must be installed immerdiately upstream of
the gas supply connection to the dryer.
• 1/2"IPS pipe is recommended.
• 3/8" approved aluminum or copper tubing is acceptable for
lengths under 20ft (6.1m), if local codes and gas supplier
permit.
• if you are using Natural gas, do not use copper tubing.
High-Altitude Installations
TheBTUratingofthisdryerisAGA-certiedforelevations
below 2,000 feet.
If your gas dryer is being installed at an elevation above
2,000feet,itmustbederatedbyaqualiedtechnicianor
gas supplier.
3/8" NPT Gas
Connection
Gas Supply
Shutoff Valve
AGA/CSA-Certified
Stainless Steel
Flexible C onnector
1/8" NPT Pipe Plug
DTE74@@@ DTG74@@@_WINIA폼(가스+전기건조기).indd 13 2022-02-22 오후 3:38:45

14
VENTING THE DRYER
IMPORTANT! CHECK YOUR EXHAUST SYSTEM FOR PROBLEMS
The most common cause of dryer problems is poor exhaust venting. Before installing your new dryer, check the items listed
below to make sure you get the best possible performance. This can save you time and money by reducing cycle times and increasing
energye󰀩ciency.
• DIRTY OR DAMAGED EXHAUST DUCTS. Lintbuildsupinexhaustductsovertime.Thisdecreasestheairowandmakesthedryer
work harder. Visually inspect your ducts from both ends and have them cleaned if they have not been cleaned recently.
• WRONG VENT MATERIAL. Checkyourventtomakesureitisrigidorsemi-rigidmetalducting.Ifyourventingisplasticorexible
foil, have it replaced before using the dryer.
• RESTRICTED OR DAMAGED VENT HOOD. Check your vent hood outside. It must be clean and free of lint buildup.
Check the damper and make sure it opens fully and easily.
• EXCESSIVELY LONG VENT. Measure the length of your exhaust system and count the elbows. Use the chart below to see if your
duct is too long. If it is too long, have the duct routed to another location that is within the venting guidelines.
• DO NOT USE PLASTIC OR FOIL VENTING. The transition duct from your dryer to the wall must be rigid or semi-rigid metal ducting.
If your old transition duct is plastic or foil, REPLACE IT with semi-rigid metal ducting.
• The dryer shall not exhaust into any gas vent, chimney, wall, ceiling, or concealed space of a building.
Using the DUCT LENGTH CHART (below)
1Find your vent hood type in the chart below.
2Select the row that matches the number of elbows in your dryer duct run.
3Look to the right of the elbow number for the maximum duct length for your installation. Longer duct length will result in reduced
drying performance, longer dry times and increased energy consumption. Extremely long ducts can even shorten the life of the
dryer.
DO NOT exceed the maximum length for the vent hood type and number of elbows used.

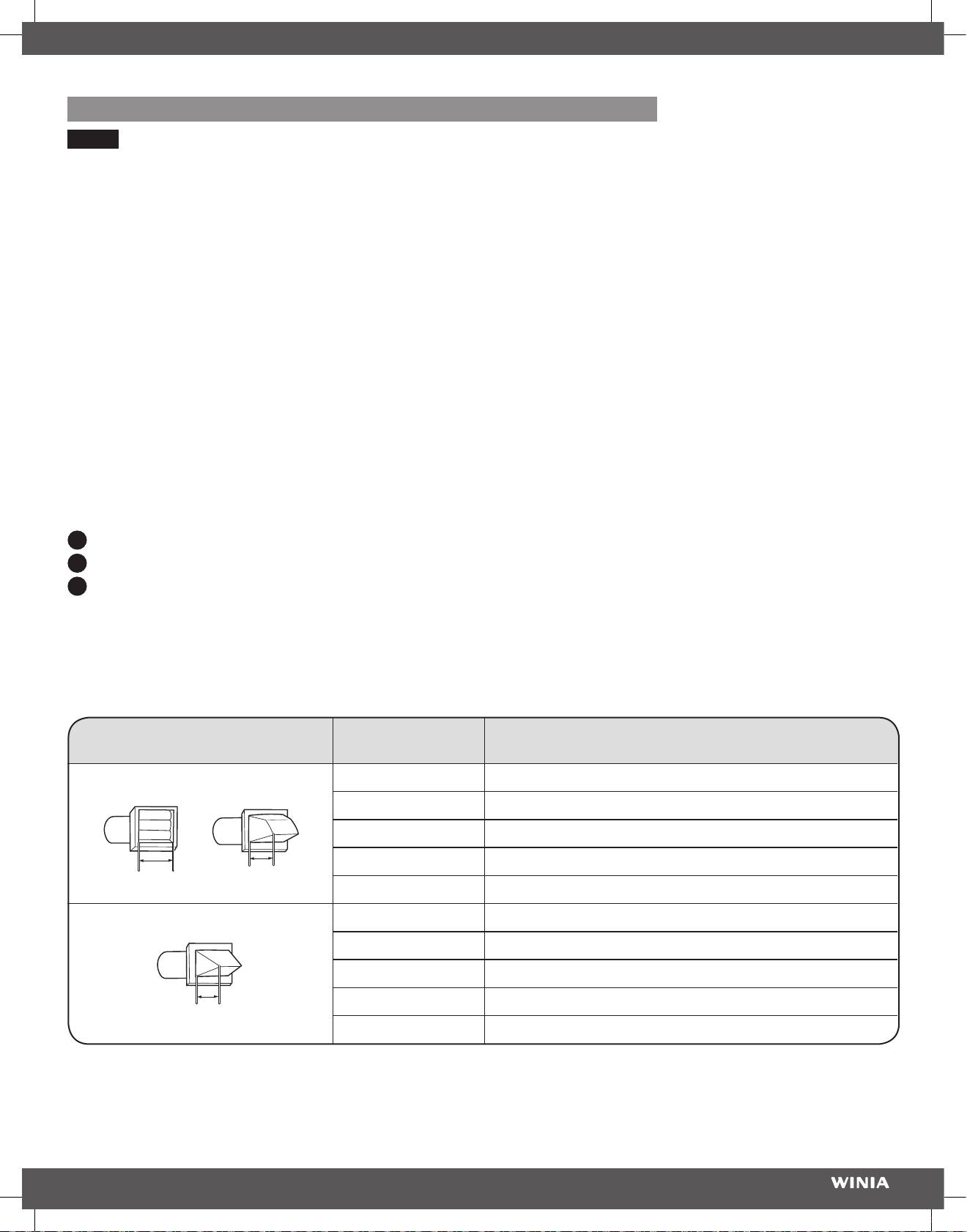

DUCT LENGTH CHART
Vent Hood Type Number of 90°
Elbows
Maximum length of 4" (10.2 cm )
diameter rigid metal duct
Recommended
Only for Short-Run Installations
4"
(10.2 cm)
4"
(10.2 cm)
(6.35 cm)
2 ½"
0 65 feet (19.8 m)
1 55 feet (16.8 m)
2 47 feet (13.7 m)
3 36 feet (11.0 m)
4 28 feet (8.5 m)
Recommended
Only for Short-Run Installations
4"
(10.2 cm)
4"
(10.2 cm)
(6.35 cm)
2 ½"
0 55 feet (16.8 m)
1 47 feet (13.7 m)
2 41 feet (12.5 m)
3 30 feet (9.1 m)
422 feet (6.7 m)
NOTE:
• Deduct 6 ft. (1.8 m) for each additional elbow. Using more than four 90° elbows is not recommended.
• Treat two 45° elbows as one 90° elbow.
• One elbow of 45° or less by itself can be ignored.
INSTALLATION INSTRUCTIONS
DTE74@@@ DTG74@@@_WINIA폼(가스+전기건조기).indd 14 2022-02-22 오후 3:38:45

15
VENTING THE DRYER (continued)
Routing and Connecting Ductwork
Follow the guidelines below to maximize dryer
performance and reduce lint buildup and condensation in
the ductwork.
NOTE: TransitionductandttingsareNOTincludedand
must be purchased separately.
• Use 4 inch (102 cm) diameter rigid or semi-rigid metal duct.
• The exhaust duct run should be as short as possible.
• Use as few elbow joints as possible.
• The male end of each section of exhaust duct must point away
from the dryer.
• Use duct tape on all joints. Never use screws.
• Insulate ducts that runs through unheated areas in order to reduce
condensation and lint buildup on duct surfaces.
• The total length of semi-rigid metal transition duct
should not exceed 8 ft. (2.4 m).
WARNING:
Failure to follow these guidelines will result in poor performance
andproductfailure,andmayresultinreordeath.
IMPORTANT: Failure to exhaust the dryer, per the guidelines
included within these instructions, may result in unsatisfactory dryer
performance. All venting and ductwork beyond the exterior of the
dryer is the responsibility of the consumer. Product failure, as a
result of improper venting, is not covered by the manufacturer’s
warranty.
Connecting the Dryer Vent
1Verify all ducts and elbows are clean and free from any
blockages.
2Measure duct length. DO NOT exceed the maximum length
listed in the Duct Length Chart.
3Connect dryer exhaust to existing duct.
• Only use duct tape or clamps.
• DO NOT use screws to secure ductwork.
• Use rigid or semi-rigid metal ducts.
• DO NOT use plastic or thin metal foil tubing for ductwork.
• The male end of each elbow must always point in the direction
oftheairow.
NOTE: Becarefulwhenmovingthedryerintoitsnallocation.
Do NOT crush the duct. Make sure the connections do not come
loose.
INSTALLATION INSTRUCTIONS
Male
Ends
Correct Venting
Incorrect Venting
DTE74@@@ DTG74@@@_WINIA폼(가스+전기건조기).indd 15 2022-02-22 오후 3:38:45

16
LEVELING THE DRYER
WARNING:
• To reduce the risk of injury to persons, adhere to all
industry recommended safety procedures including the
use of long sleeved gloves and safety glasses. Failure to
follow this warning can cause serious injury or death.
• The appliances are heavy. Two or more people are
required when installing the dryer. Failure to follow this
warning can cause serious injury or death.
To ensure that the dryer provides optimal drying performance,
it must be level. To minimize vibration, noise, and unwanted
movement,theoormustbealevel,solidsurface.
NOTE: Adjust the leveling feet only as far as necessary to level
the dryer. Extending the leveling feet too far can cause the dryer
to vibrate.
1Positionthedryerinthenallocation.Placealevelacross
the top of the dryer.
Level
Leveling Feet
Once feet are adjusted (see step 2 below), gently push on
the top corners of the dryer to make sure that the dryer does
not rock from corner to corner.
2Turn each leveling foot clockwise to raise that corner of the
dryer. Turn foot counterclockwise to lower. Keep checking
the leveling tool as you adjust feet until the dryer is level from
side to side and front to back.
A B
REVERSING THE DOOR SWING
Tools Required
• Phillips or large at-blade screwdriver (for hinge screws)
• Small at blade screwdriver (for lifting out parts)
WARNING:
• THE DRYER DOOR IS VERY LARGE AND HEAVY.
Failure to follow the instructions below can result in
damage to the dryer, property damage or personal
injury.
• To avoid damage to the dryer or the door, support the
door with a stool or box that ts under the door, or
have an assistant support the weight of the door.
• Avoid dropping the door to avoid damage to the door
or the oor.
• Unplug the dryer or turn o󰀨 power at the main circuit
breaker before beginning door reversal.
Door Reversal Instructions
NOTE: The following instructions are for changing the door
swing from a right to a left side hinge. If the door has been
reversed, and it is necessary to change it back, use care when
following these instructions. Some of the illustrations and the left/
right references will be reversed, and you will need to read the
instructions carefully.
IMPORTANT
If after reading the following instructions you are not
condentthatyoucansuccessfullycompletethedoor
reversal,contactaqualiedservicetechniciantoperform
the procedure.
1
Open the door from the side so that the hinge
screws are accessible.
WARNING:
Be sure to support the weight of the door before
removing the hinge screws
2Remove the 4 hinge screws.
1.
Placeasoftrugontheoortorestthedooronafterithas
been removed to prevent it from being scratched.
2. Unplug the dryer power cord from the electrical outlet.
3. Remove the four hinge screws from the door, two from
each hinge. Then remove the door by lifting it up slightly.
INSTALLATION INSTRUCTIONS
DTE74@@@ DTG74@@@_WINIA폼(가스+전기건조기).indd 16 2022-02-22 오후 3:38:45

17
REVERSING THE DOOR SWING (continued)
3Remove the two hinge covers
Useaat-headscrewdrivertoremovethetwohingehole
covers from the cabinet side. Reattach the covers over the
exposed hinge holes on the opposite side of cabinet.
4Remove the inner door frame.
Locate and remove the 10 screws around the door edges as
shown.Useaatbladescrewdrivertoprylooseandlifto󰀨
the inner door frame. Remove the door hook latch and latch
hole cover and reinstall each on the opposite side from which
removed.
5Reverse door hinges and hinge covers.
Reinstall the door hinges and hinge covers on the opposite
sides from which they were removed.
6Remount the inner door frame.
With the door hinges and hinge covers in the new locations,
remount the inner door onto the outer door with the screws
removed in step 4.
WARNING:
Be sure to support the weight of door before
Installing the hinge screws.
7Reinstall the door
While supporting the door, install the 4 hinge screws
removed in step 2. Test the swing of the door to make sure
the door hinges and door latch are properly aligned and that
the door opens, closes, and latches properly.
INSTALLATION INSTRUCTIONS
Door
Latch
Latch Hole
Cover
Inner
Door

Door
Hinge
Hinge
Cover
Outer
Door
DTE74@@@ DTG74@@@_WINIA폼(가스+전기건조기).indd 17 2022-02-22 오후 3:38:46

18
FINAL INSTALLATION CHECK
INSTALLATION INSTRUCTIONS
Once you have completed the installation of the dryer and it is
initsnallocation,conrmproperoperationwiththefollowing
steps and tests.
1Is gas turned on? (Gas models only)
2Is dryer plugged in? Dryer should always be plugged into the
proper outlet.
Gas dryer should use a 120-VAC,
60-Hz. grounded 3-prong
Electric dryer should use a 4-wire
connection which is required for
all mobile and manufactured home
installations, as well as all new
construction after January 1, 1996.
-- OR --
A 3-wire connection.
NOTE: A 3-wire connection is NOT
permitted on new construction after
January 1, 1996.
3Is the dryer transition duct connected? Make sure the
transition duct behind the dryer is properly connected and is
not crushed or damaged.
4Isthedryerlevel?Oncethedryerisinitsnallocation,
recheck the dryer to be sure it is level. Make sure it is level
front to back and side to side, and that all four leveling feet
restrmlyontheoor.
5Is the dryer heating normally? Perform the following dryer
heating test.
Testing Dryer Heating
GAS MODELS
Close the dryer door, press the POWER button to turn the dryer
on, and start the dryer on a heat setting. When the dryer starts,
the igniter should ignite the main burner.
NOTE: If all air is not purged from the gas line, the gas igniter
mayturno󰀨beforethemainburnerignites.Ifthishappens,the
igniter will reattempt gas ignition until all the air is purged from
the gas line.
ELECTRIC MODELS
Close the dryer door, press the POWER button to turn the dryer
on, and start the dryer on a heat setting. The exhaust air should
be warm after the dryer has been operating for 3 minutes.
Checking Air ow
E󰀨ectivedryeroperationrequiresproperairow.Theadequacy
oftheairowcanbemeasuredbyevaluatingthestaticpressure.
Static pressure in the exhaust duct can be measured with a
manometer, placed on the exhaust duct approximately 2 ft. (60.9
cm) from the dryer. Static pressure in the exhaust duct should
not exceed 0.6 inches (1.5 cm). The dryer should be checked
while the dryer is running with no load.
Checking Levelness
Oncethedryerisinitsnallocation,recheckthedryertobe
sure it is level. Make sure it is level front to back and side to side,
andthatallfourlevelingfeetarermlyontheoor.
Checking Venting
The vent duct should be checked for lint buildup and cleaned
at least once per year. If any noticeable reduction in drying
performance occurs, check the duct for obstructions and
blockages.
DTE74@@@ DTG74@@@_WINIA폼(가스+전기건조기).indd 18 2022-02-22 오후 3:38:46

19
RESTRICTED OR BLOCKED AIRFLOW
INSTALLATION INSTRUCTIONS
Check the duct condition.
If the Check Vent( ) Led is blinking, check the exhaust
system for restrictions and damage. Repair or replace the
exhaust system as needed.
NOTE: Whenthedryerisrstinstalled,thistestshouldbe
performed to alert you to any existing problems with the
exhaust ducts in your home.
However, since the test performed during normal operation
provides more accurate information on the condition of the
exhaust duct than does the installation test, the results of the
two tests may not be the same.
Do not interrupt the test cycle, as this could result in
inaccurate results.
Even if the LED is not blinking during the test cycle, some
restrictions may still be present in the exhaust system. Refer
to the Venting the Dryer section of this guide for complete
exhaust system and venting requirements.
Avoid long runs or runs with multiple elbows or bends.
Check for blockages and lint buildup.
Make sure the ductwork is not crushed or restricted.
Excess or crushed
transition duct
Too many elbows or
exhaust too long
Lint
buildup or
blockage
Crushed
or
damaged
exhaust



DTE74@@@ DTG74@@@_WINIA폼(가스+전기건조기).indd 19 2022-02-22 오후 3:38:46

20
HOW TO USE
1Dial
Turn the Dial to select a cycle for your laundry load. See the
Cycle Guide for detailed descriptions of cycles.
2Eco
This function is available with Normal. With the Eco
activated, drying takes a longer time but the power
consumption is reduced. The Eco function is enabled by
default. (Electric Dryers : Eco mode is enabled only by
pressing the button)
3Dry Level
Press to select a level of dryness: Normal, Extra or Damp.
• For larger or bulkier loads, select Extra for complete
dryness.
 •Foritemsthatneedtolayatorhangtodry,selectDamp
for partial dryness.
NOTE: Dry Level adjustments are only available for Auto
Dry cycles (except Sanitize). See Cycle Chart for
more detail.
4Temp
Press to change the temperature of the drying cycle.
Youcanselectfrom5di󰀨erentoptions(LowtoHigh).
• High : For sturdy cottons or those labeled Tumble Dry.
• Med : For permanent press, synthetics, lightweight cottons,
or items labeled Tumble Dry Medium.
• Low : For heat sensitive items labeled Tumble Dry Low
or Tumble Dry Warm. Provides the lowest heated
drying temperature possible.
5Time Dry
Press Time Dry to select 20, 40 or 60 minutes of drying time.
Then adjust Temp to desired setting. Press power button to
start the cycle.
NOTE: Time Dry overrides any cycle setting.
6 Signal
PresstoturnSignalonoro󰀨.Whenturnedon,aSignal
sounds near end of drying cycle to alert you that cycle is
abouttonish.SeeSpecialFeaturesformoredetail.
7Wrinkle Aid
Press Wrinkle Aid to active this feature.
At the end of the cycle, Wrinkle Aid provides a brief period
of tumbling in unheated air every 15 minutes for a total 90
minutes to reduce wrinkling. The load is dry and can be
removed at any time during the Wrinkle Aid cycle. Wrinkle
Aid deactivates when the dryer door is opened.
8Damp Dry Signal
This alert is available only on Auto cycles. It isn't available for
Manual cycles or the Time Dry function. When activated, the
Damp Dry Signal indicator will blink when average dryness of
the items reach 80%. At that time you can choose to remove
items that you don't want to fully or overly dried.
9More Time / Less Time
Press More Time or Less Time to change the durations for
manual cycles such as, Refresh, Express, Air Dry, and Time
Dry cycles. The time changes will appear in the display
screen. Press and hold Less Time for three seconds to
lock control panel (except for Power button) from use. See
Special Features for more detail.
10 Control Lock
Press and hold Less Time for three seconds to lock control
panel from use (except for the Power button). See Special
Features for more detail (p. 22).
11 Power
Presstoturndryeronoro󰀨.
12 Start/Pause
Press to start drying cycle. Press again to pause cycle
operation.
WARNING:
To reduce the risk of re, electric shock, or injury to persons, read this entire manual, including the Important Safety
Instructions, before operating this dryer.
CONTROL PANEL FEATURES
2 3 4 5 6 10 9
12
11
71 8
DTE74@@@ DTG74@@@_WINIA폼(가스+전기건조기).indd 20 2022-02-22 오후 3:38:46
