Winix HUMIDIPUR AW600 User manual

Triple Action Humidifier
Model: AW600
™
Winix America
120 Prairie Lake Road, Unit E
Dundee, Illinois USA 60118
+1.847.551.9900
www.winixamerica.com
•Read and follow all safety rules and instructions before operating
this equipment.
•Please keep this manual for future reference.
Thank you for purchasing this WINIX product.
This marking shown on the product or its literature. Indicates that it
should not be disposed with other household wastes at the end of its
working life. To prevent possible harm to the environment or human
health from uncontrolled waste disposal. Please separate this from
other types of wastes and recycle it responsibly to promote the
sustainable reuse of material resources.
Household users should contact either the retailer where they
purchased this product, or their local government office, for details
of where and how they take this item for environmentally safe recycling.
Business users should contact their supplier and check the terms
and conditions of the purchase contract. This product should not
be mixed with other commercial wastes for disposal.

1 2
Mist Humidifier
HumidiPür™ generates very
fine and light mist to enhance
consistent humidity level.
CleanCel™ Anti-Bacterial Coating
HumidiPür™ has been treated with CleanCel™
antibacterial coating to prevent growth of
bacteria in the water tank and cleaning
discs.
Auto Shut-Off
Automatically shuts off when the water
bucket is Low.
Auto Mode
WINIX’s sensor detects
room humidity level to control fan
speed and optimize the humidity
level.
Sleep Mode
Light sensor detects when the
room is dark and adjusts the unit
to Sleep Mode to reduce power
consumption.
Technology
PlasmaWave® technology removes
air pollutants resulting in cleaner,
fresher air.
Timer
The automatic Timer indicator is
used to maintain efficiency throughout
the lifetime of the product.
Safety Instructions
Installation
Operation
Troubleshooting
Warning
Unit Diagram
Control Panel/Display
3
11
Selecting a Location
Set-Up Instructions
13
14
Modes of Operation
Care and Maintenance
15
19
25FAQ/Solutions
Product Specifications
Table of Contents
Product Information
12
27
Triple Action Humidifier with
HumidiPür™
Model: AW600
Winix HumidiPür™ Triple Action Humidifier simultaneously humidifies and cleans the
air. Featuring a 3.17 gallon per day humidification capacity and 3-Stage air purification
with PlasmaWave™ Technology.

43

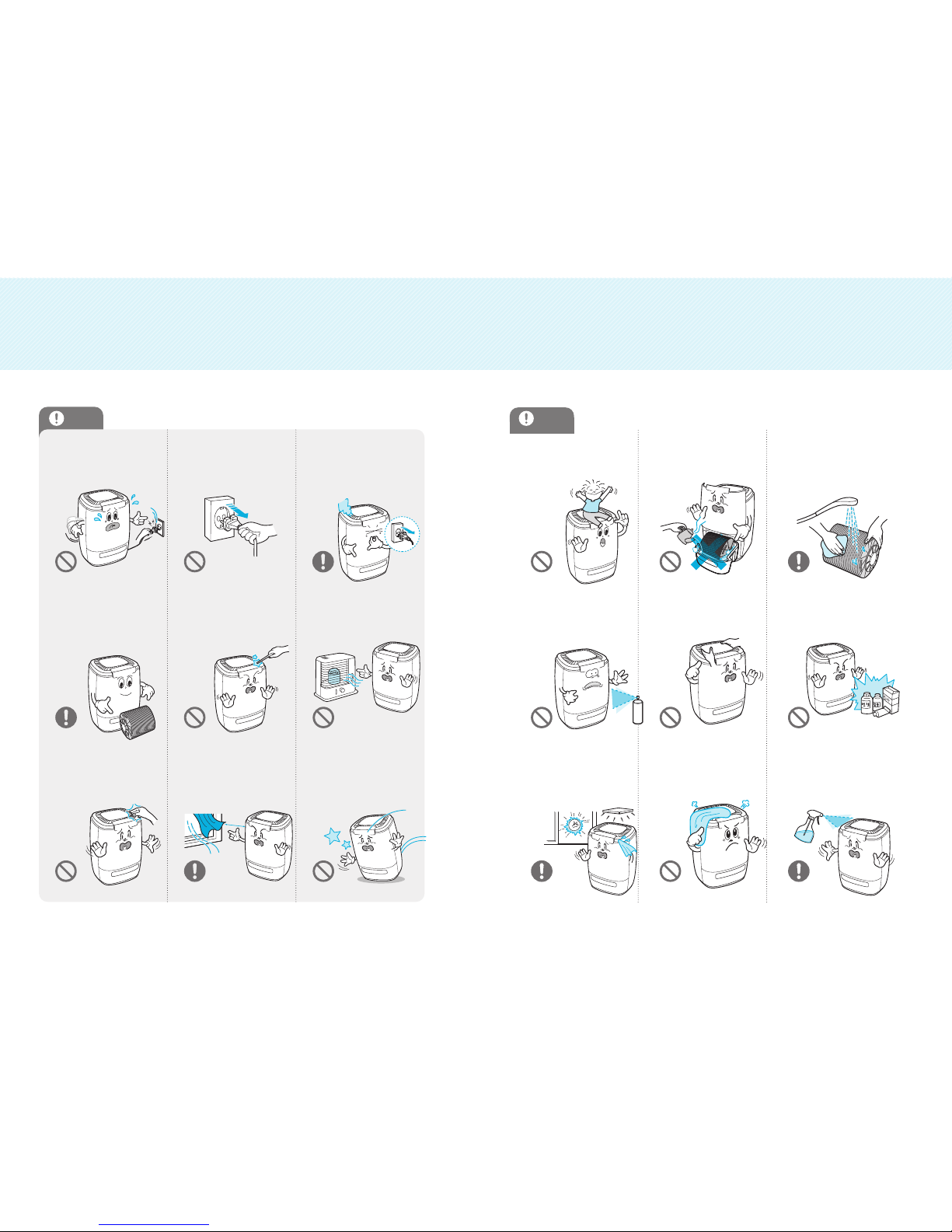

Failure to follow the safety instructions
can lead to personal injury or property
damage.
Notice
Warning PROHIBITED
DO NOT DISASEMBLE
MUST FOLLOW
Ground connection protecting from
electrical shock
Warning
Warning
DON’T unplug the unit by pulling
on it’s power cord. DON’T touch the plug with wet hands.
DO connect the power cord to only
proper power outlet with a ground
connection.
DON’T plug multiple power plugs into
an outlet. Plug directly into the wall.
DON’T attempt to repair, alter or
dissasemble the unit.
DON’T operate the unit if standing
water is present.
DO unplug the HumidiPür™ when not in
use to save on energy consumption.
DON’T plug power cord into loose or
damaged electrical outlet.
(This can lead to overheating
or electrical shock)
DON’T bend or place heavy object
on the power cord. DON’T replace or modify power cord.
If the power cord/plug is damaged , it must be
replaced by the manufacturer or a qualified
technician.
Follow these instructions to avoid any
risk of personal injury, property damage,
eletrical shocks or fire hazard.
Safety Instructions

65
Note
DON’T operate HumidiPür™
on an uneven surface.
Note
Note
DON’T pour water into the top
of the air unit, place in water
tank as directed.
DON’T place the HumidiPür™ near
flammable material (such as gas,
aerosols, or benzene).
DON’T insert ANYTHING into the
air inlet or outlet.
DON’T spray liquids directly into
air washer.
DON’T place the unit on an
unstable place such as a table
or a sink.
Attempt to change the bucket and
refill with clean water every day.
DO unplug the unit and contact
your service dealer if the unit
comes in contact with water.
DON’T remove the water tank if
a child is nearby.
DON’T install the unit in the place full
of high humidity or dust.
DO unplug the unit and contact your
service dealer if it is sunken under
water.
DON’T place anything around the unit
to allow children to play or sit on.

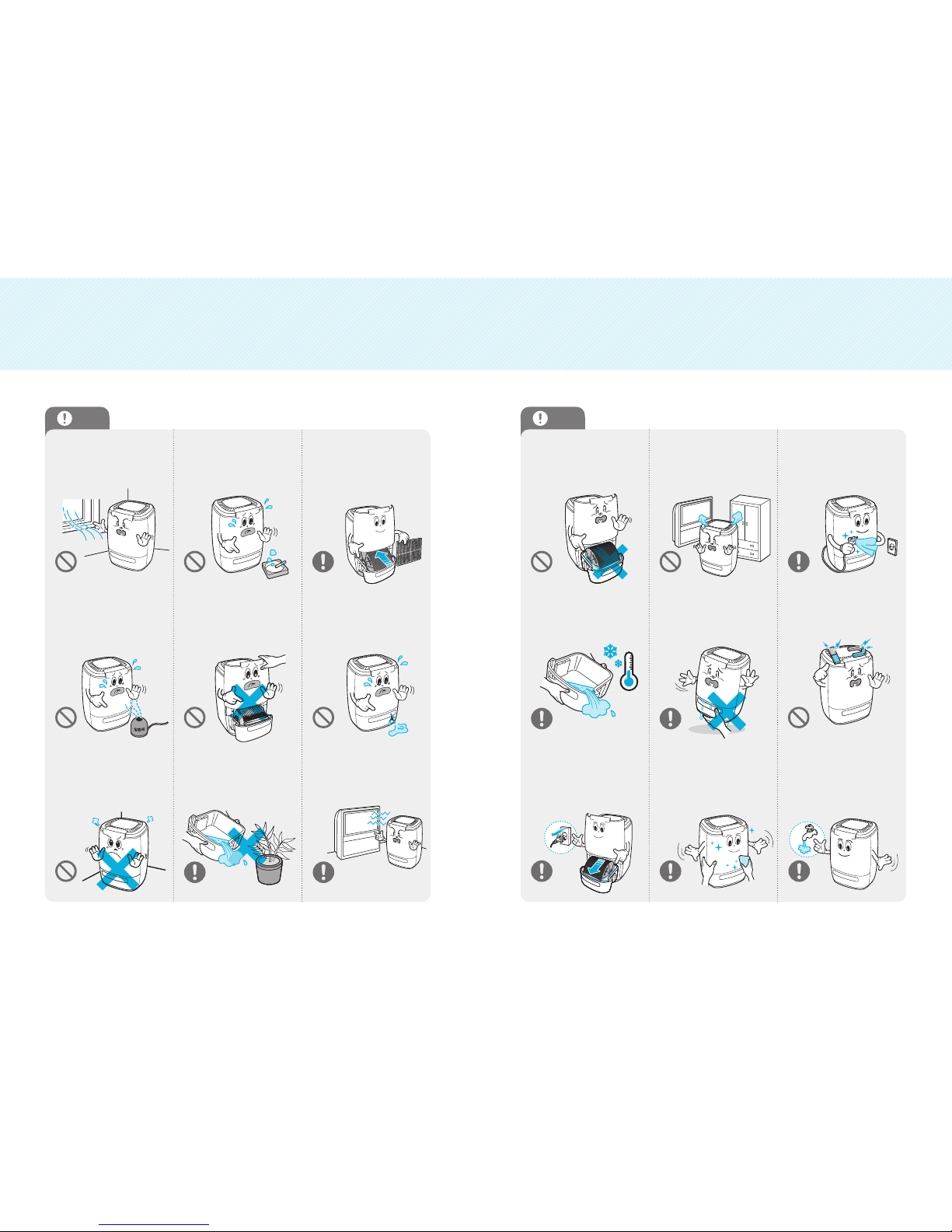

Safety Instructions

87
DON’T spray flammable
liquids or gases into the
unit.
DON’T disconnect the
power cord during
operation.
DO unplug the appliance
during filling and cleaning.
DO unplug the unit and
contact your service
dealer if any irregular
noise or smoke occurs.
DO use the HumidiPür™
after assembling the
Antimicrobial Disk.
DON’T place the unit
near a heat source.
DON’T place hands or
any body parts near
the air outlet during
operation.
DON’T allow children to
play on or near the unit.
NoteNote
DO clean Antibacterial disk
regularly with warm tap water
and allow to air dry.
DON’T use flammable
material (such as benzene
or alcohol) to clean the
unit.
DON’T strike or drop
the unit.
DON’T place the unit
near curtains or other
materials that can block
the vents of the unit.
DON’T place clothes and
towels on top of air
washer while operating.
DON’T spray liquids directly
into HumidiPür™ during
cleaning.
DON’T install the unit
under direct light.
DON’T insert anything into
the air inlet or outlet.
DON’T lift the unit by
the top.
DON’T use hot water in
the water tank.
Safety Instructions

109
DON’T install the unit
near the wall or window.
DON’T put the unit near
burning cigarette or
incense.
After cleaning, allow
Antibacterial Discs,
water tank, and pre-filter
to air dry completely.
DON’T operate the unit
while insecticide is used.
DON’T allow water to
stay in the water tank for
a long time while not in
use.
DON’T operate the
unit while water tank
is damaged.
DON’T install the unit
whose airflow outlet is
facing the wall.
DON’T drink the water
left in the water tank or
give it to plants or animals.
DON’T put the unit near
a microwave oven or
TV.
DO unplug the unit and
move its water tank when
water is removed.
DO dispose of the water
to prevent it from freezing
in cold weather.
DON’T overfill the water
tank.
DON’T put the unit near
ceilings, walls, furniture,
or electronic appliances.
DON’T plug in if the
power plug is touched
with water.
DON’T lift the unit with
water still in the water
tank.
DO clean the air washer
regulary, with a microfiber
towel or any other clean
wiping material.
DON’T put magnet or
metal material on the
top of the unit.
DO use clean tap water
without detergent, soap,
chemical compounds or
hot water (over 104ºF).
Safety Instructions
NoteNote

1211

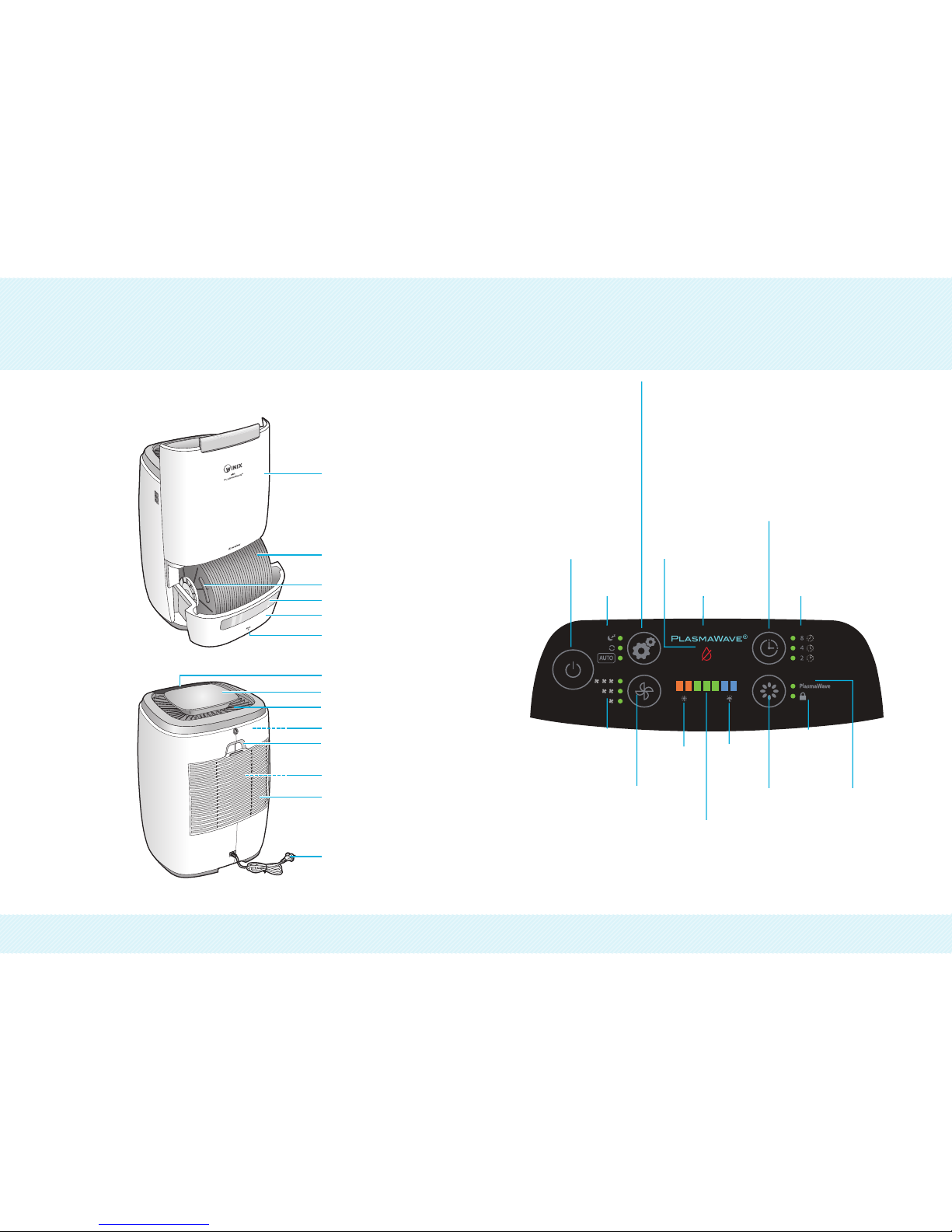

Front Panel
Antibacterial Disk (CleanCel™)
Antibacterial Disk Handle
Water Level Indicator
Antibacterial Water Tank (CleanCel™)
Water Tank Release Lever
Control Panel Display
Air Outlet Cover
Air Outlet
Fan (Inside)
Air Outlet Release Button
HEPA + Carbon Combination Filter
Air Intake
Power Plug
Power
Mode
Indicator
Function Button
1. Continuous Mode
Unit operates continuously on the fan speed selected by user
(Low/Mid/High) regardless of ambient humidity.
2. Sleep Mode
Dims control panel lights and sets the unit to operate at
lowest fan speed.
3. Auto-Mode
Unit runs until ideal humidity level is reached and shuts off
intermittently to save energy (Green “Comfort Zone”).
Timer
Setting Button
Low Water
Indicator
PlasmaWave®
(ON/OFF Indicator)
Timer
Indicator
Fan Speed
Indicator
Fan Speed Button
(Low, Medium, High) PlasmaWave
(ON/OFF) Button
PlasmaWave
(ON/OFF) Indicator
Control Panel
Lock Indicator
Humidity Level Indicator
Displays humidity level, when desirable level of humidity
levels are reached they will be displayed in the green
“Comfort Zone”
Orange -> Low Humidity (Below 30% RH)
Blue -> High Humidity (61-70% RH)
Green -> Ideal Humidity (40-60% RH)
Product Diagram Control Panel
Low
Humidity
Indicator
High
Humidity
Indicator

1413
4 inches
15 inches

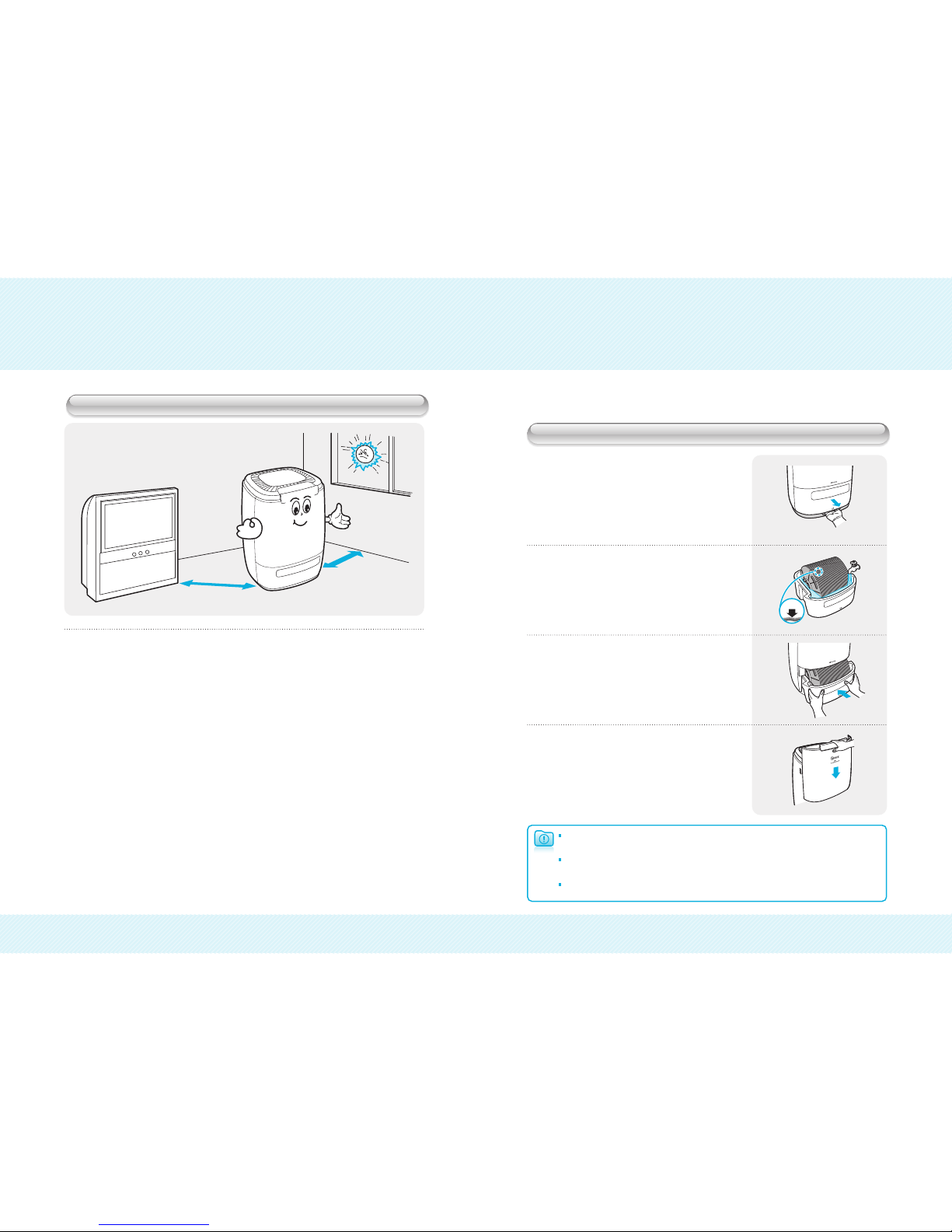

Do not install the unit under direct sunlight.
- Long Exposure to direct sunlight can cause defects.
HumidiPür™ must be installed and operated on an even surface.
- Vibrations and noise can occur on soft or non-flat surfaces.
Product must be Installed approximately 10cm/ 4 inches away from the wall
and 30-40cm/ 15 inches from other electronic appliances.
Before operating the HumidiPür™, remove any plastic bags and polyfoams from
outside and inside the unit.
Make sure to unplug the power cord before filling the unit with water.
We recommend using filtered water to prolong the life of the product.
Use cautions when moving the unit filled with water.
Set-Up Instructions
1. Slide water tank out, by using the release
lever located below the water tank on
the front of the unit.
2. Fill the water tank with cool tap water
up to the indicator line on the inside of
water tank.
3. Replace the water tank by sliding it
back into the unit until you hear it
click into place.
4. Gently slide down the front panel and
make sure that it is seated properly and
lines up correctly.
Installation
Selecting a Location
Operation

15 16
▶
❶
❷

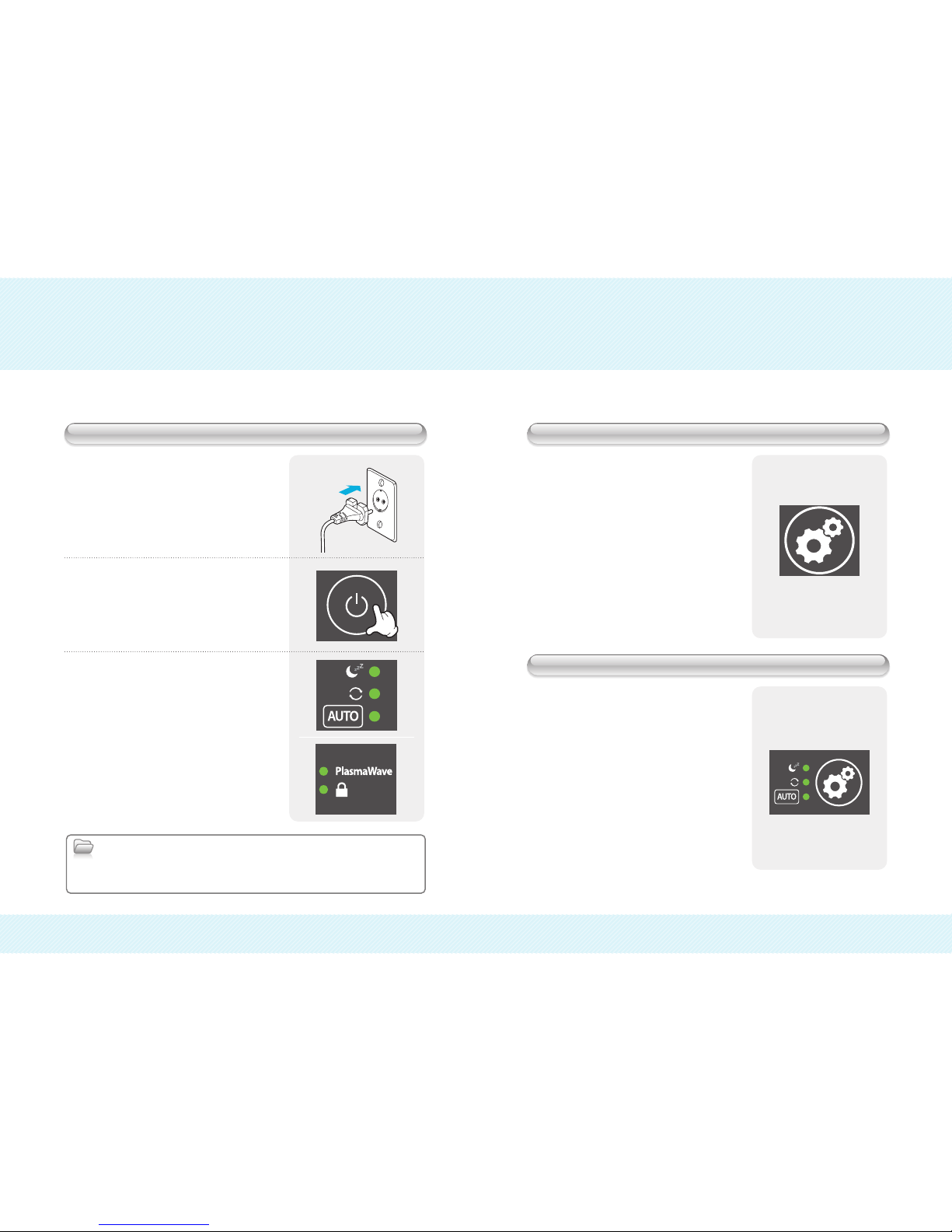

Plug the power cord into a power
outlet.
❸
Before Turning On
❶
❶
Push the POWER button.
Auto Mode
The unit will start on AUTO
MODE and the PlasmaWave®
function will be ON.
Push FUNCTION button to select
Auto Mode
AIR FLOW:
When ambient humidity is sensed at less
that 60%, the unit will operate at “High”
fan speed. When the ambient humidity
is sensed at greater than 60% the unit
will operate at “Low” fan speed.
CLEANING DISCS:
When ambient humidity is sensed at
greater than 75% humidity the cleaning
discs will stop spinning. When ambient
humidity is sensed less than 60%, the disc,
resumes to circulate.
Continuous Mode
Push the FUNCTION button to select
Continuous Mode.
- Continuous Mode Indicator will
illuminate.
- The FUNCTION button will cycle
the unit between the following:
Auto -> Continuous -> Sleep
Operation
A soft buzzing or clicking sound may occur during operation;
if this is uncomfortable, you can turn off the PlasmaWave®
feature by using the PlasmaWave® ON/OFF button.

1817
❶
❷
●
● Push PLASMAWAVE/LOCK button to
operate PlasmaWave®.
Sleep Mode Adjust Timer
Adjust Fan Speed
Lock Button
PlasmaWave® Technology
Push the FUNCTION button to select
Sleep Mode.
The MODE button will cycle the unit
between the following:
Auto -> Continuous -> Sleep
During Sleep Mode the unit will set fan
speed to lowest setting and the display
will turn off, except for the low fan speed
indicator.
Push the FAN SPEED button to change
the Fan Speed.
The FAN SPEED button will cycle the unit
between the following:
Low -> Med -> High
During Humidification process
During PlasmaWave® operation only
Use this button to turn PlasmaWave®
function ON/OFF
● Push PLASMAWAVE/LOCK button to
operate PlasmaWave® while the unit OFF.
Use this button to turn PlasmaWave®
function ON/OFF without using the
humidification function of the unit.
● Push TIMER button to set a timer.
The TIMER button will cycle through the
unit timer settings:
2 hours -> 4 hours -> 8 hours
● Push PLASMAWAVE/LOCK button for
more than 3 seconds to activate Lock.
Operation

2019
●
▶
Unplug the HumidiPür™ before performing any type of
maintenance such as cleaning or disassembling.
Do NOT clean the top portion of the unit with water.
▶
▶
Empty and unplug if not operating for more than 2 days.
❶ ❷
❹ ❺
❸
▶

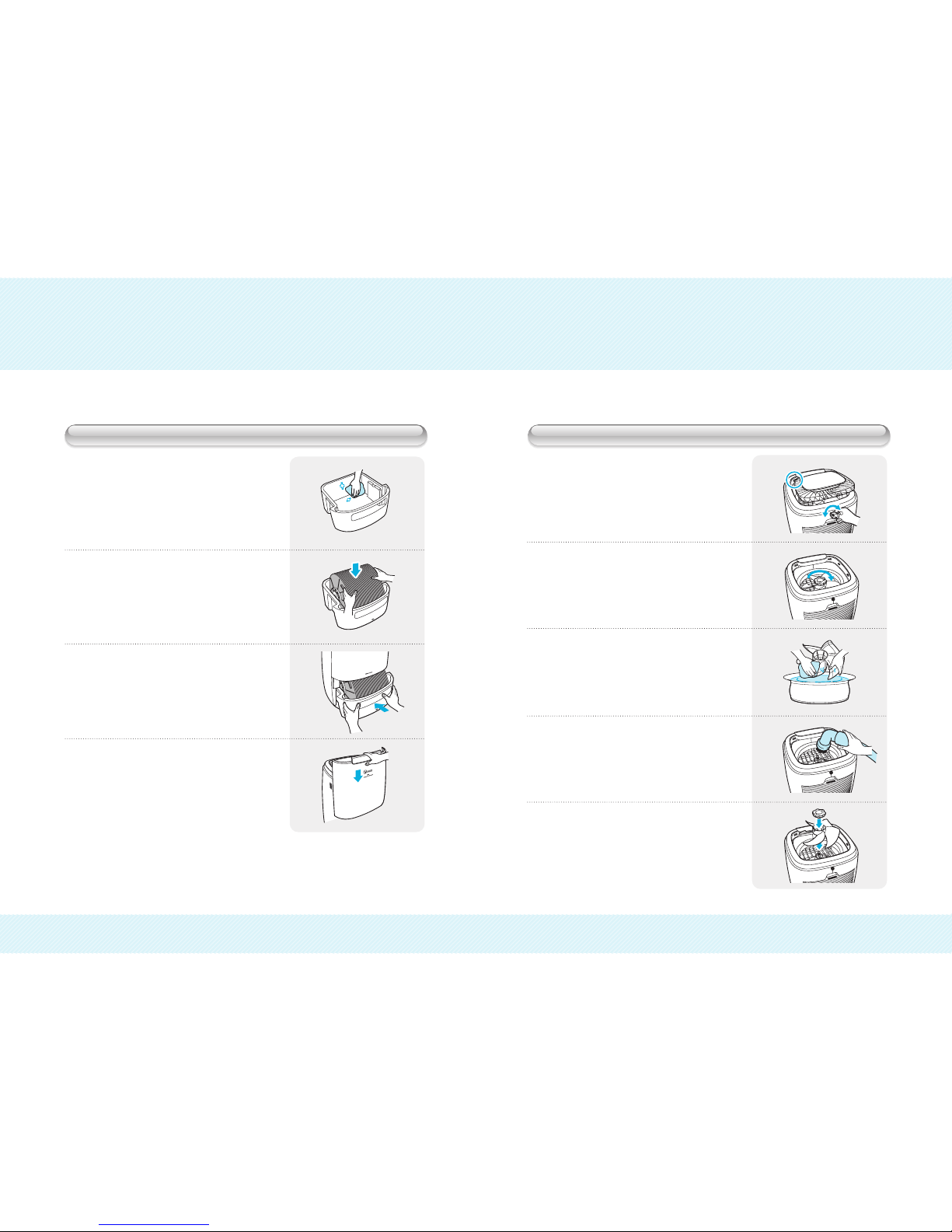

Emptying the Water Tank Cleaning Surface
Cleaning Rear Air Intake Grille
Use the tab on the bottom of the
water tank and gently slide it out
to open.
Lift disc assembly by the
antibacterial handle and
carefully remove it.
Remove the used water left in the water tank and dispose of it in an
appropriate manner. Refill water tank with clean water.
Clean the outside of the unit with a soft
cloth and mild detergent. Wipe clean with
a dry cloth.
Use the tab on the back cover grille
and pull up on the Combo Filter.
To clean the back cover grille rinse
lightly under warm water and
air dry.
Replace the water tank with a
snap.
Gently slide down the front
panel to close.
After cleaning, and letting air dry, slide the HEPA + Carbon Filter back into
it’s original location and replace the back cover grille.
Care & Maintenance
Be sure to change water frequently to ensure optimal
functioning of the unit.
▶
Be sure to replace the water tank correctly in order to
ensure that the unit functions properly.

2221
░
❶
❷
●❶
❷
❸
❹
▶

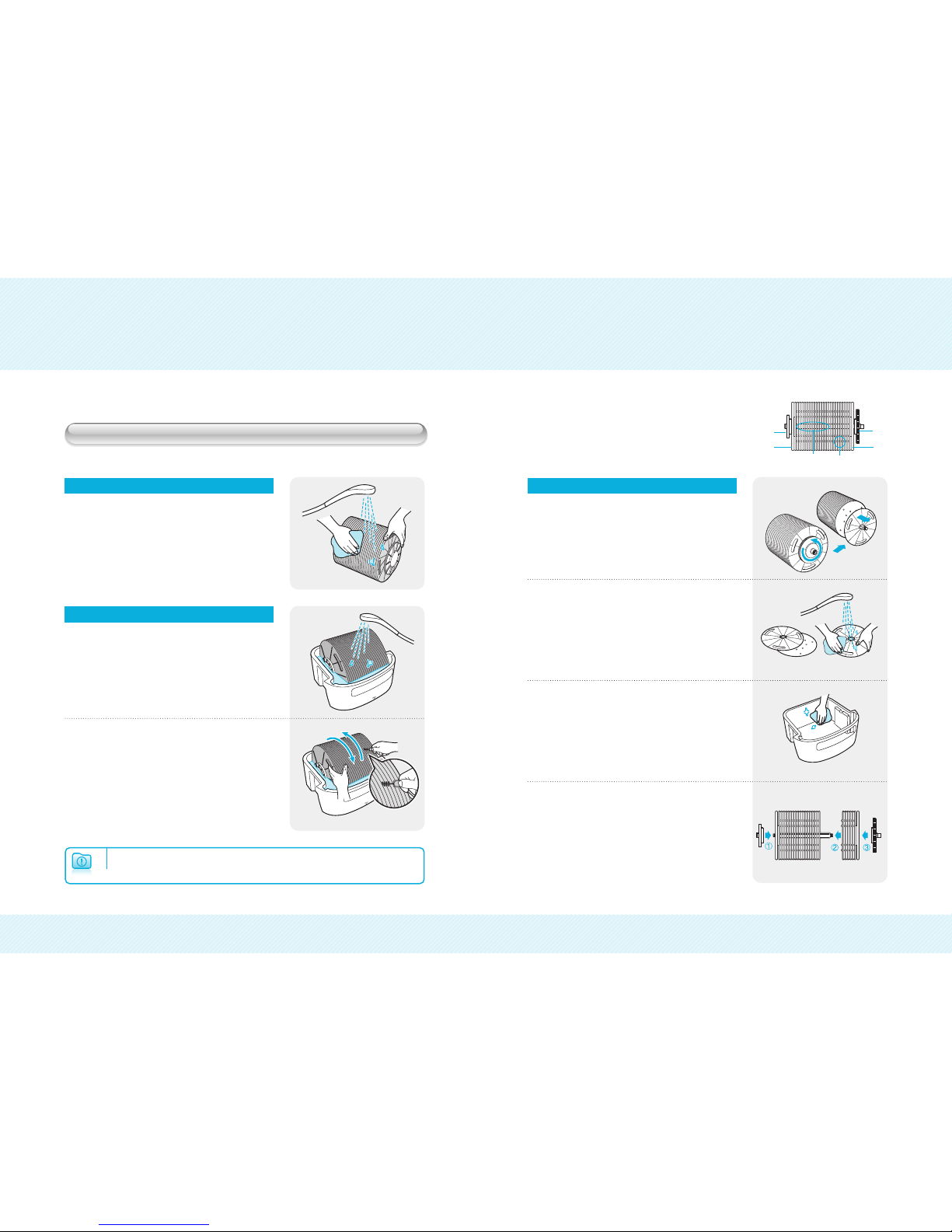

Cleaning Antibacterial Discs
Clean Antibacterial Discs with warm
tap water and a light detergent.
Be sure to clean the Antibacterial Discs once a week.
Fill warm tap water with detergent
in the water tank.
Clean inside of the cycled
Antibacterial Discs thoroughly.
Turn Gear of the Antibacterial Disc
counterclockwise, and pull the front
of the Disc out, and separate axis from
the rear Gear Disc, by turning it
counterclockwise.
Rinse Antibacterial Disc with warm
tap water and a mild detergent.
Clean the inside of water tank with
a soft cloth and mild detergent.
After cleaning, assemble the parts
(Gear Disc, Discs, and Saw Tooth Gear
Disc) in the opposite order.
Gear Disc
Disc Plate
Saw Tooth
Gear Disc
Disc Plate
Axis
(inside)Disc
Care & Maintenance
CleanCel™ Antibacterial Cleaning Discs are dish washer safe
and can be washed in temperatures no greater than 176˚F.

2423
❷
❸
❹
❺
❶
❶
❷
❸
❹
Cleaning Water Tank Cleaning Inner Parts and Fan
Clean the inside of the water tank
with a soft cloth and mild detergent.
Place CleanCel™ Antibacterial Discs
back into the water tank aligning
with grooces and with handle laid flat.
Replace the Water Tank with a snap.
Turn groove to open with a coin or flat
tip screw driver, at the rear of the unit,
and remove top cover.
Holding fan, turn fan cap clockwise.
Rinse fan and fan cap with warm tap
water with detergent.
Remove dust near airflow inlet of the
unit by using vacuum cleaner or soft
brush.
After cleaning, replace fan and fan cap.
Gently slide down the front panel to
close the unit. Make sure that it is
seated properly and lines up correctly.
Care & Maintenance

2625
▶
▶
▶
▶
▶
▶
▶
▶
▶
▶
▶▶
▶▶
▶
▶
▶
▶
▶
▶
▶▶
▶▶
▶
▶▶

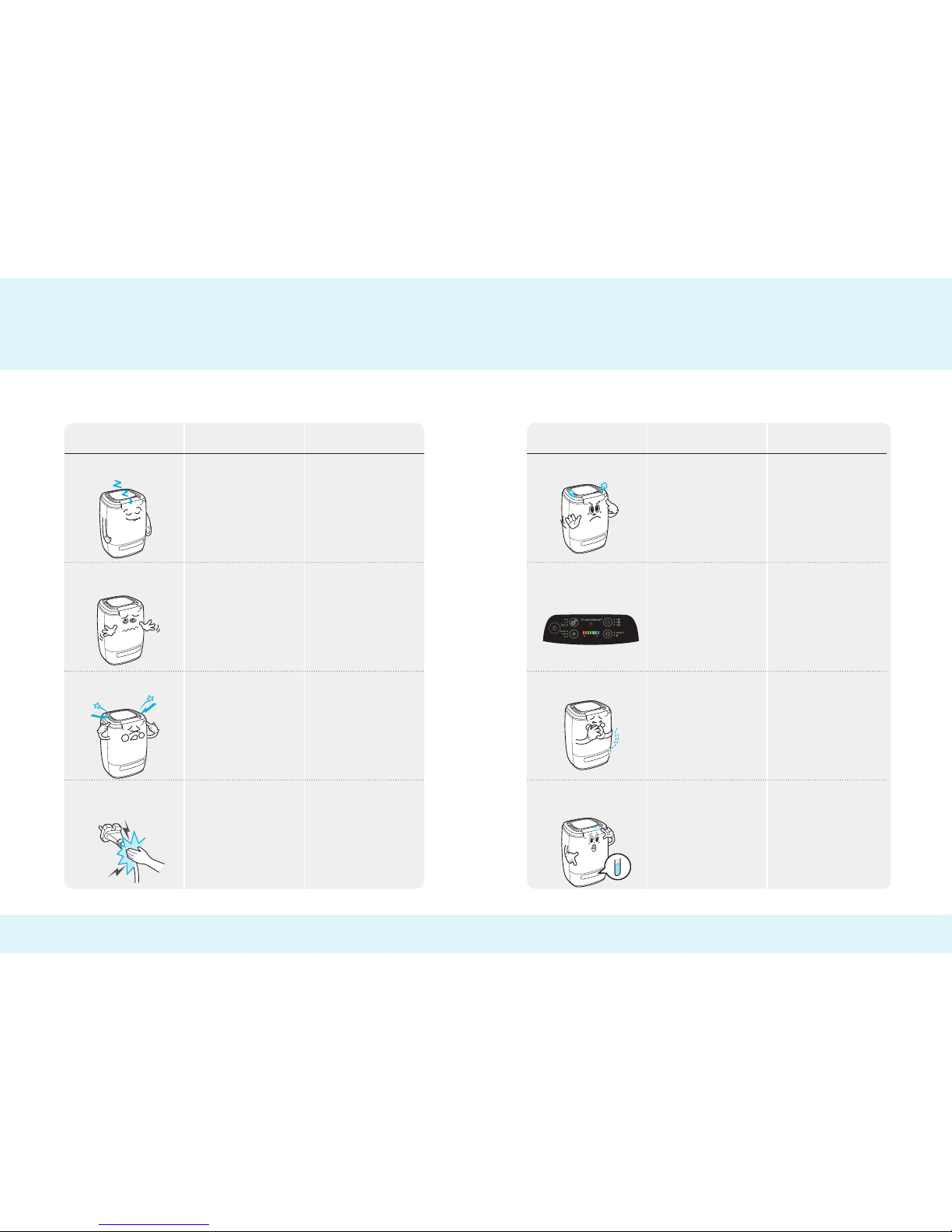

Symptom SymptomCheck If: Solution Check If: Solution
HumidiPür™ does
not turn on
Auto Mode is not
working
Vibrates or makes
noise
Power cord is hot
Power cord is plugged
in.
Plug the power cord in.
Low Water Indicator
light is on.
Fill the water tank.
Make sure the water
tank is in place and
filled correctly.
Water is filled inside
water tank.
Power cord is plugged
in.
Unplug power cord
and plug it back in.
Push FUNCTION
button to select
Auto Mode.
Auto Mode Indicator
is on.
The unit is located on
an uneven surface.
Move to an even
surface.
Power cord is plugged
in.
Unplug the power
cord and contact
customer support.
HumidiPür™ does
not turn on
Function button
is not working
Unpleasant odors
are present
Water level indicator
is on despite water level
Water is ground water.
Water is too cold or icy.
Fan speed is on low
level.
Change to tap water.
Use 68˚F to 77˚F
temperature water.
Change to high fan
speed.
Child-Lock mode is on. Push Plasma/Child Lock
button for 3 seconds to
turn OFF Child-Lock
mode.
HumidiPür™ is being
used where strong
odors and/or dust is
present
Water is left inside the
water tank.
Replace the water in
the water tank and
change water more
frequently.
Clean water tank and
CleanCel™ Antibacterial
Discs.
Refill the water tank.
Troubleshooting

27
-
Model No.
Power Supply
Power
Consumption
Humidifying
Capacity
Tank (Max/Full)
Weight
Dimensions
120V / 60 Hz
16W
AW600
3.17 gallons per day
1.3 gallons / 1.85 gallons
15.4 lbs.
13.4” x 17.7” x 13.4”
Specifications Notes
