Winix W-3C User manual

POU WATER COOLER
MODEL :W-3C, W-3D, W-3TC, W-3TD
User’’ s Manual
■Please read this user manual before
using the machine.
■Keep this manual in a safe place for
future reference.
Winix Europe 8 rue Faidherbe, 33110 Le Bouscat, France
Website www.winixeu.com Mail [email protected] Tel +33.679.243.508

21
FEATURES
Energy Saving
Turn Water Heating or
Cooling system On/Off at
your convenience based
upon your needs.
Temperature Control
Water Temperature is
continuously monitored
and controlled, making
Hot and Cold water
available at any time.
Automatic water level
sensor
Dual floater measures water
level and let you know when
to refill or reset system.
Hot Water Safety Switch
Safety Switch avoids
unexpected use of hot water
and protects against
accidental burns.
TABLE OF CONTENT
INTRODUCTION 3
󳢯Safety Instructions 3~6
󳢯Other recommendations 7
󳢯Product and Parts views 8~9
PRODUCT INSTALLATION 10
Space selection 10
Tubing connection 11
PRODUCT OPERATIONS 12
󳢯Product set-up 12
󳢯Product operation 13
PRODUCT MAINTENANCE 14
Filters replacement 14~15
Product cleaning 16
Drip tray cleaning 17
Draining method 18
FAQ & Troubleshooting 19
Piping diagrams 20
Product Specifications 21~22

43
WARNING

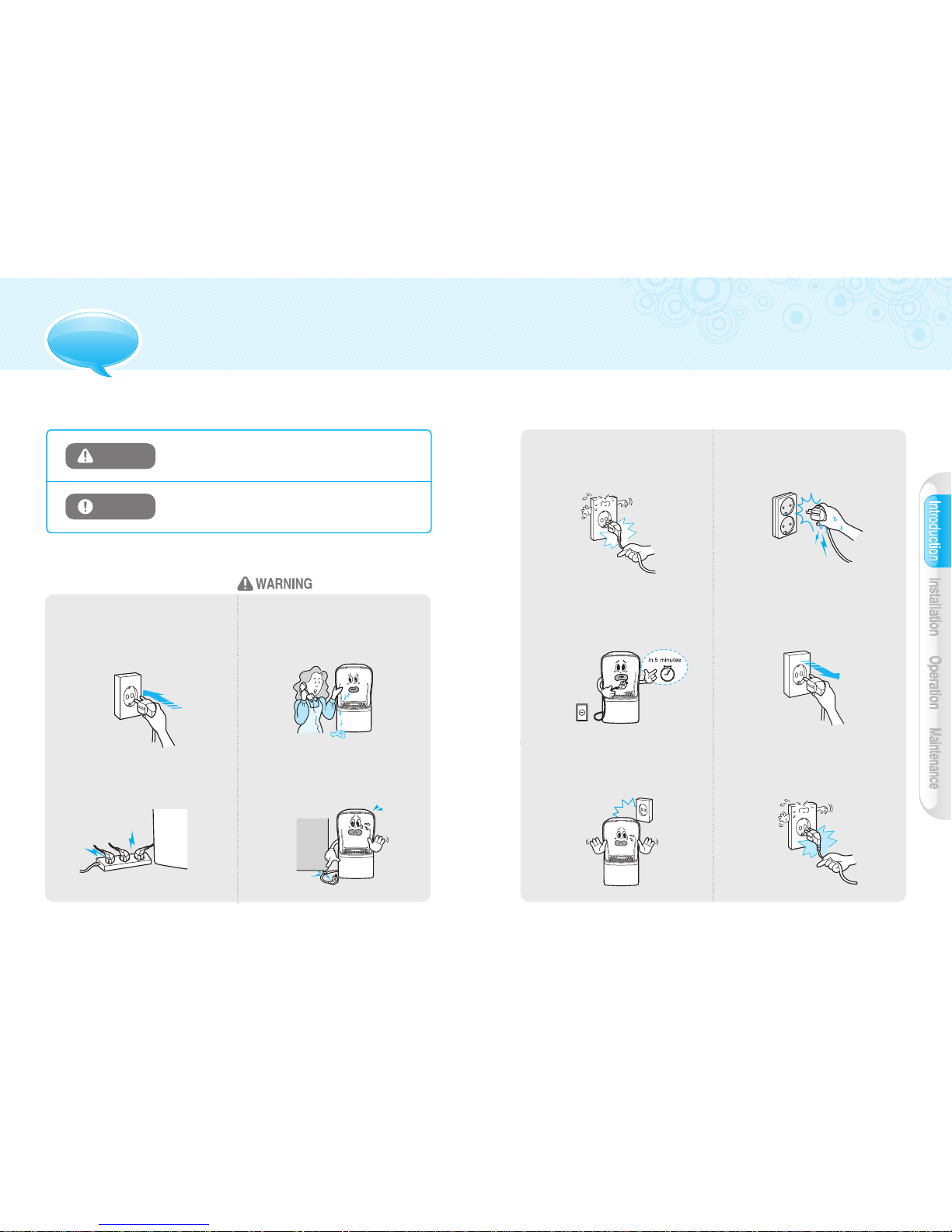

Safety Instructions
Follow these instructions to avoid any risks of
injury or burn injury, equipment or property
damage, electric shocks or fire hazard.
When user does not follow directions, user's
injury or property damage can be occurred.
Notice
Warning
POWER CORD and PLUG
|
Always plug your product into a
dedicated GFCI 230V Power Outlet of
at least 15 Amps, including an earth
connector and connected to an
electrical leakage breaker rated 30 mA
or lower.
In case of loss of power due to an
electrical leakage, unplug your
product and contact your service
dealer.
Do not plug several appliances in the
same power outlet.
Do not bend or place any heavy
objects on the power cord of your
product.
Notice of use
Do not touch plug with wet hands.Do not unplug your product by pulling
on its power cord.
Always unplug your product and let it
cool down for 5 minutes before
cleaning it up.
After unplugging your product, wait for
5 minutes before plugging it in again.
Do not set-up your product
underneath a power outlet. Do not plug product into a loose power outlet or socket.

65
NOTICE
Safety Instructions
Notice of use
Before moving your product, always
unplug it from the power outlet and
drain water completely from the system.
Never use your product if water
supply is not connected and open.
Do not directly spray water onto your
product.
Do not place any container containing
water on top of your product.
If your product has not been used for an
extended time, unplug it from the power
outlet and drain water completely from
the tubes.
Do not directly touch the hot water
coming out of your product.
WATER
|
Do not spray insecticide or inflammables
close to or toward your product.
Do not place inflammables such as
spray, gasoline or gas near your
product.
In case of irregular noise, smell or
smoke, immediately unplug your
product and contact your Service
Dealer.
Do not attempt to repair, disassemble
or modify your product. Please
contact your Service Dealer when
service is needed.
INFLAMMABLES
|
SERVICE & REPAIR
|

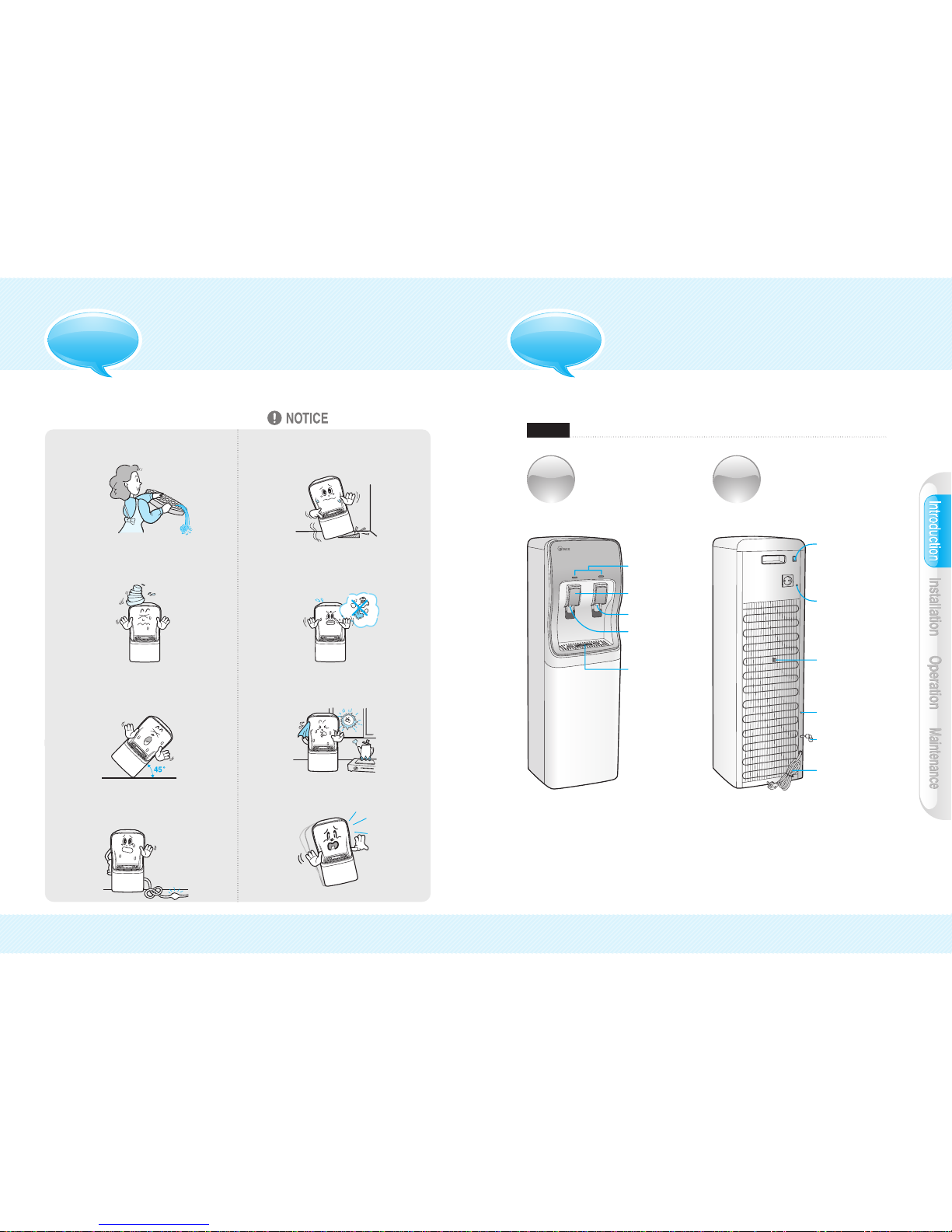

Front
side Rear side
Hot water switch`(W-3D)
select 'off' for cold
water only.
select 'on' for cold
and hot water.
Cold water
temperature controller
Do not control, Contact
service centre.
Hot water
drain cap`(W-3D)
Water outlet for
optional sink faucet
Water supply cap
Power cord
Cold water outlet
Display panel
Hot water
safety switch(W-3D)
Hot water outlet
(Ambient
Water Outlet)
Drip tray
87
Models W-3C, W-3D
PRODUCT
AND PARTS VIEWS
NOTICE
Safety Instructions
Notice of use
Do not set-up your product on an
uneven surface or in a narrow space to
avoid dysfunctions.
Empty drip tray frequently to avoid
potential bad odors.
Do not connect your product water
supply / inlet to a hot water source to
avoid risk of damaging filters.
Do not place heavy objects on top of
the units to avoid potential housing
damages.
Do not install your product in areas with
high variations of temperature
Never incline your product by more
than 45 degrees or wait for 1 hour
after doing so, before plugging it in.
Ensure that all tubing is straight, free
from any obstacle and free from
bending or pinching.
Do not knock or rock your products.
OTHER RECOMMENDATIONS
|

109
Do not install product under
direct exposure to sunlight.
Select a space with low humidity
and good ventilation.
Do not install outside.
To ensure better temperature
control and avoid risks of
electric shocks
Product must be installed
on hard and flat floor.
To avoid unexpected
vibrations and noise
Product must be
installed about 10cm
away from the wall
PRODUCT
INSTALLATION SPACE SELECTION
For better performances and a longer life of your
product, select an adequate space to install it.
Front
side Rear side
Hot water switch(W-3TD)
select 'off' for cold water only.
select 'on' for cold and hot water.
Water supply cap
Hot water drain cap
`(W-3TD)
Power cord
Cold water outlet
Display panel
Hot water
safety switch(W-3D)
Hot water outlet
(Ambient
Water Outlet)
Drip tray
Display
panel
HOT COLD
Hot water Cold water
ROOM COLD
Ambient`/`Room
Temperature water
Cold Water
Models W-3TC, W-3TD Models W-3C, W-3D
Models W-3TC, W-3TD
PRODUCT
AND PARTS VIEWS

1211
Water supply
valve handle
OPERATION METHOD
❶ After installing your product in the right
space, connect tube from Water Supply
to Water Supply inlet on your product.
❷ If you are installing an extra faucet,
connect the sink tube to the sink
faucet water outlet hole.
❸ Make sure Hot Switch is Off.
❺ Make sure Water is being dispensed
when pushing Hot Safety Switch.
❻ Turn Hot Switch On.
❹ Plug product in.
❼ Wait for about 15 minutes for hot water
and about 30 minutes for cold water.
PRODUCT SET UP
● Connection of tube | Connect supplying tube to supply hole.
Water
supply
cap
Water
supply
cap
Hole Processing`:`7Ø Hole Processing`:`8Ø
Models W-3C, W-3D Models W-3TC, W-3TD
Models W-3C, W-3D
TUBING
CONNECTION

❶ Close water supply valve.
❷ Pull front cover out to take it off.
❸ Replace old filter with a new filter.
❹ Put front cover back by pushing
it back into position.
❺ Open water supply valve to resume
operation
Water supply
valve handle
1413
OPTIONAL WATER FILTERS REPLACEMENT
Models W-3C, W-3D
● Press Cold water lever with
cup for momentary water flow.
● Pull Cold water lever up for
continuous water flow. Pull lever
back down to stop water flow.
● Press Hot water lever with cup simultaneously with
Hot Water Safety Switch for momentary water flow.
COLD WATER DISPENSER
HOT WATER DISPENSER
OPERATION
▶Continuous water flow is not available on Hot Water dispenser.
Note
▒ ENERGY SAVING MODE: HOT/COLD WATER MODELS(W-3D, W-3TD)
Depending on your specific
needs and natural
conditions such as weather
and/or seasons, you can
turn Water Cooling and/or
Heating systems On/Off at
your convenience.
Operate the Hot/Cold
Water Switch to
❶“`ON”position to get
Hot/Cold Water
❷“Off”position to get
water at the
temperature of the room.
■` Replace Optional water filters on a regular basis to maintain
performance and efficiency of your product.
MAINTENANCE

1615

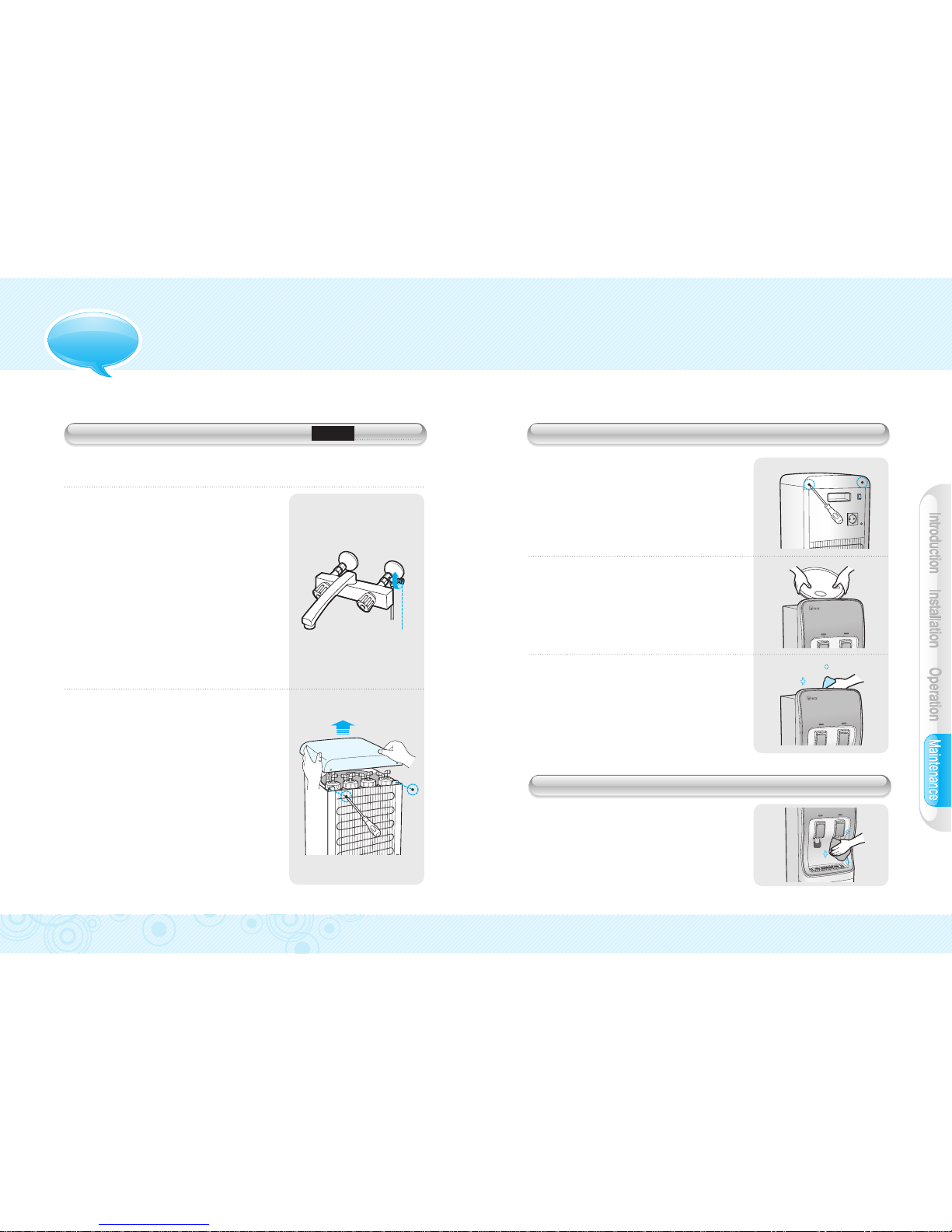

❶ Remove screws on the back of the
top housing to remove top panel.
❷ Remove top lid cover from water tank.
❸ Clean dirty areas with soft wet cloth.
INSIDE PRODUCT CLEANING (EVERY 12-13 WEEKS)
● Plastic areas`:`Clean with a piece
of soft cloth and a neutral detergent.
Do not use water.
● Metal pipes / Back of the unit`:`
Use vacuum cleaner to get rid
of dust accumulation.
PRODUCT HOUSING CLEANING
OPTIONAL WATER FILTERS REPLACEMENT
Models W-3TC, W-3TD
❶ Close water supply valve.
❷ Remove 2 screws at the back of
the machine to pull top cover
off/upward.
❸ Replace old filter with a new filter.
❹ Put top cover back on top of unit.
❺ Open water supply valve to resume
operation
■` Replace Optional water filters on a regular basis to maintain
performance and efficiency of your product.
MAINTENANCE
Water supply
valve handle

1817
❶ Lift drip tray off the product
and dispose water.
❷ Clean drip tray with a neutral
detergent.
❸ Clean the drip tray location,
on your product, with a neutral
detergent.
❹ Place drip tray back into its
original location on the product.
DRIP TRAY CLEANING
MAINTENANCE
❶ Make sure water supply valve is closed.
❷ Place a container underneath cold water outlet.
❸ Press cold water button to drain water.
DRAINING METHOD
Cold water drain
❶ Deactivate water heating system by turning Hot Water Switch to Off.
❷ It is recommended to let heating system cool down for about
30 minutes and to wear protective gear to avoid risks of burn
injury when draining hot water.
❸ After heating system has cooled down, make sure Water
Supply valve is closed.
❹ Place a container below hot water drain cap at the back of the unit.
❺ Remove hot water drain cap and drain water.
❻ Once water stop flowing, place hot water drain cap back, open
water supply valve and turn water heating system back On.
Hot water draining (W-3D & W-3TD)

2019
Radiator
(condenser)
Evaporator
Cold water button
Heater
Faucet water
Compressor
Drain
Hot tank
Drip tray
Hot
water
safety
button
Cold tank
Double float
Capillary tube
Baffle plate
▶ Make sure product is correctly plugged-in.
▶ Make sure Water Supply valve is open.
▶ Make sure Water Supply tubing is straight.
▶ Make sure water level is not too high in the
cold water tank
Water cannot be dispensed
Hot water & cold water
Strange taste or smell
Noise or leakage
Water is not cold
▶ make sure product is plugged-in
▶make sure Water Cooling System switch is On
▶ make sure you do not dispense cold water continuously
and wait for 20-30 minutes before retrying
Water is not hot
▶ make sure product is plugged-in
▶make sure Water Heating System switch is On
▶ make sure you do not dispense hot water continuously
and wait for 5-10 minutes before retrying
▶ Make sure you use Winix Water Filters and
replace them regularly.
▶ Make sure you drain water once a month
if you do not use your Water Cooler regularly
▶ Make sure inside Cold Water tank is cleaned
regularly
ISSUE POTENTIAL SOLUTION
Strange noise occurs
▶ Make sure floor is flat and even
▶ Make sure than no foreign object has been
left on or inside the product
Water Leakage
▶ Close Water Supply and call your service
dealer
FAQ &
TROUBLESHOOTING
For any questions or
concerns, please contact
your Service Dealer. PIPING DIAGRAM

2221
Water Supply Pressure Range
Water Supply Temperature Range
Water Purification Capacity
Refrigerant
Weight
Dimensions
Extraction
ability
Cold water
Hot water
Model
Volt./Hz
Power consumption
Cold thermostat
Hot thermostat
Safety Thermostat
Cold Water Temperature
Hot Water Temperature
Water supply
Cold Water Tank Capacity
Hot Water Tank Capacity
W-3D W-3C
220~240V/50Hz
Cold`:`80W, Hot`:`450W Cold`:`80W
Automatic Temperature controller
Automatic Temperature controller -
Overheat prevention sensor -
4℃±4℃
85℃±10℃ -
15ℓ
3.2ℓ
2.0ℓ -
15Cups(under 10℃, 100cc/20`sec.)
12Cups(over 70℃, 100cc/20`sec.) -
0.5kgf/㎠ - 6kgf/㎠(7.1PSI~85.3PSI)
5 - 35℃
2.0L/min(3kgf/㎠)
R-134a
17kg 16kg
300(W)×440(D)×1,150(H)
Water Supply Pressure Range
Water Supply Temperature Range
Water Purification Capacity
Refrigerant
Weight
Dimensions
Extraction
ability
Cold water
Hot water
Model
Volt./Hz
Power consumption
Cold thermostat
Hot thermostat
Safety Thermostat
Cold Water Temperature
Hot Water Temperature
Water supply
Cold Water Tank Capacity
Hot Water Tank Capacity
W-3TD W-3TC
220~240V/50Hz
Cold`:`80W, Hot`:`250W Cold`:`80W
Automatic Temperature controller
Automatic Temperature controller -
Overheat prevention sensor -
4℃±4℃
85℃±10℃ -
15ℓ
3.2ℓ
1.0ℓ -
15Cups(under 10℃, 100cc/20`sec.)
7Cups(over 70℃, 100cc/20`sec.) -
0.5kgf/㎠ - 6kgf/㎠(7.1PSI~85.3PSI)
5 - 35℃
2.0L/min(3kgf/㎠)
R-134a
13.5Kg
300(W)×440(D)×506(H)
PRODUCT
SPECIFICATIONS
