Winmate W07FA3S-PCM1AC-PoE User manual

Please read these instructions carefully before using this product, and save this manual for future use.
7” S-Series HMI
W07FA3S-PCM1AC-PoE
W07FA3S-PCM1-PoE
Quick Start Guide
V1.0
Document Part Number: 9152070I1001

Contents
Getting Started 3
Unpacking 4
Accessories 4
Description Of Parts 5
Dimensions 6
Mounting 7
VESA Mount 7
Flush/ Panel Mount 7
Connector Description 8
DC Input Connector 8
Serial Port Connector 8
PoE/ LAN (RJ45) Connector 8
USB A Type Connector 9
USB OTG Connector 9
Micro SD Card Slot 9
Turning On or Off 10
Turning ON 10
Turning OFF 10
Configuring Serial Port Settings 11
Brightness Adjustment 13
Operating the HMI Device 14
Setting up the Device 14
Home Screen 14
Quick Settings 15
Ethernet AP 15
Configuring Ethernet 16
Checking Ethernet 17
Testing LED Light Bar 17
Winmate® Home Manager (WHM) 18
How to Lock Application 18
How to Unlock Application 21
How to Change Password 22
Using Front Camera 23
Camera Menu 23
Shooting Photos 23

Location Settings 24
Camera Settings 25
Shooting Videos 25
Software Developer Support 26
Winmate Software Development Kit 26
Winmate Download Center 26
Winmate File Share 26
Android Debug Bridge (ADB) 26
Technical Specifications 27
HMI Device Specifications 27

3
Getting Started
Congratulations on purchasing Winmate® 7” S-Series HMI. Interactive and smart
automation systems of intelligent buildings are in a fast growing phase. Winmate®
multi-touch S-Series HMI is suitable for home automation and room management
systems. Flat surface is easy-to-clean and delivers aesthetically pleasing look for
any interior. By connecting to centralized database, it can provide real time update
for booking status and available schedule, or perform as a synchronous display in
meetings.
Winmate® 7” S-Series HMI powered by Freescale® Cortex® A9 i.MX6 Dual Core
1GHz (can be upgraded to Quad Core) processor and support Android 4.4 and
Linux Kernel 3.0.35 operating systems. The HMI device features P-Cap touch-
screen. operating systems. The HMI device features P-Cap touch-screen. In
addition, the HMI device model supports an exceptional feature - LED Light Bar.
With the help of red, green, blue and orange LED indicators you can see the status
of the machine or processes afar. It significantly reduces power consumption by
keeping the display turned off.
Winmate® 7” S-Series HMI features:
1024 x 600 screen resolution with P-CAP touchscreen
Fanless cooling system and Ultra-low power consumption
Front IP65 water and dust proof, rear IP22
Dual Gigabit Ethernet
LED Light Bar
Optional 2MP front camera
Power over Ethernet (PoE)
Stylish design for room booking, access control and room information
applications

4
Please read these instructions carefully before using this product, and save this guide for future
use.
Unpacking
Carefully remove the box and unpack your device. Please check if all the items
listed below are inside your package. If any of these items are missing or damaged
contact us immediately.
Accessories
Standard factory shipment list:
7” HMI Device
Quick Start Guide
(Hardcopy)
Driver CD & User
Manual
AC Adapter
(12V/ 36W)
Power Cable
VESA Plate
75 x 75 mm
VESA Mounting
Screws

5
Description Of Parts
*Note: RGB LED light bar only available for the model number W07FA3S-PCM1AC-PoE
󰪦
SD Card Slot
󰪪
2 x USB 2.0
󰪮
2MP Camera (optional)
󰪧
GIGA LAN/ PoE
󰪫
RS-232/422/485
󰪯
*RGB LED Light Bar
󰪨
USB OTG
󰪬
9~24V DC-in
󰪩
RS-232/422/485
󰪭
1 Watt Speaker

6
Please read these instructions carefully before using this product, and save this guide for future
use.
Dimensions
*Note: Measurements shown in mm.
**Note: this is a simplified drawing and some components are not marked in detail.

7
Mounting
S-series HMI devices come with different mounting options suitable for most of the
industrial and commercial applications.
VESA Mount
Dimensions
Screw hole diameter
Compatibility
75 x 75 mm
VESA M4x5 mm
Swing arm mountingkits
Flush/ Panel Mount
Wall cutout
Screw hole diameter
131.4 x 175.4 mm
M3x4 mm

8
Please read these instructions carefully before using this product, and save this guide for future
use.
Connector Description
This section explains how to connect external interfaces to the HMI device.
DC Input Connector
DC power source input is a 12V DC-in jack connector.
Serial Port Connector
Use COM1 serial port connector to connect your HMI to external devices such as
mouse, modem or printer.
PoE/ LAN (RJ45) Connector
The 7” S-Series HMI supports one 10/100/1000 Mbps Ethernet interface for
connecting to the internet.
Pin №
Name
Pin №
Name
1
DC_IN
2
GND
Pin №
RS-232
(Default)
RS-422
RS-485
1
DCD
TxD-
D-
2
RXD
TxD+
D+
3
TXD
RxD+
NC
4
DTR
RxD-
NC
5
GND
GND
GND
6
DSR
NC
NC
7
RTS
NC
NC
8
CTS
NC
NC
9
RI
NC
NC
Pin №
Name
Pin №
Name
1
TX1+
2
TX1-
3
TX2+
4
TX2-
5
TX3+
6
TX3-
7
TX4+
8
TX4-

9

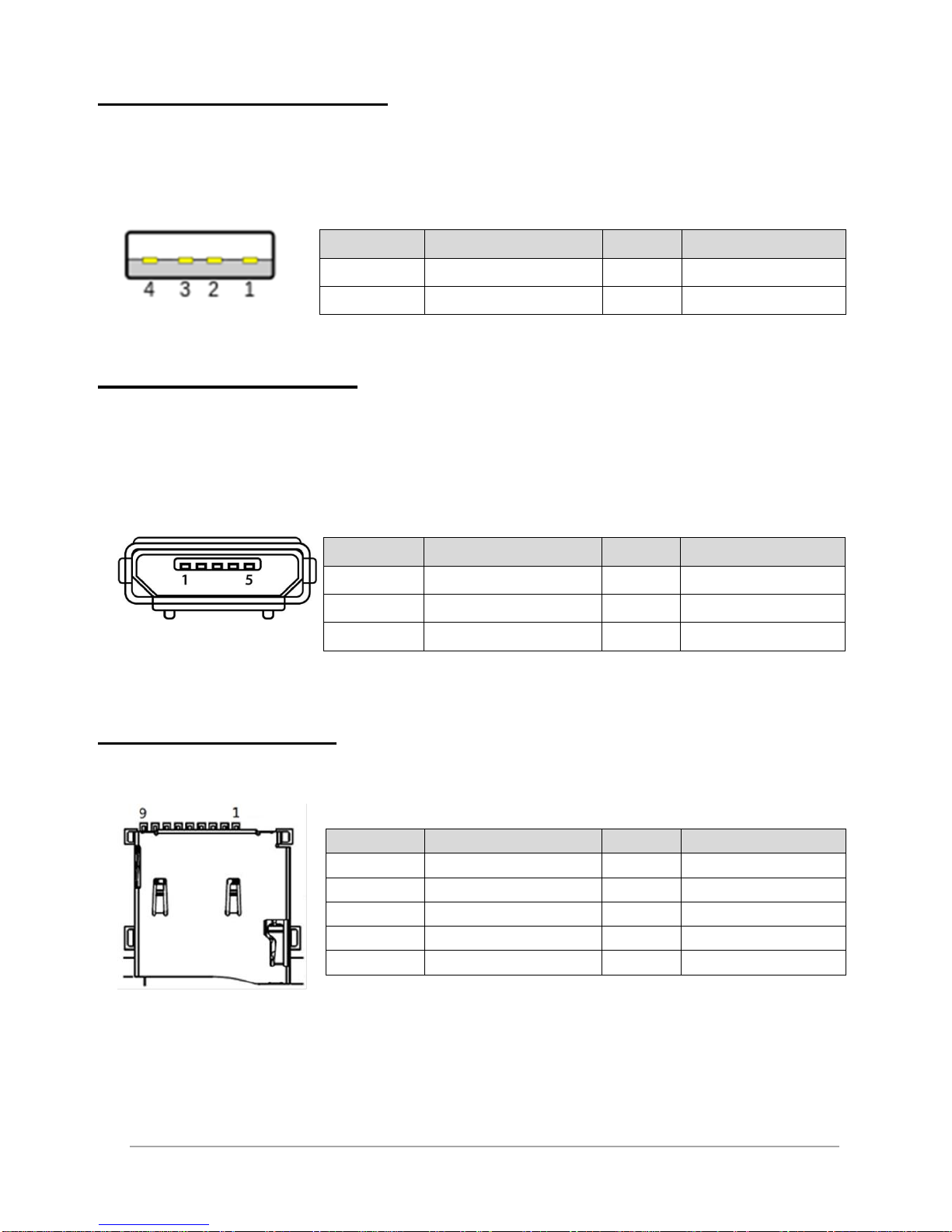

USB A Type Connector
Use USB A Type (USB2.0) connector to connect your HMI device to other
USB2.0 compatible devices.
USB OTG Connector
Use USB OTG connector to connect the HMI device to other USB On-The-Go
compliant devices such as flash drives, digital cameras, mice or keyboards.
Use USB OTG cable to install software on the HMI device.
Refer to the User Manual for more details on how to install software.
Micro SD Card Slot
Insert microSD card to microSD card slot to extend the memory of your HMI device.
Pin №
Name
Pin №
Name
1
+5V
2
USB_D-
3
USB_D+
4
GND
Pin №
Name
Pin №
Name
1
+5V
2
USB_OTG_D-
3
USB_OTG_D+
4
USB_OTG_ID
5
GND
Pin №
Symbol
Pin №
Symbol
1
DATA2
2
DATA3
3
CMD
4
+3.3V
5
CLK
6
GND
7
DATA0
8
DATA1
9
Card_Det

10
Please read these instructions carefully before using this product, and save this guide for future
use.
Turning On or Off
Turning ON
Follow the following steps to turn on your device:
1. Connect the AC adapter to the DC-in jack connector on the back side of the
HMI device.
2. Connect the power cord to AC adapter.
3. Plug the power cord to the AC outlet and the device will turn on automatically.
CAUTION
Use only the AC adapter included in your package
(Rating: Output 4.2 A). Using other AC adapters may damage the
device.
Turning OFF
To TURN OFF the HMI device disconnect the power cord from the source of power
and the device will automatically shut down.
ALTERNATING CURRENT
This product must be grounded. Use only a grounded AC outlet.
Install the additional PE ground wire if the local installation regulations
require it.

11
Configuring Serial Port Settings
Serial COM Port can be configured for RS-232, RS-422 or RS-485. Winmate
provide COM port settings application for Android OS.

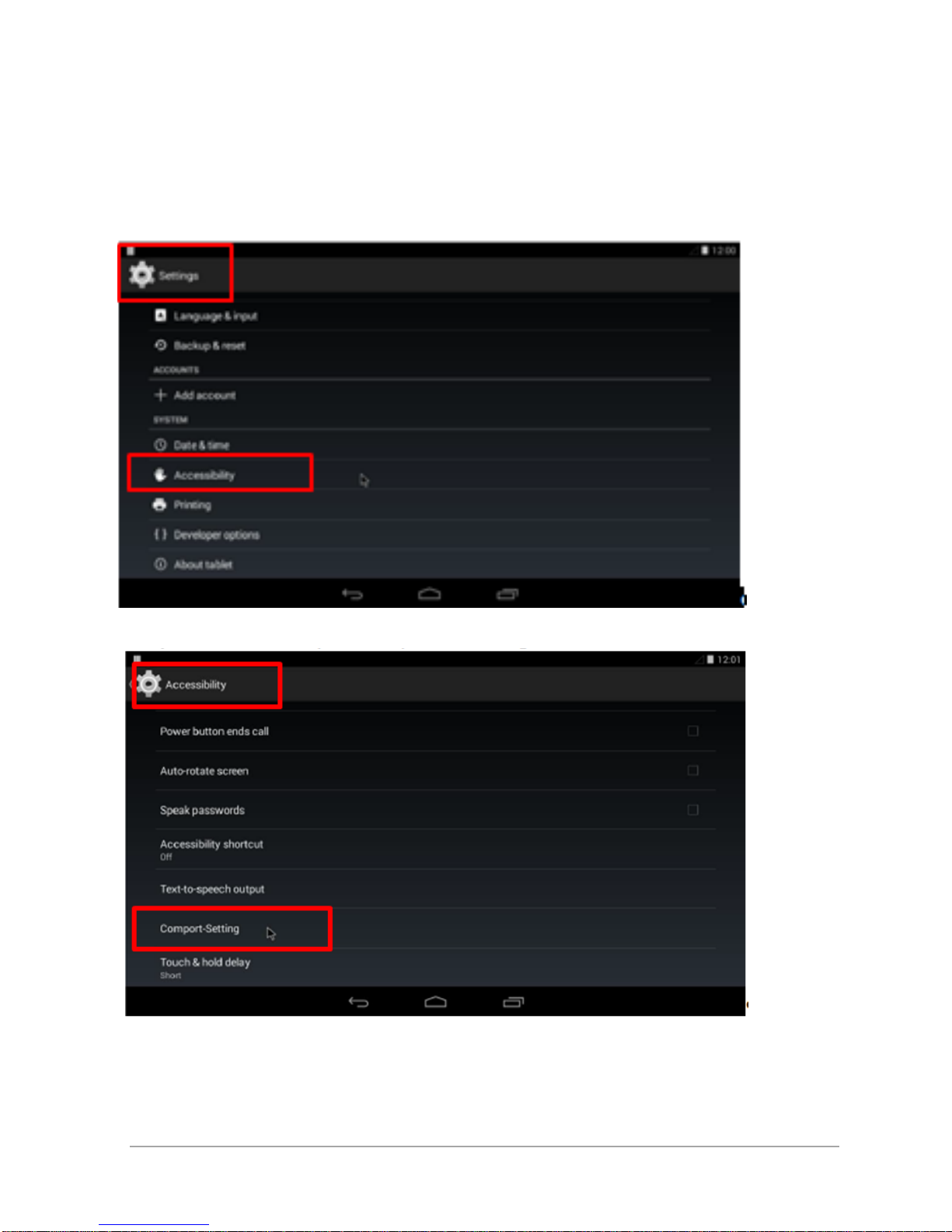

Step 1 Settings > Accessibility
Step 2 Accessibility > Comport-Setting

12
Please read these instructions carefully before using this product, and save this guide for future
use.
Step 3 GO to Comport-Setting > Comport 1/ Comport 2/ Comport 3
* Select Comport 1/ Comport 2/ Comport 3 that you want to configure.
Step 4 In COM port settings select Comport 1 > RS232/RS422/RS485
*This example shows how to configure Comport 1 settings

13
Brightness Adjustment
Use can adjust the screen brightness in Android settings. Pull down from the top of
the screen to get the notifications area. You can also access display settings in the
settings menu.

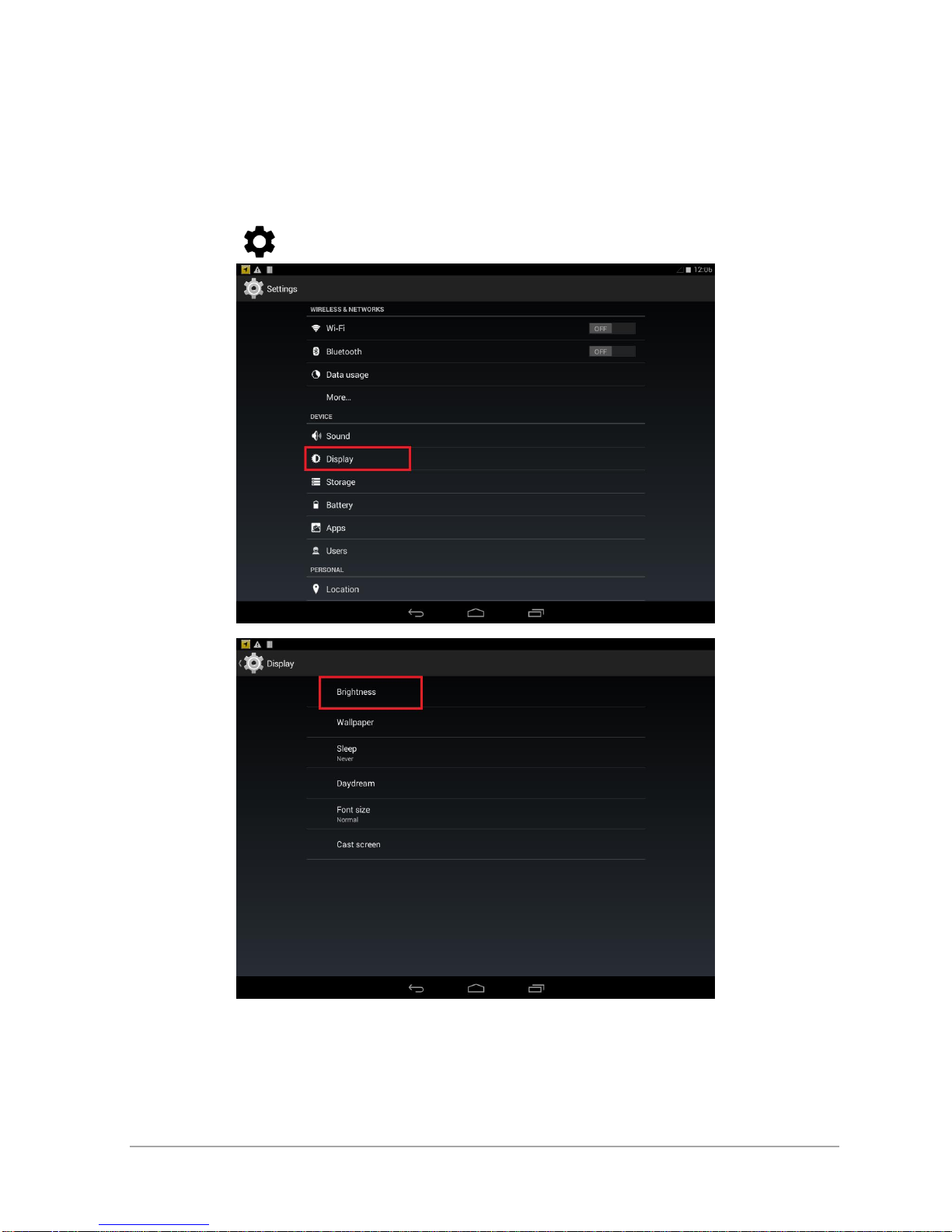

Go to Settings > Display > Brightness
Tap the cursor to the left to reduce the screen brightness.
Tap the cursor to the right to increase the screen brightness.

14
Please read these instructions carefully before using this product, and save this guide for future
use.
Operating the HMI Device
Winmate® 7” S-Series HMI runs on Android 4.4 operating system.
Setting up the Device
When you first turn on your HMI device, you will see a Welcome screen. Choose
the language you want and touch Start or the Start icon. When prompted, you can
sign in with your Google Account to create one at that time. You can also choose to
skip this step and create one later.
Home Screen
Back
Opens the previous screen you were working in. Once you back
up to the Home screen, you can’t go back any further.
Home
Opens the central Home screen. To open Google Now, swipe
up.
Recent Apps
Opens a list of thumbnail images of apps you’ve worked with
recently. To open an app, touch it. To remove a thumbnail from
the list, swipe it left or right.

15
Quick Settings
To open Settings, Swipe down from the top right of the screen and touch the
Settings icon.
You can open your device’s Settings app from the All Apps screen or from
Quick Settings. For example, to change notification sounds, and volume
go to Settings > Device > Sound to change the volume.
Ethernet AP
Step 1 Connect Ethernet Cable to the HMI device.
Step 2 Go to APPS > Ethernet
Step 3 Ethernet APP main menu appears

16
Please read these instructions carefully before using this product, and save this guide for future
use.
Setting
Description
Check Ethernet
Check Ethernet connection parameters: IP mode, IP
address, DNS address and others
Configure
Ethernet
Enable Ethernet connection and configure its such as
connection type
Advanced
Settings
Configure advanced parameters of the Ethernet
Configuring Ethernet
To configure Ethernet settings go to Apps > Ethernet > Configure Ethernet
*Default settings: Ethernet OFF. Swipe Ethernet ON to activate Ethernet connection.
Connection Type

17
Setting
Description
DHCP
The device automatically capture IP-address from the router
Static
IP
Allows to manually set up IP-address, DNS, Network and
Gateway
Checking Ethernet
To check the Ethernet settings go to APPS > Ethernet > Check Ethernet
Ethernet settings menu appears on the top right side of the desktop.
Testing LED Light Bar
To test LED Light Bar go to APPS > Light BarDemo (This application is for
demonstration purposes only).
Adjust the intensity of Red, Green and Blue light.

18
Please read these instructions carefully before using this product, and save this guide for future
use.
Winmate® Home Manager (WHM)
Winmate® S-Series HMI running on Android OS comes with preinstalled APP
named Winmate® Home Manager (WHM) which let the device manager to lock the
launcher then the user can only use one application assigned by the device
manager.
How to Lock Application
Step 1 In the main APPS window, select the Home Manager APP and tap it to
open.
Home Manager is setting which app you want to run up automatically after
booting.

19
Password Manager is settings WHM password (Default is “0000”).
Step 2 Go to “Application Selector”, and choose the app which you want to
run up automatically after booting.
Step 3 Go back to “Home Selector” and press “Clear and Reset Default
Home”.
