WINYCAM X200FHD
Contents
1. Safety Precautions
2. Before use
2-1. Product Feature
2-2. Standard Package
2-3. Product Parts
3. How to use
3-1. Front Camera Installation
3-2. Rear Camera Installation
3-3. GPS/TV-OUT Cable Installation
3-4. How to record
3-5. LED Operation
3-6. Voice Guide
3-7. LCD Configuration
3-8. PC Original Viewer Program Installation
3-9. PC Original Viewer - Screen Configuration
3-10. PC Original Viewer - Viewer Configuration
3-11. PC Original Viewer - Configuration
3-12. Configuration Default Setting
3-13. Playback (Black box)
3-14. Playback (Standard video player)
3-15. Playback (PC original viewer)
3-16. Playback (TV/Car Navigation)
3-17. To save video file on your PC
3-18. To separate recorded video files
3-19. Firmware Upgrade
3-20. Touch Calibration
3-21. SD Card Format & Set breaking voltage
3-22. REC Time
3-23. Specification
4. FAQ
Warranty
2
3
5
6
7
8
8
9
10
11
12
13
14
15
18
20
22
26
27
28
29
30
31
32
33
34
35
36
37
38
39

2WINYCAM X200FHD
사
용
하
기
Caution for Safety
1. Caution for Safety
Do not operate the product during driving. It may cause
accident.
The product must be installed at a point which would not
obstruct the driver’s view.
Do not allow unauthorized disassembly or alteration to the
product. It may cause malfunction, and the consequent
product damage will not be covered under the warranty.
If the product is damaged or power is cut off by a serious
accident, the product may not be able to record such event
Always keep the windshield clean to enable clear recording.
Since the product is purpose to record video data during
driving, video quality may be deteriorated when in/out the
tunnel, and at night or by contrast and backlight.
Contaminated camera lens may deteriorate the video quality.
Keep the lens clean.
Do not place the product under direct sunlight or inside the
closed vehicle as it may cause malfunction.
Do not use chemicals or detergent to clean the product. Clean
gently with soft cloth.
Use of the product at temperature below -20℃ or above
60℃ may cause malfunction or breakdown. (This caution
should be applied when product is unused.)
Caution on Operation and Storage
Do not use the product in places in high temperature/humidity.
Do not exert excessive force to the product (especially to LCD
buttons and to bracket) as it may cause breakdown.
Operate the product for 3-5 minutes to check for correct
recording, before each use.
Extended exposure to sunlight and high temperature in the
summer may cause malfunction.
Do not turn off power, or remove the SD card during firmware
upgrading as it may cause malfunction.
Do not touch the cigar lighter cable with wet hand as it may
cause electric shock.
Do not use a damaged cigar lighter cable as it may cause
electric shock or fire.
Do not place the cigar lighter cable in near heating devices.
Do not leave the product connected to the cigar lighter if not
in use for a long period of time. Remove the cable from the
product.
Insert the cigar lighter securely.
Do not bend or pull the cigar lighter cable by excessive force,
or place heavy objects on the cable.
(It may damage the cord and as a result it may cause electric
shock or fire.)
Do not touch the LCD excessive force as it may cause
malfunction.
Caution on Operation and Storage

3
WINYCAM X200FHD
사
용
하
기
Caution for Safety
Caution on SD Card
In order to confirm normal operation of the product, please
check the image of a SD card and format it on a regular basis.
(PC format needed one to two times per month)
Because an SD card is consumables, if it is used for a long
time, you may lose the data or may not record due to an error,
so please check it periodically.
When the product is in recording or the power is on, do not
eject the SD card forcibly. It may cause a failure of the SD card
and data loss.
If temperature gets too high in the vehicle, data storing may be
disabled, or data may be damaged. Park your vehicle in the
shade in the summer.
When identify the car's accident or damage, please keep the
SD card separately. Due to overwrite, important data may be
deleted.
When turn off the power of the body and remove the SD card
before LED is turned off, the last recording file may not be saved,
so please be careful.
When turn off the power of the body and remove the SD card
before LED is turned off, the last recording file may not be
saved, so please be careful.
When driving a car, do not remove the SD card. Make sure to
remove it safely when a car is in parking or stop.
After turning on the power, make sure that it is in normal
operation.
Please note that the warranty period of an SD card is six
(6) months, and replace it at the time of more than six (6)
months. Please purchase and use SD Card that manufacture
recommended specification.
The SD card randomly purchased other than the one we
provide, shall be excluded from the warranty, and we shall not
take any responsibility for loss and damage of the data recorded
in the SD card in any case.

4WINYCAM X200FHD
사
용
하
기
Before Use
2. Before Use
Thank you for purchasing X200FHD
This Manual contains important information
about the proper use and cautions in use of the
product. Please read carefully before use.
X200FHD is an auxiliary product to alert users
for safe driving and prevent accidents, by
recording video during driving. Also purpose for
evidence of an accident.
X200FHD does not however guarantee that all
accidents are recorded. Minor shock may not
detect sensor to record.
WinyTechnology shall not be liable for any loss
or damage to data or to the product which may
be caused by accident or impact.
All rights vested in the design and software of
X200FHD are the property of Winy Technology
Co., Ltd. and protected by the Copyright Law.
X200FHD may change without notice for
further function improvement.
This User Manual is published based on the
current state of the product, and may contain
typographical errors or omissions.
Contents of this User Manual may be modified,
changed or supplemented without notice for
further improvement.

5
WINYCAM X200FHD
사
용
하
기
Before Use
2-1. Product Feature
High Quality Lens and High Image
Quality Resolution support
Front 2.2 Mega Pixel / Rear 2 Mega Pixel image sensor
mounting
Wide mega lens
FHD(1920×1080) High Image Quality Resolution
and total 30fps(Front 25 + Rear 15).
Various Recording Function and Video
Data Acknowledgement
Touch LCD display apply, recording image and recorded
image can be confirmed on LCD
Normal, Manual, Event, Motion and auto change to Parking
recording mode
Driving records can be stored with GPS data. (optional)
G sensor built-in Automatic parking recording mode change
and event recording mode.
External video output. (real-time video image can be checked in
another monitor)
Configuration setting is available on LCD menu.
PC viewer program are provided to change various setting
values and map data can be checked when using GPS.
(In the general video player (e.g. Windows media player),
recorded video can be played)
SD card can be formatted as the product itself, without
connecting to a PC.
Each capacity of a normal / event/ motion folder can be set
in PC Viewer.
High Quality Voice Record and Voice
Guidance
Operating instructions service by voice guidance
Voice recording On/Off function and speaker output On/Off
function.
High performance microphone built-in
Back-up battery and Car constant power
discharge protection function
Stored recorded image safety by built-in high-capacity
capacitor when power is off.
Car constant power discharge protection function (Selectable
ON/OFF on viewer, Not required another equipment for this
function)
Consume less than 2.5mA when power shutdown
(Based on 12V)
" When using car constant power discharge protection
functions, If user car voltage is 12V and the voltage of less
than 11.8V is maintained for more than 10 minutes the
product power will be shuts-off " (Note: Shutdown time
depend on the Type of Car and car condition.)
Other
Soft look and emotional design. (easy removable body)
Security LED light are mounted on front body (LED Lighting
function On/Off can be set in PC viewer / LCD menu)

6WINYCAM X200FHD
사
용
하
기
Before Use
Standard Package Option Accessories
X200FHD Body
Null Cable
Cable Clip
Cigar LighterGPS Module AV - OUT cable
3M tape for bracket
Micro SD Card
Bracket
Rear Camera
USB Card Reader
Rear Camera
Video Cable
The viewer program is stored in Micro SD card.
Viewer Please save PC Viewer program in
advance in the computer, etc. so that the
program can’t be deleted. (If the program is lost,
please download from Winycam website.)
The packaged product picture of the user manual may
differ from the actual product.
The video cable can be purchased separately and used after
verifying the PLUG Pin specification of Navigation AV IN.
Video input type is different and check the user manual of
monitor.

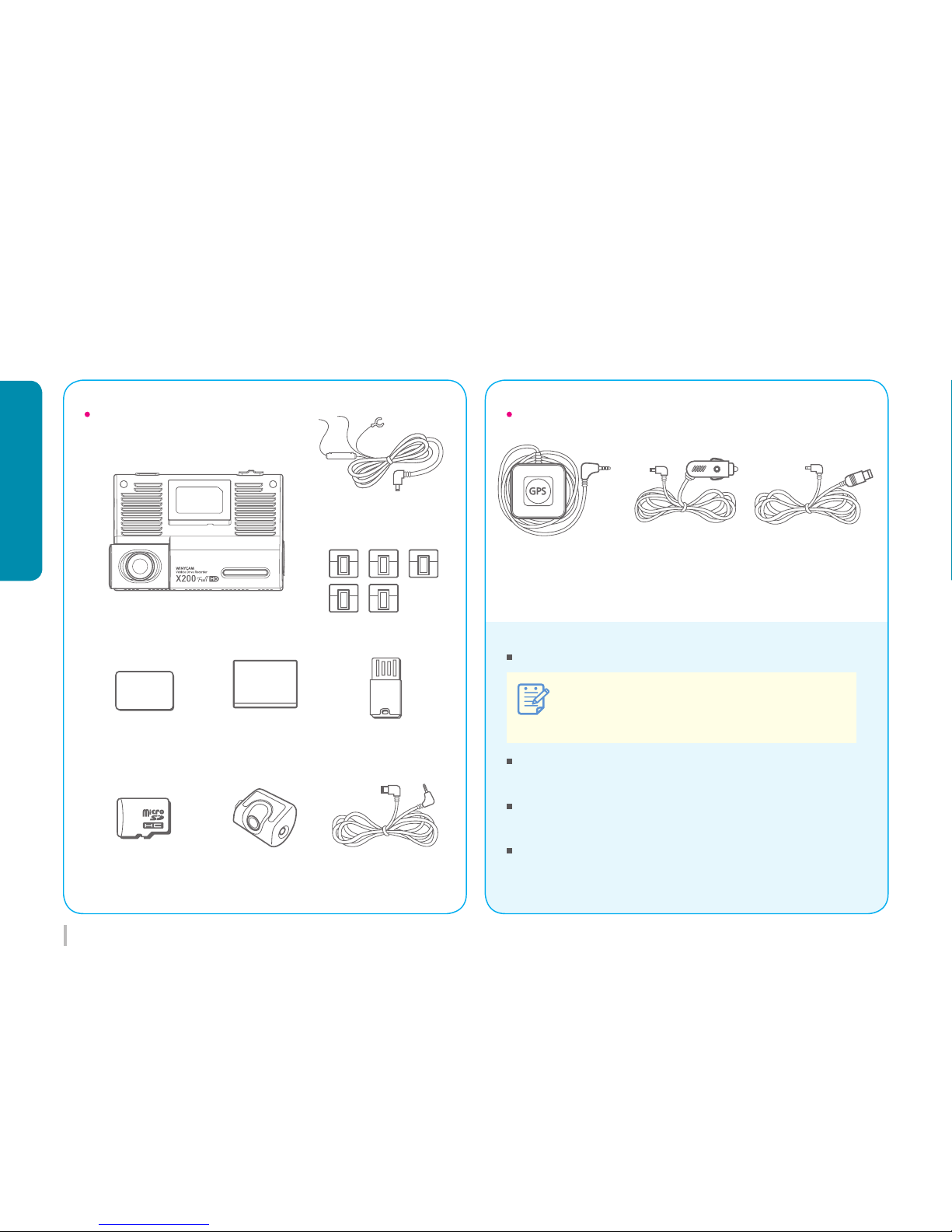

2-2. Package
Note
GPS

7
WINYCAM X200FHD
사
용
하
기
Before Use
Front Camera
Card Slot
Security LED
Microphone
Rear Camera
Connection
TV－OUT
DC Jack
GPS
Connection
REC LED
Reset
Power LED
Power Button REC Button by manual
2-3. Product Parts

8WINYCAM X200FHD
사
용
하
기
How to use

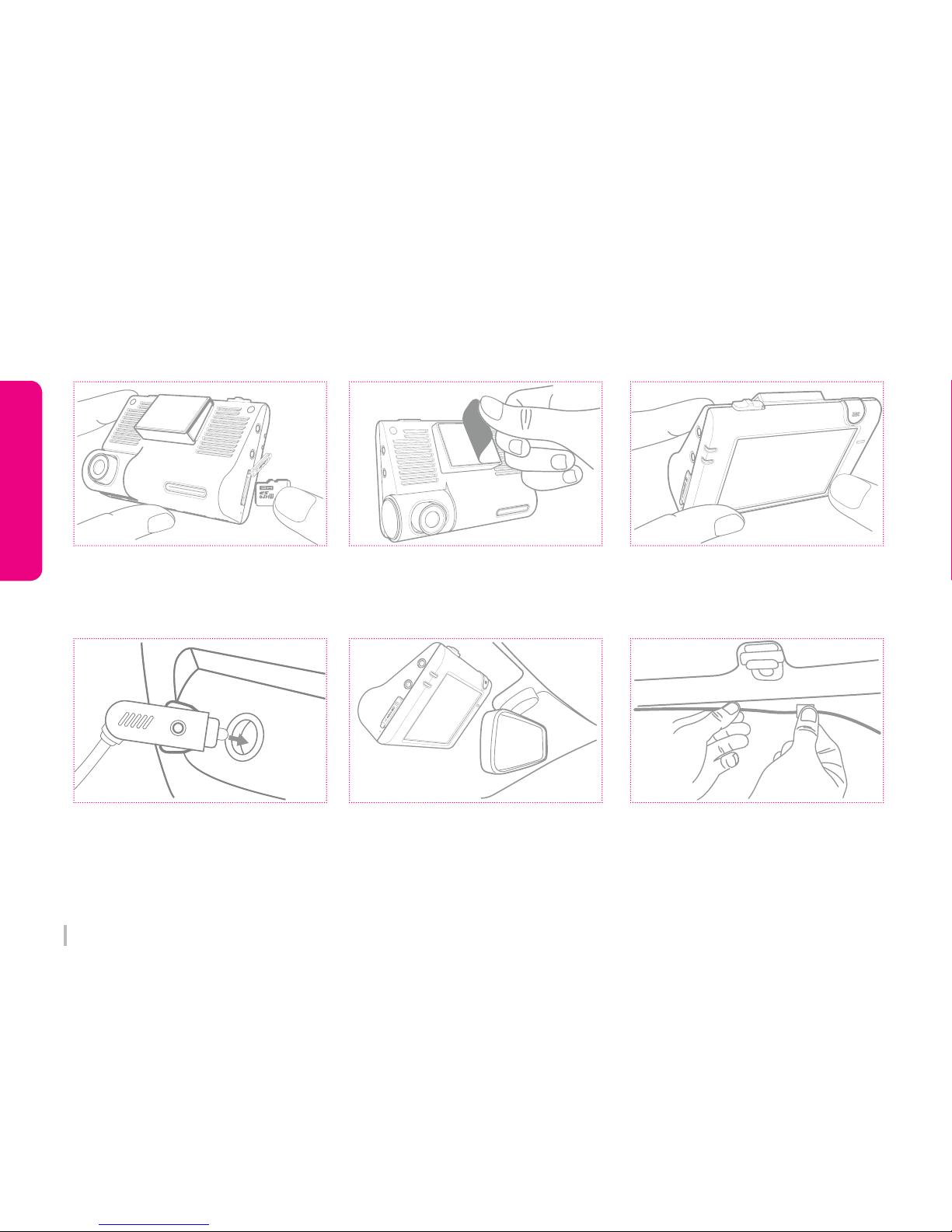

3-1. X200FHD Front Camera Installation
1. Insert Micro SD card to X200FHD
SD card slot.
(Check the SD card direction)
5. Adjust the angle of body and fix it.
(Adjust the angle of camera so that the
horizon can be shown above the true
center of screen.)
2. Remove the protect sticker.
4. Connect packaged cigar lighter to a
cigar socket.
3. Attach the X200FHD in place on
windshield.
6. Arrange a power cable.

9
WINYCAM X200FHD
사
용
하
기
How to use
1. Shutdown a car battery and power
Shutdown a car battery and power off
X200FHD first before installing a rear
camera.
5. Check an operation
After connecting a power/video cable,
Please check the recorded image that is
stored in SD card if X200FHD can record
properly.
2. Install a rear camera
Remove a protect sticker and attach
a rear camera in proper location in
windshield.
4. Connect video cable
Connect a rear power /video cable to a
rear camera and a TV-Out jack on front
camera
3. Adjust a rear camera angle
After attached a rear camera, adjust an
angle. Adjust angle is e right angle to
lens face or little downward facing.
6. Arrange a front/rear camera cable
After checking recording operation,
well-arrange a cable.
If you embed cable to car wall, please
check cable connection. Also after
embedded double-check if X200FHD
can record properly.
3-2. Installation of Rear View Camera
P L AY

10 WINYCAM X200FHD
사
용
하
기
How to use
Connect External GPS to GPS
connection on X200FHD body.
Connect a TV-Out cable to the
TV-Out jack on a X200FHD
body.
Attach GPS module at well
visual place and tidy up a cable.
Connect a TV-Out cable to
AV-IN jack your car navigation.
▶ External GPS Installation ▶ TV OUT Cable Installation
GPS module may be affected by main body or by other
electronic devices if it is too close each other. Keep a
distance as much as possible.
The receiving signal may become poor depending
on the climate, satellite status and geography in the
neighborhood.
The receiving signal may become poor if the windshield is
heavy sun-coated or fixed with metallic materials.
When connecting to your Car Navigation, you need an
applied Car Navigation video cable.
With a specific Car Navigation, installation may be
restricted, and/or extra service charge may be incurred.
3-3. External GPS/TV-OUT Cable Installation
Caution on GPS Installation Caution on TV－OUT Connection

11
WINYCAM X200FHD
사
용
하
기
How to use
1. Record : X200FHD is automatically boot at power on, and a constant(normal) recording starts as an initial recording mode.
2. Recording Mode : it is classified into driving recording mode and parking (motion) recording mode
3. Recording Method : it is classified into a Normal recording, event recording, motion recording.
※ For automatic recording and manual recording methods, please refer the below table.
3-4. How to record
REC
Mode
Driving
Mode
Parking
(Motion)
Mode
REC
Method
Normal REC Normal- -
-
Set 30 / 60 sec in
configuration
Event REC Event In G-sensor detect shock One short press button
Motion REC Motion
In G-Sensor is not
detected for more than
10 minutes Auto change
to a motion REC mode.
10 sec + 30 sec before
Event/Motion detect.
Event REC EventIn G-sensor detect shock One short press button
Auto REC Mode Manual REC Mode
(Button Control) REC Time Recording
folder
※
※
※
If you want to change REC mode by manual, please press REC button or go to “Quick Menu” and select
(Driving / Parking).
After changed to Parking mode, LCD will be on for 30sec nevertheless you set screen saving time as 30se/60sec/always.
When turned to “Parking Mode” G-sensor sensitivity will be more sensitive than driving mode.

12 WINYCAM X200FHD
사
용
하
기
How to use
3-5. LED Operation
Item CH Front LED PWR LED REC LED
Booting - ON Red lighting ON
Red lighting ON
Red lighting ON
Green lighting ON
Green lighting ON
Green lighting ON- ON
1CH Red lighting ON 0.5 / OFF 2.5
Red lighting ON 0.5 / OFF 0.5
Green lighting ON 0.5 / OFF 2.5
Green lighting ON 0.5 / OFF 0.5
1CH
1CH
1CH
1CH
Red lighting
ON/OFF based on
audio REC setting
2CH
2CH
2CH
2CH
2CH
FW update
1sec ON / OFFNormal REC
0.5 sec ON / OFF
In detect a shock
(Event REC)
Red/Green flashing
interval at 0.5 sec
0.25 sec ON / OFFParking REC
Red/Green flashing
interval at 1.5 sec
Cross flashing 3LEDs right-
left interval at 0.5 sec
(1, 2, 3, 3, 2, 1, …)
Parking REC
stanby
Menu
No SD Card
(Including other error) -
OFF
OFF Red flashing interval at 0.5 sec Red flashing interval at 0.5 sec
※ GPS Icon : when GPS dose not connect, Icon color turn to gray color. And when GPS signal
receive properly, Icon color turn to white color.

13
WINYCAM X200FHD
사
용
하
기
How to use
※Only when event REC mode is set in the configuration, the voice guiding "event recording will start"
will announce
3-6. Voice Guide
Situation Voice Guide
Remove SD card / SD card Error “ Please check your SD card. ”
Firmware Update Start “ The firmware update is starting. ”
Firmware Update Completed “ The firmware update has been completed. ”
Constant (Normal) Recording Start (In booting) “ Constant Recording will start. ”
* Event Recording Start (In booting) “ Event Recording will start. ”
Parking Recording start “ Parking Recording will start. ”
Recording end “ The Recording will end. ”
Alarm tone in a Rear Camera disconnect
(the error for 2CH REC) “ Ding-Dong, Ding-Dong ”

14 WINYCAM X200FHD
사
용
하
기
How to use
Driving/Event REC
※ All configuration cab be set in LCD menu.
Menu MenuFunction Function
Live Live Image
Quick Menu
Time Set
System Set
Menu Setting Menu
Mute Voice REC ON/OFF
Voice Guide Speaker ON/OFF
Time Set Set Time on X200FHD
Play List Playback List
Standard Time Set Set Standard Time
Driving/Parking REC Set N(Driving), P(Parking) REC
Summer Time Set Summer Time
LCD Off Off LCD (On LCD if touch anywhere)
Cut Off Voltage Set voltage for car constant power discharge
Front LED LED On/Off
Auto LCD Off Normally off after 30sec / on 60sec
TV-OUT Set TV our format (NTSC/PAL)
Speaker Volume Set Speaker Volume
REC Set
Others
REC CH
Camera Set
Camera Set
Set REC Mode
Adjust Brightness, Contrast, Chroma on Camera
Set REC Channel
Front Video Quality Set Front Video Quality
Rear Video Quality Set Rear Video Quality
Drive REC Time Set Rec Time (30/60sec)
Auto Parking Mode Set Auto Parking Mode Change
Mic Volume Set REC Volume
OSD OSD On/Off
Shock Level Set Shock Sensor Level
Motion Level Set Motion Sensor Level
System Info Display System Information
FW Upgrade FW Upgrade Function
SD Card Format Format Micro SD Card
Touch Calibration Calibrate Touch Screen
Factory Init Initialize Configuration
3-7. LCD Configuration

15
WINYCAM X200FHD
사
용
하
기
How to use
󱮦
󱮦
1. System Requirements
2. Install
Windows XP(32bit), Windows Vista(32bit), Windows7(32/64bit), Windows8(32/64bit)
Pentium4 2.8GHz & RAM over 1GB.
Display monitor resolution: 1024 X 768
DirectX Support (WPF)

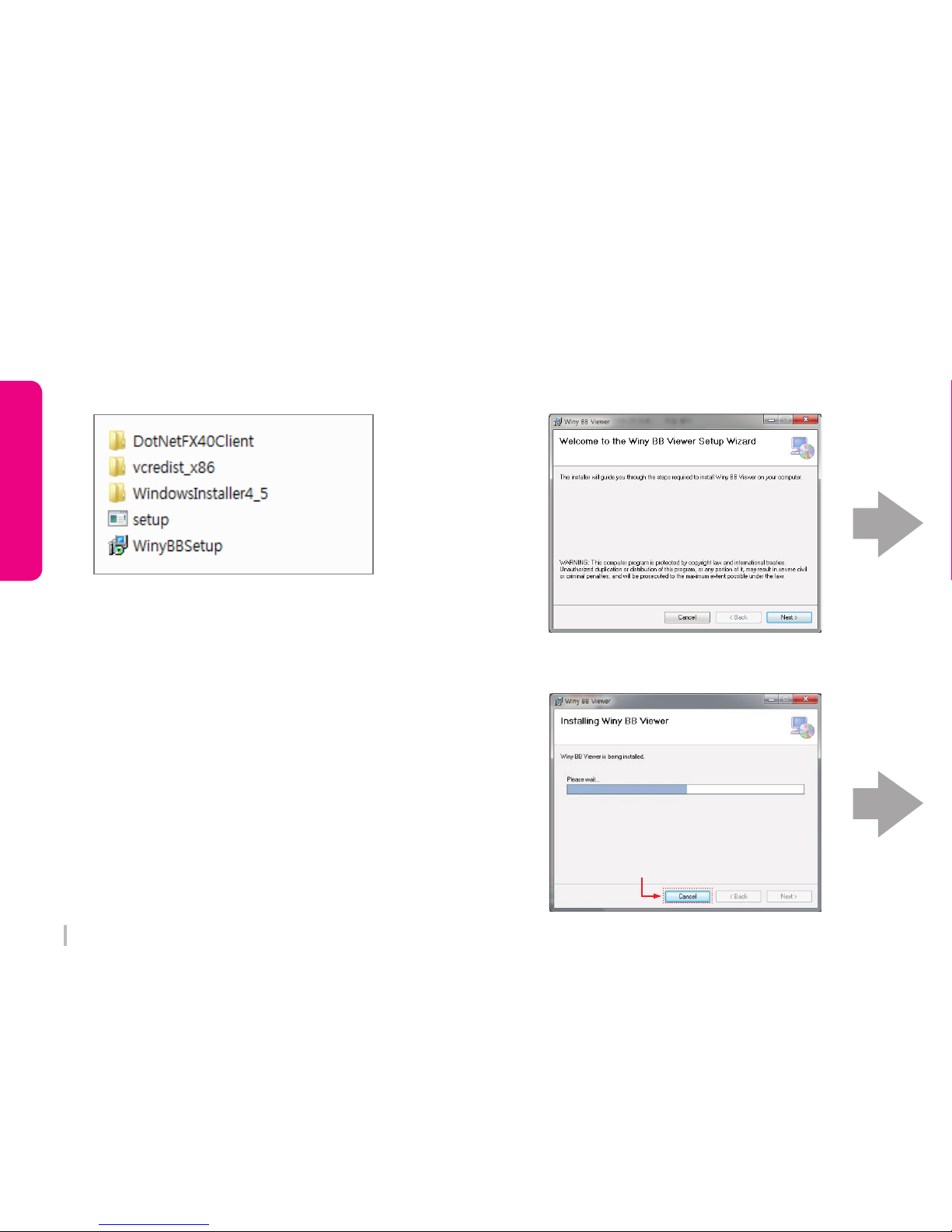

Playback program is in packaged Micro SD card.
Insert this SD card into the USB card reader and connect to the computer.
An executable file is in the SD card as below figure.
If you run “setup.exe”, Winy BB Viewer will be installed. And then,
installation will be continued according to the installation sequence of setup dialog box.
3-8. PC Original Viewer Program Installation

16 WINYCAM X200FHD
사
용
하
기
How to use
󱮦
Please click “Cancel” if you
need to stop installation.
1. NEXT
4. Installing
※ Installation may tale long depend
on PC Usage environment.

17
WINYCAM X200FHD
사
용
하
기
How to use
󱮦 󱮦
󱮦
If viewer program is lost
accidentally, please visit our
website winycam-eng and
download to the SD card
※

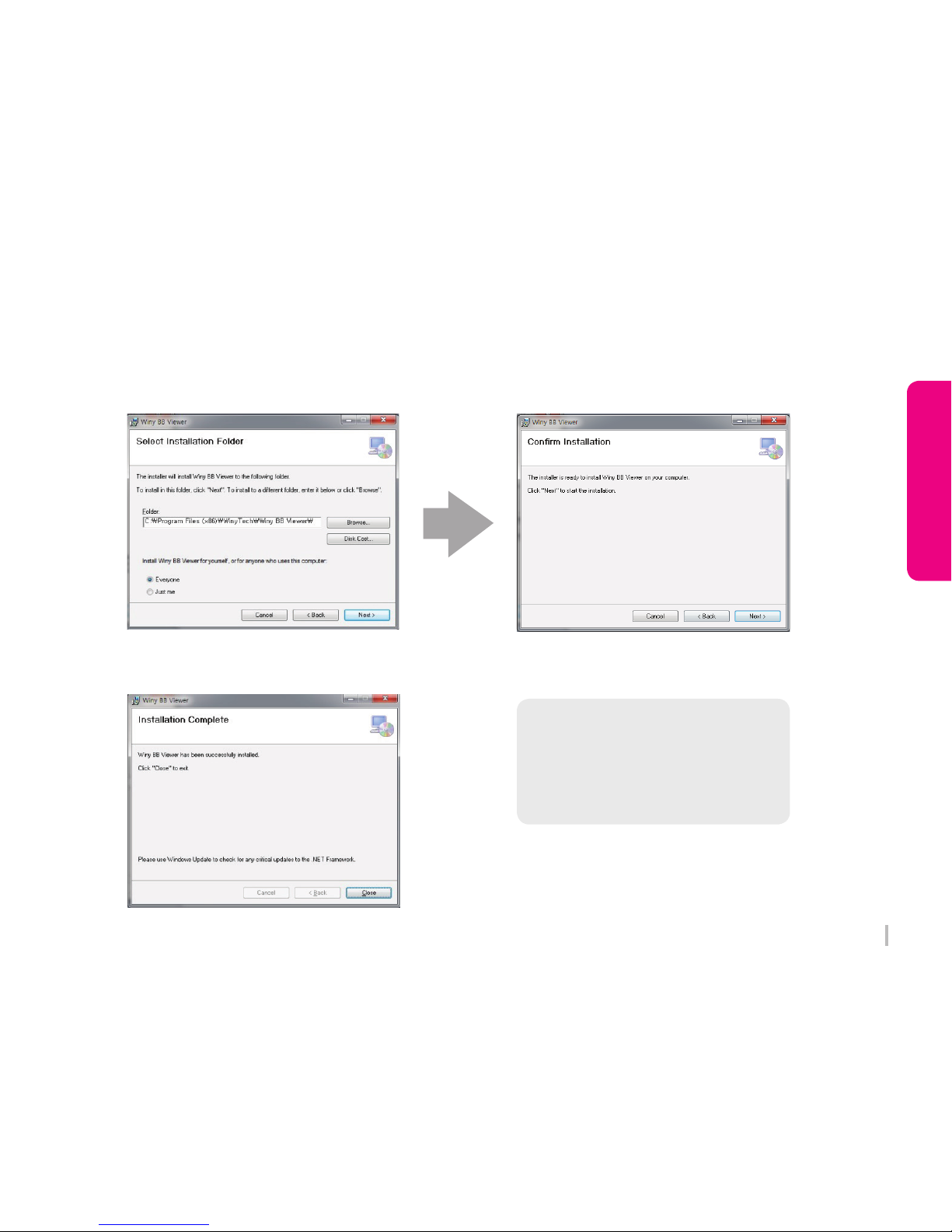

2. Select file location and click “Next”
5. Complete installation
3. NEXT

18 WINYCAM X200FHD
사
용
하
기
How to use
2 3 4 5 6 7 28
8
9
3-9. PC Original Viewer - Screen Configuration
1
10
11
13 14 15 16 17 18 19 20 21 22
23 24 25 26 27
12

19
WINYCAM X200FHD
사
용
하
기
How to use
Item ItemFunction Function
1CH / 2CH select screen Fast-Rewind
Viewer Configuration Playback or Pause
System Configuration Stop
Print Fast-Forward
Screen Capture File Skip
Zoom Control Volume
Play List/Map Button Total File Time/Playback Time
Playback File Location Brightness/Contrast/Chroma
REC file list / Map Display GPS signal condition
Playback Video Image Driving speed
Playback Control Latitude/Longitude
Full Screen G-sensor information
Flip Horizontal Split image
Flip Vertical
File Skip Back
116
217
318
419
520
621
722
823
924
10 25
11 26
12 27
13 28
14
15
