Wirbel 909P User guide

www.ghibliwirbel.com
Professional Cleaning Machines Since 1968
815 - 909 PLUS
815 - 909 PLUS
EN
Use and Maintenance
23 130006
ed. 10-2018

www.ghibliwirbel.com
Professional Cleaning Machines Since 1968
2
Mod.
Art.
Cap.ty
Vac mba
Air flow l/s
Nr
3
4
56
7
8
1
2

www.ghibliwirbel.com
Professional Cleaning Machines Since 1968
3
1 2 3 4 5 6 7 8
IT Produttore Modello Articolo Capacità fusto Capacità aspirazione Portata d’aria N° Matricola Caratteristiche elettriche
EN Manufacturer Model Article Container capacity Vacuum Air flow Serial N° Electrical characteristics
FR Producteur Modèle Article Capacité de la cuve Capacité d’aspiration Débit d’air N° Matricule Caractéristiques électriques
DE Hersteller Modell Artikel
Fassungsvermögen des Körpers
Ansaugleistung Luftdurchsatz Matrikelnr. Elektrische Eigenschaften
ES Fabricante Modelo Artículo Capacidad del bidón Capacidad de aspiración Caudal de aire N° Matrícola Características eléctricas
PT Produtor Modelo Artigo Capacidade do reservatório Capacidade de aspiração Caudal de ar Número de série Características elétricas
NL Producent Model Artikel Inhoud reservoir Zuigcapaciteit Luchtdebiet Serienummer Elektrische eigenschappen
NO Produsent Modell Artikkel Beholderkapasitet Sugekapasitet Luftmengde Matrikkelnr. Elektriske egenskaper
DK Fabrikant Model Artikel Beholdervolumen Sugeeffekt Luftmængde Matrikelnummer El-specifikationer
SV Tillverkare Modell Artikel Korgens kapacitet Sugkapacitet Luftflöde Serienummer Elektriska egenskaper
PL Producent Model     Nr. Fabryczny 
CS Výrobce Model Typ Obsah nádoby Sací výkon   Elektrické údaje SK Výrobca Model Výrobok Objem nádoby Sací výkon Prietok vzduchu  Elektrické vlastnosti
TR Üretici Model Ürün Gövde kapasitesi Aspirasyon kapasitesi  Seri No Elektriksel Özellikler
HU Gyártó Modell Cikk A szár teljesítménye Szívó teljesítmény 
Törzskönyvi szám
Elektromos sajátosságok
RO  Model Articol Capacitate rezervor  Volum aer Nr. Matricol Caracteristici electrice
EL        
RU     

 
HR  Model Proizvod Zapremnina spremnika Usisni kapacitet Protok zraka Registracijski br. 
SR  Model Proizvod Kapacitet postolja Kapacitet usisa Nosivost vazduha Br° Proizvoda 
BG        
ET Tootja Mudel Artikkel Paagi maht Imemisvõimsus Õhuvool Seerianumber Elektrilised omadused
FI Valmistaja Mallil Artikkeli Kapasiteetti tekojärvi Kapasiteetti poisto Virtaus ilma Sarjanumero Sähköiset ominaisuudet
LV  Modelis Raksts Tvertnes tilpums    Elektriskie raksturlielumir
LT Gamintojas Modelis Straipsnis Bako talpa Øsiurbimo galimybòs   
SL Proizvajalec Model  Prostornina rezervoarja Sesalna zmogljivost Pretok zraka  
AR
       

www.ghibliwirbel.com
Professional Cleaning Machines Since 1968
4

www.ghibliwirbel.com
Professional Cleaning Machines Since 1968
5

www.ghibliwirbel.com
Professional Cleaning Machines Since 1968
7
EN
English .................................................................................................. ENGLISH - 1
(Translation of original instructions)

www.ghibliwirbel.com
Professional Cleaning Machines Since 1968
ENGLISH - 1
TECHNICAL
CHARACTERISTICS
Voltage........................................ 220-240 V
Motor power ............................. 800 W (909)
800 W (815)
Sound level .......................... 62 dB(A) (909)
65dB(A) (815)
Negative pressure.........................210 mbar
Paper bag capacity ................................ 12 l
Dimensions ..... 320 x 320 x 520H mm (909)
340 x 340 x 570H mm (815)
Weight 6 kg (909)
8 kg (815 Plastic)
9 kg (815 Stainless steel)
Accessories..........................Ø 32 mm (909)
Ø 36 mm (815)
TYPE OF USE
Use this appliance only as a dry vacuum
cleaner to suck up dust, crumbs etc.
It has only been designed for this use.
DANGER:
The manufacturer can not be held re-
sponsible for any damage due to improp-
er or incorrect use.
Any other use releases the manufacturer
from liability for harm to persons and/
or property and invalidates any warranty
condition.
IMPROPER USE
Do not use the appliance to:
- Suck up liquids of any kind;
- Suck up flammable, explosive, corrosive
and/or toxic substances.
- Suck up hot substances.
Do not use the appliance in areas at risk of
explosion.
PREPARING
THE APPLIANCE
Checking the filter systems
- Release the levers (1 Fig. 1) and remove
the cover (2 Fig. 2) complete with the mo-
tor unit.
- Remove the polyester filter (3 Fig. 3).
- Check that the paper bag (4 Fig. 3) is as-
sembled inside the appliance.
- If the paper bag (4 Fig.3) is not present,
mount it as follows:
909P
Insert the square cardboard rigid part into
the slot on the drum.
815
Fit the paper bag (4 Fig.4) into the noz-
zle (4a Fig. 4) until passing the collar (4b
Fig.4).
- Replace the polyester filter (3 Fig. 3).
- Replace the cover and lock it using the
levers (1 Fig. 1).
Assembling the piping
- 909P
Insert the sleeve with bayonet coupling (5
Fig. 5) into the hole (6 Fig. 5), moving the
arrow on the sleeve (5 Fig. 5) to position
“A”, then turn the sleeve clockwise until it
locks (arrow in position “B”).
- 815
Lift the knob (5a Fig. 5) and insert the
sleeve (5b Fig. 5) in the hole (6 Fig. 5)
until it can’t go any further and then re-
lease the knob.
- Attach the extension (7 Fig.6) to the ergo-
nomic handle (8 Fig.6).
- Attach the required accessory (suction
tool, dusting brush, crevice tool, multi-
purpose brush etc.) to the rigid exten-
sions (9 Fig.7).
Manuale 815-909Plus-23-130006_1ed_10-2017.indd 1 03/10/17 09:24

www.ghibliwirbel.com
Professional Cleaning Machines Since 1968
ENGLISH - 2
Multi-purpose brush (if present)
The multi-purpose brush should be used as
follows:
- To clean hard floors, parquet etc.: press
the lever (10 Fig.8) back to extract the
brush bristles.
- To vacuum on carpets, rugs etc.: press
the lever (10 Fig.8) forwards to retract the
brush bristles.
USING THE APPLIANCE
N.B.
The appliance can only be used if the pa-
per bag is inserted correctly.
- The appliance is equipped with wheels
and during use can be dragged along us-
ing the hose.

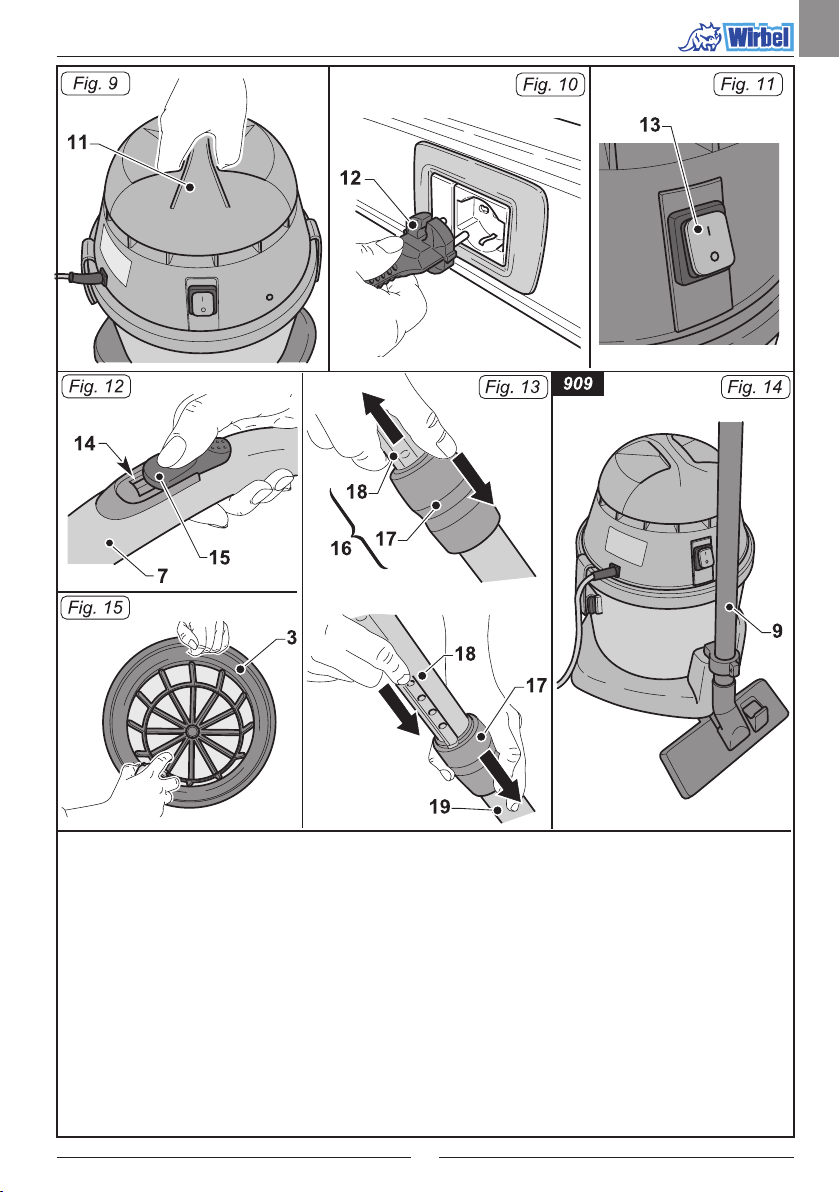

- To lift it up, insert your fingers into the
handle (11 Fig.9) on the top of the cover
Switching on the appliance
- Insert the plug (12 Fig.10) into the socket.
- Set the switch (13 Fig.11) to “I”. The ap-
pliance starts up: the light on the switch
comes on.
N.B.
The suction force can be adjusted using the
selector (15 Fig.12) located on the ergonom-
ic handle (7 Fig.12).
Opening up the window (14 Fig.12) gives
lower suction power.
Using the telescopic tube
(if present)
- The length of the telescopic tube (16 Fig.
13) can be adjusted as follows:
- To lengthen the tube, press down on the
ring nut (17 Fig. 13) and simultaneously
extract the top part (18 Fig. 13) of the
tube. Once the required length has been
obtained, release the ring nut (17 Fig. 13)
the tube will lock into the nearest locking
position;
- To shorten the telescopic tube, use one
hand to push the ring nut (17 Fig. 13)
down and the other to reinsert the top
tube (18 Fig. 13) into the lower sleeve (19
Fig. 13).
Switching off the appliance
- Set the switch (13 Fig.11) to “0” to switch
off the appliance. The light on the switch
goes off.
- Remove the plug (12 Fig.10) from the
socket.
- 909P
Couple the tube (9 Fig.14) to the joint.
CLEANING AND
MAINTENANCE
DANGER:
Before performing any maintenance,
unplug the appliance from the mains.
Removing and replacing the paper
dust bag
- Release the levers (1 Fig. 1) and remove
the cover (2 Fig. 2) complete with the mo-
tor.
- Remove the polyester filter (3 Fig. 3).
- Remove the paper dust bag (4 Fig. 3) and
replace it as described previously.
- Reassemble everything proceeding in re-
verse order compared to assembly.
Checking and cleaning the polyester
filter
- Release the levers (1 Fig. 1) and remove
the cover (2 Fig. 2) complete with the mo-
tor.
- Remove the polyester filter (3 Fig. 3).
- Clean the filter (3 Fig. 15) from the inside
out with a blast of air. The filter (3 Fig. 15)
can be washed in warm water but must
only be replaces when completely dry. If
it is too dirty, replace it.
- Reassemble everything proceeding in re-
verse order compared to assembly.
Manuale 815-909Plus-23-130006_1ed_10-2017.indd 2 03/10/17 09:24

www.ghibliwirbel.com
Professional Cleaning Machines Since 1968
ENGLISH - 3
Cleaning the appliance body
- Clean the appliance body using a cloth
dampened with water or mild detergent.
DANGER:
Do not wash the appliance using jets of
water.
PROBLEM CAUSE SOLUTION
The vacuum cleaner does
not work.
Switch not pressed.
Not plugged in.
No current.
Press the switch.
Insert the plug into the
socket.
Check the power line.
Suction is not satisfactory. Paper bag full.
Filter elements clogged.
Accessories or tubes
clogged.
Replace the dust bag.
Clean the filter elements.
Check and clean the hose
and the suction tool.
SPARE PARTS
909P
Pack of 5 paper filter bags Code MK-042
815
Pack of 5 paper filter bags Code 01-385
Polyester filter Code 20-214
Manuale 815-909Plus-23-130006_1ed_10-2017.indd 3 03/10/17 09:24

Professional Cleaning Machines Since 1968
DEALER
Ghibli & Wirbel S.p.A.
Via Circonvallazione, 5 - 27020 Dorno PV - Italia
P. [phone] - F. [phone] - M. [email protected]
www.ghibliwirbel.com
100% MADE IN ITALY
A COMPANY GROUP OF RIELLO INDUSTRIES
Cod. 23-130006 - 2^ ed. - 10/2018
