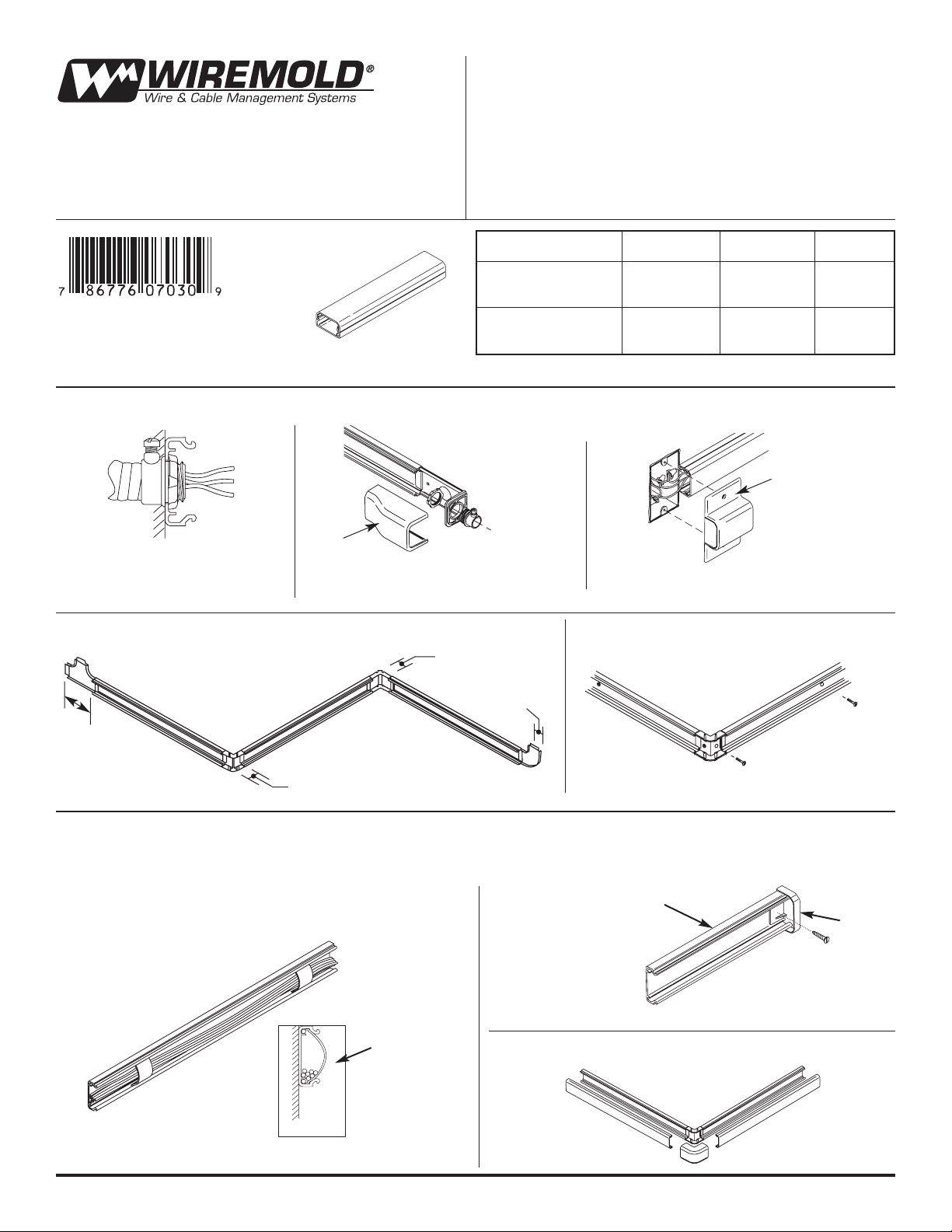

Wiremold PLUGMOLD PLUS NM2000 User manual

Wire Size No. of Wires
THHN/THWN O.D. @ 40% Fill
Power Wiring 10 AWG 0.153 15
Without Devices 12 AWG 0.122 31
14 AWG 0.105 45
Power Wiring 10 AWG 0.153 —
With Plugmold Devices 12 AWG 0.122 8*
14 AWG 0.105 8*
*Includes the four conductors of the wiring harness.
Lay out Raceway path. Determine feed method and location
from figures A, B, and C below.
1
Measure and cut raceway base and cover.
See commmon fittings dimensions below.
2
Install raceway and fittings bases
using No. 8 flathead screws.
3
Install wire in raceway and install wire clips as needed. Install blank
end fittings with
No. 8 flathead
screws where
needed. Slide
raceway cover
into end fitting.
A1 A2
Field Wired Raceway – NM2000 Series:
A
Snap on raceway and fitting covers.
A3
Wiring Method – Refer to Instructions (A thru E) according to your application.
Fig. A* – Back Feed
Fig. B – End Feed Fig. C – Feed from Existing Wall Box
1 3/4"
[45mm]
1 5/8" [41mm]
from edge of wall
1" [25mm]
from edge
of wall
1 1/16"
[27mm]
* This method is not recommended if splice area is less
than 4". See Figure B or C for feeding this condition.
NM2051H
NM2010A
NM2000WC
NM2010B
Base
PLUGMOLD PLUS™NM2000
INSTALLATION INSTRUCTIONS
Installation Instruction No.: 41080R4 – Updated June 2003
Wiremold Electrical Systems conform to and should be installed
and properly grounded in compliance with requirements of the
current National Electrical Code, Canadian Electrical Code or
codes administered by local authorities.
All electrical products may represent possible shock or fire hazard
if improperly installed or used. Wiremold electrical products are
UL Listed to U.S. and Canadian safety standards,made for interior
use only, and should be installed in conformance with current local
and/or the National Electrical Code.

Connect receptacle harness to feedpoint
using approved methods.
B1
Wired Cover Sections:
B
Snap cover/harness assembly onto
base and snap on any fitting covers.
B2
To remove, back out screw
and unplug. To replace, push
in plug and install screw.
C1
Wired Cover Sections with Receptacle
Surge Protection – NM20SGB Series:
Install wired cover system as above.
C
For additional circuits, use bypass area shown below.
B3
Lay out Snapicoil harness so that receptacles are
not located over feed point or at corners. Connect
harness to feed point.
D1
Snapicoil – NM2000SC Series:
D
Snap receptacles into
NM2000 cover.
D2
Snap wired cover section
onto base and snap on
any fitting covers.
D3
Install mounting clip using
flat head screws.
E1
Relocatable Power Tap – NM20C:
E
Snap unit into
mounting clips.
E2
Plug cordset into wall outlet.
E3
Bypass
Areas
End View
NM2027SP
NM2003
The Wiremold Company
U.S. and International:
60 Woodlawn Street • West Hartford, CT 06110
1-800-621-0049 • FAX [phone] • Outside U.S. 860-233-6251
Canada:
850 Gartshore Street • Fergus, Ontario N1M 2W8
1-800-741-7957 • FAX [phone]
41080R4 – Updated June 2003
© Copyright 2003 The Wiremold Company All Rights Reserved
NOTE: This device features an internal protection that will disconnect
the surge protective component at the end of its life but will
maintain power to the load – now unprotected. If this situation
is undesirable for the application, follow manufacturer’s
instructions for replacing this device.
