Wirepath WPS-300-ENC-4IP User manual

WPS-300-ENC-4IP
4 Channel
Encoder
Installation and User’s Manual
Review manual thoroughly before installation.
Retain for future reference.

WPS-300-ENC-4IP Installation Manual
Pg. 2
© 2013 Wirepath™ Surveillance
1- Important Safety Instructions
WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.
1. Read and follow all instructions and warnings in this manual. Keep for future reference.
2. Do not use this apparatus near water.
3. Clean only with a dry cloth.
4. Do not block any ventilation openings. Install according to manufacturer’s instructions.
5. Do not install near any heat sources such as radiators, heat registers, stoves or other apparatus (including amplifiers)
that produce heat.
6. Do not override the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades - one
wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third
prong is provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
7. Protect the power cord from being walked on or pinched particularly at plug, convenience receptacles, and the point
where it exits from the apparatus.
8. Only use attachments/accessories specified by the manufacturer.
9. Use only with a cart, stand, tripod, bracket or table specified by the manufacturer, or sold with the apparatus. When a
cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
10. Unplug this apparatus during lightning storms or when unused for long periods of time.
11. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any
way, such as when the power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the
apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
12. DO NOT EXPOSE THIS EQUIPMENT TO DRIPPING OR SPLASHING AND ENSURE THAT NO OBJECTS FILLED WITH LIQUIDS,
SUCH AS VASES, ARE PLACED ON THE EQUIPMENT.
13. TO COMPLETELY DISCONNECT THIS EQUIPMENT FROM THE AC MAINS, DISCONNECT THE POWER SUPPLY CORD PLUG
FROM THE AC RECEPTACLE.
14. THE MAINS PLUG OF THE POWER SUPPLY CORD SHALL REMAIN READILY OPERABLE.
CAUTION: TO REDUCE THE RISK OF ELECTRICAL SHOCK, DO NOT REMOVE COVER. NO USER SERVICEABLE PARTS
INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
CAUTION
CAUTION: TO REDUCE THE RISK OF
ELECTRICAL SHOCK.
DO NOT REMOVE COVER. NO USER
SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
The lightning flash with arrowhead symbol, within an equilateral
triangle, is intended to alert the user to the presence of un-insulated
dangerous voltage within the product’s enclosure that may be of
sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert
the user to the presence of important operating and maintenance
(servicing) instructions in the literature accompanying the appliance.

WPS-300-ENC-4IP Installation Manual
Pg. 3
www.snapav.com Support: 866.838.5052
Table of Contents
1-Important Safety Instructions......................................................................................................2
2-Manual Overview ..........................................................................................................................6
3-Required Items for Installation....................................................................................................6
4-Package Contents.........................................................................................................................6
5-Optional Accessories...................................................................................................................7
5.1-Power Supplies ....................................................................................................................7
5.2-Wiring Accessories...............................................................................................................7
6-Encoder Overview ........................................................................................................................8
6.1-Features...............................................................................................................................8
6.2-Encoder Connections and Controls......................................................................................9
6.2.1-Front Panel .................................................................................................................................................9
6.2.2-Rear Panel..................................................................................................................................................9
6.2.3-Control Connections .................................................................................................................................10
6.3-Factory Reset.....................................................................................................................11
6.4-Main Encoder Interface ......................................................................................................12
6.4.1-Accessing the Encoder.............................................................................................................................12
6.4.2-Recommendations for Best Performance.................................................................................................12
6.4.3-Live View Controls....................................................................................................................................13
7-System Diagram Considerations.................................................................................................14
7.1-Recommended Equipment.................................................................................................14
7.1.1-Networking Devices..................................................................................................................................14
7.2-Basic System Diagram.......................................................................................................14
7.1-Placing the Encoder ...........................................................................................................14
8-Installation.....................................................................................................................................15
9-IP Installer Software .....................................................................................................................16
9.1-IP Installer Operation..........................................................................................................16
10-Initial Configuration....................................................................................................................17
1-Assign a Static IP address.....................................................................................................17
2-Enter a Port to uniquely identify and remotely access the Encoder.......................................17
3-Verify Access through the Main Encoder Interface................................................................17
4-Update to the Latest Firmware ..............................................................................................17
5-Configure the Date and Time ................................................................................................17
6-Change the Administrator Password.....................................................................................18
7-Configure User Accounts to Access the Encoder..................................................................18
8-Set the Video Orientation ......................................................................................................18
9-Configure User Accounts to Access the Encoder..................................................................19

WPS-300-ENC-4IP Installation Manual
Pg. 4
© 2013 Wirepath™ Surveillance
11-Additional Configuration............................................................................................................20
1-Upgrade the Firmware...........................................................................................................20
2-Configure Motion Detection Areas.........................................................................................20
3-Configure Encoder for Remote Access .................................................................................21
12-Configuration Menu Operation..................................................................................................22
12.1-System Information...........................................................................................................22
12.1.1-Server Information ..................................................................................................................................22
12.1.2-Time Settings..........................................................................................................................................22
12.1.3-OSD Setting............................................................................................................................................22
12.2-User Management............................................................................................................23
12.3-System Update.................................................................................................................23
12.4-IP Settings........................................................................................................................24
12.4.1-IP Assignment.........................................................................................................................................24
12.4.2-Port Assignment......................................................................................................................................24
12.4.3-UPnP Settings.........................................................................................................................................25
12.4.4-RTSP Settings ........................................................................................................................................25
12.4.5-Multicast Setting......................................................................................................................................25
12.4.6-ONVIF.....................................................................................................................................................25
12.5-Server Settings.................................................................................................................26
12.5.1-FTP Settings ...........................................................................................................................................26
12.6-DDNS...............................................................................................................................27
12.6.1-DDNS Settings........................................................................................................................................27
12.7-Image Settings .................................................................................................................27
12.8-Video Settings ..................................................................................................................28
12.8.1-Streaming 1 & Streaming 2.....................................................................................................................28
12.8.2-Streaming 3.............................................................................................................................................29
12.8.3-Streaming 4.............................................................................................................................................29
12.9-Audio Settings ..................................................................................................................29
12.10-Event Settings ................................................................................................................30
12.10.1-Motion Detection...................................................................................................................................30
12.10.2-Area 1,2,3 .............................................................................................................................................30
12.10.3-Record File............................................................................................................................................30
12.10.4-Record Time Setting.............................................................................................................................30
12.10.5-Network Disconnected..........................................................................................................................30
12.10.6-Network IP Check.................................................................................................................................31
12.11-I/O Settings.....................................................................................................................31
12.11.1-Input Settings........................................................................................................................................31
12.11.2-Output Settings .....................................................................................................................................31
12.12-Log List...........................................................................................................................31
12.13-SD Card..........................................................................................................................32

WPS-300-ENC-4IP Installation Manual
Pg. 5
www.snapav.com Support: 866.838.5052
13-Mobile App Access.....................................................................................................................33
14-Specifications .............................................................................................................................34
15-Dimensions.................................................................................................................................36
16-Warranty......................................................................................................................................37
17-Contacting Technical Support...................................................................................................37
18-Technical Information Glossary................................................................................................38
18.1-Constant vs. Variable Bit Rate..........................................................................................38
18.2-RTSP (Real Time Streaming Protocol).............................................................................38
18.3-ONVIF (Open Network Video Interface)...........................................................................38

WPS-300-ENC-4IP Installation Manual
Pg. 6
© 2013 Wirepath™ Surveillance
2- Manual Overview
We recommend that this document is read in its entirety before proceeding with system design, installation, or operation of the WPS-
300-ENC-4IP Encoder. When viewing this document electronically, the content identified within references can be easy located by
clicking on the reference. These references have been formatted as a standard hyperlink so that they can be easily identified with
exception to the TOC which can also be used to link to sections.
3- Required Items for Installation
The following items are required during the installation of a Wirepath™ IP Encoder. It is recommended that these items are prepared
in advance to ensure that the installation can be performed smoothly.
All Encoders to be installed in the system
All Analog Cameras that will be installed in the system
NVR that will be installed in the system (Optional)
Network Connection near the location of the Encoder
Administrator rights to the computer that will be used to access the Encoder(s)
Router / Switch Details –Contact the network admin to obtain
oAdmin Rights –Required to setup the network and port forwarding for remote access.
oStatic IP to assign to the Encoder
oDefault gateway
oNet Mask Address
oDNS Address
Installation Manual for all the Wirepath™ Surveillance Encoders being installed
Quick Start Guide and Installation Manual for all the Wirepath™ Surveillance Encoders being installed
Quick Start Guide and Installation Manual for all the Wirepath™ Surveillance Analog Cameras being installed
CD Rom supplied with the Encoder
4- Package Contents
(1)
WPS-300-ENC-4IP
(1)
12V DC 1.5A Power Supply
(1)
Alarm and Relay Connectors
(1)
Quick Start Guide
(1)
CD Rom containing documents and setup software

WPS-300-ENC-4IP Installation Manual
Pg. 7
www.snapav.com Support: 866.838.5052
5- Optional Accessories
Wirepath Surveillance offers a wide range of accessories that provide power to the Encoders, and make connection to the head end
quick and easy.
5.1-Power Supplies
Remote Power Supplies
Use these remote power supplies to power all the Encoders in the system from a remote location.
WPS-PS9-12VDC-10A
9 Output Power Supply - 12V DC, 10A - PTC Fuses
WPS-PS9-24VAC-12A
9 Output Power Supply - 24V AC, 12A - PTC Fuses
WPS-PS18-12VDC-18A
18 Output Power Supply - 12V DC, 18A - PTC Fuses
5.2-Wiring Accessories
In addition to mounts and power supplies, Wirepath offers a full line of accessories to easily send power, audio, and video over 2
conductors of Cat5 wiring back to the head end.
Visit www.snapav.com for a complete listing of accessories.
WPS-BAL-V-PIGTAIL
Mini Passive Video Balun with Pigtail and Screw
Terminals
WPS-BAL-V-MINI
Mini Passive Video Balun with Pigtail and Screw
Terminals
WPS-BAL-V-COMBO
Mini Passive Video Balun with Screw Terminals Combo
Pack
Contains: 1 WPS-BAL-V-PIGTAIL and 1 WPS-BAL-V-
MINI
WPS-BAL-VP
Passive Video and Power Balun with RJ45
WPS-BAL-VPA
Passive Video, Power, Audio Balun with RJ45
WPS-BAL-VPD
Passive Video, Power, PTZ Balun with RJ45
WPS-ACC-PWR-F &WPS-ACC-PWR-M
DC Power Plug with Screw Terminals
Available in Male and Female version 10packs.
WPS-ACC-PWR-1X2
DC Power Splitter Cable - 1 Female to 2 Male
Connectors
WPS-ACC-PWR-1X4
DC Power Splitter Cable - 1 Female to 4 Male
Connectors
WPS-ACC-MIC
Mini Microphone 12V DC Amplified
WPS-ACC-GND-ISO
Ground Loop Isolator Male to Female BNCs

WPS-300-ENC-4IP Installation Manual
Pg. 8
© 2013 Wirepath™ Surveillance
6- Encoder Overview
6.1-Features
H.264/ MJPEG/MPEG4 Quadruple Stream Optimization
Simultaneously stream the compression that makes sense for the application:
H.264 - most efficient / highest compression
MPEG4 –mobile streaming compression
MJPEG - Each frame is encoded separately like a series of snapshots
MJPEG for control systems
SD Card Backup (Card Not Included)
Video can be recorded based on:
oMotion Detection
oIP check (built in auto ping feature in the Encoder/Encoder)
oNetwork disconnect
oSchedule
oDigital Input trigger
Alarm input and outputs
4 In /4 Out

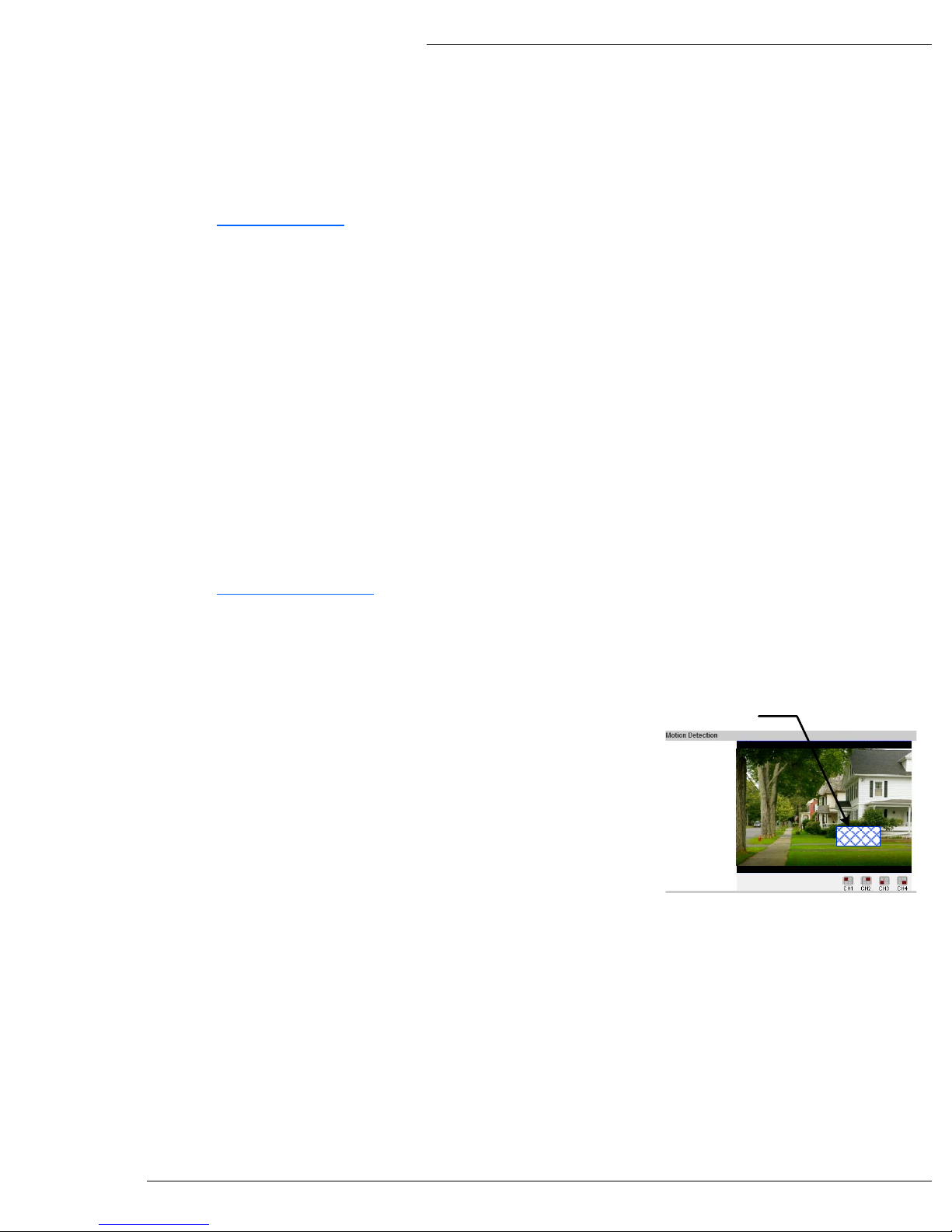

Motion Detection
Define areas of interest like a door, driveway or window, to start recording video.
Privacy mask
Block out sensitive or privileged areas by placing rectangular blocks or "masks" over up to three installer-defined areas.
Remote Access
Use your computer, or FREE iPhone®, native iPad®, and Android to view Encoders while at the office or on the go.
PTZ Camera Control via RS485

WPS-300-ENC-4IP Installation Manual
Pg. 9
www.snapav.com Support: 866.838.5052
6.2-Encoder Connections and Controls
6.2.1- Front Panel
12 3
4
1. SD Card Slot
Insert an SD Card for Recording Video Events.
2. Alarm In, RS485, and Relay Connections
Connections for Alarm IN, RS485 control, and Relay In & Out.
3. Network LED
Flickers indicating Network activity.
4. Power LED
Illuminates when Encoder is powered On.
6.2.2- Rear Panel
1 2 3 4 5
6 7
1. Video Out (1 to 4)
Connect to the Video In of an analog DVR, Monitor, or other device with a Coax input.
2. Video In (1 to 4)
Connect to the Video Out of an analog Encoder.
3. Audio In (RCA Mono)
Connect to the Audio Out of an Analog Camera or Microphone.
4. Audio Out (RCA Mono)
Connect to the Audio In of an analog DVR, Amplifier, or other device with a Coax input.
5. RS232 Connection
This connection is used to restore the Encoder to factory defaults. See section 6.3-Factory Reset.
6. Ethernet Port (10/100Mbps)
Connect to a 1Gbps router or switch.
7. DC Power Connection
Connect to the included 12V DC 1.5A Power Supply.

WPS-300-ENC-4IP Installation Manual
Pg. 10
© 2013 Wirepath™ Surveillance

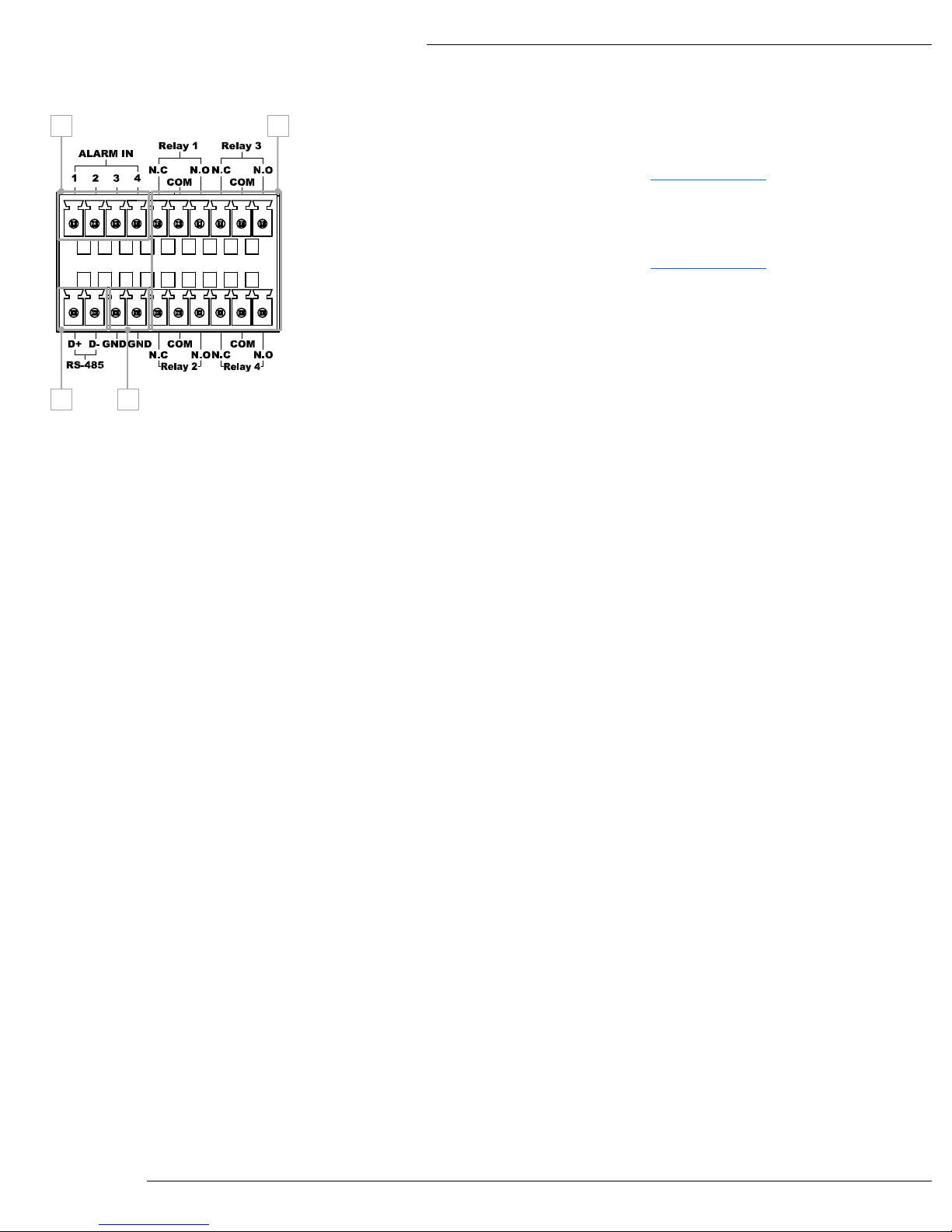

6.2.3- Control Connections
1 2
43
1. Alarm Connections
Connect to motion sensors, or door switches or other devices to trigger an
event for a particular camera.
Configuration is required; see section 12.11-I/O Settings.
Max Voltage: 33v DC 50mA
2. Relay Connections
Connect to devices to control from the GUI, or when an event occurs.
Configuration is required; see section 12.11-I/O Settings.
3. RS-485 PTZ Connections
Connect to a PTZ camera to control the PTZ functions. If multiple PTZ are
being used, they can be daisy chained to this connection.
4. Ground (GND)
Ground connection for Alarm Connections
