Wisenet SPD-150 Installation guide

NETWORK VIDEO DECODER
Quick Manual
SPD-150

2
Install Wizard
1 Select the language
Select your preferred language.
2 Set Password
Set a password.
2-1
•New Password : Input a new password according to the password setting rules.
•Confirm Password : Input the new password again.
2-1. Check the password settings basic guidance texts
8 ~ 9 characters : All combination of English character, Digit, Special character
10 ~ 15 characters : Two combination of English character, Digit, Special character
※Not allowed to use same characters with ID
※Not allowed to use 4 or more continuative or repeated characters
3 Set up Network
•Network (Camera) : Connects to the camera and receives the video feed from the camera.
•Network Setup
- IP Type : Choose the network connection method.
- IP Address, Subnet Mask, Gateway, DNS
※For more details on network settings, refer to the User manual.
► To use a simple intranet, click <Next>.
4 Set Date & Time
Set the time and date and click the <Finish> button, and the installation will be completed.
Features
This product can play back the video and audio captured by network cameras.
• User-friendly UI
• Supports a range of 4K camera resolutions (3840X2160, 4096X2160, 4000X3000)
• Outputs a 4K high definition image using HDMI
• Supports ONVIF Profile S standard and RTP / RTSP protocols
• 49 channels simultaneous output (HDMI: 32 channels, VGA: 16 channels, BNC: 1 channel)
• Installation Wizard Function (Easy Setup)
Package Contents
VGA VIDEO OUTHDMI NETWORK
ACTLINK
DC12V
SPD-150 Mouse User Manual CD User Manual or Quick Manual
Terminal block Taping screw Plastic Anchor
Connecting to an external device
※Unrated or improper power source may cause damage to the system. Ensure that you use only the rated
power source before pressing the POWER button.
VGA VIDEO OUTHDMI NETWORK
ACTLINK
DC12V
NETWORK
ACTLINK
1
2
FRONT
USB
VIDEO
DC 12V
RESET
1 2 3 4 5 6 7
VGA OUT VIDEO OUTHDMI OUT
Camera
Microphone
Network

3
Configure Live monitoring
While watching registered videos, enter the channel name, collect the desired videos and make a group(Layout
settings).
1 Register camera
Full Screen
Status
►
Audio
►
Channel Setup
►
Menu
Shutdown
Logout
Show Launcher
•Search the cameras from the menu and register the selected cameras.
2 Designate Live channel names
Rename single channel
Full Screen
Status

Audio

Channel Setup

Menu
Shutdown
Logout
Hide Launcher
Single Channel Change
Multi Channel Setup
• Select one channel from the <Channel Setup> menu of the live screen, and click <Single Channel Change> to
change the name of the channel.
Set up multi-channels
You can set up anything related to video by channel.
Single Channel Change
Multi Channel Setup
Status ►
Audio of f
Channel Setup ►
Menu
Shutdown
Logout
Show Launcher
Status

Audio off
Channel Setup

Menu
Shutdown
Logout
Show Launcher
Single Channel Change
Multi Channel Setup
•Select the channel you want to change in live and move to <Multi Channel Setup>, and then the focus will
shift to the video.
3 Set up layout
You can set up the layout of each channel from the live screen.
b e
d
c
aDesignate the channel name related to the video through the single channel or multi-channel settings in the
live screen.
Please see “Channel Setting”.
bRun the layout settings screen at launch.
c Set up layout by composing the split screen mode with channel names.
You can set up multiple desired layouts at the same time.
d After settings, you can check it out while changing layout, and change the order of channels by clicking
with the mouse in the relevant order.
e It will replay the live screen using different layouts in consecutive order for the sequence setting time.
`Check <Use layout sequence> in the layout settings window to set up the sequence conversion time.

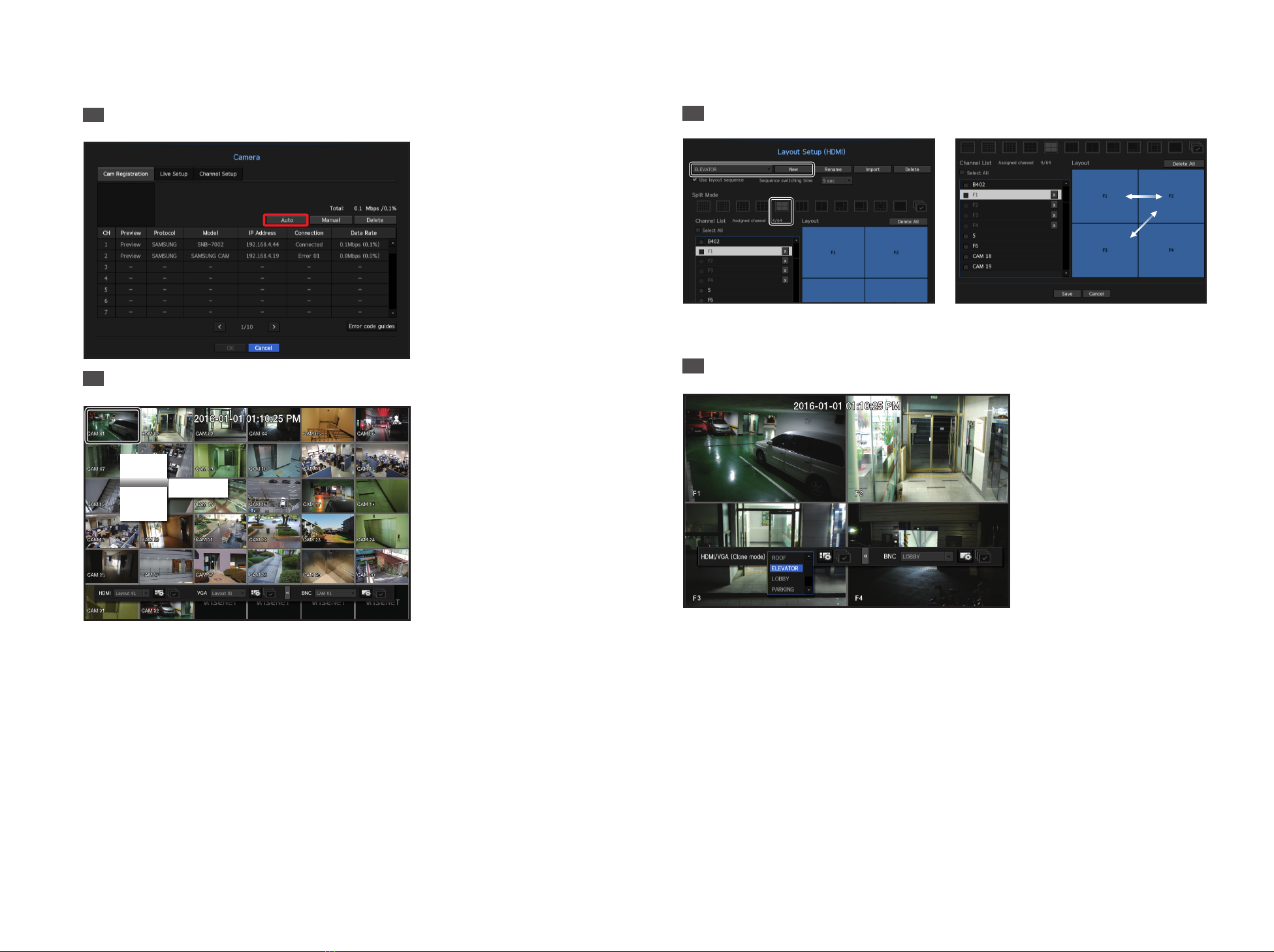

4 Layout monitoring
HDMI OUT VGA OUT BNC OUT

4
❖Examples of configuration of live monitoring (Configure channels related to
ELEVATOR)
1 Register cameras (up to 64 EA)
2 Set up the names of channels (Set up names related to the videos of the registered cameras)
Single Channel Change
Multi Channel Setup
Full Screen
Status ►
Audio ►
Channel Setup ►
Menu
Shutdown
Logout
Hide Launcher
ex) If showing elevators by floor
Channel 1: F1, Channel 2: F2, Channel 3: F3…
3 Save after setting up layout (adjust the order after setting up related channels, set up split mode)
ex) Select elevator for layout name, and configure the channels
F1, F2, F3, F4, ...
4 Add and adjust location, and start live monitoring
ex) Finish the configuration by readjusting channel location with the configured elevators.
After that, monitor them while changing according to the layouts.
►ELEVATOR or LOBBY or PARKING ...

5

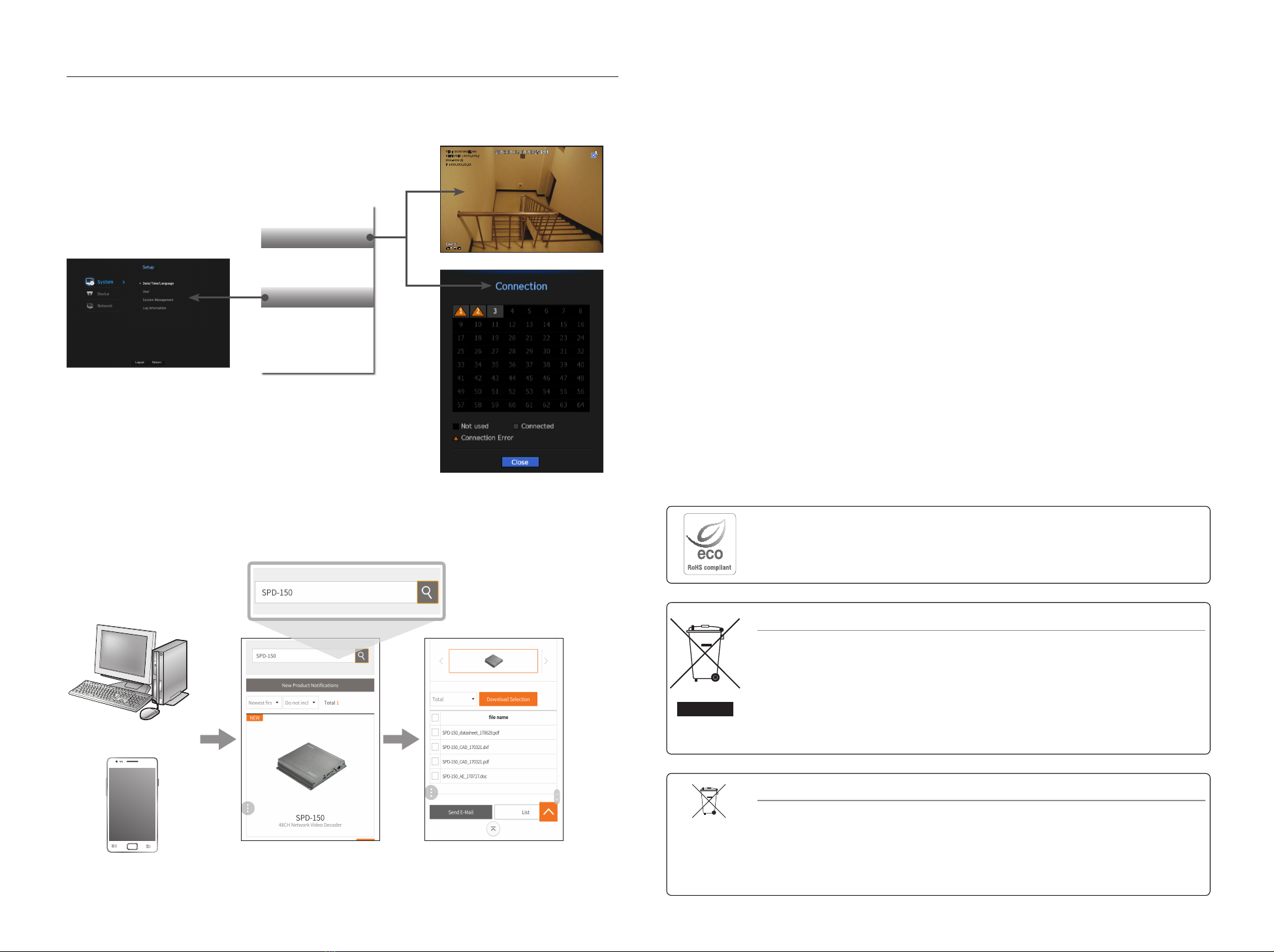

Use the basic guide
Show shortcut menu
Right-click on the live screen and you can access various functions that Decoder provides. Hover over an icon and a
brief definition of term for each function is prompted.
RES : 1920X1080(H.264)
SET/IN/DEC : 30/30.0/3 0.0
SNB-6004 (S)
IP : XXX .XXX.XX.X X
Full Screen
Status

Audio

Channel Setup

Menu
Shutdown
Logout
Hide Launcher
Use product information
You can check product information/manual/firmware information/FAQ through homepage or mobile web on your
smartphone.
http://hanwha-security.com
http://hanwha-security.com
Correct Disposal of This Product (Waste Electrical & Electronic Equipment)
(Applicable in the European Union and other European countries with separate collection systems)
This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB
cable) should not be disposed of with other household waste at the end of their working life. To prevent possible harm to the environment
or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly
to promote the sustainable reuse of material resources.
Household users should contact either the retailer where they purchased this product, or their local government office, for details of
where and how they can take these items for environmentally safe recycling.
Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic
accessories should not be mixed with other commercial wastes for disposal.
Correct disposal of batteries in this product
(Applicable in the European Union and other European countries with separate battery return systems.)
This marking on the battery, manual or packaging indicates that the batteries in this product should not be disposed of with other household waste at the end of their
working life. Where marked, the chemical symbols Hg, Cd or Pb indicate that the battery contains mercury, cadmium or lead above the reference levels in EC Directive
2006/66. If batteries are not properly disposed of, these substances can cause harm to human health or the environment.
To protect natural resources and to promote material reuse, please separate batteries from other types of waste and recycle them through your local, free battery
return system.
Hanwha Techwin cares for the environment at all product manufacturing stages, and is taking measures to provide
customers with more environmentally friendly products.
The Eco mark represents Hanwha Techwin's devotion to creating environmentally friendly products, and indicates
that the product satisfies the EU RoHS Directive.
