Wisenet SPE-410 User manual

SPE-410/1610
4/16 CHANNEL
NETWORK VIDEO ENCODER
Quick Guide

WHAT’S INCLUDED
As for each sales country, accessories are not the same.
SPE-410
RESET
CH1
CH1 CH2 CH3 CH4CH1 CH2 CH3
VIDEO IN VIDEO IN
AUDIO IN
CH4
CH2
CH3 CH4
Network Video Encoder Power Terminal Block Warranty card (Optional)
User Manual or Quick Manual
Instruction book,
Installer S/W CD Tapping Screw Terminal Block (15 pin)
SPE-1610
DV25
SRN-475S
NETWORK VIDEO ENCODER
CH#1~#4 CH#5~#8 CH#9~#12 CH#13~#16 NETWORK POWER
Network Video Encoder Power Adapter Power Cord
Warranty card (Optional)
User Manual or Quick Manual
Instruction book,
Installer S/W CD Terminal Block (8 pin)
Terminal Block (10 pin) Bracket Fixing Screw Bracket Rack
English
2

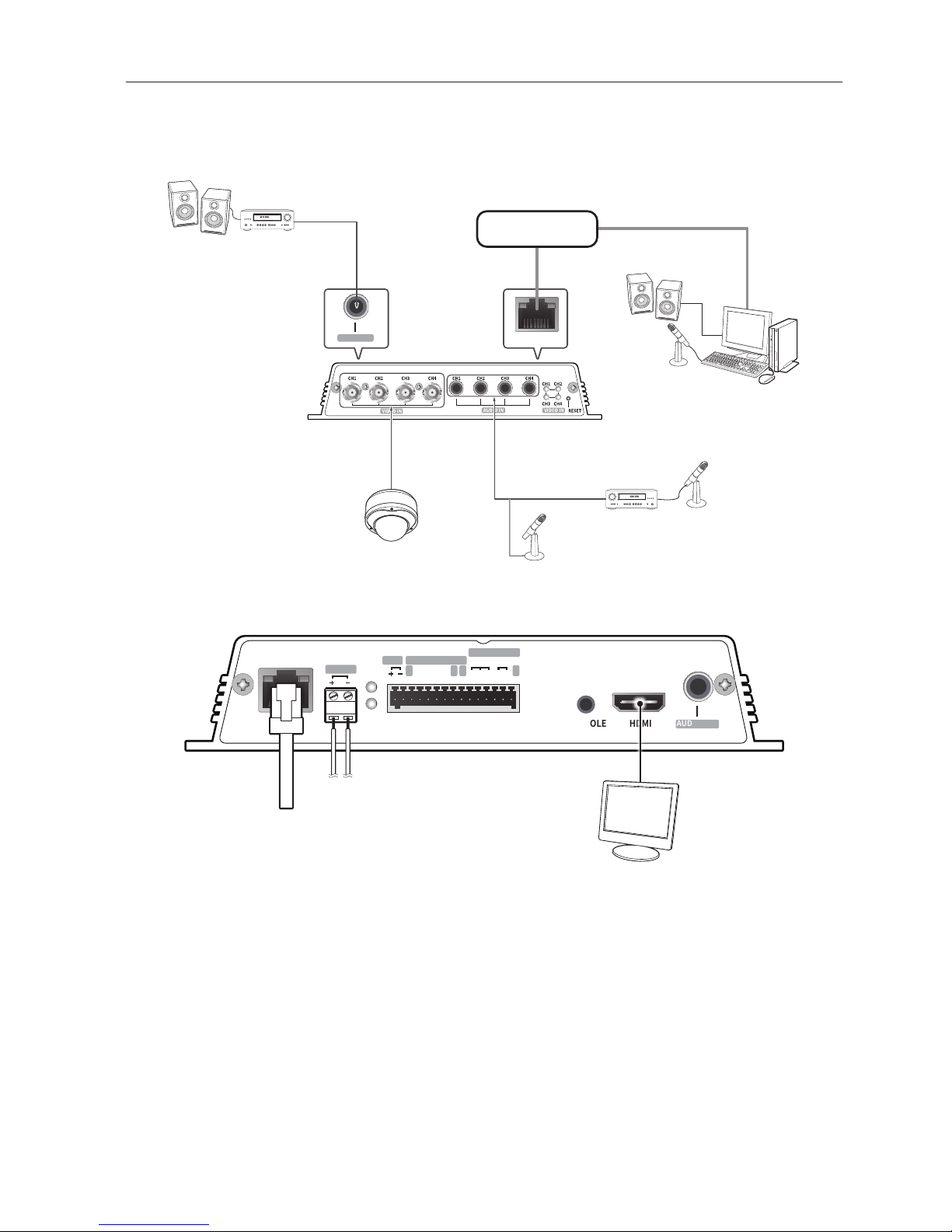

CONNECTING WITH OTHER DEVICE
SPE-410
CONSOLEDC 12V
NETWORK HDMI
AUDIO OUT
ALARM OUT
NO NCCOM NO COM
ALARM IN
G1
ALARM
POWER
1 2
2 3 4 G G G
RS485
POWER
Ethernet
Power
Monitor to install
* For details, refer to the “Installation and Connection” section of the manual.
CONSOLEDC 12V
NETWORK
ALARM OUT
NO NCCOM NO COM
ALARM IN
G1
ALARM
POWER
1 2
2 3 4 G G G
RS485
POWER
CONSOLE HDMI
AUDIO OUT
ALARM OUT
NO NCCOM NO COM
1 2
G
Speaker
Speaker
Microphone
PC
Microphone
Amp
Amp
Network
Microphone
Camera
3

SPE-1610
NETWORK RESET CONSOLE
DC 12V
HDMI
CH1 CH3 CH5 CH7 CH9 CH11 CH13 CH15
CH2 CH4
CH1 CH3
CH2 CH4
CH6 CH8 CH10 CH12 CH14 CH16
1
2 3 4
NO NCCOM
2345678
GGG
GG
ALARM OUT
2-4
GG
9 10 11 12 13 14 15 16
GG
ALARM IN
POWER
AUDIO OUT
AUDIO IN
VIDEO IN
ALARM OUT1
RS485
NO COM NO COM NO COM
DC 12V
NETWORK
ALARM OUT
NO NCCOM NO COM
ALARM IN
G1
ALARM
POWER
1 2
2 3 4 G G G
RS485
POWER
Camera Microphone
Microphone
Monitor to install
Network
Amp
AmpSpeaker
PC
Speaker
Power
* For details, refer to the “Installation and Connection” section of the manual.
4

NETWORK WIRING DIAGRAM
MANUAL NETWORK SETUP
Run <IP Installer_v2.XX.exe> to display the encoder search list.
At the initial startup, both [Auto Set] and [Manual Set] will be grayed out.
M
`For encoders found with the IPv6 setting, these buttons will be grayed out as the encoders do not
support this function.
aSelect an encoder in the search list.
bClick [Manual Set].
The Manual Setting dialog appears.
cIn the <Address> pane, provide the
necessary information.
dIn the <Port> pane, provide necessary
information.
•HTTP Port : Used to access the
encoder using the Internet browser,
defaulted to 80.
•VNP Port : Used to control the video
signal transfer, defaulted to 4520.
eEnter the password.
The default password is “4321”.
J
`In the IP installer, you can use the initial password, “4321” to set IP Address, Subnet Mask,
Gateway, HTTP Port, VNP Port, IP type. After changing the network interface, for better security,
access the web viewer and change the password.
`
If you want to set the password, refer to “Password setting”.
fClick [OK].
Manual network setup will be completed.
ENCODER
ENCODER
Local PC
Broadband
Router
PPPoE or
Cable Modem
PPPoE or
Cable Modem External Remote PC
DDNS Server
(Data Center, KOREA)
INTERNET
b
a
d
c
e
f
5

CONNECTING TO THE ENCODER FROM A SHARED LOCAL PC
1. Run the IP Installer.
It will scan for connected encoders and display them as a list.
2. Double-click an encoder to access.
The Internet browser starts and connects to the encoder.
M
`Access to the encoder can also be gained by typing the encoder’s IP address in the address bar
of the Internet browser.

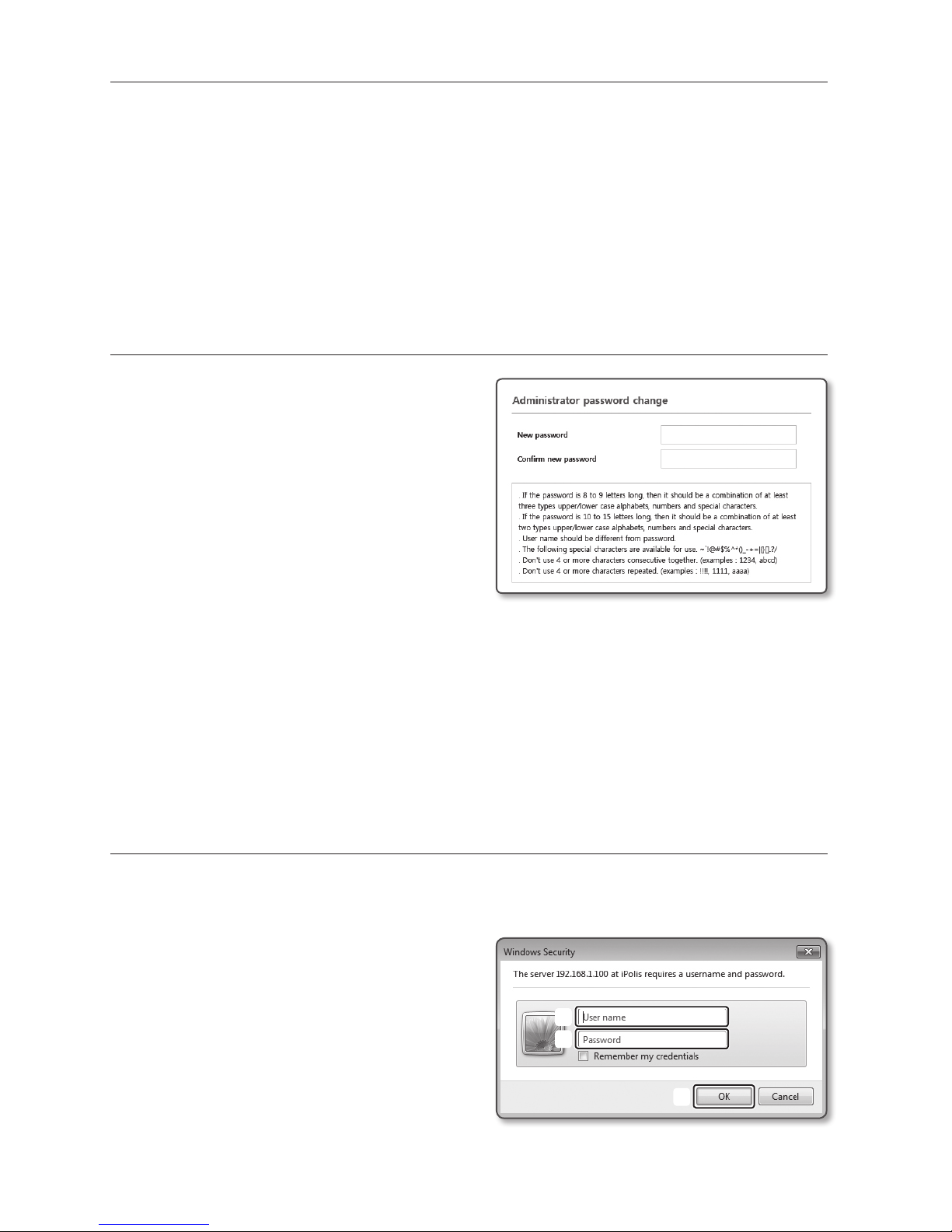

PASSWORD SETTING
When you access the product for the first time,
you must register the login password.
When the “Password change” window appears,
enter the new password.
J
`For a new password with 8 to 9 digits,
you must use at least 3 of the following:
uppercase/lowercase letters, numbers
and special characters. For a password
with 10 to 15 digits, you must use at least
2 types of those mentioned.
-Special characters that are allowed. : ~`!@#$%^*()_-+=|{}[].?/
`For higher security, you are not recommended to repeat the same characters or consecutive
keyboard inputs for your passwords.
`If you lost your password, you can press the [RESET] button to initialize the product. So, don’t lose
your password by using a memo pad or memorizing it.
LOGIN
Whenever you access the encoder, the login window appears.
Enter the User ID and password to access the encoder.
aEnter “admin” in the <User Name>
input box.
bEnter the password in the <Password>
input field.
cClick [OK].
a
c
b
6

Correct disposal of batteries in this product
(Applicable in the European Union and other European countries with separate battery return systems.)
This marking on the battery, manual or packaging indicates that the batteries in this product should not be disposed of with other
household waste at the end of their working life. Where marked, the chemical symbols Hg, Cd or Pb indicate that the battery contains
mercury, cadmium or lead above the reference levels in EC Directive 2006/66. If batteries are not properly disposed of, these
substances can cause harm to human health or the environment.
To protect natural resources and to promote material reuse, please separate batteries from other types of waste and recycle them
through your local, free battery return system.
Hanwha Techwin cares for the environment at all product manufacturing stages, and is taking measures to
provide customers with more environmentally friendly products.
The Eco mark represents Hanwha Techwin’s devotion to creating environmentally friendly products, and
indicates that the product satisfies the EU RoHS Directive.
Correct Disposal of This Product (Waste Electrical & Electronic Equipment)
(Applicable in the European Union and other European countries with separate collection systems)
This marking on the product, accessories or literature indicates that the product and its electronic accessories
(e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of
their working life. To prevent possible harm to the environment or human health from uncontrolled waste
disposal, please separate these items from other types of waste and recycle them responsibly to promote the
sustainable reuse of material resources.
Household users should contact either the retailer where they purchased this product, or their local
government office, for details of where and how they can take these items for environmentally safe recycling.
Business users should contact their supplier and check the terms and conditions of the purchase contract.
This product and its electronic accessories should not be mixed with other commercial wastes for disposal.
