Wisenet In-ceiling Housing User manual

In-ceiling Housing
Installation Manual
SHD-3000F3

2_ SHD-3000F3
Overview 3
What’s Included 3
Installation Instructions 4
Installation (OUTDOOR TYPE) 4
Product Specifications
9
TABLE OF CONTENTS

SHD-3000F3 _3
ENG
OVERVIEW
This In-CEILING HOUSING is a mounting ADAPTOR that is designed to mount the smart
dome camera in built-in style on a double-layer ceiling.
WHAT’S INCLUDED
HOUSING SAFETY BRACKET ( 1EA) SAFETY WIRE (1SET)
TEMPLATE (1EA) SCREW (2EA)
Lower bracket (exclusively for
indoor dome cameras) (1EA)
In-ceiling Housing
Installation Manual
SHD-3000F3
INSTALLATION MANUAL

4_ SHD-3000F3
INSTALLATION INSTRUCTIONS

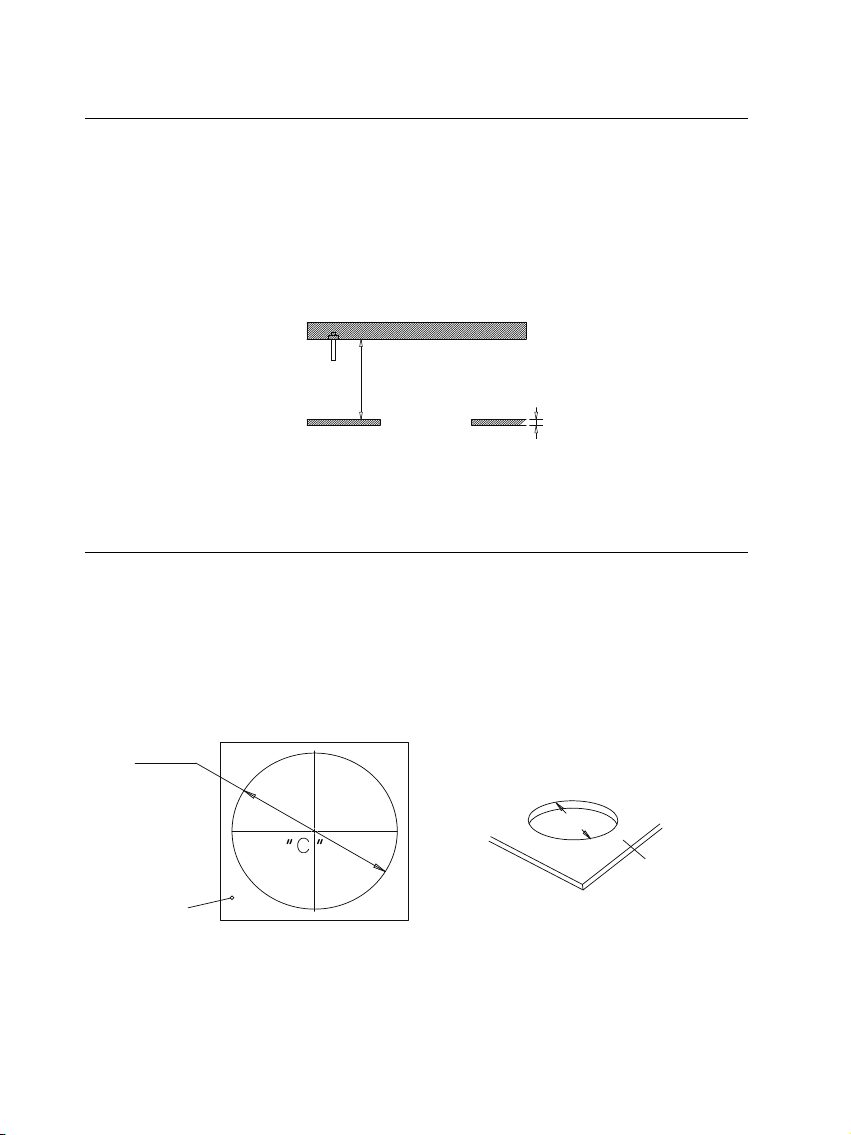

1. Select an installation position or place that can endure more than 4 times of the total weight
of the installation structure.
2. At least 250mm or more of spare height is required above the CEILING BOARD.
3. CEILING BOARD’s thickness should be less than 40mm.
4. Be sure to secure the SAFETY WIRE to avoid a product fall.
5. If you want to attach the camera to the ADAPTOR, use the only provided SCREWS.
INSTALLATION (OUTDOOR TYPE)
1. Place the TEMPLATE on the CEILING BOARD and drill a guided hole.
❶ Remove the round filling (“C”) from the TEMPLATE.
➋ Place TEMPLATE A onto the CEILING BOARD to which you will attach the ceiling
mount ADAPTOR and drill a hole of Ø198mm in diameter.
See the figure below for the hole shape.
250mm 이상일 것
천장보드 40mm 이하일 것
More than 250mm
CEILING BOARD Less than 40mm
Ø198mm
형판
천장 보드
Ø198mm
TEMPLATE
CEILING BOARD

SHD-3000F3 _5
ENG
2. Fix the ANCHOR BOLT onto the concrete CEILING, and secure the SAFETY WIRE to the
ANCHOR BOLT as below:
❶ Tighten the nut (“N1”) on the ANCHOR BOLT.
➋ Insert the provided SAFETY BRACKET into the ANCHOR BOLT.
➌ Tighten two nuts (“N2”,”N3”) onto the ANCHOR BOLT.
➍ Hook and fix one end of the SAFETY WIRE onto the SAFETY BRACKET.
➎ Hook and fix the other end of SAFETY WIRE onto the HOUSING as shown below.
3. To connect to the camera, insert the external cable through the side hole on the housing
to the inside of the housing as shown in the figure.
M
Refer to the installation manual of the camera that you want to install, and prepare necessary
cables for camera connection.
앙카볼트
천장
너트(N1)
안전브라켓
앙카볼트
너트(N2,N3)
안전와이어
천장
하우징
 The ANCHOR BOLTs and nuts are optional and not included in the product package.
ANCHOR BOLT
Nut (N1)
Safety BRACKET
Nut (N2,N3)
SAFETY WIRE
ANCHOR BOLT
HOUSING
CEILING
CEILING
천장
홀하우징
하우징
외부케이블
CEILING
Hole HOUSING
HOUSING
External Cable

6_ SHD-3000F3
4. Push the HOUSING inside the CEILING through the CEILING hole, and tighten the
SCREWs (x2) clockwise to fix the HOUSING on the CEILING.
(The BRACKET will be positioned from <A> to <B> as shown.)
M
Ensure that the HOUSING is firmly secured to the CEILING BOARD.
브라켓
브라켓
<A상태> <B상태>
브라켓
하우징
브라켓
스크류
시계방향으로 회전
5. As shown in the figure, pull out the protrusions of the rubber cap in the bottom to make a
small hole and remove the cable through it to connect to the external cable.
알람 케이블
오디오
전원
LAN
CAUTION:Beware of the
RatedVoltage and Polarity
ofthe power connection.
If waterproofing in the connected cable jacket is poor, it may cause leaks. Make sure you tape it tight and
thoroughly.
The butyl rubber tape for waterproofing can extend at least twice as long as the original length.
BRACKET
SCREW
Turn clockwise
HOUSING
BRACKET
BRACKET
BRACKET
<A> <B>

SHD-3000F3 _7
ENG
6. Combine the dome camera and the bracket using two screws.
7. Insert the bracket where the camera is mounted into the housing and fix it by turning it in the
LOCK direction.
M
When the installation is completed, remove both PROTECTIVE TAPE and PRETOECTIVE COVER
from the lens.

8_ SHD-3000F3
8. Attach the COVER to the HOUSING.
하우징
커버
1ALARMOUT
ARMIN
VIDEO
RES
T
HOUSING
COVER
Assemble the network cable through the
hole on the bottom part of the housing.

SHD-3000F3 _9
ENG
PRODUCT SPECIFICATIONS
Item Specifications
Dimension (mm) D224 X H106.9
Weight 490g
Temperature
-10°C ~ 50°C
Material PC
Color Ivory
84 (3.3")
224 (8.8")
106.9 (4.2")
