Witt WGC906 Series Installation and operating instructions

DUAL FUEL COOKERS WGC906..
Installation advices - Instructions for the use
FI
SE
DK
NO

22

33
Dear Customer,
Thank you for having purchased and given your preference to
our product.
The safety precautions and recommendations reported below
are for your own safety and that of others. They will also provide
a means by which to make full use of the features oered by
your appliance.
Please preserve this booklet carefully. It may be useful in
future, either to yourself or to others in the event that doubts
should arise relating to its operation.
This appliance must be used only for the task it
has explicitly been designed for, that is for cooking
foodstus. Any other form of usage is to be considered as
inappropriate and therefore dangerous.
The manufacturer declines all responsibility in the event
of damage caused by improper, incorrect or illogical use of
the appliance.
IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE PRODUCT
IN ACCORDANCE WITH EC DIRECTIVE 2012/19/EC.
At the end of its working life, the product must not be disposed of as
urban waste. It must be taken to a special local authority di󰀨erentiated
waste collection centre or to a dealer providing this service.
Disposing of a household appliance separately avoids possible
negative consequences for the environment and health deriving from
inappropriate disposal and enables the constituent materials to be
recovered to obtain signicant savings in energy and resources. As a
reminder of the need to dispose of household appliances separately,
the product is marked with a crossed-out wheeled dustbin.
FI
SE
DK
NO
DECLARATION OF CE CONFORMITY
• This appliance has been designed to be used only for cooking. Any other use (such
as heating a room) is improper and dangerous.
• This appliance has been designed, constructed, and marketed in compliance with:
-Safety requirements of the “Gas” Regulation (EU) 2016/426;
-Safety requirements of the “Low voltage” Directive 2014/35/EU;
-Safety requirements of the “EMC” Directive 2014/30/EU;
-Requirements of EU Directive 93/68/EEC;
-Requirements of EU Directive 2011/65/EU.

44
IMPORTANT SAFETY PRECAUTIONS AND RECOMMENDATIONS
IMPORTANT: This appliance is designed and manufactured
solely for the cooking of domestic (household) food
and is not suitable for any non domestic application
and therefore should not be used in a commercial
environment.
The appliance guarantee will be void if the appliance
is used within a non domestic environment i.e. a semi
commercial, commercial or communal environment.
Read the instructions carefully before installing and using
the appliance.
• This appliance has been designed and manufactured in
compliance with the applicable standards for the household
cooking products and it fullls all the safety requirements shown in
this manual, including those for surface temperatures.
Some people with sensitive skin may have a more pronounced
temperature perception with some components although these
parts are within the limits allowed by the norms.
The complete safety of the appliance also depends on the correct
use, we therefore recommend to always pay a extreme attention
while using the product, especially in the presence of children.
• After having unpacked the appliance, check to ensure that it is not
damaged and that the oven door closes correctly.
In case of doubt, do not use it and consult your supplier or a
professionally qualied technician.
• Packing elements (i.e. plastic bags, polystyrene foam, nails,
packing straps, etc.) should not be left around within easy reach of
children, as these may cause serious injuries.
• Some appliances are supplied with a protective lm on steel and
aluminium parts. This lm must be removed before using the
appliance.
• IMPORTANT: The use of suitable protective clothing/gloves is
recommended when handling or cleaning this appliance.

55
• Do not attempt to modify the technical characteristics of
the appliance as this may become dangerous to use. The
manufacturer declines all responsibility for any inconvenience
resulting from the inobservance of this condition.
• CAUTION: this appIiance must only be installed in a permanently
ventilated room in compliance with the applicable regulations.
• Do not operate your appliance by means of an external timer or
separate remote-control system.
• Do not carry out cleaning or maintenance operations on the
appliance without having previously disconnected it from the electric
power supply.
• WARNING: Ensure that the appliance is switched o󰀨 before replacing
the oven lamp to avoid the possibility of electric shock.
• Do not use a steam cleaner because the moisture can get into the
appliance therefore making it unsafe.
• Do not touch the appliance with wet or damp hands (or feet).
• Do not use the appliance whilst in bare feet.
• If you should decide not to use this appliance any longer (or decide to
substitute another model), before disposing of it, it is recommended
that it be made inoperative in an appropriate manner in accordance
to health and environmental protection regulations, ensuring in
particular that all potentially hazardous parts be made harmless,
especially in relation to children who could play with unused
appliances.
• The various components of the appliance are recyclable. Dispose of
them in accordance with the regulations in force in your country. If the
appliance is to be scrapped, remove the power cord.
• After use, ensure that the knobs are in the o󰀨 position.
• Children less than 8 years of age shall be kept away unless
continuously supervised.
• This appliance can be used by children aged from 8 years and above
and persons with reduced physical, sensory or mental capabilities
or lack of experience and knowledge if they have been given
supervision or instruction concerning use of the appliance in a safe
way and understand the hazards involved. Children shall not play

66
with the appliance. Cleaning and user maintenance shall not be
made by children without supervision.
• The manufacturer declines all liability for injury to persons or damage
to property caused by incorrect or improper use of the appliance.
• WARNING: During use the appliance and its accessible parts
become hot; they remain hot for some time after use.
– Care should be taken to avoid touching heating elements (on
the hob and inside the oven).
– The door is hot, use the handle.
– To avoid burns and scalds, young children should be kept
away.
• Make sure that electrical cables connecting other appliances in
the proximity of the cooker cannot come into contact with the
hob or become entrapped in the oven door.
• WARNING: Unattended cooking on a hob with fat or oil can be
dangerous and may result in re. NEVER try to extinguish a re
with water, but switch o󰀨 the appliance and then cover ame
e.g. with a lid or a re blanket.
• WARNING: Danger of re: do not store items on the cooking
surfaces.
• WARNING: When correctly installed, your product meets all
safety requirements laid down for this type of product category.
However special care should be taken around the rear or the
underneath of the appliance as these areas are not designed or
intended to be touched and may contain sharp or rough edges,
that may cause injury.
• FIRST USE OF THE OVEN - it is advised to follow these
instructions:
– Furnish the interior of the oven as described in the chapter
“CLEANING AND MAINTENANCE”.
– Switch on the empty oven on max to eliminate grease from
the heating elements.
– Disconnect the appliance from the electrical power supply,
let the oven cool down and clean the interior of the oven
with a cloth soaked in water and neutral detergent; then dry
carefully.

77
• CAUTION: Do not use harsh abrasive cleaners or sharp metal
scrapers to clean the oven door glass since they can scratch
the surface, which may result in shattering of the glass.
• Do not line the oven walls or base with aluminium foil. Do not
place baking trays or the drip tray on the base of the oven
chamber.
• Do not cover the hob with aluminium foils.
• FIRE RISK! Do not store ammable material in the oven or in
the storage compartment.
• Always use oven gloves when removing the shelves and food
trays from the oven whilst hot.
• Do not hang towels, dishcloths or other items on the appliance
or its handle – as this could be a re hazard.
• Clean the oven regularly and do not allow fat or oils to build
up in the oven base or tray. Remove spillages as soon as they
occur.
• Do not stand on the cooker or on the open oven door.
• Always stand back from the appliance when opening the oven
door to allow steam and hot air to escape before removing the
food.
• SAFE FOOD HANDLING: Leave food in the oven for as short
a time as possible before and after cooking. This is to avoid
contamination by organisms which may cause food poisoning.
Take particular care during warmer weather.
• WARNING: Take care NOT to lift the cooker by the door handle.
• CAUTION: The cooking process has to be supervised. A short
term cooking process has to be supervised continuously.
• The appliance must not be installed behind a decorative door in
order to avoid overheating.
• The oven accessories (e.g. oven wire rack) must be tted
correctly as indicated at page 45.
• If the power supply cable is damaged, it must be replaced only
by an authorized service agent in order to avoid a hazard.
• If the appliance is not tted with a supply cord and a plug, or
with other means for disconnection from the supply mains

88
having a contact separation in all poles that provide full
disconnection under overvoltage category III conditions, means
for disconnection must be incorporated in the xed wiring in
accordance with the wiring rules.
• WARNING: The appliance and its accessible parts become hot
during use.
Care should be taken to avoid touching heating elements.
Children less than 8 years of age shall be kept away unless
continuously supervised.
• WARNING: Use only hob guards designed by the manufacturer
of the cooking appliance or indicated by the manufacturer of the
appliance in the instructions for use as suitable or hob guards
incorporated in the appliance. The use of inappropriate guards
can cause accidents.

99
ENERGY LABELLING/ECODESIGN
• Commission delegated regulation (EU) No 65/2014 (supplementing Directive 2010/30/
EU of the European Parliament and of the Council).
• Commission regulation (EU) No 66/2014 (implementing Directive 2009/125/EC of the
European Parliament and of the Council).
Reference to the measurement and calculation methods used to establish compliance
with the above requirements:
• Standard EN 60350-1 (electric ovens).
• Standard EN30-2-1 (hobs: gas red burners).
USE OF THE APPLIANCE, ENERGY SAVING TIPS
OVEN
• Check the oven door always closes properly and the door gasket is clean and in
order. During use, open the oven door only when strictly necessary to avoid heat
losses (for some functions it may be necessary to use the oven with the door half-
closed, check the oven operating instructions).
• Turn o󰀨 the oven 5-10 minutes before the end of the theoretical cooking time to
recuperate the stored heat.
• We recommend using oven proof dishes and adjusting the oven temperature during
cooking if necessary.
HOB
GAS FIRED BURNERS
• It is important that the diameter of the pot be suitable to the size of the burner so
as not to compromise the high output of the burners and therefore energy waste. A
small pot on a large burner does not give you a boiling point in a shorter amount of
time since the capacity of heat absorption of a liquid mass depends on the volume
and the surface of the pot.
• Avoid keeping a burner on without something on it (without pot).

1010
Advice for the installer
IMPORTANT:
• The appliance is designed and approved for domestic use only and should not be
installed in a commercial, semi commercial or communal environment.
Your product will not be guaranteed if installed in any of the above
environments and could a󰀨ect any third party or public liability insurances you
may have.
• This appliance is to be installed only by an authorised person according to the current
local regulations and in observation of the manufacturer’s instructions.
Failure to comply with this condition will render the guarantee invalid.
• Incorrect installation, for which the manufacturer accepts no responsibility, may cause
personal injury of damage.
• This appliance shall only be serviced by authorized personnel.
• Always disconnect the cooktop from mains power supply before carrying out any
maintenance operations or repairs.
• Important: The use of suitable protective clothing/gloves is recommended
when handling or installing this appliance.
• The walls of the units must not be higher than work top and must be capable of
resisting temperatures of 70 °C above room temperature.
• We would point out that the adhesive which bonds the plastic laminate to the
furniture must withstand temperatures not less than 150 °C to avoid delamination
• Do not install the appliance near inammable materials (eg. curtains).
• Some appliances are supplied with a protective lm on steel and aluminium parts.
• This lm must be removed before using the cooker.
WARNING
When correctly installed, your product meets all safety requirements laid down for
this type of product category.
However special care should be taken around the underneath of the appliance
as this area is not designed or intended to be touched and may contain sharp or
rough edges, that may cause injury.

1111
The installation conditions, concerning protection against overheating of the surfaces
adjacent to the cooker, must conform to gs. 1.1a or 1.1b.
The cooker must be kept no less than 200 mm away from any side wall which exceed the
height of the cooktop.
The veneered syntetical material and the glue used must be resistant to a temperature of
150°C in order to avoid ungluing or deformations.
Curtains must not be tted immediatly behind appliance or within 500 mm of the sides.
If the cooker is located on a pedestal it is necessary to provide safety measures to
prevent falling out.
The appliance must be
housed in heat resistant
units.
The walls of the units must
not be higher than work
top and must be capable of
resisting temperatures of 70 °C
a bove room temperature.
Do not instal the appliance
near inammable materials
(eg. curtains).
■Class 1
(g. 1.1a)
Gas connection made using
rubber hose which must be
visible and easily inspected
or using rigid or exible metal
pipe.
A space of at least 2 cm must
be left between the cooker and
any adjacent furniture, which
must not exceed the height of
the cooktop.
■Class 2
■Subclass 1
(g. 1.1b)
Gas connection made using
rigid or exible metal pipe.
650 mm
450 mm
200 mm
500 mm
Fig. 1.1b
450 mm
20 mm 20 mm
650 mm
500 mm
200 mm
Fig. 1.1a
INSTALLATION
1

1212
A
B
C
FITTING THE ADJUSTABLE FEET
The adjustable feet must be tted to the
base of the cooker before use (g. 1.2).
Rest the rear of the cooker on a piece of
the polystyrene packaging exposing the
base for the tting of the feet.
Fit the 4 legs by screwing them tight into
the support base as shown in gure 1.3.
LEVELLING THE COOKER
The cooker may be levelled by screwing
the lower ends of the feet IN or OUT (g.
1.4).
BACKGUARD
Before installing the cooker, assemble the
backguard “C” (g. 1.5).
• The backguard “C” can be found
packed at the rear of the cooker.
• Before assembling remove any
protective lm/adhesive tape.
• Remove the two spacers “A” and
the screw “B” from the rear of the
cooktop.
• Assemble the backguard as shown
in gure 1.5 and x it by screwing the
central screw “B” and the spacers “A”.
Fig. 1.4 Fig. 1.3
Fig. 1.5
Fig. 1.2

1313
MOVING THE COOKER
WARNING: When raising cooker to upright position always ensure two people
carry out this manoeuvre to prevent damage to the adjustable feet (g. 1.6).
WARNING
Be carefull: do not lift the cooker by the
door handle when raising to the upright
position (g. 1.7).
WARNING
When moving cooker to its nal
position DO NOT DRAG (g. 1.8).
Lift feet clear of oor (g. 1.6).
Fig. 1.8
Fig. 1.7
Fig. 1.6

1414
Fig. 1.9
ANTI-TILT BRACKET
Warning: This appliance must be restrained to prevent accidental tipping by tting
a bracket to the rear of the appliance and securely xing it to the wall.
To t the anti-tilt bracket:
1. After you have located where the cooker is to be positioned, mark on the wall the
place where the 2 screws of the anti-tilt bracket have to be tted. Please follow the
indications given in g. 1.9.
2. Drill two 8 mm diameter holes in the wall and insert the plastic plugs supplied.
Important! Before drilling the holes, check that you will not damage any pipes
or electrical wires.
3. Loosely attach the anti-tilt bracket with the 2 screws supplied.
4. Move the cooker to the wall and adjust the height of the anti-tilt bracket so that it can
engage in the slot on the cooker’s back, as shown in g. 1.9.
5. Tighten the screws attaching the anti-tilt bracket.
6. Push the cooker against the wall so that the anti-tilt bracket is fully inserted in the slot
on the cooker’s back.
Attention!
When sliding the cooker into place pay special attention not to trap the power
supply cable in the stability bracket.
Pay special attention to the gas connection hose.

1515
Extractor hood
for products of
combustion
Air vent
Air vent
Electric fan to
extract products
of combustion
Fig. 1.11
Fig. 1.10
VENTILATION REQUIREMENTS
The appliance must be installed in compliance with applicable local regulations
concerning ventilation and the evacuation of exhaust gases.
Intensive and prolonged use may require extra ventilation, e.g. opening a window,
or more e󰀩cient ventilation increasing the mechanical suction power if this is tted.
CHOOSING SUITABLE SURROUNDINGS
The room where the gas appliance is to be installed must have a natural ow of air so
that the gas can burn (in compliance with applicable local regulations).
The ow of air must come directly from one or more openings made in the outside walls
with a free area of at least 100 cm2(or refer to applicable local regulations).
The openings should be near the oor and preferably on the side opposite the exhaust for
combustion products and must be made so that they cannot be blocked from either the
inside or the outside.
When these openings cannot be made, the necessary air can come from an adjacent
room which is ventilated as required, as long as it is not a bed room or a danger area (in
compliance with applicable local regulations).
In this case, the kitchen door must allow the passage of the air.
There must be a distance of at least 650mm between the hob of the cooker and any
wall cupboard or extractor hood positioned immediately above (see g. 1.10).
DISCHARGING PRODUCTS OF COMBUSTION
Extractor hoods connected directly to the outside must be provided, to allow the products
of combustion of the gas appliance to be discharged (g. 1.10).
If this is not possible, an electric fan may be used, attached to the external wall or the
window; the fan should have a capacity to circulate air at an hourly rate of 3-5 times the
total volume of the kitchen (g. 1.11).
The fan can only be installed if the room has suitable vents to allow air to enter, as
described under the heading “Choosing suitable surroundings”.
H min 650 mm

1616
GAS SECTION
2
GAS INSTALLATION REQUIREMENTS
Important !
• The walls adjacent to the cooker must be of heat-resistant material.
• Before installation, make sure that the local distribution conditions (gas
type and pressure) and the adjustment of this appliance are compatible. The
appliance adjustment conditions are given on the plate or the label.
• This appliance must be installed and serviced only by a suitably qualied,
registered installer. The installer shall refer to the local standards in force.
• Failure to install the appliance correctly could invalidate any manufacturer’s
warranty.
Only for Denmark, Sweden and Finland:
This appliance is supplied for use on Natural gas, LPG or Town Gas* (check the gas
regulation label attached on the appliance).
• Appliances supplied for use on Natural gas: they are adjusted for this gas only and
cannot be used on any other gas (LPG or Town gas) without modication.
The appliances are manufactured for conversion to LPG and Town gas.
• Appliances supplied for use on LPG: they are adjusted for this gas only and cannot
be used on any other gas (Natural or Town gas) without modication.
The appliances are manufactured for conversion to Natural and Town gas.
• Appliances supplied for use on Town gas: they are adjusted for this gas only and
cannot be used on any other gas (Natural gas or LPG) without modication.
The appliances are manufactured for conversion to Natural gas and LPG.
* Does not apply to Finland
If the Natural gas/LPG/Town gas conversion kit is not supplied with the appliance this kit
can be purchased by contacting the After-Sales Service.
Only for Norway:
This appliance is supplied for use on LPG only (check the gas regulation label attached
on the appliance). It cannot be converted for use with another type of gas.
If the appliance is supplied with a gas conversion kit, this kit cannot be used for Norway.

1717

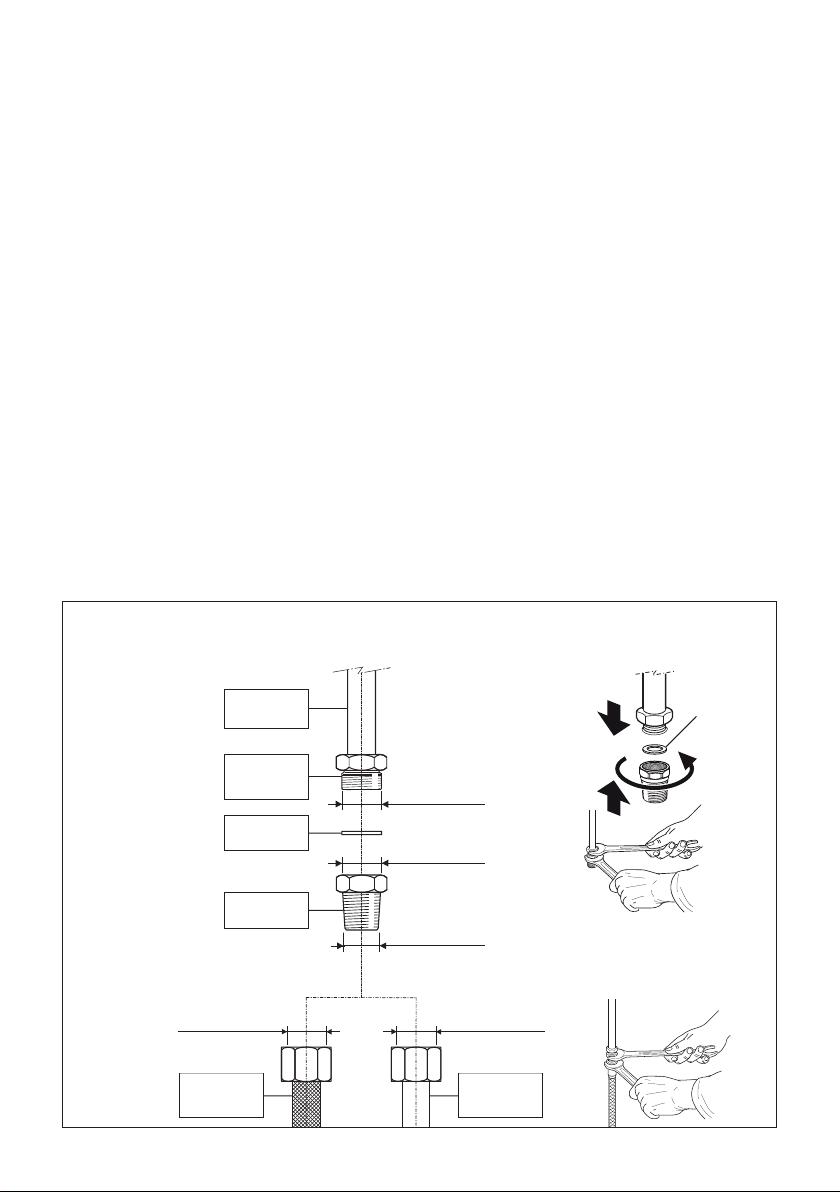

Plug
Fig. 2.1a Fig. 2.1b
Right or left
inlet pipe
Manifold male
pipe tting
Sealing
washer (#)
Plug (#)
1/2” G cylindrical
(EN ISO 228-1) male
1/2” G cylindrical
(EN ISO 228-1) female
(#) Already tted on the right or
left inlet pipe
Fitting the plug on the unused
terminal of the gas inlet pipe
CONNECTING THE APPLIANCE TO THE GAS SUPPLY
The gas connection must be carried out by an authorised person according to the
relevant standards.
Ensure that the room in which the cooker is to be installed is adequately ventilated, in
compliance with applicable regulations.
• Connect the cooker to the gas mains utilizing rigid or exible pipes.
• The gas supply is connected at the rear of the cooker to the right or left terminal of the
gas inlet pipe (g. 2.1a). The connection pipe must not cross the rear of the appliance.
• IMPORTANT NOTE: Before connecting the appliance to the gas mains t the male
conical adaptor (if not already tted on the inlet pipe, it is supplied with the appliance
in a separate kit) to the right or the left inlet pipe using the bre washer supplied.
IMPORTANT: Check the correct positioning of the adaptor as per g. 2.2 and
always operate using two suitable spanners.
• The unused inlet pipe must be closed o󰀨 with the plug and sealing washer supplied
(g. 2.1b).

1818
GAS CONNECTION WITH RIGID PIPES OR A FLEXIBLE PIPE
The gas connection is made up of:
• the terminal tting of the inlet pipe (right-hand or left-hand);
• the conical pipe tting (if not already tted on the inlet pipe, it is supplied with the
appliance in a separate kit);
• sealing washer.
When connecting the cooker to the gas supply with rigid pipes or a exible pipe,
make sure that
• you use rigid pipes or a exible pipe complying with applicable local regulations. The
exible pipe shall be of the correct construction for the type of gas being used.
• if compression ttings are used, you tighten them rmly using two spanners (g. 2.2).
• the connection with rigid metal pipes does not cause stress or pressure to the gas
piping.
• the exible pipe is not under tension, twisted, kinked or too tightly bent, neither while
the appliance is in use nor while it is being connected or disconnected.
• the exiple pipe does not exceed 2000 mm in length (or refer to applicable local
regulations) and does not come into contact with sharp edges, corners or moving
parts. Use a single exible pipe only; never connect the cooker with more than one
exible pipe.
• the exible pipe can easily be inspected along its entire length to check its condition;
if it has an expiry date, it should be replaced before that date.
• if using a exible pipe which is not entirely made of metal, make sure that it does not
come into contact with any part of the cooker with a surface temperature of 70°C or
above (or refer to applicable local regulations).
• the hose is not subject to excessive heat by direct exposure to ue products or by
contact with hot surfaces.
• the rigid or exible pipe is replaced if it shows signs of wear or damage.
• a gas pressure regulator, in compliance with the applicable local regulations, is
installed when connecting to an LPG cylinder.
• you inform the customer that the cylinder valve or the supply valve immediately by
the appliance should be closed when the cooker is not in use.
• you inform the customer that the rigid or exible pipe should not be subjected to
corrosion by acidic cleaning agents.

1919
After connecting the cooker to the gas supply, make sure that you
• check that the connections are correctly sealed using a soapy solution, but never a
naked ame.
• check whether the injectors are correct for the type of gas being used. If not, follow
the instructions under “GAS MAINTENANCE”.
• replace the sealing washer/s on the slightest sign of deformation or imperfection.
The sealing washer/s is/are the part/s which guarantee/s a good seal in the gas
connection.
• use two spanners when connecting the rigid or exible pipe (g. 2.2).
Gas connection with rigid or exible pipe
Manifold
male
pipe tting
Right or left
inlet pipe
1/2” G cylindrical
(EN ISO 228-1) male
1/2” G cylindrical
(EN ISO 228-1) female
1/2” G cylindrical
(EN ISO 228-1) female
1/2” G conical
(EN 10226-1) female
1/2” G cylindrical
(EN ISO 228-1) female
Sealing
washer (#)
Conical
adaptor (#)
Flexible pipe
(not supplied)
Rigid pipe
(not supplied)
Fig. 2.2
(#)If not already tted
on the inlet pipe,
it is supplied with
the appliance in a
separate kit
Interpose
the gasket
supplied

2020
GAS MAINTENANCE
Only for Denmark and Sweden:
TABLE FOR THE CHOICE OF THE INJECTORS - Cat. III 1a 2H 3B/P
DK
SE
TABLE FOR THE CHOICE OF THE INJECTORS - Cat. II 2H 3B/P
FI
BURNERS
Nominal
power
[kW]
Reduced
power
[kW]
LPG
G30 30 mbar
G31 30 mbar
Natural Gas
G20 20 mbar
Town Gas*
G110 8
mbar
Ø injector
[1/100 mm]
Ø injector
[1/100 mm]
Ø injector
[1/100 mm]
Auxiliary (A) 1,00 0,40 50 72 (X) 145 (1)
Semi-rapid (SR) 1,75 0,45 65 97 (Z) 190 (2)
Rapid (R) 3,00 0,75 85 128 (H3) 290 (6)
Double-ring
compact (DCC)
4,00 1,50 100 150 (H3) 350
* Does not apply to Finland
Only for Norway:
TABLE FOR THE CHOICE OF THE INJECTORS - Cat. I 3B/P
NO
BURNERS Nominal
power [kW]
Reduced
power
[kW]
LPG
G30 30 mbar
G31 30 mbar
Ø injector
[1/100 mm]
Auxiliary (A) 1,00 0,40 50
Semi-rapid (SR) 1,75 0,45 65
Rapid (R) 3,00 0,75 85
Double-ring compact (DCC) 4,00 1,50 100
AIR VENT NECESSARY FOR GAS COMBUSTION = (2 m3/h x kW)
BURNERS Air necessary for combustion [m3/h]
Auxiliary (A) 2,00
Semi-rapid (SR) 3,50
Rapid (R) 6,00
Double-ring compact (DCC) 8,00
LUBRICATION OF THE GAS TAPS
In case of di󰀩culty in the gas taps operation, call Service.
IMPORTANT: All intervention regarding installation maintenance of the
appliance must be fullled with original factory parts.
The manufacturer declines any liability resulting from the non-compliance of this
obligation.
