Wittenstein Alpha SP+ User manual

2022
-
D033540
03
2022-D033540 Revision: 03
SP+
Operating Manual

SP+
2022-D033540 Revision: 03
Revision history
Revision Date Comment Chapter
01 07.05.09 New version All
02 01.08.09 Machinery Directive 1, 2, 3, 4, 6
03 13.07.10 Technical Data 5.4.1
Service
In case you have technical questions,
please contact:
WITTENSTEIN alpha GmbH
Customer Service
Walter-Wittenstein-Straße 1
D-97999 Igersheim
Tel.: [phone]
Fax: [phone]
E-mail: [email protected]
© WITTENSTEIN alpha GmbH 2010
This documentation is copyright protected.
WITTENSTEIN alpha GmbH reserves all the rights to photo-mechanical reproduction,
copying, and the distribution by special processes (such as computers, file media, data
networks), even in parts.
Subject to technical and content changes without notice.

SP+
Revision: 03 2022-D033540 en-1
Contents
1 Regarding this manual.........................................................................................2
1.1 Signal words ........................................................................................................2
1.2 Safety symbols.....................................................................................................2
1.3 Design of the safety instructions ..........................................................................3
1.4 Information symbols.............................................................................................3
2 Safety.....................................................................................................................4
2.1 EC – Machinery directive .....................................................................................4
2.2 Dangers ...............................................................................................................4
2.3 Personnel.............................................................................................................4
2.4 Intended use ........................................................................................................4
2.5 Reasonably predictable misuse ...........................................................................4
2.6 Guarantee and liability .........................................................................................4
2.7 General safety instructions ..................................................................................5
3 Description of the gearhead................................................................................6
3.1 Overview of the gearhead components ...............................................................6
3.2 Type plate ............................................................................................................7
3.3 Ordering code ......................................................................................................7
3.4 Performance statistics..........................................................................................8
3.5 Weight..................................................................................................................8
3.6 Noise emission.....................................................................................................8
4 Transport and storage.........................................................................................9
4.1 Scope of delivery .................................................................................................9
4.2 Packaging ............................................................................................................9
4.3 Transport..............................................................................................................9
4.3.1 Transport of gearheads up to and including size SP+140 ..............................9
4.3.2 Transport of gearheads as of size SP+180 ....................................................9
4.4 Storage ................................................................................................................9
5 Assembly ............................................................................................................10
5.1 Preparations.......................................................................................................10
5.2 Mounting the motor onto the gearhead..............................................................10
5.3 Mounting the gearhead to a machine ...............................................................12
5.4 Mounted components on the gear output side...................................................12
5.4.1 Mounting on the slip-on shaft with shrink disk...............................................13
5.4.2 Installing the shrink disk ................................................................................14
6 Startup and operation........................................................................................15
7 Maintenance and disposal.................................................................................16
7.1 Maintenance work..............................................................................................16
7.1.1 Visual inspection ...........................................................................................16
7.1.2 Checking the tightening torques....................................................................16
7.2 Startup after maintenance work .........................................................................16
7.3 Maintenance schedule .......................................................................................16
7.4 Notes on the lubricant used ...............................................................................17
7.5 Disposal .............................................................................................................17
8 Malfunctions.......................................................................................................18
9 Appendix.............................................................................................................19
9.1 Specifications on mounting onto a motor..........................................................19
9.2 Specifications on mounting on the gear output side ..........................................20
9.3 Specifications on mounting onto a machine ......................................................20
9.4 Tightening torques for common thread sizes in general mechanics..................21

Regarding this manual SP+
en-2 2022-D033540 Revision: 03
1 Regarding this manual
These instructions contains necessary information for the safe operation of the planetary gearhead
SP+, referred to as gearhead in the following.
The operator must make sure that this operating manual is read through by all persons assigned to
install, operate, or maintain the gearhead, and that they understand them.
Store these instructions within reach near the gearhead.
These safety instructions should be shared with colleagues working in the vicinity of the device
to ensure individual safety.
The original instructions were prepared in German; all other language versions are translations of
these instructions.
1.1 Signal words
The following signal words are used to bring your attention to dangers, prohibitions, and important
information:
1.2 Safety symbols
The following safety symbols are used to bring your attention to dangers, prohibitions, and
important information:
This signal word points to an imminent danger that can cause serious
injuries and even death.
This signal word points to a possible danger that can cause serious
injuries and even death.
This signal word points to a possible danger that can cause slight to
serious injuries.
This signal word points to a possible danger that can cause material
damage.
A note without signal word draws your attention to application tips or
especially important information when handling the gearhead.
General danger Hot surface Suspended loads Danger of being pulled
in
Environment
protection
Information

SP+Regarding this manual
Revision: 03 2022-D033540 en-3
1.3 Design of the safety instructions
The safety instructions of this operating manual are designed according to the following pattern:
1.4 Information symbols
The following information symbols are used:
zrequires you to carry out an action
Âindicates the results of an action
Lprovides additional information on handling
A= Safety symbol (see Chapter 1.2 "Safety symbols")
B= Signal word (see Chapter 1.1 "Signal words")
C= Type and consequence of the danger
D= Prevention of the danger

Safety SP+
en-4 2022-D033540 Revision: 03
2 Safety
These instructions, especially the safety instructions and the rules and regulations valid for the
operating site, must be observed by all persons working with the gearhead.
In addition to the safety specifications mentioned in this operating manual, the general and also the
local regulations on the prevention of accidents (for instance, personal safety equipment) and on
environmental protection should be observed.
2.1 EC – Machinery directive
The gearhead is considered a "machine component" and is therefore not subject to the EC
Machinery Directive 2006/42/EC.
Operation is prohibited within the area of validity of the EC directive until it has been determined
that the machine in which this gearhead is installed corresponds to the regulations within this
directive.
2.2 Dangers
The gearhead has been constructed according to current technological standards and accepted
safety regulations.
To avoid danger to the operator or damage to the machine, the gearhead may be put to use only
for its intended usage (see chapter 2.4 "Intended use") and in a technically flawless and safe state.
zBe informed of the general safety instructions before beginning work. (see Chapter 2.7
"General safety instructions").
2.3 Personnel
Only persons who have read and understood these instructions may carry out work on the
gearhead.
2.4 Intended use
The gearhead serves to convert torques and speeds. It is built for industrial applications that do not
fall under article 2 of the directive 2002/95/EU (usage restriction of certain dangerous materials on
electro and electronic equipment).
The gearhead is specified for installment on motors that:
- correspond to the design B5 (for any divergences, please consult our Customer Service
Department [technical customer service])
- show a radial and axial runout tolerance of at least “N” according to DIN 42955 and
- have a smooth shaft
2.5 Reasonably predictable misuse
Any usage that exceeds the maximum permitted speeds, torques and temperature is considered a
misuse and is therefore prohibited.
2.6 Guarantee and liability
Guarantee and liability claims are excluded for personal injury and material damage in case of
- Ignoring the information on transport and storage
- Improper use (misuse)
- Improper or neglected maintenance and repair
- Improper assembly / disassembly or improper operation
- Operation of the gearhead when safety devices and equipment are defective
- Operation of the gearhead without lubricant
- Operation of a heavily soiled gearhead
- Modifications or reconstructions that have been carried out without the approval of
WITTENSTEIN alpha GmbH

SP+Safety
Revision: 03 2022-D033540 en-5
2.7 General safety instructions
Objects flung out by rotating components can cause serious injuries.
zRemove objects and tools from the gearhead before putting it into
operation.
Rotating components on the gearhead can pull in parts of the body
and cause serious injuries and even death.
zKeep a sufficient distance to rotating machinery while the gearhead is
running.
zSecure the machine against restarting and unintentional movements
during assembly maintenance work.
Hot gearhead housing can cause serious burns.
zTouch the gearhead housing only when wearing protective gloves or
after the gearhead has been at standstill for some time.
Loose or overloaded screw connections can damage the gearhead.
zUse a calibrated torque wrench to tighten and check all screw
connections for which a tightening torque has been specified.
Solvents and lubricants can pollute soil and water.
zUse and dispose of cleaning solvents as well as lubricants appropriately.

Description of the gearhead SP+
en-6 2022-D033540 Revision: 03
3 Description of the gearhead
The gearhead is a single- or multistage, low-backlash planetary gearhead, which is manufactured
as standard in the following versions:
3.1 Overview of the gearhead components
"M" (motor-mounted gearhead)
Motor centering of the motor-mounted gearhead is performed:
- up to gearhead size SP+100 and a motor shaft diameter of 28 mm of
by the clamping hub (plug receptacle or coupling)
- from gearhead size SP+140 and a motor shaft diameter of >28 mm
by the centering collar of the motor
A radial distortion of the motor is avoided.
Adaptation to various motors is done by an adapter plate and a bushing.
The output shaft bearing is designed to withstand high tilting moments
and axial forces.
The gearhead can be optionally constructed with a coupling to
compensate for thermal linear expansion.
"S" (self-contained gearhead)
The self-contained gearhead is based on the motor-mounted gearhead
and additional mounting parts, such as drive housing and drive shaft (L).
It is possible to drive the gearhead directly at the drive shaft, for instance,
using a belt pulley.
The drive and output shaft bearing is designed to withstand high tilting
moments and axial forces.
Gearhead components
A Gearhead housing
B Output bearing
C Output shaft
D Radial shaft sealing ring
E Planetary gear stage
F Radial shaft sealing ring
G Adapter plate
H Bushing
I Clamping hub
(plug receptacle / coupling)
J Drive bearing arrangement
K Drive housing
Tbl-1: Overview of the gearhead components
L
A
B
C
D
E
F
G
H
IJK

SP+Description of the gearhead
Revision: 03 2022-D033540 en-7
3.2 Type plate
The type plate is attached to the gearhead housing as well input flange.
3.3 Ordering code
Designation
A Ordering code
(see Chapter 3.3 "Ordering code")
BRatio
C Serial number
D Lubricant
E Production date
Tbl-2: Type plate (sample values)
WITTENSTEIN alpha GmbH - Walter-Wittenstein-Str.1 - 97999 Igersheim
SP 060S-MF-10 0G1-2S
SN: 1234567
DMF: 24/10
Lubricated for Life: Tribol 800/220
Made in Germany
i= 10
AB
CD
E
Gearhead type
SP+060/075/100/140/180/
210/240
Type code
A = Mass inertia optimized version
F = Food lubrication
G = Grease
L = Friction optimized version
(only with MC version)
S = Standard
X = Special gear
Gearhead variations
M = Motor attachment gearhead
S = Self-Contained version
Gearhead model
C = Continuous duty S1 (HIGH SPEED)
F = Cyclic duty S5
Number of stages
1 = 1-stage
2 = 2-stage
Motor-mounted
K = Coupling
S = Plug receptacle
Generation
Backlash
0 = Reduced
1 = Standard
Clamping hub bore hole
diameter
See catalogue
Output shaft shape
0 = Smooth shaft
1 = Shaft with key DIN 6885
Form A
2 = Involute DIN5480
3 = System output
4 = Other
5 = Shaft mounted
Ratios i
SP140 S-M F 1-10-0 K 1-2 K

Description of the gearhead SP+
en-8 2022-D033540 Revision: 03
3.4 Performance statistics
Please refer to our catalogue or our Internet page for the maximum permitted speeds and
torques:http://www.wittenstein-alpha.de
3.5 Weight
The table "Tbl-3" specifies the gearhead dimensions with medium-sized adapter plate. If another
adapter plate is mounted, the actual dimensions can deviate by up to 10%.
3.6 Noise emission
Depending on the gearhead type and product size, the continuous sound pressure level is up
to 66 dB(A).
Please consult our Customer Service department if your gearhead is
older than a year. You will then receive the valid performance data.
Gearhead size SP+060 075 100 140 180 210 240
Design Stages
M11.9 3.9 7.7 17.2 34.0 56.0 77.0
22.0 3.6 7.9 17.0 36.4 53.0 76.0
Son request
Tbl-3: Weight [kg]
Contact our Customer Service department if you need information
about your particular product.

SP+Transport and storage
Revision: 03 2022-D033540 en-9
4 Transport and storage
4.1 Scope of delivery
zCheck the completeness of the delivery against the delivery note.
LMissing parts or damage must be notified immediately in writing to the carrier, the
insurance, or WITTENSTEIN alpha GmbH.
4.2 Packaging
The gearhead is delivered packed in foil and cardboard boxes.
zDispose of the packaging materials at recycling sites intended for that. Observe the locally
valid regulations for disposals.
4.3 Transport
Specifications on the weights, refer to Chapter 3.5 "Weight".
4.3.1 Transport of gearheads up to and including size SP+140
No special transport mode is prescribed for transporting the gearhead.
4.3.2 Transport of gearheads as of size SP+180

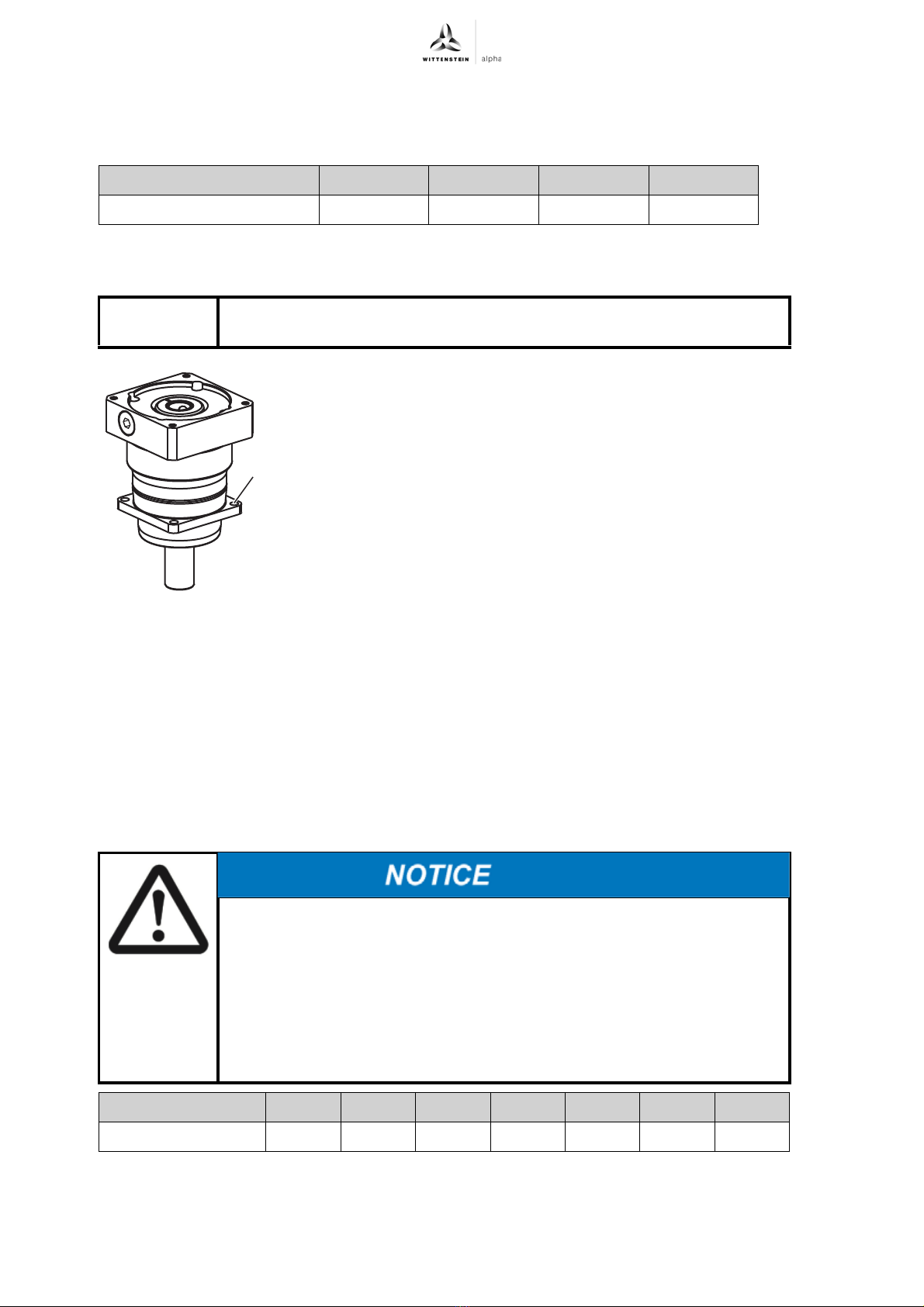

For gearheads as of size SP+180, a support bore (A) is provided for a ring screw (e.g. acc. to DIN
580). The ring screw is used for attaching the gearhead securely to the hoisting equipment.
4.4 Storage
Store the gearhead in horizontal position and dry surroundings at a temperature of 0 °C to +40 °C
in the original packaging. Store the gearhead for a maximum of 2 years.
For storage logistics, we recommend the "first in – first out" method.
Hard knocks, for instance because of falling or hard dropping, can
damage the gearhead.
zOnly use hoisting equipment and transports with sufficient capacity.
zThe maximum permitted lift capacity of a hoist may not be exceeded.
zLower the gearhead slowly.
Suspended loads can fall and can cause serious injuries and even
death.
zDo not stand under suspended loads.
Gearhead size SP+Support bore (A) [Ø]
180 M8
210 M10
240 M12
Tbl-4: Support bore on the gearhead
A

Assembly SP+
en-10 2022-D033540 Revision: 03
5 Assembly
zBe informed of the general safety instructions before beginning work. (see Chapter 2.7
"General safety instructions").
5.1 Preparations
zClean / De-grease the following components with a clean and lint-free cloth and grease-
dissolving, non-aggressive detergent:
- All fitting surfaces to neighboring components
- Centering
- The motor shaft
- The inside diameter of the clamping hub
- The bushing inside and out
zDry all fitting surfaces to neighboring components in order to achieve the proper friction values
of the screw connections.
zCheck the fitting surfaces additionally for damage and impurities.
5.2 Mounting the motor onto the gearhead
Pressurized air can damage the gearhead seals.
zDo not use pressurized air to clean the gearhead.
Directly sprayed cleaning agents can alter the frictional values of the
clamping hub.
zOnly spray cleaning agents onto a cloth, with which you can then clean
the clamping hub.
zObserve the general information and safety instructions of the motor
manufacturer.
zObserve the safety and processing instructions of the screw-bonding
agents to be used.

SP+Assembly
Revision: 03 2022-D033540 en-11
zSmear screw-bonding agent (for example Loctite 243) onto the four bolts (F).
zFasten the motor (D) onto the adaptor plate (B) with the four screws (F).
zSelect the tightening torque for the clamping bolt (H) according to the material of the clamping
ring (I).
- Clamping bolt for steel clamping ring: Property class 12.9
- Clamping bolt for aluminum clamping ring: Property class 8.8
LFor bolt sizes and specified torques refer to chapter 9.1 "Specifications on mounting onto a
motor", tables "Tbl-14".
zEnsure that the motor is mounted if possible in
a vertical direction.
zIf the motor shaft has a shaft key, remove the
shaft key.
LIf recommended by the motor manufacturer,
insert a half wedge.
zRemove the plug (A) from the mounting bore in
the adaptor plate (B).
zTurn the clamping hub (C) until the clamping
bolt (H) can be reached by the mounting bore.
zLoosen the clamping bolt (H) of the clamping
hub (C) by one revolution.
zPush the motor shaft into the clamping hub of
the gearhead (E).
LThe motor shaft should slip in easily. If this is
not the case, the clamping bolt must be
loosened more.
LA slotted bushing has to be installed extra for
certain motor shaft diameters and
applications.
LThe slot of the bushing (if provided) and
clamping hub have to be flush with the
groove (if provided) of the motor shaft, see
table "Tbl-5".
LNo gap is permitted between motor (D) and
the adaptor plate (B).
Designation
H Clamping bolt
I Steel/aluminum clamping ring
[part of the clamping hub (C)]
J Bushing
K Keyed motor shaft
L Smooth motor shaft
Tbl-5: Arrangement of motor shaft, clamping hub, and bushing
A
B
H
C
D
E
F

Assembly SP+
en-12 2022-D033540 Revision: 03
zTighten the clamping bolt (H) of the clamping hub (D).
zScrew in plug (A) of the adaptor plate (B).
LFor screw sizes and specified torques refer to table "Tbl-6".
5.3 Mounting the gearhead to a machine
5.4 Mounted components on the gear output side
The output shaft is manufactured as standard in the following versions:
- Smooth output shaft
- Grooved output shaft
- Involute gearing
- Slip-on shaft
zPlease observe for mounting to the slip-on shaft the further instructions in Chapter 5.4.1
"Mounting on the slip-on shaft with shrink disk".
Width across flats [mm] 5 8 10 12
Tightening torque [Nm] 10 35 50 70
Tbl-6: Torques for the plugs
zObserve the safety and processing instructions of the screw-bonding
agents to be used.
zCenter the gearhead in the machine bed.
zSmear a screw-bonding agent (for example Loctite 243) onto
the fastening screws.
zFasten the gearhead on the machine with the fastening
screws through the through-holes (A).
LMount the gearhead in such a way that the type plate
remains legible.
LDo not use washers (e.g. plain washers, tooth lock
washers).
LFor prescribed screw sizes and torques refer to
Chapter 9.3 "Specifications on mounting onto a machine",
table "Tbl-16".
Distortions during mounting operations can damage the gearhead.
zMount gearwheels and toothed belt pulleys onto the output shaft without
forcing.
zDo not on any account attempt an assembly by force or hammering!
zOnly use suitable tools and equipment for assembly.
zIf you pull on or shrink-fit a gearwheel onto the output shaft, you must
make sure that the maximum permitted static axial forces of the output
bearing (see table "Tbl-7") are not exceeded.
Size SP+060 075 100 140 180 210 240
Fa max[N] 9250 10750 18500 31250 49750 83250 97750
Tbl-7: Maximum permitted static axial forces at static bearing statistic (s0) = 1.8 and radial force (Fr) = 0
A

SP+Assembly
Revision: 03 2022-D033540 en-13
5.4.1 Mounting on the slip-on shaft with shrink disk
The slip-on shaft has a smooth design (without keyway). For the load shaft, we recommend the
tolerance h6 (DIN ISO 286). The material must have a minimum yield stress of 385 N/mm2. The
slip-on shaft is axially secured to the load shaft by means of a shrink disk connection. If you have
ordered a shrink disk, it has already been installed on the slip-on shaft.
zIn case you use another shrink disk, observe the instructions of the manufacturer.
LOnly the exterior surface of the slip-on shaft may be greased in the area of the shrink disk seat.
zSlide the slip-on shaft onto the load shaft by hand, taking into account the minimum clamping
length and the maximum permissible depth.
LFor the minimum clamping length and the maximum permitted depth of the slip-on shaft
see Chapter 9.2 "Specifications on mounting on the gear output side", table "Tbl-15".
Dirt can inhibit transmission of the torque.
zDo not disassemble the shrink disk prior to installation.
zDe-grease the load shaft and the slip-on shaft bore in the area of the
shrink disk seat, leaving no residual traces.
The forces of the shrink disk can deform the slip-on shaft.
zAlways install the load shaft first before tightening the clamping screws
of the shrink disk.
A jamming of the shafts can lead to damage.
zMake sure that the slip-on shaft is aligned with the machine shaft.
zMount the slip-on shaft onto the machine shaft without using force.
zDo not on any account attempt an assembly by hammering or applying
pressure.
zTighten the clamping screws (A) of the shrink disk
evenly distributed in multiple circular passes.
zTighten the individual clamping screws only up to
the maximum permitted tightening torque.
LFor bolt sizes and specified torques see
table "Tbl-8".
Gearhead size
SP+Clamping screw thread Tightening torque [Nm]
Property class
10.9 Property class Ax-80 )1
060, 075 M6 12 9
100 to 180 M8 29 21
)1Ax-80 = stainless steel (optional)
Tbl-8: Tightening torques for clamping screws of the supplied shrink disk
A

Assembly SP+
en-14 2022-D033540 Revision: 03
zCheck that the front surfaces of the outer and inner rings are aligned. Only then is the correct
braced condition obtained. If this flush alignment is not obtained during bracing, the tolerance
of the machine shaft must be checked.
zCheck twice in a row that the clamping screws (A) have the maximum tightening torque.
LIf you want to install a shrink disk that was supplied separately, read the information at
Chapter 5.4.2 "Installing the shrink disk".
5.4.2 Installing the shrink disk
LThe removed shrink disk does not need to be disassembled and regreased prior to bracing
again. It is only necessary to disassemble and clean the shrink disk when it is dirty.
LThe following lubricants are permissible for relubricating the shrink disk:
zPush the shrink disk onto the slip-on shaft.
LOnly the exterior surface of the slip-on shaft may be greased in the area of the shrink disk seat.
zPlease observe the instructions in Chapter 5.4.1 "Mounting on the slip-on shaft with shrink
disk".
Cleaned shrink disks can have other coefficients of friction. This can
lead to damage during mounting.
zLubricate the inner smooth surfaces of the shrink disk using a solid
lubricant with a coefficient of friction of μ= 0.04.
Lubricant Commercial form Manufacturer
Molykote 321 R
(lubricating varnish) spray DOW Corning
Molykote Spray (powder spray) spray DOW Corning
Molykote G Rapid spray or paste DOW Corning
Aemasol MO 19 P spray or paste A. C. Matthes
Molykombin UMFT 1 spray Klüber Lubrication
Unimoly P 5 powder Klüber Lubrication
Tbl-9: Lubricants for relubricating the shrink disk

SP+Startup and operation
Revision: 03 2022-D033540 en-15
6 Startup and operation
zBe informed of the general safety instructions before beginning work. (see Chapter 2.7
"General safety instructions").
Improper use can cause damage to the gearhead.
zMake sure that
- the ambient temperature does not drop below –15 °C or exceed
+40 °C and
- the operating temperature does not exceed +90 °C.
zAvoid icing, which can damage the seals.
zFor other conditions of use, please consult our Customer Service
Department.
zOnly use the gearhead only up to its maximum limit values, see
Chapter 3.4 "Performance statistics".
zOnly use the gearhead only in a clean, dust-free and dry environment.

Maintenance and disposal SP+
en-16 2022-D033540 Revision: 03
7 Maintenance and disposal
zBe informed of the general safety instructions before beginning work. (see Chapter 2.7
"General safety instructions").
7.1 Maintenance work
7.1.1 Visual inspection
zCheck the entire gearhead for exterior damage.
zThe radial shaft seals are subject to wear. Therefore also check the gearhead for leakage
during each visual inspection.
LYou can find more general information on radial shaft seals on our partner's Internet site at
http://www.simrit.de.
LCheck the mounting position, so that no foreign medium (e.g. oil) has collected on the
output shaft.
7.1.2 Checking the tightening torques
zCheck the tightening torque of the fastening bolts on the gearhead housing.
LYou can find the prescribed tightening torques in Chapter 9.3 "Specifications on mounting
onto a machine", table "Tbl-16".
zCheck the tightening torque of the clamping bolt on the motor mounting.
LYou can find the prescribed tightening torques in Chapter 9.1 "Specifications on mounting
onto a motor", table "Tbl-14".
7.2 Startup after maintenance work
zClean the outside of the gearhead.
zAttach all safety devices.
zDo a trial run before releasing the gearhead again for operation.
7.3 Maintenance schedule
Maintenance work At startup First time after
500 operating
hours
or 3 months
Every
3 months Yearly
Visual inspection XXX
Checking the
tightening torques XX X
Tbl-10: Maintenance schedule

SP+Maintenance and disposal
Revision: 03 2022-D033540 en-17
7.4 Notes on the lubricant used
You can receive further information on the lubricants directly from the manufacturer:
7.5 Disposal
Consult our Customer Service Department for supplementary information on exchanging the
adapter plate, on disassembly, and on disposal of the gearhead.
zDispose of the gearhead at the recycling sites intended for this purpose.
LObserve the locally valid regulations for disposals.
All gearheads are permanently lubricated by the manufacturer with
synthetic gear oil (polyglycols) of viscosity class ISO VG100, ISO VG220 or
with a high-performance lubricant (see type plate). All bearings are
permanently lubricated by the company.
Standard lubricants Lubricants for the food industry
(NSF-H1 registered)
Castrol Industrie GmbH, Mönchengladbach
Tel.: + 49 2161 909-30
www.castrol.com
Klüber Lubrication München KG, Munich
Tel.: + 49 89 7876–0
www.klueber.com
Tbl-11: Lubricant manufacturers

Malfunctions SP+
en-18 2022-D033540 Revision: 03
8 Malfunctions
Changedoperationalbehaviorcan beanindicationofexistingdamage
to the gearhead or cause damage to the gearhead.
zDo not put the gearhead back into operation until the cause of the
malfunction has been rectified.
Rectifying of malfunctions may be done by only by especially trained
technicians.
Fault Possible cause Solution
Increased operating
temperature
The gearhead is not suited
for the task.
Check the technical
specifications.
Motor is heating the
gearhead.
Check the wiring of the motor.
Ensure adequate cooling.
Change the motor.
Ambient temperature too
high.
Ensure adequate cooling.
Increased noises during
operation
Distortion in motor mounting Please consult our Customer
Service Department.
Damaged bearings
Damaged gear teeth
Loss of lubricant Lubricant quantity too high Wipe off discharged lubricant
and continue to watch the
gearhead. Lubricant
discharge must stop after a
short time.
Seals not tight Please consult our Customer
Service Department.
Tbl-12: Malfunctions
