WMH Tool Group JET JWR-200 Instruction Manual

Operating Instructions Manual
Wireless Remote Control
JWR-200
WMH TOOL GROUP
2420 Vantage Drive
Elgin, Illinois 60124 Part No. M-
Ph.: 800-274-6848 Revision A 12/07
www.wmhtoolgroup.com Copyright © WMH Tool Group

2
Warranty and Service
WMH Tool Group, Inc., warrants every product it sells. If one of our tools needs service or repair, one of our
Authorized Service Centers located throughout the United States can give you quick service. In most cases, any of
these WMH Tool Group Authorized Service Centers can authorize warranty repair, assist you in obtaining parts, or
perform routine maintenance and major repair on your JET® tools. For the name of an Authorized Service Center in
your area call 1-800-274-6848.
MORE INFORMATION
WMH Tool Group is consistently adding new products to the line. For complete, up-to-date product information, check
with your local WMH Tool Group distributor, or visit jettools.com.
WARRANTY

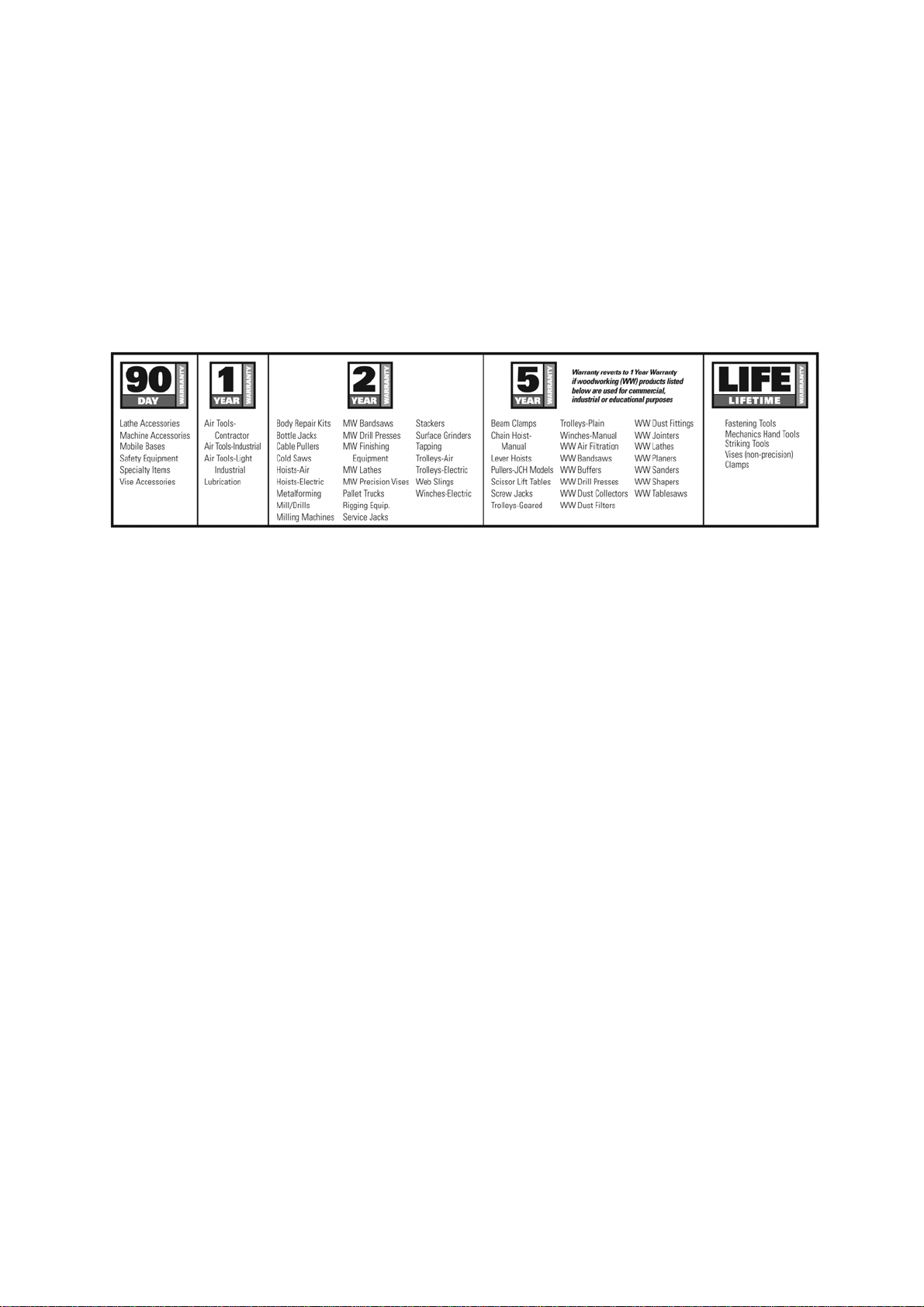

JET products carry a limited warranty which varies in duration based upon the product (MW = Metalworking, WW =
Woodworking).
WHAT IS COVERED?
This warranty covers any defects in workmanship or materials subject to the exceptions stated below. Cutting tools,
abrasives and other consumables are excluded from warranty coverage.
WHO IS COVERED?
This warranty covers only the initial purchaser of the product.
WHAT IS THE PERIOD OF COVERAGE?
The general JET warranty lasts for the time period specified in the product literature of each product.
WHAT IS NOT COVERED?
Five Year Warranties do not cover woodworking (WW) products used for commercial, industrial or educational
purposes. Woodworking products with Five Year Warranties that are used for commercial, industrial or education
purposes revert to a One Year Warranty. This warranty does not cover defects due directly or indirectly to misuse,
abuse, negligence or accidents, normal wear-and-tear, improper repair or alterations, or lack of maintenance.
HOW TO GET SERVICE
The product or part must be returned for examination, postage prepaid, to a location designated by us. For the name
of the location nearest you, please call 1-800-274-6848.
You must provide proof of initial purchase date and an explanation of the complaint must accompany the
merchandise. If our inspection discloses a defect, we will repair or replace the product, or refund the purchase price,
at our option. We will return the repaired product or replacement at our expense unless it is determined by us that
there is no defect, or that the defect resulted from causes not within the scope of our warranty in which case we will,
at your direction, dispose of or return the product. In the event you choose to have the product returned, you will be
responsible for the shipping and handling costs of the return.
HOW STATE LAW APPLIES
This warranty gives you specific legal rights; you may also have other rights which vary from state to state.
LIMITATIONS ON THIS WARRANTY
WMH TOOL GROUP LIMITS ALL IMPLIED WARRANTIES TO THE PERIOD OF THE LIMITED WARRANTY FOR
EACH PRODUCT. EXCEPT AS STATED HEREIN, ANY IMPLIED WARRANTIES OR MERCHANTABILITY AND
FITNESS ARE EXCLUDED. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG THE IMPLIED
WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU.
WMH TOOL GROUP SHALL IN NO EVENT BE LIABLE FOR DEATH, INJURIES TO PERSONS OR PROPERTY,
OR FOR INCIDENTAL, CONTINGENT, SPECIAL, OR CONSEQUENTIAL DAMAGES ARISING FROM THE USE
OF OUR PRODUCTS. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR
CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU.
WMH Tool Group sells through distributors only. The specifications in WMH catalogs are given as general information
and are not binding. Members of WMH Tool Group reserve the right to effect at any time, without prior notice, those
alterations to parts, fittings, and accessory equipment which they may deem necessary for any reason whatsoever.
JET® branded products are not sold in Canada by WMH Tool Group.

3
Table of Contents
Warranty and Service....................................................................................................................................2
Table of Contents..........................................................................................................................................3
Introduction ...................................................................................................................................................3
Warning.........................................................................................................................................................4
Operation……………………………………………………………………………………………………………...5
Specifications………………………………………………………………………………………………………5-6
Wiring Diagram……………………………………………………………………………………………………….6
Introduction
This manual is provided by WMH Tool Group covering the safe operation and maintenance procedures
for the JET JWR-200 Wireless Remote Control. This manual contains instructions on installation, safety
precautions, general operating procedures, maintenance instructions. This tool has been designed and
constructed to provide years of trouble free operation if used in accordance with instructions set forth in
this manual. If there are any questions or comments, please contact either your local supplier or WMH
Tool Group. WMH Tool Group can also be reached at our web site: www.wmhtoolgroup.com.
Record your purchase information here for quick reference:
Model No.: Stock No.: Serial No.:
Purchased From: Date Purchased:

4
Warning
15.19 FCC Compliance Statement
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that
may cause undesired operation.
15.21 Statement
Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.

5
OPERATING INSTRUCTIONS
Please read the manual carefully, Before using of this equipment.
The person who operates it should be trained and graduated.
The operator must watching the equipment’s operating Clearly.
Two or more equipments should be in different frequency, if they are use
in the same place. The radio frequency of two Equipments must in diffent
channels.
The equipment should be regular maintenanced.
Handset operating instructions
1) Battery
The handset needs two batteries (Size AAA/LR03). Please
Note that positive and negative, when installing the battery.
Handset work in ultra low-power automatically, if handset
is not be used.
2) Start
After pressed the “start/stop” (RED) button and lasted about
1.5s, the Red and Blue LED will shine, prompt system start
working.
3) Function Key
In normal status, The red LED will twinkle, pressed one
of the handset’s function key , the blue LED will light and
corresponding relay will operate.
4) The Responding Relay
The function key of handset and the relay of controller have
correspondence. Please refer to figure 0.1.
5) Incompatible Order
If Order is Incompatible, The corresponding relay will
separation, return to initial state.
6) Low Energy warning
If the red LED twinkle faster, please change the new battery.
Technical Parameter
Storage temperature: -30 ~ +70°C
Operating temperature: -20 ~ +50°C
Frequency: 431.525M Hz
Signal intensity: < 8 dBm
Signal bandwidth: < 134 kHz

6
Receiver sensitivity: < 2 µV
Modulation system: FSK
Receiver power: 115V~230VAC /3W
Antenna brand: KENWOOD
Antenna gain: 2 dB
Antenna connector type: BNC / Q9
Handset antenna: Built-in PCB antenna
Wiring Diagram
Figure 0.1.
Port Defines:
1 - 3 Power Supply 115V~230V AC
4 - 5 START/STOP relay
6 - 7 UP relay
8 - 9 DOWN relay
10 - 11 LEFT relay
12 - 13 RIGHT relay
Fuse Specification: 1A/250V AC
