WNC DHUR-AZ53 User manual

MODEL: DHUR-AZ53
Wistron Neweb Corporation
1 of 21
DHUR-AZ53 a/b/g/n/ac
1x1 Module
User Manual

MODEL: DHUR-AZ53
Wistron Neweb Corporation
2 of 21
Contents
1. Product Introduction……………………..…………………………………….……………………………………………………………….4
1-1. Features…………………………………………………………………………………………………..……………………………………………………………….4
1-2. Interfaces and Power Supply………………………………………………………………………………………..…………………………………………..4
2. Product Photo……………………..……………………………….……………………………………………………………………………...5
3. Product Specification…………………………..………………………………………………………………………………………………..6
3-1. Electrical Specification ………………………….………………………….….…………………………………………………………………….……..……..6
3-2. Chip Sequence………………………….……………………………….…..…………………………………………………………………………..………..…..6
3-3. Wi-Fi Portion……………………………………………………………..….…………………………………………………………………………………..……..7
3-4. BT Portion………………………………………………………………..….……………………….………………………………….……………………..………12
4. Mechanical Drawing…………………………………..……………………………………………………………………….………..……13
5. Shielding cover Information……………………………………………………………………………………………………..…………14
6. Connector Information………………………………………………….…………………………………………………………..……….15
7. Coaxial IPEX Connector……………………………………………………………………….………………………………………………15
8. Packing……………………………………………………………………………………….………………………………………………………16

MODEL: DHUR-AZ53
Wistron Neweb Corporation
3 of 21
Product Introduction
DHUR-AZ53 is an 802.11 a/b/g/n/ac WLAN/Bluetooth 5.0 combo module with USB interface based on
MediaTek MT7653BUN chipset solution.
1-1. Features
IEEE 802.11a/b/g/n/ac compatible + Bluetooth 5.0.
Support 20MHz, 40MHz and 80MHz bandwidth in 2.4GHz band and 5GHz band.
Support MU-MIMO TX/RX, STBC, LDPC, TX Beamformer and RX Beamformee.
Supports Bluetooth 5 dual mode for 4x the range, 2x the speed
Support SCO and eSCO link with re-transmission, up to 7 BT link 16 BLE link.
1 Wi-Fi external antenna and 1 BT external antenna
PCB 4 Layers with 46.5 x 40 x1.0 mm3
1-2.Interfaces and Power supply
Power supply with VCC 5.0
10 pin wire to board
USB 2.0 Interface

MODEL: DHUR-AZ53
Wistron Neweb Corporation
4 of 21

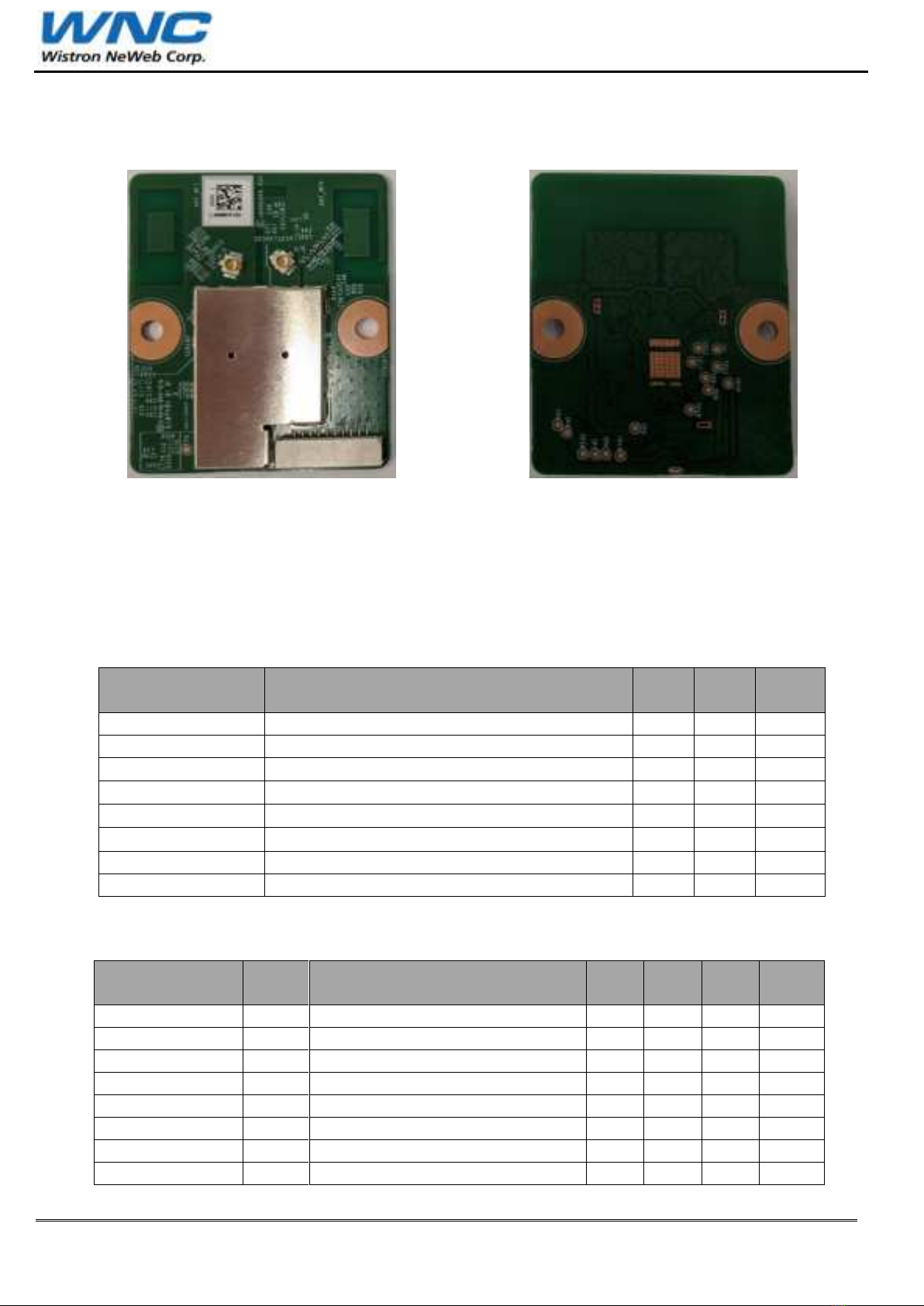

2Product Photo
Top Side Bottom Side
3. Product Specification
3-1. Electrical Specification
3-1-1. Absolute Maximum Ratings
Symbol
(Board level)
Description
Min.
Max.
Units
5V
5V power supply
0
6.0
V
RESET
Controlled by SOC, GPIO input
-0.3
3.63
V
BT_WAKE_HOST
BT wake up host, GPIO output
-0.3
3.63
V
WoWLAN
Wake on Wireless LAN, GPIO output
-0.3
3.63
V
BT_IR
BT_IR signal from MT7658, GPIO output
-0.3
3.63
V
GPIO_X
BT_IR signal select, GPIO output
-0.3
3.63
V
Hstorage
Storage humidity
5
85
%RH
Tstorage
Storage temperature
-40
85
° C
3-1-2. Recommended Operating Conditions
Symbol
(Board level)
Status
Description
Min.
Typ.
Max.
Units
5V
--
5V power supply
4.5
5.0
5.5
V
RESET
VIH
3.3V Supply Voltage
2.97
3.3
3.63
V
WoWLAN
VOH
Wake on wireless LAN
2.97
3.3
3.63
V
BT_WAKE_HOST
VIH
BT wake up host
2.97
3.3
3.63
V
BT_IR
VOH
BT_IR signal form MT7658
2.97
3.3
3.63
V
GPIO_X
VIH
BT_IR signal select
2.97
3.3
3.63
V
Toperating
--
Operating temperature
-10
--
60
° C
Hoperating
--
Operating humidity
5
--
95
%RH

MODEL: DHUR-AZ53
Wistron Neweb Corporation
5 of 21

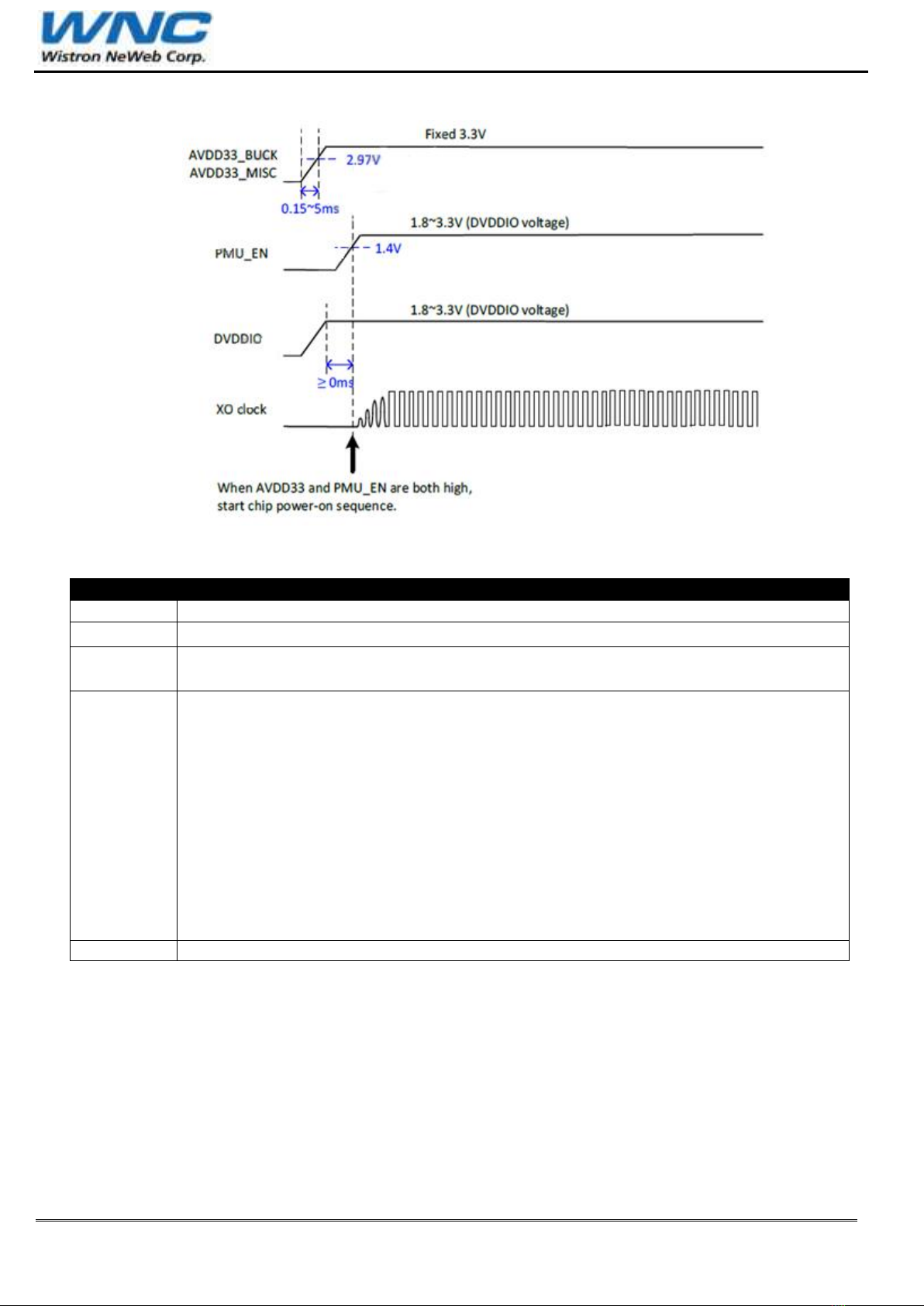

3-2. Chip Sequence
3-3. Wi-Fi Portion
Item
Key specifications
Main chipset
MT7653BUN
TX/RX
1T1R
Frequency
range
2.400 ~ 2.497GHz,5.15GHz ~ 5.85GHz
Modulation
technique
802.11 a/b/g
DSSS (DBPSK, DQPSK, CCK)
OFDM (BPSK, QPSK, 16-QAM, 64-QAM)
DSSS (Direct Sequence Spread Spectrum) with
DBPSK (Differential Binary Phase Shift Keying 1Mbps),
DQPSK (Differential Quaternary Phase Shift Keying 2Mbps),
CCK (Complementary Code Keying 5.5&11Mbps),
OFDM (Orthogonal Frequency Division Multiplexing with BPSK for 6,9Mbps、QPSK for
12,18Mbps、16QAM for 24,36Mbps、64QAM for 48,54Mbps)
802.11n a/g
OFDM (BPSK, QPSK, 16-QAM, 64-QAM)
802.11 ac
OFDM (BPSK, QPSK, 16-QAM, 64-QAM,256-QAM)
Host interface
USB2.0

MODEL: DHUR-AZ53
Wistron Neweb Corporation
6 of 21
Power
consumption
@25 o C
Description
Current
average
Unit
Sleep mode, radio off
1.23
mA
2.4GHz RX Power saving, DTIM=1
2.39
mA
2.4GHz RX Active, HT20, MCS7
107
mA
2.4GHz TX CCK, 11Mbps
413
mA
2.4GHz TX HT20, MCS7
342
mA
2.4GHz TX HT20, MCS0
365
mA
5GHz VHT80 RX Listen, 1RX
129
mA
5GHz RX Active, VHT80, MCS9, Nss=1
150
mA
5GHz TX VHT80, MCS9, Nss=1
405
mA
5GHz TX VHT80, MCS0, Nss=1
426
mA

MODEL: DHUR-AZ53
Wistron Neweb Corporation
7 of 21
Output
power
(per chain;
2.4G
tolerance
+/-2.5 dB,
5G tolerance
+/-3,0dB)
802.11a
Test Frequencies 6-36_Target 48_Target 54_Target
5180 15.5 15.5 14.5
5320 15.5 15.5 14.5
5500 15.5 15.5 14.5
5600 15.5 15.5 14.5
5700 15.5 15.5 14.5
5825 15.5 15.5 14.5
802.11b
Test Frequencies 1/2_Target 5.5_Target 11_Target
2412 18.518.5 18.5
2472 18.518.5 18.5
2484 18.518.5 18.5
802.11g
Test Frequencies 6-12_Target 18_Target 24_Target 36_Target 48_Target 54_Target
2412 16.5 16.5 16.5 16.5 16.5 15.5
2442 16.5 16.5 16.5 16.5 16.5 15.5
2472 16.5 16.5 16.5 16.5 16.5 15.5
802.11n
Freq. Range: HT20
Test Freq MCS 0 MCS 1 MCS 2 MCS 3 MCS 4 MCS 5 MCS 6 MCS 7
5180 15 15 15 15 15 15 15 15
5240 15 15 15 15 15 15 15 15
5320 15 15 15 15 15 15 15 15
5500 15 15 15 15 15 15 15 15
5700 15 15 15 15 15 15 15 15
5745 15 15 15 15 15 15 15 15
5825 15 15 15 15 15 15 15 15
Freq. Range: HT40
Test Freq MCS 0 MCS 1 MCS 2 MCS 3 MCS 4 MCS 5 MCS 6 MCS 7
5190 15 15 15 15 15 15 15 15
5230 15 15 15 15 15 15 15 15
5270 15 15 15 15 15 15 15 15
5510 15 15 15 15 15 15 15 15
5670 15 15 15 15 15 15 15 15
5755 15 15 15 15 15 15 15 15
5795 15 15 15 15 15 15 15 15
Freq. Range: HT20
Test Freq MCS 0 MCS 1 MCS 2 MCS 3 MCS 4 MCS 5 MCS 6 MCS 7
2412 16 16 16 16 16 16 16 16
2437 16 16 16 16 16 16 16 16
2472 16 16 16 16 16 16 16 16
Freq. Range: HT40
Test Freq MCS 0 MCS 1 MCS 2 MCS 3 MCS 4 MCS 5 MCS 6 MCS 7
2412 16 16 16 16 16 16 16 16
2437 16 16 16 16 16 16 16 16
2472 16 16 16 16 16 16 16 16

MODEL: DHUR-AZ53
Wistron Neweb Corporation
8 of 21
802.11ac
Freq. Range: VHT20
Test Freq MCS 0 MCS 1 MCS 2 MCS 3 MCS 4 MCS 5 MCS 6 MCS 7 MCS8
5180 15 15 15 15 15 15 15 15 15
5240 15 15 15 15 15 15 15 15 15
5320 15 15 15 15 15 15 15 15 15
5500 15 15 15 15 15 15 15 15 15
5700 15 15 15 15 15 15 15 15 15
5745 15 15 15 15 15 15 15 15 15
5825 15 15 15 15 15 15 15 15 15
Freq. Range: VHT40
Test Freq MCS 0 MCS 1 MCS 2 MCS 3 MCS 4 MCS 5 MCS 6 MCS 7 MCS 8 MCS 9
5210 14 14 14 14 14 14 14 14 14 14
5290 14 14 14 14 14 14 14 14 14 14
5530 14 14 14 14 14 14 14 14 14 14
5610 14 14 14 14 14 14 14 14 14 14
5690 14 14 14 14 14 14 14 14 14 14
5775 14 14 14 14 14 14 14 14 14 14
Freq. Range: VHT80
Test Freq MCS 0 MCS 1 MCS 2 MCS 3 MCS 4 MCS 5 MCS 6 MCS 7 MCS 8 MCS 9
5210 14 14 14 14 14 14 14 14 14 14
5290 14 14 14 14 14 14 14 14 14 14
5530 14 14 14 14 14 14 14 14 14 14
5610 14 14 14 14 14 14 14 14 14 14
5690 14 14 14 14 14 14 14 14 14 14
5775 14 14 14 14 14 14 14 14 14 14
Sensitivity
802.11a
Modulation
Code Rate
IEEE Spec (1Rx dBm)
Typical (1Rx dBm)
BPSK
1/2
-82
-89
BPSK
3/4
-81
-88
QPSK
1/2
-79
-87
QPSK
3/4
-77
-85
16-QAM
1/2
-74
-82
16-QAM
3/4
-70
-78
64-QAM
2/3
-66
-74
64-QAM
3/4
-65
-67
802.11b
Modulation
Code Rate
IEEE Spec (1Rx dBm)
Typical (1Rx dBm)
DBPSK
-
not specified
-97
DQPSK
-
not specified
-94
DQPSK
CCK
not specified
-92
DQPSK
CCK
not specified
-90
802.11g
Modulation
Code Rate
IEEE Spec (1Rx dBm)
Typical (1Rx dBm)
BPSK
1/2
-82
-94
BPSK
3/4
-81
-90
QPSK
1/2
-79
-91
QPSK
3/4
-77
-88
16-QAM
1/2
-74
-84
16-QAM
3/4
-70
-82
64-QAM
2/3
-66
-79
64-QAM
3/4
-65
-76

MODEL: DHUR-AZ53
Wistron Neweb Corporation
9 of 21
802.11ng（HT20）
Modulation
Code Rate
IEEE Spec (1Rx dBm)
Typical (1Rx dBm)
(MCS0) BPSK
1/2
-82
-94
(MCS1) QPSK
1/2
-79
-91
(MCS2) QPSK
3/4
-77
-88
(MCS3) 16-QAM
1/2
-74
-82
(MCS4) 16-QAM
3/4
-70
-81
(MCS5) 64-QAM
2/3
-66
-79
(MCS6) 64-QAM
3/4
-65
-77
(MCS7) 64-QAM
5/6
-64
-74
（HT40）
Modulation
Code Rate
IEEE Spec (1Rx dBm)
Typical (1Rx dBm)
(MCS0) BPSK
1/2
-79
-88
(MCS1) QPSK
1/2
-76
-86
(MCS2) QPSK
3/4
-74
-84
(MCS3) 16-QAM
1/2
-71
-81
(MCS4) 16-QAM
3/4
-67
-78
(MCS5) 64-QAM
2/3
-63
-74
(MCS6) 64-QAM
3/4
-62
-69
(MCS7) 64-QAM
5/6
-61
-65
802.11na（HT20）
Modulation
Code Rate
IEEE Spec (1Rx dBm)
Typical (1Rx dBm)
(MCS0) BPSK
1/2
-82
-89
(MCS1) QPSK
1/2
-79
-86
(MCS2) QPSK
3/4
-77
-84
(MCS3) 16-QAM
1/2
-74
-82
(MCS4) 16-QAM
3/4
-70
-79
(MCS5) 64-QAM
2/3
-66
-74
(MCS6) 64-QAM
3/4
-65
-73
(MCS7) 64-QAM
5/6
-64
-66
（HT40）
Modulation
Code Rate
IEEE Spec (1Rx dBm)
Typical (1Rx dBm)
(MCS0) BPSK
1/2
-79
-86
(MCS1) QPSK
1/2
-76
-84
(MCS2) QPSK
3/4
-74
-82
(MCS3) 16-QAM
1/2
-71
-80
(MCS4) 16-QAM
3/4
-67
-80
(MCS5) 64-QAM
2/3
-63
-78
(MCS6) 64-QAM
3/4
-62
-76
(MCS7) 64-QAM
5/6
-61
-73
802.11ac（HT80）
Modulation
Code Rate
IEEE Spec (1Rx dBm)
Typical (1Rx dBm)
(MCS0) BPSK
1/2
-76
-88
(MCS1) QPSK
1/2
-73
-86
(MCS2) QPSK
3/4
-71
-83
(MCS3) 16-QAM
1/2
-68
-80
(MCS4) 16-QAM
3/4
-64
-78
(MCS5) 64-QAM
2/3
-60
-76
(MCS6) 64-QAM
3/4
-59
-73
(MCS7) 64-QAM
5/6
-58
-71
(MCS8) 256-QAM
3/4
-53
-65
(MCS9) 256-QAM
5/6
-51
-59

MODEL: DHUR-AZ53
Wistron Neweb Corporation
10 of 21
Transmit
spectrum
mask
For transmitted spectral mask for 11b shall be less than –50dBr for 22MHz<f<fc+22MHz.
For transmitted spectral mask for 11g shall be less than –40dBr for fc–30MHz<f<fc+30MHz.
For transmitted spectral mask for 11n 20MHz shall be less than –45dBr for fc–30MHz<f<fc+30MHz.
For transmitted spectral mask for 11n 40MHz shall be less than –45dBr for fc–60MHz<f<fc+60MHz.
Transmit
spectrum
flatness
For 802.11g the average energy of the constellations in each of spectral lines –16..-1 and +1..+16 will
deviate no more than +/- 2dB from their average energy.
For 802.11n 40MHz mode, the average energy of the constellations in each of spectral lines –42..-2 and
+2..+42 will deviate no more than +/- 2dB from their average energy.
The transmitted spectral flatness should be within +2/- 4dB.
Transmit
center
frequency
tolerance
The transmitted center frequency tolerance shall be ±20 ppm maximum.
Carrier
suppression
802.11a:
The leakage of the center frequency component shall not exceed -15 dB relative to overall
transmitted power or, equivalently, +2 dB relative to the average energy of the rest of the sub-
carriers.
802.11b:
The RF carrier suppression, measured at the channel center frequency, shall be at least 15 dB below
the peak SIN(x)/x power spectrum.
802.11g:
The leakage of the center frequency component shall not exceed -15 dB relative to overall
transmitted power or, equivalently, +2 dB relative to the average energy of the rest of the sub-
carriers.
802.11n:
For all 20 MHz modes of transmission, the leakage of center frequency component shall not exceed -
15 dB relative to overall transmitted power or, equivalently, +2 dB relative to the average energy of
rest of sub-carriers.
For all 40 MHz modes of transmission, the center frequency leakage shall not exceed -18 dB relative
to overall transmitted power, or, equivalently, +2 dB relative to the average energy of rest of sub-
carriers.
Transmit
power on
ramp and
power down
ramp time
The transmitting power-on ramp for 10% to 90% of maximum power m shall be no greater than 2 µs.
The transmitting power-down ramp for 90% to 10% of maximum power shall be no greater than 2 µs.
Receiver
maximum
input level
802.11a
Modulation Code Rate IEEE Spec (1Rx dBm)
>-30
802.11b
Modulation IEEE Spec (1Rx dBm)
DBPSK >-10
DQPSK >-10
CCK >-10
802.11g
Modulation Code Rate IEEE Spec (1Rx dBm)
>-20
802.11na
Modulation Code Rate IEEE Spec (1Rx dBm)
>-30
802.11ng
Modulation Code Rate IEEE Spec (1Rx dBm)
>-20
802.11ac
Modulation Code Rate IEEE Spec (1Rx dBm)
>-30
PCB
dimension
46.0+/-0.1mm x 40.00+/-0.1mm x 1.0+/-0.1mm 4L FR4

MODEL: DHUR-AZ53
Wistron Neweb Corporation
11 of 21
Transfer
data rate
802.11a: 6, 9, 12, 18, 24, 36, 48, 54Mbps
802.11b: 1, 2, 5.5, 11Mbps
802.11g: 6, 9, 12, 18, 24, 36, 48, 54Mbps
802.11n: @800GI(400GI)
20MHz BW
1 Nss: 65(72.2) Mbps maximal
40MHz BW
1 Nss: 135(150) Mbps maximal
802.11ac: @800GI(400GI)
80MHz BW
1 Nss: 390(433.3) Mbps maximal
Security
WEP, WPA ,WPA2 ,AES, TKIP
Operation
temperature
-10o~ 60oC
Storage
temperature
- 45o~ 85oC ,R.H:90%（non-condensing）
Antenna
1 RF connector on module for Wi-Fi external antenna.
3.4 BT Portion
Item
Key specifications
Main chipset
MT7653BUN
Compliance
Bluetooth 5.0
Frequency
range
2400 ~ 2483.5MHz
Initial carrier
frequency
tolerance
+/- 40kHz (typical)
Modulation
technique
Frequency hopping, 1600 hops/sec
Channel
spacing
1MHz
Channels
support
79 channels
Power
consumption
@25 o C
Description
Current
average
Unit
Sleep mode, radio off
1.73
mA
Bluetooth TX
86.5
mA
Bluetooth RX
29.4
mA
Bluetooth SCO connection, HV3 packets + sniff mode + scan
(Page scan internal = 1.28sec, inquiry scan interval = 2.56s, sniff interval =
500ms)
3.2
mA
Bluetooth page scan + inquiry scan
(Page scan interval = 1.28s, inquiry scan interval = 2.56s)
2.14
mA
Bluetooth page scan
(Page scan interval = 1.28s)
1.92
mA
Note：
※The maximum current consumption would be impacted by radiation environment and the driver
mechanism.
Output power
(dBm)
+ 4 dBm ≤ Output Power ≤ +10dBm （Class I Device）

MODEL: DHUR-AZ53
Wistron Neweb Corporation
12 of 21
Sensitivity
-80 dBm (typ.) for pi/4-DQPSK, 0.1%BER
Operation
temperature
-10o~ 60oC
Storage
temperature
-45o~ 85oC , R.H. : 90%（non-condensing）
Antenna
1 RF connector on module for BT external antenna.
4. Mechanical Drawing

MODEL: DHUR-AZ53
Wistron Neweb Corporation
13 of 21
5. Shielding cover Information

MODEL: DHUR-AZ53
Wistron Neweb Corporation
14 of 21
6. Connector Information
7. Coaxial RF Connector

MODEL: DHUR-AZ53
Wistron Neweb Corporation
15 of 21
8. Packing

MODEL: DHUR-AZ53
Wistron Neweb Corporation
16 of 21
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
IMPORTANT NOTE:
Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20cm
between the radiator & your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
Country Code selection feature to be disabled for products marketed to the US/CANADA

MODEL: DHUR-AZ53
Wistron Neweb Corporation
17 of 21
Integration instructions for host product manufacturers
Applicable FCC rules to module
FCC Part 15.247
Summarize the specific operational use conditions
The module is must be installed in mobile device.
This device is intended only for OEM integrators under the following conditions:
1) The antenna must be installed such that 20 cm is maintained between the antenna and
users, and
2) The transmitter module may not be co-located with any other transmitter or antenna
3) For all products market in US, OEM has to limit the operation channels in CH1 to CH11 for
2.4G band
by supplied firmware programming tool. OEM shall not supply any tool or info to the end-user
regarding
to Regulatory Domain change.
As long as 3 conditions above are met, further transmitter test will not be required. However, the
OEM integrator is still responsible for testing their end-product for any additional compliance
requirements required with this module installed.
IMPORTANT NOTE: In the event that these conditions can not be met (for example certain laptop
configurations or co-location with another transmitter), then the FCC authorization is no longer
considered valid and the FCC ID can not be used on the final product. In these circumstances, the
OEM integrator will be responsible for re-evaluating the end product (including the transmitter)
and obtaining a separate FCC authorization. The OEM integrator has to be aware not to provide
information to the end user regarding how to install or remove this RF module in the user’s
manual of the end product which integrates this module.
The end user manual shall include all required regulatory information/warning as show in this
manual.
Limited module procedures
Not applicable
Trace antenna designs
Not applicable
RF exposure considerations
20 cm separation distance and co-located issue shall be met as mentioned in “Summarize the
specific operational use conditions”.
Product manufacturer shall provide below text in end-product manual
“This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20cm
between the radiator & your body.”
Antennas
Brand
Model
Type
Peak gain ( dBi )
Connector
2400~2483.5MHz
5150~5250MHz
5250~5350MHz
5470~5725MHz
5725~5850MHz
WNC
WF1_ANT
PIFA
NA
3.16
2.17
1.71
1.49
1.61
WNC
81.EK615.GAA
PIFA
IPEX
2.26
6.34
6.34
6.54
6.93
WNC
81.EK615.GAF
PIFA
IPEX
3.09
4.23
4.23
5.35
4.06

MODEL: DHUR-AZ53
Wistron Neweb Corporation
18 of 21
Label and Compliance Information
Product manufacturers need to provide a physical or e-label stating
“Contains FCC ID: NKR-DHURAZ53” with finished product
Information on Test Modes and Additional Testing Requirements
Test tool: QA Tool, Version: V0.02.6 for WLAN；WCn Combo Tool, Version: V2.1749.00 for BT
shall be used to set the module to transmit continuously.
Additional Testing, Part 15 Subpart B Disclaimer
The module is only FCC authorized for the specific rule parts listed on the grant, and that the host
product manufacturer is responsible for compliance to any other FCC rules that apply to the host
not covered by the modular transmitter grant of certification. The final host product still requires
Part 15 Subpart B compliance testing with the modular transmitter installed

MODEL: DHUR-AZ53
Wistron Neweb Corporation
19 of 21
Industry Canada statement:
This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science
and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following
two conditions:
(1) This device may not cause interference
(2) This device must accept any interference, including interference that may cause undesired
operation of the device
L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR
d’Innovation, Sciences et Développement économique Canada applicables aux appareils radio
exempts de licence. L’exploitation est autorisée aux deux conditions suivantes :
(1) L’appareil ne doit pas produire de brouillage;
(2) L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible
d’en compromettre le fonctionnement.
Caution:
(i) the device for operation in the band 5150–5250 MHz is only for indoor use to
reduce the potential for harmful interference to co-channel mobile satellite systems;
(ii) for devices with detachable antenna(s), the maximum antenna gain permitted
for devices in the bands 5250-5350 MHz and 5470-5725 MHz shall be such that the equipment still
complies with the e.i.r.p. limit;
(iii) for devices with detachable antenna(s), the maximum antenna gain permitted
for devices in the band 5725-5850 MHz shall be such that the equipment still complies with the e.i.r.p.
limits as appropriate; and
Operations in the 5.25-5.35GHz band are restricted to indoor usage only.
Avertissement:
(i) les dispositifs fonctionnant dans la bande de 5 150 à 5 250 MHz sont
réservés uniquement pour une utilisation à l’intérieur afin de réduire les risques de brouillage
préjudiciable aux systèmes de satellites mobiles utilisant les mêmes canaux;
(ii) pour les dispositifs munis d’antennes amovibles, le gain maximal d’antenne
permis pour les dispositifs utilisant les bandes de 5 250 à 5 350 MHz et de 5 470 à 5 725 MHz doit
être conforme à la limite de la p.i.r.e;
(iii) pour les dispositifs munis d’antennes amovibles, le gain maximal d’antenne permis (pour les
dispositifs utilisant la bande de 5 725 à 5 850 MHz) doit être conforme à la limite de la p.i.r.e.
spécifiée, selon le cas;

MODEL: DHUR-AZ53
Wistron Neweb Corporation
20 of 21
Les opérations dans la bande de 5.25-5.35GHz sont limités à un usage intérieur seulement.
Radiation Exposure Statement:
This equipment complies with Canada radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20cm
between the radiator & your body.
Déclaration d'exposition aux radiations:
Cet équipement est conforme Canada limites d'exposition aux radiations dans un environnement
non contrôlé. Cet équipement doit être installé et utilisé à distance minimum de 20cm entre le
radiateur et votre corps.
This device is intended only for OEM integrators under the following conditions:
1) The transmitter module may not be co-located with any other transmitter or antenna.
As long as 1 condition above are met, further transmitter test will not be required. However, the OEM
integrator is still responsible for testing their end-product for any additional compliance requirements
required with this module installed.
Cet appareil est conçu uniquement pour les intégrateurs OEM dans les conditions suivantes:
1) Le module émetteur peut ne pas être coïmplanté avec un autre émetteur ou antenne.
Tant que les 1 condition ci-dessus sont remplies, des essais supplémentaires sur l'émetteur ne
seront pas nécessaires. Toutefois, l'intégrateur OEM est toujours responsable des essais sur son
produit final pour toutes exigences de conformité supplémentaires requis pour ce module installé.
IMPORTANT NOTE:
In the event that these conditions can not be met (for example certain laptop configurations or co-
location with another transmitter), then the Canada authorization is no longer considered valid and
the IC ID can not be used on the final product. In these circumstances, the OEM integrator will be
responsible for re-evaluating the end product (including the transmitter) and obtaining a separate
Canada authorization.
NOTE IMPORTANTE:
Dans le cas où ces conditions ne peuvent être satisfaites (par exemple pour certaines configurations
d'ordinateur portable ou de certaines co-localisation avec un autre émetteur), l'autorisation du
Canada n'est plus considéré comme valide et l'ID IC ne peut pas être utilisé sur le produit final. Dans
ces circonstances, l'intégrateur OEM sera chargé de réévaluer le produit final (y compris l'émetteur)
et l'obtention d'une autorisation distincte au Canada.
End Product Labeling
