Wohler VIS 200 User manual

The measure of technology
US
Operating manual
Service Camera
Wöhler VIS 200 / 250
Wöhler VIS 300 / 350
Order no. 23102 2014-02-10

Contents
2
Contents 1General Information..............................4
1.1 Information about the operating instructions . 4
1.2 Notes............................................................. 4
1.3 Proper use..................................................... 5
1.4 Scope of supply............................................. 5
1.5 Transporting.................................................. 6
1.6 Information on disposal................................. 6
1.7 Manufacturer's address................................. 6
2Important information...........................7
3Camera Models .....................................9
4Technical data.....................................10
4.1 Monitor........................................................ 10
4.2 Miniature Camera Head (Wöhler VIS
200/250)...................................................... 10
4.3 Miniature Camera Head (Wöhler VIS
300/350)...................................................... 11
4.4 Push rod...................................................... 12
4.5 Electronic distance counter ......................... 12
4.6 Memory (Wöhler VIS 250 / 350)................. 12
6Design and function ...........................13
6.1 Video inspection system.............................. 13
6.2 Control panel............................................... 15
6.3 Monitor........................................................ 18
6.3.1 Adjusting the Color...................................... 18
6.3.2 Transition from 16:9 Screen to 4:3 Screen.. 19
7Getting started ....................................20
7.1 Rechargeable battery status and recharging20
7.2 Working position.......................................... 21
8Working with the camera...................22
8.1 Switching on the system and monitor.......... 22
8.2 Memory (Wöhler VIS 250 / 350).................. 23
8.3 Inspection.................................................... 26
8.4 Information displayed on the monitor .......... 26

Contents
3
US
EN
8.4.1 Displaying the position of the camera head
(Wöhler VIS 250/350)..................................26
8.5 Home Function (only Wöhler VIS 350) ........27
8.6 Video Record (Wöhler VIS 250 / 350)..........28
8.7 Video playback (Wöhler VIS 250 / 350).......28
9Images (Wöhler VIS 250 / 350)...........29
10 Delete a Video (Wöhler VIS 250 / 350) ..
..............................................................29
11 Transferring images and videos to a
PC (Wöhler VIS 250/350)....................30
12 Video Playback at PC
(Wöhler VIS 250/350)...........................31
12.1 Installing the VLC viewer .............................31
12.2 Generating snapshots..................................31
12.3 Output directory for snapshots.....................32
13 Guide accessories..............................33
14 Faults...................................................34
15 Maintenance........................................35
15.1 Regular maintenance...................................35
15.2 Changing the dome of the Camera Head
Wöhler VIS 300/350.....................................35
15.3 Camera head...............................................35
15.4 Push rod ......................................................35
15.5 Monitor.........................................................35
16 Accessories.........................................36
17 Warranty Wohler VIS Service Camera..
..............................................................37
Points of sale and service............................40

General Information
4
1General Information
1.1 Information about the
operating instructions
Read these operating instructions carefully. They
will enable you to operate the Wöhler VIS 200/250
and VIS 300/350 safely. Keep this manual for your
information
This manual refers to different camera models.
Therefore it may include instructions which do not
apply to your camera. Those explanations which
do not mention one or more camera models ex-
plicitly, refer to all four models.
The Wöhler VIS 200/250 and Wöhler VIS 300/350
should be used by trained professionals for its
intended use only.
Liability is voided for any damages caused by not
following this manual.
1.2 Notes
WARNING!
Not following this warning can cause injury or
death.
ATTENTION!
Not following this note can cause permanent
damage to the camera.
NOTE!
Useful information

General Information
5
1.3 Proper use
The Camera is designed to visually inspect and
document the condition of pipes and shafts, for
example in flue gas systems, ventilation systems
as well as for inspecting underground pipes etc.
The device is designed to be used by trained pro-
fessionals only.
Any other use is considered improper use.
1.4 Scope of supply
Device
Scope of supply
Wöhler VIS 200 / 250
Wöhler VIS 300 / 350
Case
Push rod
Monitor
1 anti-slide-mat
NiMH battery
mini USB cable
(Wöhler VIS 250 /
350)
Wöhler
VIS 200/250/300
1 rechargeable bat-
tery 12 V NiMH
Wöhler VIS 350
2 rechargeable batter-
ies 12 V NiMH
Wöhler VIS 200 / 250
Miniature Camera
Head Color
Wöhler VIS 300 / 350
Pan & tilt color cam-
era head
5 replacement plastic
domes
Wöhler VIS 250 / 350
SD card 2 GB

General Information
6
1.5 Transporting
To avoid damage occurring during transport it is
imperative that the instrument is transported in the
original case designed for the purpose.
1.6 Information on disposal
Do not dispose of electronic equipment in domes-
tic waste. Dispose of electronic equipment in ac-
cordance with applicable environmental regula-
tions.
You may hand in any defective batteries taken out
of the unit to our company as well as to recycling
places of public disposal systems or to selling
points of new batteries or storage batteries.
1.7 Manufacturer's address
Wöhler Messgeräte Kehrgeräte GmbH
Schützenstr. 41
33181 Bad Wünnenberg
Tel.: [phone]
Fax: [phone]
Email: [email protected]

Important information
7
2Important information
Eye protection
WARNING!
Never point a connected camera head at your own
or somebody else's eyes when the camera is
switched on. The LEDs are extremely bright and
can cause eye damage.
WARNING!
Guide the rod with due care and attention. As the
rod is made of flexible material, it can make whip-
ping movements if it slips. Protect your eyes in
particular.
Working environment
WARNING!
Only place the camera on firm level ground and
ensure a secure position of camera and user, es-
pecially when working in high altitude, e.g. when
working on the roof.
WARNING!
Make sure that the parts that you are going to in-
spect are no live parts.
CAUTION!
Protect the camera head against oil and acid.
Never use the camera head and rod to push ob-
structions.
Operating temperature
CAUTION!
Do not use the camera in temperatures above
40°C. High temperatures can damage the camera.

Important information
8
Resistance to water
CAUTION!
Only the camera head and the rod are waterproof.
Keep the camera system dry and away from wa-
ter!
Resistance to impacts
CAUTION!
The camera system is not impact resistant. Do not
throw or allow the case to fall!
Accessories
CAUTION!
Use only original Wöhler accessories and spare
parts!
Strong magnetic or electric
fields
NOTE!
Do not use the camera near television towers,
mobile radio equipment or other sources of mag-
netic or electric fields, as these may impair the
quality of the displayed image.
Extraneous influences
NOTE!
Extraneous influences such as static discharges
can cause the device to malfunction. If a malfunc-
tion occurs, switch the monitor off and on again.

Camera Models
9
3Camera Models
Different camera models Wöhler VIS can be acquired. The difference between the mod-
els described in this version are as follows:
VIS 350
VIS 300
VIS 250
VIS 200
Camera head
Ø 1 ½ "
pan & tilt
Ø 1 ½ "
pan & tilt
Ø 1 "
Ø 1½ "
integrated
transmitter
1
2
1
2
Position indica-
tor


Electronic meter
counter




Record video


Menu


Home function


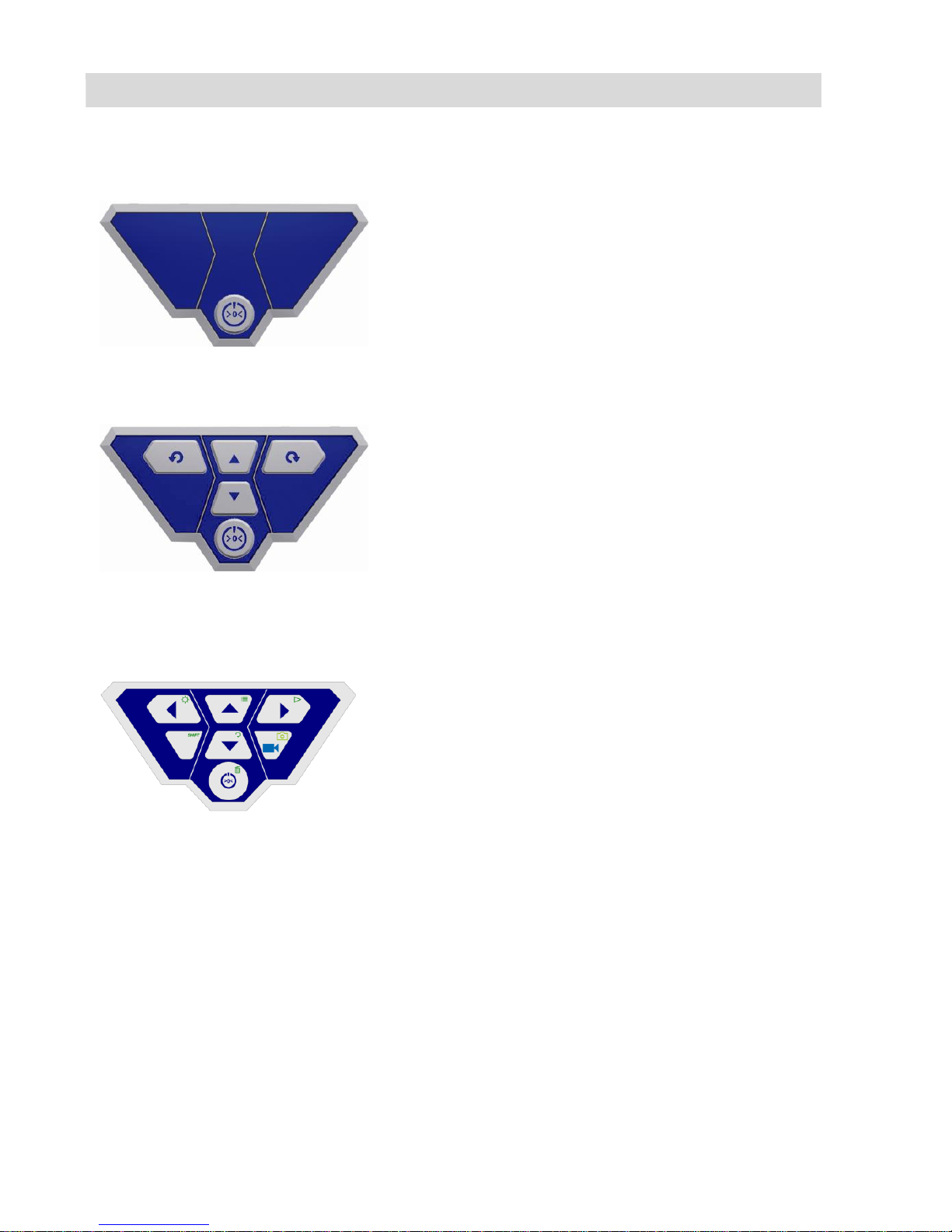

Control panel
7 keys with
shift
5 keys
7 keys
1 key
Application
Flue gas lines Ø 2,4" and
larger with 87° bends (and
smaller)
Waste water lines of Ø 2,8"
and larger
Chimneys
Ventilation lines of Ø 2,4"
and larger
Analyse damage in Waste
water pipes of Ø 2,8 " and
larger
Flue gas lines Ø 2 ½ " and
larger
Ventilation lines of Ø 2 ½ "
and larger
Analyse damage in Waste
water pipes of Ø 2 ½ " up
to Ø 4.9”
1The transmitter can be switched on and off in the menu, see chapter 8.2
2When the camera is switched on, the transmitter will be permanently active.

Technical data
10
4Technical data

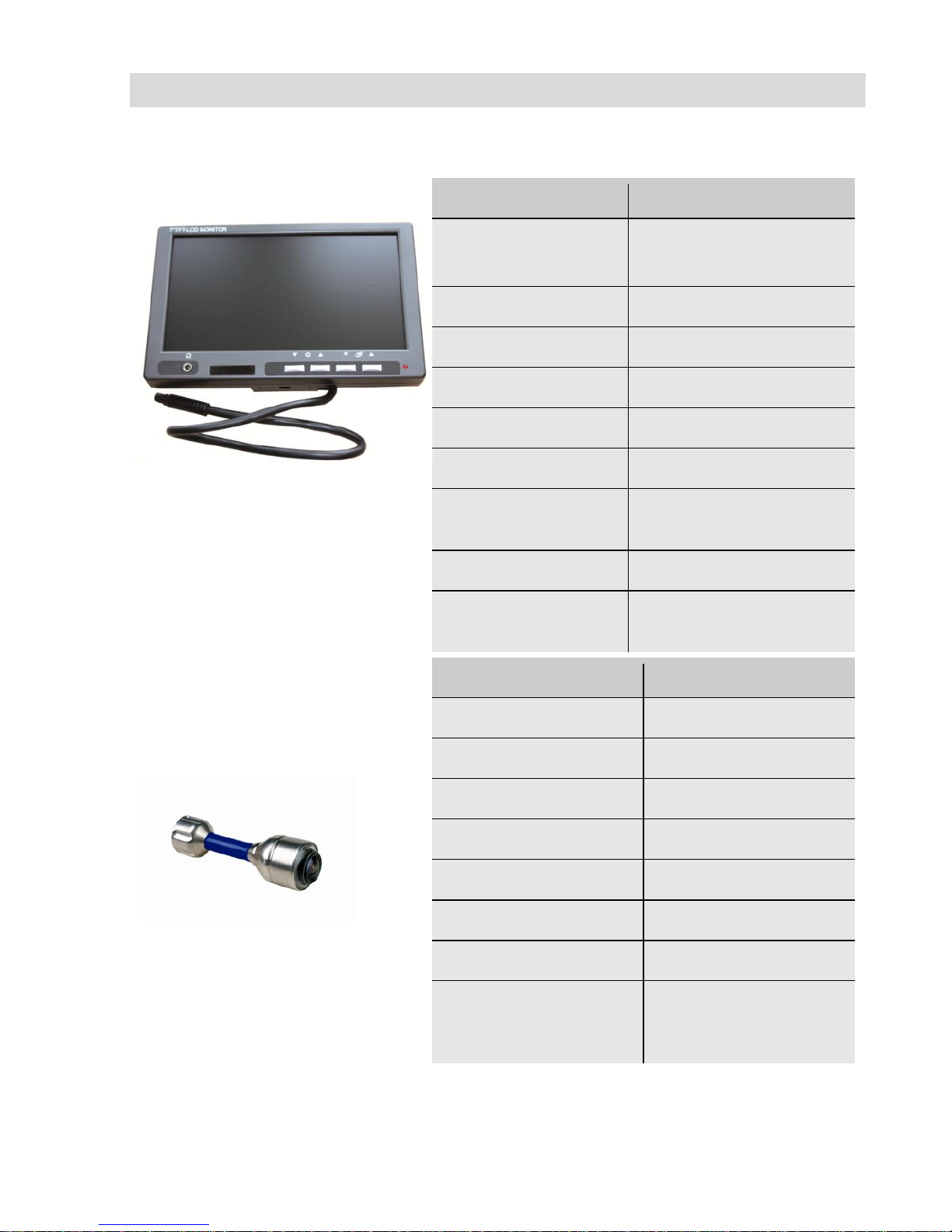

4.1 Monitor
Fig. 1: Monitor
Description
Details
TFT display
7"/ 16:9 and 4:3 format
(Default 16:9)
Weight
14 oz
Dimensions housing
6,9 x 4,5 x 1,3 "
Video output
FBAS signal
Power supply
via camera system
Voltage
12 V
Operating
temperature
-4 ... 122 °F
Storage temperature
32 ... 104 °F
Connection cable to
the camera system
79"
4.2 Miniature Camera Head
(Wöhler
VIS 200/250)
Fig. 2: Miniature Camera Head
Description
Details
Type:
1/3" COLOR CMOS
Light sensitivity
12V, Lux sec
Lens:
f = 0.09", F = 0.10"
Viewing angle:
120°
Light source:
12 white LEDs
Degree of protection:
Waterproof to IP 68
Dimensions
Ø 1" x 1 1/2 "
Frequency of the
transmitter integrated
in the camera head
8.9 kHz

Technical data
11
4.3 Miniature Camera Head
(Wöhler
VIS 300/350)
Fig. 3: Camera Head pan & tilt
Fig. 4: Pan the camera head 360°
Fig. 5: Tilt the camera head 180°
Description
Details
Type:
1/3" COLOR CMOS
Light sensitivity
12 V, Lux sec
Lens:
f = 0.09", F = 0.10"
Viewing angle:
120°
Light source:
12 white LEDs
Degree of protection:
Waterproof to IP 67
Dimensions
Ø 1 ½ " x 2.4 mm
Frequency of the
transmitter integrated
in the camera head
8.9 kHz

12
4.4 Push rod
Description
Details
Length:
787"
optional
1181"
Diameter
0.3 mm (VIS 3xx)
0.2 mm (VIS 2xx)
4.5 Electronic distance
counter
Description
Details
Resolution:
1.5"
Maximum Deviation
10 % of reading
4.6 Memory
(Wöhler VIS 250 / 350)
Description
Details
Memory card
32 GB max. (If you are
using a memory card
other than the one
included in the scope
of supply, you must
format it first (FAT32)
before you can use it
on a PC.)
Capacity
ca. 1h / GB
Resolution of the vi-
deo
640 x 480 (VGA)/
max. 30 fps
Video format
ASF (MPEG4)

Design and function
13
6Design and function
6.1 Video inspection system
Fig. 6: Case (Wöhler VIS 350)
1
2
3
4
5
6
7
8
10
9
11
12
13
14

Design and function
14
Legend
1
Monitor
2
Monitor controls
- Brightness / contrast
- Color
3
Camera control
with record and play - function (Wöhler VIS 250 / VIS 350)
home function aligns the camera head to a straight position and menu for the
monitor settings (Wöhler VIS 350)
4
camera head, waterproof:
Wöhler VIS 300 / VIS 350: pan and tilt color camera head 40 mm Ø
Wöhler VIS 200 / 250 Miniature color camera head Ø 26 mm
5
Main power switch with the following functions:
- ON /OFF (system)
- Reset distance measurement
- Escape
- Delete (when SHIFT mode is activate)
6
Cardslot for memory card (Wöhler VIS 250 / 350)
7
Mini-USB-port (Wöhler VIS 250 / 350)
8
Power supply socket (18V/1,6A)
9
Video out
10
Accessory compartment 1
11
Rechargeable battery, extra (only Wöhler VIS 350)
12
Power supply
13
Rechargeable battery, in use
14
Accessory compartment 2

Design and function
15
6.2 Control panel
VIS 200
Fig. 7: Control Panel
Wöhler VIS 200
Control Panel Wöhler VIS 200 with ON/OFF-key
VIS 300
Fig. 8: Control Panel
Wöhler VIS 300
Control Panel Wöhler VIS 300 with ON/OFF-key
and control keys for the pan and tilt camera head
Wöhler VIS 250 / 350
Fig. 9: Control Panel
Wöhler VIS 250 / 350
Control Panel
Wöhler VIS 250 / 350

Design and function
16
The keys on the control panel have the following functions:
Wöhler VIS 200/250/300/350
ON/OFF key turns the whole camera system
on/off (monitor and camera head).
NOTE!
The ON/OFF key is framed by a green light
when the system is switched on and the battery
is charged.
The lower half of the light framing the ON/OFF
key flashes red during the recharging process.
Functions
The ON/OFF key
Press
Function
When the system is
switched off:
Briefly
Switch system on
When the system is
switched on:
Hold 2 seconds
Switch system off
When the system is
switched on:
Briefly
Reset distance coun-
ter
When the system is
switched on:
(Wöhler VIS 250 /
350)
Escape
Exit menu
Camera head operating keys
(Wöhler VIS 300/350)
Tilt the camera head 180°
Camera head operating keys
(Wöhler VIS 300/350)
Rotate the camera head 360°

Design and function
17
Wöhler VIS 250 / 350
VIDEO key
Start/stop recording video
SHIFT key
Activates the key functions depicted by green icons
on the top right corners of the keys.
NOTE!
When SHIFT MODE is activate, the SHIFT key
lights up and an Sis displayed in the bottom mid-
dle of the screen.
Illumination key
Dimming function to set the brightness of the cam-
era head lighting.
NOTE!
There are three levels of brightness available to
increase or dim the intensity of the camera head
lighting. The brightness is increased each time the
user presses the ILLUMINATION key three times
in sequence. The fourth time the user presses the
key, the lighting returns to the lowest level of
brightness.
MENU key:
Make settings
PLAY key
Playback recorded videos
HOME key (only Wöhler VIS 350, Wöhler VIS
250: without function):
Aligns the camera head to a straight position –
displays view parallel to the ground above
+
+
+
+

Design and function
18
IMAGE key
Capture image / snapshot
NOTE!
Images are saved in .jpg format. It is possible to
display the images on a PC from the SD card.
DELETE key
Delete an image or video selected in PLAY mode.
6.3 Monitor
6.3.1 Adjusting the Color
Fig. 10: Monitor
With the keys ▼☼▲☼▲ the brightness can be adjust-
ed.
▼▼: darker ▲▲: brighter
With the keys ▼▲▲▼ the color intensity can be
adjusted.
▼▼: decreasing color intensity up to black and white.
▲▲: increasing color intensity
NOTE!
We recommend not to change the monitor set-
tings. It is also possible to do individual settings
which have influence of the video quality in the
menu of the Wöhler VIS 350/VIS 350 , see section
8.2.
+
+

Design and function
19
6.3.2 Transition from 16:9 Screen to 4:3 Screen
The screen format of the monitor can be changed from 16:9 to 4:3 or vice versa.
+
Switch off the camera system.
Press the left monitor key and the ON/OFF-key
of the camera at the same time.
The screen format of the monitor can be changed
from 16:9 to 4:3 or vice versa.
NOTE!
When inspecting tubes the 4:3 screen is recom-
mended, because the widescreen 16:9 may distort
the image.

Getting started
20
7Getting started
7.1 Rechargeable battery
status and recharging
WARNING!
Risk of injury when handling the rechargeable
batteries improperly!
Never open the rechargeable battery housing.
Do not throw rechargeable batteries into a fire or
expose to high temperatures. There is a risk of
explosion!
If handled improperly, a liquid may emerge from
rechargeable batteries that can cause skin irrita-
tion. Avoid contact with the liquid. Rinse skin with
large amounts of water if it comes into contact
with the liquid. If the liquid comes into contact with
eyes, rinse with water immediately for 10 minutes
and consult a doctor immediately!
WARNING!
Danger of death by electrocution!
Never touch an electrical outlet with wet hands!
Do not expose the power pack to moisture!
Never pull the cable to remove the power pack
from the electrical outlet - it could rip out the ca-
ble!
Operate the power pack only when the mains
power supply is the same as the voltage stated on
the rating plate!
Rechargeable battery status
indicator
Fig. 11: Control panel of Wöhler VIS 250
/ 350 - ON/OFF key framed by flashing
light
When the camera is switched on, the battery sta-
tus indicator displays the charge status of the
rechargeable battery in the top right corner of the
display. The indicator flashes when the charge
level of the batteries is low. If the charge level
continues to fall, the light framing the ON/OFF key
flashes red and the camera switches off automati-
cally.
It is only possible to switch on the camera again
after the battery has been replaced with a charged
battery or a power cable is connected to recharge
the battery in use.
