FEATURES
Built-in or free-standing convection microwave
oven with 1.5 cu ft (43 L) capacity and 900
watts of power
30" (762) or 36" (914) trim kit allows microwave
to be built in to fit above a Wolf built-in oven
Classic, platinum or carbon stainless steel trim
finishes
Sensor cooking
Slow cook mode for up to four hours
Easy-to-operate control panel and programma-
ble power options
Interactive display—99 minutes, 99 seconds
Menu label and food guide
Multi-language—English, French and Spanish
Removable 15 3/8" (391) turntable and turntable
support
Oven door with window
Multiple rack baking
Safety door latches—oven will not operate
unless the door is closed
Oven light comes on when oven is operating or
door is open
Tight door seals with one-touch door open pad
Rear ventilation openings
WOLF MICROWAVE OVENS
CONVECTION MICROWAVE FEATURES
Model MWC24
WOLF CONVECTION MICROWAVE
Taking the experience we’ve gained from our
microwave ovens and combining that with the
expertise of convection, Wolf has brought the
best of both cooking technologies together in
one unit.
This handsome unit comes with trim kits to
mount the unit above a 30" (762) or 36" (914)
Wolf oven and finish off your cooking tower in
a single look. The trim comes in three stainless
steel looks—classic, platinum and carbon.
Aside from looking beautiful whether you use
it in conjunction with an oven or not, the unit
offers you all the performance you would expect
from Wolf—a cooking company with a heritage
of nearly 75 years in the kitchen.

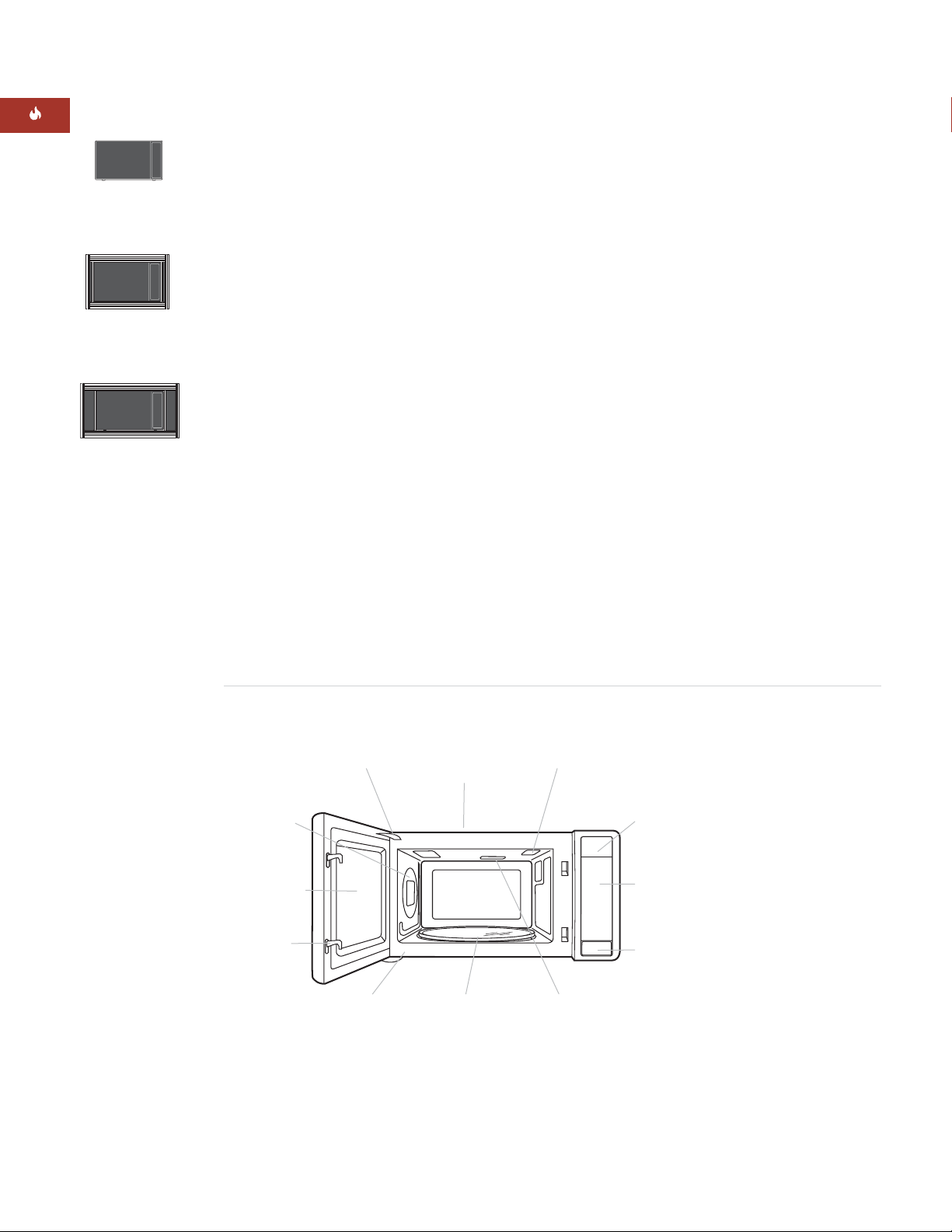

One-touch
door open pad
Safety door
latches
Lighted digital
display
Oven door
with window
Convection
air openings
Rating plate
location
Door hinges
Turntable
Ventilation
openings (rear)
Oven light
Waveguide
cover
Auto-touch
control panel
Model MWC24
Free-Standing
Model MWC24
with 30" (762) Trim
Model MWC24
with 36" (914) Trim

35
Dimensions in parentheses are in
millimeters unless otherwise specified.
WOLF MICROWAVE OVENS
PLANNING INFORMATION
The Wolf convection microwave oven can be
used free-standing or with optional 30" (762)
or 36" (914) trim, or can be built in to fit above
a Wolf 30" (762) or 36" (914) single oven.
IMPORTANT NOTE: In all instances, where the
microwave oven is built in, you must use one of
Wolf‘s trim kits to ensure proper ventilation.
The Wolf convection microwave oven with
30" (762) or 36" (914) trim kit will overlap stiles
and rails. The trim overlaps for the 30" (762) and
36" (914) trim kits are 13/16" (21) on the bottom,
5/16" (8) on the top and 13/16" (30) on each side.
Refer to the installation instructions provided
with the trim kit for detailed specifications.
These instructions can also be found on the
Wolf website at wolfappliance.com.
When using the Wolf convection microwave
oven as a free-standing unit, allow 2" (51) of
airflow space on top, rear and both sides. A
minimum 201/8" (511) cabinet depth is required.
Specifications on the following pages provide
overall dimensions, rough openings and installa-
tion options for the convection microwave oven.
We have minimized the information contained in
the illustrations, concentrating on the critical
information you must plan into your installation.
The Wolf convection microwave oven with 30"
(762) trim kit may be installed in combination
with a 30" (762) single oven and 30" (762)
warming drawer with stainless steel drawer
front. With the 36" (914) trim kit, the convection
microwave may be installed in combination with
a 36" (914) single oven and warming drawer
with integrated drawer front. Refer to installation
options on the following pages.
ELECTRICAL REQUIREMENTS
The Wolf convection microwave oven requires
a separate, grounded 110/120 V AC, 60 Hz
power supply. The service should have its own
15 amp circuit breaker, and a grounded 3-prong
receptacle should be located within reach of the
power cord.
IMPORTANT NOTE: A ground fault circuit
interrupter (GFCI) is not recommended and may
cause interruption of operation.
You must follow all National Electrical Code
regulations. In addition, be aware of local codes
and ordinances when installing your service.
TRIM KIT OPTIONS
Convection Microwave
30" (762) Stainless Steel Trim
Classic Trim MWCTRIM30/S
Platinum Trim MWCTRIM30/P
Carbon Trim MWCTRIM30/B
36" (914) Stainless Steel Trim
Classic Trim MWCTRIM36/S
Platinum Trim MWCTRIM36/P
Carbon Trim MWCTRIM36/B
Optional trim kits are ordered and shipped
as sales accessories.
WOLF
WARRANTY
Wolf products are
covered by a two
and five year
residential warranty
(exclusions apply).
See warranty
details at the end
of this guide.
ACCESSORIES
Optional accessories
are available
through your Wolf
dealer. To obtain
local dealer
information, visit
the Locator section
of our website,
wolfappliance.com.

36
24"min
(610)
273/16"
(691)
281/2"(724)
5"
(127)
4"
(102)
E
33" (838)
RECOMMENDED CABINET WIDTH
30"min (762)
271/2"(699)
OPENING WIDTH
201/8"min
(511)
OPENING DEPTH
1811/16"
(475)
OPENING
HEIGHT
1"min
(25)
30-INCH OVEN
ROUGH OPENING
NOTE: At installation, wood cleats must be added to the opening for the microwave trim.
33" (838)
RECOMMENDED CABINET WIDTH
30"min (762)
271/2"(699)
OPENING WIDTH
36" (914)
STANDARD
FLOOR TO
COUNTER
HEIGHT
5"
(127)
4"
(102)
E
201/8"min
(511)
OPENING DEPTH
1811/16"
(475)
OPENING
HEIGHT
NOTE: At installation, wood cleats must be added to the opening for the microwave trim.
297/8"(759)
30" (762) TRIM WIDTH
243/4"(629)
FREE-STANDING
WIDTH
147/8"
(378)
FREE-STANDING
HEIGHT
355/8"(905)
36" (914) TRIM WIDTH
201/8"(511)
BEHIND FRAME
197/8"
(505)
TRIM
HEIGHT
11/4"(32) 11/4"(32) 211/16"
(68)
211/16"
(68)
OVERALL DIMENSIONS
Convection Microwave and Trim

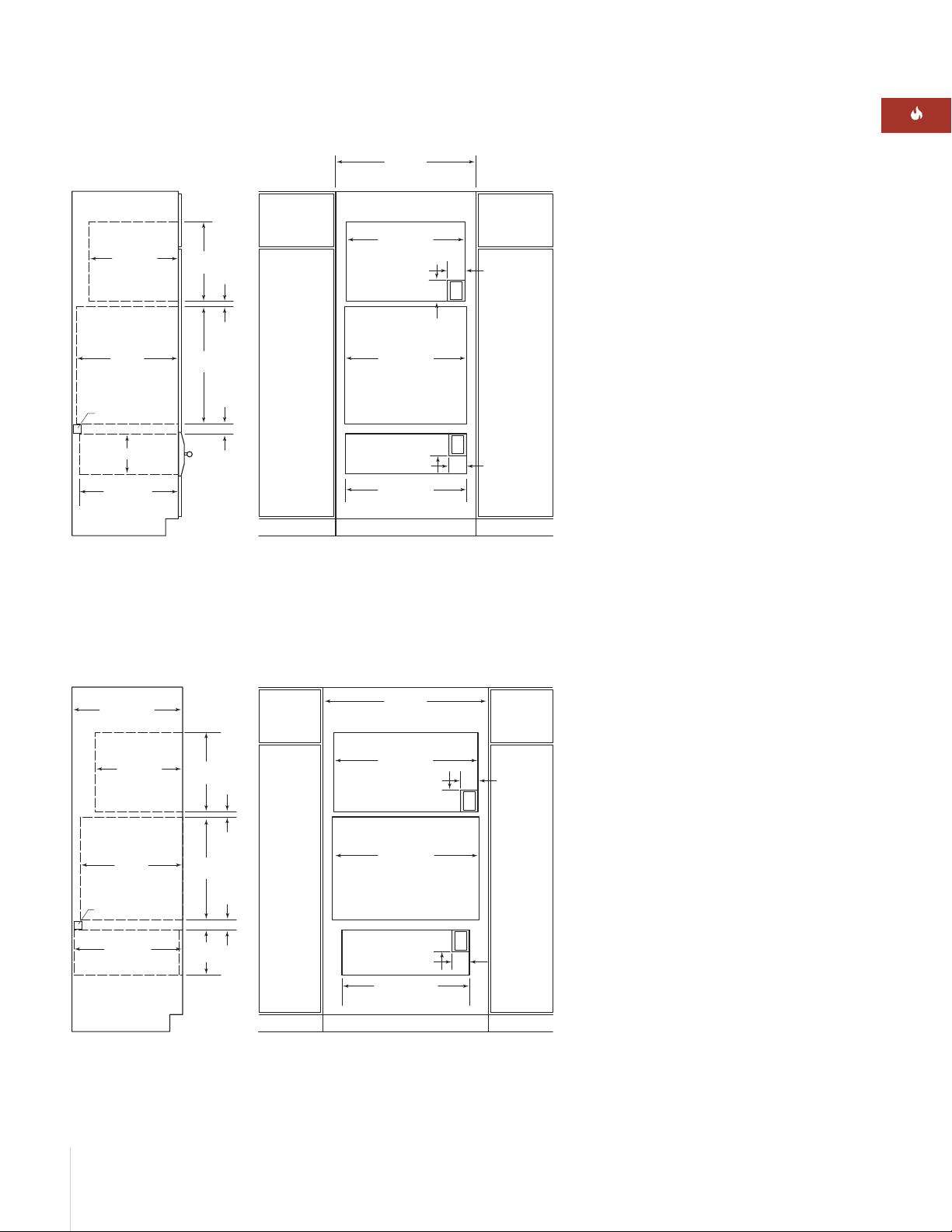

INSTALLATION SPECIFICATIONS
Convection Microwave with 30" (762) Trim
Wall Application
Undercounter Installation
SPECIFICATIONS
Convection Microwave with 30" (762) Trim
Overall Width 29 7/8" (759)
Overall Height 19 7/8" (505)
Overall Depth 201/8" (511)
Rec Cabinet Width 33" (838)
Min Cabinet Width 30" (762)
Min Base Support 125 lbs (57 kg)
Opening Width 271/2" (699)
Opening Height 1811/16" (475)
Opening Depth 201/8" (511) min
SPECIFICATIONS
Convection Microwave (free-standing)
Overall Width 24 3/4" (629)
Overall Height 14 7/8" (378)
Overall Depth 201/8" (511)
Interior Oven Cap 1.5 cu ft (43 L)
Interior Oven Dim 161/8"x 9
5/8"x 16 1/8"
(W x H x D) (410 x 244 x 410)
Electrical Supply 120 V AC, 60 Hz
15 amp dedicated circuit
Power 900 W
Power Requirement 1.6 kw
(with convection)
Power Cord 31/2' (1.1 m) 3-prong
Shipping Weight 68 lbs (31 kg)
SPECIFICATIONS
Convection Microwave with 36" (914) Trim
Overall Width 35 5/8" (905)
Overall Height 19 7/8" (505)
Overall Depth 201/8" (511)
Rec Cabinet Width 39" (991)
Min Cabinet Width 36" (914)
Min Base Support 125 lbs (57 kg)
Opening Width 33 3/8" (854)
Opening Height 1811/16" (475)
Opening Depth 201/8" (511) min
Dimensions may vary to +
–
1
/ 8 " (3).
IMPORTANT NOTE: At installation, wood
cleats (not included) must be added to the
microwave opening for the 30" (762) and
36" (914) trim. Refer to the installation
instructions provided with the trim kit for
detailed specifications.
WOLF MICROWAVE OVENS
IMPORTANT NOTE: For installation of the convection
microwave with 36" (914) trim, add 6" (152) to the
overall width dimensions shown in the illustrations.

37
Dimensions in parentheses are in
millimeters unless otherwise specified.
25
1
/ 2 " min
(648)
26" min (660)
CABINET DEPTH
*Dimension may vary by +_
1
/ 8 " (3).
**Refer to installation instructions provided with the integrated drawer front (WDFRONT/I) for accurate placement of the anti-tip block.
NOTE: Refer to the built-in 36"(914) single oven specifications for electrical location.
NOTE: The width of the custom panel for the warming drawer with integrated drawer front will vary according to the specific installation,
but the rough opening width will remain 29
15
/ 16 " (760).
NOTE: At installation, wood cleats must be added to the openin
g
for the microwave trim.
2
3
/ 8 "
(60)
10
3
/ 8 "*
(264)
33
3
/ 8 " (854)
MICROWAVE
OPENING WIDTH
24" min
(610)
24
1
/ 16 "
(611)
34
1
/ 2 " (876 )
36-INCH OVEN
OPENING WIDTH
5"
(127)
4"
(102)
E
39" (991)
RECOMMENDED CABINET WIDTH
36" min (914)
1" min
(25)
20
1
/ 8 " min
(511)
18
11
/ 16 "
(475)
2" (51) x 2" (51)
ANTI-TIP BLOCK**
E
5"
(127)
4"
(102)
29
15
/ 16 "* (760)
WARMING DRAWER
OPENING WIDTH
281/2"(724)
WARMING DRAWER
OPENING WIDTH
281/2"(724)
30-INCH OVEN
OPENING WIDTH
5"
(127)
4"
(102)
E
91/4"(235) 23/8"
(60)
231/2"min
(597)
273/16"
(691)
1"min
(25)
24"min
(610)
33" (838)
RECOMMENDED CABINET WIDTH
30"min (762)
271/2"(699)
MICROWAVE
OPENING WIDTH
201/8"min
(511)
1811/16"
(475)
5"
(127)
4"
(102)
E
NOTE: Refer to the built-in 30"(762) single oven specifications for electrical location.
NOTE: At installation, wood cleats must be added to the openin
g
for the microwave trim.
2"(51) x 2"(51)
ANTI-TIP BLOCK
INSTALLATION OPTIONS
The Wolf convection microwave oven with
30" (762) trim kit may be installed in combi-
nation with a 30" (762) single oven and 30"
(762) warming drawer with stainless steel
drawer front. Refer to page 6 for installation
specifications for the 30" (762) single oven.
Refer to the installation instructions provided
with each microwave trim kit and warming
drawer front for detailed specifications.
These instructions can also be found on the
Wolf website, wolfappliance.com. Dimensions
will vary according to the specific installation.
INSTALLATION SPECIFICATIONS
Convection Microwave with 30" (762) Trim
Installation with single oven and warming drawer
INSTALLATION SPECIFICATIONS
Convection Microwave with 36" (914) Trim
Installation with single oven and warming drawer
INSTALLATION OPTIONS
The Wolf convection microwave oven with
36" (914) trim kit may be installed in combi-
nation with a 36" (914) single oven and
warming drawer with integrated drawer
front. Refer to page 7 for installation specifi-
cations for the 36" (914) single oven.
Keep in mind that the width of the custom
panel for the warming drawer with inte-
grated drawer front will vary according to
the specific installation. The rough opening
width will remain 2915/16" (760) whether
installed in combination with a 30" (762) or
36" (914) single oven and microwave.
IMPORTANT NOTE: In all applications, a
minimum 26" (660) deep cabinet is required
for the warming drawer with integrated
drawer front.
Refer to the installation instructions provided
with each microwave trim kit and warming
drawer front for detailed specifications.
These instructions can also be found on the
Wolf website, wolfappliance.com. Dimensions
will vary according to the specific installation.
WOLF MICROWAVE OVENS
