As you follow these instructions, you will
notice WARNING and CAUTION symbols.
This blocked information is important for the
safe and efficient installation of Wolf equip-
ment. There are two types of potential
hazards that may occur during installation.
Another footnote we would like to identify is
IMPORTANT NOTE: This highlights informa-
tion that is especially relevant to a problem-
free installation.
signals a situation where minor injury or
product damage may occur if you do not
follow instructions.
states a hazard that may cause serious
injury or death if precautions are not
followed.
WOLF®is a registered trademark of Wolf Appliance, Inc.
CONTACT
INFORMATION
Website:
wolfappliance.com

5
WOLF PRO VENTILATION HOODS
INSTALLATION REQUIREMENTS
IMPORTANT NOTE: This installation must be
completed by a qualified installer.
Installer: Please read the entire Installation
Instructions prior to installation. Save these
instructions for the local inspector’s refer-
ence, then leave them with the homeowner.
Homeowner: Please read and keep these
instructions for future reference and be sure
to read the entire Use & Care Information
prior to use.
Any questions or problems about the installa-
tion should be directed to your Wolf dealer or
visit our website at wolfappliance.com.
IMPORTANT NOTE: This appliance must be
installed in accordance with local codes. The
correct voltage, frequency and amperage must
be supplied to the appliance from a dedicated,
grounded circuit which is protected by a
properly sized circuit breaker or time delay
fuse. The proper voltage, frequency, and
amperage ratings are listed on the product
rating plate.
Record the model and serial numbers before
installing the hood. Both numbers are listed on
the rating plate, located inside the left wall of
the hood shell. Refer to the illustrations below.
A) Installation work and electrical
wiring must be done by qualified
person(s) in accordance with all
applicable codes and standards,
including fire-rated construction.
B) When cutting or drilling into wall
or ceiling, do not damage electrical
wiring and other hidden utilities.
C) Ducted fans must always be vented
to the outdoors. Regulations
concerning the discharge of air have
to be fulfilled.
D) The air must not be discharged into
a flue that is used for exhausting
fumes from appliances burning gas
or other fuels.
WARNING – TO REDUCE THE
RISK OF FIRE, ELECTRIC SHOCK,
OR INJURY TO PERSONS,
OBSERVE THE FOLLOWING:
RATING PLATE
INFORMATION
Model Number
Serial Number

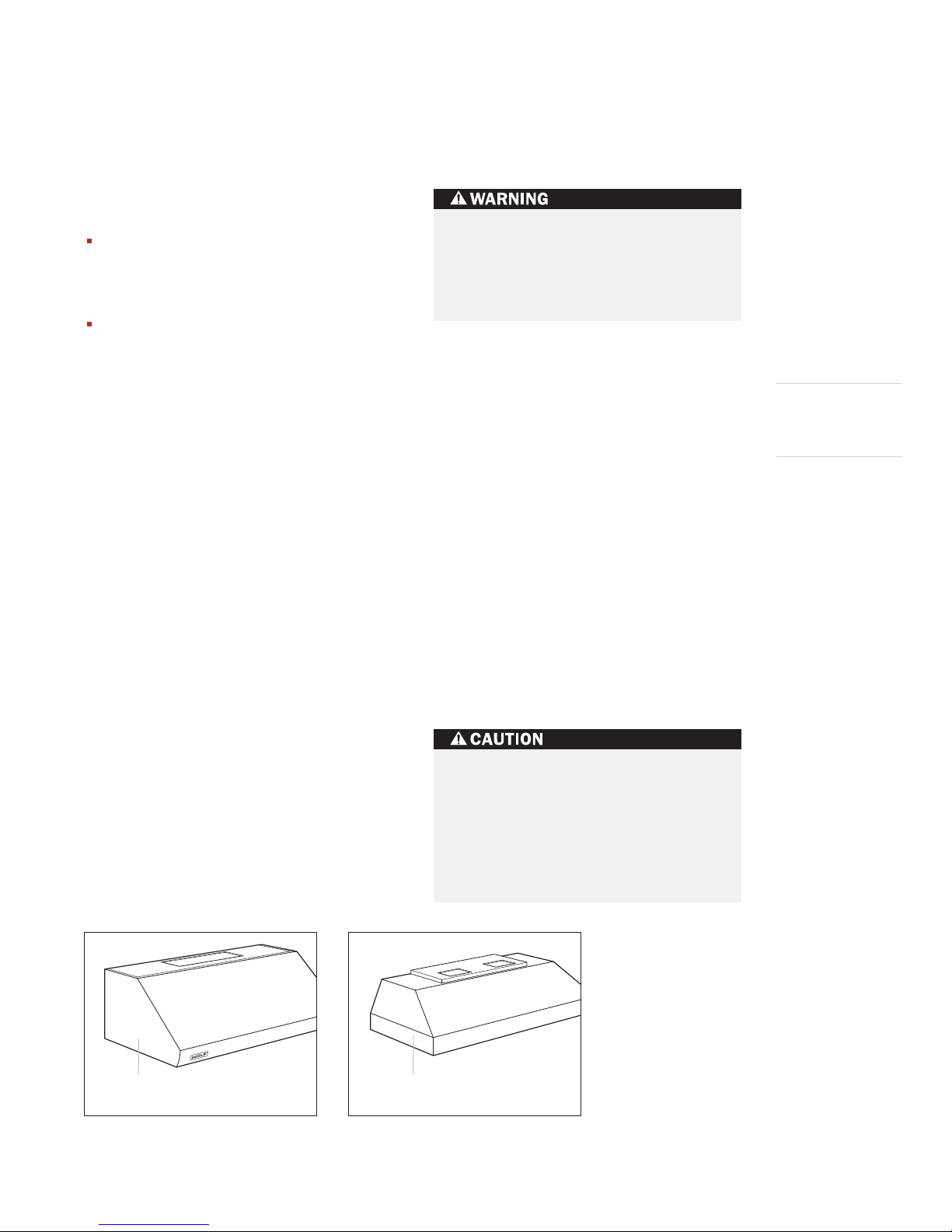

Rating plate location—wall hoods
Rating plate located
inside hood shell
To reduce the risk of fire and to
properly exhaust air, be sure to
duct air outside. Do not vent
exhaust air into spaces within
walls or ceilings or into attics,
crawl spaces or garages.
Rating plate location—hood liners
Rating plate located
inside hood liner shell

6
WOLF PRO VENTILATION HOODS

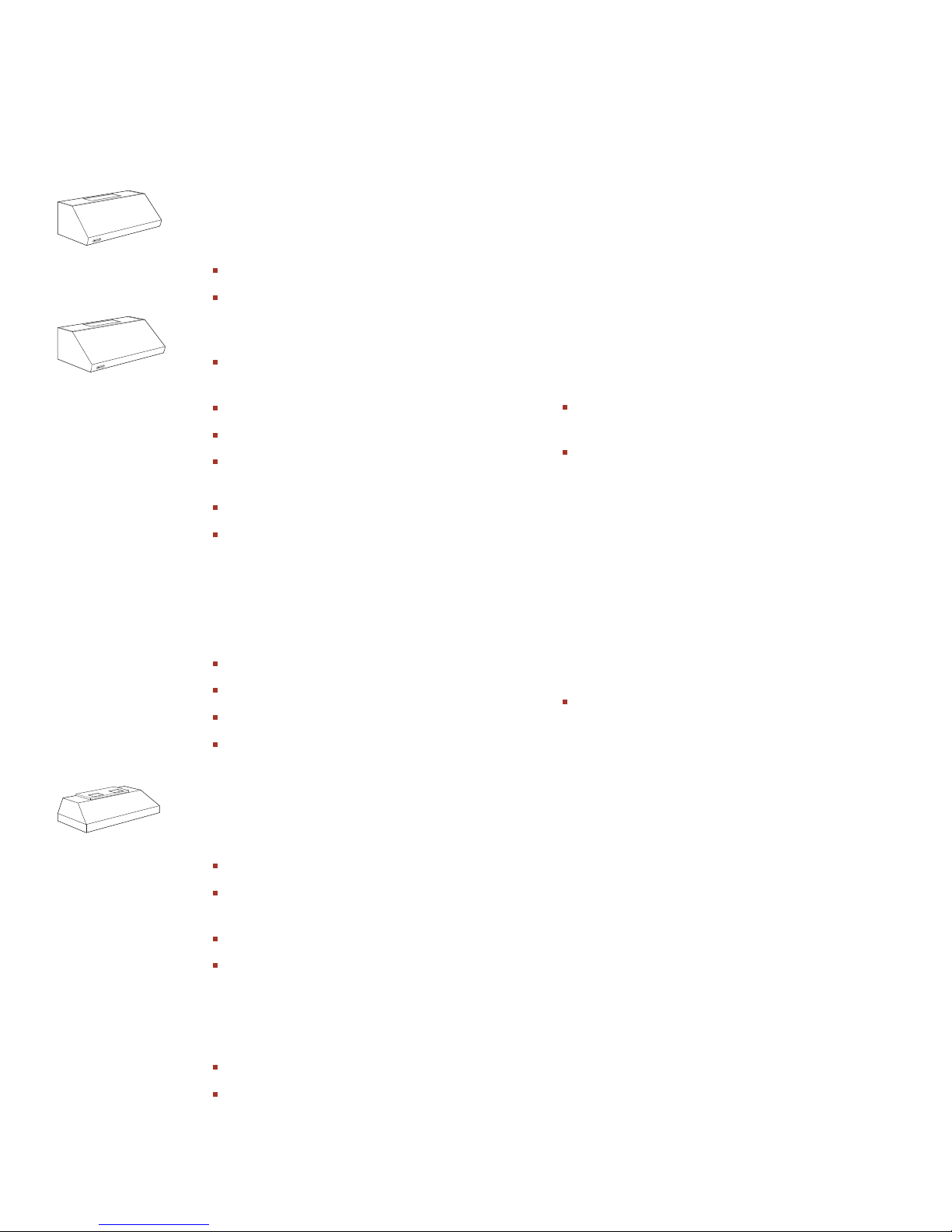

LIST OF MATERIALS
WALL HOODS
The following is a list of materials shipped
with the Wolf Pro wall ventilation hood.
Stainless steel wall hood
Transition with backdraft damper—
attached inside hood (needs to be removed
prior to installation)
Control knobs—two for 610 mm deep
hoods, three for 686 mm deep hoods
Filters (installed in hood)
Grease cups (shipped loose in carton)
Halogen receptacles for lighting—bulbs not
included
Wood mounting support
Installation package (part #810555)
mounting hardware included:
(10) #8 x 76 mm Phillips drywall screws,
(12) #10 x 38 mm pan head wood screws,
(12) #12 flat washers
(4) #8 x 76 mm Phillips sheet metal screws
Installation Instructions
Use & Care Information
Wolf logo nameplate
Bottle of Signature stainless steel cleaner
PRO HOOD LINERS
The following is a list of materials shipped
with the Wolf Pro ventilation hood liner.
Stainless steel hood liner
Transition with backdraft damper (attached
inside hood liner—needs to be removed)
Filters (installed in hood liner)
Installation package (taped to filters)
includes:
(8) #10 x 51 mm Phillips head wood screws
(8) #10 washers
(4) hollow wall anchors
Installation Instructions
Use & Care Information and product
registration card
INSTALLATION CONSIDERATIONS
Wolf Pro wall ventilation hoods and hood
liners are recommended for use with all Wolf
cooking appliances.
Wolf Pro ventilation hood liners are available
to accommodate 914 mm, 1067 mm, 1219 mm,
1372 mm and 1524 mm wide hoods.
IMPORTANT NOTE: For optimal performance,
a Pro 686 mm deep wall hood is recom-
mended for use with ranges and rangetops
that contain a charbroiler or griddle.
Proper installation is the responsibility
of the installer.
Make sure you have the tools and materials
necessary for proper installation.
IMPORTANT NOTE: Wolf Pro ventilation
hoods and liners are shipped without the
blower assembly. Wolf internal and remote
blower assemblies are available, refer to page
27. Use only a Wolf blower with Pro wall venti-
lation hoods and hood liners.
IMPORTANT NOTE: Wolf recommends that
the Pro wall ventilation hood or hood liner be
installed 762 mm to 914 mm above the coun-
tertop.
If the supply cord is damaged, it must be
replaced by the manufacturer, it’s agent or
similarly qualified persons to avoid a
hazard.
610 mm Wall Hood
686 mm Wall Hood
Pro Hood Liner

7
INSTALLATION INSTRUCTIONS
ACCESSORIES
Optional acces-
sories are available
through your
Wolf dealer. To
obtain local dealer
information, visit
the international
section of our
website,
wolfappliance.com.
DECORATIVE HOODS
A decorative hood can be created out of wood,
plaster, tile or metal. The shape of the decora-
tive hood is not critical. The only place where
the hood liner and outside cover must meet is
at the bottom edge of the liner. The decorative
hood and liner must fit at the bottom edge in
both width and depth.
The height of the hood liner does not have to
be the same as the height of the decorative
hood and is generally shorter.
The top depth of the hood liner, which is
305 mm standard, must be less than the
interior depth of the decorative hood. Measure
the interior depth of the hood at the top height
of the liner to make sure the liner will fit inside
the decorative hood.
The hood liner comes standard with a 102 mm
lower reveal. Be sure to include this dimension
in your decorative hood selection.
Always use the interior measurements of the
decorative hood and measure in multiple
places. Use the smallest dimensions to verify
hood liner specifications.
INSTALLATION CONSIDERATIONS
ELECTRICAL REQUIREMENTS
Wolf Pro wall ventilation hoods and hood
liners require a separate, grounded 220-240 V
AC, 50/60 Hz power supply. Locate the electri-
cal supply within the shaded area shown in the
Installation Specifications illustrations on
pages 8–9.
You must follow all building and electrical
code regulations. In addition, be aware of local
codes and ordinances when installing your
service.
DUCT COVER (WALL HOOD ONLY)
If you are installing a Wolf duct cover with the
Pro wall hood, refer to instructions on page 16
before installing the hood.
RECIRCULATING KIT
(WALL HOOD ONLY)
If you are installing the accessory recirculating
kit, refer to the instructions included with the
kit before installing the hood. Accessory kits
are available through your Wolf dealer.
HORIZONTAL DISCHARGE KIT
(WALL HOOD ONLY)
If a horizontal discharge is needed for installa-
tion of a 610 mm or 686 mm deep wall hood,
an accessory horizontal discharge kit is
required. Refer to the instructions included in
the kit for complete mounting and blower
options. Accessory kits are available through
your Wolf dealer.

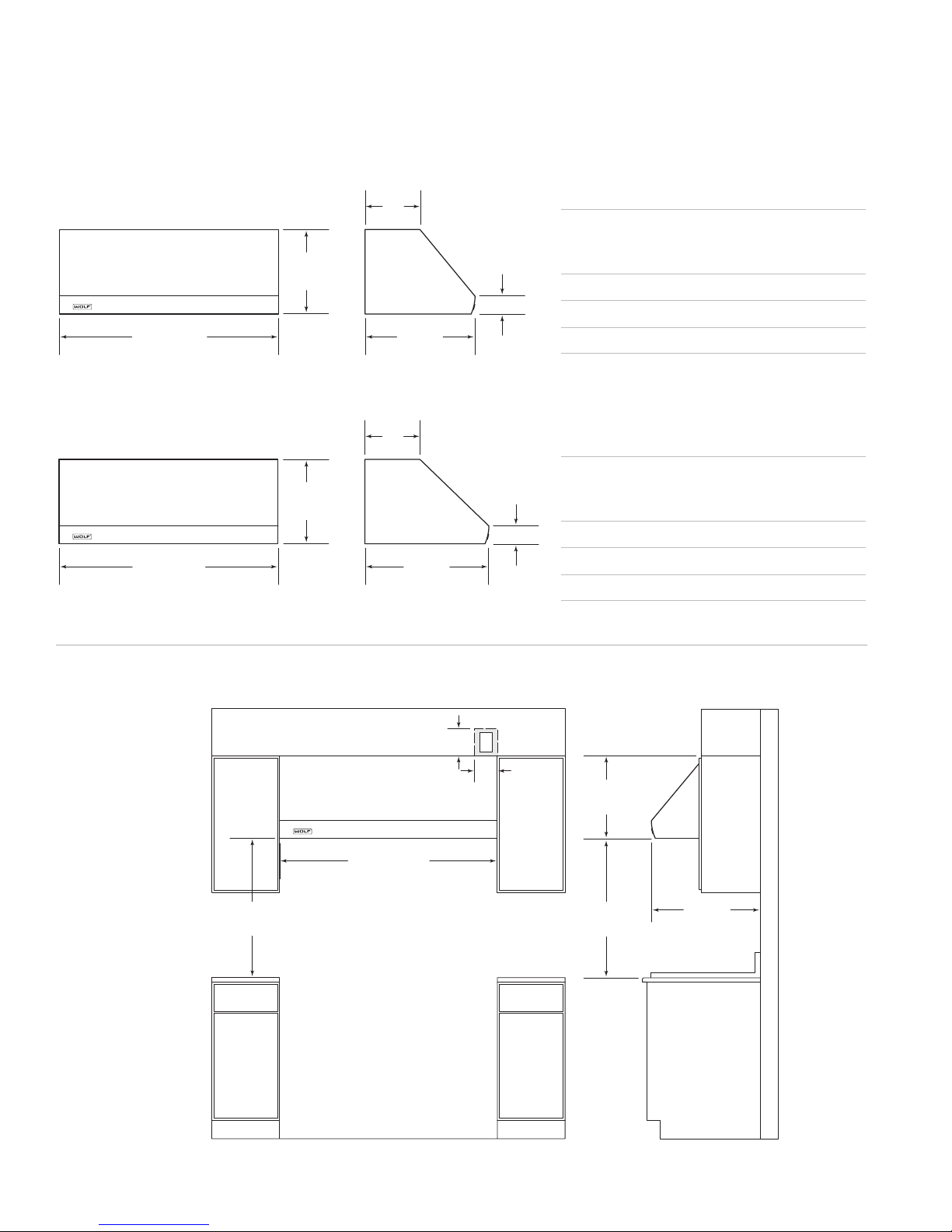

8
WOLF PRO VENTILATION HOODS
457 mm
OVERALL
HEIGHT
OVERALL WIDTH
102 mm
610 mm
OVERALL DEPTH
305
mm
OVERALL WIDTH
686 mm
OVERALL DEPTH
305
mm
457 mm
OVERALL
HEIGHT
102 mm
610 mm DEEP WALL HOODS
Overall Widths 762 mm, 914 mm,
1067 mm, 1219 mm, 1372 mm,
1524 mm and 1676 mm
Overall Height 457 mm
Overall Depth 610 mm
Shipping Weight (shell only) 30–57 kg
Unit dimensions may vary to ±3 mm.
686 mm DEEP WALL HOODS
Overall Widths 762 mm, 914 mm,
1067 mm, 1219 mm, 1372 mm,
1524 mm and 1676 mm
Overall Height 457 mm
Overall Depth 686 mm
Shipping Weight (shell only) 42–74 kg
Unit dimensions may vary to ±3 mm.
OVERALL DIMENSIONS – WALL HOODS
610 mm Deep Wall Hood
686 mm Deep Wall Hood
762 mm TO
914 mm
TO COUNTERTOP
762 mm TO
914 mm
TO COUNTERTOP
457 mm
HEIGHT
OF HOOD
610 mm
686 mm
DEPTH OF HOOD
WIDTH OF HOOD
NOTE: 610 mm and 686 mm deep wall hoods have a vertical discharge. A horizontal discharge kit is available as a sales accessory.
E
152
mm
127
mm
LOCATION OF ELECTRICAL
INSTALLATION SPECIFICATIONS – WALL HOODS
610 mm and
686 mm Deep
Wall Hoods

9
INSTALLATION INSTRUCTIONS
PRO HOOD LINERS
Overall Widths 873 mm, 1026 mm,
1178 mm, 1330 mm
and 1483 mm
Overall Height 305 mm
Overall Depth 572 mm
Shipping Weight (shell only) 20–29 kg
Dimensions may vary to +
–3 mm.
OVERALL DIMENSIONS – LINERS
762 mm TO
914 mm
TO COUNTERTOP
762 mm TO
914 mm
TO COUNTERTOP
E
305 mm
HEIGHT OF LINER
572 mm
DEPTH OF LINER
WIDTH OF LINER
DECORATIVE HOOD
HOOD LINER HOOD LINER
DECORATIVE HOOD
152
mm
127
mm
LOCATION OF ELECTRICAL
INSTALLATION SPECIFICATIONS – LINERS
TOP WIDTH
SUBTRACT 152 mm FROM OVERALL WIDTH
305 mm
OVERALL
HEIGHT
OVERALL WIDTH
102 mm
572 mm
OVERALL DEPTH
305
mm
76 mm 76 mm
Pro Hood Liners

10
C
TO CENTER
OF TRANSITION
D
A
WIDTH
OF HOOD
TO CENTER
OF TRANSITION
B
HEIGHT OF
TRANSITION
610 mm and 686 mm Deep Wall Hoods –
Transition Included
610 mm Deep Wall Hoods
Model (A) (B) (C) (D)
ICBPW302418 762 mm 229 mm 375 mm 143 mm
ICBPW362418 914 mm 229 mm 451 mm 143 mm
ICBPW422418 1067 mm 229 mm 527 mm 143 mm
ICBPW482418 1219 mm 229 mm 603 mm 143 mm
ICBPW542418 1372 mm 229 mm 679 mm 143 mm
ICBPW602418 1524 mm 229 mm 756 mm 143 mm
ICBPW662418 1676 mm 229 mm 832 mm 143 mm
686 mm Deep Wall Hoods
Model (A) (B) (C) (D)
ICBPW302718 762 mm 229 mm 375 mm 143 mm
ICBPW362718 914 mm 229 mm 451 mm 143 mm
ICBPW422718 1067 mm 229 mm 527 mm 143 mm
ICBPW482718 1219 mm 229 mm 603 mm 143 mm
ICBPW542718 1372 mm 229 mm 679 mm 143 mm
ICBPW602718 1524 mm 229 mm 756 mm 143 mm
ICBPW662718 1676 mm 229 mm 832 mm 143 mm
Letters correspond to those in the illustrations.
The illustration and chart provide dimensions
specific to Pro 610 mm and 686 mm deep wall
hood models. These dimensions are critical for
proper installation.
TRANSITION SPECIFICATIONS – WALL HOODS
The illustration and chart provide dimensions
critical for proper installation of the Pro hood
liner.
Pro Hood Liners
Model (A) (B) (C) (D)
ICBL342212 873 mm 238 mm 437 mm 152 mm
ICBL402212 1026 mm 238 mm 513 mm 152 mm
ICBL462212 1178 mm 238 mm 589 mm 152 mm
ICBL522212 1330 mm 238 mm 665 mm 152 mm
ICBL582212 1483 mm 238 mm 741 mm 152 mm
Letters correspond to those in the illustration.
A
WIDTH OF
HOOD LINER
D
C
TO CENTER
OF TRANSITION
TO CENTER
OF TRANSITION
B
HEIGHT OF
TRANSITION

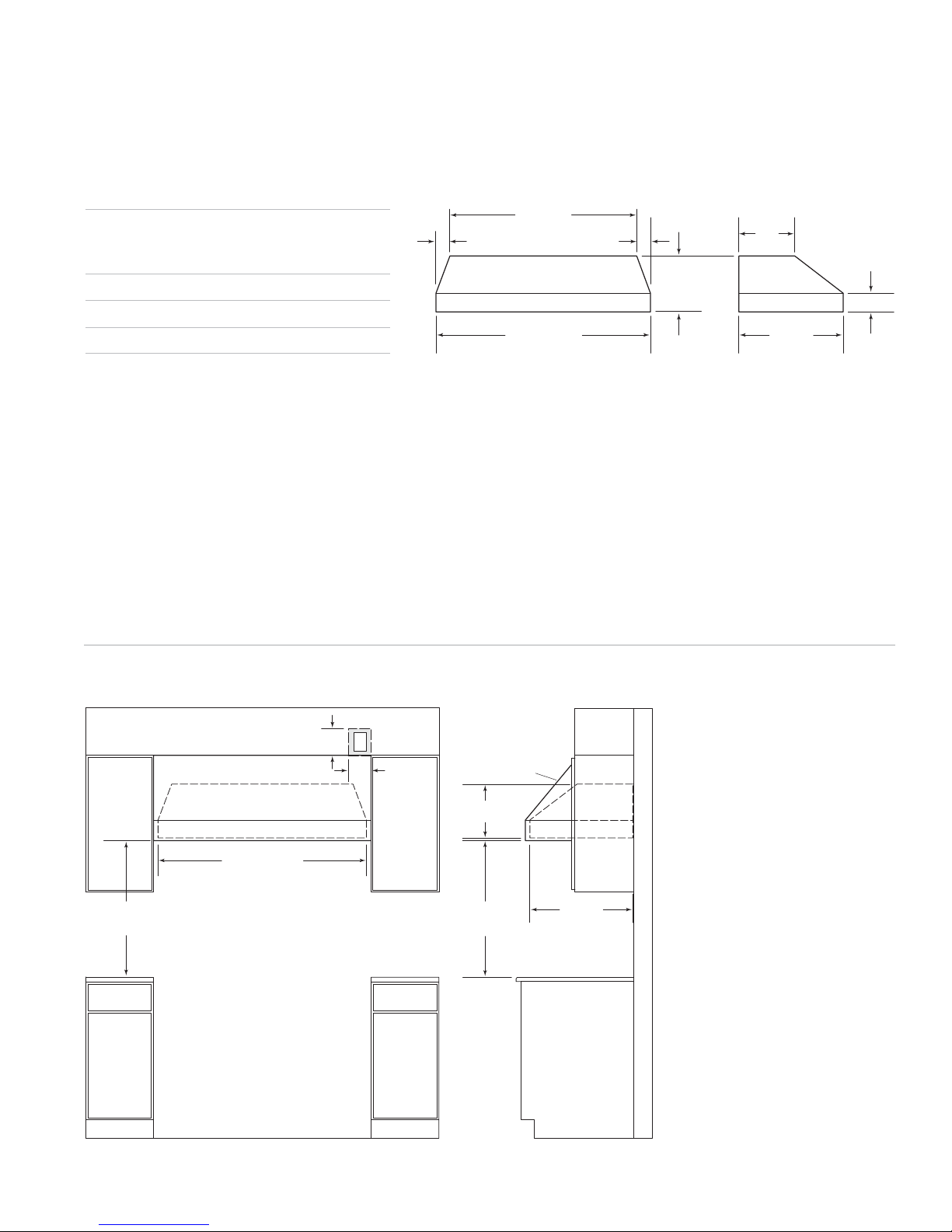

TRANSITION SPECIFICATIONS – LINERS
WOLF PRO VENTILATION HOODS

11
WALL HOOD INSTALLATION
STEP 1: INSTALL DUCTWORK
IMPORTANT NOTE: Wolf recommends that
the Pro wall ventilation hood be installed
762 mm to 914 mm above the countertop.
IMPORTANT NOTE: Consult a qualified HVAC
Engineer for specific ducting applications.
IMPORTANT NOTE: All Pro 610 mm and 686
mm deep wall hoods must exhaust to the
outdoors except when used with the accessory
recirculating kit (Models ICBPW302418,
ICBPW362418, ICBPW302718 and ICBPW362718
with 1000 CMH internal blower). Always use
metal ducting. Do not use flex ducting.
Decide where the ductwork will run between
the wall hood and the outside. A straight, short
duct run will allow the hood to perform more
efficiently. Limit the number of elbows and
transitions to as few as possible. Long duct
runs, elbows and transitions will reduce the
performance of the hood. Wolf recommends
the maximum linear duct run be no greater
than 15 m.
IMPORTANT NOTE: There is a possibility of
noise issues, if there is a short duct run
coupled with a remote blower.
IMPORTANT NOTE: If a horizontal discharge
is needed for installation of a 610 mm or
686 mm deep wall hood, an accessory hori-
zontal discharge kit is required. Refer to
instructions included with the kit for complete
mounting and blower options. Accessory kits
are available through your Wolf dealer.

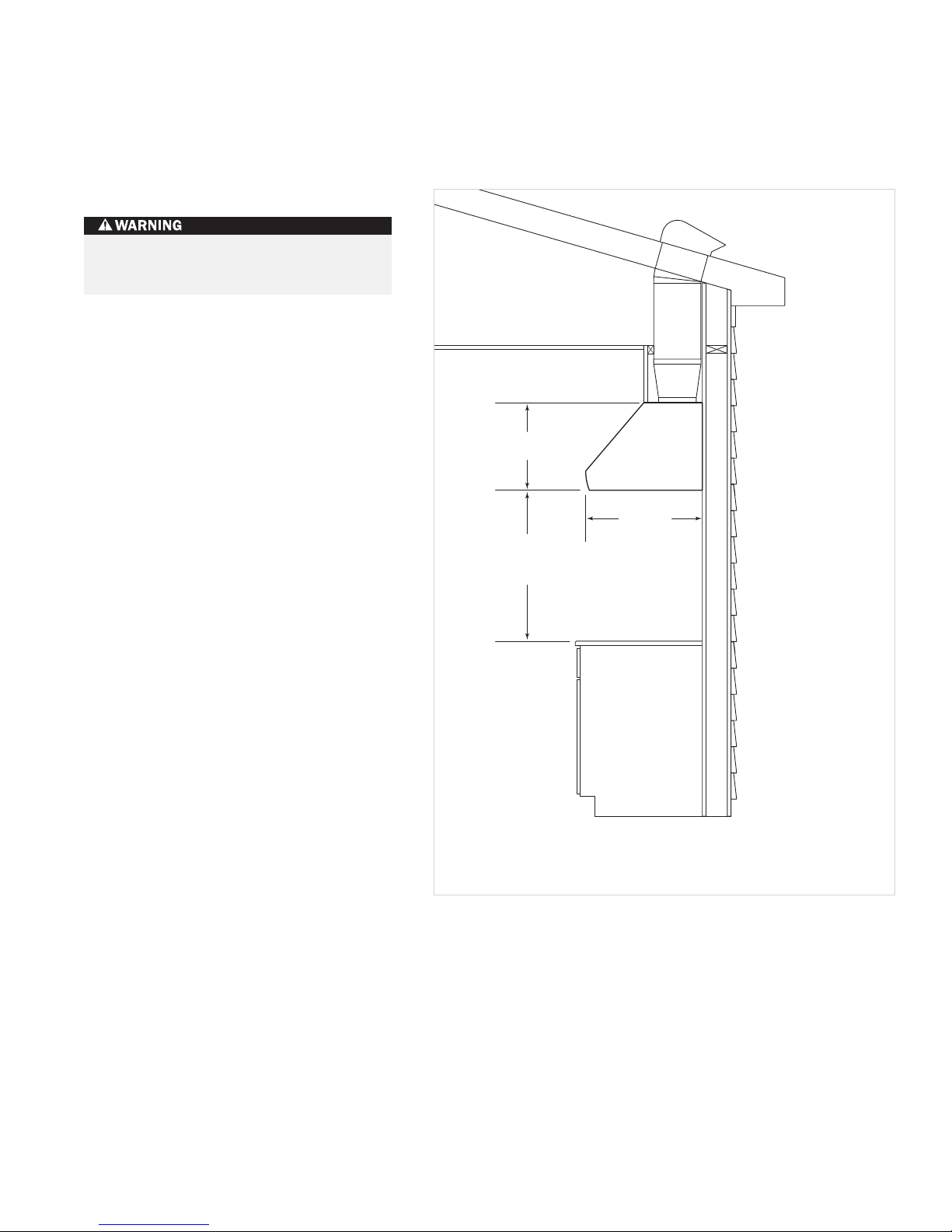

DUCTWORK INSTALLATION
THROUGH ROOF
610 mm
DEPTH OF HOOD
NOTE: HORIZONTAL DISCHARGE REQUIRES AN ACCESSORY KIT.
762 mm TO 914 mm
COUNTERTOP
TO BOTTOM OF
HOOD
457 mm
HEIGHT OF HOOD
Ducting for 610 mm deep wall hoods
To reduce the risk of fire, use only metal
ductwork.
INSTALLATION INSTRUCTIONS

12
WOLF PRO VENTILATION HOODS
762 mm TO
914 mm
COUNTERTOP
TO BOTTOM OF
HOOD
457 mm
HEIGHT OF HOOD
DUCTWORK INSTALLATION
THROUGH ROOF
686 mm
DEPTH OF HOOD
NOTE: HORIZONTAL DISCHARGE REQUIRES AN ACCESSORY KIT.
Ducting for 686 mm deep wall hoods
WALL HOOD INSTALLATION
STEP 1: INSTALL DUCTWORK
Always install a roof or wall cap if you are not
installing a remote blower. Connect 254 mm
round metal ductwork to the cap and work
back towards the hood. Use duct sealing tape
on joints between ductwork sections.
Wolf Pro 610 mm and 686 mm deep wall
hoods come standard with a backdraft damper
included in the transition assembly. Local
codes may require the use of an additional
backdraft damper. Contact your local HVAC
professional for specific requirements. In cold
weather installations, a backdraft damper is
necessary to minimize the backflow of cold air
into the room.
Local building codes may require the use of
make-up air. Consult your local HVAC profes-
sional for specific requirements in your area.
To reduce the risk of fire and electric
shock, install this ventilation hood only
with a Wolf blower. Blower model
numbers are listed on page 27.

IMPORTANT NOTE: The screws should be
countersunk so that they are below flush.
Install the flat metal hood retaining brackets
to the wood mounting support at the loca-
tions shown in the illustration and the chart
below. Use the provided #10 x 38 mm
screws and washers to secure these
brackets in place. The metal bracket should
be mounted 13 mm above the top of the
wood mounting support.
IMPORTANT NOTE: The location of this wood
mounting support and retaining bracket allow
for 13 mm clearance at the top of the hood for
ease of installation. This gap will be taken up
during final mounting of the hood to the wood
mounting support.
Refer to the illustration below for the location
of mounting holes for the Pro 610 mm and
686 mm deep wall hoods.
13
INSTALLATION INSTRUCTIONS
ACCESSORIES
Optional acces-
sories are available
through your
Wolf dealer. To
obtain local dealer
information, visit
the international
section of our
website,
wolfappliance.com.
If wall framing is not available, wall
anchors must be used.
113
mm
64
mm
MOUNTING
HOLES

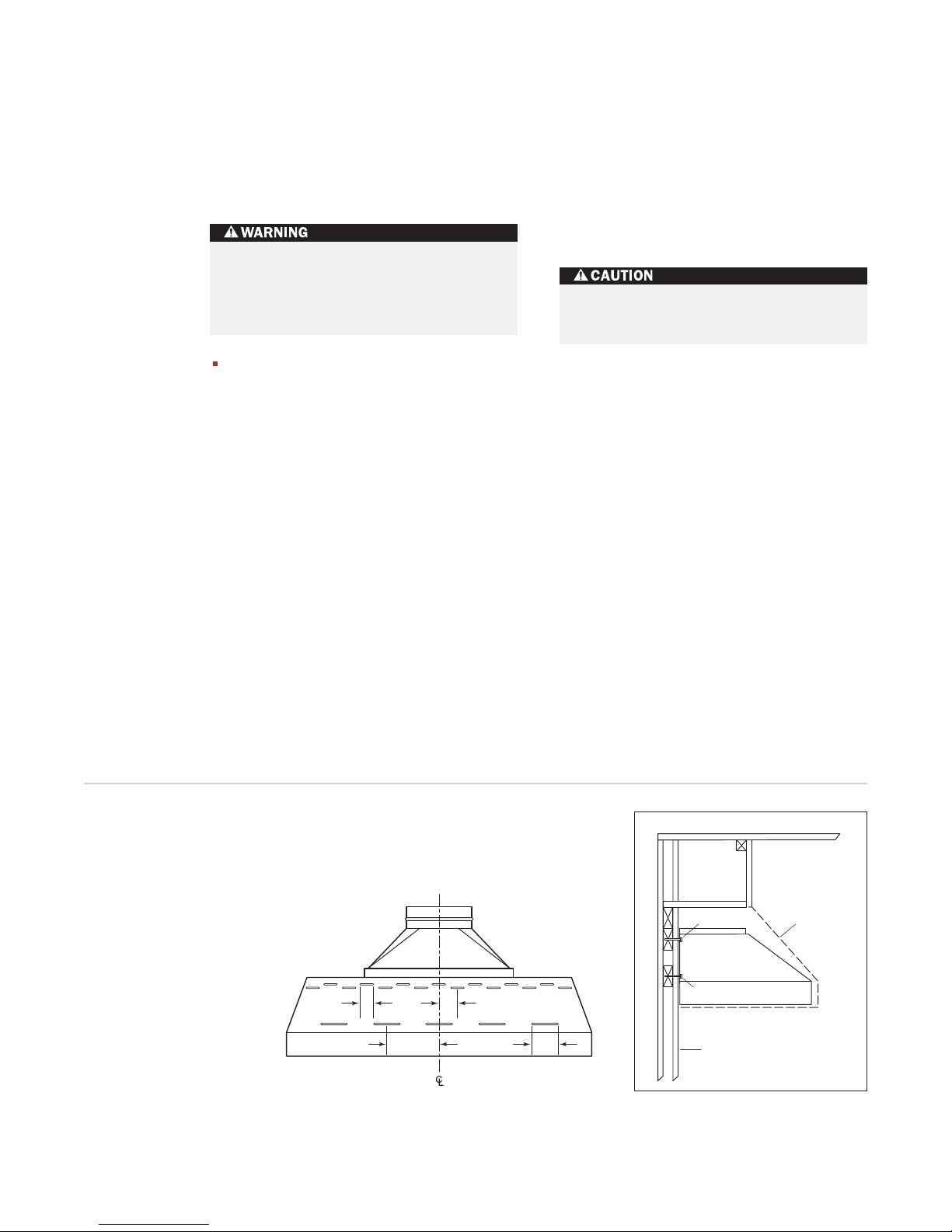

Location of mounting holes
WALL HOOD INSTALLATION
STEP 2: WALL PREPARATION
Construct the wood wall framing flush with
the wall studs and centered in the location
that the hood will be mounted. Finish the
wall surface.
Attach the provided wood mounting
support. Refer to the illustration and the
chart below. The wood support should be
centered within the desired hood location.
Use the provided 76 mm screws to attach
the support to the wall. The location of
these screws should correspond to the
wood supports within the walls or the
framing.
Framing must be tied together to provide
enough structural strength to support the
weight of the hood and internal blower,
if applicable.
Failure to install the screws or fixing
device in accordance with these instruc-
tions may result in electrical hazards.
A
CENTER LINE
OF HOOD
LOCATION
B
TO BOTTOM
OF HOOD
762 mm TO
914 mm
BOTTOM OF
HOOD TO
COUNTERTOP
A
92 mm
19 mm13 mm
HOOD RETAINING
BRACKET
Wood mounting support
Wood Mounting Support
Hood Width (A) (B)
762 mm 298 mm 384 mm
914 mm 311 mm 384 mm
1067 mm 387 mm 384 mm
1219 mm 464 mm 384 mm
1372 mm 540 mm 384 mm
1524 mm 616 mm 384 mm
1676 mm 692 mm 384 mm

14
WOLF PRO VENTILATION HOODS
WALL HOOD INSTALLATION
STEP 3: HOOD PREPARATION
IMPORTANT NOTE: If a duct cover is to be
used, follow instructions on page 16 before
installing the wall hood. If you are installing a
recirculating kit, refer to instructions included
with the kit before installing the wall hood.
IMPORTANT NOTE: Wolf recommends
installing the internal blower to the back plate
prior to mounting the hood.
If you are installing 1000 CMH blower
(813160), 1600 CMH blower (813161) or a
1900 CMH blower (813162), refer to the
internal blower information on page 23 and
follow installation instructions provided
with the blower assembly.
The hood assembly is shipped with the
back plate/transition attached. The
transition is shipped upside down in the top
of the hood. It must be removed and rein-
stalled in the proper position.
Remove the filters by pushing each filter up
at the angle it is placed in, and rotate down.
Remove the center filter first. Then take out
the grease cups placed on the bottom edge
of the hood coinciding with the bottom
edge of the filters. Gloves should be worn
to provide the proper grip when removing
filters.
Detach the back plate/transition assembly
from the hood by removing the screws
from the top and back of the assembly.
Refer to the illustration below.
Separate the transition from the back plate
by removing the shipping nut from the
inside of the back plate.
Position the back plate in the desired
location and mark the mounting holes on
the wood support. Drill pilot holes for the
mounting hardware.
If you are installing a remote blower, drill
an additional 22 mm hole through the wood
framing for the conduit in order to run
power to the blower. Refer to the illustra-
tion on page 20 for location of the electrical
box and to the remote blower information
on pages 25–26. Also, follow installation
instructions provided with the blower
assembly.
IMPORTANT NOTE: Do not run wiring for the
remote blower through the ductwork.

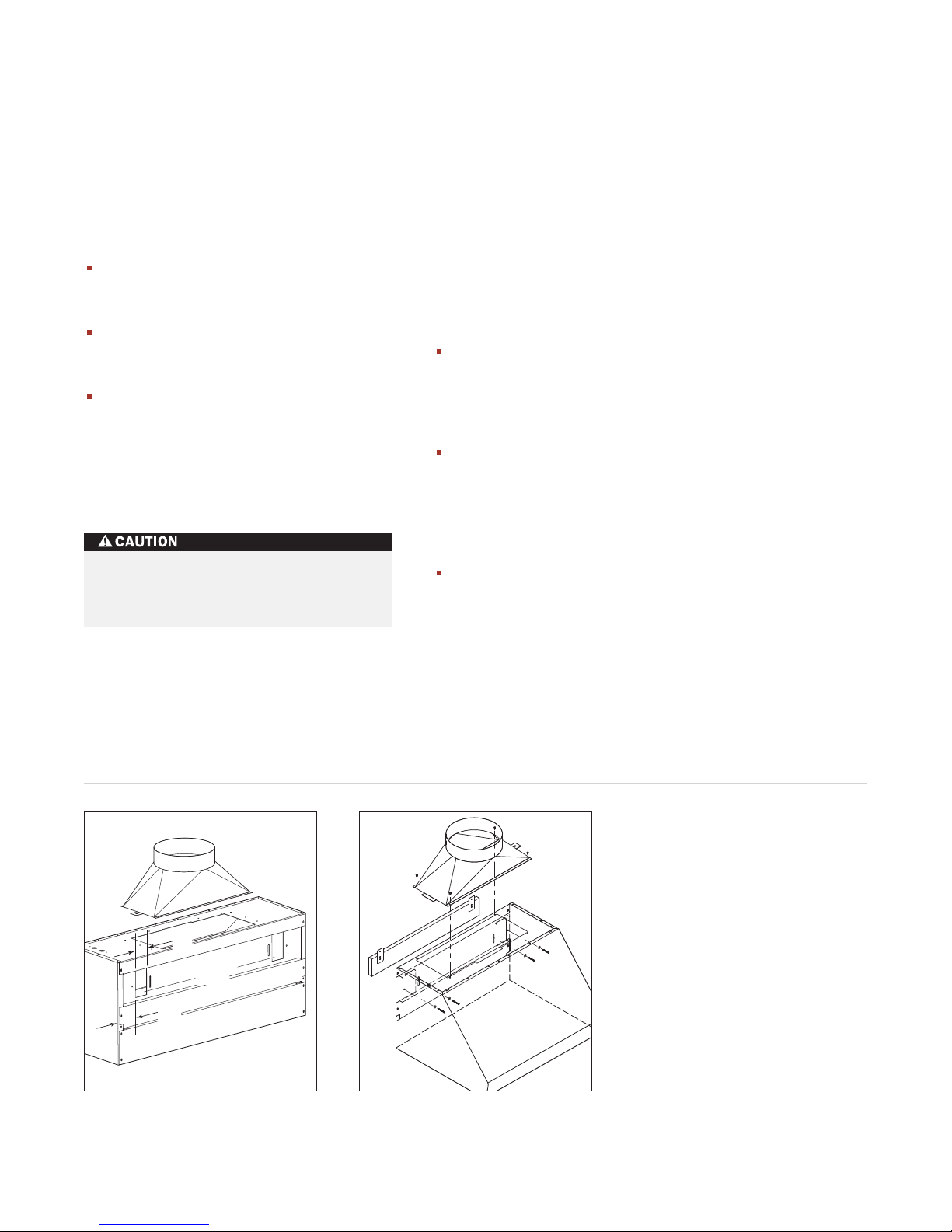

Back plate/transition assembly

15
INSTALLATION INSTRUCTIONS
WALL HOOD INSTALLATION
STEP 4: REATTACH BACK PLATE
Follow these instructions to reattach the back
plate to the wall hood:
Attach the transition to the back plate using
the four shipping screws provided in the
hardware mounting kit.
Reinstall the shipping screws removed
previously from the top and back of the
back plate.
Use duct sealing tape to ensure a tight seal
from the transition to the back plate.
IMPORTANT NOTE: If additional support is
required, drill supplementary mounting holes
in the back plate and use these holes to attach
the hood assembly to the wall framing.
Due to the weight of the hood, be
sure to have adequate manpower for
installation.
STEP 5: HOOD INSTALLATION
IMPORTANT NOTE: If a backsplash is to be
used, it should be installed before the wall
hood is mounted. Refer to instructions
included with the backsplash.
Follow these instructions to install the wall
hood:
Align the mounting holes in the back plate
of the hood assembly with the metal
retaining brackets on the wood mounting
support. Refer to the illustration below for
location of the mounting holes.
Position the hood and install the #10 x
38 mm screws and washers (included in the
hardware mounting kit) through the
mounting holes on the back plate. Refer to
the illustration below. Verify that the screws
engage the wood mounting support.
Attach the transition to existing ductwork
with sheet metal screws and duct sealing
tape.
113
mm
64
mm
MOUNTING
HOLES

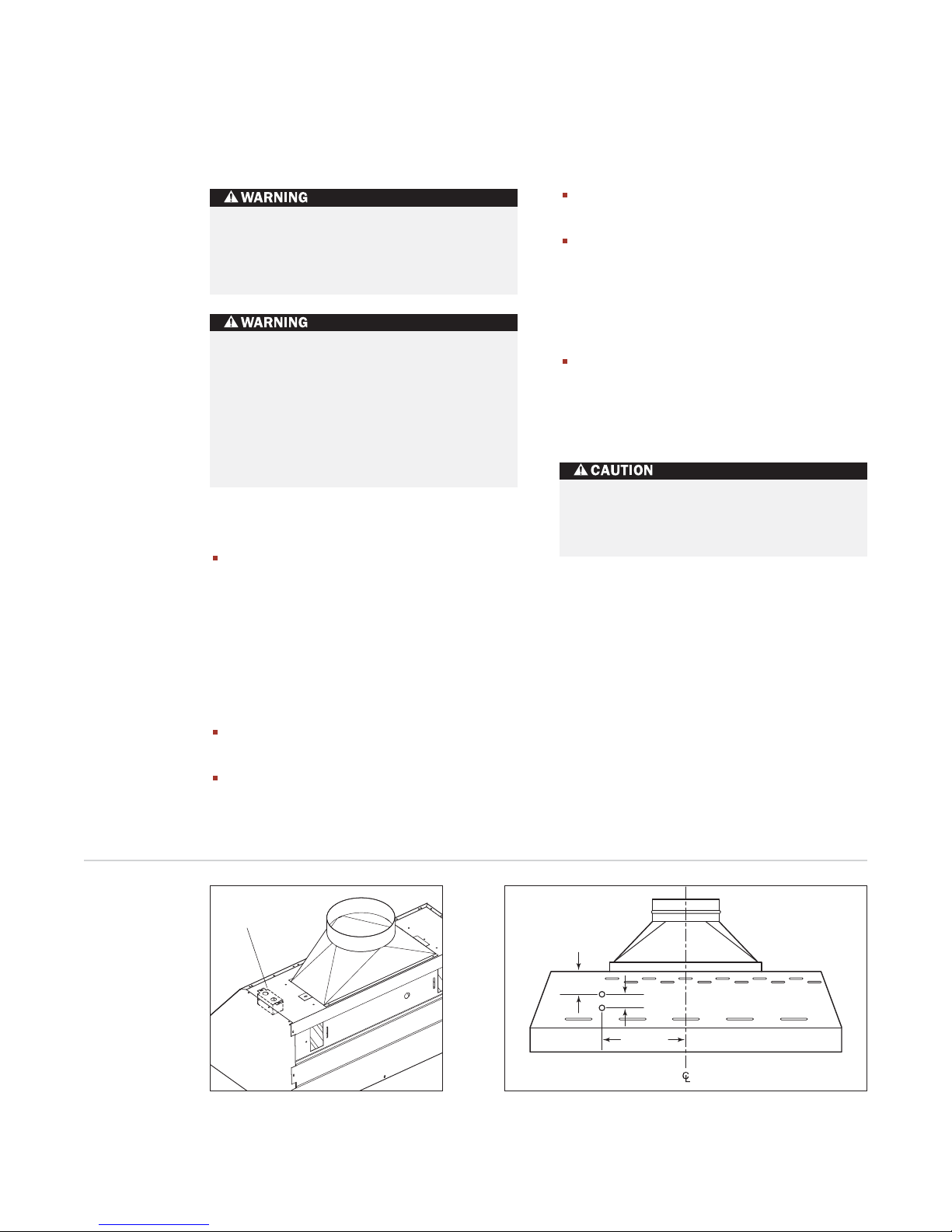

Location of mounting holes Hood installation

16
ACCESSORIES
Optional acces-
sories are available
through your
Wolf dealer. To
obtain local dealer
information, visit
the international
section of our
website,
wolfappliance.com.
DUCT COVER INSTALLATION
WALL HOODS ONLY
Optional
Duct Cover
Mounting
Screws
Duct cover installation
Installing a duct cover assembly will
impact all aspects of the hood installa-
tion including hood location, ducting,
electrical placement and the mounting
surface.
Duct covers 152 mm, 305 mm, 457 mm and
610 mm high in widths to match all wall hoods
are available through your Wolf dealer. To
obtain local dealer information, visit our
website, wolfappliance.com.
IMPORTANT NOTE: If an optional duct cover
is to be used with any Wolf Pro wall hood,
follow these instructions before installing the
hood:
Remove all screws from the front edge of
the back panel on the top of the wall hood.
Leave the two screws on the sides as there
is a relief in the duct cover for them.
Attach the duct cover from the inside of the
hood through the filter opening using the
screws provided.
Leave screws partially loose until all screws
are installed. Check alignment of the duct
cover with the hood and tighten the four
corner screws to secure the duct cover.
Tighten all remaining screws.
Continue with the installation of the wall
hood.
WOLF PRO VENTILATION HOODS

17
305 mm
HEIGHT OF LINER
HOOD LINER
DUCTWORK INSTALLATION
THROUGH ROOF
254 mm ROUND DUCT
SOFFIT OR CABINET
OR DUCT COVER
VERTI
C
AL DI
SC
HAR
G
E
O
NLY F
O
R VENTILATI
O
NH
OO
D LINER
S
.
VERTICAL DISCHARGE
572 mm
DEPTH OF LINER
DECORATIVE HOOD
762 mm TO 914 mm
COUNTERTOP
TO BOTTOM OF
DECORATIVE HOOD
914 mm
STANDARD
FLOOR TO
COUNTERTOP
HEIGHT
TRANSITION
565 mm W x 229 mm D
TO 254 mm ROUND 254 mm H
DIMENSIONS INCLUDE FLANGES
ROOF CAP OR REMOTE BLOWER
HOOD LINER INSTALLATION
STEP 1: INSTALL DUCTWORK
IMPORTANT NOTE: Wolf recommends that
the Pro ventilation hood liner be installed
762 mm to 914 mm above the countertop.
IMPORTANT NOTE: Consult a qualified HVAC
Engineer for specific ducting applications.
IMPORTANT NOTE: All Wolf ventilation hood
liners must exhaust to the outdoors. Always
use metal ducting. Do not use flex ducting.
Decide where the ductwork will run between
the hood liner and the outside. A straight,
short duct run will allow the hood liner to
perform more efficiently. Limit the number of
elbows and transitions to as few as possible.
Long duct runs, elbows and transitions will
reduce the performance of the hood liner. Wolf
recommends the maximum linear duct run be
no greater than 15 m. The Pro hood liner has a
vertical discharge.
IMPORTANT NOTE: There is a possibility of
noise issues, if there is a short duct run
coupled with a remote blower.
Always install a roof or wall cap if you are not
installing a remote blower. Connect 254 mm
round metal ductwork to the cap and work
back towards the hood. Use duct sealing tape
on joints between ductwork sections.
Wolf Pro hood liners come standard with a
backdraft damper included in the transition
assembly. Local codes may require the use of
an additional backdraft damper. Contact your
local HVAC professional for specific require-
ments. In cold weather installations, a back-
draft damper is necessary to minimize the
backflow of cold air into the room.
Local building codes may require the use of
make-up air. Consult your local HVAC profes-
sional for specific requirements in your area.
To reduce the risk of fire, use only metal
ductwork.
To reduce the risk of fire and electric
shock, install this ventilation hood liner
only with a blower manufactured by
Wolf. Blower model numbers are listed
on page 27.
Ducting for Pro hood liners
INSTALLATION INSTRUCTIONS

18
HOOD LINER INSTALLATION
STEP 2: WALL PREPARATION
Construct the wood wall framing flush with
the wall studs and centered in the location
that the hood liner will be mounted.
Refer to the illustrations below for the location
of mounting holes for Pro hood liners and a
cross-section of a typical installation.
Framing must be tied together and to
ceiling joists to provide enough structural
strength to support the weight of the hood
liner and internal blower, if applicable.
Decorative
Hood
#10 Screw
#10 Screw
Hood Liner
13 mm Drywall
Installation cross-section
If wall framing is not available, wall
anchors must be used.
70
mm
203 mm 102
mm
51
mm
Mounting holes for hood liners
WOLF PRO VENTILATION HOODS

19
INSTALLATION INSTRUCTIONS
HOOD LINER INSTALLATION
STEP 3: HOOD LINER PREPARATION
If you are installing 1900 CMH blower
(813162), refer to the internal blower infor-
mation on page 24 and follow installation
instructions provided with the blower.
The hood liner assembly is shipped with the
transition attached. The transition is shipped
upside down in the top of the hood liner. It
must be removed and reinstalled in the
proper position. Refer to the illustration on
page 18.
Remove the filters by pushing each filter up
at the angle it is placed in, and rotate down.
Remove the center filter first. Gloves should
be worn to provide the proper grip when
removing filters.
Remove the screws (8) that hold the filter
frame in place. Remove the bottom and two
sides of the filter frame and set aside for
replacing at a later time. Remove the transi-
tion by removing the (4) mounting screws.
Attach the transition onto the top of the liner
with the (4) mounting screws. Refer to the
illustrations on page 24.
Attach the transition to existing ductwork
with sheet metal screws and duct sealing
tape.
If you are installing a remote blower, drill a
22 mm hole through the wood framing for
the conduit. Refer to the remote blower
information on pages 25–26 and follow
installation instructions provided with the
blower.
IMPORTANT NOTE: Do not run wiring for the
remote blower through the ductwork.
STEP 4: INSTALL THE HOOD LINER
IMPORTANT NOTE: If a backsplash is to be
used, it should be installed before the hood
liner is mounted.
Position the hood liner in the desired location
on the wall. Install the #10 x 59 mm screws
through the mounting holes on the back plate.
Verify that the screws engage the wall studs or
framing. If not, wall anchors must be used.
IMPORTANT NOTE: If additional support is
required for the hood liner, drill supplementary
mounting holes in the back plate and use these
holes to attach the hood liner assembly to the
wall framing.
Due to the weight of the hood liner, be
sure to have adequate manpower for
installation.

20
Do not remove the control knob bezel to
access hood wiring; this will damage the
bezel assembly.
Location of electrical box—wall hoods
IMPORTANT
NOTE
You must follow
all building and
electrical code
regulations. In
addition, be aware
of local codes and
ordinances when
installing your
service.
ELECTRICAL WIRING
This ventilation hood must be properly
grounded. This unit should be installed by
a qualified electrician in accordance with
all applicable local electrical codes.
Before servicing or cleaning unit, switch
power off at service panel and lock the
service disconnecting means to prevent
power from being switched on acciden-
tally. When the service disconnecting
means cannot be locked, securely fasten a
prominent warning device, such as a tag,
to the service panel.
Cord anchorage must be used at both ends
of the fixed wiring.
Remove the electrical box cover from the
back plate. Using the terminal block,
connect brown wire to power supply brown
wire, blue wire to power supply blue wire
and green/yellow striped wire to
green/yellow striped wire or bare wire.
Place all wiring connections inside the
electrical box and reinstall on the back plate
in the upper right-hand corner. Make sure
that the wires are secure and that no wires
are pinched between the cover and box.
Follow these instructions to install wiring for
all Wolf Pro wall hoods:
Run a circuit from the service panel to the
electric box on the back plate.
Maximum power requirements with motors:
220-240 V AC 50/60 Hz
2–6 Amps
0.46–1.37 kW
See unit rating label for specific power
requirements.
Wiring diagram for the unit is located on the
outside of the back panel.
Run the fixed wiring through the holes in the
back plate to the electrical box. Refer to the
illustration below for the location of the
electrical box.
IMPORTANT NOTE: Connection of this appli-
ance should be through a fused connection
unit or a suitable isolator, which complies with
national and local safety regulations. The
on/off switch should be easily accessible after
the appliance has been installed. If the switch
is not accessible after installation (depending
on country) an additional means of disconnec-
tion must be provided for all poles of the
power supply. When switched off there must
be an all pole contact gap of 3 mm in the
isolator switch. This 3 mm contact disconnect
gap must apply to any isolator switch, fuses
and/or relays according to EN60335.
Electrical
Box
WOLF PRO VENTILATION HOODS
48 mm
89 mm
318 mm
Pro hood liner wiring location
