Wolf W302718 User manual

Classic stainless
steel finish
Backdraft damper
Stainless steel
baffle filters
Infinite speed
blower control
Welded seams
and hemmed edges
Halogen lighting
Model W302718
Model W302718R
Rail Option
Model W302718R shown with standard classic stainless steel
decorative rail, platinum or brass rail available as a sales accessory
Hand finished
craftsmanship
Recessed easy
access controls
Decorative rail
(optional)
Planning Information
30" (762) Pro Wall Hood
Model W302718(R)
Dimensions in parentheses are in
millimeters unless otherwise specified.
3/06
1
Wolf Pro wall hoods provide the ultimate in
ventilation. With standard elements like heat sentry
and dual setting halogen lighting, Wolf elevates the
need for ventilation to an enjoyable perk.
With the Pro 27" (686) deep wall hood you have the
option of a decorative rail. While a classic stainless
steel rail is standard on the (R) model, platinum or
brass rails are also available to match the bezels of our
Dual Fuel Ranges.
The deepest of the Wolf Pro wall hoods, this 27" (686)
deep model provides an additional exclusive feature—
heat lamps. Hosting your dream dinner party and the
warming drawer is already filled? Not a problem.
Turn on your heat lamps and relax.
Pro wall ventilation hoods are recommended for use
with all Wolf cooking appliances.
Wolf Pro 27" (686) deep wall hoods
are available in the classic stainless steel
finish. Rail option hoods (R) come with a
classic stainless steel decorative rail and
stand-offs. Optional platinum or brass
rails match dual fuel range bezels. Pro
wall hoods are sold as a shell only,
internal and remote blower options are
available.

FEATURES
27" (686) deep wall ventilation hood with
classic stainless steel finish
Rail option hoods (R) come with a classic
stainless steel decorative rail and stand-offs –
optional platinum or brass rail to match dual
fuel range bezels is available as a sales
accessory
Internal or remote blower options
Heavy-duty 16-gauge brushed stainless steel
construction
Stainless steel enclosed liner
Continually welded seams, hemmed edges
and sides and hand finished craftsmanship
Recessed easy access controls
Infinite speed blower control
Heat sentry feature automatically turns unit
on when heat is sensed and automatically
adjusts blower speed
Halogen lighting with two settings
Heat lamps – bulbs not included
Removable, easy to clean restaurant-grade
stainless steel baffle filters
Transition with backdraft damper included
UL listed to US and Canadian safety
standards
UL approved for covered outdoor applica-
tions
Two and five year residential warranty –
exclusions apply; warranty information can
be found on our website, wolfappliance.com

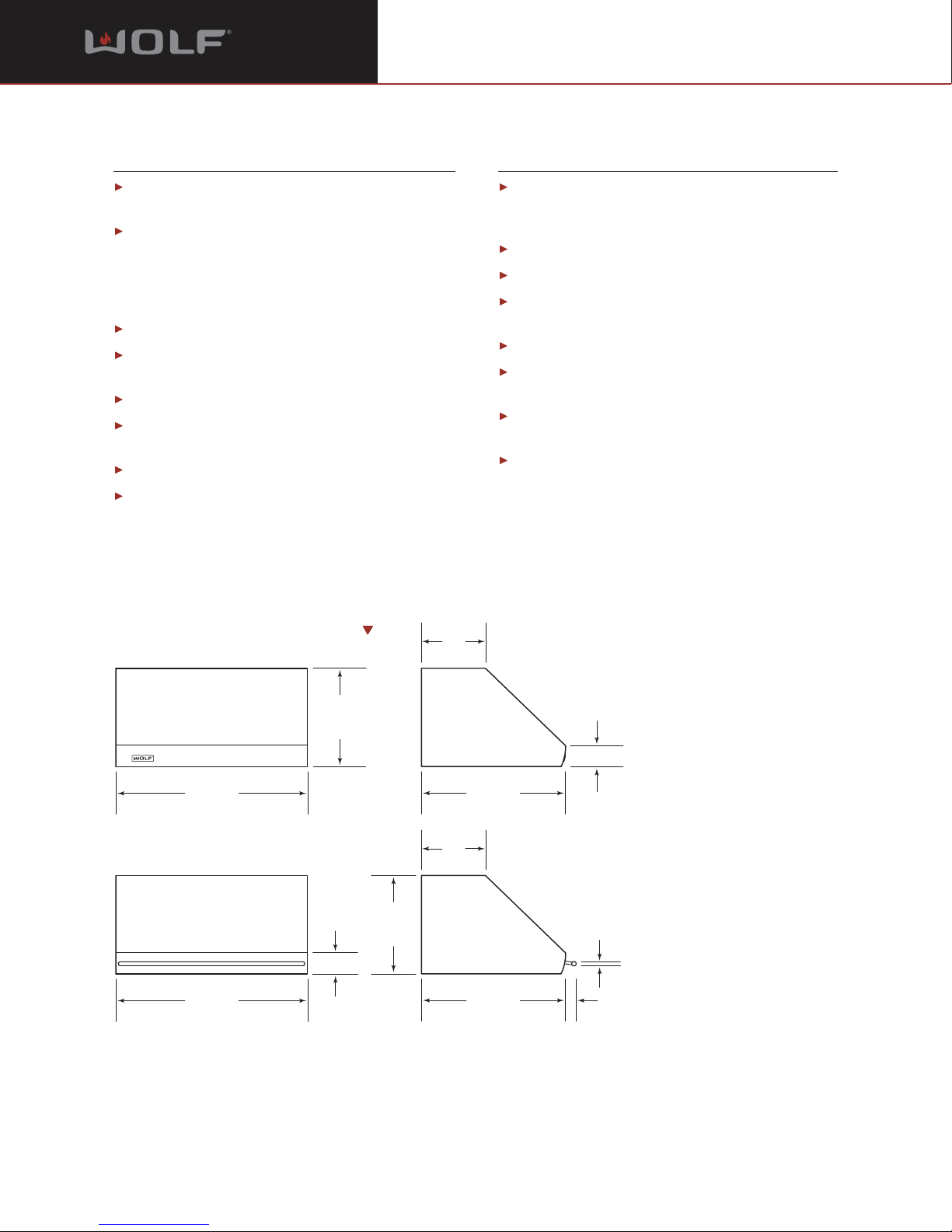

30" (762)
OVERALL WIDTH
27" (686)
OVERALL DEPTH
12"
(305)
30" (762)
OVERALL WIDTH
27" (686)
OVERALL DEPTH
12"
(305)
18"(457)
OVERALL
HEIGHT
2"
(51)
4"(102)
3/4" (19)
DIAMETER
OF RAIL
4"(102)
18"(457)
OVERALL
HEIGHT
OVERALL DIMENSIONS
Planning Information
30" (762) Pro Wall Hood
Model W302718(R)
Dimensions in parentheses are in
millimeters unless otherwise specified.
Dimensions may vary by ±
1
/ 8 " (3).
2
Model W302718
Model W302718R with Rail

Planning Information
30" (762) Pro Wall Hood
Model W302718(R)
Dimensions in parentheses are in
millimeters unless otherwise specified.
3
ACCESSORIES
Platinum or brass decorative rail
and stand-offs
38" (965) high stainless steel
backsplash with warming rack
38" (965) high stainless steel
backsplash
6" (152) and 12" (305) duct covers
Accessories are available through your
Wolf dealer. To obtain local dealer
information, visit the Locator section of
our website, wolfappliance.com.
SPECIFICATIONS
Overall Width of Hood 30" (762)
Overall Height of Hood 18" (457)
Overall Depth of Hood – W302718 27" (686)
W302718R (including rail) 29" (737)
Internal Blower Options 600 CFM, 900 CFM
Remote Blower Options 600, 900, 1200 or 1500 CFM
Duct Size 10" (254) Round
Discharge Vertical
Electrical Supply Requirements 110 / 120 V AC, 60 Hz
15 amp dedicated circuit
Shipping Weight (shell only) 69 lbs (31 kg)
Specifications are subject to change without notice.
Model W302718
Model W302718R
Rail Option

Planning Information
30" (762) Pro Wall Hood
Model W302718(R)
Dimensions in parentheses are in
millimeters unless otherwise specified.
Dimensions may vary by ±
1
/ 8 " (3).
4
INSTALLATION SPECIFICATIONS
30" (762)
WIDTH OF HOOD
E
6"
(152)
5"
(127)
NOTE: 27" (686) deep wall hoods are vertical discharge only.
30" TO 36"
(762–914)
TO COUNTERTOP
30" TO 36"
(762–914)
TO COUNTERTOP
18" (457)
HEIGHT
OF HOOD
27" (686)
DEPTH OF HOOD
DIMENSIONS
Overall Width of Hood 30" (762)
Overall Height of Hood 18" (457)
Overall Depth of Hood (excluding rail) 27" (686)
Countertop to Bottom of Hood 30" (762) to 36" (914)
Location of Electrical Within shaded area
See Installation Instructions shipped with unit for detailed specifications.

Planning Information
36" (914) Pro Wall Hood
Model W362718(R)
Dimensions in parentheses are in
millimeters unless otherwise specified.
3/06
5
Wolf Pro wall hoods provide the ultimate in
ventilation. With standard elements like heat sentry
and dual setting halogen lighting, Wolf elevates the
need for ventilation to an enjoyable perk.
With the Pro 27" (686) deep wall hood you have the
option of a decorative rail. While a classic stainless
steel rail is standard on the (R) model, platinum or
brass rails are also available to match the bezels of our
Dual Fuel Ranges.
The deepest of the Wolf Pro wall hoods, this 27" (686)
deep model provides an additional exclusive feature—
heat lamps. Hosting your dream dinner party and the
warming drawer is already filled? Not a problem.
Turn on your heat lamps and relax.
Pro wall ventilation hoods are recommended for use
with all Wolf cooking appliances.
Wolf Pro 27" (686) deep wall hoods
are available in the classic stainless steel
finish. Rail option hoods (R) come with a
classic stainless steel decorative rail and
stand-offs. Optional platinum or brass
rails match dual fuel range bezels. Pro
wall hoods are sold as a shell only,
internal and remote blower options are
available.
Classic stainless
steel finish
Backdraft damper
Stainless steel
baffle filters
Infinite speed
blower control
Welded seams
and hemmed edges
Halogen lighting
Model W362718
Model W362718R
Rail Option
Model W362718R shown with standard classic stainless steel
decorative rail, platinum or brass rail available as a sales accessory
Hand finished
craftsmanship
Recessed easy
access controls
Decorative rail
(optional)

FEATURES
27" (686) deep wall ventilation hood with
classic stainless steel finish
Rail option hoods (R) come with a classic
stainless steel decorative rail and stand-offs –
optional platinum or brass rail to match dual
fuel range bezels is available as a sales
accessory
Internal or remote blower options
Heavy-duty 16-gauge brushed stainless steel
construction
Stainless steel enclosed liner
Continually welded seams, hemmed edges
and sides and hand finished craftsmanship
Recessed easy access controls
Infinite speed blower control
Heat sentry feature automatically turns unit
on when heat is sensed and automatically
adjusts blower speed
Halogen lighting with two settings
Heat lamps – bulbs not included
Removable, easy to clean restaurant-grade
stainless steel baffle filters
Transition with backdraft damper included
UL listed to US and Canadian safety
standards
UL approved for covered outdoor applica-
tions
Two and five year residential warranty –
exclusions apply; warranty information can
be found on our website, wolfappliance.com
27" (686)
OVERALL DEPTH
12"
(305)
27" (686)
OVERALL DEPTH
12"
(305)
18"(457)
OVERALL
HEIGHT
2"
(51)
4"(102)
3/4" (19)
DIAMETER
OF RAIL
4"(102)
18"(457)
OVERALL
HEIGHT
36" (914)
OVERALL WIDTH
36" (914)
OVERALL WIDTH
OVERALL DIMENSIONS
Planning Information
36" (914) Pro Wall Hood
Model W362718(R)
Dimensions in parentheses are in
millimeters unless otherwise specified.
Dimensions may vary by ±
1
/ 8 " (3).
6
Model W362718
Model W362718R with Rail

Planning Information
36" (914) Pro Wall Hood
Model W362718(R)
Dimensions in parentheses are in
millimeters unless otherwise specified.
7
ACCESSORIES
Platinum or brass decorative rail
and stand-offs
38" (965) high stainless steel
backsplash with warming rack
38" (965) high stainless steel
backsplash
6" (152) and 12" (305) duct covers
Accessories are available through your
Wolf dealer. To obtain local dealer
information, visit the Locator section of
our website, wolfappliance.com.
SPECIFICATIONS
Overall Width of Hood 36" (914)
Overall Height of Hood 18" (457)
Overall Depth of Hood – W362718 27" (686)
W362718R (including rail) 29" (737)
Internal Blower Options 600 CFM, 900 CFM
Remote Blower Options 900, 1200 or 1500 CFM
Duct Size 10" (254) Round
Discharge Vertical
Electrical Supply Requirements 110 / 120 V AC, 60 Hz
15 amp dedicated circuit
Shipping Weight (shell only) 80 lbs (36 kg)
Specifications are subject to change without notice.
Model W362718
Model W362718R
Rail Option

Planning Information
36" (914) Pro Wall Hood
Model W362718(R)
Dimensions in parentheses are in
millimeters unless otherwise specified.
Dimensions may vary by ±
1
/ 8 " (3).
8
INSTALLATION SPECIFICATIONS
36" (914)
WIDTH OF HOOD
E
6"
(152)
5"
(127)
NOTE: 27" (686) deep wall hoods are vertical discharge only.
30" TO 36"
(762–914)
TO COUNTERTOP
30" TO 36"
(762–914)
TO COUNTERTOP
18" (457)
HEIGHT
OF HOOD
27" (686)
DEPTH OF HOOD
DIMENSIONS
Overall Width of Hood 36" (914)
Overall Height of Hood 18" (457)
Overall Depth of Hood (excluding rail) 27" (686)
Countertop to Bottom of Hood 30" (762) to 36" (914)
Location of Electrical Within shaded area
See Installation Instructions shipped with unit for detailed specifications.

Planning Information
42" (1067) Pro Wall Hood
Model W422718(R)
Dimensions in parentheses are in
millimeters unless otherwise specified.
3/06
9
Wolf Pro wall hoods provide the ultimate in
ventilation. With standard elements like heat sentry
and dual setting halogen lighting, Wolf elevates the
need for ventilation to an enjoyable perk.
With the Pro 27" (686) deep wall hood you have the
option of a decorative rail. While a classic stainless
steel rail is standard on the (R) model, platinum or
brass rails are also available to match the bezels of our
Dual Fuel Ranges.
The deepest of the Wolf Pro wall hoods, this 27" (686)
deep model provides an additional exclusive feature—
heat lamps. Hosting your dream dinner party and the
warming drawer is already filled? Not a problem.
Turn on your heat lamps and relax.
Pro wall ventilation hoods are recommended for use
with all Wolf cooking appliances.
Wolf Pro 27" (686) deep wall hoods
are available in the classic stainless steel
finish. Rail option hoods (R) come with a
classic stainless steel decorative rail and
stand-offs. Optional platinum or brass
rails match dual fuel range bezels. Pro
wall hoods are sold as a shell only,
internal and remote blower options are
available.
Classic stainless
steel finish
Backdraft damper
Stainless steel
baffle filters
Infinite speed
blower control
Welded seams
and hemmed edges
Halogen lighting
Model W422718
Model W422718R
Rail Option
Model W422718R shown with standard classic stainless steel
decorative rail, platinum or brass rail available as a sales accessory
Hand finished
craftsmanship
Recessed easy
access controls
Decorative rail
(optional)

FEATURES
27" (686) deep wall ventilation hood with
classic stainless steel finish
Rail option hoods (R) come with a classic
stainless steel decorative rail and stand-offs –
optional platinum or brass rail to match dual
fuel range bezels is available as a sales
accessory
Internal or remote blower options
Heavy-duty 16-gauge brushed stainless steel
construction
Stainless steel enclosed liner
Continually welded seams, hemmed edges
and sides and hand finished craftsmanship
Recessed easy access controls
Infinite speed blower control
Heat sentry feature automatically turns unit
on when heat is sensed and automatically
adjusts blower speed
Halogen lighting with two settings
Heat lamps – bulbs not included
Removable, easy to clean restaurant-grade
stainless steel baffle filters
Transition with backdraft damper included
UL listed to US and Canadian safety
standards
UL approved for covered outdoor applica-
tions
Two and five year residential warranty –
exclusions apply; warranty information can
be found on our website, wolfappliance.com
42" (1067)
OVERALL WIDTH
27" (686)
OVERALL DEPTH
12"
(305)
42" (1067)
OVERALL WIDTH
27" (686)
OVERALL DEPTH
12"
(305)
18"(457)
OVERALL
HEIGHT
2"
(51)
4"(102)
3/4" (19)
DIAMETER
OF RAIL
18"(457)
OVERALL
HEIGHT
4"(102)
OVERALL DIMENSIONS
Planning Information
42" (1067) Pro Wall Hood
Model W422718(R)
Dimensions in parentheses are in
millimeters unless otherwise specified.
Dimensions may vary by ±
1
/ 8 " (3).
10
Model W422718
Model W422718R with Rail

Planning Information
42" (1067) Pro Wall Hood
Model W422718(R)
Dimensions in parentheses are in
millimeters unless otherwise specified.
11
ACCESSORIES
Platinum or brass decorative rail
and stand-offs
38" (965) high stainless steel
backsplash with warming rack
38" (965) high stainless steel
backsplash
6" (152) and 12" (305) duct covers
Accessories are available through your
Wolf dealer. To obtain local dealer
information, visit the Locator section of
our website, wolfappliance.com.
SPECIFICATIONS
Overall Width of Hood 42" (1067)
Overall Height of Hood 18" (457)
Overall Depth of Hood – W422718 27" (686)
W422718R (including rail) 29" (737)
Internal Blower Options 600 CFM, 900 CFM
Remote Blower Options 900, 1200 or 1500 CFM
Duct Size 10" (254) Round
Discharge Vertical
Electrical Supply Requirements 110 / 120 V AC, 60 Hz
15 amp dedicated circuit
Shipping Weight (shell only) 88 lbs (40 kg)
Specifications are subject to change without notice.
Model W422718
Model W422718R
Rail Option

Planning Information
42" (1067) Pro Wall Hood
Model W422718(R)
Dimensions in parentheses are in
millimeters unless otherwise specified.
Dimensions may vary by ±
1
/ 8 " (3).
12
INSTALLATION SPECIFICATIONS
42" (1067)
WIDTH OF HOOD
E
6"
(152)
5"
(127)
NOTE: 27" (686) deep wall hoods are vertical discharge only.
30" TO 36"
(762–914)
TO COUNTERTOP
30" TO 36"
(762–914)
TO COUNTERTOP
18" (457)
HEIGHT
OF HOOD
27" (686)
DEPTH OF HOOD
DIMENSIONS
Overall Width of Hood 42" (1067)
Overall Height of Hood 18" (457)
Overall Depth of Hood (excluding rail) 27" (686)
Countertop to Bottom of Hood 30" (762) to 36" (914)
Location of Electrical Within shaded area
See Installation Instructions shipped with unit for detailed specifications.

Planning Information
48" (1219) Pro Wall Hood
Model W482718(R)
Dimensions in parentheses are in
millimeters unless otherwise specified.
3/06
13
Wolf Pro wall hoods provide the ultimate in
ventilation. With standard elements like heat sentry
and dual setting halogen lighting, Wolf elevates the
need for ventilation to an enjoyable perk.
With the Pro 27" (686) deep wall hood you have the
option of a decorative rail. While a classic stainless
steel rail is standard on the (R) model, platinum or
brass rails are also available to match the bezels of our
Dual Fuel Ranges.
The deepest of the Wolf Pro wall hoods, this 27" (686)
deep model provides an additional exclusive feature—
heat lamps. Hosting your dream dinner party and the
warming drawer is already filled? Not a problem.
Turn on your heat lamps and relax.
Pro wall ventilation hoods are recommended for use
with all Wolf cooking appliances.
Wolf Pro 27" (686) deep wall hoods
are available in the classic stainless steel
finish. Rail option hoods (R) come with a
classic stainless steel decorative rail and
stand-offs. Optional platinum or brass
rails match dual fuel range bezels. Pro
wall hoods are sold as a shell only,
internal and remote blower options are
available.
Classic stainless
steel finish
Backdraft damper
Stainless steel
baffle filters
Infinite speed
blower control
Welded seams
and hemmed edges
Halogen lighting
Model W482718
Model W482718R
Rail Option
Model W482718R shown with standard classic stainless steel
decorative rail, platinum or brass rail available as a sales accessory
Hand finished
craftsmanship
Recessed easy
access controls
Decorative rail
(optional)

FEATURES
27" (686) deep wall ventilation hood with
classic stainless steel finish
Rail option hoods (R) come with a classic
stainless steel decorative rail and stand-offs –
optional platinum or brass rail to match dual
fuel range bezels is available as a sales
accessory
Internal or remote blower options
Heavy-duty 16-gauge brushed stainless steel
construction
Stainless steel enclosed liner
Continually welded seams, hemmed edges
and sides and hand finished craftsmanship
Recessed easy access controls
Infinite speed blower control
Heat sentry feature automatically turns unit
on when heat is sensed and automatically
adjusts blower speed
Halogen lighting with two settings
Heat lamps – bulbs not included
Removable, easy to clean restaurant-grade
stainless steel baffle filters
Transition with backdraft damper included
UL listed to US and Canadian safety
standards
UL approved for covered outdoor applica-
tions
Two and five year residential warranty –
exclusions apply; warranty information can
be found on our website, wolfappliance.com
48" (1219)
OVERALL WIDTH
27" (686)
OVERALL DEPTH
12"
(305)
48" (1219)
OVERALL WIDTH
27" (686)
OVERALL DEPTH
12"
(305)
18"(457)
OVERALL
HEIGHT
2"
(51)
4"(102)
3/4" (19)
DIAMETER
OF RAIL
18"(457)
OVERALL
HEIGHT
4"(102)
OVERALL DIMENSIONS
Planning Information
48" (1219) Pro Wall Hood
Model W482718(R)
Dimensions in parentheses are in
millimeters unless otherwise specified.
Dimensions may vary by ±
1
/ 8 " (3).
14
Model W482718
Model W482718R with Rail

Planning Information
48" (1219) Pro Wall Hood
Model W482718(R)
Dimensions in parentheses are in
millimeters unless otherwise specified.
15
ACCESSORIES
Platinum or brass decorative rail
and stand-offs
38" (965) high stainless steel
backsplash with warming rack
38" (965) high stainless steel
backsplash
6" (152) and 12" (305) duct covers
Accessories are available through your
Wolf dealer. To obtain local dealer
information, visit the Locator section of
our website, wolfappliance.com.
SPECIFICATIONS
Overall Width of Hood 48" (1219)
Overall Height of Hood 18" (457)
Overall Depth of Hood – W482718 27" (686)
W482718R (including rail) 29" (737)
Internal Blower Options 1200 CFM
Remote Blower Options 900, 1200 or 1500 CFM
Duct Size 10" (254) Round
Discharge Vertical
Electrical Supply Requirements 110 / 120 V AC, 60 Hz
15 amp dedicated circuit
Shipping Weight (shell only) 98 lbs (45 kg)
Specifications are subject to change without notice.
Model W482718
Model W482718R
Rail Option

Planning Information
48" (1219) Pro Wall Hood
Model W482718(R)
Dimensions in parentheses are in
millimeters unless otherwise specified.
Dimensions may vary by ±
1
/ 8 " (3).
16
INSTALLATION SPECIFICATIONS
48" (1219)
WIDTH OF HOOD
30" TO 36"
(762–914)
TO COUNTERTOP
30" TO 36"
(762–914)
TO COUNTERTOP
18" (457)
HEIGHT
OF HOOD
27" (686)
DEPTH OF HOOD
E
6"
(152)
5"
(127)
NOTE: 27" (686) deep wall hoods are vertical discharge only.
DIMENSIONS
Overall Width of Hood 48" (1219)
Overall Height of Hood 18" (457)
Overall Depth of Hood (excluding rail) 27" (686)
Countertop to Bottom of Hood 30" (762) to 36" (914)
Location of Electrical Within shaded area
See Installation Instructions shipped with unit for detailed specifications.

Planning Information
54" (1372) Pro Wall Hood
Model W542718(R)
Dimensions in parentheses are in
millimeters unless otherwise specified.
3/06
17
Wolf Pro wall hoods provide the ultimate in
ventilation. With standard elements like heat sentry
and dual setting halogen lighting, Wolf elevates the
need for ventilation to an enjoyable perk.
With the Pro 27" (686) deep wall hood you have the
option of a decorative rail. While a classic stainless
steel rail is standard on the (R) model, platinum or
brass rails are also available to match the bezels of our
Dual Fuel Ranges.
The deepest of the Wolf Pro wall hoods, this 27" (686)
deep model provides an additional exclusive feature—
heat lamps. Hosting your dream dinner party and the
warming drawer is already filled? Not a problem.
Turn on your heat lamps and relax.
Pro wall ventilation hoods are recommended for use
with all Wolf cooking appliances.
Wolf Pro 27" (686) deep wall hoods
are available in the classic stainless steel
finish. Rail option hoods (R) come with a
classic stainless steel decorative rail and
stand-offs. Optional platinum or brass
rails match dual fuel range bezels. Pro
wall hoods are sold as a shell only,
internal and remote blower options are
available.
Model W542718
Model W542718R
Rail Option
Model W542718R shown with standard classic stainless steel
decorative rail, platinum or brass rail available as a sales accessory
Classic stainless
steel finish
Backdraft damper
Stainless steel
baffle filters
Infinite speed
blower control
Welded seams
and hemmed edges
Halogen lighting
Hand finished
craftsmanship
Recessed easy
access controls
Decorative rail
(optional)

FEATURES
27" (686) deep wall ventilation hood with
classic stainless steel finish
Rail option hoods (R) come with a classic
stainless steel decorative rail and stand-offs –
optional platinum or brass rail to match dual
fuel range bezels is available as a sales
accessory
Internal or remote blower options
Heavy-duty 16-gauge brushed stainless steel
construction
Stainless steel enclosed liner
Continually welded seams, hemmed edges
and sides and hand finished craftsmanship
Recessed easy access controls
Infinite speed blower control
Heat sentry feature automatically turns unit
on when heat is sensed and automatically
adjusts blower speed
Halogen lighting with two settings
Heat lamps – bulbs not included
Removable, easy to clean restaurant-grade
stainless steel baffle filters
Transition with backdraft damper included
UL listed to US and Canadian safety
standards
UL approved for covered outdoor applica-
tions
Two and five year residential warranty –
exclusions apply; warranty information can
be found on our website, wolfappliance.com
54" (1372)
OVERALL WIDTH
27" (686)
OVERALL DEPTH
12"
(305)
54" (1372)
OVERALL WIDTH
27" (686)
OVERALL DEPTH
12"
(305)
18"(457)
OVERALL
HEIGHT
2"
(51)
4"(102)
3/4" (19)
DIAMETER
OF RAIL
18"(457)
OVERALL
HEIGHT
4"(102)
OVERALL DIMENSIONS
Planning Information
54" (1372) Pro Wall Hood
Model W542718(R)
Dimensions in parentheses are in
millimeters unless otherwise specified.
Dimensions may vary by ±
1
/ 8 " (3).
18
Model W542718
Model W542718R with Rail

Planning Information
54" (1372) Pro Wall Hood
Model W542718(R)
Dimensions in parentheses are in
millimeters unless otherwise specified.
19
ACCESSORIES
Platinum or brass decorative rail
and stand-offs
38" (965) high stainless steel
backsplash with warming rack
38" (965) high stainless steel
backsplash
6" (152) and 12" (305) duct covers
Accessories are available through your
Wolf dealer. To obtain local dealer
information, visit the Locator section of
our website, wolfappliance.com.
SPECIFICATIONS
Overall Width of Hood 54" (1372)
Overall Height of Hood 18" (457)
Overall Depth of Hood – W542718 27" (686)
W542718R (including rail) 29" (737)
Internal Blower Options 1200 CFM
Remote Blower Options 900, 1200 or 1500 CFM
Duct Size 10" (254) Round
Discharge – W542718(R) Vertical
Electrical Supply Requirements 110 / 120 V AC, 60 Hz
15 amp dedicated circuit
Shipping Weight (shell only) 108 lbs (49 kg)
Specifications are subject to change without notice.
Model W542718
Model W542718R
Rail Option

Planning Information
54" (1372) Pro Wall Hood
Model W542718(R)
Dimensions in parentheses are in
millimeters unless otherwise specified.
Dimensions may vary by ±
1
/ 8 " (3).
20
INSTALLATION SPECIFICATIONS
54" (1372)
WIDTH OF HOOD
E
6"
(152)
5"
(127)
NOTE: 27" (686) deep wall hoods are vertical discharge only.
30" TO 36"
(762–914)
TO COUNTERTOP
30" TO 36"
(762–914)
TO COUNTERTOP
18" (457)
HEIGHT
OF HOOD
27" (686)
DEPTH OF HOOD
DIMENSIONS
Overall Width of Hood 54" (1372)
Overall Height of Hood 18" (457)
Overall Depth of Hood (excluding rail) 27" (686)
Countertop to Bottom of Hood 30" (762) to 36" (914)
Location of Electrical Within shaded area
See Installation Instructions shipped with unit for detailed specifications.
