Wolfen 800 User manual

INSTALLATION
MANUAL
1806668 Wolfen 800 CCBTW Double Flap Toilet Suite White (4 Star)
1806669 Wolfen 800 CCBTW Double Flap Toilet Suite Blue (4 Star)
1806670 Wolfen 800 CCBTW Double Flap Toilet Suite Grey (4 Star)
Installation Details | Warranty
TM

2
Intro 02
Technical Information 03
Installation Instructions 04 - 07
Cleaning 05
Warranty 08
CONTENTS
Delivering unrivalled quality
Designed for absolute performance, Wolfen’s 800 Closed
Coupled Back to Wall Toilet Suite sets new standards in quality,
hygiene and flushing performance. A Rimless, raised height
design combined with precision engineering and extended
footprint ensures suitability for care and ambulant environments.
Available in blue, grey and white double flap seats and raised
height buttons to meet the Ambulant requirements of AS1428.
TM

3WOLFEN INSTALLATION MANUAL | Wolfen CCBTW Double Flap Toilet Suite (4 Star)
TECHNICAL INFORMATION
Model
Wolfen 800 CCBTW
Toilet Suite
Double Flap Seat
White (4 Star)
Wolfen 800 CCBTW
Toilet Suite
Double Flap Seat
Blue (4 Star)
Wolfen 800 CCBTW
Toilet Suite
Double Flap Seat
Grey (4 Star)
Product
Code 1806668 1806669 1806670
Material
Pan: Vitreous China
Cistern: Vitreous China
Seat: Urea
Pan: Vitreous China
Cistern: Vitreous China
Seat: Urea
Pan: Vitreous China
Cistern: Vitreous China
Seat: Urea
Colour
Pan: White
Cistern: White
Seat: White
Pan: White
Cistern: White
Seat: Blue
Pan: White
Cistern: White
Seat: Grey
Weight
Pan: 50kg
Cistern: 19kg
Seat: 2.8kg
Pan: 50kg
Cistern: 19kg
Seat: 2.8kg
Pan: 50kg
Cistern: 19kg
Seat: 2.8kg
Water Inlet
Position Back Inlet Back Inlet Back Inlet
Toilet Seat Double Flap Seat Double Flap Seat Double Flap Seat
Rim
Configuration Rimless Rimless Rimless
Set Out (mm) 185 min - 285 max 185 min - 285 max 185 min - 285 max
Inlet Valve
Pressure 500 kPa 500 kPa 500 kPa
For
Replacement
Spare Parts
1804815
Wolfen 800 Double
Flap Seat White
1804816
Wolfen 800 Double
Flap Seat Blue
1804817
Wolfen 800 Double
Flap Seat Grey
9508769
Wolfen 800 Toilet Suite
Button - White
9508768
Wolfen 800 Toilet Suite
Button - Blue
9508767
Wolfen 800 Toilet Suite
Button - Grey
9508717 Wolfen Seat Buffers (Sideways)
9508718 Wolfen Fixing Kit
Product
Features Meets AS1428.1 Ambulant design for access and mobility requirements
TECHNICAL INFORMATION
The more
stars the more
water efficient
WATER R ATING
www.waterrating.gov.au
In accordance with AS/NZS 6400
Licence No. 0025
Reece Limited
4.5 L per full flush / 3 L per half flush
3.5litres
average flush
TM
WMKA21192
AS 1172

4WOLFEN INSTALLATION MANUAL | Wolfen CCBTW Double Flap Toilet Suite (4 Star)

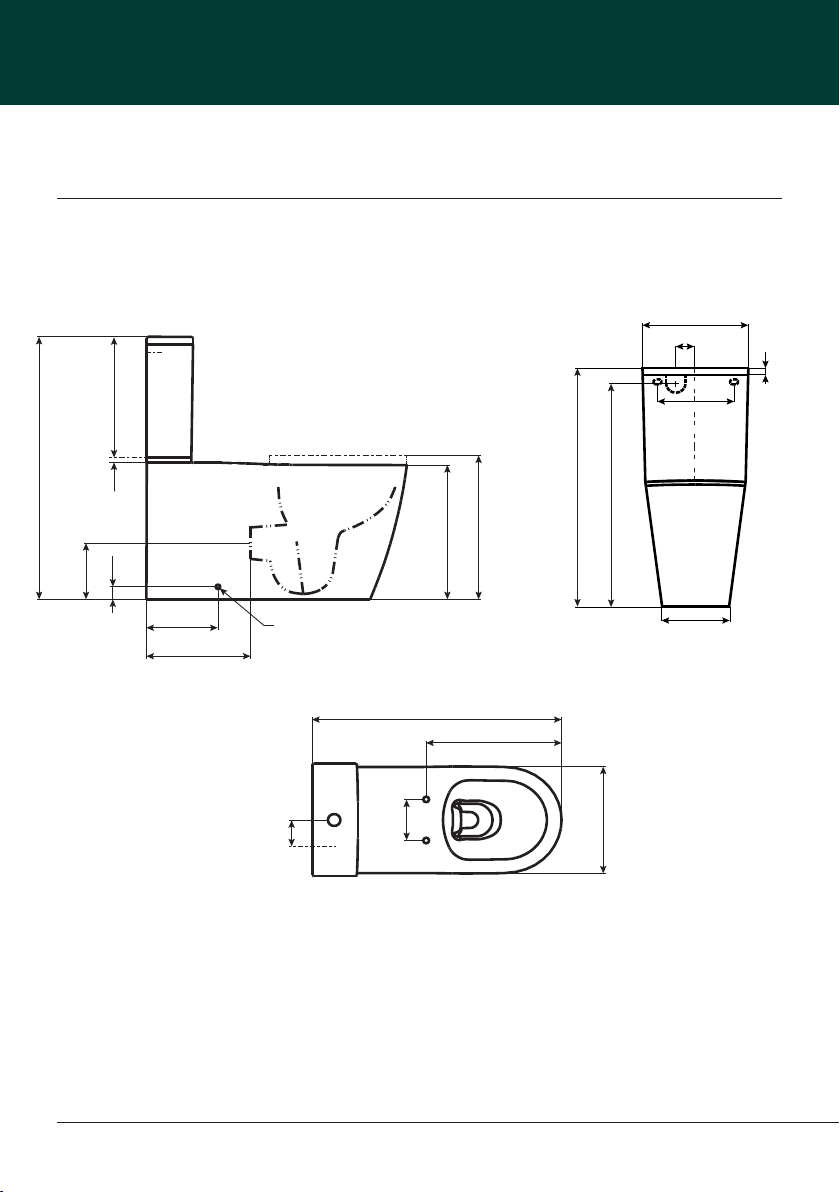

INSTALLATION INSTRUCTIONS
435
483
Ø15
285
230
50
185
850
410
10
285
25
80
385
250
800
850
Front View
140
80
435
800
365
Wolfen CCBTW Toilet Suite Double Flap Seat (4 Star)
1806668|1806669|1806670

5
TM

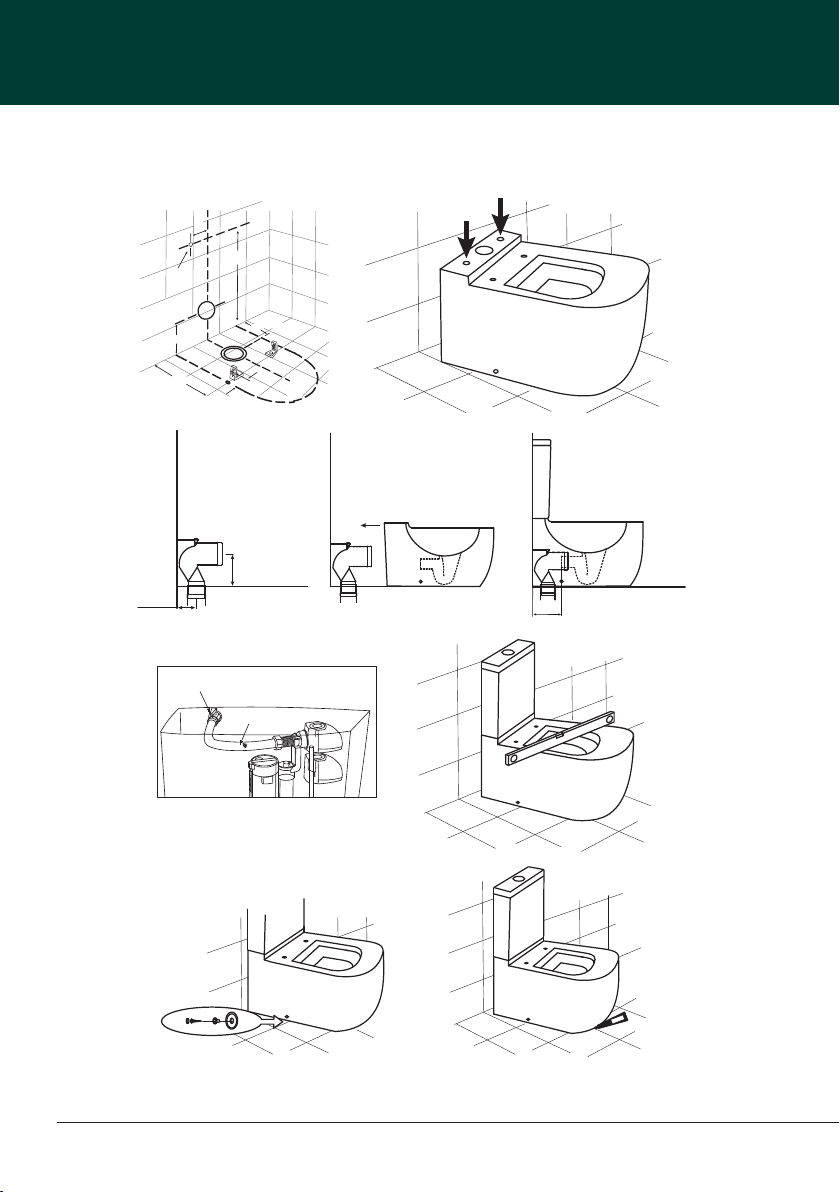

Set-Up
1. Rough in positions of water inlet, waste outlet and fixing bracket holes. Ensure inlet connection
extends 40mm from finished wall. Prepare waste outlet according to required set out (185mm min -
285mm max) and drill floor fixing brackets into position (60mm inside traced mark of pan rim).
2. Insert top-fix plastic fixing nut (2) and bolt (2) into pan (supplied) to fit the cistern.
S-Trap Installation
1. Lubricate the rubber fins of the pan bend and position in the waste pipe at the required height. Fix
the pan connector back to the wall using the rod and bracket.
2. Align and push pan back to wall, connect pan spigot into waste bend ensuring firm connection.
3. Fix cistern onto pan, bucket flush and check for leaks.
Water Inlet & Levelling Pan
1. Connect rear water inlet valve using 15mm mini cistern stop supplied. Fit hose elbow to mini
cistern stop Fill the cistern and ensure correct water level. For adjustment refer separate inlet valve
instructions,
2. Ensure that pan is level and that cistern aligns with wall. Make minor adjustments if necessary.
3. Fix pan to floor using screws and caps provided
4. Silicone pan to floor. Remove excess sealant.
Important Note
Ensure that the back inlet connection extends 40mm from the finished wall.
Back Inlet
Connection
Finished
Wall
40mm
CLEANING
We recommend the use of soap water or approved cleaners. This product should not be cleaned
with abrasive materials. Damage caused by any improper treatment is not covered by the product
warranty. Refer to Warranty Conditions.

6WOLFEN INSTALLATION MANUAL | Wolfen CCBTW Double Flap Toilet Suite (4 Star)
WOLFEN INSTALLATION MANUAL | Installation Instructions
230
60
185
185-285
80
800
Water Inlet
185
WALL WALL WALL
FINISHED FLOOR LEVEL FINISHED FLOOR LEVEL
185-285
15mm Mini Ball Valve
Flexible Hose
SEALANT
230

7
TM
INSTALLATION INSTRUCTIONS

8WOLFEN INSTALLATION MANUAL | Wolfen CCBTW Double Flap Toilet Suite (4 Star)
REECE PRODUCT
QUALITY GUARANTEE
You have purchased a quality product from Reece
Australia Pty Ltd ABN 84 004 097 090 (“Reece”).
This product is covered by a 5 year replacement
product warranty and a 12 month warranty over
spare parts and labour.
5 YEAR WARRANTY
This warranty covers faults in the product
construction, material and assembly. Products
which are within 5 years from the date of purchase,
found upon inspection by an authorised Reece
representative, to be defective in construction,
material or assembly, will be repaired or exchanged
with an equivalent product free of charge.
Replaced items become Reece’s property.
All replacement products will be available for
collection without charge to the customer at the
nearest Reece branch to the customer’s location,
or elsewhere as agreed between the customer
and Reece.
Labour and Spare Parts
The labour for the replacement of products
and spare parts to which this warranty applies
will be supplied by Reece or relevant supplier
using licensed plumbers engaged by Reece or
relevant supplier within 1 year from the date of
purchase. Spare parts other than those listed in
the Manufacturer’s Provisions above, which are
within 1 year from the date of purchase found upon
inspection by an authorised Reece representative
to be defective in construction, material or
assembly, will be replaced free of charge.
Warranty Conditions
This warranty will apply only under all of the
following conditions:
• The item has been installed by a
licensed plumber
• Failure is due to a fault in the manufacture
of the product
• Proof of purchase (including the date
of purchase) is provided
• The installation of the product is in
accordance with the instructions provided
This warranty does not cover products purchased
as an ex-display without being fully checked and
tested for sale by the manufacturer.
This warranty does not include faults caused by:
• Unsuitable or improper use
• Incorrect installation or installation not in
accordance with the instructions provided
• Installation or part installation by the
purchaser or any person other than a
LICENSED PLUMBER
• Normal wear and tear
• Inadequate or complete lack of
maintenance
• Chemical, electrochemical or
electrical influences
• Harsh detergents or abrasive cleaners
used on product finishes
EXCLUSIONS
To the fullest extent permitted by law, Reece
excludes all liability for damage or injury to any
person, damage to any property, and any indirect
consequential or other loss or damage.
CLAIM PROCEDURE
For all warranty queries customers are to contact the
branch where the product was purchased. These
details can be found on your purchase invoice.
Our goods come with guarantees that cannot be
excluded under the Australian Consumer Law.
You are entitled to a replacement or refund for a
major failure and for compensation for any other
reasonably foreseeable loss or damage. You are
also entitled to have the goods repaired or replaced
if the goods fail to be of acceptable quality and the
failure does not amount to a major failure.
5
YEAR
Q
U
A
L
I
T
Y
G
U
A
R
A
N
T
E
E

9
TM
IF AFTER CHECKING THE
INSTALLATION INSTRUCTIONS
AND IMPORTANT
INFORMATION, THE PROBLEM
HAS NOT BEEN IDENTIFIED,
CUSTOMERS ARE TO
CONTACT THE BRANCH
WHERE THE PRODUCT WAS
PURCHASED. THESE DETAILS
CAN BE FOUND ON YOUR
PURCHASE INVOICE.
General contact details for
Reece are as follows:
Reece Australia Pty Ltd
118 Burwood Hwy
Burwood VIC 3125
[phone]
[email protected]

10
TM
reece.com.au/wolfen
Published 11/08/2020
