Wolverine Brass 39707 User manual

800-944-9292 www.wolverinebrass.com
NEED HELP?
For additional assistance or service please contact:
TOOLS & SUPPLIES NEEDED IMPORTANT
MAINTENANCE:
Your new Wolverine Brass Product is designed
for years of trouble-free performance. Keep it
looking new by cleaning it periodically with a
soft cloth. Avoid abrasive cleaners, steel wool,
and harsh chemicals as these will dull the finish
and void your warranty.
Your new Wolverine Brass Toilet includes a
premium fill valve with an internal filter designed
to trap impurities allowing for reliable operation
of the fill valve. Periodic removal and cleaning
of the filter is recommended for optimal
performance. Please see the “Fill Valve Filter
Cleaning” section of this document for more
information.
SAFETY TIPS:
Be sure to read and understand all instructions
before beginning installation.
Inspect all connections after installation.
Be sure to wear proper eye protection.
NOTE:
This installation manual covers several
models of Toilets. While the appearance of your
Toilet may differ from those shown, the
installation method is the same.
WARNING
DO NOT OVER-TIGHTEN
CONNECTIONS OR DAMAGE MAY
OCCUR.
DO NOT USE CHLORINE OR ANY
CHEMICALLY RELATED
COMPONENTS AS THIS WILL
RESULT IN DAMAGE TO TANK
COMPONENTS AND MAY CAUSE
FLOODING AND PROPERTY
DAMAGE.
USE OF CHLORINE OR
CHEMICALLY RELATED
COMPONENTS WILL VOID
WARRANTY.
Flat Tip
Screwdriver
Phillips
Screwdriver
Slip Joint
Wrench
Adjustable
Wrench
Level
Measuring
Tape
Supply Hose with
7/8” Ballcock End
(Included)

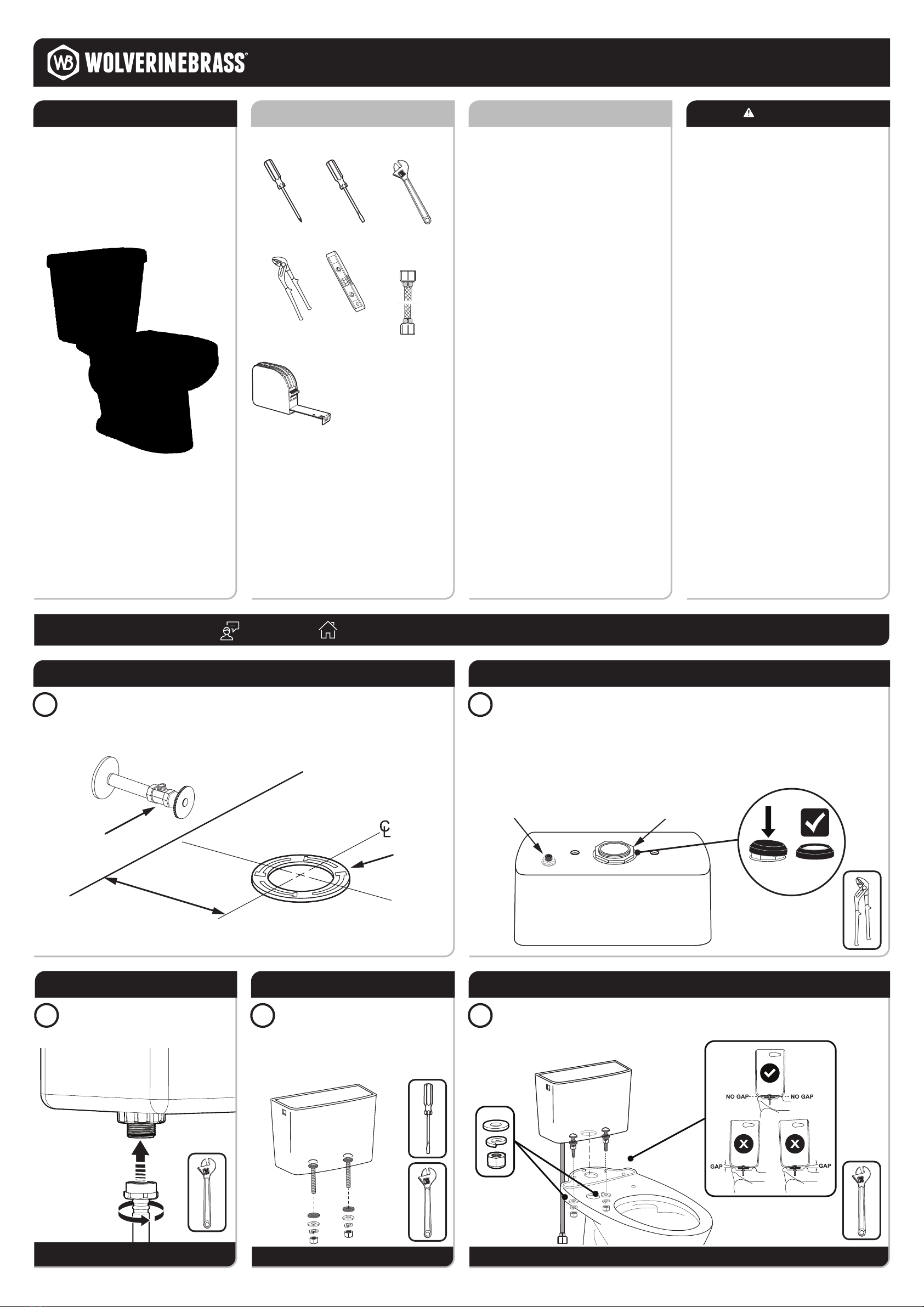

INSTALLATION INSTRUCTIONS
39707
Two-Piece Round Toilet
92-39707-04
VERIFY ROUGH-IN
1For your Toilet to fit correctly, the rough-in distance between the finished wall to the center of the
Closet Flange must be at least 12”
Finished
Wall
Water
Supply
Valve
12”
Closet
Flange
PREPARING THE TANK
2Place the Toilet Tank upside down onto padding. Inspect the pre-installed Fill Valve Nut and Flush
Valve Nut for a secure connection.
Fill Valve Nut: Hand tighten only!
Flush Valve Nut: Hand tighten, then wrench tighten 1/2 turn.
Place the Tank-to-Bowl Gasket onto the Flush Valve Nut. While pressing down, spread the
Gasket over the Nut until the Gasket touches the bottom of the Tank.
Note: A small gap between the Tank Bottom and Gasket is allowable.
Fill Valve Nut Flush Valve Nut
Tank-to-Bowl
Gasket
DRY CONNECTION ONLY!
DO NOT USE ANY THREAD SEALANT ON THIS CONNECTION
INSTALL SUPPLY LINE TO TANK
3Install Water Supply Line to the Inlet Shank
of the Fill Valve. Tighten into position. Do
Not Over-Tighten connection or damage
may occur.
4
CAUTION: Do not over-tighten or damage may occur.
INSTALL TANK BOLTS
Install the Conical Rubber Washers onto
Tank Bolts with the tapered side facing
down. Reach inside the Tank and position
the Tank Bolts through the Bolt Holes in
the bottom of the Tank. From below the
Tank, install a set of Rubber Washers,
Metal Washers, Lock Washers, and Nuts.
Wrench tighten.
CAUTION: Do not over-tighten or damage may occur.
SECURING THE TANK TO THE BOWL
5Position Tank above Bowl and guide Tank Bolt Assemblies through the appropriate holes in the
Bowl. From below, install a 2nd set of Metal Washers, Lock Washers, and Nuts to secure the Tank
to the Bowl. Wrench tighten until Tank makes several points of contact to the bowl.

6

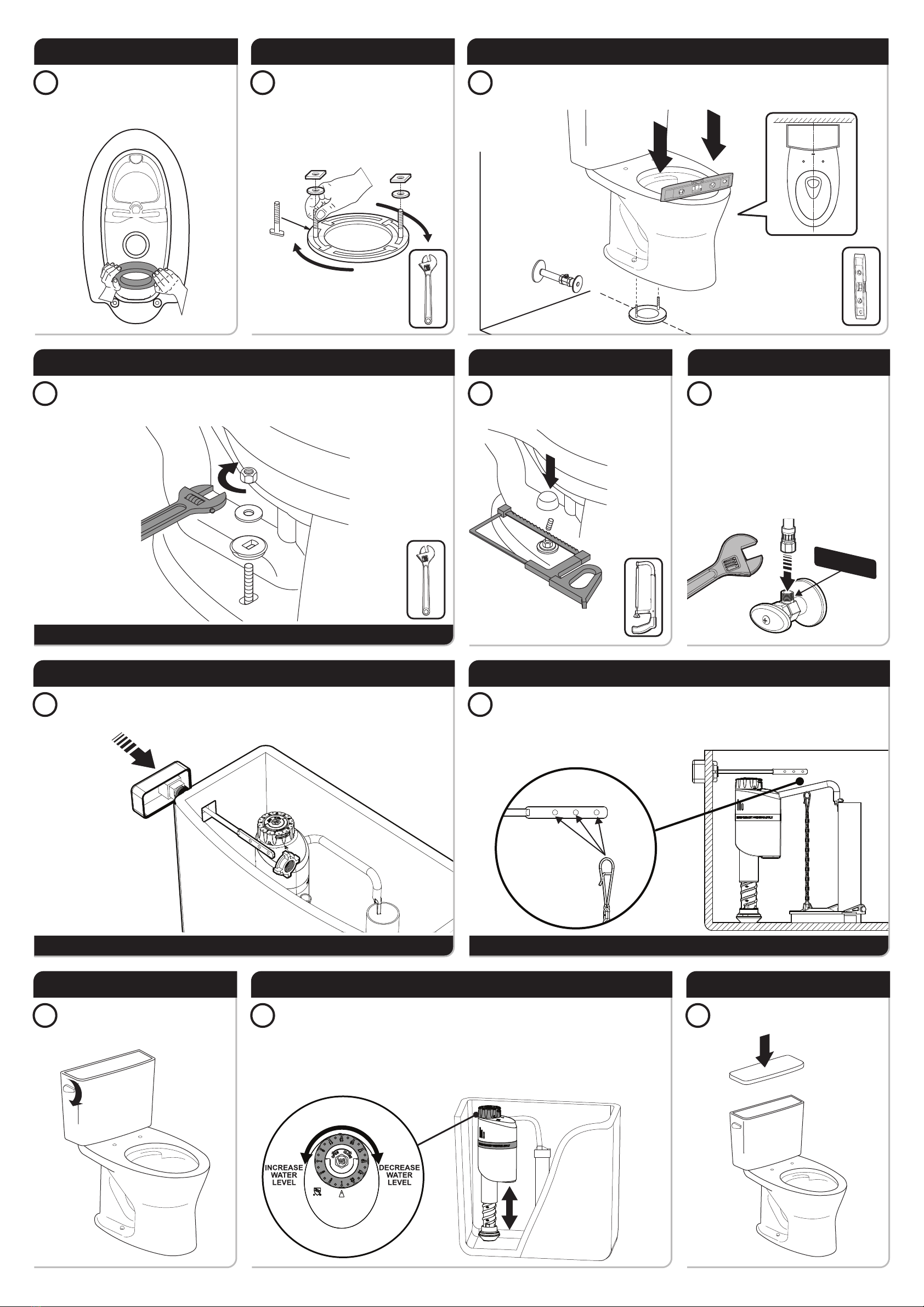

WAX RING INSTALL
Carefully lay the Toilet down on it’s back
onto some padding. Firmly press a Bowl
Wax Ring onto the circular recess around
the Toilet Bowl’s Horn.
7
CLOSET BOLT INSTALL
Clean any debris out of the Closet Flange
and then install new Closet Bolts into the
slots of the Closet Flange. The head of
the bolt should be inserted into the slot
with its threads facing upward as shown.
Once the Closet Bolts are located
properly, secure into position with a
Washer and Square Nut. Wrench tighten.
POSITION TOILET ONTO WAX RING
8Turn the Toilet upright and gently lower into position over the Closet Flange and Closet Bolts. With
the Toilet properly aligned, firmly press on both sides of Toilet Rim to set the Bowl Wax Ring.
Ensure Toilet is properly aligned.
CAUTION: Do not over-tighten or damage may occur.
SECURE BOWL INTO POSITION
9CAUTION: Do not move the Bowl after the Bowl Wax Ring is set.
Position a Base Cap and Flat Washer over the Closet Bolt. Secure into position with a Brass
Acorn Nut. Tighten evenly until the Bowl is snug to the Closet Flange.
10
BOLT CAP INSTALL
If necessary, cut the excess from the
Closet Bolts. Install the Bolt Cap.
3/8” COMPRESSION
9/16”-24 UNEF
CONNECT TO WATER SUPPLY
11
Flush the water supply line for a few
seconds to remove any debris that may
enter the Fill Valve. (For new home
constructions and/or additions, flush the
water supply line for more than a minute
to help remove any residual PVC
adhesives, solder flux, and/ or pipe
sealants that were used for the new
plumbing.)
Install the Supply Line to the Supply Stop.
Wrench tighten into position. Turn ON the
Supply Stop.
CAUTION: Do not over-tighten or damage may occur.
VERIFY TANK LEVER HANDLE INSTALLATION
12
Position the Handle through the opening in the side of the Tank with the Trip Lever facing forward.
The square post on the Handle stem should align with the square opening within the Tank as
shown below. Secure into position with the included Nut. Hand tighten.
CAUTION: Remove the Tape securing the Flapper in position if present.
VERIFY PROPER CHAIN LENGTH
14
Attach the Chain from the Flapper to one of the corresponding holes within the Handle Lever.
When correctly installed the Flapper should fully seal against the Flush Valve when the Handle is
in the resting position, yet open appropriately when the Handle is activated to flush the Toilet.
Additional adjustments to the length of the Chain may be required to achieve this.
14
TEST FLUSH
Flush Toilet a few times to check for
issues and leaks. Make sure there are
NO WATER LEAKS on Bowl or Tank.
WATER LEVEL ADJUSTMENT
15
The Fill Valve is factory pre-set. If adjustments are required:
To increase the water level, turn the Rotating Dial counterclockwise while holding the body of the
Fill Valve to prevent any unnecessary movement.
To decrease the water level, turn the Rotating Dial clockwise while holding the body of Fill Valve
to prevent any unnecessary movement.
There are 24 marked dots on the Rotating Dial. Each dot represents a level of adjustment in
regards to the water level in tank.
16
TANK LID INSTALL
Place the Tank Lid onto the Tank.

17
INSTALL TOILET SEAT
Install the Toilet Seat using the
instructions included within the Toilet
Seat packaging.
LESS WATER
PER FLUSH
MORE WATER
PER FLUSH
FLAPPER ADJUSTMENT
This Toilet includes an Adjustable Flapper that allows the installer to adjust the volume of water used per flush. This Adjustable Flapper comes
pre-adjusted to use 1.28 gallons / 4.8 liters per flush. If your installation requires a different volume of water per flush, access the underside of
the Adjustable Flapper and rotate the adjustment wheel towards the minus symbol (-) for MORE water used per flush, or towards the plus
symbol (+) for LESS water used per flush.
1
B
C
OFF
A
Turn OFF water supplies (A). Lift handle of
Filter (B). Rotate Filter counter-clockwise
while holding the Rotational Dial stationary
(C).
2Once Filter is released, pull upward to
remove from the Fill Valve. 3Clean Filter by rinsing under running water. 4
A
B
ON
C
MAINTENANCE: FILL VALVE FILTER CLEANING
Insert the Filter into the Fill Valve while
aligning the Tabs (A). Rotate Filter
clockwise while holding the Rotational Dial
stationary until Filter locks into position
(B). Turn ON water supplies (C).
TROUBLESHOOTING
Issue: Water level in Tank is too high or too low
Cause: Fill Valve is not adjusted to the desired position.
Solution: Adjust water level by following the “Water Level Adjustment” section.
Issue: Fill Valve does not turn ON
Cause: Water Supply is OFF.
Solution: Turn ON Water Supply. If Fill Valve is still not functional, turn OFF Water
Supply and clean Filter Screen by following the “Filter Cleaning” section
in this manual.
Issue: Fill Valve does not turn OFF
Cause: Refill Tube wasn’t installed properly.
Solution: Re-install the Refill Tube and ensure that Refill Tube Outlet is above the
water level when Tank is full.
PRODUCT WARRANTY
Wolverine Brass will, at its election, repair, replace, or make appropriate adjustment where Wolverine Brass' inspection
discloses any such defects occurring in normal usage. Damage caused by accident, misuse, or abuse is not covered by
this warranty. Improper care and cleaning will void the warranty. Use of Chlorine or chemically related components will
void the warranty. Proof of purchase (original sales receipt) must be provided to Wolverine Brass with all warranty claims.
Wolverine Brass is not responsible for removal, installation, labor charges, or other incidental or consequential costs. In no
event shall the liability of Wolverine Brass exceed the purchase price of the toilet.
*Mechanical Component Limited Warranty varies based on component affected. Please call 1-800-944-9292 for additional information.
CALIFORNIA PROPOSITION 65
CALIFORNIA PROPOSITION 65:
WARNING: This product can expose you to chemicals including lead, which is known to
the State of California to cause cancer and birth defects or other reproductive harm. For
more information go to www.P65Warnings.ca.gov.
Wash hands after installation, repair, or removal of this product.
COMPLIANCE
CONNECTIONS
ASME A112.19.2/CSA B45.1
cUPC certified
WaterSense certified
3/8” Compression (Inlet Hose Connection - Included)
12” Rough-In to wall
39707 ROUGH-IN DIAGRAM

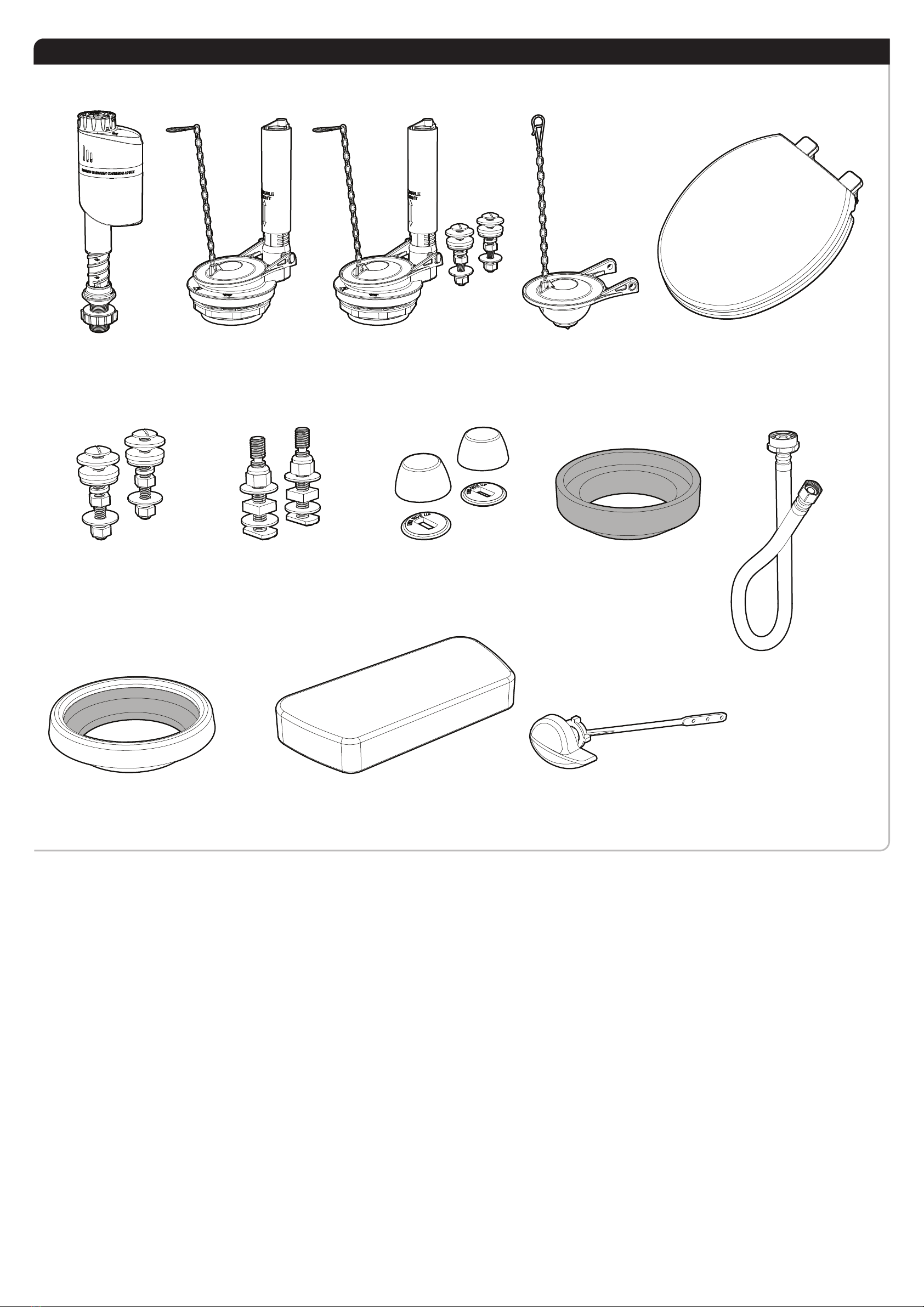

REPAIR PARTS
87751
Finale ProSeries
Fill Valve with Brass Shank
39741
3” Adjustable Flush Valve
with Adjustable Flapper
39740
3” Adjustable Flush Valve
with Adjustable Flapper
&
Tank-Bowl Bolt Set
85533
Round
Slow-Close Toilet Seat
39744
3” Adjustable Flapper
39742
Tank-Bowl Bolt Set
59449W
Brass Closet Bolt Set
51220
Closet Bolt Cap Set
39750
Rubber Molded Spud Gasket
57665
16” Toilet Supply Line
51499
Wax Bowl Gasket
39745
Replacement Tank Lid
39749
Replacement Flush Handle
