Wonderfire 961 Instruction Manual

Model 961
Inset live fuel effect gas fire
Incorporating the Wonderfire Premier Control.
Fitted with one of the following fascia:
Bauhaus, Bloomsbury or
Ebony.
(G.C. Number 32-032-88)
INSTALLER: Please leave this guide with the owner
INSTALLATION AND OWNER GUIDE
We trust that this guide gives
sufficient details to enable this
appliance to be installed and
maintained satisfactorily. However, if
further information is required, our
Wonderfire Premier Technical
Helpline will be pleased to help.
Telephone [phone] (National
call rates apply in the United
Kingdom).
In the Republic of Ireland
Telephone [phone].
© Baxi Heating U.K. Limited 2010.
5137994/01

© Baxi Heating U.K. Limited 2010.
All rights reserved. No part of this publication may be reproduced in any material form
(including photocopying), stored in any medium by electronic means (including in any
retrieval system or database) or transmitted, in any form or by any means, whether
electronic, mechanical, recording or otherwise, without the prior written permission of
the copyright owner.
Applications for the copyright owner's permission to reproduce any part of this
publication should be made, giving details of the proposed use, to the following
address: The Company Secretary, Baxi Heating UK Limited, The Wyvern Business
Park, Stanier Way, Derby, DE21 6BF.
Warning: Any person who does any unauthorised act in relation to a copyright work
may be liable to criminal prosecution and civil claims for damages.
Wonderfire Premier, Wood Lane, Erdington, Birmingham B24 9QP
www.wonderfire.co.uk
Because our policy is one of constant development and improvement, details may vary slightly from
those given in this publication
THIS APPLIANCE IS FOR USE WITH NATURAL GAS (G20).
UNDER NO CIRCUMSTANCES IS THIS FIRE TO BE CONVERTED TO LPG.
AN LPG KIT DOES NOT EXIST FOR THIS GAS FIRE.
THIS APPLIANCE IS SUITABLE ONLY FOR INSTALLATION IN THE UNITED
KINGDOM (GB) AND THE REPUBLIC OF IRELAND (IE).
Page 2
© Baxi Heating U.K. Limited 2010.

Safety First.
Wonderfire Premier fires are CE Approved and designed to meet the appropriate
British Standards and Safety Marks.
Quality and Excellence.
All Wonderfire Premier fires are manufactured to the highest standards of quality and
excellence and are manufactured under a BS EN ISO 9001 quality system accepted
by the British Standards Institute.
The Highest Standards
Wonderfire is a member of SBGI and HHIC (Heating and Hot water Industry Council)
that work to ensure high standards of safety, quality and performance.
Careful Installation
This gas fire must be installed by a competent GAS SAFE REGISTER engineer (GAS
SAFE REGISTER or CORGI engineer outside of UK) in accordance with our installer
guide and should not be fitted directly on to a carpet or floor of combustible material.
Page 3
© Baxi Heating U.K. Limited 2010.

INSTALLER GUIDE
Page 4
© Baxi Heating U.K. Limited 2010.
INSTALLER GUIDE
FOR OWNER GUIDE SEE PAGES 48 TO 67

INSTALLER GUIDE
Page 5
CONTENTS
Section Heading Page
INSTALLER GUIDE 4 - 47
OWNER GUIDE 48 - 67
1. IMAGES 7
2. SAFETY AND UNPACKING 8
3. APPLIANCE DATA, EFFICIENCY AND NOx 9
3.1 General information. 9
3.2 Efficiency. 10
3.3 NOx 10
4. GENERAL INSTALLATION REQUIREMENTS 11
4.1 Regulations, Standards and Law. 11
4.2 Ventilation requirements. 12
4.3 The Atmosphere sensing device (ASD). 12
4.4 Fireguard requirements. 12
4.5 Room considerations. 12
4.6 Chimney preparation. 12
4.7 Fireplace preparation. 13
4.8 The hearth and surround. 13
4.9 Fireplace clearances. 14
4.10 Installation options. 16
4.11 Flues. 19
5. PACK CONTENTS 20
6. FIREPLACE CHECK 23
7. IGNITION CHECK 24
8. GAS SUPPLY CONNECTION 24
9. PREPARING APPLIANCE FOR INSTALLATION 25
10. CONVECTION BOX INSTALLATION 27
10.1 Method 1 - Front fixing to fireplace surround. 27
10.2 Method 2 - Cable retention and floor fixing. 28
10.3 Sealing floor front - All installations. 30
11. BURNER AND SUPPLY PIPE INSTALLATION 31
11.1 Burner and supply pipe installation. 31
11.2 Preliminary burner checks. 31
11.3 Inlet pressure check. 32
© Baxi Heating U.K. Limited 2010.
Continued on next page

INSTALLER GUIDE
Page 6
CONTENTS (Continued)
Section Heading Page
12. FITTING THE CERAMIC FUEL EFFECT 32
13. FITTING THE WINDOW FRAME ASSEMBLY 33
14. OPERATING AND SPILLAGE CHECKS 33
14.1 Fitting the control knob extension on the Bloomsbury model. 33
14.2 Checking the control settings. 33
14.3 Check for spillage. 34
14.4 Flame supervision and spillage monitoring system. 35
15. OUTLET BAFFLE AND FASCIA FITTING 36
15.1 Fitting the outlet baffle. 36
15.2 Fitting the fascia. 36
15.3 Fitting the firefront casting / lower firefront casting. 37
16. FINAL REVIEW 38
17. SERVICING & PARTS REPLACEMENT 39
17.1 Checking the aeration setting of the burner. 40
17.2 To remove the ignition microswitch. 40
17.3 To remove the gas shut-off microswitch. 40
17.4 To remove the fascia. 41
17.5 To replace the control slide unit. 42
17.6 To replace the control slide button. 42
17.7 To remove and fit the window mounting frame and window assembly. 43
17.8 To remove the window assembly. 43
17.9 To remove the fuel effect. 44
17.10 To remove the ceramic side walls. 44
17.11 To remove the electronic ignition generator. 44
17.12 To remove the complete burner unit. 45
17.13 To remove the thermocouple interrupter block (See figure 36). 45
17.14 To remove the pilot unit. 45
17.15 To remove the shut-off tap. 45
17.16 To remove the gas flow rate controller. 46
17.17 To replace the burner. 47
17.18 To remove the main burner injector. 47
17.19 To remove the appliance from the fireplace. 47
© Baxi Heating U.K. Limited 2010.

INSTALLER GUIDE
Page 7

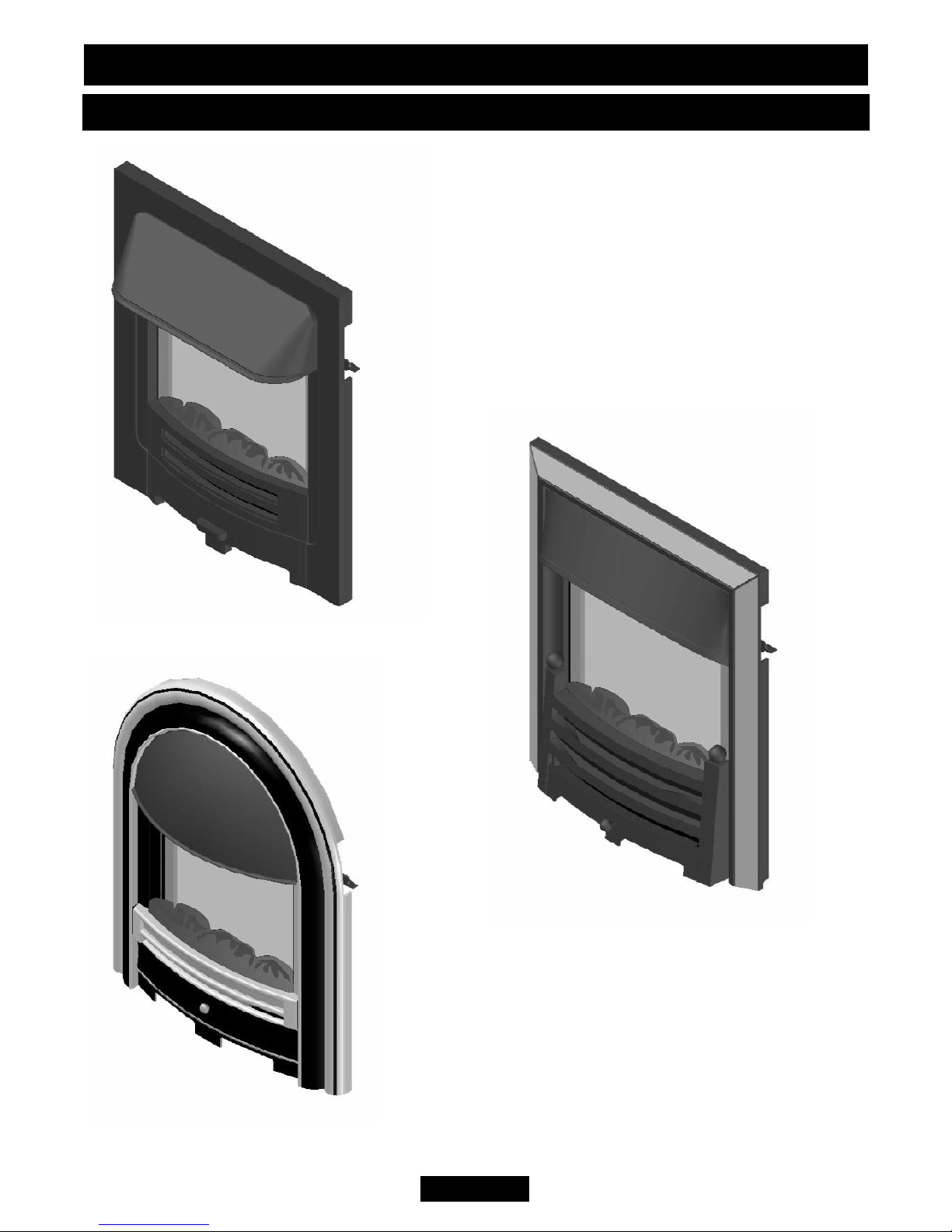

1. IMAGES
© Baxi Heating U.K. Limited 2010.
Ebony fascia
Bauhaus fascia
Bloomsbury fascia

2. SAFETY AND UNPACKING
Installer
Before continuing any further with the installation of this appliance please read the
following guide to manual handling.
The approximate lifting weight (kg) of this appliance is as below:
Model Heat Engine Firefront Combined Weight
Bauhaus 8.64 12.00 20.64
Bloomsbury 8.64 7.22 15.86
Ebony 8.64 9.13 17.77
One person should be sufficient to lift the fire. If for any reason this weight is
considered too heavy then obtain assistance.
When lifting always keep your back straight. Bend your legs and not your back.
Avoid twisting at the waist. It is better to reposition your feet.
Avoid upper body/top heavy bending. Do not lean forward or sideways whilst
handling the fire.
Always grip with the palm of the hand. Do not use the tips of fingers for support.
Always keep the fire as close to the body as possible. This will minimise the
cantilever action.
Use gloves to provide additional grip.
Always use assistance if required.
This product uses fuel effect pieces and burner compartment walls containing
Refractory Ceramic Fibres (RCF), which are man-made vitreous silicate fibres.
Excessive exposure to these materials may cause irritation to eyes, skin and
respiratory tract. Consequently, it is important to take care when handling these
articles to ensure that the release of dust is kept to a minimum. To ensure that
the release of fibres from these RCF articles is kept to a minimum, during
installation and servicing we recommend that you use a HEPA filtered vacuum
to remove any dust and soot accumulated in and around the fire before and
after working on the fire. When replacing these articles we recommend that the
replaced items are not broken up, but are sealed within a heavy duty polythene
bag, clearly labelled as RCF waste. RCF waste is classed as a stable, non-
reactive hazardous waste and may be disposed at a landfill licensed to accept
such waste. Protective clothing is not required when handling these articles,
but we recommend you follow the normal hygiene rules of not smoking, eating
or drinking in the work area and always wash your hands before eating or
drinking.
This appliance does not contain any component manufactured from asbestos or
asbestos related products.
INSTALLER GUIDE
Page 8
© Baxi Heating U.K. Limited 2010.

INSTALLER GUIDE
Page 9
3. APPLIANCE DATA, EFFICIENCY AND NOx
3.1 General information.
Under no circumstances is this fire to be converted to LPG. An LPG conversion kit
does not exist for this gas fire.

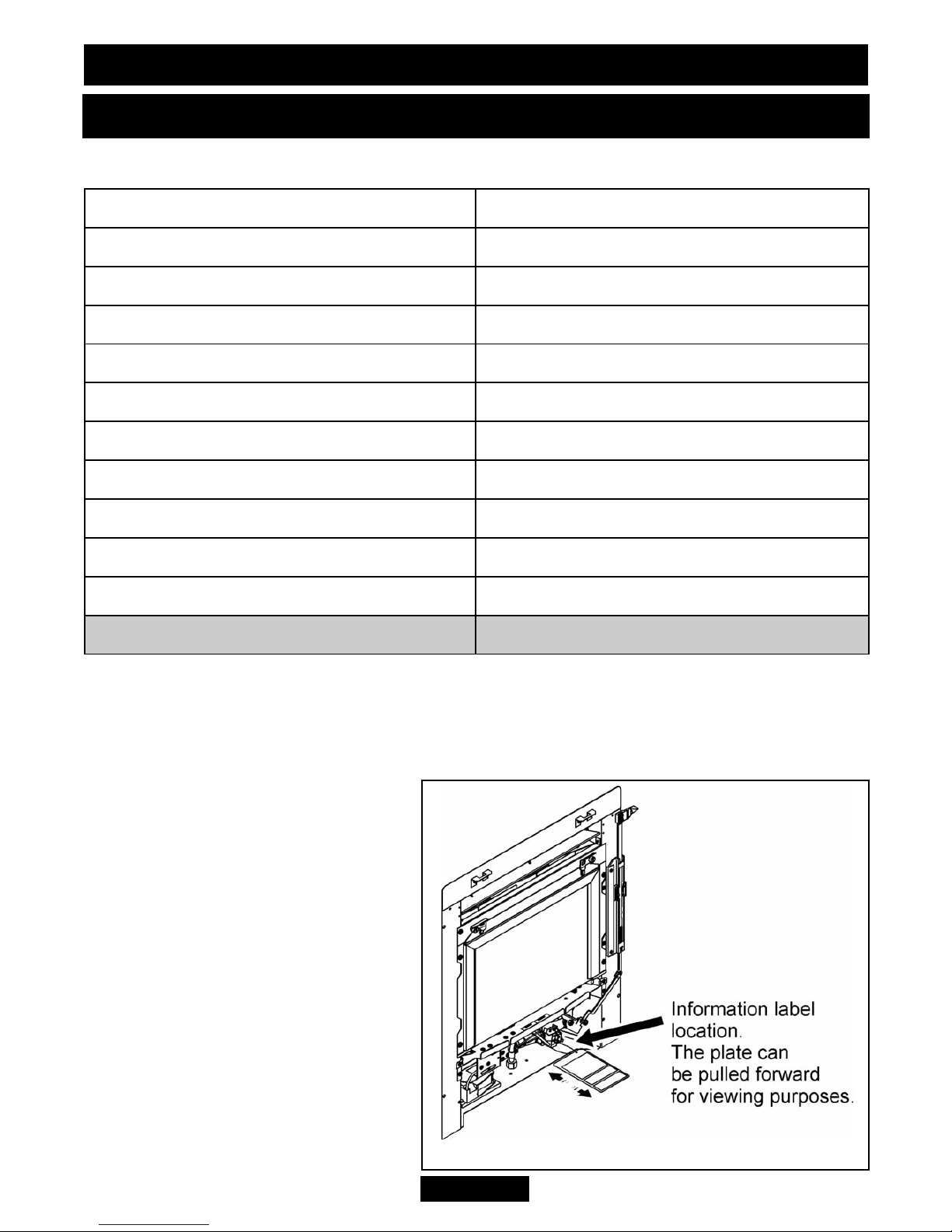

The appliance information label is located on a chained plate at the base of the fire.
This can be seen by removing fire front / fire front casting.
© Baxi Heating U.K. Limited 2010.
Gas Natural (G20)
Inlet Pressure 20mbar
Input - Max. (Gross) 5.00kW (17,060 Btu/h)
Input - Min. (Gross) 2.5kW (8,530 Btu/h)
Input - Max. (Net) 4.5kW (15,371 Btu/h)
Input - Min. (Net) 2.25kW (7,677 Btu/h)
Inlet Test Pressure (Cold) 20.0 ± 1.0mbar (8.0 ± 0.4in w.g.)
Gas Connection 8mm pipe
Burner Injector Cat 82 - 065
Pilot & Atmosphere Sensing Device Copreci Ref. O.D.S 21500/166
Ignition Electronic (Alkaline Battery 9V PP3)
Aeration Setting Factory set - See section 17.1
Figure 1.

INSTALLER GUIDE
Page 10
3.2 Efficiency.
The efficiency of this appliance has been measured as specified in BS 7977 - 1 and
the result is as below:
Model Efficiency % (Gross) Efficiency % (Net)
961 80 89
The gross calorific value of the fuel has been used for this efficiency calculation. The
test data from which it has been calculated has been certified by Advantica
Certification services (0087). The efficiency value may be used in the UK
Government's Standard Assessment Procedure (SAP) for energy rating of dwellings.
The conversion of net efficiency to gross was achieved by multiplying the net
efficiency by the following conversion factor from Table E3 of SAP 2005, rounding
down to the nearest whole number.
3.3 NOx
The 'Weighted' result for this appliance equates to NOx Class II.
© Baxi Heating U.K. Limited 2010.
Gas Conversion factor from net to gross efficiency
Natural Gas 0.901

INSTALLER GUIDE
Page 11
4. GENERAL INSTALLATION REQUIREMENTS
4.1 Regulations, Standards and Law.
The installation must be in accordance with these instructions.
For the user’s protection, in the United Kingdom it is the law that all gas appliances
are installed by competent persons in accordance with the current edition of the Gas
Safety (Installation and Use) Regulations. Failure to install the appliance correctly
could lead to prosecution. GAS SAFE REGISTER and CORGI require their members
to work to recognised standards.
In the United Kingdom the installation must also be in accordance with:
All the relevant parts of local regulations.
All relevant codes of practice.
The relevant parts of the current editions of the following British Standards:-
BS EN 1856 Part 1 - Chimneys - Requirements for metal chimneys.
BS 715 - Specification for metal flue boxes for gas-fired appliances not
exceeding 20kW.
BS EN 1858 - Chimneys - Components - Concrete flue blocks.
BS EN 1806 - Chimneys - Clay / ceramic flue blocks.
BS 5440 Part 1 - Installation of flues.
BS 5440 Part 2 - Installation and maintenance of flues and ventilation for gas
appliances of rated input not exceeding 70 kW net (1st, 2nd
and 3rd family gases).
BS 6461 Part 1 - Masonry chimney & flues - Installation
BS 1251 - Fireplace components
BS 5871 Part 2 - Installation - Inset LFE gas fires
BS 6891 - Gas pipework installation
In England and Wales, the current edition of the Building Regulations issued by the
Department of the Environment and the Welsh Office.
In Scotland, the current edition of the Building Standards (Scotland) Regulations
issued by the Scottish Executive.
In Northern Ireland, the current edition of the Building regulations (Northern Ireland)
issued by the Department of the Environment for Northern Ireland.
In the republic of Ireland the installation must be carried out by a competent person
and also conform to the relevant parts of:
a) The current edition of IS 813 “Domestic Gas Installations”.
b) All relevant national and local rules in force.
Where no specific instructions are given, reference should be made to the relevant
British Standard Code of Practice.
© Baxi Heating U.K. Limited 2010.

INSTALLER GUIDE
Page 12
4.2 Ventilation requirements.
Normal adventitious ventilation is usually sufficient to satisfy the ventilation
requirements of this appliance. In GB reference should be made to BS 5871 Part 2
and in IE reference should be made to the current edition of IS 813 “Domestic Gas
Installations” which makes clear the conditions that must be met to demonstrate that
sufficient ventilation is available.
4.3 The Atmosphere sensing device (ASD).
The appliance is fitted with an A.S.D (Atmosphere sensing device). If the appliance
closes down after a period of operation for no apparent reason, the consumer should
be informed to stop using the appliance until the installation and appliance have been
thoroughly checked. The A.S.D will shut the appliance down if an unacceptable
amount of harmful products of combustion accumulate. Under no circumstances
should the A.S.D be altered or bypassed in any way. Only a genuine manufacturer’s
replacement part should be fitted. The individual A.S.D components are not
replaceable.
4.4 Fireguard requirements.
A fireguard complying with BS 8423 should be fitted for the protection of young
children, the elderly, the infirm and pet animals.
4.5 Room considerations.
4.5.1 This appliance must not be installed in any room that contains a bath or shower
or where steam is regularly present.
4.5.2 An extractor fan may only be used in the same room as this appliance, or in any
area from which ventilation for the appliance is taken, if it does not affect the safe
performance of the appliance. Note the spillage test requirements detailed further on
in this guide. If the fan is likely to affect the appliance, the appliance must not be
installed unless the fan is permanently disconnected.
4.5.3 Note that soft wall coverings (e.g. embossed vinyl, etc.) are easily affected by
heat. They may scorch or become discoloured when close to a heating appliance.
Please bear this in mind when installing.
4.6 Chimney preparation.
4.6.1 If the appliance is intended to be installed to a chimney that was previously used
for solid fuel, the flue must be swept clean prior to installation. All flues should be
inspected for soundness and freedom from blockages.
4.6.2 Any chimney damper or restrictor should be removed. If removal is not possible,
they must be secured in the open position.
© Baxi Heating U.K. Limited 2010.

INSTALLER GUIDE
Page 13
4.7 Fireplace preparation.
4.7.1 If the fireplace opening is an underfloor draught type, it must be sealed to stop
any draughts.
4.7.2 The fireplace floor should be reasonably flat to ensure that the convection box
can be installed without it rocking and so that a good seal can be made at the bottom
front of the box.
4.7.3 The front face of the fireplace should be reasonably flat over the area covered
by the convection box top and side flange seals to ensure good sealing. These faces
should be made good if necessary. The fireplace floor should be reasonably flat to
ensure that a good seal with the convection box can be made.
4.7.4 If the appliance is to be fitted against a wall
with combustible cladding, the cladding must be
removed from the area covered by the fascia. The
cladding must also not touch the fascia (See figure
2). We suggest that the actual fascia is used as a
template to mark the area for combustible cladding
removal and that this area is increased by at least
2mm all round.
4.7.5 If the fireplace opening is greater than the
acceptable dimensions given in this guide, do not
use the back of a fire surround or marble to reduce
the opening. This may cause cracking of the
surround back or marble.
4.8 The hearth and surround.
The appliance must be mounted behind a non-combustible hearth unless the
conditions of section 4.10.1.1 are met (N.B. conglomerate marble hearths are
considered as non-combustible). The appliance can be fitted to a purpose made
proprietary class “O”-150°C surround. The hearth material must be at least 12mm
thick. The periphery of the hearth (or fender) should be at least 50mm above floor
level to discourage the placing of carpets or rugs over it.
The surface of the hearth must be sufficiently flat to enable the bottom of the front
surround and the bottom front cover to be aligned horizontally. Any excessive
unevenness (uneven tiles, Cotswold stone, etc.) should be rectified.
The appliance must not stand on combustible materials or carpets.
© Baxi Heating U.K. Limited 2010.
Figure 2. Removal of combustible
cladding (Fascia may differ from
that shown).

INSTALLER GUIDE
Page 14
4.9 Fireplace clearances.
4.9.1 The minimum height from the base of the fireplace opening to the underside of
any shelf made from wood or other combustible materials is detailed below.
For Bauhaus and Ebony models:-
• For a shelf up to 150mm deep: Minimum height = 700mm.
• For a shelf deeper than 150mm: 700mm + 12.5mm for every 25mm depth over
150mm (See Figure 3).
For Bloomsbury models:-
• For a shelf up to 150mm deep: Minimum height = 775mm.
• For a shelf deeper than 150mm: 775mm + 12.5mm for every 25mm depth over
150mm (See Figure 4).
© Baxi Heating U.K. Limited 2010.
Figure 3. Combustible shelf clearances
Figure 4. Combustible shelf clearances

INSTALLER GUIDE
Page 15
4.9.2 The minimum allowable distance from the outside of the appliance fascia to a
corner wall having combustible material or any other combustible surface which
projects beyond the front of the appliance is shown in figure 5. A 10mm access
clearance from a non-combustible surface is necessary at the left side.
© Baxi Heating U.K. Limited 2010.

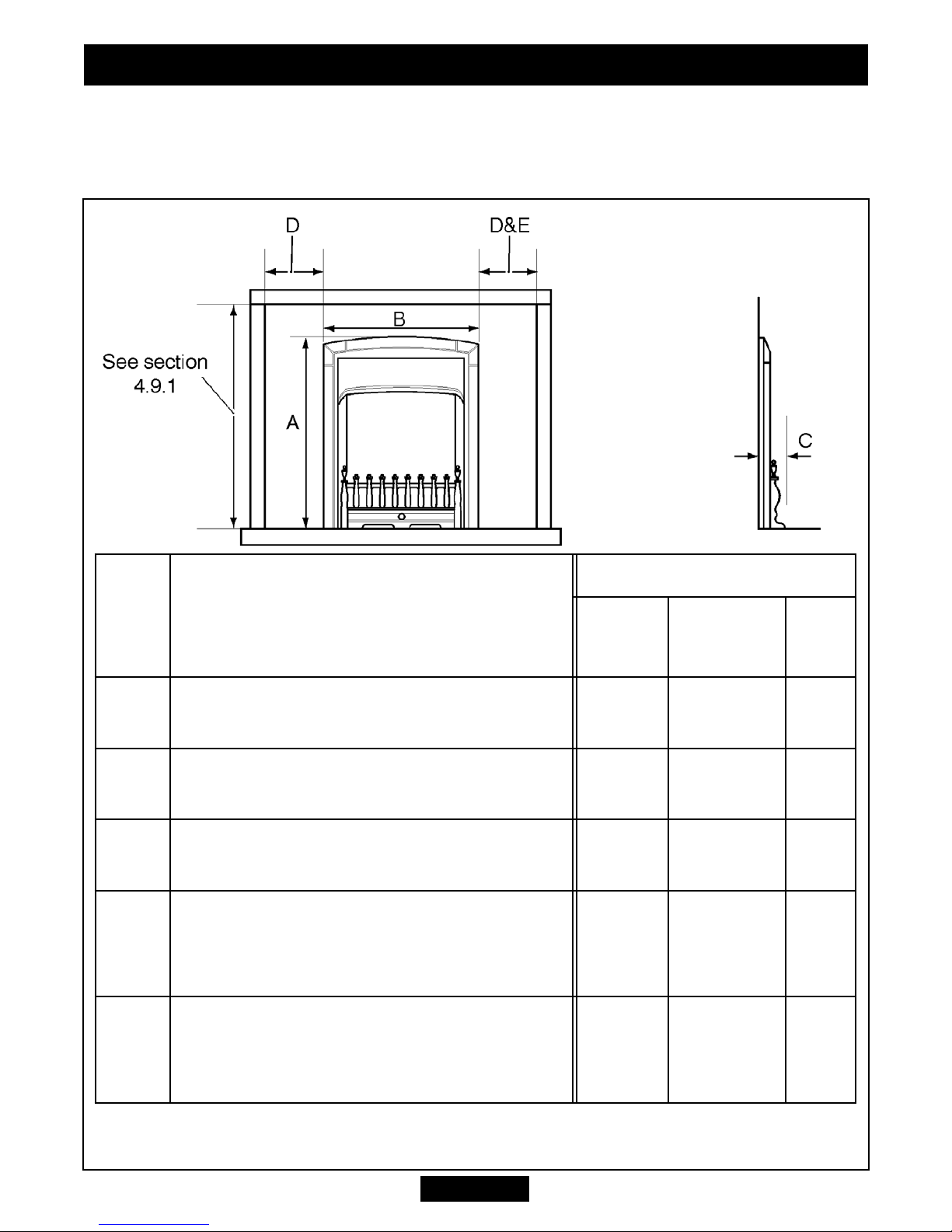

Figure 5. Appliance dimensions and clearances (The fascia may differ from that
shown and dimensions are subject to manufacturing tolerances)
Key Description
Model
Bauhaus Bloomsbury Ebony
AHeight (mm) 616 741 616
BWidth (mm) 518 588 518
CDepth into room (mm) 117 127 126
D
Minimum mandatory clearance to
combustible surfaces projecting beyond
the front of appliance (mm).
100 100 100
E
Recommended clearance to non-
combustible surfaces for access purposes
(mm).
50 50 50

INSTALLER GUIDE
Page 16
4.10 Installation options.
In the United Kingdom, as supplied, the appliance can be installed in the following
situations: -
4.10.1 Conventional fireplace and hearth.
To a fireplace complete with surround and hearth as shown in figure 6 and complying
with BS1251 after removal of the fireback and sufficient material behind the fireback
for a debris catchment space. The required fireplace, hearth, debris catchment area
and clearance dimensions are shown in figure 7.
© Baxi Heating U.K. Limited 2010.
Figure 7. Fireplace area.
Figure 6. Hearth and fireplace opening dimensions

INSTALLER GUIDE
Page 17
4.10.1.1 ‘Hole-in-the-wall’ Installations.
It is recommended that a hearth should be installed as in section 4.8.
If a reduced depth hearth is fitted, the fire must be installed so that the distance
from the base of the fireplace opening in the wall to the finished floor level is at
least 100mm. It is recommended that the reduced hearth has a depth from the
fixing plane of the fire of 100mm minimum. This is necessary to support the lower
front casting. Where there is no floor covering or carpet and the floor is of a type
that is likely to be covered in such a way in the future then the distance from the
base of the fireplace opening in the wall to the floor level should be increased to at
least 175mm.
4.10.2 Metal flue box and hearth.
The appliance can be installed to a fireplace incorporating a metal flue box complying
with the constructional requirements of the current edition of BS 715 and with a flue
conforming to BS EN 1856 part 1. The dimensions of the flue box must conform to
those shown in figure 8.
The top, sides and rear surface of the metal flue box must be covered with a 50mm
layer of mineral wool or equivalent insulation (See figure 8).
Important Note: Where the flue box has a base sheet that is single wall (i.e. a single
metal sheet) the flue box must be mounted on a non-combustible hearth. The hearth
material must be at least 12mm thick.
© Baxi Heating U.K. Limited 2010.
Figure 8. Metal flue box dimensions

INSTALLER GUIDE
Page 18
4.10.3 Precast concrete or clay flue block system and hearth.
The appliance can be installed to a precast concrete or clay flue block system
conforming to BS EN 1858 with dimensions as in figure 9.
BS 1289 part 1 recommends there should be an air space or insulation between the
flue blocks and the plaster because heat transfer may cause cracking on directly
plastered flues. However, generally this appliance is suitable for installations under all
circumstances unless there is a history of cracking problems.
Remember that faults such as cracking may be caused by poorly built and restrictive
flues, e.g. mortar extrusions, too many bends, flue heights below three metres,
restrictive terminations etc.
© Baxi Heating U.K. Limited 2010.

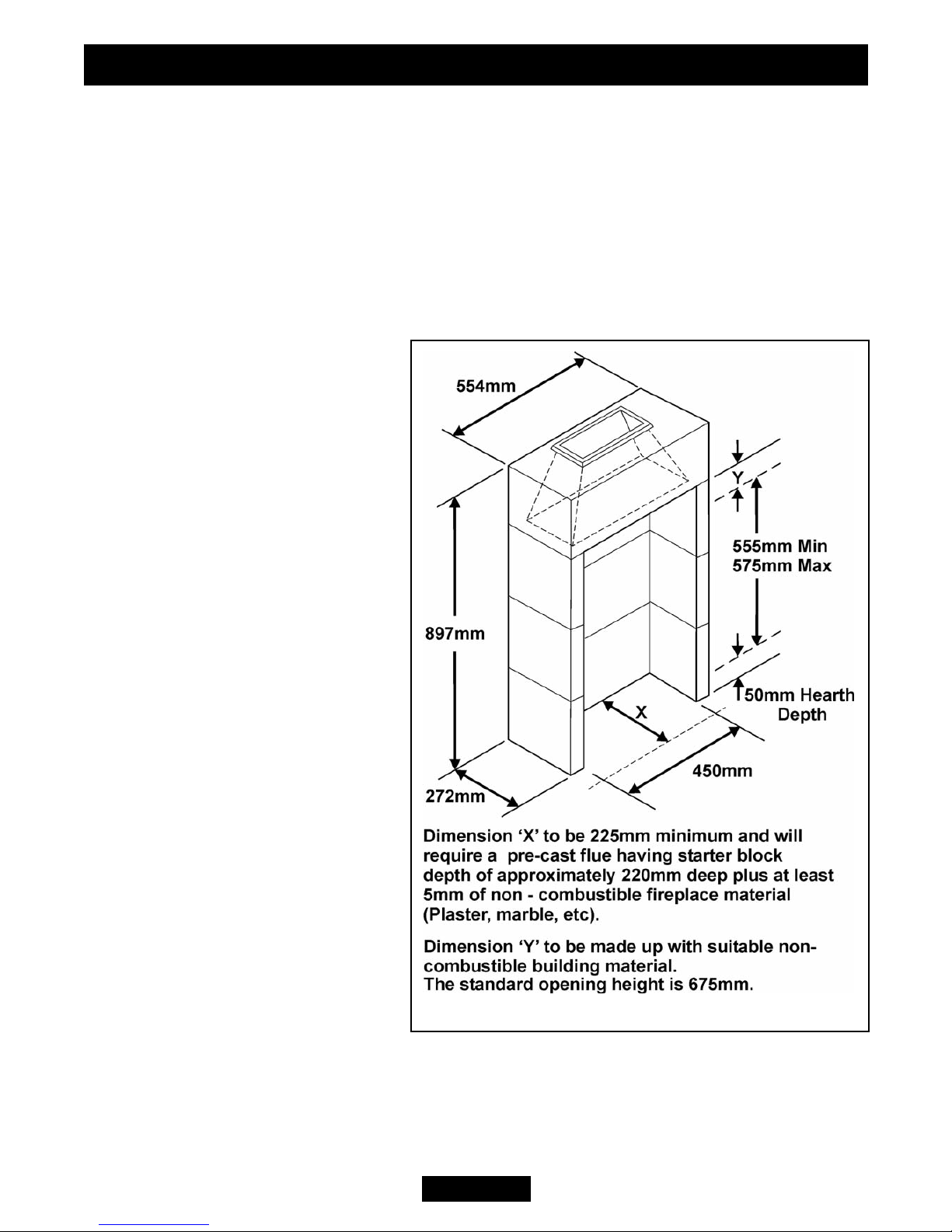

Figure 9. Precast or clay flue block system

INSTALLER GUIDE
Page 19
4.11 Flues.
1. Suitable flues and minimum flue sizes are as follows:
It should be noted that, as with many appliances, sharp bends or horizontal runs in
metal flues at the top of the system can be a cause of problems in these types of
installation.
 225mm x 225mm conventional brick flue.
 175mm diameter lined brick or stone flue.
 200mm diameter factory made insulated flue manufactured to BS4543 Part 2.
 175mm diameter flue pipe. See BS6461 Part 1 for suitable materials.
 Single wall, twin wall or flexible flue liner with a minimum diameter of 125mm. The
materials to be used are stainless steel or aluminium as specified in
BS EN 1856 Part 1. The liner must be sealed to the surrounding area above the
fireplace opening and to the top of the chimney. An approved terminal must be fitted.
 A properly constructed precast concrete or clay flue system conforming to BS1289
or BS EN 1858. This system is only suitable if the conditions stated in section 4.10.3
are met.
2. The flue must conform to BS 5440: Part 1 in design and installation.
The flue, measured from the bottom of the fireplace opening to the bottom of the
terminal, shall be not less than 3m in actual vertical height. When calculated in
accordance with BS 5440: Part 1 Annex A, the minimum equivalent height of the flue
shall be 2.0m of 125mm dia. flue pipe.
3. The flue must not be used for any other appliance or application.
4.Proprietary terminals must comply with BS 715 or BS 1289. Any terminal or
termination must be positioned in accordance with BS 5440 Part 1 to ensure that the
products of combustion can be safely dispersed into the outside atmosphere. Where
the appliance is connected to an unlined brick chimney it is generally unnecessary for
the chimney pot to be replaced or for a terminal to be fitted unless the flue has a
diameter smaller than 170mm.
© Baxi Heating U.K. Limited 2010.

INSTALLER GUIDE
Page 20
5. PACK CONTENTS
1 Burner and convection box unit.
1 Burner tray trim.
1 Outlet baffle for the convected air outlet.
2 Tapping Screws for outlet baffle.
1 Nut and olive for 8mm inlet pipe.
1 ‘T’ connector and pressure test point.
1 Flue restrictor.
3 Tapping Screws (For flue restrictor).
2 Small “U” seals (For convection box side flanges).
2 Strips of floor sealing tape.
6 Fibre / wooden plugs.
4 Woodscrews.
2 Fire retaining cables.
2 Cable clamps.
4 Eyebolts.
1 Rubber grommet (For rear of convector box).
2 Machine screws (For fascia hanging).
2 Washers for fascia hanging.
1 PP3 Alkaline battery.
1 Smoke match tube.
2 Fireback spacing brackets.
4 Tapping Screws (For fireback spacing brackets).
1 Length of self adhesive foam seal.
1 Literature pack (Not shown).
1 Ceramic fuel effect set (Not shown).
1 Slider control position label.
1 Control knob extension bracket (Bloomsbury only)
2 M4 x 7mm screws for securing the control knob extension
bracket (Bloomsbury only).
1 Fascia and firefront casting.
1 Fascia Hood (Bauhaus and Ebony only).
4 Screws for fascia hood (Bauhaus and Ebony only).
Carefully remove all the contents. Take special care in handling the ceramic pieces.
Take care not to bend or distort the slide control linkage.
Check that all the listed parts are present and in good condition.
© Baxi Heating U.K. Limited 2010.
