Wonderfire The Gallery BR218C1 User guide

Inset Live fuel Effect Engine
for use with
The Gallery
Fire Collection
Model BR218C1
INSTALLATION AND SERVICING
INSTRUCTIONS
Please keep in a safe place for future reference
600B654/01

2
This Installer Guide gives sufficient details to enable the gas appliance to be
installed and maintained. If further information is required, our Advice Line will
be pleased to help.
Please telephone [phone] (Local call rates apply)
In the Republic of Ireland call 353 183 75114.
A
s supplied, this appliance is for use with natural
gas (G20)
When converted using conversion kit no. 591149
this appliance is for use with propane gas (G31)
These appliances are for use in the United
Kingdom (GB) and the Republic of Ireland (IE)
only.
Please leave this Installer Guide with the user
CUSTOMER CARE

3
CONTENTS
Installation Notes ....................................................................................................................................4
Technical specification ...........................................................................................................................5
Pack Contents .........................................................................................................................................5
General Installation Requirements .........................................................................................................6
•Fire Surround.....................................................................................................................................7
•Hearth Requirememnts .....................................................................................................................7
Installation and Commissioning Instructions .........................................................................................7
•Fireplace, flue and Ventilation Details .............................................................................................7
•Foam Seal .........................................................................................................................................7
•Cable Retention ................................................................................................................................8
•Floor Sealing ....................................................................................................................................8
•Preliminary Burner Checks ..............................................................................................................8
•Check Reference Pressure ................................................................................................................9
Fitting the Ceramics ................................................................................................................................9
Full Operating Checks ..........................................................................................................................11
•Recheck Control Settings ...............................................................................................................11
•Check for Spillage ..........................................................................................................................11
•Flame Supervision & Spillage Monitoring System ........................................................................11
Final Review .........................................................................................................................................12
Servicing ...............................................................................................................................................13
•Burner Plaque Removal ..................................................................................................................13
•Burner Unit Removal .....................................................................................................................13
•Pilot Unit Removal .........................................................................................................................13
•Gas Tap Removal ...........................................................................................................................14
•Piezo Generator Removal ...............................................................................................................14
•Greasing Gas Tap ...........................................................................................................................14
•Injector Removal ............................................................................................................................14
•Removing Appliance ......................................................................................................................14
Short List of Spares ..............................................................................................................................15

4
INSTALLATION NOTES
In your own interest and for safety, in the United Kingdom, it is the law that all gas appliances are installed by competent persons in
accordance with the current edition of the Gas Safety (Installation & Use) Regulations and Amendments. Failure to install the appliance
correctly could lead to prosecution. The Confederation for the Registration of Gas Installers (CORGI) requires its members to work to
recognised standards.
This product uses fuel effect pieces, burner compartment walls and gaskets containing Refractory Ceramic Fibres (RCF), which are man-made
vitreous silicate fibres. Excessive exposure to these materials may cause temporary irritation to eyes, skin and respiratory tract. Consequently, it
makes sense to take care when handling these articles to ensure that the release of dust is kept to a minimum. To ensure that the release of fibres
from these RCF articles is kept to a minimum, during installation and servicing we recommend that you use a HEPA filtered vacuum to remove
any dust and soot accumulated in and around the fire before and after working on the fire. When replacing these articles we recommend that the
replaced items are not broken up, but are sealed within a heavy duty polythene bag, clearly labelled as RCF waste. This is not classified as
“hazardous waste” and may be disposed of at a tipping site licensed for the disposal of industrial waste. Protective clothing is not required when
handling these articles, but we recommend you follow the normal hygiene rules of not smoking, eating or drinking in the work area and always
wash your hands before eating or drinking.
This appliance does not contain any component manufactured from asbestos or asbestos related products.
The appliance data label is on the control plate below the right side of the burner tray. It is visible when the bottom front cover is removed.
The installation must be in accordance with these instructions.
In the United Kingdom the installation must also be in accordance with:
a) All the relevant parts of local regulations.
b) The Building Regulations issued by the Department of the Environment or the Building Standards (Scotland) (Consolidation)
Regulations issued by the Scottish Development Department.
c) All relevant codes of practice.
d) The relevant parts of the current editions of the following British Standards:-
BS 715
BS 1251
BS 1289 Part 1
BS 1289 Part 2
BS 4543 Part 2
BS 5440 Part 1
BS 5440 Part 2
BS 5871 Part 2
BS 6461 Part 1
BS 6891
In the Republic of Ireland the installation must also conform with the relevant parts of:
a) The current editions of:-
IS 813
b) All relevant national and local rules in force.
If the appliance is intended to be installed to a chimney, which was previously used for solid fuel, the flue must be swept clean prior to
installation. All flues should be inspected for soundness and freedom from blockages.
The minimum effective height of the chimney or flue must be 3m (10ft) from the hearth to the point of termination of the flue.
The chimney or flue must have any damper or restrictor removed, or permanently secured in the fully open position.
The flue must not be used for any other appliance or application.
If the fireplace opening is of underfloor draught type, it must be sealed to stop any draughts.
A fireguard complying with BS6539 or BS6778 should be fitted for the protection of young children, the elderly, or the infirm.
In the United Kingdom (GB) no special ventilation bricks or vents are required in the room for this appliance.However, any requirement
relating to other appliances which may be in the same room must be taken into consideration.
In the Republic of Ireland (IE), permanent ventilation must comply with the regulations currently in force.
An extractor fan may only be used in the same room as this appliance, or in any area from which ventilation for the appliance is taken, if it
does not affect the safe performance of the appliance. Note the spillage test requirements detailed further on in this manual. If the fan is
likely to affect the appliance, the appliance must not be installed unless the fan is permanently disconnected.
The appliance is fitted with an A.S.D (Atmosphere sensing device). If the appliance closes down after a period of operation for no apparent
reason, the consumer should be informed to stop using the appliance until the installation and appliance have been thoroughly checked.
The A.S.D will shut the appliance down if an unacceptable amount of harmful products of combustion accumulate. Under no circumstances

5
should the A.S.D be altered or bypassed in any way. Only a genuine manufacturers replacement part should be fitted. The individual A.S.D
components are not replaceable.
Note that soft wall coverings (e.g. embossed vinyl, etc.) are easily affected by heat. They may scorch or become discoloured when close to
a heating appliance. Please bear this in mind when installing.
Propane gas appliances must not be installed in a room, which is built entirely below ground level (See BS 5871 Pt2).
TECHNICAL SPECIFICATION
Appliance height: 600mm
Appliance width: 470mm
Appliance depth: 115mm
Height of opening required: 535mm min.
575mm max.
Width of opening required: 335mm min.
435mm max.
Gas Natural (G20) Propane (G31)*
Inlet Pressure 20mbar 37mbar
Input - Max. (Gross) 6.0kW (20,500Btu/h) 6.1kW (20,800Btu/h)
Input - Min. (Gross) 2.2kW (7500Btu/h) 3.6kW (12280Btu/h)
Output - Max. 2.5kW (11,900Btu/h) 2.5kW (12,280Btu/h)
Output - Min 0.85kW (3750Btu/h) 0.85kW (6140Btu/h)
Burner Test Pressure (Cold) 17.0±0.75mbar (6.8±0.3in
w.g.) 36.2±0.75mbar (14.53±0.3in w.g.)
Gas Connection 8mm pipe 8mm pipe
Burner Injector Bray Cat. 18 Size 360 Bray Cat. 18 Size 170
Pilot & Atmosphere Sensing
Device SIT Ref. OP9030 SIT Ref. OPLPG9222
Ignition Piezo Electric. Integral with
Gas Tap Piezo Electric. Integral with Gas Tap
Aeration Non-adjustable Non-adjustable
* When converted using Kit 591149
Clearance to combustible side panels: 100mm
The minimum height from the top surface of the hearth to the underside of any shelf made from wood or other combustible materials is as
follows: -•For a shelf up to 150mm deep
Minimum height = 750mm.
•For a shelf deeper than 150mm
Minimum height = 750mm + 12.5mm for every 25mm depth over 150mm.
PACK CONTENTS
1 Hotbox, and Burner assembly
1 Literature Pack
1Loose parts pack including:-
1 Front coal Matrix
1 Rear coal Matrix
1 Loose coals Pack
3 Self-Adhesive Foam seals
2 Tension Cables
2 Cable Adjusters
2 Eyescrews
2 Fibre Plugs
1Strip of Floor Sealing Tape
1 Nut and Olive for 8mm Inlet Pipe
Carefully remove the contents.
Take special care when handling the ceramic components.
Check that all the listed parts are present and in good condition.

6
GENERAL INSTALLATION REQUIREMENTS
This appliance is not suitable for installation in a room or internal space containing a bath or shower or where steam is regularly present or
in a private garage.
This appliance is suitable for the following: -
1. A masonry chimney with a minimum diameter of 175mm (7”) free from any obstruction, and with any damper or restrictor plate in the
chimney removed or secured, and having a minimum effective flue height of 3m (10ft). Note the relevant flat surface area requirement
(Figure 1). A masonry chimney having a correctly installed flue liner to BS715 and with a minimum flue diameter of 125mm is also
acceptable. Chair brick removal may not be required providing at least 50mm clearance is available from the flue outlet to any
fireplace component. The appliance is designed to cater for low lintel installations (min height 505mm) providing a minimum distance
of 25mm is maintained between the lintel and the front face of the fireplace (i.e. 25mm rebated fire surround).
2. To a fireplace that has a precast concrete or clay flue block system conforming to BS1289. The appliance is suitable for installations
conforming to older versions of BS1289 as well as the current edition. The flue blocks must have a minimum width not less than 63mm
and a cross-sectional area not less than 13,000mm2.Older editions of BS1289 required a cross-sectional area of 13,000mm2. The
current revision of the standard requires 16,500mm2. This appliance is suitable in both cases. The total depth of the opening measured
from the finished front of the fireplace (Including plaster, surround etc.) must be not less than 118mm (Figure 2).
The current version of BS1289 recommends that there should be an air space or insulation between the flue blocks and the plaster
because heat transfer may cause cracking on directly plastered flues. However, generally this appliance is suitable for installations
under all circumstances unless there is a history of cracking problems. Remember that faults such as cracking may be caused by poorly
built and restrictive flues, e.g. mortar extrusions, too many bends, flue heights below three metres, restrictive terminations, etc.
3. A
sheet metal flue system conforming with BS4543 or BS715, the flue
diameter being a minimum of 125mm (5”) (see Figure 3) with a
minimum internal depth of 150mm. Incombustible mineral wool
insulation of not less than 50mm thickness must be applied to the top
surface of the system firebox, as shown in figure 3.
Figure 2 Pre-cast Fireplace
Figure 1 Masonry Fireplace
Figure 3 Factory Made Flue System

7
Fire Surround: This appliance may be installed with a surround
with a minimum approved temperature rating of 150 degrees. The fire
surround must be sealed to the wall.
Hearth Requirements: The appliance must be mounted on a non-
combustible hearth in accordance with Figure 4. The hearth material
must have a minimum thickness of 12.5mm (1/2”). The periphery of
the hearth (or fender) should be at least 50mm above floor level to
discourage the placing of carpets or rugs over it.
INSTALLATION AND COMMISSIONING INSTRUCTIONS
PLEASE READ CAREFULLY BEFORE STARTING WORK
FIREPLACE, FLUE AND VENTILATION DETAILS
Read the important installation notes on the previous pages before proceeding with the installation of your fire. Only when you have
complied with all the requirements should you proceed any further. Note the hearth requirements.
The burner is produced from a soft ceramic material and should be handled carefully.
The burner tray assembly has been tested before it leaves the factory and is in perfect working order.
Remove any transit tape and packing and inspect for any evidence of mishandling which might affect the performance. Each unit is flame
tested before it leaves the factory and as a result there may be slight discoloration around the burner ports. There may also be slight
thermal cracking across the burner surface that is perfectly normal and is not detrimental to performance.
8mm (5/16) Bundy or semi-rigid tubing must be used to connect the appliance to the gas supply.
Centre the appliance in the fireplace opening taking care not to scratch or damage the hearth.
If a concealed gas pipe fixing is to be used, offer the gas pipe through the appropriate grommet. A nut and olive are provided for an 8mm-
pipe inlet connection to the elbow at the bottom front of the appliance. The elbow can be rotated to allow a connection from any direction.
The elbow includes a valve for isolating the gas supply.
The burner assembly is retained by one screw set in the
front leg (see Fig.5). Remove the screw and carefully
remove the burner assembly by lifting and sliding
forward from the firebox.
FOAM SEAL:A foam seal is supplied which will need
to be attached to the rear face of the firebox frame on all
three sides. Ensure that all joints are butted together to
prevent air gaps.
Figure 5 Burner fixing points

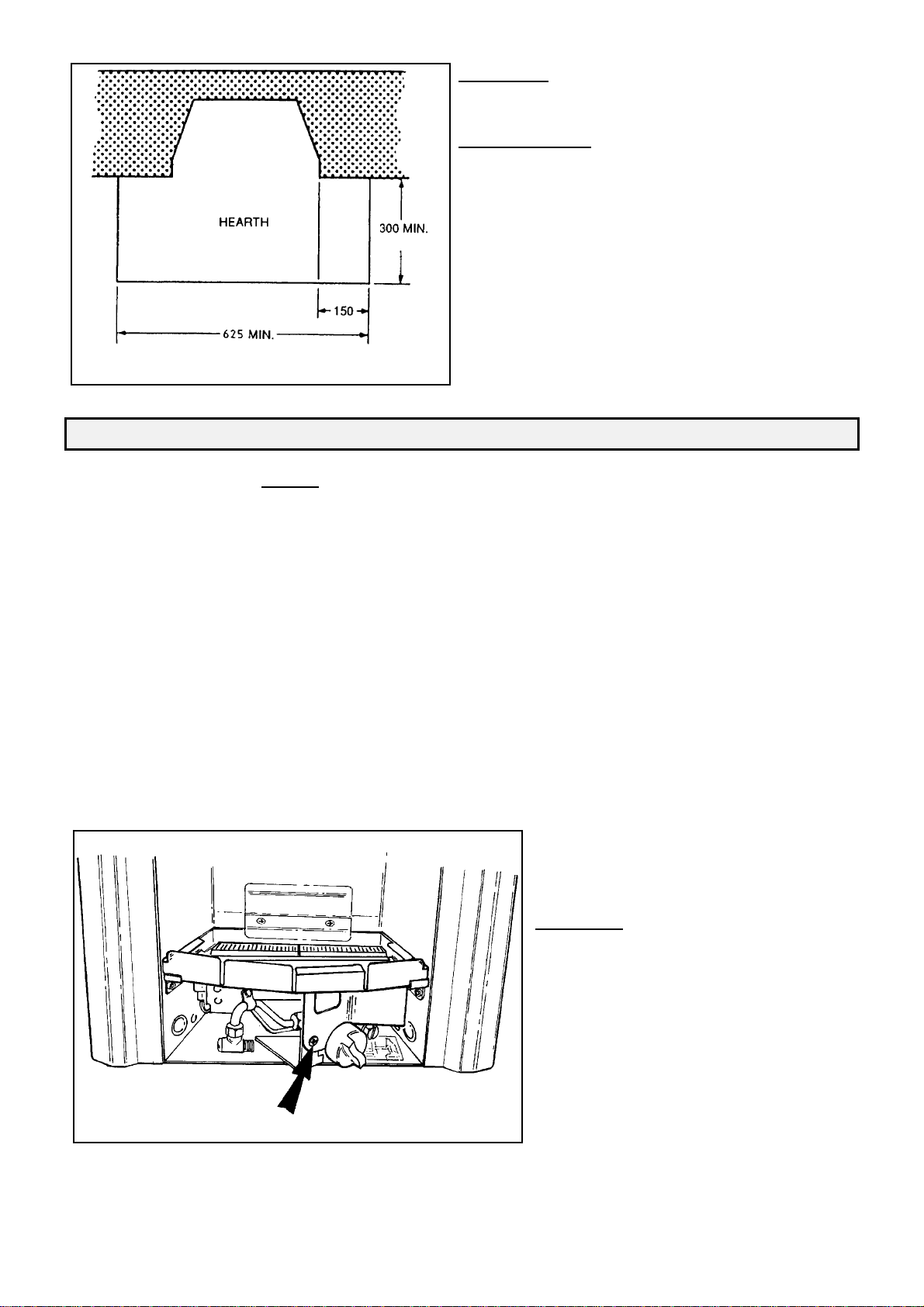

Figure 4 Hearth

8

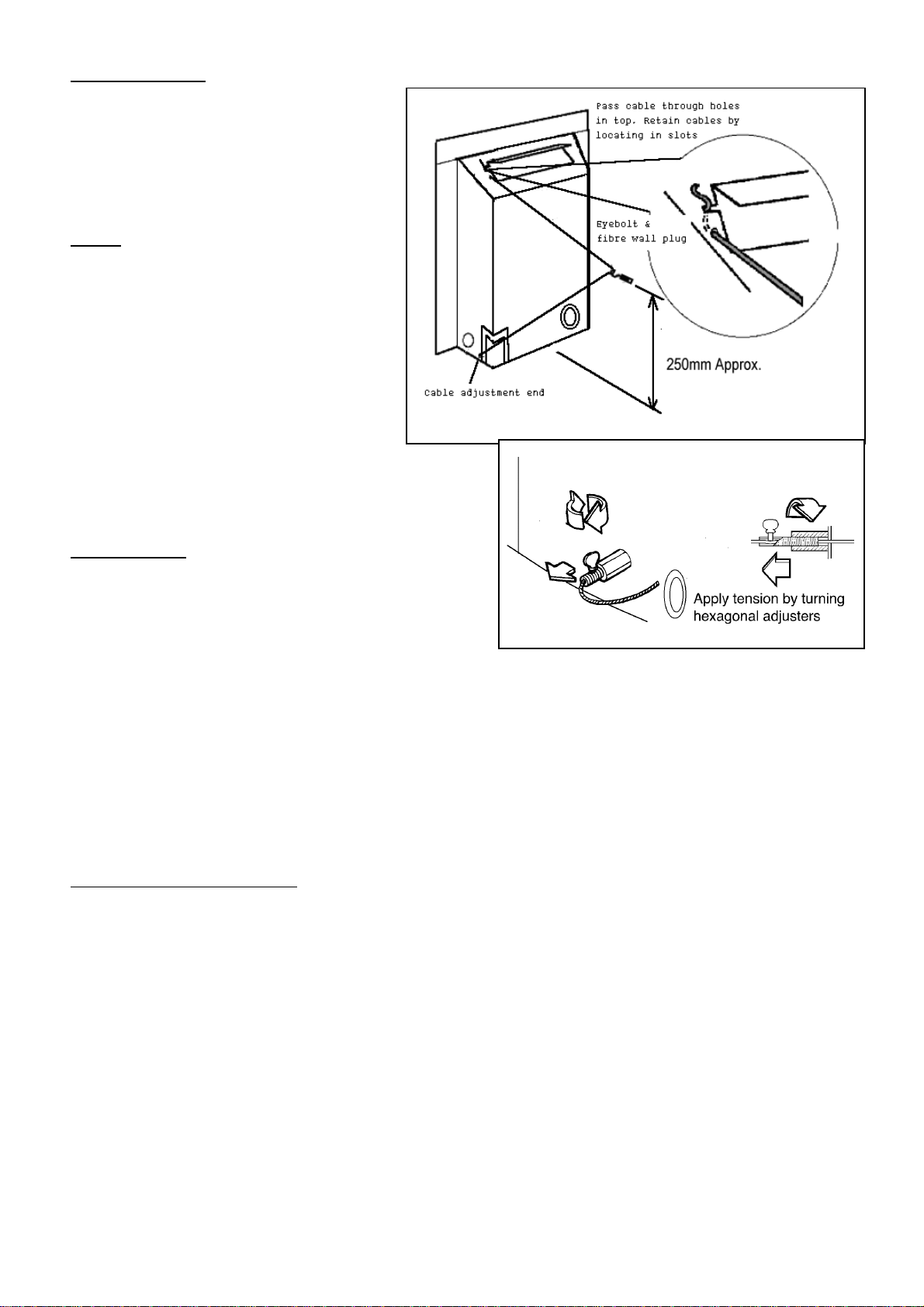

CABLE RETENTION
Cables and eyebolts are supplied for the retention of the
appliance. Ensure that the internal fireplace components
are sufficiently sound to take the eyebolts and wall plugs.
These should be fitted in accordance with Figure 6, using
the wall plugs and a No.10 drill. Use only the fibre wall
plugs supplied (or similar). On no account should plastic
wall plugs be used.
Method: Assemble one end of the cable to the top of
the fire by passing it through the small round hole and
locking by positioning the cable end in the adjacent slot.
Pass the other end of the cable through the eyebolt & hole
in the lower side of the appliance and fit adjusters in
accordance with Figure 7. With the adjusters fully
screwed in, carefully manoeuvre the appliance into the
fireplace opening. Take up any slack on the cables, and
tighten cable nipples into position.
Tighten the appliance into the fireplace opening by
turning the adjuster nuts to compress the sealing foam
sufficiently to provide an effective seal. Do not
overtighten.
If the sealing foam does not fully compress, then the
adjusters and nipples may require to be slackened and the cable pulled up
tighter before re-tightening the adjuster. Do not cut off any excess cable,
instead coil up the cable against the flange, as it may be required for
servicing purposes.
FLOOR SEALING
Using the floor sealing tape supplied, seal the bottom of the convection
box to the fireplace and hearth floor. Run the tape over the burner-fixing
bracket.
Replace the burner assembly into position in the firebox, without refitting
the retaining screw at this stage. Cut and shape the gas supply pipe to suit
the chosen direction of entry and the gas inlet fitting position. Refit and tighten the burner assembly retaining screws.
Refit the burner unit to the appliance to the front leg bracket by the screw.
Connect the supply line to the appliance.
For side connection passing in front of the surround. The supply pipe will have to be close to the inner face of the surround to the fire
front casting to be correctly positioned. The pipe should pass through the cutout in the casting side.
For right hand side connection. The supply pipe will also have to be formed to go behind the control knob and burner support bracket.
Pressure check the installation pipework for gas soundness in accordance with the current edition of BS6891. A long brush may be
required to reach some joints.
PRELIMINARY BURNER CHECKS
Some burner operations can be checked at this stage. Checking now will mean that less disassembly will be required it any problems are
found.
A full check should still be made, however, after final installation.
If closed, open the isolating valve at the inlet elbow.
Depress the control knob and turn anticlockwise partially towards the “PILOT/IGN” position until some resistance is felt. Keep depressed
at this position to purge air from the system then, while keeping it depressed, turn fully to the “PILOT/IGN” position. A spark should be
generated at the pilot while turning. The spark should ignite the pilot. If not turn the control knob back to the off position and repeat the
procedure.
When pilot ignition has been achieved, keep the control knob depressed for approximately ten seconds to allow the thermocouple probe to
warm up and then release it. If the pilot does not remain alight, ensure that the air has been purged, that the pilot orifice is clear and that
the thermocouple connections are sound. Replace the pilot unit if necessary (see servicing section of this manual).
When the pilot is alight and stable, partially depress the knob and turn to “LOW”. The pilot should then light the main burner at its low
setting. There may be a delay of up to four seconds between the pilot lighting and ignition of the gas at the main burner. This is normal
and is due to the time required to fill the main burner compartment with sufficient gas for ignition.
When the burner is operating properly, partially depress the control knob and gradually turn it anti-clockwise. The burner flames should
gradually increase until the knob reaches the “HIGH” position.
Figure 6 Cable Retention Method
Fig 7 – Cable Adjustment

9
When the above checks have been completed partially depress the control knob and turn to “OFF”.
If the above checks are satisfactory, continue with the installation. If not, check the control and ignition circuitry and components as
described in the servicing section of this manual.
CHECK REFERENCE PRESSURE
The appliance is pre-set to give the correct heat input at the inlet pressure shown in the Technical Specification section of this manual. No
adjustment is necessary. Check the burner pressure by fitting a pressure gauge at the test point. The test point is on the pipe situated below
the bottom right corner of the burner unit. Check the pressure with the appliance alight and set at maximum output.
After checking, turn off the appliance. Remove the pressure gauge and replace the test point sealing screw. Relight the appliance. Turn to
the maximum output position and test around the sealing screw for gas soundness with a suitable leak detection fluid.
FITTING THE CERAMICS
Prior to fitting the ceramics, assemble the
Burner tray trim (packed loose) to the front
of the burner tray trim. Simply hook the
trim over the front flanges of the burner
tray and push downwards.
Fit the ceramic rear wall (figures 8 & 9).
The featheredge of the ceramic rear wall
must be at the top.
Place the front base coal in the
burner compartment so that it
rests on the ledges at the sides
and front. Pull the coal
forward so that it is
immediately behind the front
rim of the burner
compartment. (See Fig 10 &
11).
Figure 9 Ceramic rear wall position
Figure 8 Ceramic rear wall & Bracket
fixing
Figure 11 Front Base Coal in Position
Figure 10 Front Base Coal Positioning

10
Place the rear base coal in the
burner compartment behind
the front coal. It should rest
on the ledge at the back of the
burner compartment and its
rear face should touch the rear
ceramic wall (See Figure 12 &
13).

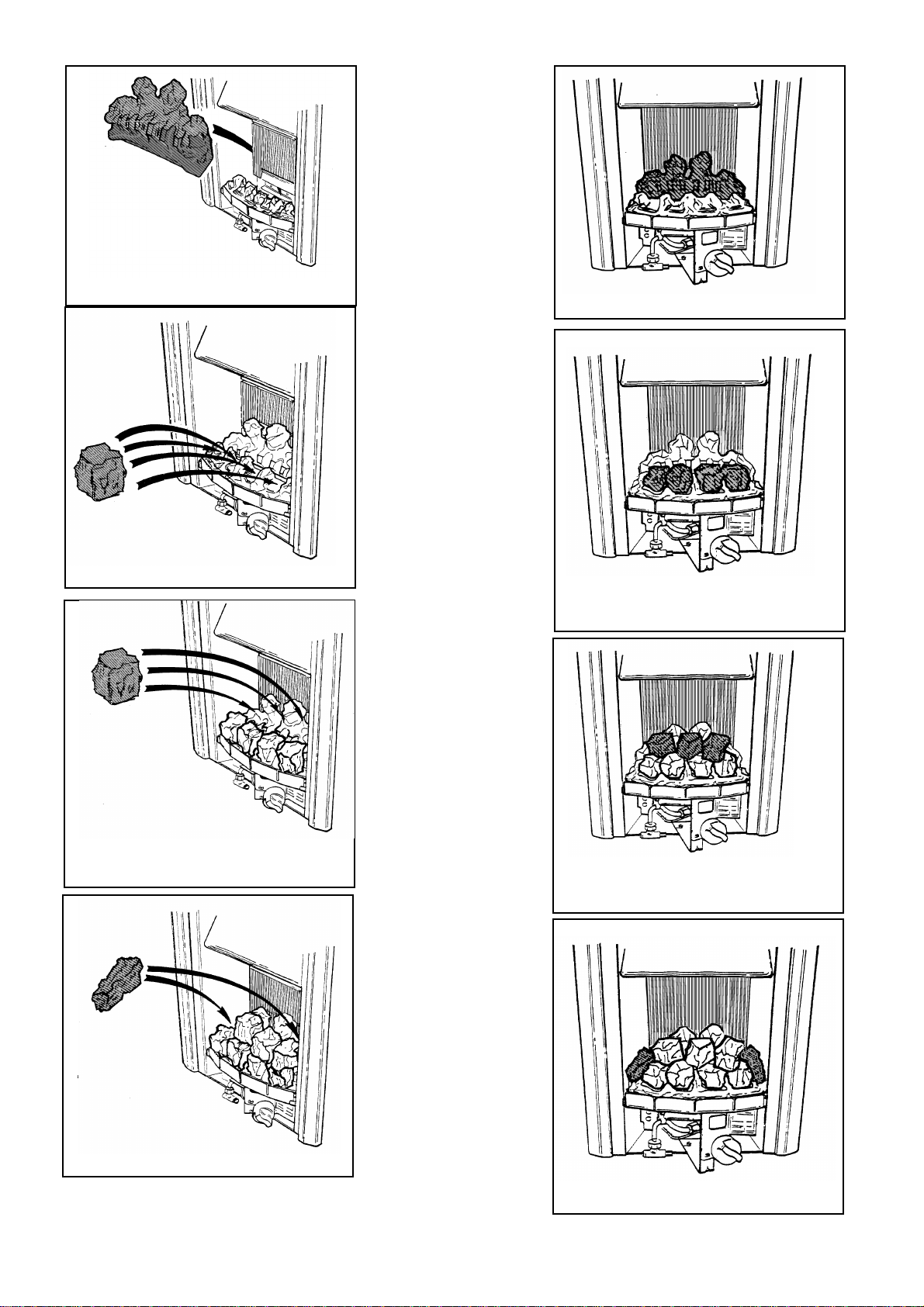

Install the 9 loose coals as
follows. The smooth surfaces
of the coals should be at the
bottom and back. Select the
two smallest coals and put
them aside until all the other
coals are installed. Place four
of the medium size coals in
the four valleys of the front
coal. Place the left side coal
so that the customer will be
able to see the pilot flame
(Figures 14 & 15).
Place the three remaining
medium size coals behind and
approximately midway
between each of the coals in
the front row (Figures 16 &
17).
Place the two remaining small
coals alongside the main coals
(Figures 18 & 19).
Figure 19 Side Coals in Position
Figure 18 Positioning Side Coals
Figure 17 Second Row of Coals in Position
Figure 16 Positioning Second Row of Coals
Figure 15 Front Row of Coals in Position
Figure 14 Positioning Front Row of Coals
Figure 13 Rear Base Coal in Position
Figure 12 Rear Base Coal Positioning

11
FULL OPERATING CHECKS
RECHECK CONTROL SETTINGS
Now that all the ceramic fuel effects are in position, the control operation must be fully rechecked.
Make sure that the isolating valve at the inlet elbow is open.
Depress the control knob and turn anti-clockwise partially towards the “PILOT/IGN” position. A spark should be generated at the pilot
while turning. The spark should ignite the pilot. Check that the pilot flame is visible.
When pilot ignition has been achieved, keep the control knob depressed for approximately ten seconds to allow the thermocouple probe to
warm up and then release it. If the pilot does not remain alight, ensure that the pilot orifice is clear.
When the pilot is alight and stable, partially depress the knob and turn to “LOW”. The pilot should then light the main burner at its low
setting. There may be a delay of up to four seconds between the pilot lighting and ignition of the gas at the main burner. This is normal
and is due to the time required to fill the main burner compartment with sufficient gas for ignition.
When the burner is operating properly, partially depress the knob and gradually turn it anti-clockwise. The burner flames should gradually
increase until the knob reaches the “HIGH” position.
Partially depress the control knob and turn back the “PILOT/IGN”. The main burner flames should be extinguished but the pilot should
remain alight.
Partially depress the control knob and turn to “OFF” the pilot should be extinguished.
CHECK FOR SPILLAGE
A spillage check must be made before leaving the installed appliance with the customer. Make this check with the appliance fully
installed with the ceramic fuel effects and front surround in position.
Close all doors and windows in the room containing the appliance.
Light the appliance and turn the control knob to “HIGH”.
Leave the appliance on for five minutes.
Place the smoke match into the appliance canopy (See Fig.20)
The installation is satisfactory if the smoke is drawn into the appliance. If the smoke is not drawn
into the appliance, leave the appliance alight at the maximum setting for a further ten minutes and
then repeat the test. If smoke is still not drawn into the appliance, inspect the sealing to the
fireplace surround. If smoke is still not drawn into the appliance, disconnect the appliance and
seek expert advice.
If the above test is satisfactory, open all internal connecting doors, hatches, etc., in the room. Keep
all doors and windows that open to the outside of the building closed. Recheck for spillage as
above. If an extractor fan is installed in the same room as the appliance or a connecting room,
check that spillage does not occur with the fan operating and all doors and other openings between
the fan and the appliance open.
If the smoke is drawn into the appliance, continue with the installation. If the test is not satisfactory, disconnect the appliance and advise
the customer of the cause of failure.
FLAME SUPERVISION & SPILLAGE MONITORING SYSTEM
This pilot unit incorporates a system that will automatically shut off the gas supply if the pilot flame goes out or if there is insufficient
oxygen due to spillage or lack of ventilation.
This monitoring system must not be adjusted, bypassed or put out of operation.
This monitoring system, or any of its parts, must only be exchanged using Manufacturers thorised parts.
Figure 20 Spillage check

12
FINAL REVIEW
Place the front casting in position between the sides of the front surround.
Place the bottom front cover casting below the front casting.
Visually inspect the appliance. Clean off any marks incurred during installation.
Hand these instructions and the user’s instructions to the customer.
Advise the customer that the appliance will operate to its maximum potential if the flue is primed during the first 20 – 30 minutes of use.
To do this, simply slide the control to its highest setting. This will also burn off any carbon deposits that may have formed during previous
use.
If using the appliance for long periods it is beneficial to change between settings. This will also help to remove any carbon deposits that
may form during use.This is explained in the Owner’s manual under the section ‘Operating the Fire’.
Point this out to the customer before leaving.
Explain to the customer that the appliance has a flame failure and spillage monitoring system. Point out the explanation of this system
shown in the users instructions under “Operating the Fire”. Advise that if the fire goes out for any reason, wait at least three minutes before
relighting.
Stress that if the monitoring system repeatedly shuts off the fire, the appliance should be switched off and a specialist should be consulted.
Advise the customer that the castings, front surround, firebox and ceramic pieces can be cleaned as described in the user’s instructions and
that the coal pieces must be replace as described in those instructions.
Stress that no extra coals must be added over and above those supplied with the appliance and that any replacements must only be the
authorised spares. Warn that ignoring this advice could cause incomplete clearance of the products of combustion with consequent
health hazards.
Recommend that the appliance should be serviced and the chimney inspected by a competent person (In the UK a CORGI registered
person) at least annually.
If the appliance is in premises in the United Kingdom occupied by a tenant, point out that by law a landlord must have any gas appliance,
flue and pipework which is situated in a tenant’s premises checked for safety at least every 12 months.

13
SERVICING & PARTS REPLACEMEMT
Always turn off the gas supply before commencing any servicing. (The inlet elbow for this appliance incorporates an isolating
valve).
This product uses fuel effect pieces, burner compartment walls and gaskets containing Refractory Ceramic Fibres (RCF), which are
man-made vitreous silicate fibres. Excessive exposure to these materials may cause temporary irritation to eyes, skin and respiratory
tract. Consequently, it makes sense to take care when handling these articles to ensure that the release of dust is kept to a minimum. To
ensure that the release of fibres fromthese RCF articles is kept to a minimum, during installation and servicing we recommend that you
use a HEPA filtered vacuum to remove any dust and soot accumulated in and around the fire before and after working on the fire.
When replacing these articles we recommend that the replaced items are not broken up, but are sealed within a heavy duty polythene
bag, clearly labelled as RCF waste. This is not classified as “hazardous waste” and may be disposed of at a tipping site licensed for the
disposal of industrial waste. Protective clothing is not required when handling these articles, but we recommend you follow the normal
hygiene rules of not smoking, eating or drinking in the work area and always wash your hands before eating or drinking.
•Check that the appliance is clean and that soot or debris is not blocking the gaps between the coals causing an imperfect flame.
•Check that soot or debris is not impairing the electrode spark or pilot burner.
•Check that soot or debris is not blocking any of the slots in the main burner.
•After servicing, make sure that the ceramic walls and coals are replaced correctly as described in the installation instructions.
•Always test for gas soundness and spillage after servicing the appliance.
TO REPLACE BURNER PLAQUES
•Remove the 9 loose coals, front base coal, and rear base coal.
•Remove the plaque clamping strips by detaching 6 screws.
•Remove the plaques and the combination gasket between and under the plaques. If necessary remove the gauze and the gasket beneath
it.
•If necessary fit a new gasket below the gauze. Clean and replace the gauze. Fit a new combination gasket below the plaques. Push the
gasket ends inwards to form a dividing gasket between the plaques.
•Place the new left hand plaque in position. The left side of the plaque must touch the inside edge of the retaining flange at the left side
of the burner well.
•Place the new right hand plaque in position. Make sure that the centre section of the combination plaque is between the two plaques.
If there is any play between the plaques and the end retaining flanges, push the plaques firmly to the left squeezing the centre section
of the combination gasket between the two plaques. Any gap should be between the right side of the plaque and the right side-
retaining flange.
•Fit the front and rear plaque clamping strips. Make sure that the plaques are as far to the left as possible. . It is important that the left side
plaque is accurately positioned so that it has the correct relationship to the pilot. Fully tighten the clamping strips.
•Refit the ceramic fuel effects and walls as described in this manual.
TO REMOVE THE COMPLETE BURNER UNIT
•Remove the 9 loose coals, front base coal and rear base coal.
•Support the inlet isolating elbow to avoid straining the pipework and disconnect the appliance from the elbow.
•Detach the burner unit from the hotbox by removing 1 screw (As shown in figure 5).
•Replace in the reverse order.
TO REMOVE THE PILOT UNIT
•Remove the burner unit - See previous section.
•Disconnect the electrode lead from tab underneath the electrode.
•Undo the thermocouple nut at the gas tap.
•Disconnect the pilot pipe from the pilot unit elbow.
•Remove the first screw securing the dust cage to the pilot unit / burner. Carefully remove the dust cage and place aside.
•Remove the second screw securing the pilot unit to the burner. Remove the pilot unit and place it aside
•Refit in the reverse order
Note 1 The pilot unit must be replaced as a whole assembly. Its individual components are not separately replaceable.
2. Once removed, ensure that the dust cage is cleaned before refitting. Make sure that it locates squarely onto the pilot unit without
any gaps between the cage edges and the pilot unit.

14
TO REMOVE THE GAS TAP/F.S.D
•Remove the burner unit.
•Disconnect the electrode lead from tab underneath the electrode.
•Undo the thermocouple nut at the gas tap
•Disconnect the inlet pipe at the tap end
•Disconnect the pilot pipe at the tap end.
•Disconnect the main burner pipe at the tap end
•Pull off the control knob
•Remove the gas tap fixing nut. Pull the tap clear of the control plate.
•Replace in the reverse order.
TO REMOVE THE PIEZO GENERATOR
•Remove the gas tap/F.S.D. as above
•Make sure that the tap is in the off position
•Remove the circlip holding the piezo unit to the tap. Remove the piezo unit.
•Replace in the reverse order.
TO GREASE THE CONTROL TAP/F.S.D
•Detach the tap and remove the piezo generator making sure that the tap is in the off position.
•Remove the two screws from the head of the tap. Remove the niting head and spindle complete with collar and spring.
•Note the position of the slot in the plug - mark its position on the tap body.
•Remove the plug rotating slightly while pulling.
•Clean and grease the plug lightly with suitable grease. Do not apply excessive grease. Particularly, make sure that the gas ports in the
tap are not restricted by grease.
•Push the plug into the tap body and position the slot in line with the mark previously made on the tap body.
•Reassemble the niting head and spindle complete with collar and spring making sure that the components are correctly engaged.
Check the operation of the tap.
•Refit the piezo generator.
TO REMOVE THE MAIN BURNER ELBOW INJECTOR
•Remove the burner unit – as above.
•Disconnect the main burner pipe from the injector at the venturi end. If necessary, loosen the pipe at the gas tap end to swing the pipe
clear of the injector.
•Unscrew the injector from the rear support bracket.
•Refit in the reverse order.
TO REMOVE THE APPLIANCE FROM THE FIREPLACE
•Remove the 9 loose coals, front base coal and rear base coal.
•Slacken the hexagonal adjusters on the cable retainers and unscrew to release the cables.
•Refit as described in the relevant installation sections. Make sure gas soundness, sealing spillage test and performance are
satisfactory.

15
SHORT LIST OF SPARES
KEY DESCRIPTION NO. OFF PART NO.
AInjector Bray cat 18 size 360 For Natural Gas Appliances 1 541069
Injector Bray cat 18 size 170 For Propane Appliances 571709
B Gas tap & spark generator 1 569429
C Spark generator 1 521069
D Control knob 1 545979
EPilot unit For Natural Gas Appliances 1 540979
Pilot unit For Propane Appliances 566929
F Burner plaque & gasket set 1 569439
GCeramic rear wall 1 576879
H Front coal 1 9770074
I Rear base coal 1 9770075
J Pack of loose coals 1 9780033
K Dust cage 1 567619

16
All Wonderfire appliances are CE Approved and designed to meet the appropriate British Standards.
All Wonderfire appliances are manufactured to the highest standards of quality and excellence and are
manufactured under a BS EN ISO 9001 quality system accepted by the British Standards Institute.
All Wonderfire gas appliances must be installed by a competent Corgi Registered Installer in accordance
with our Installer Guide. If in doubt always use the services of a CORGI Registered Supplier.
Wood Lane, Erdington, Birmingham B24 9QP
Because our policy is one of constant development and improvement, details may vary slightly from those given in this publication
