OWNER’S GUIDE
Avignon
&
Avignon Aspire
Model BR650 VA
(G.C. 32-032-39)
AS SUPPLIED, THIS APPLIANCE IS FOR USE WITH NATURAL GAS (G20)
WHEN CONVERTED USING CONVERSION KIT NO. 0591149 THIS
APPLIANCE IS FOR USE WITH PROPANE GAS (G31)
THIS APPLIANCE IS FOR USE IN THE UNITED KINGDOM (GB) AND THE
REPUBLIC OF IRELAND (IE) ONLY.
This guide is intended to help you care for your Wonderfire gas fire. Please read
thoroughly before using and keep for future reference.
We trust that this Guide gives sufficient details to enable the appliance to be operated and
maintained satisfactorily. However, if further information is required, our Technical
Helpline will be pleased to help.
Please telephone [phone] (National call rates apply in the United Kingdom).
In the Republic of Ireland call 0044 08706 061 065.
Please keep this guide in a safe place for future reference
© Wonderfire
3002922/01

OWNER’S GUIDE
Page 2
CUSTOMER CARE
Thank you for choosing Wonderfire.
All Wonderfire gas fires are designed to meet the most stringent quality, performance and
safety requirements to provide our customers with many years’ trouble-free service.
Your owner guide aims to improve your understanding and appreciation of your
Wonderfire gas appliance by providing simple and informative instructions to ensure that
you benefit from the excellent performance and features it has to offer.
If you require further assistance or any advice about gas in general, our Technical Helpline
will be pleased to help.
Please telephone [phone] (local call rates apply in the United Kingdom).
In the Republic of Ireland please telephone [phone]
LIST OF CONTENTS
SAFETY..................................................................................................................... 3
APPLIANCE DIMENSIONS .................................................................................. 5
OPERATING YOUR FIRE..................................................................................... 6
CLEANING............................................................................................................... 8
REFITTING CERAMICS....................................................................................... 9
MAINTENANCE.................................................................................................... 15

OWNER’S GUIDE
Page 3
Graph 1 Combustible shelf clearances
SAFETY
IF YOU SMELL GAS
DON’T SMOKE
EXTINGUISH ALL NAKED FLAMES
DON’T TURN ELECTRICAL SWITCHES ON OR OFF
TURN OFF THE GAS SUPPLY AT THE METER
OPEN DOORS AND WINDOWS TO GET RID OF THE GAS
IMMEDIATELY CALL THE GAS EMERGENCY SERVICE – SEE YOUR
LOCAL TELEPHONE DIRECTORY
DO
•Have the fire installed by a competent person. In the United Kingdom, installation
must be in accordance with the latest edition of the Gas Safety (installation & use)
Regulations. In the Republic of Ireland, installation must be in accordance with all
national and local regulations in force.
•Have the chimney swept prior to installation if it was previously used for solid fuel.
•Have the fire installed in accordance with the installation instructions
•Provide a minimum clearance as shown below (Graph 1) from the top surface of the
hearth to any shelf made of wood or other combustible material. Please bear this in
mind if you are making any alterations to the room.
•For a shelf up to 150mm deep
Minimum height = 750mm.
• For a shelf deeper than 150mm
Minimum height = 750mm + 12.5mm for every 25mm depth over 150mm.

OWNER’S GUIDE
Page 4
•Always use a fireguard complying with BS6539 or BS6778 for the protection of young
children, the elderly or infirm.
•Wait three minutes before attempting to relight if the fire is switched off or the flames
are extinguished for any reason.
DO
•Get advice about the suitability of any wall covering near your fire. Soft wall coverings
(e.g. embossed vinyl, etc.) which have a raised pattern are easily affected by heat. They
may, therefore, scorch or become discoloured when close to a heating appliance.
Please bear this in mind whenever you are considering redecorating.
•Provide a minimum clearance of 100mm from the outside of the fire case to any corner
wall or other combustible surface that projects beyond the front of the appliance.
Please bear this in mind if ever you are altering the room (See figure 1)
DON’T
•Hang clothing, towels or any other fabrics over the fire.
•Throw paper or other materials onto your fire.
•Use the fire with damaged base ceramics.
•Put more loose coals / pebbles on the fire than the number given in this guide or use
any coals / pebbles other than those authorised for this fire. Incorrect combustion could
result.
•Attempt to clean or service the fire until it has been switched off and allowed to cool.

OWNER’S GUIDE
Page 5
APPLIANCE DIMENSIONS
Figure 1. Appliance dimensions

OWNER’S GUIDE
Page 6
Figure 2
OPERATING YOUR FIRE
PLEASE NOTE
When operating your fire for the first time, some vapours may be given off which may
cause a slight odour and could possibly set off any smoke alarms in the immediate
vicinity. These vapours are quite normal with new appliances. They are totally harmless
and will disappear after a few hours use.
The Oxysafe flame sensing & flue blockage safety system.
For your safety, this appliance is fitted with a flue blockage safety device which will shut
down the appliance in the event of abnormal flue conditions. This device is NOT a
substitute for an independently mounted Carbon Monoxide detector.
The device will also automatically shut off the gas supply to the fire if the pilot flame
goes out due to lack of oxygen or for any other reason.
If this device starts to repeatedly shut off the gas, get expert advice.
This device incorporates a probe which senses that the heat from the pilot flame is
correct. If this probe is cool, the device will prevent any gas flow unless the control knob
is kept depressed at the “Pilot/Ign” position.
If, for any reason, the flames go out when the fire is hot or if the fire is turned off when
hot, always wait at least three minutes before attempting to relight.
Lighting the pilot

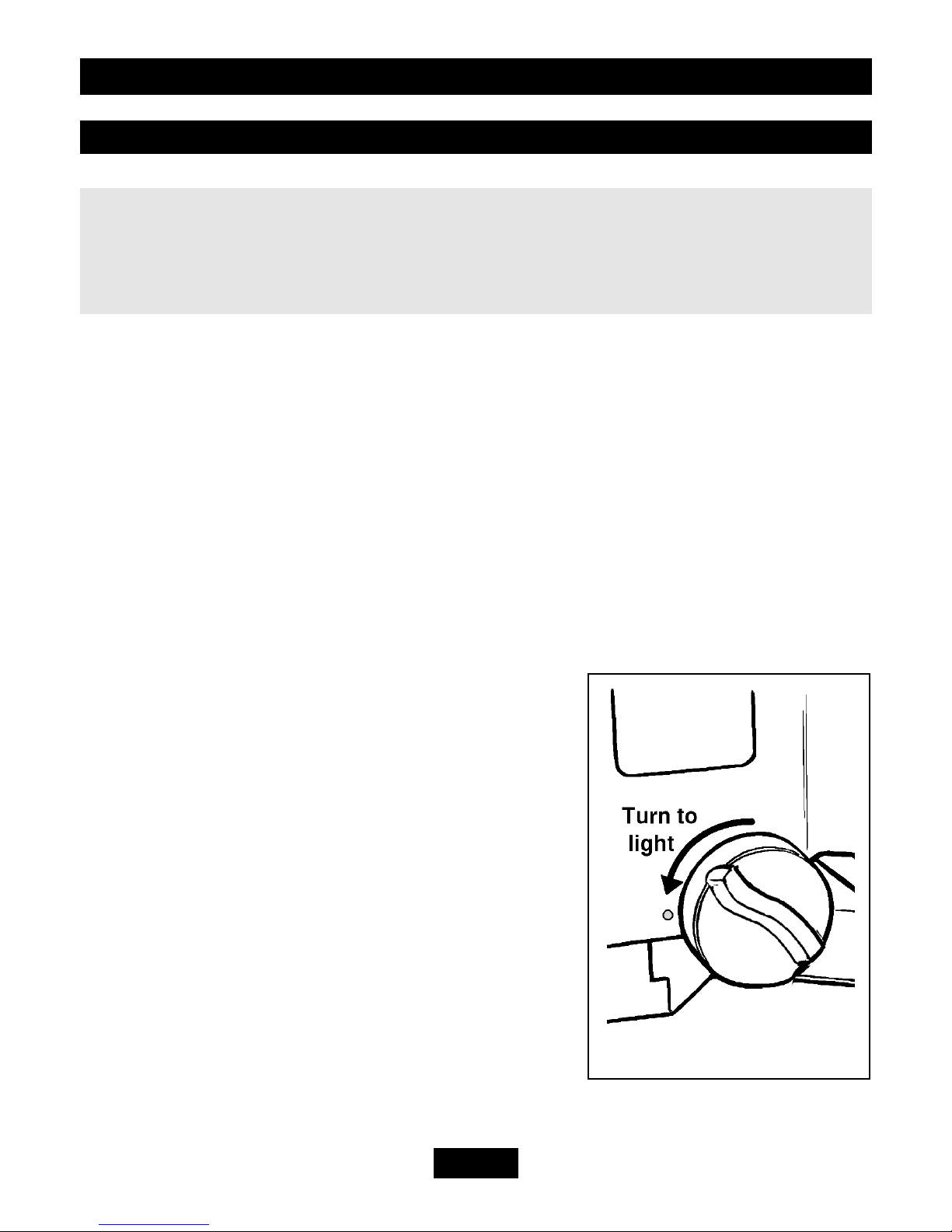

This fire is controlled by a 4-position gas tap mounted
on the front leg of the appliance. In addition to the
“Off” position there is a pilot light and 2 heat control
settings. See figure 2.
•Depress the control knob and turn anticlockwise
towards the “Pilot/Ign” position. A spark should be
generated at the pilot while turning. The spark should
ignite the pilot. The pilot flame can be seen below the
coal at the front left side.
•Keep the button at the “Pilot/Ign” position for a
further ten seconds. This will prevent the flame-
sensing device from shutting off the gas while its probe
warms up.
•If the pilot does not ignite instantly, repeat
procedure. If after 10 seconds pilot ignition has not
occurred, turn the control knob back to the “Off”
position, wait for 3 minutes and then repeat the ignition procedure.

OWNER’S GUIDE
Page 7
Lighting the Main Burner
•Once the pilot light is established, the main burner can be lit by depressing and
turning the control knob anticlockwise to the “High” position.
Selecting the Heat Setting
•In order to change from one setting to another depress the control knob slightly and
turn the knob to the required position. Any setting from “Low” to “High” may be
selected.
Note: The appliance will operate to its maximum potential if the flue is primed during the
first 20-30 minutes of operation. To do this, simply operate the appliance at its “High”
setting. This will also burn off any carbon deposits that may have formed during previous
operations. If operating the appliance for long periods it is beneficial to change between
settings. This will help to remove any carbon deposits that may form during operation.
Turning the fire back to Pilot Setting
•Depress the control knob and turn clockwise until the pilot setting is reached.
Turning the Appliance Off
•Make sure that the control knob is in the pilot position. Depress the control knob and
turn clockwise to the “Off” position.
•Wait at least three minutes before relighting.

OWNER’S GUIDE
Page 8
CLEANING
To maintain the high performance and quality finish of your Wonderfire appliance,
please follow these guidelines:
•Before attempting to clean the fire, please remember to turn off the fire and wait for
the appliance to cool completely. The fire will retain heat for some time before cleaning
can begin.
•If any pieces of debris are found in the firebox, have the chimney inspected before
further use.
Metal Parts
•Clean the metal parts with a slightly damp cloth and then dry.
•Do not use abrasive cleaners as these will scratch the fire surface.
Ceramic fuel effects and Rear Wall
•Light coatings of soot will usually be burnt off during the normal operation of the fire.
•Should any soot accumulation become excessive, the fuel effect pieces and walls
should be removed from the fire for cleaning.
•This product uses fuel effect pieces, burner compartment rear wall and gaskets
containing Refractory Ceramic Fibres (RCF), which are man-made vitreous silicate
fibres. Excessive exposure to these materials may cause irritation to eyes, skin and
respiratory tract. Consequently, it is important to take care when handling these
articles to ensure that the release of dust is kept to a minimum. To ensure that the
release of fibres from these RCF articles is kept to a minimum, during installation
and servicing we recommend that you use a HEPA filtered vacuum to remove any
dust and soot accumulated in and around the fire before and after working on the
fire. When replacing these articles we recommend that the replaced items are not
broken up, but are sealed within a heavy duty polythene bag, clearly labelled as RCF
waste. This is not classified as “hazardous waste” and may be disposed of at a tipping
site licensed for the disposal of industrial waste. Protective clothing is not required
when handling these articles, but we recommend you follow the normal hygiene rules
of not smoking, eating or drinking in the work area and always wash your hands
before eating or drinking.
•Cleaning should be carried out in a well-ventilated area or in the open air by gently
brushing with the pieces held away from your face so that you avoid inhaling the dust.
•We suggest that you remove the coals in the reverse order to that shown in the fuel
bed refitting instructions.

OWNER’S GUIDE
Page 9
Figure 4 Front Base Coal Position
Figure 3 Rear Base Coal Position
Burner
•The burner surface can be carefully cleaned to remove any loose particles after taking
off the ceramic fuel effect pieces. Make sure that no particles are pushed into the burner
slots.
Note: Surface cracking of the burner is normal and no cause for concern.
REFITTING CERAMICS
Fitting Coals to models supplied with Coal Ceramic Fuel Effect.
(For Pebble models see section ‘Fitting pebbles to models supplied with Pebble Ceramic
Fuel Effect’)

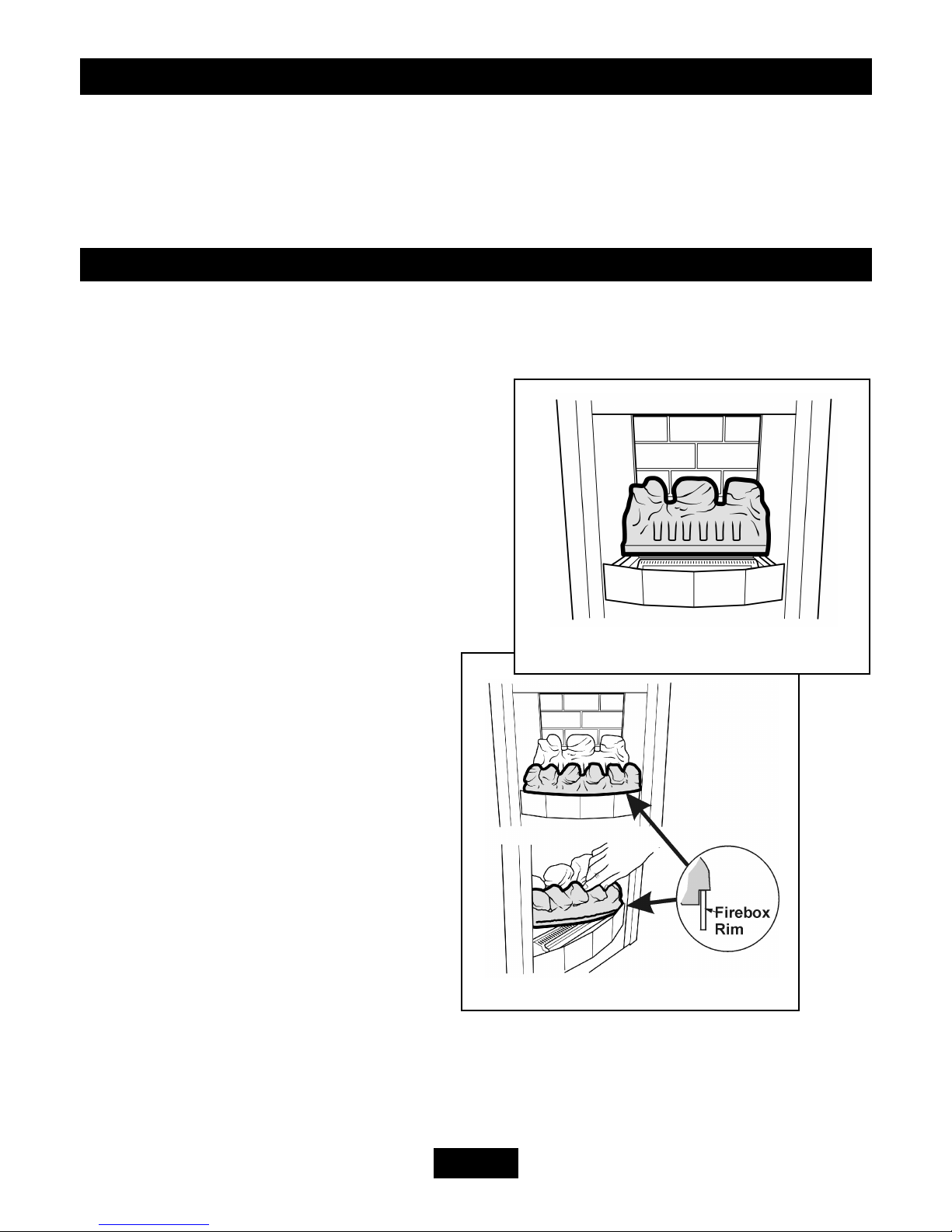

1. Place the rear base coal in the firebox. It
should rest on the ledges at the sides and back
of the firebox and its rear face should touch the
rear ceramic wall. See figure 3.
2. Place the front base coal in the firebox
with its bottom front locating over the front rim
of the firebox. Pull the coal forward so that it
locates immediately behind the front rim
of the firebox. See figure 4.
There are two types of loose coals. These
are identified with the letter “A” or “B”
on the underside of the coal.
There are three “A” coals and two “B”
coals.

OWNER’S GUIDE
Page 10
Figure 8
Figure 7
Figure 6
Figure 5

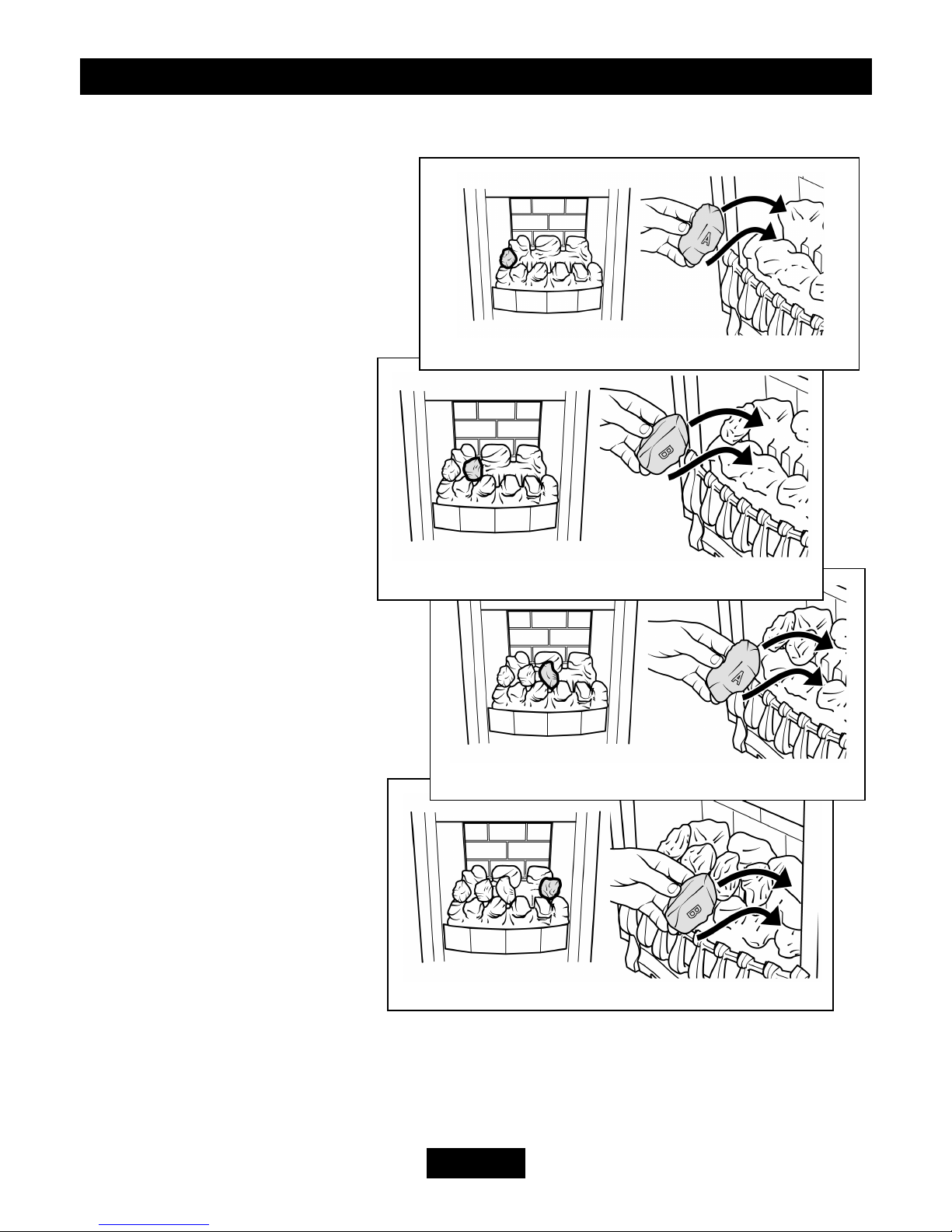

3. Place a type “A” coal between
the front and rear base coals with the
letter “A” upright and so that the
coal is against the left side of the
firebox. See figure 5.
4. Place a type “B” coal between
the front and rear base coals as
shown in figure 6. The letter
“B” should be upright.
5. Place a type “A” coal
between the front and rear base
coals with the letter “A”
upright. The top of the coal
should rest against the centre
coal of the rear base coal as
shown in figure 7.
6. Place the remaining type “B”
coal at the right side of the firebox
between the front and rear base coals.
The letter “B” should be upright. The
coal should touch the right side of the
firebox. See figure 8.

OWNER’S GUIDE
Page 11
Figure 11. Front Base Pebble
Position
Figure 10 Rear Base Pebble
Position
Figure 9
7. Place the remaining type “A”
coal between the front and rear base
coals. The letter “A” should be upside
down with its rear face between the
right and centre coals of the rear base
coal. Angle the coal so that the gap
between it and the type “B” coal to its
right is appreciably larger than the gap
between it and the type “A” coal to its left but
do not have it touching the type “A” coal. This
will give the best flame effect. See figure 9.
Fitting Pebbles to models supplied with
Pebble Ceramic Fuel Effect.
(For Coal model see section ‘Fitting coals to
models supplied with Coal Ceramic Fuel
Effect’)
1. Place the rear base pebble in the firebox. It
should rest on the ledges at the sides and
back of the firebox and its rear face should
touch the rear ceramic wall. See figure 10.
2. Place the front base pebble in the
firebox with its bottom front locating over
the front rim of the firebox. Pull the pebble
forward so that it locates immediately
behind the front rim of the firebox. See
figure 11.

OWNER’S GUIDE
Page 12
Figure 14
Figure 13
Figure 12.
Install the 11 loose pebbles as
follows. The underside of each
pebble is marked with a letter ‘A’
to ‘K’ and an arrow.
The pebbles should be positioned
so that the arrows always point
towards the back of the fireplace
opening. When located into
position the stem of each arrow
should be at 90° to the rear of the
fireplace opening (See figure 12).
3. Hold pebble ‘A’ upright
with the arrow pointing to the top.
Place pebble “A” on top of
the front base pebble. The
pebble should rest against
the moulded pebble to its
left. (See figure 12).
4. Hold pebble ‘B’
upright with the arrow
pointing to the top. Place
pebble “B” on top of the
front base pebble. (See
figure 13).
5. Hold pebble ‘C’ upright
with the arrow pointing to the
top. Place pebble “C” on top
of the front base pebble. It
should lie against the moulded
pebble to its left. (See figure
14).

OWNER’S GUIDE
Page 13
Figure 18
Figure 17
Figure 16
Figure 15
6. Hold pebble ‘D’
upright with the arrow
pointing to the top. Place
pebble “D” on top of the base
front pebble. It should rest
against the moulded pebble
to its right. (See figure 15).
7. Hold pebble ‘E’
upright with the arrow
pointing to the top. Place
pebble ‘E’ between the
front and rear base
pebbles. It should rest
against the side of the
firebox. (See figure 16).
8. Hold pebble ‘F’
upright with the arrow
pointing to the top. Place
pebble ‘F’ between the
front and rear base pebbles.
It should rest on top of
pebble ‘A’&’B’. (See figure
17).
9. Hold pebble ‘G’
upright with the arrow
pointing to the top.
Place pebble ‘G’
between the front and
rear base pebbles. It
should rest on top of
pebble ‘B’ & ‘C’ and
rest against the moulded
pebble in the rear pebble
base. (See figure 18).

OWNER’S GUIDE
Page 14
Figure 22.
Figure 21.
Figure 20.
Figure 19
10. Hold pebble ‘H’ upright
with the arrow pointing to the
top. Place pebble ‘H’ between
the front and rear base
pebbles. It should rest in
between pebbles ‘C’ & ‘D’
and against the moulded
pebble in the rear pebble base.
(See figure 19).
11. Hold pebble ‘I’
upright with the arrow
pointing to the top. Place
pebble ‘I’ between the front
and rear base pebbles. It
should rest against the side
of the firebox (See figure
20).
12. Hold pebble ‘J’
upright with the arrow
pointing to the top. Place
pebble ‘J’ on top of the base
pebble rear. (See figure 21)
13. Hold pebble ‘K’ upright
with the arrow pointing to the
top. Place pebble ‘K’ on
top of the base pebble rear.
(See figure 22)

OWNER’S GUIDE
Page 15
MAINTENANCE
Regular maintenance
In order to achieve and maintain high levels of personal safety and performance
efficiency, it is essential that the opening at the back of the fire and the flue are kept clear
of any form of obstruction. It is possible that deposits of mortar or soot could fall and
accumulate causing the flue to be blocked or restricted and so preventing proper
clearance of dangerous exhaust fumes.
In the United Kingdom it is the law that a landlord must have any gas appliance, flue and
pipework which is situated in a tenant’s premises checked for safety at least every twelve
months by a competent person (In the U.K, a CORGI registered installer).
We recommend that all gas appliances and their flues, wherever situated, are checked
annually.
Servicing
•In the United Kingdom servicing can be carried out either by a Wonderfire service
engineer or a CORGI registered installer.
•If you require your fire to be serviced, please contact Wonderfire Service on 08706
090 081 and quote the following details;
a) model name and number.
b) appliance serial no. (To be found on the plate close to the control knob.)
•If you wish to replace any of the owner replaceable parts listed below, please contact
Wonderfire Spares on 08706 000 454 for your nearest stockist of these parts. When
ordering please quote the part number shown below.
Owner Replaceable Parts
Description Part No
Ceramic rear wall 0579139
Coal model
Front coal 0579119
Rear base coal 0579129
Pack of loose coals 0579149
Pebble model
Front pebble 3002771
Rear base Pebble 3002772
Pack of loose Pebbles 3002773

OWNER’S GUIDE
Page 16
•When fitting replacement parts, follow the instructions contained in this guide. It
is important that only Wonderfire approved parts are used for maximum safety.
•In the United Kingdom, for general advice about gas and your gas fire call our
Technical Helpline 08706 061 065.
•In the Republic of Ireland call 0044 08706 061 065 for all enquiries.
