WoodFast BS450A User manual

BANDSAW
BS450A
Instruction
Manual
IMPORTANT：
For yoursafety，read
instructions carefully before
assembling or using this
product. Save this manual
for future reference.
Original Instruction：
V.2-201910

INDEX
1
1.1
1.2
1.3
2
2.1
2.2
2.3
3
3.1
3.2
3.3
3.4
3.5
4
4.1
4.2
5
5.1
5.2
5.3
5.4
5.5
6
7
GENERAL INFORMATION
FOREWORD
MACHINE IDENTIFICATION
CUSTOMER SERVICE RECOMMENDATIONS
SAFETY PRECAUTIONS
SAFETY REGULATIONS
RESIDUAL RISKS
SAFETY AND INFORMATION SIGNALS
SPECIFICATIONS
MAIN COMPONENTS
TECHNICAL SPECIFICATION
ELECTRICAL CONNECTION
NOISE LEVEL
DUST EXTRACTION
INSTALLATION
INSTALLATION ZONE CHARACTERISTIC
INSTALL OF LOOSE PARTS INTRODUCTION
ADJUSTMENT AND OPERATION
CENTERING TABLE AND TILTING
SETTING TABLE SQUARE WITH BLADE
CHANGING AND SETTING THE BLADE
BLADE GUIDING
SETTING CUTTING HEIGHT
ROUTINE MAINTENANCE
TROUBLE SHOOTING
-2-

1. GENERAL INFORMATION
1.1 FOREWORD
This machine is professional for straight cutting and square cutting of wood material, especially for wood panels cutting.
Some information and illustrations in this manual may differ from the machine in your possession, since all the
configurations inherent in the machine complete with all the optional are described and illustrated. Therefore, refer only
to that information strictly connected with the machine configuration you have purchased.
With this manual we would like to provide the necessary information for maintenance and proper use of the machine.
The distribution network is at your service for any technical problem, spare parts or any new requirement you many
have for the development of your activity.
This manual must be read and understood before operating the machine. This will provide a better
working knowledge of the machine, for increased safety and to obtain the best results.
To better stress the importance of some basic passages, they have been marked by some preceding
symbols:
WARNING Indicates imminent risks which may cause serious injury to the operator or other persons. Be
careful and scrupulously follow the instructions.
CAUTION A statement advising of the need to take care lest serious consequences result in harm to
material items such as the asset or the product.
1.2 MACHINE IDENTIFICATION
There is a identification plate fixed to the machine, containing the manufacturer’s data, serial number, year of
construction, and technical specifications.
1.3 CUSTOMER SERVICE RECOMMENDATIONS
Apply the machine to skilled and authorized technical staff to carry out any operation dealing with parts disassembly.
Keep to the instructions contained in this manual for the correct use of the machine.
CAUTION Only the skilled and authorized staff shall use the service the machine after reading this manual.
Respect the accident prevention regulation s and the general safety and industrial medicine rules.
2. SAFETY PRECAUTIONS
2.1 SAFETY REGULATIONS
WARNING Read carefully the operation and maintenance manual before starting, using, servicing
and carrying out any other operation on the machine.
The manufacturer disclaims all responsibilities for damages to persons or things, which might be caused by any failure to
comply with the safety regulations.
- It is prohibited to use the machine when under the influence of alcohol, drugs or medication.
- The operators must carefully read the manual paying particular attention to the warning and safety notes. Furthermore,
they must be informed on the dangers associated with use of the machine and the precautions to be taken, and must be
instructed to periodically inspect the guards and safety devices.
- Before carrying out adjustment, repair or cleaning work, disconnect the machine from the electric power by
setting the main switch to stop.
- After an initial bedding-in period or many hours of operation, the driving belts may slacken; this causes an
increase in the tool stopping time (the stopping time must be less than 10 seconds). Immediately tighten them.
-3-

- The working area around the machine must be kept always clean and clear, in order to have an immediate and
easy access to the switchboard.
- Never insert materials which are different from those which are prescribed for the machine utilization.
- Never process pieces which may be too small or too wide to the machine capacity.
- Do not work wood which has evident defects(cracks, knots, metal parts, etc)
- Keep hands clear from the tool; feed the piece with the aid of a pusher.
- Keep the tools tidy and far away from those not authorized persons.
- Use qualified tools, never use cracked, buckled or wrong polished tools; never use irregular, dull tools; never use
distorted blade.
- Never use the tools beyond the speed limit recommended by the producer.
- Always wear gauntlets when handling the tools.
- Mount the tools in the right machining direction.
- Never start the machine before having correctly installed all protections. Without protections or damage caused by
person should install and complete in time, or forbid to start machine. Never install protections.
- Connect the dust suction hoods to and adequate suction system; suction must always be activated when the
machine is switched on.
- Never open the door or other protections when the machine or the system is operating.
- Before start machine, check if lock main blade and scoring blade. After starting machine, check if turning direction of
main blade and scoring blade is right, start to work after revolving speed is stable.
- Never cutting on log directly
- Many unpleasant experiences have shown that anybody may wear objects which could cause serious accidents.
Therefore, before starting working, take any bracelet, watch or ring off.
- Button the working garment sleeve well around the wrists.
- Take any garment off which, by hanging out, may get tangled in the MOVING UNITS.
- Always wear strong working footwear, as prescribed by the accident-prevention regulations o all countries
- Use protection glasses. Use appropriate hearing protection systems (headsets,earplugs,etc.) and dust protection
masks.
- Never let unauthorized people repair, service or operate the machine.
- Any transport, assembly and dismantling is to be made only by trained staff, who shall have specific skill for the
specified operation.
- The operator must never leave the machine unattended during operation.
- During any working cycle break, switch the machine off.
- In case of long working cycle breaks, disconnect the general power supply.
-When breakdown happen, please switch the machine off and pull up power line, seek help from professional person. If
wood material block machine, please backward material.
- Clean offcut, saw dust timely during operation.
- Keep ground around machine clear, no stack flammable and combustible materials.
-4-

WARNING Manufacturer got no responsibilities for accidents caused by electrical parts to
WARNING Manufacturer got no responsibilities for accidents caused by changing machine
WARNING Manufacturer got no responsibilities for accidents caused by operation under
missing parts or damage condition of the machine.
2.2 RESIDUAL RISKS
Despite the abidance of all safety regulations and rules described in this
manual, some extra risks may still happen and the followings are most often
observed:
WARNING
- Contact with tool
- Contact with moving parts (belts, pulleys, etc..)
- Recoil of the piece or part of it
- Accidents due to wood splinters or fragments
- Tool insert ejection
- Electrocution from contact with live parts
- Danger due to incorrect tool installation
- Inverse tool rotation due to incorrect electrical connection
- Danger due to dust inhalation in case of working without vacuum cleaner
2.3 SAFETY AND INFORMATION SIGNALS
This signal may be applied on the machine; in some cases they indicate possible danger conditions, in others they
serve as indication. Always take the utmost care.
Risk of eye injury. Wear eye protection
Wear hearing protection systems.
Danger of electric shock. Do not access the area when the machine is powered
Carefully read and understand the manual before using the machine
INFORMATION SIGNALS:
- Indicate the technical characteristics, direction of rotation and inclination, block and release, etc.
- Carefully following the directions to simply the use and adjustment of the machine.
- The signals are graphically described and do not require further explanation.
-5-
be connected to the machine by unqualified personnel and incorrect installation.
function or spare parts arbitrarily by users or any person.

3. DPECIFICATIONS
3.1 MAIN COMPONENTS
1-Upper door
2-Switch
3-Lower door
4-Lower wheel
5-Miter guage
6-Table
7-Blade guard
8-Lifting knob
9-Upper wheel
10-Lock handle
11-Dust port
12-Dust port
13-Motor
14-Rip fence
15-Blade tension knob
16-Quick tension handle
3.2 TECHNICAL SPECIFICATION
SPECIFICATION
BS450A
Motor voltage
220-240V/50Hz
Power
3HP
Blade length 3886mm
Blade width 6-35mm
Max. cut depth 330mm
Throat width 445mm
Blade speed 1000m/min
Table size 400X546mm
Table tilt -10-45°
Table height to floor 900mm
-6-
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16

3.3 ELECTRICAL CONNECTION
- Electrical installation should be carried out by competent, qualified personnel.
- The mains connection should be made using the terminal box.
- Replacement of the power supply cable should only be done by a qualified electrician.
WARNING
To avoid electrocution or fire, any maintenance or repair to electrical system should be done only by qualified electricians
using genuine replacement parts.
3.4 NOISE LEVEL
No load load
Sound Pressure Level
<80dB(A)
<90dB(A)
Sound Power Level
<90dB(A)
<100dB(A)
The noise levels measured are emission levels and not necessarily the safe working level. Although there is a
correlation between the emission levels and the exposure levels, this cannot be used reliably to determine whether or
not further precautions are required. The factors which affect the actual level of operator exposure include the duration
of exposure, the ambient characteristics and other sources of emission, for example, the number of machines and other
adjacent machining. The permitted exposure values may also vary from country to country. Nevertheless, this
information allows the user of the machine to better evaluate the dangers and risks.
Other factors which reduce exposure to noise are：
- correct tool choice
- tool and machine maintenance
-use of hearing protection systems(e.g. headsets, earplugs,…)
WARNING Please use the hearing protection systems if the above mentioned noise levels exceed 95dB(A).
3.5 DUST EXTRACTION
If this band saw is operated indoors, it is recommended to have it connected to a dust collector. The suction connector,
supplied with the machine, has to be fitted to the dust ejection port of the saw for this purpose. The diameter of the
suction connector is 100mm.
- People usually process oak or beech wood will have membrane mucosa nasi much easier than others
- Experience shows that skin contact with oak or beech dust does not cause cancer
WARNING Wood dust and chips, together with an ignition source and the oxygen in the ambient air, can
cause fires and explosions, injuries and allergies.
-7-

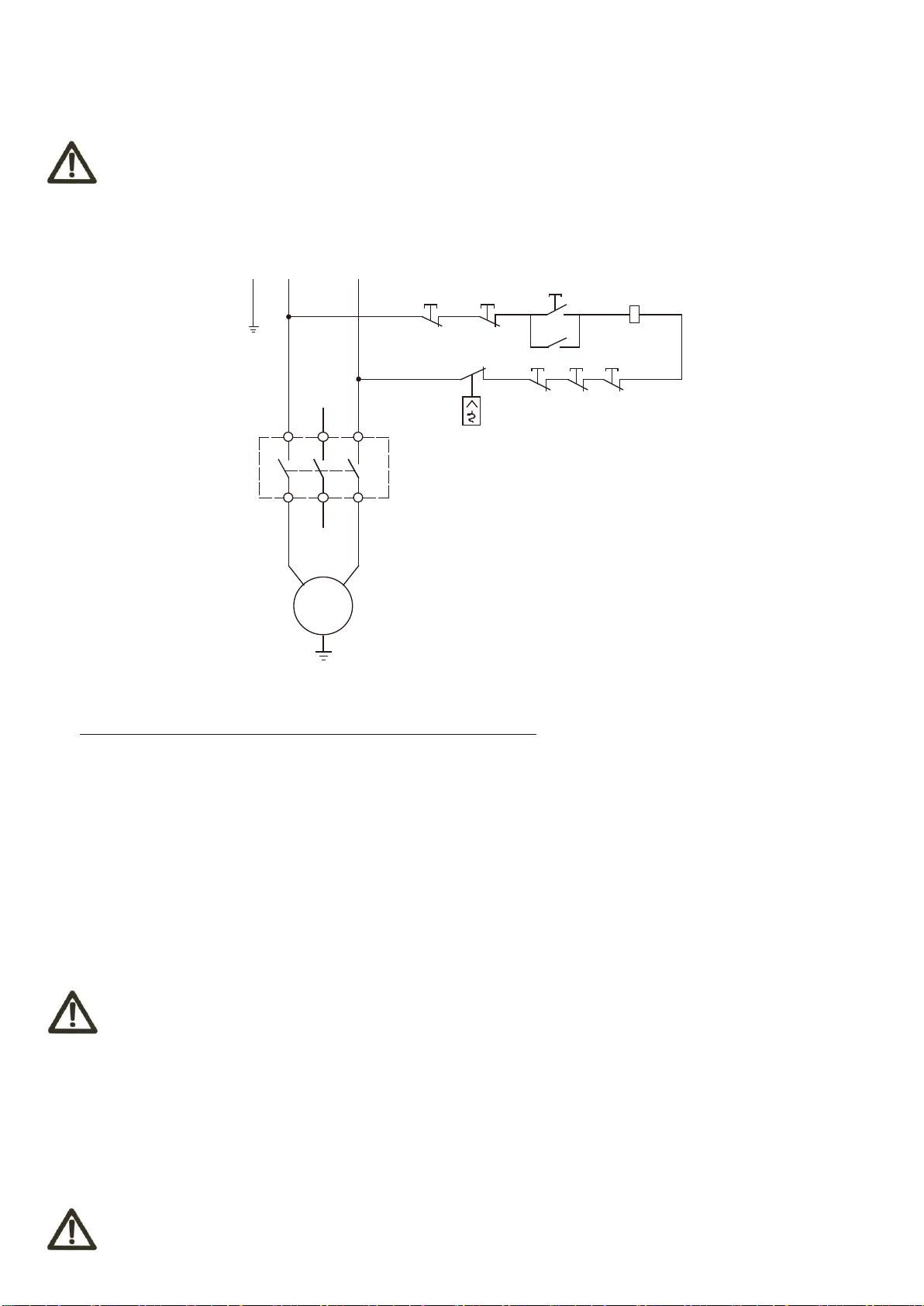

Bro wn
PE L N
KM
V1
U1
M
Bro wn Bl ue
Blu e
Black
Brown
KM
Gr eyBla ck
Bro wn
S1
KM
S2
OL SS2SS1 SS 3
Bl ue
ST1

4. INSTALLATION
4.1 INSTALLATION ZONE CHARACTERISTICS
WARNING
It is prohibited to install the machine in explosive environments.
The installation zone must be selected evaluating the work space required depending on the dimension of the pieces to
be machined, and taking into account that a free space of at least 800mm must be left around the machine. It is also
necessary to check the floor capacity and its surface, so that the machine base is evenly resting on its four supports. A
power outlet and a chip-suction system connection shall be close to the selected machine setting and it must be
conveniently lighted.
4.2 INSTALL OF LOOSE PARTS-INTRODUCTION
A few elements will be disassembled from the machine main structure due to packaging and shipping requirements.
These loose parts should be installed as follows.
WARNING
Please tighten all bolts and nuts absolutely. Otherwise, may cause machine wobble or serious injury to the operator or
other persons.

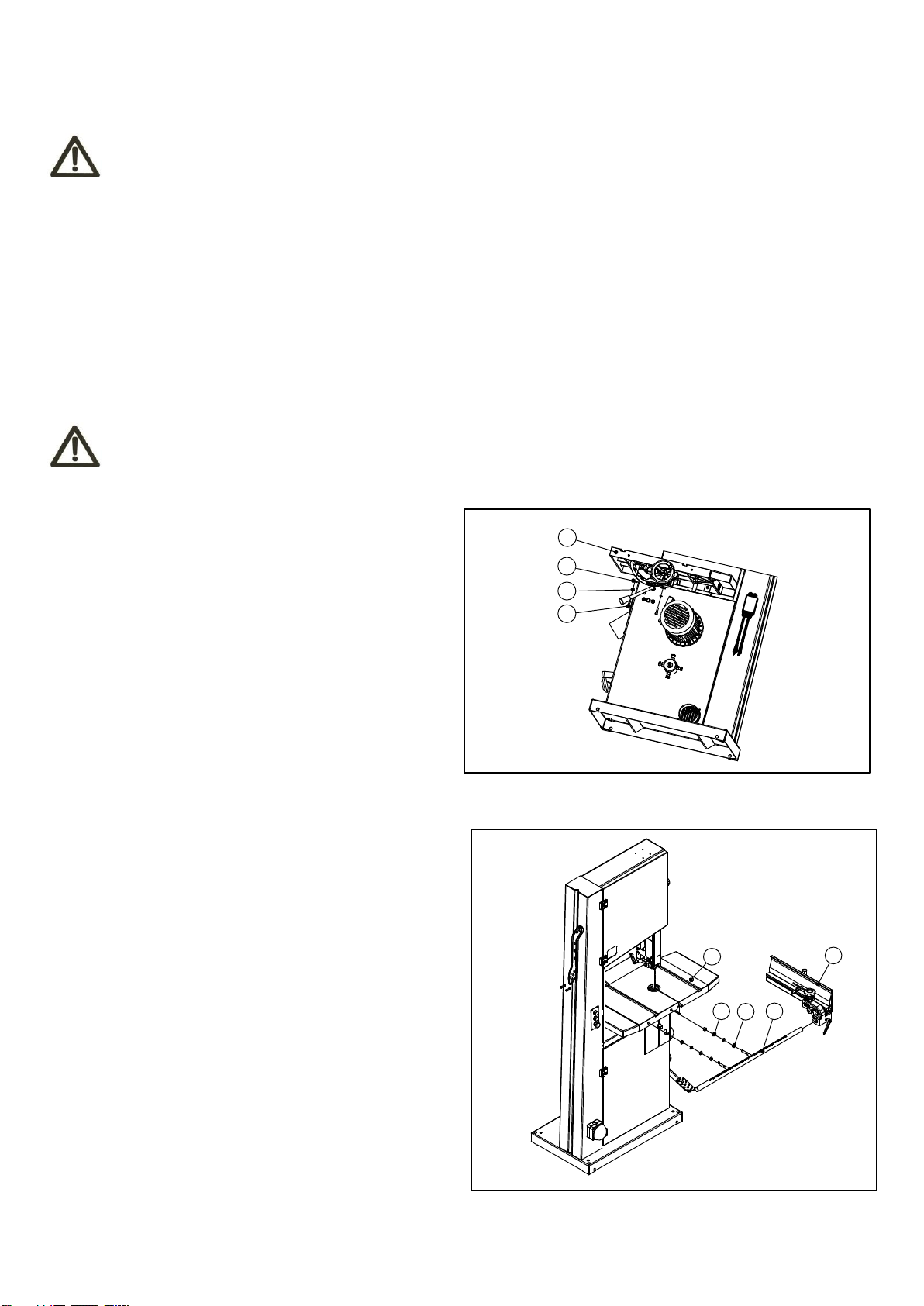

4.2.1 INSTALL TABLE
Tools required for assembly:
- Faucet spanner
- Put the table A onto the trunnion. Aline the mounting
holes which are on the bottom of table to the four holes
on trunnion.
- Use four hex bolt 1, four teeth washer 2 and four flat
washer 3 to mount the table A to trunnion.
Fig.4.2.1
4.2.2 INSTALL FRONT RAIL AND RIP
FENCE
- Put nut 2 and washer 3 on front rail 1
- Make front rail through table A, after leveling rail, lock
by other nut and washer.
- Along with rail A, slide RIP FENCE B on the table
Fig.4.2.2
-8-
1
2
3
A
1
23
AB

5. ADJUSTMENT AND OPERATION
WARNING
Handle the tools with protective gloves.

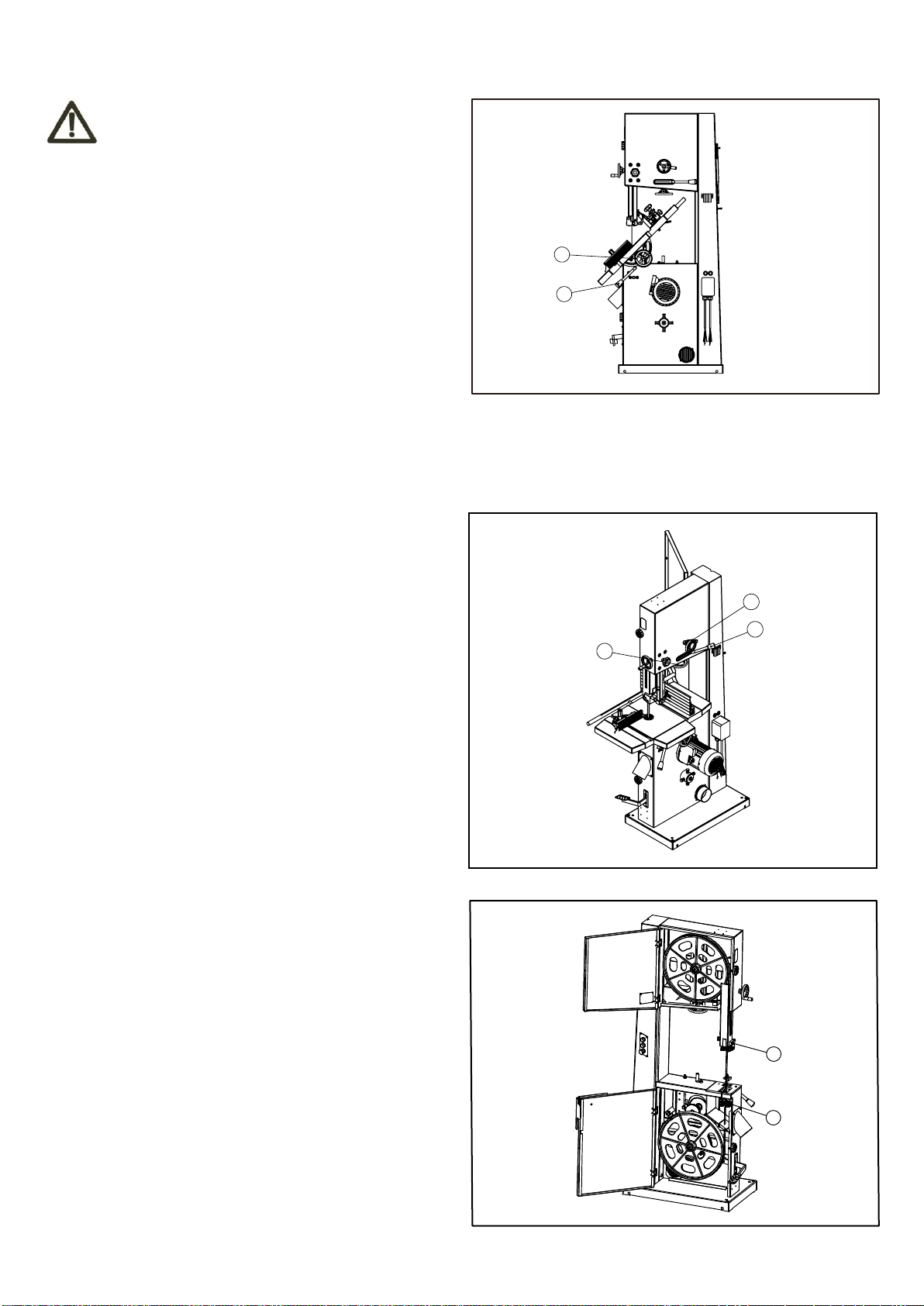

5.1 CENTERING TABLE AND TILTING
- Centering table can be adjusted. Loosen the four bolts
which hold the lower table trunnion, and adjust freely.
Place the blade in the middle of the faucet and make it be
parallel to the slotted side of table.
- The table can be tilted from 0 to 45 degree. To tilt, loosen
the wing nut A of the table trunnion. Tighten the wing nut
again when we get the required angle.
- It is recommended to verify the correct angle setting by
making trial cuts in scrap wood.
5.2 SETTING TABLE SQUARE WITH BLADE
Fig.5.1
- Please refer to Fig 5.1
- Loosen the wing nut on the trunnion and check the table with a square and adjust the table at 90 degree with the blade,
then adjust the pointer to 0 degree.
5.3 CHANGING AND SETTING THE BLADE
- This band saw is factory-equipped with a general
purpose wood cutting blade, the blade set. To change the
blade, remove the connect board from the table. Then
loose the quick tension handle C and blade tension handle
A, take down the blade.
- After change blade, firstly adjust tension handle C, then
adjust blade tension handle A, and rotate upper wheel
and adjust handle B, make the blade in the middle of
rubber wheel position. Then clamp the wing nut on clamp
handle B.
Fig.5.3
5.4 BLADE GUIDING
- The saw blades guides of this band saw ensure an exact
guiding of the blade for clean cuts. When using narrow
blades, ensure that the lower blade guide positively
support the blade from both sides and the rear. Set
bearings of the upper blade guide to within approx. 0.5mm
of the blade, or the guide bearings will be easily broken.
Fig.5.4
-9-
A
B
C
B
A
A
B

5.5 SETTING CUTTING HEIGHT
- The upper blade guide should always be set as close as
practical against the work. To adjust, loosen the clamp
handle B, rotate handle A to adjust upper guide close to
material, tighten handle B.
6. TROUBLE SHOOTING
WARNING
Fig.5.5
- For any information or problem contact your area dealer or our technical service center. The necessary interventions must
be carried out by specialized technical personel.
- Before carrying out any fault service or maintenance work, please always TRUN OFF THE SWITCH, UNPLUG POWER
CABLE, WAIT FOR SAW BLADE TO COME TO STANDSTILL.
Trouble Possible Cause Solution
Saw stops or will not start
1. Saw unplugged
1.Check plug connections
2. Fuse blown or circuit breaker tripped
2.Replace fuse or reset circuit breaker
3.Cord damaged
3.Replace cord
Does not make accurate
45°or 90°cuts
1.Stop screw not adjust correctly 1.Adjust stop screw, check angle of
blade and table with square
2.Angle pointer not set accurately
2.Adjust pointer and check blade with
square
3.Miter gauge out of adjustment
3.Adjust miter gauge
Blade wanders during cut
1.Fence not aligned with blade
1.Check and adjust fence
2.Warped wood
2.Select another piece of wood
3.Excessive feed rate
3.Reduce feed rate
4.Incorrect blade for cut
4.Change correct type blade
5.Blade tension not set properly
5.Set blade tension according to blade
size
6.Guide bearings not set properly
6.Review guide bearing adjustment on
pages 8&9
Saw makes
unsatisfactory cuts
1.Dull blade 1.Replace blade
2.Blade mounted wrong
2.Teeth should point down
3.Gum or pitch on blade
3.Remove blade and clean
4.Incorrect blade for cut
4.Change correct type blade
5.Gum or pitch on table
5.Clean table
Blade does not come up
to speed
1.Extension cord too light or too long 1.Replace with adequate size and
length cord
2.Low shop voltage
2.Connect with local electric company
Saw vibrates excessively
1.Base on uneven floor
1.Reposition on flat, level surface
2.Bad V-belt
2.Replace V-belt
3.Motor mount is loose
3.Tighten motor mount hardware
4.Loose hardware 4.Tighten hardware
-10-
A
B

PARTS DIAGRAM
11
NOTE: Please reference the Manufacturer’s Part Number
when calling for Replacement Parts. For Parts under Warranty,
the Serial Number of your machine is required.
FRAME ASSEMBLY
95
98
99
96
97
100
101
14 11
12a
12b
13
102 103

12
PARTS LIST
FRAME ASSEMBLY
5
6
7
1-QKS7 Switch
Switch plate
1-JMBS1402010002
98
99
100
1-M4GB6170Z
1-M4X30GB819D1Z 2
2
4
4X30
1-WSH4GB862D2Z
1-M6X12GB70D1Z Hex socket cap screw M6X12
Relay
2
101
102
103
Foot switch1-LA42J Q T -02F 1
B117T
1B117T
040V
001S
2
1-JL20072003 Rubber sheath 2
2-JMBS1801092000 1
D040V
1
1
11 1-JMBS1801010009-040V Switch plate 1
12a 1-LA39-B2-10-g Switch on 1
12b 1-LA39-B2-01-r Switch off 1
13 1-LA39-B2-R02Z-R Emergency switch 1
818D1Z
55

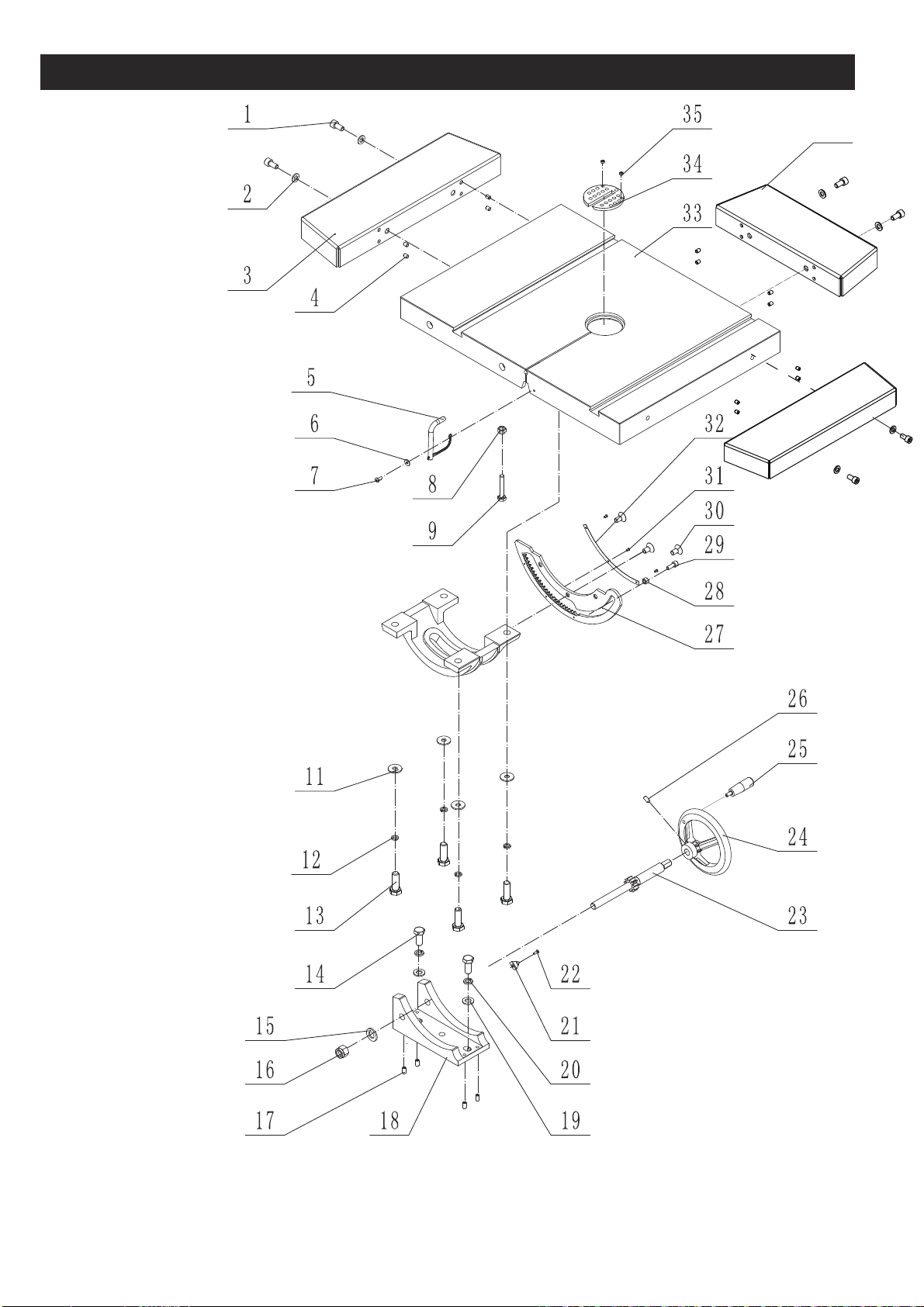

TABLE
ASSEMBLY
PARTS DIAGRAM
NOTE: Please reference
the Manufacturer’s Part
Number when calling for
Replacement Parts.
For Parts under Warranty,
the serial number of your
machine is required.
13
36

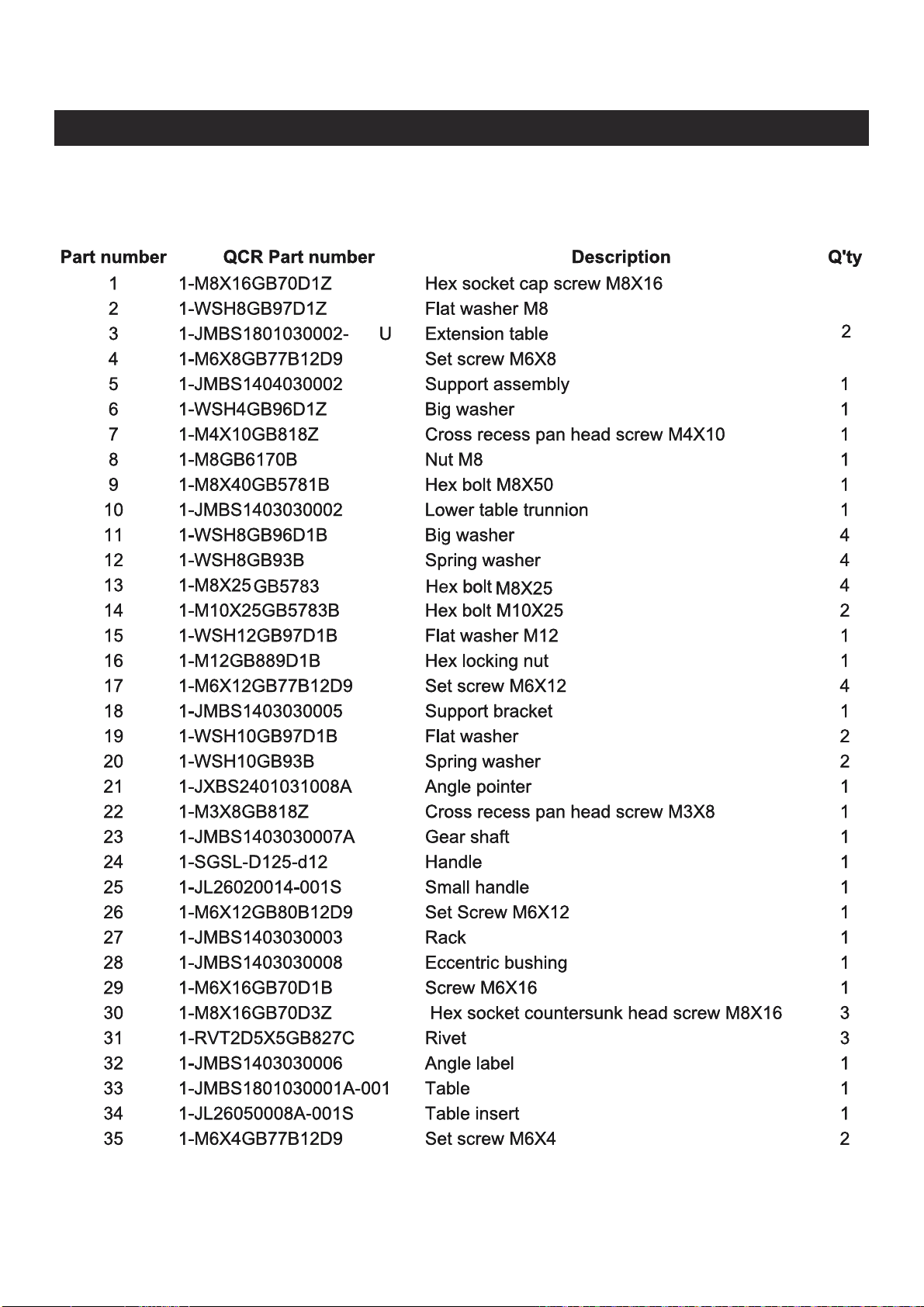

PARTS LIST
TABLE ASSEMBLY
14
A
001
G
36 1-JMBS1801030002A-001U Extension table 1
12
12
12
B

PARTS DIAGRAM
15
8765416
123
910111213141718192015443536434241402223242526272829303433373839323121
NOTE: Please reference
the Manufacturer’s Part
Number when calling for
Replacement Parts.
For Parts under Warranty,
the serial number of your
machine is required.
GUIDE POST ASSEMBLY

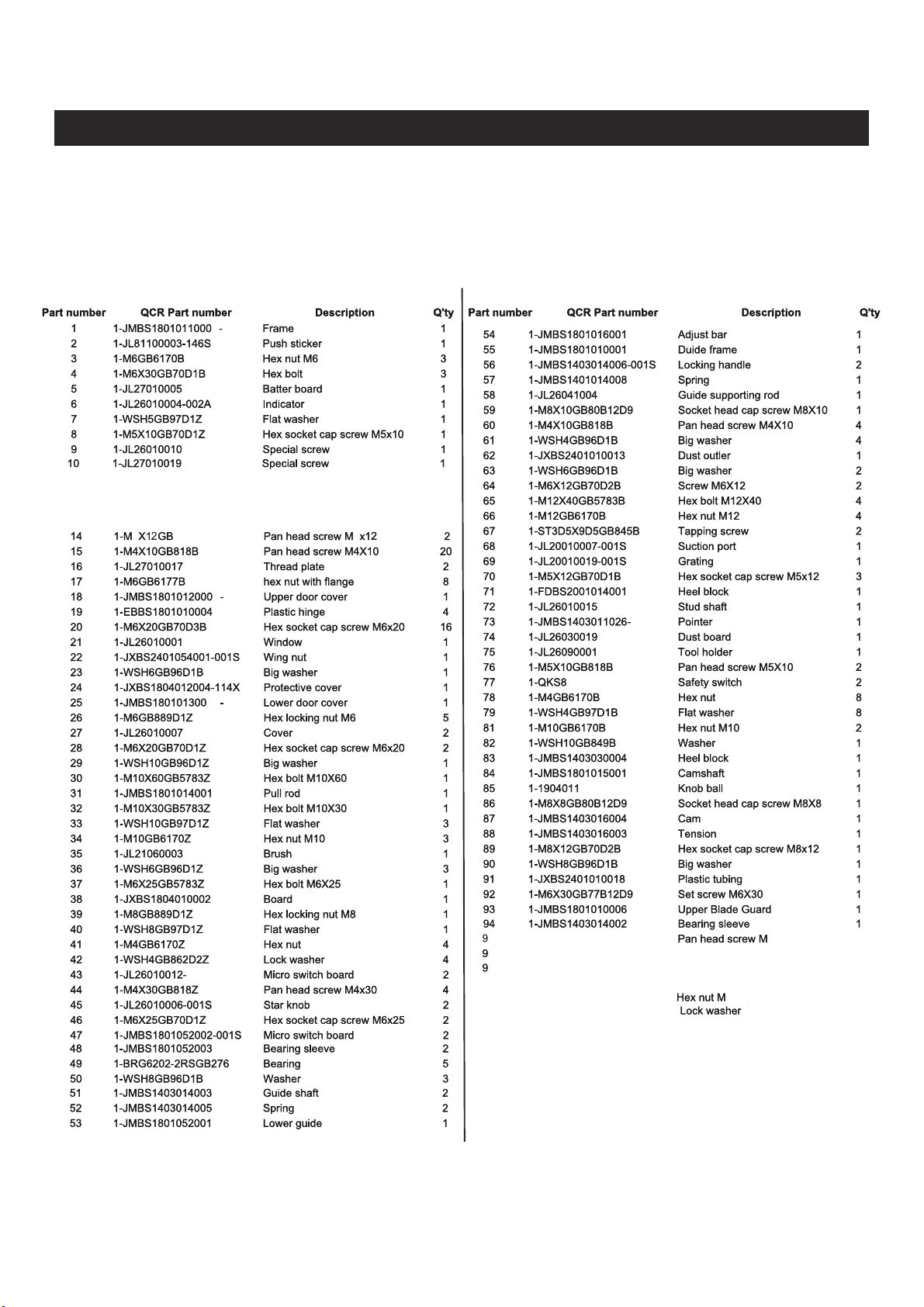

PARTS LIST
16
GUIDE POST ASSEMBLY
126T
A

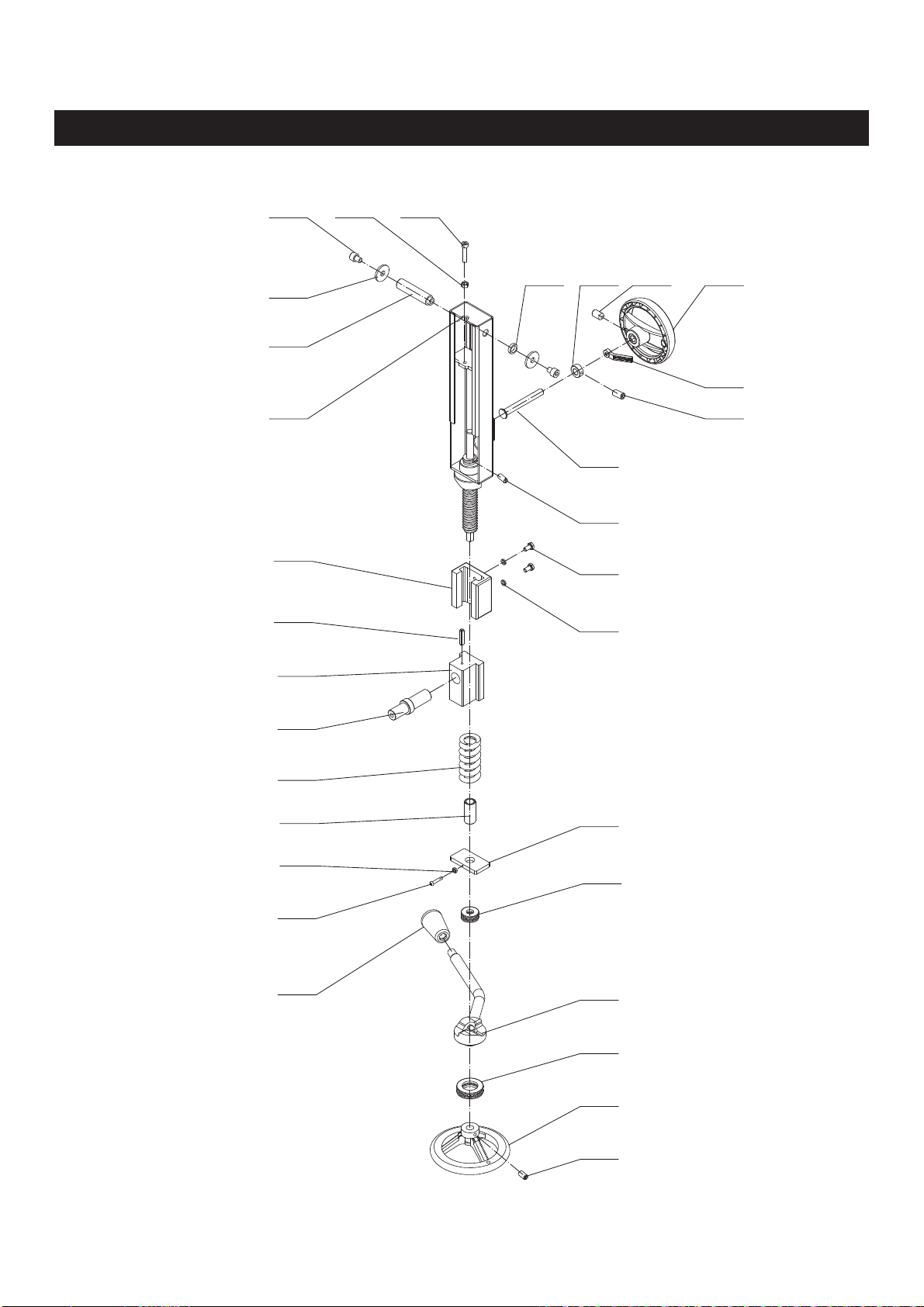

PARTS DIAGRAM
17
2627
12
16171819202122232425312930
3
45789101114151312628
NOTE: Please reference
the Manufacturer’s Part
Number when calling for
Replacement Parts.
For Parts under Warranty,
the serial number of your
machine is required.
BLADE TENSION
& TRACKING

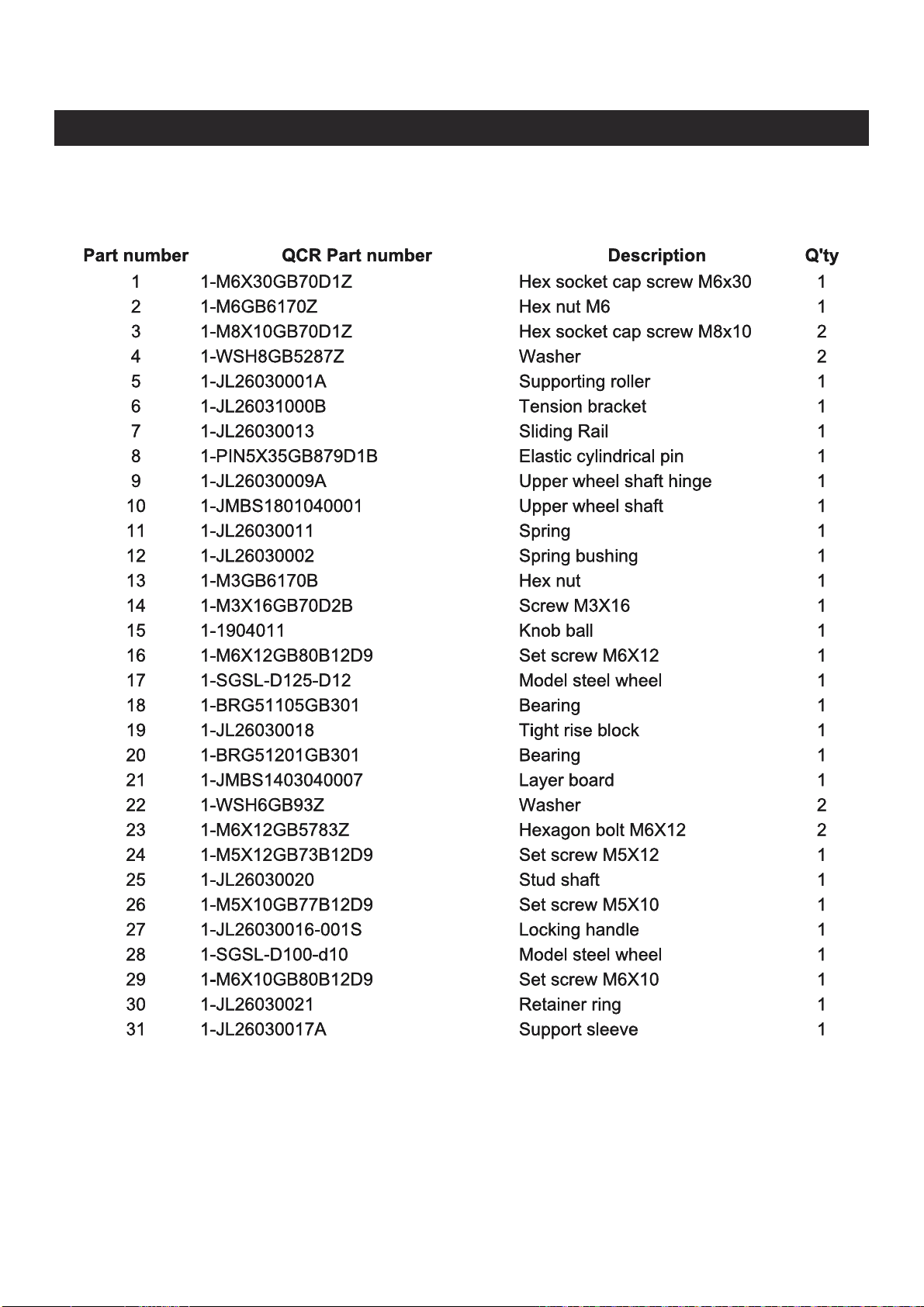

PARTS LIST
18
NOTE: Please reference the Manufacturer’s Part Number when calling for Replacement Parts.
For Parts under Warranty, the serial number of your machine is required.
BLADE TENSION & TRACKING
A
A

19
PARTS DIAGRAM & PARTS LIST
NOTE: Please reference the Manufacturer’s Part
Number when calling for Replacement Parts.
For Parts under Warranty, the serial number of
your machine is required.

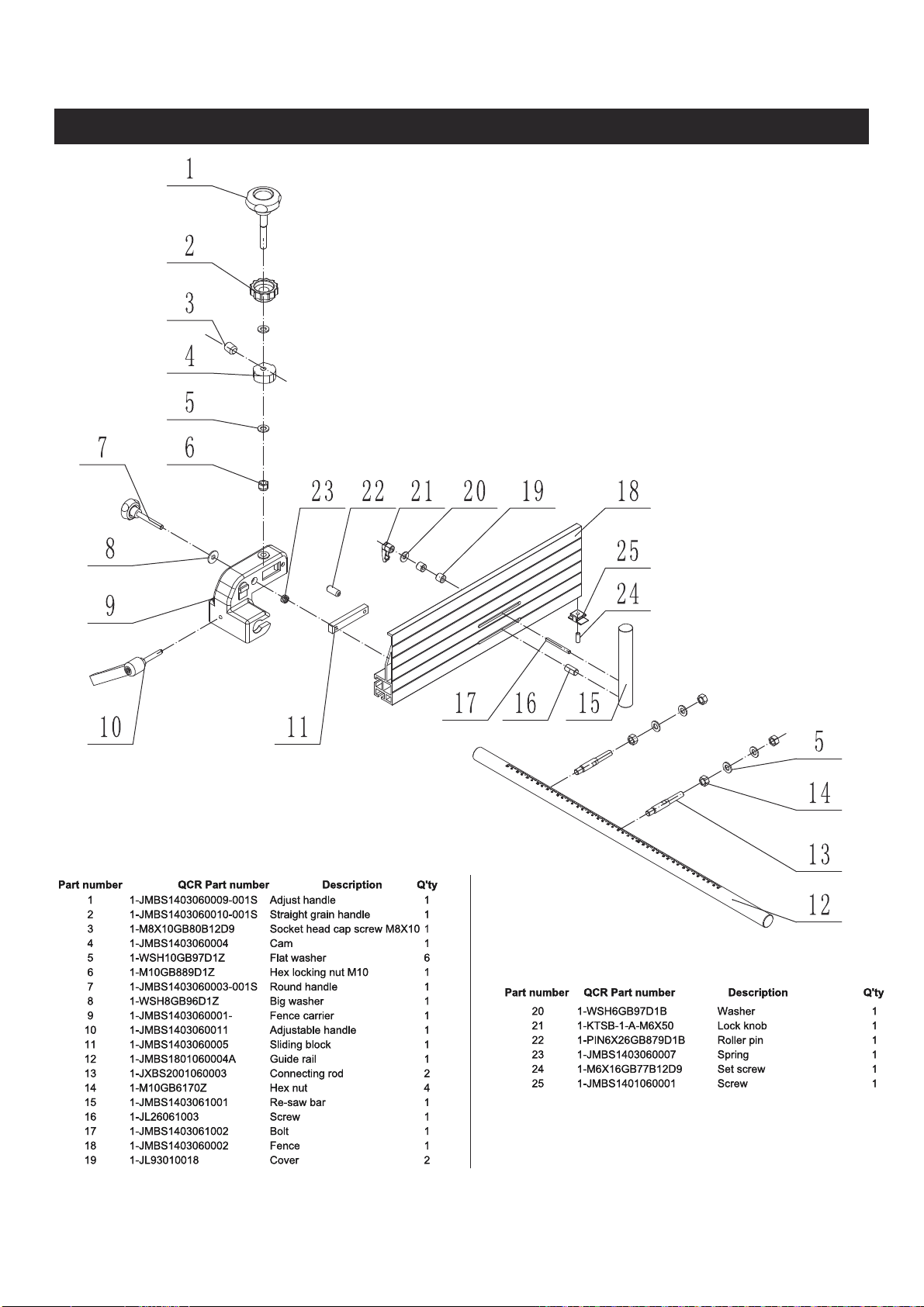

RIP FENCE ASSEMBLY
001U

PARTS DIAGRAM & PARTS LIST
20
MOTOR &
DRIVE WHEEL ASSEMBLY
NOTE: Please reference the
Manufacturer’s Part Number
when calling for
Replacement Parts.
For Parts under Warranty,
the serial number of your
machine is required. 22
001L
001L
1-JMBS1801020002C
