WoodFast The Aussie Muscle Series User manual

Instruction
Manual
IMPORTANT
For your safety, read
instructions carefully
before assembling or
using this product.
Save this manual for
future reference. Original Instruction
V.1-201807
BANDSAW
BS250B
The Aussie Muscle Series

-1-
INDEX
1 GENERAL INFORMATION
1.1 FOREWORD
1.2 MACHINE IDENTIFICATION
1.3 CUSTOMER SERVICE RECOMMENDATIONS
2 SAFETY PRECAUTIONS
2.1 SAFETY REGULATIONS
2.2 RESIDUAL RISKS
2.3 SAFETY AND INFORMATION SIGNALS
3 SPECIFICATIONS
3.1 MAIN COMPONENTS
3.2 TECHNICAL SPECIFICATION
3.3 ELECTRICAL CONNECTION
3.4 NOISE LEVEL
3.5 DUST EXTRACTION
3.6 SAFETY DEVICES
4 INSTALLATION
4.1 INSTALLATION ZONE CHARACTERISTIC
4.2 INSTALL OF LOOSE PARTS - INTRODUCTION
5 ADJUSTMENT AND OPERATION
5.1 CENTERING TABLE AND TILTING
5.2 SETTING TABLE SQUARE WITH BLADE
5.3 CHANGING AND SETTING THE BLADE
5.4 BLADE GUIDING
5.5 SETTING CUTTING HEIGHT
6 TROUBLE SHOOTING
7 DIAGRAMS AND COMPONENTS

-1-
INDEX
1 GENERAL INFORMATION
1.1 FOREWORD
1.2 MACHINE IDENTIFICATION
1.3 CUSTOMER SERVICE RECOMMENDATIONS
2 SAFETY PRECAUTIONS
2.1 SAFETY REGULATIONS
2.2 RESIDUAL RISKS
2.3 SAFETY AND INFORMATION SIGNALS
3 SPECIFICATIONS
3.1 MAIN COMPONENTS
3.2 TECHNICAL SPECIFICATION
3.3 ELECTRICAL CONNECTION
3.4 NOISE LEVEL
3.5 DUST EXTRACTION
3.6 SAFETY DEVICES
4 INSTALLATION
4.1 INSTALLATION ZONE CHARACTERISTIC
4.2 INSTALL OF LOOSE PARTS - INTRODUCTION
5 ADJUSTMENT AND OPERATION
5.1 CENTERING TABLE AND TILTING
5.2 SETTING TABLE SQUARE WITH BLADE
5.3 CHANGING AND SETTING THE BLADE
5.4 BLADE GUIDING
5.5 SETTING CUTTING HEIGHT
6 TROUBLE SHOOTING
7 DIAGRAMS AND COMPONENTS
-2-
1. GENERAL INFORMATION
1.1 FOREWORD
Some information and illustrations in this manual may difer from the machine in your possession, since all the configurations inherent
in the machine complete with all the optionals are described and illustrated. Therefore, refer only to that information strictly connected
with the machine configuration you have purchased.
With this manual we would like to provide the necessary information for maintenance and proper use of the machine. The distribution
network is at your service for any technical problem, spare parts or any new requirement you may have for the development of your
activity.
This manual must be read and understood before operating the machine. This will provde a better working knowledge of
the machine, for increased safety and to obtain the best results.
To facilitate its reading, the manual has been divided into sections pointing out the most important operations. For a
quick research of the topics, it is recommended to consult the index. To better stress the importance of some basic
passages, they have been marked by some preceding symbols:
1.2 MACHINE IDENTIFICATION
There is a identification plate fixed to the machine, containing the manufacturer's data, year of construction, serial
number and technical specifications.
1.3 CUSTOMER SERVICE RECOMMENDATIONS
Apply the machine to skilled and authorized technical staff to carry out any operation dealing with parts disassembly.
Keep to the instructions contained in this manual for the correct use of the machine.
Only skilled and authorized staff shall use and service the machine after reading this manual.
Respect the accident prevention regulations and the general safety and industrial medicine rules.
Indicates imminent risks which may cause serious injury to the operator or other persons. Be
careful and scrupulously follow the instructions.
A statement advising of the need to take care lest serious consequences result in harm to
material items such as the asset or the product.
CAUTION
WARNING
CAUTION

-3-
2. SAFETY PRECAUTIONS
2.1 SAFETY REGULATIONS
Read carefully the operation and maintenance manual before starting, using, servicing and
carrying out any other operation on the machine.
The manufacturer disclaims all responsibilities for damages to persons or things, which might be caused by any failure
to comply with the safety regulations.
- The machine operator shall have all necessary prerequisites in oder to operate a complex machiery.
- It is prohibited to use the machine when under the influence of alcohol, drugs or medication.
- All the operators must be suitably trained for use, adjustment and operation of the machine.
- The operators must carefully read the manual paying particular attention to the warning and safety notes. Furthermore,
they must be informed on the dangers associated with use of the machine and the precautions to be taken, and must
be instructed to periodically inspect the guards and safety devices.
- Before carrying out adjustment, repair or cleaning work, disconnect the machine from the electric power by setting the
main switch to stop.
- After an initial bedding-in period or many hours of operation, the driving belts may slacken; this causes an increase in
the tool stopping time (the stopping time must be less than 10 seconds). Immediately tighten them.
- The working area around the machine must be kept always clean and clear, in order to have an immediate and easy
access to the switchboard.
- Never insert materials which are different from those which are prescribed for the machine utilization. The material to
be machined must not contain any metal parts.
- Never machine pieces which may be too small or too wide ithrespect to the machine capacity.
- Do not work wood which has evident defects (cracks, knots, metal parts, etc.)
- Never place hands among the moving parts and/or materials.
- Keep hands clear from the tool; feed the piece with the aid of a pusher.
- Keep the tools tidy and far away from those not authorized persons.
- Never employ cracked nor uckled, neither not correctlyreground tools.
- Never use the tools beyond the speed limit recommended bythe producers.
- Carefully clean the rest surfaces of tools and make surethat they find perfectly horizontally positioned, and with no
dents at all.
- Always wear gauntlets when handling the tools.
- Mount the tools in the right machining direction.
- Never start the machine before having correctly installed all the protections.
- Connect the dust suction hoods to an adequate suction system; suction must always be activated when the machine is
switched on.
- Never open doors or protections when the machine or the system is operating.
- Many unpleasant experiences have shown that anybody may wear objects which could cause serious accidents.
Therefore, before starting working, take any bracelet, watch or ring off.
- Button the working garment sleeve well around the wrists.
- Take any garment off which, by hanging out, may get tangled in the MOVING UNITS.
- Always wear strong working footwear, as prescribed by the accident-prevention regulations of all countries.
- Use protection glasses. Use appropriate hearing protection systems (headsets, earplugs, etc.) and dust protection
masks.
- Never let unauthorized people repair, service or operate the machine.
- The manufacturer is not responsible for any damage deriving from arbitrary modifications made to the machine.
- Any transport, assembly and dismantling is to be made only by trained staff, who shall have specific skill for the
specified operation.
- The operator must never leave the machine unattended during operation.
- During any working cycle break, switch the machine off.
- In case of long working cycle breaks, disconnect the general power supply.
WARNING

-3-
2. SAFETY PRECAUTIONS
2.1 SAFETY REGULATIONS
Read carefully the operation and maintenance manual before starting, using, servicing and
carrying out any other operation on the machine.
The manufacturer disclaims all responsibilities for damages to persons or things, which might be caused by any failure
to comply with the safety regulations.
- The machine operator shall have all necessary prerequisites in oder to operate a complex machiery.
- It is prohibited to use the machine when under the influence of alcohol, drugs or medication.
- All the operators must be suitably trained for use, adjustment and operation of the machine.
- The operators must carefully read the manual paying particular attention to the warning and safety notes. Furthermore,
they must be informed on the dangers associated with use of the machine and the precautions to be taken, and must
be instructed to periodically inspect the guards and safety devices.
- Before carrying out adjustment, repair or cleaning work, disconnect the machine from the electric power by setting the
main switch to stop.
- After an initial bedding-in period or many hours of operation, the driving belts may slacken; this causes an increase in
the tool stopping time (the stopping time must be less than 10 seconds). Immediately tighten them.
- The working area around the machine must be kept always clean and clear, in order to have an immediate and easy
access to the switchboard.
- Never insert materials which are different from those which are prescribed for the machine utilization. The material to
be machined must not contain any metal parts.
- Never machine pieces which may be too small or too wide ithrespect to the machine capacity.
- Do not work wood which has evident defects (cracks, knots, metal parts, etc.)
- Never place hands among the moving parts and/or materials.
- Keep hands clear from the tool; feed the piece with the aid of a pusher.
- Keep the tools tidy and far away from those not authorized persons.
- Never employ cracked nor uckled, neither not correctlyreground tools.
- Never use the tools beyond the speed limit recommended bythe producers.
- Carefully clean the rest surfaces of tools and make surethat they find perfectly horizontally positioned, and with no
dents at all.
- Always wear gauntlets when handling the tools.
- Mount the tools in the right machining direction.
- Never start the machine before having correctly installed all the protections.
- Connect the dust suction hoods to an adequate suction system; suction must always be activated when the machine is
switched on.
- Never open doors or protections when the machine or the system is operating.
- Many unpleasant experiences have shown that anybody may wear objects which could cause serious accidents.
Therefore, before starting working, take any bracelet, watch or ring off.
- Button the working garment sleeve well around the wrists.
- Take any garment off which, by hanging out, may get tangled in the MOVING UNITS.
- Always wear strong working footwear, as prescribed by the accident-prevention regulations of all countries.
- Use protection glasses. Use appropriate hearing protection systems (headsets, earplugs, etc.) and dust protection
masks.
- Never let unauthorized people repair, service or operate the machine.
- The manufacturer is not responsible for any damage deriving from arbitrary modifications made to the machine.
- Any transport, assembly and dismantling is to be made only by trained staff, who shall have specific skill for the
specified operation.
- The operator must never leave the machine unattended during operation.
- During any working cycle break, switch the machine off.
- In case of long working cycle breaks, disconnect the general power supply.
WARNING
-4-
2.2 RESIDUAL RISKS
Despite observance of all the safety regulations, and use according to the rules described in this manual, residual risks
may still be present, among which the most recurring are:
- contact with tool
- contact with moving parts (belts, pulleys, etc..)
- recoil of the piece or part of it
- accidents due to wood splinters or fragments
- tool insert ejection
- electrocution from contact with live parts
- danger due to incorrect tool installation
- inverse tool rotation due to incorrect electrical connection
- danger due to dust inhalation in case of working without vacuum cleaner.
Bear in mind that the use of any machine tool carries risks.
Use the appropriate care and concentration for any type of machining (also the most simple).
The highest safety is in your hands.
2.3 SAFETY AND INFORMATION SIGNALS
This signals may be applied on the machine; in some cases they indicate possible danger conditions, in others they
serve as indication.
Always take the utmost care.
SAFETY SIGNALS:
Risk of eye injury. Wear eye protection.
Wear hearing protection systems.
Danger of electric shock. Do not access the area when the machine is powered.
Carefully read and understand the manual before using the machine.
INFORMATION SIGNALS:
Indicate the technical characteristics, direction of rotation and inclination, block and release, etc.
Carefully following the directions to simply the use and adjustment of the machine.
The signals are graphically described and do not require further explanation.

-5-
3. SPECIFICATIONS
3.1 MAIN COMPONENTS
3.2 TECHNICAL SPECIFICATION
1 - Blade tension knob
2 - Safety switch (Optional)
3 - Upper door
4 - Switch
5 - Lower door
6 - Lower wheel
7 - Table
8 - Blade guard
9 - Blade guard locking knob
10 - Upper wheel
11 - Lifting knob
12 - Rip fence
13 - Dust port
14 - Motor
SPECIFICATION
Motor voltage 230V/50HZ 120V/60HZ
Motor power 200W 1/3HP
Blade length 1790mm
Blade width 6-13mm
Max. cut depth 120mm
Throat width 245mm
Blade speed 460/1000m/min
Table size 350x318mm
Table tilt 0~45°
Table height to floor 368mm
BAS250
SPECIFICATION BS250B
Motor voltage 220V-240V/50Hz
Power 1/2HP
1
2
3
4
5
6
7
8
9
11
12
13
14
10

-5-
3. SPECIFICATIONS
3.1 MAIN COMPONENTS
3.2 TECHNICAL SPECIFICATION
1 - Blade tension knob
2 - Safety switch (Optional)
3 - Upper door
4 - Switch
5 - Lower door
6 - Lower wheel
7 - Table
8 - Blade guard
9 - Blade guard locking knob
10 - Upper wheel
11 - Lifting knob
12 - Rip fence
13 - Dust port
14 - Motor
SPECIFICATION
Motor voltage 230V/50HZ 120V/60HZ
Motor power 200W 1/3HP
Blade length 1790mm
Blade width 6-13mm
Max. cut depth 120mm
Throat width 245mm
Blade speed 460/1000m/min
Table size 350x318mm
Table tilt 0~45°
Table height to floor 368mm
BAS250
SPECIFICATION BS250B
Motor voltage 220V-240V/50Hz
Power 1/2HP
1
2
3
4
5
6
7
8
9
11
12
13
14
10
- Workmen working in operations processing oak or beech timber where found to develop more often cancer of the
mucous membrane of the nose (adenocarciome of the inner nose) then other workers.
- Experience shows that skin contact with oak or beech dust does not cause cancer
Wood dust and chips, together with an ignition source and the oxygen in the ambient air, can
cause fires and explosions, injuries and allergies.
WARNING
-6-
To avoid electrocution or fire, any maintenance or repair to electrical system should be done only by qualified electricians
using genuine replacement parts.
WARNING
3.3 ELECTRICAL CONNECTION
- Electrical installation should be carried out by competent, qualified personnel.
- The mains connection should be made using the terminal box.
- Replacement of the power supply cable should only be done by a qualified electrician.
3.4 NOISE LEVEL
No load Load
Sound Pressure Level < 80dB(A) < 90dB(A)
Sound Power Level < 90dB(A) < 100dB(A)
The noise levels measured are emission levels and not necessarily the safe working level. Although there is a
correlation between the emission levels and the exposure levels, this cannot be used reliably to determine whether or
not further precautions are required. The factors which affect the actual level of operator exposure include the duration
of exposure, the ambient characteristics and other sources of emission, for example, the number of machines and
other adjacent machining. The permitted exposure values may also vary from country to country. Nevertheless, this
information allows the user of the machine to better evaluate the dangers and risks.
Other factors which reduce exposure to noise are:
- correct tool choice
- tool and machine maintenance
- use of hearing protection systems (e.g. headsets, earplugs,...)
WARNING Please use the hearing protection systems if the above mentioned noise levels
exceed 95dB(A).
3.5 DUST EXTRACTION
If this band saw is operated indoors it is recommended to have it connected to a dust collector. The suction connector,
supplied with the machine, has to be fitted to the dust ejection port of the saw for this purpose. The diameter of the
suction connector is 60 mm.
L
13
24
14
23
S1
N
PE
M
SS2
SS1 Yellow / Green
blue
blue
blue
blue
palm fibre
palm fibre
palm fibre
open shut
white red

1
2
A
B
C
1
B
-7-
3.6 SAFETY DEVICES (Optional)
The machine is equipped with two safety switches as the
picture shown:
A - Safety Switch.
Stops the machine if the upper door or lower door is
opened to perform operations on the blade.
Fig.3.6
4.2 INSTALL OF LOOSE PARTS - INTRODUCTION
A few elements will be disassembled from the machine main structure due to packaging and shipping requirements.
These loose parts should be installed as follows.
WARNING
Please tighten all bolts and nuts absolutely. Otherwise, may cause machine wobble or serious injury to the operator or
other persons.
4.1 INSTALLATION ZONE CHARACTERISTICS
WARNING
It is prohibited to install the machine in explosive environments.
The installation zone must be selected evaluating the work space required depending on the dimension of the pieces
to be machined,and taking into account that a free space of at least 800 mm must be left around the machine.It is also
necessary to check The floor capacity and its surface, so that the machine base is evenly resting on its four supports.A
power outlet and a chip-suction system connection shall be closeto the selected machine setting and it must be
conveniently lighted.
4. INSTALLATION
4.2.1 INSTALL UPPER TRUNNION
- Put the upper trunnion A on to the frame as the picture
shown.
- Put the carriage bolt 1 through the slider B and upper
trunnion A.
- Mount the wing nut C through the washer 2 onto the
carriage bolt 1, and tighten.
Fig.4.2.1
PDF !"# "pdfFactory Pro" $#%&'( www.fineprint.com.cn
A
A

1
2
A
B
C
1
B
-7-
3.6 SAFETY DEVICES (Optional)
The machine is equipped with two safety switches as the
picture shown:
A - Safety Switch.
Stops the machine if the upper door or lower door is
opened to perform operations on the blade.
Fig.3.6
4.2 INSTALL OF LOOSE PARTS - INTRODUCTION
A few elements will be disassembled from the machine main structure due to packaging and shipping requirements.
These loose parts should be installed as follows.
WARNING
Please tighten all bolts and nuts absolutely. Otherwise, may cause machine wobble or serious injury to the operator or
other persons.
4.1 INSTALLATION ZONE CHARACTERISTICS
WARNING
It is prohibited to install the machine in explosive environments.
The installation zone must be selected evaluating the work space required depending on the dimension of the pieces
to be machined,and taking into account that a free space of at least 800 mm must be left around the machine.It is also
necessary to check The floor capacity and its surface, so that the machine base is evenly resting on its four supports.A
power outlet and a chip-suction system connection shall be closeto the selected machine setting and it must be
conveniently lighted.
4. INSTALLATION
4.2.1 INSTALL UPPER TRUNNION
- Put the upper trunnion A on to the frame as the picture
shown.
- Put the carriage bolt 1 through the slider B and upper
trunnion A.
- Mount the wing nut C through the washer 2 onto the
carriage bolt 1, and tighten.
Fig.4.2.1
PDF !"# "pdfFactory Pro" $#%&'( www.fineprint.com.cn
A
A
-8-
4.2.2 INSTALL TABLE
Tools Required for Assembly:
- Faucet spanner
- Put the table A onto the trunnion. Aline the mounting
on trunnion.
- Use four hex bolt 1 and four teeth washer 2 to mount
the table A to trunnion.
4.2.3 INSTALL LEVELING BOLT AND RIP
FENCE
- Put the leveling bolt 1 through the table B.
- Install the guide rail C to table with star knob 5 and
washer 4.
- Slide the rip fence assembly A along the guide rail to
table.
5. ADJUSTMENT AND OPERATION
WARNING
Handle the tools with protective gloves.
5.1 CENTERING TABLE AND TILTING
- Centering table can be adjusted.Loosen the four bolts
which hold the lower table trunnion,and adjust freely.
Place the blade in the middle of the faucet and make it
be parallel to the slotted side of table.
- The table can be tilted from 0 to 45 degree.To tilt, loosen
the wing nut A of the table trunnion.Tighten the wing nut
again when we get the required angle.
- It is recommended to verify the correct angle setting by
making trial cuts in scrap wood.
Fig.4.2.2
A
B
1
2
Fig.4.2.3
Fig.5.1
A
A
B
1
2
3

图.5.5
B
A
A
B
Fig;5.4
-9-
5.2 SETTING TABLE SQUARE WITH BLADE
- PLEASE REFER TO FIG.5.1
- Loosen the wing nut on the trunnion and check the table with a square and adjust the table at 90degree with the blade,
then adjust the pointer to 0 degree.
- To tilt, loosen the wing nut of the table trunnion.
5.3 CHANGING AND SETTING THE BLADE
- This band saw is factory-equipped with a general
purpose wood cutting blade, the blade set. To change the
blade, remove the wing nut and screw from the table.
Then slacken the blade tension by turning the hand
A,take off the blade .
- Fit new blade. First, adjust handlebar A and make the
blade tension. Second, revolve the upper wheel and
adjust handlebar B.To place the blade in the middle or
front of the cushion rubber.Then lock the special nut of
handle B.
5.4 BLADE GUIDING
- The saw blades guide of this band saw ensure an exact
guiding of the blade for clean cuts. When using narrow
blades ensure that the lower blade guide positively
supports the blade from both sides and the rear. Set the
bearings of the upper blade guide to within approx. 0.5
mm of the blade ,or the guide bearings will be easily
broken.
5.5 SETTING CUTTING HEIGHT
- The upper blade guide should always be set as close
as practical against the work. To adjust, loosen the wing
nut at the side of the upper wheel housing, and set the
blade guide to the required height. Tighten wing nut after
setting.
Fig..5.5
PDF !"# "pdfFactory Pro" $#%&'( www.fineprint.com.cn
Fig..5.3
A
B

图.5.5
B
A
A
B
Fig;5.4
-9-
5.2 SETTING TABLE SQUARE WITH BLADE
- PLEASE REFER TO FIG.5.1
- Loosen the wing nut on the trunnion and check the table with a square and adjust the table at 90degree with the blade,
then adjust the pointer to 0 degree.
- To tilt, loosen the wing nut of the table trunnion.
5.3 CHANGING AND SETTING THE BLADE
- This band saw is factory-equipped with a general
purpose wood cutting blade, the blade set. To change the
blade, remove the wing nut and screw from the table.
Then slacken the blade tension by turning the hand
A,take off the blade .
- Fit new blade. First, adjust handlebar A and make the
blade tension. Second, revolve the upper wheel and
adjust handlebar B.To place the blade in the middle or
front of the cushion rubber.Then lock the special nut of
handle B.
5.4 BLADE GUIDING
- The saw blades guide of this band saw ensure an exact
guiding of the blade for clean cuts. When using narrow
blades ensure that the lower blade guide positively
supports the blade from both sides and the rear. Set the
bearings of the upper blade guide to within approx. 0.5
mm of the blade ,or the guide bearings will be easily
broken.
5.5 SETTING CUTTING HEIGHT
- The upper blade guide should always be set as close
as practical against the work. To adjust, loosen the wing
nut at the side of the upper wheel housing, and set the
blade guide to the required height. Tighten wing nut after
setting.
Fig..5.5
PDF !"# "pdfFactory Pro" $#%&'( www.fineprint.com.cn
Fig..5.3
A
B
-10-
6. TROUBLE SHOOTING
WARNING
- For any information or problem contact your area dealer or our technical service center. The necessary interventions
must be carried out by specialised technical personel.
- Before carrying out any fault service or maintenance work, please always TRUN OFF THE SWITCH, UNPLUG
POWER CABLE, WAIT FOR SAW BLADE TO COME TO STANDSTILL.
17
Troubleshooting
Trouble Possible Cause Solution
Saw stops or will not start
1. Saw unplugged
2. Fuse blown or circuit breaker
tripped
3. Cord damaged
1. Check plug connections
2. Replace fuse or reset circuit
breaker
3. Replace cord
Does not make accurate 45°
°°
°or
90°
°°
°cuts
1. Stop not adjusted correctly
2. Angle pointer not set
accurately
3. Miter gauge out of
adjustment
1. Check blade with square and
adjust stop
2. Check blade with square and
adjust pointer
3. Adjust miter gauge
Blade wanders during cut
1. Fence not aligned with blade
2. Warped wood
3. Excessive feed rate
4. Incorrect blade for cut
5. Blade tension not set
properly
6. Guide bearings not set
properly
1. Check and adjust fence
2. Select another piece of wood
3. Reduce feed rate
4. Change blade to correct type
5. Set blade tension according
to blade size
6. Review guide bearing
adjustment on pages 8 & 9
Saw makes unsatisfactory
cuts
1. Dull blade
2. Blade mounted wrong
3. Gum or pitch on blade
4. Incorrect blade for cut
5. Gum or pitch on table
1. Replace blade
2. Teeth should point down
3. Remove blade and clean
4. Change blade to correct type
5. Clean table
Blade does not come up to
speed
1. Extension cord too light or to
long
2. Low shop voltage
1. Replace with adequate size
and length cord
2. Contact your local electric
company
Saw vibrates excessively
1. Base on uneven floor
2. Bad V-belt
3. Motor mount is loose
4. Loose hardware
1. Reposition on flat, level
surface
2. Replace V-belt
3. Tighten motor mount
hardware
4. Tighten hardware

-11-

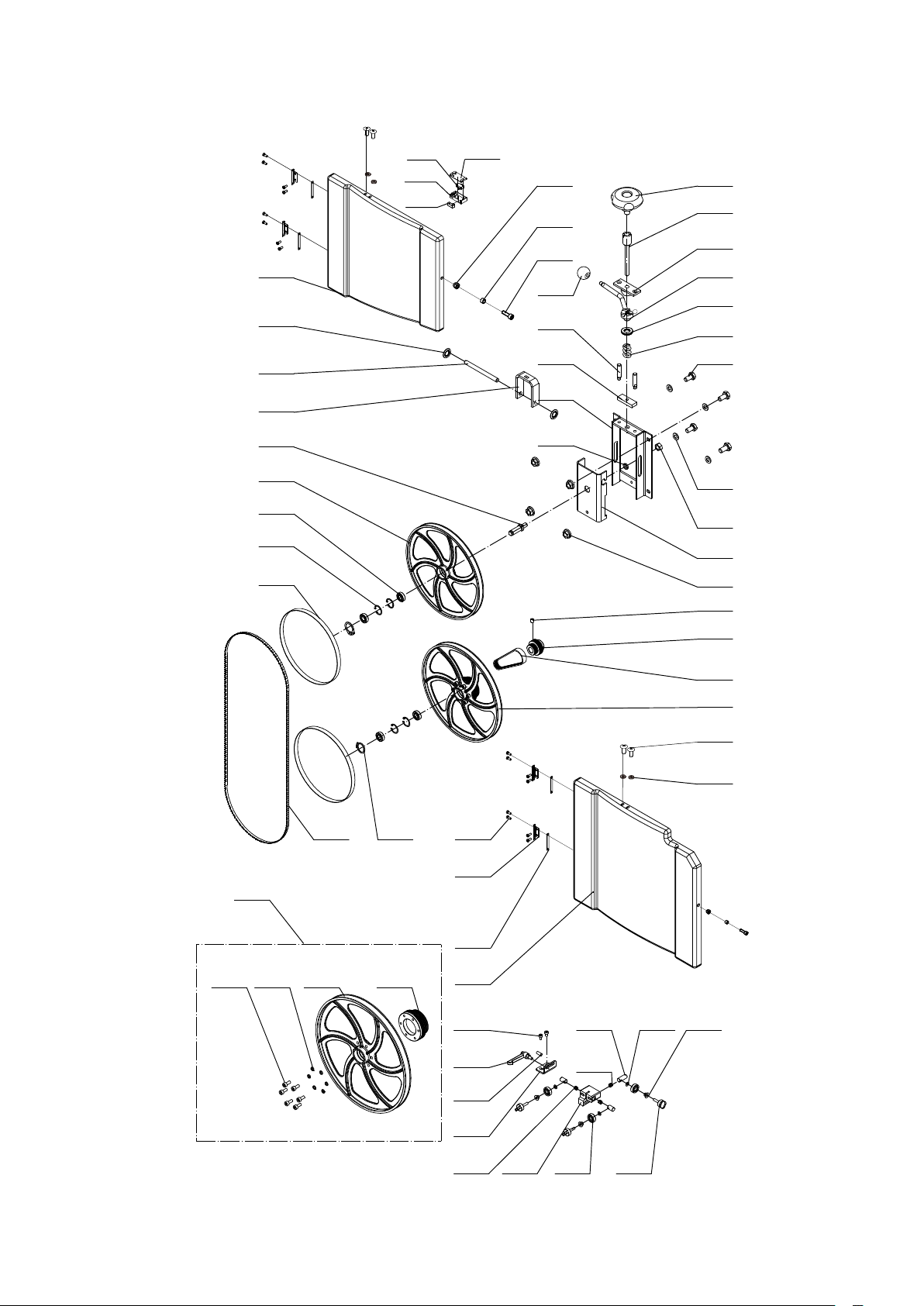

7. DIAGRAMS & COMPONENTS
1 4
15
26
20
21
22
23
24
25
27
28
19
18
37
38
17
16
1 3
1 2
1
2
3
4
5
6
7
9
10 11
8
40
29
30
31
32
33
34
35
36
41
53
52
45
42
44
43
46
155156157158
34
51
4847
50
49
159
160
161
162

-11-
7. DIAGRAMS & COMPONENTS
1 4
15
26
20
21
22
23
24
25
27
28
19
18
37
38
17
16
1 3
1 2
1
2
3
4
5
6
7
9
10 11
8
40
29
30
31
32
33
34
35
36
41
53
52
45
42
44
43
46
155156157158
34
51
4847
50
49
159
160
161
162
-12-
7 5
59
7 17 06 96 86 76 66 5
7 67 2
64
61
62
63
60
88
86
87 8 0
8 1 13 2
13 3
13 5
13 4
136
15 3
14 9
14 8
14 7
14114214314414514 6
15 0
15 1
15 2
139
140
138
137
7 9
7 8
82 13 113015 4
8 4
8 5
8354
12 6
12 7
12 9
12 8
12 5
103
104
105
113
109 10 8 107 106
11 2
11 0
11 1
10210 1100 99
9 1
9 0
8 9
123
122
121
124
120
119
118
117
116
98
95
96
7 7
94
93
92
97
56
55
58
57
11 5114
7 4
7 3

No. Description Part No. Qty. No. Description Part No. Qty. No. Description Part No. Qty.
1 Upper door JMBS1001013001A-117S 1 57 Nut M8GB6177D1B 1 110 Nut JL20061003-001S 2
2 Retaining ring JL22021004 2 58 Screw M4X10GB823B 2 111 Cap JMBS1001060012-001S 2
3 Guide shaft JL22021002 1 59 Switch plate JL22090001-001S 1 112 Square bolt M6X16GB14B 4
4 U support JMBS1001041003-001Z 1 60 Frame JMBS1001011000A-040V 1 113 Nut JL22020002-001S 1
5 Upper wheel shaft JMBS1001041001 1 61 Plug cable SA3102200-521 1 114 Washer WSH6GB97D1Z 1
6 Upper wheel JMBS1001021001-001Z 1 62 Hanging board JMBS1001010003A-001S 1 115 Support JL22030100 1
7 Bearing BRG6001-2RSGB276 2 63 Screw M4X10GB819D1B 2 116 Nut M6GB6177D1B 4
8 Ring CLP28GB893D1B 4 64 End cap JL22010001A-001S 1 117 Screw M4X10GB70D1Z 1
9 Wheel Tyre JMBS1001020003 2 65 Washer WSH8GB96D1B 1 118 Block JMBS1001031001-008S 1
10 Blade JL22020001A 1 66 Wing nut JL20010016 1 119 Plate JMBS1001031002 1
12 Hexagon nut M6GB889D1Z 2 67 Handle JMBS1403060003-001S 1 120 Pointer 1506003-01008S 1
13 Sleeves JMBS1001010008 2 68 Tool holder JL26090001 1 121 Self-tapping Screw ST3D5X9D5GB845B 1
14 Screw M6X25GB70D1Z 2 69 Nut M5GB6170B 1 122 Block JL22030002-001S 1
15 Ball knob JMBS1402040004-001S 1 70 Screw M5X25GB70D1B 1 123 Square bolt M6X35GB12B 1
16 Pilot pin JMBS1001041010 2 71 Screw M5X12GB70D1B 1 124 Table Assy JMBS1001032000 1
17 Lock plate JMBS1001041004 1 72 Window JMBS1001010004 2 125 Screw M6X30GB70D1Z 1
18 Tight frame Assy JMBS1001041100-001Z 1 73 Self-tapping Screw ST3D5X20GB845B 4 126 Washer WSH6GB97D1B 1
19 Washer WSH10GB93B 1 74 Washer WSH4GB96D1B 4 127 Nut JL22020002A-001S 1
20 Lock handle JMBS1001043001-001S 1 75 Dust guard JMBS1001010005 1 128 Washer WSH6GB862D2B 4
21 Lock rod JMBS1001042000 1 76 Washer WSH8GB97D1B 2 129 Hexagon bolt M6X12GB5783B 4
22 Upper cam JMBS1001041201 1 77 Screw M8X30GB70D1B 1 130 Nut M6X16GB80B12D9 1
23 Lower cam JMBS1001041300 1 78 Washer WSH8GB93B 2 131 Support shaft JMBS1001051006 1
24 Holder BRG1528AXKASGB4605 1 79 Screw M8X30GB70D1B 1 132 Adjust shaft JMBS1001051003 1
25 Sping JMBS1001041002 1 80 Lower wheel shaft JMBS1001020001 1 133 Block JMBS1001050002 1
26 Hexagon bolt M6X12GB5783B 4 81 Bolt M6X20GB5783B 4 134 Lock handle JMBS1001051009-001S 1
27 Washer WSH6GB97D1B 4 82 Nut M6GB6170B 4 135 Screw M4X16GB70D1B 2
29 Shaft plate JMBS0901040008-001Z 1 83 Nut M14GB6171Z 1 136 Screw M5X10GB70D2B 2
30 Nut M6GB6177D1B 4 84 Retaining ring CLP12GB894D1B 2 137 Guide plate JMBS1001010001 1
31 Screw M6X10GB77B12D9 2 85 Washer JL45060008 1 138 Rack JMBS1001050001 1
32 Motor Pulley JMBS1001020002A 1 86 Nut M6GB6170B 1 139 Square bolt M6X50GB12B 1
33 Poly V Belt 4PJ394GB16588 1 87 Bolt M6X35GB5781B 1 140 Lift handle JMBS0901050007A-001S 1
34 Lower wheel JMBS1001022100-001Z 1 88 Motor YYH710044A 1 141 Lock handle JMBS0901050015-001S 1
35 Screw M4X10GB818B 8 89 Nut M6GB889D1Z 2 142 Washer WSH6GB96D1B 1
36 Nut M4GB6170B 8 90 Door handle JL26010006-001S 2 143 Sping JMBS0901050016 1
37 Screw M4X10GB818B 8 91 Nut M6X20GB70D1Z 2 144 Adjust washer JL40020004 2
38 Hinge JMBS1404012300 4 92 Protecting bush JL60010004 2 145 Cam JMBS0901050005A 1
40 Thread Plate JMBS1001010009 4 93 Threading plate JMBS0901010012-040V 1 146 Roll pin PIN3X10GB879D1B 1
41 Lower door JMBS1001014001A-117S 1 94 M16 Sleeve JL91046301 2 147 Sliding plate JMBS0901050010A-001S 1
42 Screw M4X16GB70D1B 2 95 Screw M4X5GB818Z 2 148 Guide Rail JMBS1001050003 1
43 Adjust handle KTSB-1-B-M6X50X10 1 96 Guide Rail JMBS1001060001 1 149 Screw M3X4GB818Z 1
44 Screw M6X12GB77B 1 97 Knob JL60020023A 2 150 Nut M3GB6170Z 1
45 Lower blade guide plate JMBS1001010006-040V 1 98 Scale JMBS1001060007A 1 151 Lock handle JMBS1001051008-001S 1 46 Sping JMBS1001051004 2 99 Screw JMBS1001060005A 2 152 Sleeve JL61020013 1
47 Lower blade guide JMBS1001012001A 1 100 Fence bracket JMBS1001060002 1 153 Upper blade guide JMBS1001051001 1
48 Bearing BRG608-2RSGB276 3 101 Handle JMBS1001060003-001S 1 154 Adjust shaft JMBS1001051002 2
49 Lock handle JMBS1001051007-001S 5 102 Mandrel JMBS1001060006 1 155 Motor pulley JMBS1001020002A 1
50 Bearing sleeve JL20042002 3 103 Washer JMBS1001060004 6 156 Lower wheel Assy JMBS1001022100-001Z 1
51 Washer WSH5GB97D1B 3 104 Washer JMBS1001060008 1 157 Washer WSH5GB97D1B 6
52 Sping JMBS1001051005 1 105 Lock plate JMBS1001060010 1 158 Screw M5X12GB70D1B 6
53 Adjust shaft JMBS1001012002A 1 106 Rip fence JMBS1001060009 1 159 Micro switch cover JMBS0901010015 1
54 Square bolt M8X70GB14B 1 107 Block JMBS1001060011-001U 1 160 Micro switch KW3-0Z-2B 1
55 Brush JL22010006 1 108 Screw M6X12GB70D1B 2 161 Micro switch JMBS0901010016 1
56 Switch KJD20-2 1 109 Washer WSH6GB93B 2 162 Top plate JMBS0901010013-001S 1
-13-
