Woodland Mills HM122 User manual

!
OPERATOR’S MANUAL
HM122-MY2020: Rev A Publication Date: 22-Oct-2019
HM122 PORTABLE SAWMILL
7 and 9.5 Horsepower Models

!
This page intentionally left blank.

HM122 Operator’s Manual

TABLE OF CONTENTS
Space
TABLE OF CONTENTS 1_______________________________________
INTRODUCTION 4_____________________________________________
INTENDED USE 4_____________________________________________
SAFETY GUIDELINES 5________________________________________
WORK AREA 6__________________________________________________
INTERNAL COMBUSTION ENGINE SAFETY 6_________________________
PERSONAL SAFETY 7____________________________________________
TOOL USE AND CARE 8__________________________________________
EQUIPMENT OPERATION 9________________________________________
MAINTENANCE 10_______________________________________________
TECHNICAL SPECIFICATIONS 11________________________________

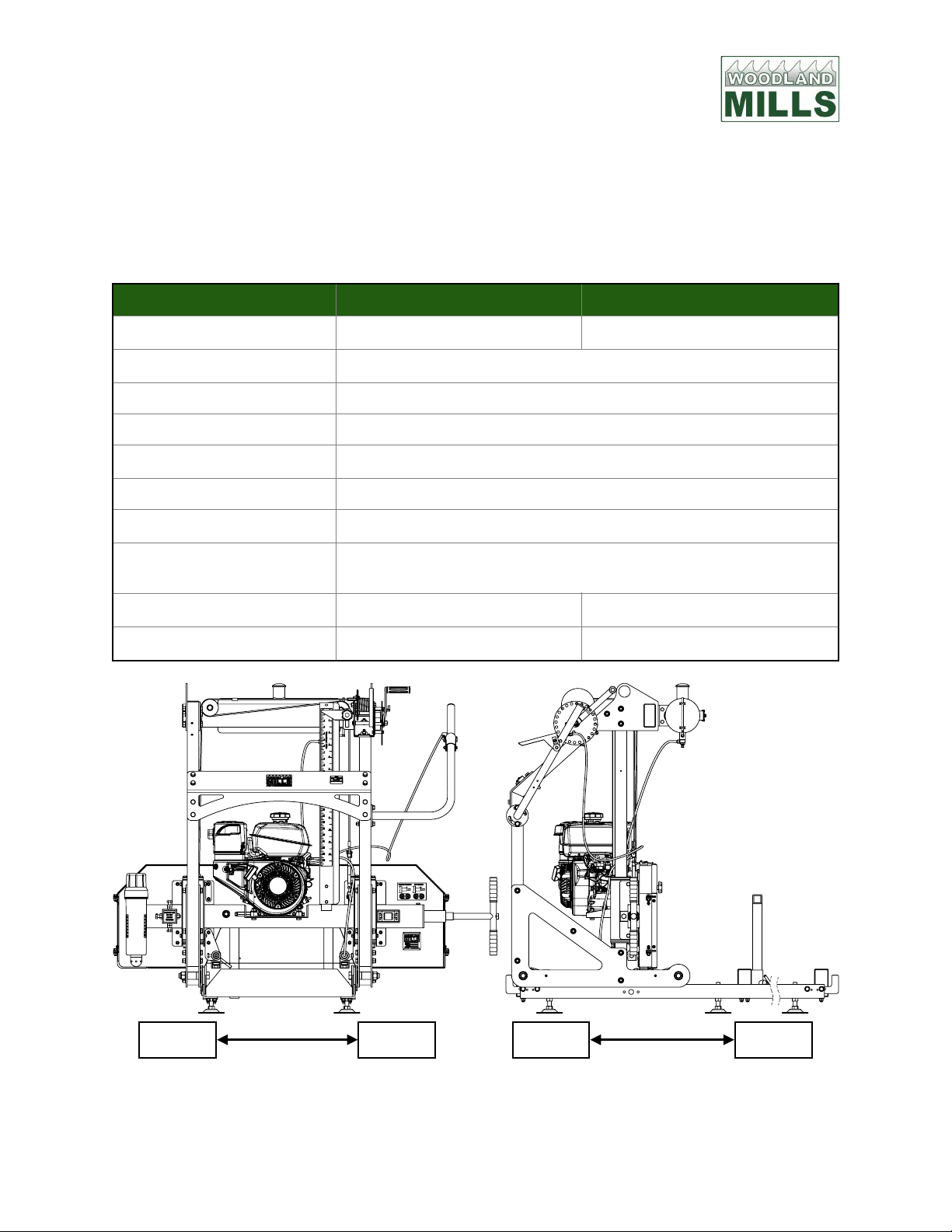

OVERALL DIMENSIONS 12________________________________________
ASSEMBLY 13________________________________________________
1. TOOLS REQUIRED 13_________________________________________
2. UNPACKING 14_______________________________________________
3. TRACK 15___________________________________________________
4. LOG CLAMP AND SUPPORTS 19________________________________
5. SAWMILL HEAD ASSEMBLY 21__________________________________
FRONT POSTS 21_________________________________________________
CARRIAGE LEGS 22______________________________________________
HEAD LOCK-DOWN PLATES 23____________________________________
STANDING THE SAWHEAD UPRIGHT 24____________________________
REAR POSTS 25__________________________________________________
CROSS BEAM 26_________________________________________________
LIFT MECHANISM & LIFT CABLE 28________________________________
LUBRICATION TANK & TUBING 31__________________________________
LOG SCALE 33___________________________________________________
DASHBOARD & HOUR METER 36__________________________________
PUSH HANDLE 38________________________________________________
HM122-MY2020: Rev A
Page of 188
22-Oct-2019

HM122 Operator’s Manual

THROTTLE HANDLE AND CABLE 40________________________________
BAND WHEEL DOOR LATCHES 42__________________________________
TIGHTEN CARRIAGE WHEEL BOLTS 43_____________________________
6. PLACING THE HEAD ON THE TRACK 44__________________________
METHOD 1 45____________________________________________________
METHOD 2 46____________________________________________________
ROLLING THE SAWMILL HEAD ASSEMBLY 47_______________________
LEVELLING THE SAWMILL HEAD ASSEMBLY 48_____________________
GREASING THREADS 49__________________________________________
ENGINE OIL 50___________________________________________________
DIRECTION OF CUT 52_________________________________________
SAWMILL SET-UP PROCEDURES 53_____________________________
DRIVE BELT TENSION 53_________________________________________
BLADE TENSION 55______________________________________________
BLADE TRACKING 56____________________________________________
REDUCING THE BLADE TENSION 57_______________________________
ADJUSTING THE FOLLOWER SIDE TRACKING 58____________________
BLADE GUIDE ADJUSTMENT 60____________________________________
SAWMILL MAINTENANCE 62____________________________________
CHANGING THE BLADE 62________________________________________
REPLACING BELTS 63____________________________________________
TROUBLESHOOTING 66_______________________________________
PARTS LIST 67_______________________________________________
EXPLODED ASSEMBLY VIEWS 72_______________________________
TRACK 72______________________________________________________
SAWHEAD 73___________________________________________________
BACK BEAM 74__________________________________________________
GUIDE BLOCKS 75_______________________________________________
BAND WHEEL HOUSING 76_______________________________________
BAND WHEEL HOUSING DOORS 77________________________________
BAND WHEELS AND BELT TENSIONER 78___________________________
HM122-MY2020: Rev A
Page of 288
22-Oct-2019

HM122 Operator’s Manual

ENGINE COMPONENTS—9.5 hp 79_________________________________
ENGINE COMPONENTS—7 hp 80___________________________________
CARRIAGE 81___________________________________________________
CROSS BEAM 82________________________________________________
CARRIAGE LEG, WHEEL, AND SWEEPER 83_________________________
WINCH 84______________________________________________________
THROTTLE HANDLE 85___________________________________________
CABLES, TUBING & LABELS 86____________________________________
NOTES 87___________________________________________________
HM122-MY2020: Rev A
Page of 388
22-Oct-2019

HM122 Operator’s Manual

INTRODUCTION
Congratulations on your purchase and welcome to Woodland Mills! This manual gives you the
necessary information about your machine so you will be able to use it properly. The entire
manual must be read and understood before you start using the machine. If any questions
should arise that are not covered by this manual, please contact Woodland Mills Inc.
This machine is designed for certain applications only. We strongly recommend that this
machine is not modified and/or used for any application other than that for which it was
designed. If you have any questions relative to a particular application, DO NOT use the
machine until you have first contacted us to determine if it can or should be performed on the
product.
For technical questions and replacement parts, please contact Woodland Mills Inc.
INTENDED USE
Woodland Mills wood sawmills are designed for acreage owners to aid in the milling of natural,
untreated wood with the mill firmly supported on the ground. Materials that are processed may
contain chemicals or by-products that could corrode the machine or damage it, resulting in
safety concerns.
"
"
"
"
OWNER'S RECORD
"
"
Please take a moment to record the following information about your sawmill. If you
need to call for assistance, please be ready to provide your model and serial numbers.
This information will allow us to help you more quickly when you call.
"
"
"
"
MODEL NUMBER
"
"
"
"
"
"
"
"
SERIAL NUMBER
"
"
"
!
"
"
"
"
DATE OF PURCHASE
"
"
"
"
"
"
"
HM122-MY2020: Rev A
Page of 488
22-Oct-2019

HM122 Operator’s Manual

SAFETY GUIDELINES
**SAVE THESE INSTRUCTIONS**
HM122-MY2020: Rev A
Page of 588
22-Oct-2019
Read and understand all instructions. Failure to follow all instructions
listed below may result in electric shock, fire, and/or serious injury.
WARNING!
The warnings, cautions, and instructions discussed in this instruction
manual cannot cover all possible conditions or situations that could
occur. It must be understood by the operator that common sense and
caution are factors which cannot be built into this product but must be
supplied by the operator.
WARNING!
Only operate the engine in a well ventilated area. Carbon Monoxide
(CO) produced by the engine during use can kill. Do not use indoors,
near windows, or in other sheltered areas.
NOTE: All Federal and State laws and any regulation having
jurisdiction covering the safety requirements for use of the machine
take precedence over the statements in this manual. Users of this
machine must adhere to such regulations.
WARNING!

HM122 Operator’s Manual

WORK AREA
•Keep work area clean, free of clutter and well lit. Cluttered and dark work areas can
cause accidents.
•Do not use your sawmill where there is a risk of causing a fire or an explosion; e.g. in
the presence of flammable liquids, gasses, or dust. Power tools create sparks which may
ignite the dust or fumes.
•Keep children and bystanders away while operating a power tool. Distractions can cause
you to lose control, therefore, visitors should remain a safe distance from the work area.
•Be aware of all power lines, electrical circuits, water pipes and other mechanical hazards in
your work area, particularly those hazards below the work surface hidden from the operator’s
view that may be unintentionally contacted and cause personal harm or property damage.
•Be alert of your surroundings. Using power tools in confined work areas may put you
dangerously close to cutting tools and rotating parts.
INTERNAL COMBUSTION ENGINE SAFETY
HM122-MY2020: Rev A
Page of 688
22-Oct-2019
Internal combustion engines present special hazards during operation and
fuelling. Read and follow the warning instructions in the engine Owner’s
Manual and the safety guidelines below. Failure to follow the warnings
and safety standards could result in severe injury or death.
•DO NOT run the machine indoors or in an enclosed area such as a deep
trench unless adequate ventilation, through such items as exhaust fans
or hoses, is provided. Exhaust gas from the engine contains poisonous
carbon monoxide gas (CO); exposure to carbon monoxide can cause
loss of consciousness and may lead to death.
•DO NOT smoke while operating the machine.
•DO NOT smoke when refuelling the engine.
•DO NOT refuel a hot or running engine.
•DO NOT refuel the engine near an open flame.
•DO NOT spill fuel when refuelling the engine.
•DO NOT run the engine near an open flame.
•ALWAYS refill the fuel tank in a well-ventilated area.
•ALWAYS replace the fuel tank cap after refuelling.
•ALWAYS check the fuel lines and the fuel tank for leaks and cracks
before starting the engine. Do not run the machine if fuel leaks are
present or the fuel lines are loose.
•ALWAYS avoid contact with hot fuel, oil, and exhaust fumes.
WARNING!

HM122 Operator’s Manual

PERSONAL SAFETY
•Stay alert, watch what you are doing and use common sense when operating a power
tool. Do not use a power tool when you are tired or under the influence of drugs, alcohol, or
medication. A moment of inattention while operating power tools may result in serious
personal injury.
•Dress properly. Do not wear loose clothing, dangling objects, or jewelry. Keep your hair,
clothing, and gloves away from moving parts. Loose clothes, jewelry, or long hair can be
caught in moving parts. Air vents often cover moving parts and should be avoided.
•Use safety apparel and equipment. Use safety goggles or safety glasses with side shields
which comply with current national standards, or when needed, a face shield. Use a dust
mask in dusty work conditions. This applies to all persons in the work area. Also use non-
skid safety shoes, hardhat, gloves, dust collection systems, and hearing protection when
appropriate.
•Do not overreach. Keep proper footing and balance at all times.
•Remove adjusting keys or wrenches before connecting to the power supply or turning on
the tool. A wrench or key that is left attached to a rotating part of the tool may result in
personal injury.
•Never make blade guide adjustments, remove or install blades, or conduct any other
maintenance or make any other adjustments while the engine is running. Always shut
the engine off, remove the ignition key, and turn the engine off before carrying out any of the
aforementioned procedures. Consult your engine manual for safe shutdown procedures to
prevent accidental ignition.
HM122-MY2020: Rev A
Page of 788
22-Oct-2019

HM122 Operator’s Manual

TOOL USE AND CARE
•Always be sure the operator is familiar with proper safety precautions and operation
techniques before using machine.
•Never touch the engine or muffler while the engine is on or immediately after it has been
turned off. These areas get extremely hot and can cause burns.
•Always close the fuel valve on the engine when the machine is not in use.
•Do not force the tool. Tools do a better and safer job when used in the manner for which
they are designed.
•Never use the sawmill with a malfunctioning switch or throttle. Any power tool that cannot
be controlled with the switch is dangerous and must be repaired before using.
•Turn off the engine and place the switch in the locked or off position before servicing,
adjusting, installing accessories or attachments, or storing. Such preventive safety measures
reduce the risk of starting the power tool accidentally.
•Secure logs with the log screw clamping device instead of with your hand or another
individual’s help. This safety precaution allows for proper tool operation using both hands.
•Storing sawmill. When the sawmill is not in use, store it in a dry, secure place or keep well
covered and out of the reach of children. Inspect the sawmill for good working condition prior
to storage and before re-use.
•Maintain your sawmill. It is recommended that the general condition of the sawmill be
examined before it is used. Keep your sawmill in good repair by adopting a program of
conscientious repair and maintenance in accordance with the recommended procedures
found in this manual. If any abnormal vibrations or noise occurs, turn the sawmill off
immediately and have the problem corrected before further use.
•Keep saw blades sharp and clean. Properly maintained bandsaw blades are less likely to
bind and are easier to control.
•Cleaning and Lubrication. Use only soap and a damp cloth to clean your sawmill. Many
household cleaners are harmful to plastic and rubber components on the sawmill.
•Use only accessories that are recommended by the manufacturer for your model.
Accessories that may be suitable for another sawmill may create a risk of injury when used
on the sawmill.
•Always operate machine with all safety devices and guards in place and in working order.
DO NOT modify or make changes to safety devices. DO NOT operate machine if any safety
devices or guards are missing or inoperative.
•Never leave sawmill running unattended.
•Coiled blades can spring apart with considerable force and unpredictably in any
direction. Always deal with coiled blades, including those packaged in boxes, with the
utmost care.
•Never use the equipment to cut anything other than lumber or for any purpose other than
cutting lumber as described in this manual.
HM122-MY2020: Rev A
Page of 888
22-Oct-2019

HM122 Operator’s Manual

EQUIPMENT OPERATION
1. Wear heavy-duty work gloves, ANSI-approved goggles behind a full face shield, steel-toed
work boots, and a dust mask.
2. Operate only with assistance.
3. Cut-off branches from the lumber to be processed.
4. Place the lumber to be cut on the track supports.
5. Clamp the lumber firmly in place using the included log clamp and supports.
6. Fill the lubrication tank with clean water. Add a ¼cup of liquid dish soap per full tank; add
less if topping up a partially full tank. The soap helps keep the blade clean(er) when
excess tree oils and sap are encountered.
7. Start and operate the engine according to the provided engine manual.
8. Depress the throttle to bring the blade up to speed—the throttle should be fully depressed
while the saw is under load.
9. Roll the head assembly slowly along the track and against the lumber to make the cut.
10. Trim off the rounded sides of the log.
11. When the log is squared-off, boards or posts can be cut to standard or custom
specifications.
12. To prevent accidents, turn off the engine and disconnect its spark plug wire after use. Wait
for the engine to cool, clean external parts with a clean cloth, then store the equipment out
of children’s reach.
HM122-MY2020: Rev A
Page of 988
22-Oct-2019
To avoid death or serious injury, do not cut lumber containing
embedded foreign objects such as nails, metal fragments, etc.
WARNING!
The operator and any assistants must stay clear of the front and back
of the blade whenever the engine is on.
WARNING!

HM122 Operator’s Manual

MAINTENANCE
Proper and routine maintenance is critical to operator safety, achieving good milling results, and
to prolong the life of your investment.
•Band Wheel Bearings — Inspect before use to ensure they are not worn. Bearings are
sealed and do not need to be greased.
•Blade Guide Bearings — Inspect before use for excessive grooves or scoring in the
bearing case. Replace if necessary.
•Blade Tension — Grease threads of tensioning T-handle when dry or as required. Use
multi-purpose, extreme-pressure grease.
•Log Clamp — Spray the cam mechanism with dry silicone spray frequently.
•Belts — Periodically check the condition and wear of the drive and idler belt. Ensure that
the blade does not ride on the band wheels.
•Drive Belt — Periodically check the tension of the drive belt.
•Carriage Posts (Front) — Spray posts before use with a silicone spray lubricant such as
3-in-1 or Jig-A-Loo.
•Band Wheel Guards — Routinely remove any build-up of sawdust that may collect inside
the band wheel guards.
•Lubrication Tank — Only fill with a water and dish soap mixture, or in winter months use
windshield washer fluid. Do not leave lubricant in tank if temperature falls below 0˚ C.
•Blade Lubricant — Never use diesel fuel or kerosene as blade lubricant. These
substances lead to premature wear of your belts and poor sawing performance. For winter
operation, replace the water lubricant with windshield washer fluid.
•Engine — Check the engine oil level before each use and maintain the engine per the
instructions set out by the engine manufacturer in the engine manual. The engine is
equipped with an oil alert system and will not start without adding oil before starting.
•Lifting Cables — Before, during, and after operation, regularly inspect the cables for any
wear or kinks. Ensure that the cables are in perfect condition. Oil the coiled part of the
cable often to prevent premature wear. Replace with new cables as necessary.
HM122-MY2020: Rev A
Page of 10 88
22-Oct-2019

HM122 Operator’s Manual

TECHNICAL SPECIFICATIONS
The HM122 sawmill comes in two variants: the HM122-7 that utilizes a 7 horsepower engine
and the HM122-9.5 with a 9.5 horsepower engine. Both versions are assembled and operated
in the same manner. Pictures and graphics used in this manual display the HM122-9.5 sawmill
but the instructions still apply to both.
Item
HM122-7 Specification
HM122-9.5 Specification
Gasoline Engine
7hp Kohler Command Pro
9.5 hp Kohler Command Pro
Max Log Diameter
22 in [559 mm]
Max Board Width
20 in [508 mm]
Max Board Thickness
6in [152 mm]
Blade Size
1-¼x 125 in [32 mm x 3175 mm]
Track Length
153-½” [3899 mm]
Track Width
26 in [660 mm]
Track Height Adjustability
(top of bunk)
7-⅞to 10-⅝in [200 to 270 mm]
Product Weight
460 lb [210 kg]
460 lb [210 kg]
Shipping Weight
500 lb [227 kg]
500 lb [227 kg]
HM122-MY2020: Rev A
Page of 11 88
22-Oct-2019
Left
Right
Rear
Front

HM122 Operator’s Manual

OVERALL DIMENSIONS
HM122-MY2020: Rev A
Page of 12 88
22-Oct-2019
73-1/16" MAX
1856mm MAX
65-7/8"
1674mm
158-7/16" MAX
4024mm MAX

HM122 Operator’s Manual

ASSEMBLY
1. TOOLS REQUIRED
During several of the assembly steps, more than one socket or wrench of the same size may be
required to assemble the hardware. A socket or box wrench in combination with an adjustable
wrench can be utilized if multiple same size tools are in limited supply.
TOOL
SPECIFICATION
Wrench/Socket
7 mm (2X)
Wrench/Socket
10 mm (2X)
Wrench/Socket
13 mm (2X)
Wrench/Socket
14 mm (2X)
Wrench/Socket
15 mm (2X)
Wrench/Socket
16 mm (2X)
Wrench/Socket
17 mm (2X)
Wrench/Socket
18 mm (2X)
Wrench/Socket
19 mm (2X)
Wrench
24 mm or Adjustable Wrench (2X)
Wrench
30 mm or Adjustable Wrench (2X)
Hex Key
3 mm
Hex Key
4 mm
Phillips Head Screwdriver
No. 3
Torque Wrench
Capable of at least 25 ft•lb (34 N•m)
Tape Measure
Standard Inch/Metric Tape Measure
HM122-MY2020: Rev A
Page of 13 88
22-Oct-2019

HM122 Operator’s Manual

2. UNPACKING
Unpack the contents of the crate except for the sawhead and the two long boxes in the bottom
that contain the sections of track. Unfasten the two (2) M8 bolts/nuts on the front of the crate
using a socket/wrench. Place two (2) 6-8 in [150-200 mm] tall support blocks in front of the
crate, bend the front of the crate down, and then lay the cardboard wall over it. Carefully rotate
the sawhead down onto the cardboard and support blocks and slide it out of the crate as shown
below.
The two long track boxes can now be removed and the crate discarded.
HM122-MY2020: Rev A
Page of 14 88
22-Oct-2019

HM122 Operator’s Manual

3. TRACK
Assemble the track system with the provided components and hardware listed in the table
below. It is important to assemble and level the track on a firm foundation before tightening all
of the hardware and it should ideally be a minimum of 4 in [100 mm] off the ground. This will
allow for easy cleanup of sawdust from under the tracks and height adjustment of the log
supports.
12x
M10 X 30 mm
Flanged Hex
Bolt
4x
Track Rail
30x
M10 X 25 mm
Flanged Hex
Bolt
2x
Reinforcement
Plate
36x
M10 Flanged
Lock Nut
4x
Carriage Stop
2x
End Bunk
3x
Mid Bunk
12x
Track Foot









HM122-MY2020: Rev A
Page of 15 88
22-Oct-2019
If a Woodland Mills sawmill trailer was
purchased with this sawmill, skip this track
assembly section and follow the track
assembly instructions in those manuals.

HM122 Operator’s Manual

The track comes completely disassembled from the factory. Lay out all the components on a
flat piece of level ground prior to assembly. See the TRACK exploded view for a more detailed
part breakdown.
HM122-MY2020: Rev A
Page of 16 88
22-Oct-2019

HM122 Operator’s Manual

When assembling the log bunks to the rails, ensure that the two end bunks are square (90°) as
shown in Figure 1. Use sixteen (16) M10 X 25 mm bolts at both end bunks and the two(2) mid
bunks excluding the mid bunk at the rail joint (Figures 1 & 2).
Use twelve (12) M10 X 30 mm bolts and lock nuts to join the centre bunk and reinforcement
plates to the rails at the rail joints. Sandwich the rails between the bunk and reinforcement plate
(Figure 3).
HM122-MY2020: Rev A
Page of 17 88
22-Oct-2019
90°
90°
1
2
90°
3

HM122 Operator’s Manual

Attach the twelve (12) levelling feet to the track at the locations shown below. The bolt can be
turned to either raise or lower the foot to adjust the level of the track (Figure 4). If setting the
track on wooden blocks, use wood screws in the four holes in the foot base to secure each foot
in place.
Assemble the four (4) carriage stops to the ends of the rails using eight (8) M10 X 25 mm bolts
and lock nuts. Ensure carriage stops are assembled to the inside face of the rails, not the
outside (Figure 4).
The assembled track should measure 26 in [660 mm] wide when measuring from the outside
faces of the rails.
HM122-MY2020: Rev A
Page of 18 88
22-Oct-2019
26 in [660 mm]
4
90.0°
26"
661mm
5
